Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,403,446
ssj_ops@100% per JVM = 84,429
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,404,611
Calibration 2     5,420,205
Calibration 3     5,413,086
ssj_ops@calibrated=5,416,645
100% 99.8% 5,416,645 5,403,446
90% 90.0% 4,874,981 4,876,461
80% 79.8% 4,333,316 4,320,771
70% 70.0% 3,791,652 3,793,484
60% 59.9% 3,249,987 3,243,377
50% 50.0% 2,708,323 2,708,611
40% 40.0% 2,166,658 2,166,366
30% 30.0% 1,624,994 1,624,796
20% 20.0% 1,083,329 1,082,757
10% 10.0% 541,665 541,694
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node6.001 86,922
linux-node6.002 88,573
linux-node6.003 88,837
linux-node6.004 78,707
linux-node6.005 86,987
linux-node6.006 80,078
linux-node6.007 87,574
linux-node6.008 89,482
linux-node6.009 79,592
linux-node6.010 89,383
linux-node6.011 89,044
linux-node6.012 87,626
linux-node6.013 79,065
linux-node6.014 82,857
linux-node6.015 85,391
linux-node6.016 78,820
linux-node6.017 84,615
linux-node6.018 79,125
linux-node6.019 79,348
linux-node6.020 87,732
linux-node6.021 87,394
linux-node6.022 88,154
linux-node6.023 89,703
linux-node6.024 79,131
linux-node6.025 88,613
linux-node6.026 84,235
linux-node6.027 86,923
linux-node6.028 78,864
linux-node6.029 85,994
linux-node6.030 86,202
linux-node6.031 83,072
linux-node6.032 88,253
linux-node6.033 88,690
linux-node6.034 85,872
linux-node6.035 81,059
linux-node6.036 86,651
linux-node6.037 80,129
linux-node6.038 83,810
linux-node6.039 80,216
linux-node6.040 81,107
linux-node6.041 87,699
linux-node6.042 84,517
linux-node6.043 82,256
linux-node6.044 83,466
linux-node6.045 78,609
linux-node6.046 86,746
linux-node6.047 86,782
linux-node6.048 86,193
linux-node6.049 79,169
linux-node6.050 80,869
linux-node6.051 77,959
linux-node6.052 87,970
linux-node6.053 88,999
linux-node6.054 87,317
linux-node6.055 88,427
linux-node6.056 88,363
linux-node6.057 89,875
linux-node6.058 83,625
linux-node6.059 80,714
linux-node6.060 79,656
linux-node6.061 79,548
linux-node6.062 81,633
linux-node6.063 81,426
linux-node6.064 87,799
ssj_ops@100% 5,403,446
ssj_ops@100% per JVM 84,429

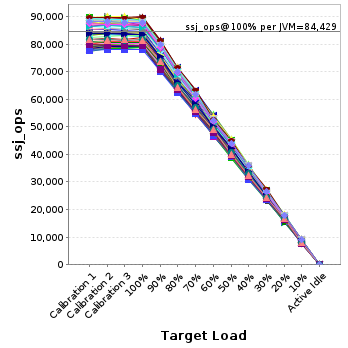

Graph of per-instance results
JVM 'linux-node6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,974
Calibration 2     88,161
Calibration 3     87,535
ssj_ops@calibrated=87,848
100% 98.9% 87,848 86,922
90% 89.2% 79,063 78,375
80% 80.4% 70,278 70,673
70% 70.4% 61,494 61,839
60% 59.0% 52,709 51,873
50% 50.5% 43,924 44,383
40% 40.3% 35,139 35,414
30% 30.0% 26,354 26,342
20% 19.9% 17,570 17,465
10% 9.7% 8,785 8,537
Active Idle   0 0
Graph of results
JVM 'linux-node6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,098
Calibration 2     89,155
Calibration 3     88,856
ssj_ops@calibrated=89,006
100% 99.5% 89,006 88,573
90% 89.7% 80,105 79,799
80% 79.6% 71,205 70,848
70% 69.6% 62,304 61,926
60% 60.4% 53,403 53,791
50% 49.9% 44,503 44,385
40% 39.8% 35,602 35,390
30% 30.3% 26,702 26,925
20% 19.7% 17,801 17,513
10% 10.0% 8,901 8,870
Active Idle   0 0
Graph of results
JVM 'linux-node6.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,444
Calibration 2     89,742
Calibration 3     89,787
ssj_ops@calibrated=89,765
100% 99.0% 89,765 88,837
90% 90.3% 80,788 81,074
80% 79.8% 71,812 71,654
70% 69.2% 62,835 62,149
60% 60.6% 53,859 54,439
50% 50.4% 44,882 45,230
40% 40.3% 35,906 36,159
30% 29.6% 26,929 26,577
20% 19.7% 17,953 17,682
10% 10.2% 8,976 9,185
Active Idle   0 0
Graph of results
JVM 'linux-node6.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,712
Calibration 2     78,856
Calibration 3     78,824
ssj_ops@calibrated=78,840
100% 99.8% 78,840 78,707
90% 89.6% 70,956 70,609
80% 79.8% 63,072 62,921
70% 70.3% 55,188 55,427
60% 60.4% 47,304 47,618
50% 50.1% 39,420 39,486
40% 40.1% 31,536 31,630
30% 29.8% 23,652 23,475
20% 19.8% 15,768 15,575
10% 10.3% 7,884 8,108
Active Idle   0 0
Graph of results
JVM 'linux-node6.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,216
Calibration 2     87,409
Calibration 3     87,284
ssj_ops@calibrated=87,346
100% 99.6% 87,346 86,987
90% 89.6% 78,612 78,250
80% 79.7% 69,877 69,655
70% 70.1% 61,142 61,251
60% 60.7% 52,408 53,001
50% 50.2% 43,673 43,848
40% 39.6% 34,939 34,565
30% 30.1% 26,204 26,262
20% 20.0% 17,469 17,506
10% 10.1% 8,735 8,794
Active Idle   0 0
Graph of results
JVM 'linux-node6.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,527
Calibration 2     80,509
Calibration 3     80,316
ssj_ops@calibrated=80,412
100% 99.6% 80,412 80,078
90% 89.3% 72,371 71,808
80% 79.8% 64,330 64,153
70% 70.2% 56,289 56,481
60% 59.4% 48,247 47,727
50% 50.4% 40,206 40,498
40% 39.7% 32,165 31,942
30% 30.7% 24,124 24,716
20% 20.1% 16,082 16,185
10% 10.0% 8,041 8,008
Active Idle   0 0
Graph of results
JVM 'linux-node6.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,836
Calibration 2     88,630
Calibration 3     88,448
ssj_ops@calibrated=88,539
100% 98.9% 88,539 87,574
90% 89.9% 79,685 79,584
80% 80.2% 70,832 71,039
70% 70.5% 61,978 62,415
60% 60.2% 53,124 53,323
50% 49.6% 44,270 43,906
40% 39.8% 35,416 35,250
30% 30.4% 26,562 26,897
20% 20.1% 17,708 17,787
10% 9.9% 8,854 8,804
Active Idle   0 0
Graph of results
JVM 'linux-node6.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,401
Calibration 2     89,839
Calibration 3     89,523
ssj_ops@calibrated=89,681
100% 99.8% 89,681 89,482
90% 89.4% 80,713 80,211
80% 79.2% 71,745 71,066
70% 69.0% 62,777 61,837
60% 60.3% 53,809 54,106
50% 50.8% 44,841 45,523
40% 39.7% 35,872 35,618
30% 30.1% 26,904 26,990
20% 20.0% 17,936 17,943
10% 10.0% 8,968 8,967
Active Idle   0 0
Graph of results
JVM 'linux-node6.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,908
Calibration 2     79,897
Calibration 3     79,686
ssj_ops@calibrated=79,792
100% 99.7% 79,792 79,592
90% 90.5% 71,813 72,230
80% 80.1% 63,833 63,900
70% 70.4% 55,854 56,152
60% 60.1% 47,875 47,986
50% 49.5% 39,896 39,532
40% 40.2% 31,917 32,072
30% 29.5% 23,938 23,513
20% 20.4% 15,958 16,267
10% 9.9% 7,979 7,871
Active Idle   0 0
Graph of results
JVM 'linux-node6.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,400
Calibration 2     89,431
Calibration 3     89,439
ssj_ops@calibrated=89,435
100% 99.9% 89,435 89,383
90% 90.3% 80,492 80,769
80% 79.8% 71,548 71,394
70% 70.7% 62,605 63,189
60% 60.3% 53,661 53,961
50% 50.5% 44,718 45,123
40% 40.0% 35,774 35,770
30% 30.2% 26,831 26,974
20% 19.8% 17,887 17,709
10% 10.3% 8,944 9,253
Active Idle   0 0
Graph of results
JVM 'linux-node6.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,637
Calibration 2     89,466
Calibration 3     89,132
ssj_ops@calibrated=89,299
100% 99.7% 89,299 89,044
90% 90.4% 80,369 80,759
80% 79.8% 71,439 71,231
70% 69.7% 62,509 62,254
60% 59.5% 53,579 53,110
50% 50.4% 44,649 45,034
40% 40.2% 35,720 35,862
30% 30.0% 26,790 26,765
20% 19.9% 17,860 17,790
10% 9.8% 8,930 8,730
Active Idle   0 0
Graph of results
JVM 'linux-node6.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,298
Calibration 2     88,008
Calibration 3     87,975
ssj_ops@calibrated=87,992
100% 99.6% 87,992 87,626
90% 90.0% 79,192 79,173
80% 80.1% 70,393 70,520
70% 71.5% 61,594 62,900
60% 60.3% 52,795 53,070
50% 51.0% 43,996 44,835
40% 40.5% 35,197 35,607
30% 29.6% 26,397 26,002
20% 19.7% 17,598 17,315
10% 10.0% 8,799 8,821
Active Idle   0 0
Graph of results
JVM 'linux-node6.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,165
Calibration 2     79,251
Calibration 3     79,375
ssj_ops@calibrated=79,313
100% 99.7% 79,313 79,065
90% 89.7% 71,382 71,132
80% 80.3% 63,451 63,681
70% 71.3% 55,519 56,516
60% 58.5% 47,588 46,423
50% 49.6% 39,657 39,372
40% 39.5% 31,725 31,301
30% 29.7% 23,794 23,580
20% 20.0% 15,863 15,853
10% 10.2% 7,931 8,079
Active Idle   0 0
Graph of results
JVM 'linux-node6.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,325
Calibration 2     83,372
Calibration 3     83,174
ssj_ops@calibrated=83,273
100% 99.5% 83,273 82,857
90% 89.3% 74,945 74,371
80% 79.1% 66,618 65,841
70% 70.4% 58,291 58,649
60% 59.5% 49,964 49,562
50% 50.1% 41,636 41,737
40% 39.3% 33,309 32,756
30% 29.9% 24,982 24,894
20% 19.4% 16,655 16,173
10% 10.0% 8,327 8,287
Active Idle   0 0
Graph of results
JVM 'linux-node6.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,256
Calibration 2     85,437
Calibration 3     85,510
ssj_ops@calibrated=85,473
100% 99.9% 85,473 85,391
90% 89.4% 76,926 76,372
80% 79.9% 68,379 68,284
70% 69.5% 59,831 59,436
60% 59.9% 51,284 51,197
50% 49.5% 42,737 42,308
40% 38.8% 34,189 33,162
30% 30.2% 25,642 25,794
20% 19.7% 17,095 16,855
10% 9.9% 8,547 8,463
Active Idle   0 0
Graph of results
JVM 'linux-node6.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,353
Calibration 2     78,880
Calibration 3     78,911
ssj_ops@calibrated=78,896
100% 99.9% 78,896 78,820
90% 89.8% 71,006 70,882
80% 80.2% 63,117 63,295
70% 68.8% 55,227 54,305
60% 59.6% 47,337 47,043
50% 49.7% 39,448 39,226
40% 40.3% 31,558 31,828
30% 29.9% 23,669 23,590
20% 20.7% 15,779 16,316
10% 9.8% 7,890 7,712
Active Idle   0 0
Graph of results
JVM 'linux-node6.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,465
Calibration 2     85,189
Calibration 3     84,915
ssj_ops@calibrated=85,052
100% 99.5% 85,052 84,615
90% 90.2% 76,547 76,693
80% 80.3% 68,042 68,264
70% 70.8% 59,536 60,196
60% 60.8% 51,031 51,678
50% 50.1% 42,526 42,625
40% 40.0% 34,021 33,985
30% 30.9% 25,516 26,321
20% 19.9% 17,010 16,935
10% 9.9% 8,505 8,411
Active Idle   0 0
Graph of results
JVM 'linux-node6.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,426
Calibration 2     79,285
Calibration 3     79,311
ssj_ops@calibrated=79,298
100% 99.8% 79,298 79,125
90% 90.3% 71,368 71,574
80% 79.9% 63,438 63,381
70% 70.5% 55,509 55,933
60% 60.2% 47,579 47,710
50% 49.7% 39,649 39,399
40% 39.7% 31,719 31,469
30% 30.2% 23,789 23,927
20% 19.5% 15,860 15,439
10% 10.2% 7,930 8,104
Active Idle   0 0
Graph of results
JVM 'linux-node6.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,049
Calibration 2     79,559
Calibration 3     79,514
ssj_ops@calibrated=79,536
100% 99.8% 79,536 79,348
90% 89.3% 71,583 71,042
80% 79.4% 63,629 63,143
70% 71.0% 55,676 56,500
60% 59.9% 47,722 47,633
50% 50.4% 39,768 40,121
40% 40.3% 31,815 32,092
30% 30.5% 23,861 24,248
20% 20.1% 15,907 15,984
10% 9.6% 7,954 7,599
Active Idle   0 0
Graph of results
JVM 'linux-node6.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,689
Calibration 2     87,992
Calibration 3     88,018
ssj_ops@calibrated=88,005
100% 99.7% 88,005 87,732
90% 90.1% 79,204 79,310
80% 79.1% 70,404 69,611
70% 69.3% 61,603 60,961
60% 59.5% 52,803 52,402
50% 50.1% 44,002 44,115
40% 40.8% 35,202 35,926
30% 29.3% 26,401 25,803
20% 19.9% 17,601 17,512
10% 10.0% 8,800 8,829
Active Idle   0 0
Graph of results
JVM 'linux-node6.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,265
Calibration 2     87,722
Calibration 3     88,023
ssj_ops@calibrated=87,873
100% 99.5% 87,873 87,394
90% 91.4% 79,085 80,317
80% 79.8% 70,298 70,083
70% 69.6% 61,511 61,139
60% 60.1% 52,724 52,809
50% 50.9% 43,936 44,730
40% 40.8% 35,149 35,812
30% 30.0% 26,362 26,326
20% 20.0% 17,575 17,615
10% 10.0% 8,787 8,754
Active Idle   0 0
Graph of results
JVM 'linux-node6.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,347
Calibration 2     89,315
Calibration 3     89,196
ssj_ops@calibrated=89,255
100% 98.8% 89,255 88,154
90% 90.2% 80,330 80,531
80% 80.0% 71,404 71,396
70% 68.8% 62,479 61,416
60% 59.4% 53,553 52,991
50% 49.8% 44,628 44,414
40% 39.8% 35,702 35,525
30% 30.3% 26,777 27,081
20% 20.1% 17,851 17,983
10% 9.6% 8,926 8,531
Active Idle   0 0
Graph of results
JVM 'linux-node6.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,513
Calibration 2     89,608
Calibration 3     89,377
ssj_ops@calibrated=89,493
100% 100.2% 89,493 89,703
90% 90.8% 80,544 81,279
80% 79.3% 71,594 70,988
70% 70.3% 62,645 62,879
60% 59.9% 53,696 53,600
50% 50.0% 44,746 44,706
40% 39.6% 35,797 35,452
30% 29.7% 26,848 26,547
20% 20.0% 17,899 17,941
10% 10.2% 8,949 9,159
Active Idle   0 0
Graph of results
JVM 'linux-node6.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,335
Calibration 2     79,164
Calibration 3     79,004
ssj_ops@calibrated=79,084
100% 100.1% 79,084 79,131
90% 88.6% 71,175 70,052
80% 80.1% 63,267 63,347
70% 69.7% 55,359 55,085
60% 59.8% 47,450 47,323
50% 49.5% 39,542 39,177
40% 39.4% 31,634 31,187
30% 30.3% 23,725 23,958
20% 20.2% 15,817 15,981
10% 9.9% 7,908 7,854
Active Idle   0 0
Graph of results
JVM 'linux-node6.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,622
Calibration 2     88,336
Calibration 3     88,436
ssj_ops@calibrated=88,386
100% 100.3% 88,386 88,613
90% 90.8% 79,548 80,283
80% 79.2% 70,709 70,029
70% 70.3% 61,870 62,177
60% 60.8% 53,032 53,699
50% 50.1% 44,193 44,304
40% 39.7% 35,355 35,069
30% 29.3% 26,516 25,921
20% 20.0% 17,677 17,642
10% 10.1% 8,839 8,930
Active Idle   0 0
Graph of results
JVM 'linux-node6.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,146
Calibration 2     83,865
Calibration 3     83,839
ssj_ops@calibrated=83,852
100% 100.5% 83,852 84,235
90% 89.6% 75,467 75,146
80% 80.5% 67,082 67,465
70% 70.4% 58,696 59,067
60% 59.8% 50,311 50,121
50% 50.6% 41,926 42,469
40% 40.0% 33,541 33,536
30% 30.1% 25,156 25,277
20% 19.9% 16,770 16,713
10% 10.1% 8,385 8,485
Active Idle   0 0
Graph of results
JVM 'linux-node6.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,135
Calibration 2     88,261
Calibration 3     88,147
ssj_ops@calibrated=88,204
100% 98.5% 88,204 86,923
90% 89.8% 79,384 79,183
80% 79.6% 70,563 70,242
70% 69.8% 61,743 61,577
60% 59.5% 52,923 52,513
50% 50.0% 44,102 44,070
40% 39.9% 35,282 35,180
30% 30.2% 26,461 26,676
20% 19.9% 17,641 17,582
10% 9.9% 8,820 8,762
Active Idle   0 0
Graph of results
JVM 'linux-node6.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,118
Calibration 2     78,535
Calibration 3     78,640
ssj_ops@calibrated=78,588
100% 100.4% 78,588 78,864
90% 90.3% 70,729 70,990
80% 80.1% 62,870 62,952
70% 69.7% 55,011 54,807
60% 59.5% 47,153 46,777
50% 50.0% 39,294 39,260
40% 40.9% 31,435 32,172
30% 29.9% 23,576 23,509
20% 19.7% 15,718 15,458
10% 10.0% 7,859 7,873
Active Idle   0 0
Graph of results
JVM 'linux-node6.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,248
Calibration 2     85,806
Calibration 3     85,513
ssj_ops@calibrated=85,660
100% 100.4% 85,660 85,994
90% 90.2% 77,094 77,264
80% 79.8% 68,528 68,351
70% 70.4% 59,962 60,316
60% 61.0% 51,396 52,214
50% 49.9% 42,830 42,709
40% 39.8% 34,264 34,100
30% 29.9% 25,698 25,580
20% 20.0% 17,132 17,132
10% 9.9% 8,566 8,438
Active Idle   0 0
Graph of results
JVM 'linux-node6.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,954
Calibration 2     86,862
Calibration 3     86,705
ssj_ops@calibrated=86,783
100% 99.3% 86,783 86,202
90% 90.6% 78,105 78,658
80% 79.7% 69,427 69,131
70% 69.4% 60,748 60,193
60% 59.7% 52,070 51,851
50% 51.1% 43,392 44,371
40% 39.6% 34,713 34,373
30% 30.1% 26,035 26,110
20% 20.3% 17,357 17,579
10% 9.9% 8,678 8,621
Active Idle   0 0
Graph of results
JVM 'linux-node6.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,415
Calibration 2     82,881
Calibration 3     83,002
ssj_ops@calibrated=82,941
100% 100.2% 82,941 83,072
90% 90.6% 74,647 75,183
80% 80.8% 66,353 67,016
70% 69.5% 58,059 57,670
60% 60.2% 49,765 49,964
50% 49.9% 41,471 41,413
40% 39.4% 33,177 32,708
30% 29.9% 24,882 24,837
20% 20.1% 16,588 16,691
10% 9.7% 8,294 8,041
Active Idle   0 0
Graph of results
JVM 'linux-node6.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,370
Calibration 2     88,363
Calibration 3     88,238
ssj_ops@calibrated=88,301
100% 99.9% 88,301 88,253
90% 90.8% 79,471 80,181
80% 79.3% 70,641 70,024
70% 69.5% 61,810 61,339
60% 60.2% 52,980 53,147
50% 50.2% 44,150 44,346
40% 40.6% 35,320 35,814
30% 30.2% 26,490 26,700
20% 20.3% 17,660 17,928
10% 10.1% 8,830 8,915
Active Idle   0 0
Graph of results
JVM 'linux-node6.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,165
Calibration 2     88,934
Calibration 3     88,609
ssj_ops@calibrated=88,772
100% 99.9% 88,772 88,690
90% 90.2% 79,894 80,028
80% 80.5% 71,017 71,464
70% 69.6% 62,140 61,805
60% 59.8% 53,263 53,101
50% 48.9% 44,386 43,407
40% 39.5% 35,509 35,069
30% 30.1% 26,631 26,682
20% 20.1% 17,754 17,849
10% 9.8% 8,877 8,712
Active Idle   0 0
Graph of results
JVM 'linux-node6.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,236
Calibration 2     86,077
Calibration 3     85,632
ssj_ops@calibrated=85,854
100% 100.0% 85,854 85,872
90% 89.9% 77,269 77,205
80% 79.1% 68,684 67,891
70% 70.5% 60,098 60,491
60% 59.2% 51,513 50,807
50% 49.9% 42,927 42,801
40% 39.6% 34,342 33,957
30% 29.4% 25,756 25,253
20% 19.7% 17,171 16,901
10% 9.7% 8,585 8,321
Active Idle   0 0
Graph of results
JVM 'linux-node6.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,083
Calibration 2     80,941
Calibration 3     81,117
ssj_ops@calibrated=81,029
100% 100.0% 81,029 81,059
90% 90.8% 72,926 73,603
80% 79.9% 64,823 64,753
70% 69.6% 56,720 56,420
60% 59.7% 48,617 48,336
50% 49.3% 40,514 39,919
40% 40.2% 32,412 32,594
30% 29.3% 24,309 23,767
20% 19.9% 16,206 16,116
10% 9.8% 8,103 7,960
Active Idle   0 0
Graph of results
JVM 'linux-node6.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,364
Calibration 2     87,543
Calibration 3     87,254
ssj_ops@calibrated=87,398
100% 99.1% 87,398 86,651
90% 89.3% 78,659 78,086
80% 80.3% 69,919 70,194
70% 69.2% 61,179 60,507
60% 60.7% 52,439 53,009
50% 49.0% 43,699 42,852
40% 40.7% 34,959 35,548
30% 30.4% 26,220 26,613
20% 19.8% 17,480 17,314
10% 10.4% 8,740 9,079
Active Idle   0 0
Graph of results
JVM 'linux-node6.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,896
Calibration 2     79,959
Calibration 3     79,902
ssj_ops@calibrated=79,930
100% 100.2% 79,930 80,129
90% 89.7% 71,937 71,668
80% 79.8% 63,944 63,816
70% 70.4% 55,951 56,244
60% 59.6% 47,958 47,666
50% 50.1% 39,965 40,084
40% 39.8% 31,972 31,810
30% 30.5% 23,979 24,360
20% 20.1% 15,986 16,102
10% 9.8% 7,993 7,817
Active Idle   0 0
Graph of results
JVM 'linux-node6.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,315
Calibration 2     84,173
Calibration 3     84,055
ssj_ops@calibrated=84,114
100% 99.6% 84,114 83,810
90% 90.2% 75,703 75,897
80% 79.4% 67,291 66,810
70% 70.2% 58,880 59,083
60% 59.9% 50,469 50,384
50% 49.9% 42,057 41,939
40% 39.9% 33,646 33,559
30% 30.0% 25,234 25,236
20% 20.3% 16,823 17,086
10% 10.2% 8,411 8,550
Active Idle   0 0
Graph of results
JVM 'linux-node6.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,986
Calibration 2     80,357
Calibration 3     80,089
ssj_ops@calibrated=80,223
100% 100.0% 80,223 80,216
90% 90.0% 72,201 72,197
80% 80.0% 64,178 64,158
70% 70.8% 56,156 56,836
60% 60.8% 48,134 48,768
50% 50.8% 40,111 40,733
40% 39.8% 32,089 31,938
30% 30.5% 24,067 24,433
20% 20.1% 16,045 16,152
10% 10.1% 8,022 8,140
Active Idle   0 0
Graph of results
JVM 'linux-node6.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,657
Calibration 2     81,965
Calibration 3     81,414
ssj_ops@calibrated=81,689
100% 99.3% 81,689 81,107
90% 90.1% 73,520 73,619
80% 79.4% 65,351 64,862
70% 70.6% 57,183 57,713
60% 60.7% 49,014 49,546
50% 49.3% 40,845 40,297
40% 39.7% 32,676 32,411
30% 30.0% 24,507 24,531
20% 19.7% 16,338 16,100
10% 10.0% 8,169 8,179
Active Idle   0 0
Graph of results
JVM 'linux-node6.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,719
Calibration 2     87,737
Calibration 3     87,810
ssj_ops@calibrated=87,773
100% 99.9% 87,773 87,699
90% 90.3% 78,996 79,243
80% 80.6% 70,219 70,702
70% 69.7% 61,441 61,210
60% 60.2% 52,664 52,839
50% 50.0% 43,887 43,901
40% 40.1% 35,109 35,188
30% 30.1% 26,332 26,445
20% 20.1% 17,555 17,683
10% 10.1% 8,777 8,845
Active Idle   0 0
Graph of results
JVM 'linux-node6.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,314
Calibration 2     84,275
Calibration 3     84,296
ssj_ops@calibrated=84,285
100% 100.3% 84,285 84,517
90% 88.6% 75,857 74,701
80% 79.1% 67,428 66,704
70% 69.7% 59,000 58,731
60% 60.0% 50,571 50,563
50% 49.4% 42,143 41,678
40% 39.7% 33,714 33,473
30% 30.4% 25,286 25,636
20% 20.0% 16,857 16,841
10% 10.2% 8,429 8,566
Active Idle   0 0
Graph of results

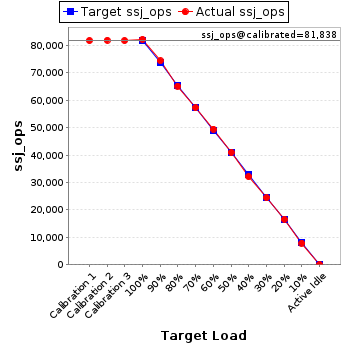

JVM 'linux-node6.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,780
Calibration 2     81,905
Calibration 3     81,771
ssj_ops@calibrated=81,838
100% 100.5% 81,838 82,256
90% 90.9% 73,654 74,416
80% 79.6% 65,471 65,157
70% 70.0% 57,287 57,251
60% 60.5% 49,103 49,483
50% 50.1% 40,919 40,985
40% 39.3% 32,735 32,136
30% 29.8% 24,551 24,363
20% 20.3% 16,368 16,592
10% 9.6% 8,184 7,866
Active Idle   0 0
Graph of results
JVM 'linux-node6.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,980
Calibration 2     83,744
Calibration 3     83,595
ssj_ops@calibrated=83,670
100% 99.8% 83,670 83,466
90% 89.4% 75,303 74,778
80% 78.8% 66,936 65,896
70% 71.2% 58,569 59,592
60% 59.1% 50,202 49,488
50% 50.6% 41,835 42,313
40% 39.9% 33,468 33,362
30% 29.9% 25,101 25,034
20% 19.6% 16,734 16,387
10% 10.2% 8,367 8,567
Active Idle   0 0
Graph of results
JVM 'linux-node6.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,348
Calibration 2     78,361
Calibration 3     78,394
ssj_ops@calibrated=78,377
100% 100.3% 78,377 78,609
90% 90.7% 70,540 71,117
80% 79.9% 62,702 62,625
70% 70.6% 54,864 55,337
60% 59.7% 47,026 46,773
50% 49.0% 39,189 38,386
40% 39.2% 31,351 30,725
30% 29.6% 23,513 23,178
20% 20.1% 15,675 15,791
10% 10.2% 7,838 7,962
Active Idle   0 0
Graph of results
JVM 'linux-node6.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,570
Calibration 2     87,363
Calibration 3     87,182
ssj_ops@calibrated=87,272
100% 99.4% 87,272 86,746
90% 90.0% 78,545 78,582
80% 79.8% 69,818 69,669
70% 70.4% 61,091 61,434
60% 59.2% 52,363 51,633
50% 50.6% 43,636 44,183
40% 39.9% 34,909 34,804
30% 30.0% 26,182 26,159
20% 20.0% 17,454 17,476
10% 9.9% 8,727 8,676
Active Idle   0 0
Graph of results
JVM 'linux-node6.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,433
Calibration 2     87,153
Calibration 3     87,216
ssj_ops@calibrated=87,184
100% 99.5% 87,184 86,782
90% 89.8% 78,466 78,330
80% 80.2% 69,748 69,943
70% 71.3% 61,029 62,203
60% 59.8% 52,311 52,169
50% 49.1% 43,592 42,782
40% 40.8% 34,874 35,542
30% 29.8% 26,155 25,941
20% 20.2% 17,437 17,632
10% 10.2% 8,718 8,887
Active Idle   0 0
Graph of results
JVM 'linux-node6.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,407
Calibration 2     86,586
Calibration 3     86,249
ssj_ops@calibrated=86,417
100% 99.7% 86,417 86,193
90% 90.5% 77,776 78,236
80% 79.7% 69,134 68,844
70% 70.6% 60,492 60,979
60% 59.3% 51,850 51,234
50% 50.1% 43,209 43,253
40% 40.7% 34,567 35,152
30% 29.9% 25,925 25,802
20% 19.3% 17,283 16,708
10% 10.2% 8,642 8,809
Active Idle   0 0
Graph of results
JVM 'linux-node6.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,272
Calibration 2     79,419
Calibration 3     79,416
ssj_ops@calibrated=79,417
100% 99.7% 79,417 79,169
90% 89.9% 71,475 71,364
80% 79.8% 63,534 63,356
70% 70.0% 55,592 55,561
60% 59.0% 47,650 46,829
50% 49.9% 39,709 39,608
40% 40.1% 31,767 31,840
30% 29.5% 23,825 23,424
20% 20.3% 15,883 16,125
10% 10.5% 7,942 8,367
Active Idle   0 0
Graph of results
JVM 'linux-node6.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,828
Calibration 2     80,982
Calibration 3     80,836
ssj_ops@calibrated=80,909
100% 100.0% 80,909 80,869
90% 90.5% 72,818 73,202
80% 79.3% 64,727 64,146
70% 70.4% 56,636 56,931
60% 60.0% 48,545 48,514
50% 50.5% 40,455 40,837
40% 39.9% 32,364 32,272
30% 29.9% 24,273 24,227
20% 19.4% 16,182 15,668
10% 10.0% 8,091 8,129
Active Idle   0 0
Graph of results
JVM 'linux-node6.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,630
Calibration 2     78,155
Calibration 3     78,095
ssj_ops@calibrated=78,125
100% 99.8% 78,125 77,959
90% 89.8% 70,313 70,152
80% 79.7% 62,500 62,301
70% 70.1% 54,688 54,737
60% 59.8% 46,875 46,710
50% 50.2% 39,063 39,221
40% 39.7% 31,250 31,009
30% 30.3% 23,438 23,657
20% 20.2% 15,625 15,766
10% 10.0% 7,813 7,812
Active Idle   0 0
Graph of results
JVM 'linux-node6.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,363
Calibration 2     88,133
Calibration 3     87,986
ssj_ops@calibrated=88,059
100% 99.9% 88,059 87,970
90% 90.6% 79,253 79,802
80% 79.8% 70,447 70,299
70% 70.1% 61,641 61,721
60% 60.1% 52,836 52,930
50% 49.7% 44,030 43,780
40% 40.6% 35,224 35,725
30% 30.2% 26,418 26,579
20% 20.0% 17,612 17,570
10% 10.0% 8,806 8,804
Active Idle   0 0
Graph of results
JVM 'linux-node6.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,511
Calibration 2     90,044
Calibration 3     89,931
ssj_ops@calibrated=89,987
100% 98.9% 89,987 88,999
90% 88.9% 80,989 80,009
80% 79.5% 71,990 71,562
70% 69.3% 62,991 62,401
60% 59.5% 53,992 53,585
50% 50.6% 44,994 45,513
40% 40.1% 35,995 36,110
30% 30.1% 26,996 27,096
20% 20.3% 17,997 18,249
10% 9.9% 8,999 8,877
Active Idle   0 0
Graph of results
JVM 'linux-node6.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,435
Calibration 2     87,173
Calibration 3     87,136
ssj_ops@calibrated=87,154
100% 100.2% 87,154 87,317
90% 90.4% 78,439 78,786
80% 79.8% 69,724 69,586
70% 69.2% 61,008 60,310
60% 59.7% 52,293 51,993
50% 49.8% 43,577 43,446
40% 40.7% 34,862 35,512
30% 29.7% 26,146 25,859
20% 19.7% 17,431 17,190
10% 10.0% 8,715 8,704
Active Idle   0 0
Graph of results
JVM 'linux-node6.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,254
Calibration 2     88,895
Calibration 3     88,846
ssj_ops@calibrated=88,871
100% 99.5% 88,871 88,427
90% 89.9% 79,984 79,884
80% 80.2% 71,096 71,314
70% 70.2% 62,209 62,374
60% 59.6% 53,322 52,952
50% 50.1% 44,435 44,509
40% 39.8% 35,548 35,380
30% 30.1% 26,661 26,763
20% 20.4% 17,774 18,145
10% 10.1% 8,887 9,000
Active Idle   0 0
Graph of results
JVM 'linux-node6.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,651
Calibration 2     88,699
Calibration 3     88,576
ssj_ops@calibrated=88,638
100% 99.7% 88,638 88,363
90% 89.8% 79,774 79,612
80% 79.9% 70,910 70,780
70% 69.2% 62,046 61,348
60% 59.2% 53,183 52,481
50% 50.3% 44,319 44,548
40% 40.4% 35,455 35,811
30% 29.6% 26,591 26,214
20% 20.2% 17,728 17,928
10% 10.2% 8,864 9,079
Active Idle   0 0
Graph of results
JVM 'linux-node6.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,661
Calibration 2     89,559
Calibration 3     89,597
ssj_ops@calibrated=89,578
100% 100.3% 89,578 89,875
90% 90.8% 80,620 81,333
80% 79.9% 71,662 71,612
70% 70.9% 62,705 63,473
60% 59.0% 53,747 52,812
50% 50.4% 44,789 45,110
40% 39.9% 35,831 35,773
30% 30.7% 26,873 27,487
20% 19.8% 17,916 17,749
10% 10.0% 8,958 8,998
Active Idle   0 0
Graph of results
JVM 'linux-node6.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,950
Calibration 2     83,808
Calibration 3     83,763
ssj_ops@calibrated=83,786
100% 99.8% 83,786 83,625
90% 90.2% 75,407 75,599
80% 78.7% 67,029 65,968
70% 69.2% 58,650 57,999
60% 59.9% 50,271 50,173
50% 50.3% 41,893 42,178
40% 40.2% 33,514 33,660
30% 29.5% 25,136 24,743
20% 19.7% 16,757 16,512
10% 9.9% 8,379 8,296
Active Idle   0 0
Graph of results
JVM 'linux-node6.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,926
Calibration 2     80,750
Calibration 3     80,558
ssj_ops@calibrated=80,654
100% 100.1% 80,654 80,714
90% 90.6% 72,588 73,049
80% 79.1% 64,523 63,787
70% 70.4% 56,458 56,780
60% 59.5% 48,392 47,995
50% 49.6% 40,327 40,038
40% 40.1% 32,262 32,381
30% 30.0% 24,196 24,192
20% 19.5% 16,131 15,693
10% 10.1% 8,065 8,112
Active Idle   0 0
Graph of results
JVM 'linux-node6.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,033
Calibration 2     79,714
Calibration 3     79,653
ssj_ops@calibrated=79,683
100% 100.0% 79,683 79,656
90% 89.2% 71,715 71,069
80% 80.1% 63,747 63,787
70% 70.0% 55,778 55,752
60% 59.8% 47,810 47,669
50% 49.3% 39,842 39,272
40% 39.6% 31,873 31,551
30% 30.2% 23,905 24,046
20% 20.0% 15,937 15,909
10% 10.0% 7,968 8,004
Active Idle   0 0
Graph of results

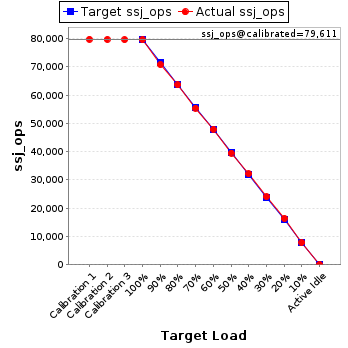

JVM 'linux-node6.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,742
Calibration 2     79,663
Calibration 3     79,560
ssj_ops@calibrated=79,611
100% 99.9% 79,611 79,548
90% 88.9% 71,650 70,749
80% 79.9% 63,689 63,593
70% 69.6% 55,728 55,403
60% 60.2% 47,767 47,924
50% 49.6% 39,806 39,482
40% 40.3% 31,845 32,119
30% 30.2% 23,883 24,012
20% 20.6% 15,922 16,391
10% 9.8% 7,961 7,833
Active Idle   0 0
Graph of results
JVM 'linux-node6.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,806
Calibration 2     81,639
Calibration 3     81,479
ssj_ops@calibrated=81,559
100% 100.1% 81,559 81,633
90% 90.3% 73,403 73,625
80% 79.9% 65,247 65,137
70% 70.0% 57,091 57,073
60% 60.1% 48,935 48,977
50% 50.1% 40,779 40,843
40% 40.3% 32,624 32,908
30% 29.9% 24,468 24,364
20% 20.4% 16,312 16,608
10% 9.9% 8,156 8,058
Active Idle   0 0
Graph of results
JVM 'linux-node6.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,551
Calibration 2     81,471
Calibration 3     81,568
ssj_ops@calibrated=81,519
100% 99.9% 81,519 81,426
90% 90.3% 73,367 73,648
80% 79.0% 65,216 64,400
70% 69.0% 57,064 56,254
60% 60.1% 48,912 48,967
50% 49.2% 40,760 40,077
40% 39.9% 32,608 32,490
30% 29.7% 24,456 24,189
20% 20.4% 16,304 16,603
10% 9.7% 8,152 7,871
Active Idle   0 0
Graph of results
JVM 'linux-node6.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,095
Calibration 2     88,243
Calibration 3     87,847
ssj_ops@calibrated=88,045
100% 99.7% 88,045 87,799
90% 90.6% 79,240 79,788
80% 79.6% 70,436 70,075
70% 69.9% 61,631 61,552
60% 59.5% 52,827 52,407
50% 49.9% 44,022 43,977
40% 40.7% 35,218 35,832
30% 30.0% 26,413 26,394
20% 20.3% 17,609 17,868
10% 10.2% 8,804 9,017
Active Idle   0 0
Graph of results
