Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,417,578
ssj_ops@100% per JVM = 84,650
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,431,077
Calibration 2     5,440,753
Calibration 3     5,431,509
ssj_ops@calibrated=5,436,131
100% 99.7% 5,436,131 5,417,578
90% 89.9% 4,892,518 4,888,952
80% 79.8% 4,348,905 4,335,615
70% 70.0% 3,805,292 3,804,107
60% 60.1% 3,261,679 3,264,475
50% 50.0% 2,718,065 2,719,942
40% 39.9% 2,174,452 2,170,434
30% 30.0% 1,630,839 1,630,681
20% 20.0% 1,087,226 1,088,012
10% 9.9% 543,613 540,857
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node3.001 80,346
linux-node3.002 87,290
linux-node3.003 79,702
linux-node3.004 86,569
linux-node3.005 84,350
linux-node3.006 84,980
linux-node3.007 80,783
linux-node3.008 81,273
linux-node3.009 85,108
linux-node3.010 81,118
linux-node3.011 80,573
linux-node3.012 89,866
linux-node3.013 89,768
linux-node3.014 82,732
linux-node3.015 79,834
linux-node3.016 80,063
linux-node3.017 80,401
linux-node3.018 78,144
linux-node3.019 80,544
linux-node3.020 87,409
linux-node3.021 88,302
linux-node3.022 89,482
linux-node3.023 78,151
linux-node3.024 85,895
linux-node3.025 88,697
linux-node3.026 81,040
linux-node3.027 87,258
linux-node3.028 88,206
linux-node3.029 87,763
linux-node3.030 88,768
linux-node3.031 87,256
linux-node3.032 88,561
linux-node3.033 82,184
linux-node3.034 79,747
linux-node3.035 78,810
linux-node3.036 78,320
linux-node3.037 86,624
linux-node3.038 90,143
linux-node3.039 79,302
linux-node3.040 79,158
linux-node3.041 84,931
linux-node3.042 89,104
linux-node3.043 89,349
linux-node3.044 88,332
linux-node3.045 79,965
linux-node3.046 86,960
linux-node3.047 80,452
linux-node3.048 84,493
linux-node3.049 88,493
linux-node3.050 88,091
linux-node3.051 87,838
linux-node3.052 87,952
linux-node3.053 79,016
linux-node3.054 87,747
linux-node3.055 87,269
linux-node3.056 90,379
linux-node3.057 85,376
linux-node3.058 89,020
linux-node3.059 88,567
linux-node3.060 88,096
linux-node3.061 88,300
linux-node3.062 84,933
linux-node3.063 78,919
linux-node3.064 79,479
ssj_ops@100% 5,417,578
ssj_ops@100% per JVM 84,650
Graph of per-instance results
JVM 'linux-node3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,032
Calibration 2     81,081
Calibration 3     80,808
ssj_ops@calibrated=80,944
100% 99.3% 80,944 80,346
90% 89.6% 72,850 72,553
80% 79.6% 64,755 64,437
70% 70.5% 56,661 57,043
60% 59.6% 48,566 48,276
50% 49.9% 40,472 40,413
40% 40.6% 32,378 32,893
30% 29.7% 24,283 24,017
20% 20.5% 16,189 16,600
10% 10.1% 8,094 8,184
Active Idle   0 0
Graph of results
JVM 'linux-node3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,819
Calibration 2     87,562
Calibration 3     87,571
ssj_ops@calibrated=87,567
100% 99.7% 87,567 87,290
90% 88.8% 78,810 77,795
80% 79.2% 70,053 69,353
70% 69.8% 61,297 61,138
60% 60.0% 52,540 52,499
50% 50.0% 43,783 43,768
40% 40.7% 35,027 35,608
30% 30.8% 26,270 26,950
20% 20.5% 17,513 17,991
10% 10.0% 8,757 8,729
Active Idle   0 0
Graph of results

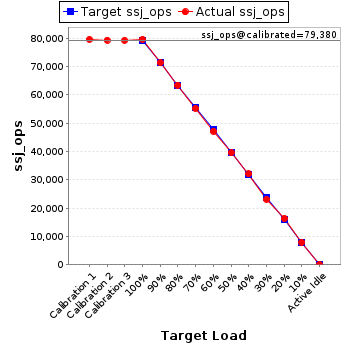

JVM 'linux-node3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,660
Calibration 2     79,402
Calibration 3     79,358
ssj_ops@calibrated=79,380
100% 100.4% 79,380 79,702
90% 89.9% 71,442 71,395
80% 79.9% 63,504 63,440
70% 69.7% 55,566 55,318
60% 59.5% 47,628 47,227
50% 49.8% 39,690 39,570
40% 40.4% 31,752 32,056
30% 29.2% 23,814 23,178
20% 20.6% 15,876 16,374
10% 10.0% 7,938 7,925
Active Idle   0 0
Graph of results
JVM 'linux-node3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,542
Calibration 2     86,597
Calibration 3     86,386
ssj_ops@calibrated=86,492
100% 100.1% 86,492 86,569
90% 89.7% 77,842 77,585
80% 79.6% 69,193 68,816
70% 68.7% 60,544 59,427
60% 60.3% 51,895 52,189
50% 49.7% 43,246 43,012
40% 39.7% 34,597 34,329
30% 29.7% 25,947 25,718
20% 19.7% 17,298 17,079
10% 10.1% 8,649 8,712
Active Idle   0 0
Graph of results

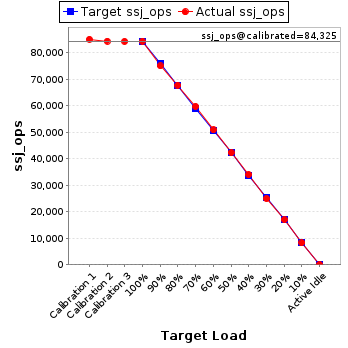

JVM 'linux-node3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,071
Calibration 2     84,376
Calibration 3     84,273
ssj_ops@calibrated=84,325
100% 100.0% 84,325 84,350
90% 88.9% 75,892 74,991
80% 80.3% 67,460 67,723
70% 70.9% 59,027 59,750
60% 60.3% 50,595 50,852
50% 50.1% 42,162 42,288
40% 40.4% 33,730 34,042
30% 29.5% 25,297 24,918
20% 20.1% 16,865 16,941
10% 9.8% 8,432 8,258
Active Idle   0 0
Graph of results
JVM 'linux-node3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,075
Calibration 2     85,098
Calibration 3     85,028
ssj_ops@calibrated=85,063
100% 99.9% 85,063 84,980
90% 89.1% 76,557 75,777
80% 80.0% 68,050 68,048
70% 69.8% 59,544 59,383
60% 60.0% 51,038 51,009
50% 50.1% 42,531 42,649
40% 39.3% 34,025 33,471
30% 29.7% 25,519 25,300
20% 19.9% 17,013 16,946
10% 10.0% 8,506 8,507
Active Idle   0 0
Graph of results
JVM 'linux-node3.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,901
Calibration 2     81,550
Calibration 3     81,424
ssj_ops@calibrated=81,487
100% 99.1% 81,487 80,783
90% 88.9% 73,338 72,452
80% 79.3% 65,189 64,594
70% 70.8% 57,041 57,713
60% 60.0% 48,892 48,903
50% 50.8% 40,743 41,399
40% 39.3% 32,595 32,019
30% 30.3% 24,446 24,702
20% 20.3% 16,297 16,508
10% 10.1% 8,149 8,233
Active Idle   0 0
Graph of results
JVM 'linux-node3.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,865
Calibration 2     81,109
Calibration 3     81,293
ssj_ops@calibrated=81,201
100% 100.1% 81,201 81,273
90% 90.4% 73,081 73,404
80% 80.0% 64,961 64,971
70% 69.6% 56,841 56,547
60% 60.3% 48,721 48,925
50% 49.8% 40,601 40,431
40% 40.7% 32,481 33,010
30% 29.6% 24,360 24,070
20% 20.6% 16,240 16,712
10% 10.2% 8,120 8,266
Active Idle   0 0
Graph of results
JVM 'linux-node3.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,712
Calibration 2     85,410
Calibration 3     85,245
ssj_ops@calibrated=85,327
100% 99.7% 85,327 85,108
90% 89.9% 76,795 76,724
80% 80.1% 68,262 68,350
70% 69.5% 59,729 59,334
60% 60.1% 51,196 51,290
50% 50.0% 42,664 42,634
40% 39.4% 34,131 33,660
30% 29.7% 25,598 25,354
20% 20.1% 17,065 17,142
10% 10.0% 8,533 8,530
Active Idle   0 0
Graph of results
JVM 'linux-node3.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,364
Calibration 2     80,879
Calibration 3     80,603
ssj_ops@calibrated=80,741
100% 100.5% 80,741 81,118
90% 89.9% 72,667 72,577
80% 79.9% 64,593 64,486
70% 69.8% 56,519 56,331
60% 60.3% 48,445 48,693
50% 50.3% 40,370 40,620
40% 39.8% 32,296 32,113
30% 30.2% 24,222 24,369
20% 19.9% 16,148 16,087
10% 10.2% 8,074 8,210
Active Idle   0 0
Graph of results
JVM 'linux-node3.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,129
Calibration 2     80,958
Calibration 3     80,945
ssj_ops@calibrated=80,952
100% 99.5% 80,952 80,573
90% 90.5% 72,856 73,286
80% 79.8% 64,761 64,561
70% 69.2% 56,666 55,991
60% 59.8% 48,571 48,373
50% 49.9% 40,476 40,430
40% 39.5% 32,381 32,002
30% 29.8% 24,285 24,147
20% 20.2% 16,190 16,322
10% 9.6% 8,095 7,804
Active Idle   0 0
Graph of results
JVM 'linux-node3.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,375
Calibration 2     90,018
Calibration 3     89,752
ssj_ops@calibrated=89,885
100% 100.0% 89,885 89,866
90% 89.7% 80,896 80,640
80% 79.5% 71,908 71,465
70% 70.7% 62,919 63,593
60% 60.1% 53,931 53,977
50% 50.1% 44,942 45,001
40% 40.3% 35,954 36,256
30% 30.1% 26,965 27,086
20% 20.1% 17,977 18,053
10% 9.8% 8,988 8,779
Active Idle   0 0
Graph of results
JVM 'linux-node3.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,506
Calibration 2     90,029
Calibration 3     90,056
ssj_ops@calibrated=90,042
100% 99.7% 90,042 89,768
90% 90.5% 81,038 81,469
80% 79.8% 72,034 71,888
70% 70.0% 63,030 63,033
60% 59.7% 54,025 53,730
50% 49.7% 45,021 44,747
40% 39.4% 36,017 35,461
30% 30.1% 27,013 27,110
20% 20.1% 18,008 18,082
10% 10.1% 9,004 9,086
Active Idle   0 0
Graph of results
JVM 'linux-node3.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,587
Calibration 2     83,499
Calibration 3     83,309
ssj_ops@calibrated=83,404
100% 99.2% 83,404 82,732
90% 90.9% 75,064 75,802
80% 79.3% 66,723 66,122
70% 70.2% 58,383 58,515
60% 59.4% 50,042 49,542
50% 49.3% 41,702 41,156
40% 40.6% 33,362 33,884
30% 30.5% 25,021 25,436
20% 20.0% 16,681 16,705
10% 9.9% 8,340 8,217
Active Idle   0 0
Graph of results
JVM 'linux-node3.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,825
Calibration 2     79,642
Calibration 3     79,650
ssj_ops@calibrated=79,646
100% 100.2% 79,646 79,834
90% 90.8% 71,681 72,347
80% 80.1% 63,717 63,825
70% 70.6% 55,752 56,244
60% 60.0% 47,788 47,759
50% 49.8% 39,823 39,694
40% 40.0% 31,858 31,850
30% 30.6% 23,894 24,387
20% 19.8% 15,929 15,793
10% 10.0% 7,965 7,979
Active Idle   0 0
Graph of results
JVM 'linux-node3.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,406
Calibration 2     80,358
Calibration 3     80,168
ssj_ops@calibrated=80,263
100% 99.8% 80,263 80,063
90% 90.2% 72,237 72,367
80% 79.4% 64,210 63,725
70% 69.7% 56,184 55,958
60% 60.4% 48,158 48,505
50% 50.3% 40,131 40,348
40% 39.8% 32,105 31,955
30% 30.0% 24,079 24,092
20% 20.1% 16,053 16,119
10% 9.7% 8,026 7,825
Active Idle   0 0
Graph of results
JVM 'linux-node3.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,281
Calibration 2     80,279
Calibration 3     80,194
ssj_ops@calibrated=80,237
100% 100.2% 80,237 80,401
90% 88.6% 72,213 71,124
80% 79.6% 64,189 63,834
70% 69.9% 56,166 56,108
60% 61.0% 48,142 48,933
50% 50.2% 40,118 40,313
40% 39.4% 32,095 31,635
30% 29.7% 24,071 23,803
20% 19.5% 16,047 15,624
10% 9.9% 8,024 7,942
Active Idle   0 0
Graph of results
JVM 'linux-node3.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,413
Calibration 2     78,751
Calibration 3     78,794
ssj_ops@calibrated=78,773
100% 99.2% 78,773 78,144
90% 89.0% 70,896 70,127
80% 79.6% 63,018 62,700
70% 69.9% 55,141 55,028
60% 60.4% 47,264 47,549
50% 49.6% 39,386 39,067
40% 39.8% 31,509 31,365
30% 30.0% 23,632 23,634
20% 19.6% 15,755 15,431
10% 9.8% 7,877 7,750
Active Idle   0 0
Graph of results
JVM 'linux-node3.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,053
Calibration 2     80,509
Calibration 3     80,281
ssj_ops@calibrated=80,395
100% 100.2% 80,395 80,544
90% 88.8% 72,356 71,384
80% 79.6% 64,316 64,028
70% 69.9% 56,277 56,188
60% 59.5% 48,237 47,860
50% 50.5% 40,198 40,571
40% 40.0% 32,158 32,121
30% 30.4% 24,119 24,419
20% 19.7% 16,079 15,821
10% 10.2% 8,040 8,221
Active Idle   0 0
Graph of results

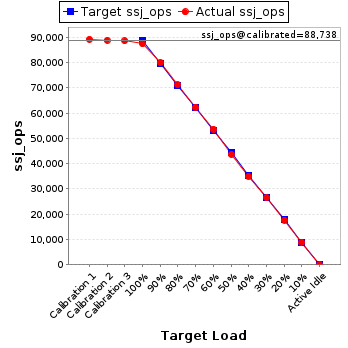

JVM 'linux-node3.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,285
Calibration 2     88,856
Calibration 3     88,621
ssj_ops@calibrated=88,738
100% 98.5% 88,738 87,409
90% 90.2% 79,865 80,046
80% 80.3% 70,991 71,299
70% 70.3% 62,117 62,420
60% 60.5% 53,243 53,700
50% 49.2% 44,369 43,655
40% 39.4% 35,495 34,981
30% 29.9% 26,622 26,539
20% 19.9% 17,748 17,673
10% 10.0% 8,874 8,867
Active Idle   0 0
Graph of results
JVM 'linux-node3.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,897
Calibration 2     88,772
Calibration 3     88,672
ssj_ops@calibrated=88,722
100% 99.5% 88,722 88,302
90% 90.3% 79,850 80,086
80% 79.6% 70,978 70,626
70% 69.9% 62,105 62,056
60% 59.3% 53,233 52,615
50% 50.5% 44,361 44,806
40% 39.2% 35,489 34,819
30% 29.7% 26,617 26,372
20% 20.3% 17,744 17,990
10% 10.1% 8,872 8,940
Active Idle   0 0
Graph of results
JVM 'linux-node3.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,700
Calibration 2     89,649
Calibration 3     89,712
ssj_ops@calibrated=89,681
100% 99.8% 89,681 89,482
90% 90.2% 80,712 80,903
80% 79.0% 71,744 70,840
70% 69.6% 62,776 62,456
60% 60.5% 53,808 54,259
50% 50.3% 44,840 45,130
40% 39.6% 35,872 35,539
30% 29.9% 26,904 26,839
20% 19.6% 17,936 17,564
10% 9.8% 8,968 8,780
Active Idle   0 0
Graph of results
JVM 'linux-node3.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,890
Calibration 2     79,178
Calibration 3     78,979
ssj_ops@calibrated=79,079
100% 98.8% 79,079 78,151
90% 90.3% 71,171 71,421
80% 79.3% 63,263 62,727
70% 70.1% 55,355 55,399
60% 60.7% 47,447 47,963
50% 50.1% 39,539 39,614
40% 39.9% 31,632 31,535
30% 30.6% 23,724 24,206
20% 19.5% 15,816 15,445
10% 9.6% 7,908 7,612
Active Idle   0 0
Graph of results
JVM 'linux-node3.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,024
Calibration 2     86,892
Calibration 3     86,689
ssj_ops@calibrated=86,791
100% 99.0% 86,791 85,895
90% 90.3% 78,111 78,354
80% 80.3% 69,432 69,714
70% 69.6% 60,753 60,410
60% 60.6% 52,074 52,628
50% 51.0% 43,395 44,245
40% 39.2% 34,716 34,051
30% 30.5% 26,037 26,428
20% 21.0% 17,358 18,241
10% 9.8% 8,679 8,500
Active Idle   0 0
Graph of results
JVM 'linux-node3.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,075
Calibration 2     89,157
Calibration 3     88,670
ssj_ops@calibrated=88,914
100% 99.8% 88,914 88,697
90% 90.4% 80,022 80,394
80% 78.9% 71,131 70,156
70% 69.6% 62,240 61,898
60% 59.9% 53,348 53,222
50% 49.6% 44,457 44,116
40% 39.6% 35,566 35,239
30% 29.8% 26,674 26,517
20% 19.4% 17,783 17,225
10% 10.0% 8,891 8,875
Active Idle   0 0
Graph of results
JVM 'linux-node3.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,484
Calibration 2     81,270
Calibration 3     81,147
ssj_ops@calibrated=81,208
100% 99.8% 81,208 81,040
90% 90.7% 73,088 73,624
80% 79.5% 64,967 64,524
70% 70.4% 56,846 57,135
60% 58.4% 48,725 47,412
50% 50.3% 40,604 40,852
40% 40.3% 32,483 32,766
30% 29.4% 24,363 23,855
20% 19.8% 16,242 16,076
10% 10.0% 8,121 8,097
Active Idle   0 0
Graph of results
JVM 'linux-node3.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,065
Calibration 2     88,428
Calibration 3     88,504
ssj_ops@calibrated=88,466
100% 98.6% 88,466 87,258
90% 90.2% 79,620 79,837
80% 79.6% 70,773 70,426
70% 69.7% 61,926 61,680
60% 60.1% 53,080 53,175
50% 49.5% 44,233 43,788
40% 39.3% 35,386 34,737
30% 29.5% 26,540 26,084
20% 20.0% 17,693 17,723
10% 10.1% 8,847 8,925
Active Idle   0 0
Graph of results
JVM 'linux-node3.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,661
Calibration 2     88,655
Calibration 3     88,592
ssj_ops@calibrated=88,624
100% 99.5% 88,624 88,206
90% 89.1% 79,761 78,932
80% 79.6% 70,899 70,522
70% 70.1% 62,037 62,165
60% 60.4% 53,174 53,495
50% 50.3% 44,312 44,600
40% 39.6% 35,449 35,108
30% 29.3% 26,587 25,995
20% 19.5% 17,725 17,291
10% 9.9% 8,862 8,769
Active Idle   0 0
Graph of results
JVM 'linux-node3.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,857
Calibration 2     87,997
Calibration 3     87,802
ssj_ops@calibrated=87,899
100% 99.8% 87,899 87,763
90% 89.3% 79,110 78,479
80% 79.8% 70,320 70,170
70% 70.0% 61,530 61,524
60% 60.4% 52,740 53,130
50% 49.0% 43,950 43,079
40% 39.6% 35,160 34,839
30% 30.3% 26,370 26,644
20% 20.1% 17,580 17,643
10% 10.2% 8,790 9,001
Active Idle   0 0
Graph of results
JVM 'linux-node3.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,903
Calibration 2     88,706
Calibration 3     88,567
ssj_ops@calibrated=88,636
100% 100.1% 88,636 88,768
90% 89.6% 79,773 79,450
80% 79.1% 70,909 70,114
70% 69.4% 62,045 61,479
60% 59.6% 53,182 52,821
50% 49.7% 44,318 44,086
40% 39.8% 35,455 35,309
30% 30.6% 26,591 27,079
20% 20.3% 17,727 17,999
10% 9.7% 8,864 8,608
Active Idle   0 0
Graph of results
JVM 'linux-node3.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,044
Calibration 2     87,679
Calibration 3     87,423
ssj_ops@calibrated=87,551
100% 99.7% 87,551 87,256
90% 89.9% 78,796 78,672
80% 80.7% 70,041 70,616
70% 69.0% 61,286 60,395
60% 60.3% 52,531 52,787
50% 50.0% 43,776 43,764
40% 39.8% 35,020 34,848
30% 29.6% 26,265 25,907
20% 20.2% 17,510 17,650
10% 9.8% 8,755 8,590
Active Idle   0 0
Graph of results
JVM 'linux-node3.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,509
Calibration 2     88,973
Calibration 3     88,825
ssj_ops@calibrated=88,899
100% 99.6% 88,899 88,561
90% 89.9% 80,009 79,951
80% 81.3% 71,119 72,241
70% 69.8% 62,229 62,071
60% 60.5% 53,339 53,824
50% 49.7% 44,449 44,163
40% 40.9% 35,559 36,336
30% 29.7% 26,670 26,391
20% 20.2% 17,780 17,941
10% 10.0% 8,890 8,875
Active Idle   0 0
Graph of results
JVM 'linux-node3.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,414
Calibration 2     83,091
Calibration 3     82,973
ssj_ops@calibrated=83,032
100% 99.0% 83,032 82,184
90% 90.0% 74,729 74,717
80% 79.9% 66,426 66,345
70% 69.1% 58,123 57,390
60% 60.6% 49,819 50,298
50% 50.4% 41,516 41,843
40% 40.4% 33,213 33,556
30% 29.9% 24,910 24,825
20% 20.4% 16,606 16,915
10% 10.1% 8,303 8,350
Active Idle   0 0
Graph of results
JVM 'linux-node3.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,937
Calibration 2     79,869
Calibration 3     79,721
ssj_ops@calibrated=79,795
100% 99.9% 79,795 79,747
90% 90.0% 71,815 71,846
80% 79.5% 63,836 63,470
70% 69.9% 55,856 55,787
60% 61.4% 47,877 49,015
50% 51.2% 39,897 40,893
40% 40.2% 31,918 32,091
30% 29.7% 23,938 23,706
20% 20.3% 15,959 16,217
10% 10.0% 7,979 8,012
Active Idle   0 0
Graph of results
JVM 'linux-node3.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,649
Calibration 2     79,213
Calibration 3     79,372
ssj_ops@calibrated=79,293
100% 99.4% 79,293 78,810
90% 89.9% 71,363 71,259
80% 80.2% 63,434 63,579
70% 69.9% 55,505 55,456
60% 60.0% 47,576 47,607
50% 50.7% 39,646 40,235
40% 39.5% 31,717 31,332
30% 29.6% 23,788 23,462
20% 20.2% 15,859 15,985
10% 9.9% 7,929 7,851
Active Idle   0 0
Graph of results
JVM 'linux-node3.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,303
Calibration 2     78,187
Calibration 3     78,126
ssj_ops@calibrated=78,157
100% 100.2% 78,157 78,320
90% 90.5% 70,341 70,704
80% 79.1% 62,525 61,795
70% 69.5% 54,710 54,307
60% 60.7% 46,894 47,434
50% 49.1% 39,078 38,380
40% 40.0% 31,263 31,295
30% 30.6% 23,447 23,898
20% 19.8% 15,631 15,490
10% 10.1% 7,816 7,916
Active Idle   0 0
Graph of results
JVM 'linux-node3.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,933
Calibration 2     86,346
Calibration 3     86,151
ssj_ops@calibrated=86,249
100% 100.4% 86,249 86,624
90% 90.5% 77,624 78,090
80% 79.4% 68,999 68,512
70% 69.0% 60,374 59,485
60% 61.1% 51,749 52,696
50% 50.7% 43,124 43,692
40% 39.6% 34,499 34,140
30% 29.4% 25,875 25,355
20% 19.9% 17,250 17,200
10% 10.1% 8,625 8,736
Active Idle   0 0
Graph of results
JVM 'linux-node3.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,432
Calibration 2     90,455
Calibration 3     90,242
ssj_ops@calibrated=90,348
100% 99.8% 90,348 90,143
90% 89.8% 81,313 81,123
80% 79.4% 72,279 71,764
70% 69.7% 63,244 62,933
60% 60.1% 54,209 54,271
50% 50.2% 45,174 45,369
40% 39.7% 36,139 35,886
30% 29.8% 27,104 26,925
20% 19.3% 18,070 17,407
10% 9.9% 9,035 8,954
Active Idle   0 0
Graph of results
JVM 'linux-node3.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,629
Calibration 2     79,929
Calibration 3     79,993
ssj_ops@calibrated=79,961
100% 99.2% 79,961 79,302
90% 90.3% 71,965 72,187
80% 79.9% 63,969 63,872
70% 70.0% 55,973 55,971
60% 59.2% 47,977 47,342
50% 50.4% 39,981 40,316
40% 39.6% 31,984 31,703
30% 30.1% 23,988 24,054
20% 19.7% 15,992 15,790
10% 9.9% 7,996 7,930
Active Idle   0 0
Graph of results
JVM 'linux-node3.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,045
Calibration 2     79,557
Calibration 3     79,359
ssj_ops@calibrated=79,458
100% 99.6% 79,458 79,158
90% 89.7% 71,512 71,268
80% 79.8% 63,566 63,443
70% 70.3% 55,621 55,858
60% 60.1% 47,675 47,716
50% 49.4% 39,729 39,267
40% 39.9% 31,783 31,710
30% 30.0% 23,837 23,861
20% 19.8% 15,892 15,769
10% 10.3% 7,946 8,162
Active Idle   0 0
Graph of results
JVM 'linux-node3.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,934
Calibration 2     84,822
Calibration 3     84,738
ssj_ops@calibrated=84,780
100% 100.2% 84,780 84,931
90% 89.3% 76,302 75,676
80% 80.1% 67,824 67,889
70% 71.1% 59,346 60,251
60% 59.4% 50,868 50,365
50% 49.9% 42,390 42,337
40% 40.3% 33,912 34,126
30% 30.3% 25,434 25,647
20% 20.0% 16,956 16,917
10% 9.8% 8,478 8,275
Active Idle   0 0
Graph of results
JVM 'linux-node3.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,237
Calibration 2     88,584
Calibration 3     88,552
ssj_ops@calibrated=88,568
100% 100.6% 88,568 89,104
90% 89.5% 79,711 79,281
80% 77.9% 70,855 68,973
70% 70.8% 61,998 62,678
60% 59.8% 53,141 52,935
50% 50.7% 44,284 44,884
40% 40.5% 35,427 35,859
30% 30.1% 26,570 26,658
20% 19.2% 17,714 17,049
10% 9.8% 8,857 8,650
Active Idle   0 0
Graph of results
JVM 'linux-node3.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,892
Calibration 2     89,835
Calibration 3     89,616
ssj_ops@calibrated=89,726
100% 99.6% 89,726 89,349
90% 91.2% 80,753 81,816
80% 80.0% 71,780 71,800
70% 70.0% 62,808 62,781
60% 60.4% 53,835 54,178
50% 50.0% 44,863 44,853
40% 40.5% 35,890 36,345
30% 30.2% 26,918 27,083
20% 20.2% 17,945 18,108
10% 10.0% 8,973 8,962
Active Idle   0 0
Graph of results
JVM 'linux-node3.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,098
Calibration 2     89,210
Calibration 3     88,732
ssj_ops@calibrated=88,971
100% 99.3% 88,971 88,332
90% 90.2% 80,074 80,209
80% 79.8% 71,177 71,009
70% 69.6% 62,280 61,891
60% 59.4% 53,383 52,856
50% 50.4% 44,485 44,803
40% 40.3% 35,588 35,867
30% 30.0% 26,691 26,727
20% 20.0% 17,794 17,804
10% 9.7% 8,897 8,651
Active Idle   0 0
Graph of results
JVM 'linux-node3.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,647
Calibration 2     79,979
Calibration 3     79,613
ssj_ops@calibrated=79,796
100% 100.2% 79,796 79,965
90% 90.7% 71,817 72,357
80% 79.9% 63,837 63,792
70% 70.0% 55,857 55,846
60% 60.2% 47,878 48,013
50% 49.6% 39,898 39,566
40% 40.1% 31,919 31,972
30% 30.1% 23,939 24,057
20% 20.0% 15,959 15,982
10% 10.2% 7,980 8,100
Active Idle   0 0
Graph of results
JVM 'linux-node3.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,965
Calibration 2     87,067
Calibration 3     86,709
ssj_ops@calibrated=86,888
100% 100.1% 86,888 86,960
90% 89.9% 78,199 78,138
80% 80.7% 69,510 70,120
70% 70.9% 60,822 61,593
60% 59.9% 52,133 52,086
50% 50.7% 43,444 44,053
40% 40.3% 34,755 35,002
30% 29.2% 26,066 25,408
20% 20.4% 17,378 17,712
10% 10.0% 8,689 8,650
Active Idle   0 0
Graph of results
JVM 'linux-node3.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,814
Calibration 2     80,641
Calibration 3     80,606
ssj_ops@calibrated=80,624
100% 99.8% 80,624 80,452
90% 90.1% 72,561 72,605
80% 80.0% 64,499 64,472
70% 70.2% 56,437 56,614
60% 60.2% 48,374 48,558
50% 50.1% 40,312 40,421
40% 40.1% 32,249 32,346
30% 29.9% 24,187 24,069
20% 19.9% 16,125 16,011
10% 10.1% 8,062 8,164
Active Idle   0 0
Graph of results
JVM 'linux-node3.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,294
Calibration 2     86,211
Calibration 3     85,950
ssj_ops@calibrated=86,081
100% 98.2% 86,081 84,493
90% 89.3% 77,473 76,881
80% 80.0% 68,864 68,859
70% 70.8% 60,256 60,908
60% 60.4% 51,648 51,984
50% 49.8% 43,040 42,887
40% 39.6% 34,432 34,122
30% 29.8% 25,824 25,688
20% 19.7% 17,216 16,998
10% 9.9% 8,608 8,500
Active Idle   0 0
Graph of results
JVM 'linux-node3.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,923
Calibration 2     88,395
Calibration 3     87,916
ssj_ops@calibrated=88,155
100% 100.4% 88,155 88,493
90% 90.0% 79,340 79,370
80% 79.8% 70,524 70,319
70% 70.1% 61,709 61,761
60% 59.0% 52,893 51,969
50% 49.9% 44,078 43,997
40% 40.2% 35,262 35,471
30% 30.4% 26,447 26,769
20% 19.8% 17,631 17,480
10% 10.2% 8,816 9,008
Active Idle   0 0
Graph of results
JVM 'linux-node3.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,972
Calibration 2     88,708
Calibration 3     88,598
ssj_ops@calibrated=88,653
100% 99.4% 88,653 88,091
90% 91.1% 79,788 80,740
80% 80.3% 70,922 71,153
70% 70.1% 62,057 62,157
60% 60.5% 53,192 53,598
50% 49.5% 44,327 43,900
40% 39.7% 35,461 35,192
30% 30.3% 26,596 26,865
20% 19.7% 17,731 17,466
10% 10.1% 8,865 8,983
Active Idle   0 0
Graph of results
JVM 'linux-node3.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,325
Calibration 2     88,114
Calibration 3     87,869
ssj_ops@calibrated=87,992
100% 99.8% 87,992 87,838
90% 90.5% 79,193 79,598
80% 79.4% 70,393 69,901
70% 69.2% 61,594 60,911
60% 60.0% 52,795 52,780
50% 48.9% 43,996 43,016
40% 40.0% 35,197 35,227
30% 30.3% 26,398 26,680
20% 20.4% 17,598 17,987
10% 9.8% 8,799 8,591
Active Idle   0 0
Graph of results
JVM 'linux-node3.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,307
Calibration 2     88,022
Calibration 3     88,003
ssj_ops@calibrated=88,012
100% 99.9% 88,012 87,952
90% 90.8% 79,211 79,939
80% 80.0% 70,410 70,377
70% 69.8% 61,609 61,465
60% 60.3% 52,807 53,036
50% 49.5% 44,006 43,546
40% 39.2% 35,205 34,508
30% 29.7% 26,404 26,175
20% 20.0% 17,602 17,616
10% 10.3% 8,801 9,054
Active Idle   0 0
Graph of results
JVM 'linux-node3.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,407
Calibration 2     79,895
Calibration 3     79,726
ssj_ops@calibrated=79,810
100% 99.0% 79,810 79,016
90% 91.1% 71,829 72,718
80% 79.4% 63,848 63,346
70% 70.2% 55,867 56,060
60% 59.3% 47,886 47,353
50% 49.4% 39,905 39,404
40% 39.8% 31,924 31,768
30% 29.2% 23,943 23,287
20% 20.6% 15,962 16,426
10% 10.1% 7,981 8,036
Active Idle   0 0
Graph of results
JVM 'linux-node3.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,716
Calibration 2     87,663
Calibration 3     87,536
ssj_ops@calibrated=87,600
100% 100.2% 87,600 87,747
90% 89.2% 78,840 78,136
80% 79.5% 70,080 69,653
70% 70.7% 61,320 61,905
60% 59.2% 52,560 51,820
50% 50.4% 43,800 44,163
40% 40.0% 35,040 35,015
30% 30.7% 26,280 26,879
20% 20.0% 17,520 17,530
10% 10.0% 8,760 8,717
Active Idle   0 0
Graph of results
JVM 'linux-node3.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,230
Calibration 2     88,076
Calibration 3     87,770
ssj_ops@calibrated=87,923
100% 99.3% 87,923 87,269
90% 90.2% 79,131 79,290
80% 79.2% 70,338 69,673
70% 69.6% 61,546 61,222
60% 60.2% 52,754 52,935
50% 49.4% 43,962 43,426
40% 39.5% 35,169 34,765
30% 30.4% 26,377 26,712
20% 20.3% 17,585 17,853
10% 10.4% 8,792 9,147
Active Idle   0 0
Graph of results
JVM 'linux-node3.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,346
Calibration 2     90,597
Calibration 3     90,480
ssj_ops@calibrated=90,538
100% 99.8% 90,538 90,379
90% 89.8% 81,485 81,333
80% 79.3% 72,431 71,778
70% 70.1% 63,377 63,458
60% 60.0% 54,323 54,356
50% 49.5% 45,269 44,818
40% 40.5% 36,215 36,628
30% 30.5% 27,162 27,607
20% 19.6% 18,108 17,730
10% 9.7% 9,054 8,793
Active Idle   0 0
Graph of results
JVM 'linux-node3.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,371
Calibration 2     86,708
Calibration 3     86,786
ssj_ops@calibrated=86,747
100% 98.4% 86,747 85,376
90% 89.6% 78,072 77,686
80% 80.5% 69,398 69,803
70% 70.6% 60,723 61,281
60% 59.2% 52,048 51,370
50% 49.9% 43,374 43,247
40% 40.1% 34,699 34,788
30% 30.5% 26,024 26,487
20% 20.0% 17,349 17,374
10% 9.8% 8,675 8,533
Active Idle   0 0
Graph of results
JVM 'linux-node3.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,629
Calibration 2     88,882
Calibration 3     88,717
ssj_ops@calibrated=88,800
100% 100.2% 88,800 89,020
90% 89.6% 79,920 79,563
80% 79.7% 71,040 70,777
70% 70.5% 62,160 62,616
60% 59.1% 53,280 52,504
50% 50.3% 44,400 44,705
40% 40.1% 35,520 35,630
30% 29.7% 26,640 26,349
20% 20.4% 17,760 18,154
10% 9.7% 8,880 8,608
Active Idle   0 0
Graph of results
JVM 'linux-node3.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,449
Calibration 2     88,957
Calibration 3     88,883
ssj_ops@calibrated=88,920
100% 99.6% 88,920 88,567
90% 89.9% 80,028 79,972
80% 80.0% 71,136 71,146
70% 70.7% 62,244 62,901
60% 59.9% 53,352 53,302
50% 50.2% 44,460 44,606
40% 39.7% 35,568 35,326
30% 29.8% 26,676 26,504
20% 20.3% 17,784 18,084
10% 9.5% 8,892 8,450
Active Idle   0 0
Graph of results
JVM 'linux-node3.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,398
Calibration 2     88,706
Calibration 3     88,311
ssj_ops@calibrated=88,508
100% 99.5% 88,508 88,096
90% 89.5% 79,658 79,244
80% 79.5% 70,807 70,369
70% 69.7% 61,956 61,660
60% 60.5% 53,105 53,569
50% 50.9% 44,254 45,054
40% 40.3% 35,403 35,659
30% 30.1% 26,553 26,630
20% 19.9% 17,702 17,590
10% 9.7% 8,851 8,616
Active Idle   0 0
Graph of results
JVM 'linux-node3.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,205
Calibration 2     88,046
Calibration 3     87,981
ssj_ops@calibrated=88,014
100% 100.3% 88,014 88,300
90% 89.9% 79,212 79,133
80% 79.9% 70,411 70,282
70% 69.9% 61,610 61,508
60% 60.9% 52,808 53,635
50% 50.6% 44,007 44,577
40% 40.7% 35,206 35,791
30% 30.4% 26,404 26,758
20% 19.8% 17,603 17,416
10% 9.7% 8,801 8,512
Active Idle   0 0
Graph of results
JVM 'linux-node3.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,917
Calibration 2     85,530
Calibration 3     85,324
ssj_ops@calibrated=85,427
100% 99.4% 85,427 84,933
90% 89.5% 76,884 76,446
80% 80.5% 68,342 68,753
70% 70.1% 59,799 59,895
60% 60.4% 51,256 51,630
50% 50.3% 42,714 42,988
40% 39.2% 34,171 33,493
30% 30.5% 25,628 26,086
20% 20.4% 17,085 17,421
10% 9.8% 8,543 8,404
Active Idle   0 0
Graph of results
JVM 'linux-node3.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,527
Calibration 2     79,094
Calibration 3     79,139
ssj_ops@calibrated=79,117
100% 99.8% 79,117 78,919
90% 90.0% 71,205 71,220
80% 80.2% 63,293 63,486
70% 69.6% 55,382 55,065
60% 60.6% 47,470 47,909
50% 50.3% 39,558 39,801
40% 40.2% 31,647 31,831
30% 29.7% 23,735 23,512
20% 19.8% 15,823 15,641
10% 10.0% 7,912 7,900
Active Idle   0 0
Graph of results
JVM 'linux-node3.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,120
Calibration 2     81,043
Calibration 3     80,671
ssj_ops@calibrated=80,857
100% 98.3% 80,857 79,479
90% 89.6% 72,771 72,459
80% 80.1% 64,686 64,765
70% 70.2% 56,600 56,761
60% 59.6% 48,514 48,231
50% 50.6% 40,429 40,888
40% 39.8% 32,343 32,152
30% 30.2% 24,257 24,412
20% 19.9% 16,171 16,095
10% 9.9% 8,086 8,041
Active Idle   0 0
Graph of results
