Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,416,694
ssj_ops@100% per JVM = 84,636
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,413,672
Calibration 2     5,433,738
Calibration 3     5,428,836
ssj_ops@calibrated=5,431,287
100% 99.7% 5,431,287 5,416,694
90% 90.1% 4,888,158 4,892,939
80% 79.8% 4,345,029 4,335,878
70% 70.0% 3,801,901 3,803,799
60% 60.1% 3,258,772 3,262,074
50% 50.0% 2,715,643 2,717,170
40% 40.0% 2,172,515 2,172,518
30% 30.0% 1,629,386 1,628,407
20% 20.0% 1,086,257 1,085,295
10% 10.0% 543,129 545,045
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node14.001 80,511
linux-node14.002 80,249
linux-node14.003 88,048
linux-node14.004 88,068
linux-node14.005 87,286
linux-node14.006 87,778
linux-node14.007 89,756
linux-node14.008 84,523
linux-node14.009 79,230
linux-node14.010 80,630
linux-node14.011 87,714
linux-node14.012 89,318
linux-node14.013 80,190
linux-node14.014 81,086
linux-node14.015 88,393
linux-node14.016 85,038
linux-node14.017 79,212
linux-node14.018 88,720
linux-node14.019 82,212
linux-node14.020 89,269
linux-node14.021 80,248
linux-node14.022 83,844
linux-node14.023 87,049
linux-node14.024 89,491
linux-node14.025 80,875
linux-node14.026 89,093
linux-node14.027 83,659
linux-node14.028 87,660
linux-node14.029 86,990
linux-node14.030 88,695
linux-node14.031 82,924
linux-node14.032 84,909
linux-node14.033 88,551
linux-node14.034 81,257
linux-node14.035 88,674
linux-node14.036 87,833
linux-node14.037 87,706

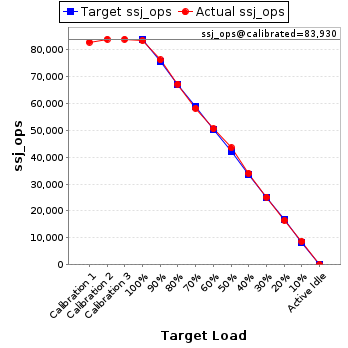

linux-node14.038 83,432
linux-node14.039 86,539
linux-node14.040 79,030
linux-node14.041 79,229
linux-node14.042 87,933
linux-node14.043 90,238
linux-node14.044 81,797
linux-node14.045 87,448
linux-node14.046 85,116
linux-node14.047 86,598
linux-node14.048 83,220
linux-node14.049 88,155
linux-node14.050 81,365
linux-node14.051 76,593
linux-node14.052 84,200
linux-node14.053 89,286

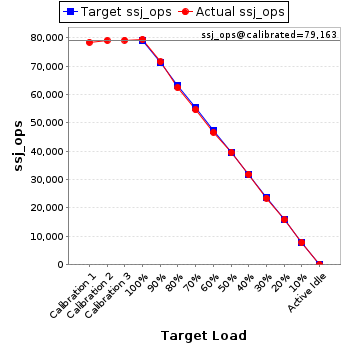

linux-node14.054 79,536

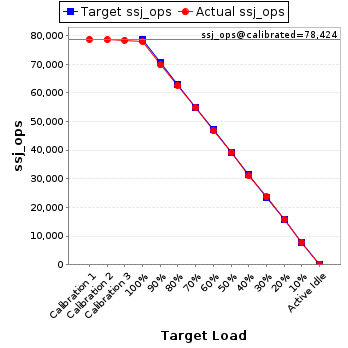

linux-node14.055 77,853
linux-node14.056 89,667
linux-node14.057 85,652
linux-node14.058 79,598
linux-node14.059 87,289
linux-node14.060 79,237
linux-node14.061 83,839

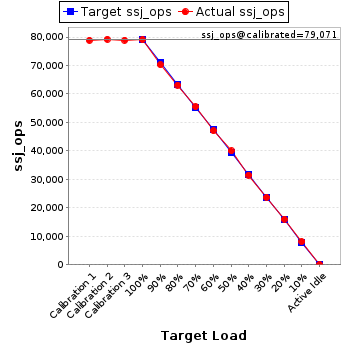

linux-node14.062 79,063
linux-node14.063 88,588
linux-node14.064 79,510
ssj_ops@100% 5,416,694
ssj_ops@100% per JVM 84,636

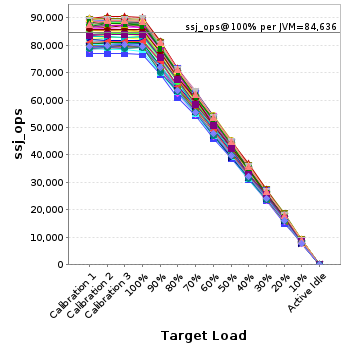

Graph of per-instance results
JVM 'linux-node14.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,565
Calibration 2     80,899
Calibration 3     80,544
ssj_ops@calibrated=80,721
100% 99.7% 80,721 80,511
90% 89.5% 72,649 72,267
80% 80.4% 64,577 64,880
70% 69.5% 56,505 56,124
60% 60.1% 48,433 48,508
50% 50.8% 40,361 40,991
40% 40.9% 32,289 33,005
30% 31.1% 24,216 25,109
20% 19.8% 16,144 16,021
10% 10.1% 8,072 8,154
Active Idle   0 0
Graph of results
JVM 'linux-node14.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,727
Calibration 2     80,913
Calibration 3     80,735
ssj_ops@calibrated=80,824
100% 99.3% 80,824 80,249
90% 89.2% 72,742 72,091
80% 80.0% 64,659 64,696
70% 69.6% 56,577 56,239
60% 61.4% 48,494 49,647
50% 50.5% 40,412 40,779
40% 40.4% 32,330 32,631
30% 30.1% 24,247 24,348
20% 20.1% 16,165 16,207
10% 10.2% 8,082 8,225
Active Idle   0 0
Graph of results
JVM 'linux-node14.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,816
Calibration 2     88,570
Calibration 3     88,689
ssj_ops@calibrated=88,629
100% 99.3% 88,629 88,048
90% 89.5% 79,766 79,339
80% 80.5% 70,903 71,366
70% 70.2% 62,041 62,253
60% 59.8% 53,178 53,035
50% 50.6% 44,315 44,860
40% 39.6% 35,452 35,114
30% 29.9% 26,589 26,466
20% 19.8% 17,726 17,575
10% 9.6% 8,863 8,479
Active Idle   0 0
Graph of results
JVM 'linux-node14.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,830
Calibration 2     88,332
Calibration 3     88,632
ssj_ops@calibrated=88,482
100% 99.5% 88,482 88,068
90% 90.6% 79,634 80,162
80% 79.7% 70,785 70,543
70% 70.9% 61,937 62,731
60% 60.6% 53,089 53,664
50% 49.3% 44,241 43,659
40% 39.3% 35,393 34,739
30% 30.3% 26,545 26,819
20% 20.3% 17,696 17,994
10% 10.2% 8,848 8,987
Active Idle   0 0
Graph of results
JVM 'linux-node14.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,542
Calibration 2     88,016
Calibration 3     87,904
ssj_ops@calibrated=87,960
100% 99.2% 87,960 87,286
90% 89.7% 79,164 78,868
80% 80.8% 70,368 71,029
70% 69.3% 61,572 60,969
60% 60.3% 52,776 53,052
50% 50.4% 43,980 44,323
40% 40.1% 35,184 35,296
30% 30.2% 26,388 26,572
20% 19.6% 17,592 17,197
10% 10.0% 8,796 8,807
Active Idle   0 0
Graph of results
JVM 'linux-node14.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,669
Calibration 2     88,892
Calibration 3     88,517
ssj_ops@calibrated=88,705
100% 99.0% 88,705 87,778
90% 90.8% 79,834 80,575
80% 80.5% 70,964 71,363
70% 69.9% 62,093 62,015
60% 60.2% 53,223 53,408
50% 49.6% 44,352 44,022
40% 40.2% 35,482 35,684
30% 29.8% 26,611 26,417
20% 19.9% 17,741 17,654
10% 10.2% 8,870 9,024
Active Idle   0 0
Graph of results
JVM 'linux-node14.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,067
Calibration 2     89,867
Calibration 3     89,751
ssj_ops@calibrated=89,809
100% 99.9% 89,809 89,756
90% 90.3% 80,828 81,065
80% 79.7% 71,847 71,621
70% 70.7% 62,866 63,457
60% 60.2% 53,885 54,036
50% 50.3% 44,904 45,141
40% 39.7% 35,924 35,654
30% 29.7% 26,943 26,693
20% 19.8% 17,962 17,785
10% 10.2% 8,981 9,157
Active Idle   0 0
Graph of results
JVM 'linux-node14.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,417
Calibration 2     85,259
Calibration 3     85,088
ssj_ops@calibrated=85,173
100% 99.2% 85,173 84,523
90% 90.4% 76,656 77,016
80% 80.0% 68,139 68,105
70% 71.3% 59,621 60,732
60% 61.1% 51,104 52,071
50% 49.6% 42,587 42,222
40% 40.7% 34,069 34,675
30% 29.7% 25,552 25,295
20% 19.9% 17,035 16,917
10% 9.9% 8,517 8,400
Active Idle   0 0
Graph of results
JVM 'linux-node14.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,656
Calibration 2     79,432
Calibration 3     79,352
ssj_ops@calibrated=79,392
100% 99.8% 79,392 79,230
90% 90.0% 71,453 71,436
80% 79.3% 63,514 62,989
70% 70.7% 55,574 56,097
60% 60.6% 47,635 48,114
50% 49.3% 39,696 39,124
40% 40.1% 31,757 31,838
30% 30.2% 23,818 24,011
20% 20.4% 15,878 16,209
10% 9.7% 7,939 7,721
Active Idle   0 0
Graph of results
JVM 'linux-node14.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,550
Calibration 2     80,424
Calibration 3     80,355
ssj_ops@calibrated=80,390
100% 100.3% 80,390 80,630
90% 89.8% 72,351 72,156
80% 80.1% 64,312 64,363
70% 69.1% 56,273 55,538
60% 59.7% 48,234 48,025
50% 50.4% 40,195 40,544
40% 39.8% 32,156 31,989
30% 30.3% 24,117 24,362
20% 20.6% 16,078 16,524
10% 10.3% 8,039 8,304
Active Idle   0 0
Graph of results
JVM 'linux-node14.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,914
Calibration 2     87,975
Calibration 3     88,076
ssj_ops@calibrated=88,025
100% 99.6% 88,025 87,714
90% 89.7% 79,223 78,972
80% 80.2% 70,420 70,633
70% 69.7% 61,618 61,363
60% 61.3% 52,815 53,971
50% 49.6% 44,013 43,651
40% 39.3% 35,210 34,585
30% 30.3% 26,408 26,653
20% 20.0% 17,605 17,578
10% 10.2% 8,803 8,973
Active Idle   0 0
Graph of results
JVM 'linux-node14.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,029
Calibration 2     89,579
Calibration 3     89,657
ssj_ops@calibrated=89,618
100% 99.7% 89,618 89,318
90% 90.8% 80,656 81,385
80% 79.2% 71,694 70,983
70% 69.6% 62,732 62,347
60% 60.6% 53,771 54,311
50% 50.4% 44,809 45,194
40% 40.4% 35,847 36,218
30% 30.0% 26,885 26,888
20% 20.4% 17,924 18,277
10% 10.3% 8,962 9,200
Active Idle   0 0
Graph of results
JVM 'linux-node14.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,067
Calibration 2     79,564
Calibration 3     79,752
ssj_ops@calibrated=79,658
100% 100.7% 79,658 80,190
90% 89.5% 71,692 71,288
80% 79.9% 63,727 63,658
70% 70.1% 55,761 55,827
60% 59.6% 47,795 47,445
50% 50.5% 39,829 40,195
40% 39.8% 31,863 31,701
30% 30.9% 23,897 24,649
20% 19.8% 15,932 15,734
10% 10.3% 7,966 8,183
Active Idle   0 0
Graph of results
JVM 'linux-node14.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,274
Calibration 2     81,071
Calibration 3     80,767
ssj_ops@calibrated=80,919
100% 100.2% 80,919 81,086
90% 89.3% 72,827 72,266
80% 79.6% 64,735 64,399
70% 70.3% 56,643 56,912
60% 59.9% 48,552 48,470
50% 49.9% 40,460 40,348
40% 40.3% 32,368 32,609
30% 30.1% 24,276 24,320
20% 20.0% 16,184 16,208
10% 10.1% 8,092 8,146
Active Idle   0 0
Graph of results
JVM 'linux-node14.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,939
Calibration 2     88,268
Calibration 3     88,587
ssj_ops@calibrated=88,428
100% 100.0% 88,428 88,393
90% 89.7% 79,585 79,349
80% 80.6% 70,742 71,285
70% 70.2% 61,899 62,052
60% 60.3% 53,057 53,350
50% 50.2% 44,214 44,374
40% 39.7% 35,371 35,085
30% 29.6% 26,528 26,180
20% 19.5% 17,686 17,244
10% 10.3% 8,843 9,090
Active Idle   0 0
Graph of results
JVM 'linux-node14.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,549
Calibration 2     85,480
Calibration 3     85,584
ssj_ops@calibrated=85,532
100% 99.4% 85,532 85,038
90% 89.9% 76,979 76,872
80% 79.1% 68,426 67,658
70% 70.1% 59,872 59,972
60% 59.7% 51,319 51,065
50% 50.4% 42,766 43,070
40% 40.0% 34,213 34,187
30% 30.4% 25,660 26,012
20% 20.5% 17,106 17,558
10% 10.1% 8,553 8,672
Active Idle   0 0
Graph of results
JVM 'linux-node14.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,592
Calibration 2     79,537
Calibration 3     79,341
ssj_ops@calibrated=79,439
100% 99.7% 79,439 79,212
90% 90.6% 71,495 71,963
80% 79.7% 63,551 63,281
70% 70.9% 55,607 56,334
60% 60.6% 47,663 48,178
50% 49.8% 39,719 39,592
40% 39.8% 31,775 31,625
30% 30.3% 23,832 24,066
20% 20.0% 15,888 15,853
10% 10.1% 7,944 8,012
Active Idle   0 0
Graph of results
JVM 'linux-node14.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,102
Calibration 2     88,863
Calibration 3     88,645
ssj_ops@calibrated=88,754
100% 100.0% 88,754 88,720
90% 89.8% 79,879 79,687
80% 79.8% 71,003 70,795
70% 70.0% 62,128 62,156
60% 59.9% 53,253 53,199
50% 50.2% 44,377 44,583
40% 39.8% 35,502 35,289
30% 30.0% 26,626 26,641
20% 19.8% 17,751 17,582
10% 10.1% 8,875 8,975
Active Idle   0 0
Graph of results
JVM 'linux-node14.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,484
Calibration 2     82,832
Calibration 3     82,823
ssj_ops@calibrated=82,827
100% 99.3% 82,827 82,212
90% 90.0% 74,545 74,539
80% 80.6% 66,262 66,752
70% 70.2% 57,979 58,164
60% 60.0% 49,696 49,697
50% 50.0% 41,414 41,398
40% 38.9% 33,131 32,241
30% 30.2% 24,848 25,034
20% 19.8% 16,565 16,439
10% 10.1% 8,283 8,367
Active Idle   0 0
Graph of results
JVM 'linux-node14.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,473
Calibration 2     89,394
Calibration 3     89,046
ssj_ops@calibrated=89,220
100% 100.1% 89,220 89,269
90% 90.9% 80,298 81,131
80% 80.2% 71,376 71,524
70% 70.6% 62,454 63,026
60% 60.4% 53,532 53,932
50% 49.9% 44,610 44,493
40% 39.4% 35,688 35,144
30% 29.3% 26,766 26,185
20% 19.8% 17,844 17,680
10% 10.2% 8,922 9,056
Active Idle   0 0
Graph of results
JVM 'linux-node14.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,072
Calibration 2     80,057
Calibration 3     79,970
ssj_ops@calibrated=80,013
100% 100.3% 80,013 80,248
90% 90.8% 72,012 72,648
80% 80.2% 64,011 64,195
70% 70.7% 56,009 56,536
60% 60.2% 48,008 48,137
50% 50.0% 40,007 40,042
40% 40.5% 32,005 32,430
30% 29.6% 24,004 23,660
20% 19.5% 16,003 15,633
10% 10.1% 8,001 8,112
Active Idle   0 0
Graph of results
JVM 'linux-node14.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,448
Calibration 2     83,855
Calibration 3     83,955
ssj_ops@calibrated=83,905
100% 99.9% 83,905 83,844
90% 89.3% 75,515 74,964
80% 79.9% 67,124 67,030
70% 70.2% 58,734 58,942
60% 59.1% 50,343 49,585
50% 49.3% 41,953 41,328
40% 40.0% 33,562 33,550
30% 29.3% 25,172 24,592
20% 19.7% 16,781 16,494
10% 10.0% 8,391 8,398
Active Idle   0 0
Graph of results
JVM 'linux-node14.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,997
Calibration 2     86,667
Calibration 3     87,060
ssj_ops@calibrated=86,863
100% 100.2% 86,863 87,049
90% 90.2% 78,177 78,391
80% 80.2% 69,491 69,630
70% 70.0% 60,804 60,779
60% 58.7% 52,118 50,948
50% 49.8% 43,432 43,266
40% 39.9% 34,745 34,699
30% 30.0% 26,059 26,062
20% 19.8% 17,373 17,211
10% 10.0% 8,686 8,692
Active Idle   0 0
Graph of results
JVM 'linux-node14.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,632
Calibration 2     89,779
Calibration 3     89,372
ssj_ops@calibrated=89,576
100% 99.9% 89,576 89,491
90% 90.9% 80,618 81,428
80% 79.2% 71,661 70,984
70% 70.3% 62,703 62,980
60% 60.1% 53,746 53,878
50% 49.8% 44,788 44,584
40% 40.0% 35,830 35,791
30% 29.4% 26,873 26,361
20% 19.8% 17,915 17,724
10% 9.9% 8,958 8,833
Active Idle   0 0
Graph of results
JVM 'linux-node14.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,178
Calibration 2     80,889
Calibration 3     80,921
ssj_ops@calibrated=80,905
100% 100.0% 80,905 80,875
90% 89.3% 72,815 72,244
80% 78.8% 64,724 63,764
70% 70.7% 56,634 57,177
60% 59.8% 48,543 48,396
50% 50.8% 40,453 41,080
40% 39.3% 32,362 31,757
30% 29.4% 24,272 23,821
20% 20.3% 16,181 16,462
10% 10.0% 8,091 8,067
Active Idle   0 0
Graph of results
JVM 'linux-node14.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,544
Calibration 2     89,781
Calibration 3     89,743
ssj_ops@calibrated=89,762
100% 99.3% 89,762 89,093
90% 90.3% 80,786 81,099
80% 79.4% 71,810 71,263
70% 69.7% 62,833 62,550
60% 59.9% 53,857 53,781
50% 49.6% 44,881 44,510
40% 40.3% 35,905 36,138
30% 30.3% 26,929 27,238
20% 20.8% 17,952 18,641
10% 10.0% 8,976 9,013
Active Idle   0 0
Graph of results
JVM 'linux-node14.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,891
Calibration 2     84,373
Calibration 3     84,234
ssj_ops@calibrated=84,304
100% 99.2% 84,304 83,659
90% 90.4% 75,873 76,236
80% 79.3% 67,443 66,891
70% 69.3% 59,013 58,454
60% 60.9% 50,582 51,380
50% 50.0% 42,152 42,168
40% 40.0% 33,721 33,692
30% 29.9% 25,291 25,217
20% 19.9% 16,861 16,757
10% 9.9% 8,430 8,371
Active Idle   0 0
Graph of results
JVM 'linux-node14.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,943
Calibration 2     88,255
Calibration 3     88,217
ssj_ops@calibrated=88,236
100% 99.3% 88,236 87,660
90% 89.3% 79,412 78,788
80% 80.1% 70,589 70,677
70% 70.1% 61,765 61,864
60% 59.3% 52,942 52,291
50% 49.1% 44,118 43,363
40% 40.2% 35,294 35,512
30% 30.4% 26,471 26,839
20% 19.9% 17,647 17,583
10% 10.1% 8,824 8,937
Active Idle   0 0
Graph of results
JVM 'linux-node14.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,006
Calibration 2     87,882
Calibration 3     87,485
ssj_ops@calibrated=87,684
100% 99.2% 87,684 86,990
90% 89.5% 78,915 78,453
80% 79.5% 70,147 69,747
70% 70.2% 61,379 61,593
60% 61.1% 52,610 53,577
50% 50.1% 43,842 43,968
40% 39.4% 35,073 34,591
30% 29.5% 26,305 25,853
20% 20.1% 17,537 17,667
10% 10.2% 8,768 8,908
Active Idle   0 0
Graph of results
JVM 'linux-node14.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,324
Calibration 2     88,961
Calibration 3     89,083
ssj_ops@calibrated=89,022
100% 99.6% 89,022 88,695
90% 90.1% 80,120 80,237
80% 80.2% 71,218 71,352
70% 70.6% 62,315 62,866
60% 60.3% 53,413 53,682
50% 49.7% 44,511 44,232
40% 40.0% 35,609 35,609
30% 29.5% 26,707 26,306
20% 20.0% 17,804 17,830
10% 9.9% 8,902 8,773
Active Idle   0 0
Graph of results
JVM 'linux-node14.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,662
Calibration 2     82,839
Calibration 3     82,855
ssj_ops@calibrated=82,847
100% 100.1% 82,847 82,924
90% 90.3% 74,562 74,811
80% 78.5% 66,278 65,046
70% 70.4% 57,993 58,344
60% 60.1% 49,708 49,795
50% 50.0% 41,424 41,435
40% 39.6% 33,139 32,783
30% 29.6% 24,854 24,508
20% 20.6% 16,569 17,043
10% 9.9% 8,285 8,221
Active Idle   0 0
Graph of results
JVM 'linux-node14.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,591
Calibration 2     85,032
Calibration 3     85,090
ssj_ops@calibrated=85,061
100% 99.8% 85,061 84,909
90% 90.6% 76,555 77,071
80% 79.1% 68,049 67,304
70% 70.1% 59,543 59,642
60% 60.1% 51,037 51,124
50% 49.7% 42,530 42,238
40% 39.5% 34,024 33,591
30% 29.9% 25,518 25,422
20% 20.3% 17,012 17,296
10% 9.9% 8,506 8,405
Active Idle   0 0
Graph of results
JVM 'linux-node14.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,671
Calibration 2     88,252
Calibration 3     88,083
ssj_ops@calibrated=88,168
100% 100.4% 88,168 88,551
90% 89.8% 79,351 79,216
80% 80.5% 70,534 71,018
70% 69.5% 61,717 61,310
60% 59.4% 52,901 52,382
50% 49.3% 44,084 43,429
40% 39.9% 35,267 35,201
30% 30.1% 26,450 26,527
20% 19.9% 17,634 17,536
10% 10.1% 8,817 8,925
Active Idle   0 0
Graph of results
JVM 'linux-node14.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,522
Calibration 2     81,586
Calibration 3     81,505
ssj_ops@calibrated=81,545
100% 99.6% 81,545 81,257
90% 89.9% 73,391 73,272
80% 80.0% 65,236 65,218
70% 70.4% 57,082 57,390
60% 60.2% 48,927 49,064
50% 49.7% 40,773 40,559
40% 39.5% 32,618 32,182
30% 30.2% 24,464 24,650
20% 20.1% 16,309 16,372
10% 10.0% 8,155 8,167
Active Idle   0 0
Graph of results
JVM 'linux-node14.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,748
Calibration 2     88,447
Calibration 3     87,995
ssj_ops@calibrated=88,221
100% 100.5% 88,221 88,674
90% 90.1% 79,399 79,460
80% 80.7% 70,577 71,168
70% 69.3% 61,755 61,166
60% 60.1% 52,933 52,994
50% 50.4% 44,111 44,491
40% 40.0% 35,289 35,288
30% 29.9% 26,466 26,337
20% 19.7% 17,644 17,403
10% 9.6% 8,822 8,496
Active Idle   0 0
Graph of results
JVM 'linux-node14.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,080
Calibration 2     88,932
Calibration 3     88,735
ssj_ops@calibrated=88,833
100% 98.9% 88,833 87,833
90% 89.7% 79,950 79,695
80% 80.4% 71,067 71,396
70% 70.3% 62,183 62,466
60% 60.6% 53,300 53,804
50% 50.2% 44,417 44,605
40% 39.1% 35,533 34,752
30% 30.3% 26,650 26,911
20% 19.7% 17,767 17,533
10% 10.1% 8,883 8,962
Active Idle   0 0
Graph of results
JVM 'linux-node14.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,213
Calibration 2     88,194
Calibration 3     88,261
ssj_ops@calibrated=88,228
100% 99.4% 88,228 87,706
90% 90.4% 79,405 79,750
80% 79.6% 70,582 70,256
70% 70.1% 61,759 61,842
60% 60.4% 52,937 53,322
50% 50.4% 44,114 44,425
40% 39.9% 35,291 35,160
30% 30.0% 26,468 26,469
20% 19.2% 17,646 16,970
10% 10.2% 8,823 9,018
Active Idle   0 0
Graph of results
JVM 'linux-node14.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,889
Calibration 2     83,930
Calibration 3     83,930
ssj_ops@calibrated=83,930
100% 99.4% 83,930 83,432
90% 90.8% 75,537 76,248
80% 80.1% 67,144 67,239
70% 69.4% 58,751 58,217
60% 60.3% 50,358 50,574
50% 51.9% 41,965 43,538
40% 40.5% 33,572 33,993
30% 30.0% 25,179 25,166
20% 19.6% 16,786 16,477
10% 10.3% 8,393 8,683
Active Idle   0 0
Graph of results
JVM 'linux-node14.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,954
Calibration 2     86,247
Calibration 3     86,333
ssj_ops@calibrated=86,290
100% 100.3% 86,290 86,539
90% 90.3% 77,661 77,951
80% 80.1% 69,032 69,081
70% 70.9% 60,403 61,139
60% 60.2% 51,774 51,952
50% 49.8% 43,145 42,952
40% 39.8% 34,516 34,362
30% 29.7% 25,887 25,643
20% 19.8% 17,258 17,128
10% 10.0% 8,629 8,650
Active Idle   0 0
Graph of results
JVM 'linux-node14.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,154
Calibration 2     80,112
Calibration 3     79,925
ssj_ops@calibrated=80,018
100% 98.8% 80,018 79,030
90% 90.3% 72,016 72,296
80% 79.8% 64,015 63,878
70% 70.2% 56,013 56,142
60% 59.0% 48,011 47,192
50% 50.7% 40,009 40,544
40% 40.3% 32,007 32,267
30% 30.2% 24,005 24,182
20% 20.2% 16,004 16,155
10% 10.1% 8,002 8,112
Active Idle   0 0
Graph of results
JVM 'linux-node14.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,353
Calibration 2     78,971
Calibration 3     79,039
ssj_ops@calibrated=79,005
100% 100.3% 79,005 79,229
90% 89.8% 71,105 70,948
80% 79.8% 63,204 63,084
70% 71.2% 55,304 56,276
60% 60.7% 47,403 47,993
50% 50.0% 39,503 39,515
40% 40.4% 31,602 31,900
30% 29.6% 23,702 23,379
20% 19.6% 15,801 15,516
10% 10.0% 7,901 7,887
Active Idle   0 0
Graph of results
JVM 'linux-node14.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,599
Calibration 2     88,803
Calibration 3     88,573
ssj_ops@calibrated=88,688
100% 99.1% 88,688 87,933
90% 90.8% 79,819 80,541
80% 80.4% 70,950 71,280
70% 69.4% 62,081 61,506
60% 60.4% 53,213 53,536
50% 50.6% 44,344 44,851
40% 40.7% 35,475 36,053
30% 29.7% 26,606 26,356
20% 20.6% 17,738 18,253
10% 9.5% 8,869 8,406
Active Idle   0 0
Graph of results
JVM 'linux-node14.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,761
Calibration 2     90,531
Calibration 3     90,362
ssj_ops@calibrated=90,447
100% 99.8% 90,447 90,238
90% 89.9% 81,402 81,296
80% 78.9% 72,357 71,393
70% 69.5% 63,313 62,823
60% 59.5% 54,268 53,773
50% 49.6% 45,223 44,876
40% 40.6% 36,179 36,721
30% 30.4% 27,134 27,510
20% 19.6% 18,089 17,684
10% 10.3% 9,045 9,329
Active Idle   0 0
Graph of results
JVM 'linux-node14.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,994
Calibration 2     81,821
Calibration 3     81,765
ssj_ops@calibrated=81,793
100% 100.0% 81,793 81,797
90% 90.4% 73,614 73,929
80% 80.0% 65,435 65,410
70% 70.4% 57,255 57,585
60% 60.1% 49,076 49,139
50% 50.2% 40,897 41,032
40% 40.1% 32,717 32,820
30% 30.4% 24,538 24,865
20% 19.8% 16,359 16,195
10% 10.2% 8,179 8,375
Active Idle   0 0
Graph of results
JVM 'linux-node14.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,884
Calibration 2     87,295
Calibration 3     87,263
ssj_ops@calibrated=87,279
100% 100.2% 87,279 87,448
90% 90.3% 78,551 78,803
80% 80.0% 69,823 69,838
70% 69.9% 61,095 61,015
60% 60.1% 52,367 52,461
50% 50.0% 43,640 43,638
40% 40.6% 34,912 35,442
30% 29.8% 26,184 26,048
20% 19.8% 17,456 17,288
10% 10.2% 8,728 8,917
Active Idle   0 0
Graph of results
JVM 'linux-node14.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,285
Calibration 2     85,630
Calibration 3     85,466
ssj_ops@calibrated=85,548
100% 99.5% 85,548 85,116
90% 90.8% 76,993 77,657
80% 79.7% 68,439 68,208
70% 69.8% 59,884 59,749
60% 59.1% 51,329 50,574
50% 50.5% 42,774 43,228
40% 40.2% 34,219 34,396
30% 29.6% 25,664 25,280
20% 20.6% 17,110 17,645
10% 10.3% 8,555 8,812
Active Idle   0 0
Graph of results
JVM 'linux-node14.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,610
Calibration 2     87,363
Calibration 3     87,266
ssj_ops@calibrated=87,315
100% 99.2% 87,315 86,598
90% 90.3% 78,583 78,817
80% 80.1% 69,852 69,936
70% 68.7% 61,120 59,985
60% 59.3% 52,389 51,786
50% 49.9% 43,657 43,560
40% 40.6% 34,926 35,468
30% 30.1% 26,194 26,272
20% 20.0% 17,463 17,474
10% 9.8% 8,731 8,554
Active Idle   0 0
Graph of results
JVM 'linux-node14.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,293
Calibration 2     83,077
Calibration 3     82,952
ssj_ops@calibrated=83,014
100% 100.2% 83,014 83,220
90% 91.0% 74,713 75,531
80% 80.4% 66,411 66,757
70% 69.1% 58,110 57,385
60% 60.2% 49,808 49,992
50% 50.2% 41,507 41,664
40% 40.1% 33,206 33,293
30% 29.4% 24,904 24,443
20% 20.0% 16,603 16,595
10% 10.0% 8,301 8,304
Active Idle   0 0
Graph of results
JVM 'linux-node14.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,791
Calibration 2     88,072
Calibration 3     87,829
ssj_ops@calibrated=87,951
100% 100.2% 87,951 88,155
90% 89.2% 79,155 78,471
80% 79.6% 70,360 69,999
70% 69.9% 61,565 61,516
60% 60.5% 52,770 53,198
50% 50.3% 43,975 44,208
40% 39.6% 35,180 34,788
30% 30.5% 26,385 26,814
20% 19.8% 17,590 17,412
10% 9.7% 8,795 8,554
Active Idle   0 0
Graph of results
JVM 'linux-node14.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,127
Calibration 2     81,479
Calibration 3     81,362
ssj_ops@calibrated=81,420
100% 99.9% 81,420 81,365
90% 91.0% 73,278 74,055
80% 79.7% 65,136 64,872
70% 70.0% 56,994 57,014
60% 60.1% 48,852 48,904
50% 49.7% 40,710 40,437
40% 40.0% 32,568 32,571
30% 29.8% 24,426 24,283
20% 20.3% 16,284 16,537
10% 10.2% 8,142 8,275
Active Idle   0 0
Graph of results
JVM 'linux-node14.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,132
Calibration 2     77,064
Calibration 3     77,070
ssj_ops@calibrated=77,067
100% 99.4% 77,067 76,593
90% 89.9% 69,360 69,300
80% 79.0% 61,654 60,916
70% 70.4% 53,947 54,287
60% 59.9% 46,240 46,152
50% 50.4% 38,533 38,844
40% 40.4% 30,827 31,156
30% 30.3% 23,120 23,323
20% 19.5% 15,413 15,020
10% 10.3% 7,707 7,925
Active Idle   0 0
Graph of results
JVM 'linux-node14.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,596
Calibration 2     84,398
Calibration 3     84,195
ssj_ops@calibrated=84,296
100% 99.9% 84,296 84,200
90% 90.3% 75,867 76,100
80% 79.1% 67,437 66,688
70% 70.0% 59,008 59,033
60% 60.9% 50,578 51,295
50% 50.5% 42,148 42,560
40% 40.8% 33,719 34,392
30% 30.3% 25,289 25,504
20% 20.2% 16,859 17,062
10% 10.3% 8,430 8,675
Active Idle   0 0
Graph of results
JVM 'linux-node14.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,672
Calibration 2     89,225
Calibration 3     88,997
ssj_ops@calibrated=89,111
100% 100.2% 89,111 89,286
90% 90.7% 80,200 80,816
80% 79.4% 71,289 70,768
70% 69.4% 62,378 61,871
60% 60.1% 53,467 53,516
50% 49.2% 44,556 43,850
40% 40.6% 35,644 36,139
30% 30.0% 26,733 26,761
20% 20.1% 17,822 17,937
10% 10.2% 8,911 9,071
Active Idle   0 0
Graph of results
JVM 'linux-node14.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,480
Calibration 2     79,093
Calibration 3     79,234
ssj_ops@calibrated=79,163
100% 100.5% 79,163 79,536
90% 90.4% 71,247 71,556
80% 78.9% 63,331 62,484
70% 69.0% 55,414 54,597
60% 59.0% 47,498 46,693
50% 50.0% 39,582 39,618
40% 40.2% 31,665 31,848
30% 29.7% 23,749 23,500
20% 20.0% 15,833 15,815
10% 9.9% 7,916 7,840
Active Idle   0 0
Graph of results
JVM 'linux-node14.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,662
Calibration 2     78,504
Calibration 3     78,344
ssj_ops@calibrated=78,424
100% 99.3% 78,424 77,853
90% 88.9% 70,582 69,707
80% 79.8% 62,739 62,619
70% 69.7% 54,897 54,673
60% 59.5% 47,055 46,680
50% 49.8% 39,212 39,046
40% 39.5% 31,370 30,965
30% 30.1% 23,527 23,634
20% 20.1% 15,685 15,762
10% 9.9% 7,842 7,762
Active Idle   0 0
Graph of results
JVM 'linux-node14.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,125
Calibration 2     89,587
Calibration 3     89,437
ssj_ops@calibrated=89,512
100% 100.2% 89,512 89,667
90% 89.5% 80,561 80,127
80% 79.6% 71,610 71,244
70% 70.5% 62,658 63,145
60% 59.8% 53,707 53,555
50% 50.1% 44,756 44,856
40% 39.8% 35,805 35,622
30% 29.8% 26,854 26,646
20% 19.8% 17,902 17,766
10% 9.8% 8,951 8,775
Active Idle   0 0
Graph of results
JVM 'linux-node14.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,659
Calibration 2     85,821
Calibration 3     85,687
ssj_ops@calibrated=85,754
100% 99.9% 85,754 85,652
90% 90.2% 77,179 77,322
80% 79.7% 68,603 68,383
70% 70.5% 60,028 60,440
60% 59.2% 51,452 50,761
50% 49.8% 42,877 42,665
40% 40.6% 34,302 34,778
30% 29.6% 25,726 25,386
20% 20.5% 17,151 17,567
10% 9.9% 8,575 8,529
Active Idle   0 0
Graph of results
JVM 'linux-node14.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,419
Calibration 2     79,826
Calibration 3     79,953
ssj_ops@calibrated=79,889
100% 99.6% 79,889 79,598
90% 89.9% 71,900 71,784
80% 79.6% 63,911 63,583
70% 70.1% 55,922 55,994
60% 59.1% 47,934 47,215
50% 49.0% 39,945 39,148
40% 39.7% 31,956 31,752
30% 30.1% 23,967 24,027
20% 20.0% 15,978 15,946
10% 9.8% 7,989 7,833
Active Idle   0 0
Graph of results
JVM 'linux-node14.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,172
Calibration 2     88,055
Calibration 3     87,896
ssj_ops@calibrated=87,975
100% 99.2% 87,975 87,289
90% 89.5% 79,178 78,764
80% 79.9% 70,380 70,282
70% 69.8% 61,583 61,400
60% 60.2% 52,785 52,968
50% 49.6% 43,988 43,646
40% 39.6% 35,190 34,806
30% 29.4% 26,393 25,879
20% 19.6% 17,595 17,261
10% 9.7% 8,798 8,541
Active Idle   0 0
Graph of results
JVM 'linux-node14.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,854
Calibration 2     79,809
Calibration 3     79,678
ssj_ops@calibrated=79,744
100% 99.4% 79,744 79,237
90% 89.8% 71,769 71,615
80% 79.9% 63,795 63,704
70% 70.4% 55,821 56,177
60% 59.4% 47,846 47,336
50% 50.1% 39,872 39,913
40% 40.6% 31,897 32,408
30% 29.8% 23,923 23,752
20% 19.9% 15,949 15,877
10% 10.2% 7,974 8,096
Active Idle   0 0
Graph of results
JVM 'linux-node14.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,474
Calibration 2     83,986
Calibration 3     83,901
ssj_ops@calibrated=83,944
100% 99.9% 83,944 83,839
90% 90.2% 75,549 75,681
80% 80.3% 67,155 67,397
70% 69.8% 58,760 58,580
60% 60.7% 50,366 50,915
50% 50.3% 41,972 42,210
40% 39.3% 33,577 33,008
30% 30.6% 25,183 25,705
20% 19.9% 16,789 16,678
10% 10.0% 8,394 8,387
Active Idle   0 0
Graph of results
JVM 'linux-node14.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,880
Calibration 2     79,220
Calibration 3     78,922
ssj_ops@calibrated=79,071
100% 100.0% 79,071 79,063
90% 88.8% 71,164 70,248
80% 79.8% 63,257 63,120
70% 70.2% 55,350 55,543
60% 59.5% 47,443 47,057
50% 50.6% 39,535 39,990
40% 39.9% 31,628 31,510
30% 29.9% 23,721 23,634
20% 20.3% 15,814 16,020
10% 10.2% 7,907 8,085
Active Idle   0 0
Graph of results
JVM 'linux-node14.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,471
Calibration 2     89,073
Calibration 3     88,892
ssj_ops@calibrated=88,983
100% 99.6% 88,983 88,588
90% 91.1% 80,084 81,104
80% 80.1% 71,186 71,308
70% 69.7% 62,288 61,984
60% 60.2% 53,390 53,559
50% 50.3% 44,491 44,800
40% 40.2% 35,593 35,743
30% 30.0% 26,695 26,708
20% 20.0% 17,797 17,816
10% 9.9% 8,898 8,800
Active Idle   0 0
Graph of results
JVM 'linux-node14.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,603
Calibration 2     79,795
Calibration 3     80,159
ssj_ops@calibrated=79,977
100% 99.4% 79,977 79,510
90% 90.1% 71,979 72,081
80% 79.5% 63,982 63,546
70% 69.4% 55,984 55,516
60% 60.0% 47,986 47,983
50% 49.6% 39,989 39,697
40% 40.4% 31,991 32,283
30% 30.3% 23,993 24,211
20% 20.0% 15,995 16,013
10% 9.5% 7,998 7,636
Active Idle   0 0
Graph of results
