Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,468,831
ssj_ops@100% per JVM = 85,450
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,479,419
Calibration 2     5,490,319
Calibration 3     5,486,286
ssj_ops@calibrated=5,488,303
100% 99.6% 5,488,303 5,468,831
90% 89.9% 4,939,472 4,931,597
80% 79.8% 4,390,642 4,380,035
70% 70.0% 3,841,812 3,843,623
60% 60.0% 3,292,982 3,295,231
50% 50.1% 2,744,151 2,748,800
40% 40.0% 2,195,321 2,197,531
30% 30.0% 1,646,491 1,647,113
20% 19.9% 1,097,661 1,094,639
10% 10.0% 548,830 550,670
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node13.001 78,790
linux-node13.002 87,450
linux-node13.003 78,471
linux-node13.004 88,664
linux-node13.005 88,120
linux-node13.006 77,929
linux-node13.007 87,639
linux-node13.008 84,529
linux-node13.009 79,431
linux-node13.010 88,148
linux-node13.011 90,234
linux-node13.012 88,238
linux-node13.013 87,095
linux-node13.014 88,803
linux-node13.015 79,451
linux-node13.016 84,272
linux-node13.017 81,396
linux-node13.018 82,230
linux-node13.019 89,103
linux-node13.020 87,806
linux-node13.021 89,963
linux-node13.022 80,291
linux-node13.023 89,738
linux-node13.024 83,591
linux-node13.025 88,164
linux-node13.026 88,871
linux-node13.027 86,655
linux-node13.028 80,133
linux-node13.029 88,314
linux-node13.030 86,637
linux-node13.031 87,003
linux-node13.032 87,277
linux-node13.033 80,636
linux-node13.034 86,142
linux-node13.035 88,790
linux-node13.036 84,913
linux-node13.037 79,398
linux-node13.038 79,584
linux-node13.039 87,530
linux-node13.040 83,500
linux-node13.041 83,233
linux-node13.042 89,101
linux-node13.043 88,154
linux-node13.044 89,760
linux-node13.045 87,213
linux-node13.046 80,665
linux-node13.047 87,079
linux-node13.048 86,393
linux-node13.049 78,196
linux-node13.050 86,072
linux-node13.051 88,118
linux-node13.052 87,347
linux-node13.053 88,933
linux-node13.054 84,719
linux-node13.055 89,431
linux-node13.056 79,980
linux-node13.057 81,266
linux-node13.058 89,984
linux-node13.059 89,142
linux-node13.060 87,579
linux-node13.061 87,190
linux-node13.062 80,615
linux-node13.063 88,069
linux-node13.064 85,661
ssj_ops@100% 5,468,831
ssj_ops@100% per JVM 85,450
Graph of per-instance results
JVM 'linux-node13.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,188
Calibration 2     79,665
Calibration 3     79,732
ssj_ops@calibrated=79,699
100% 98.9% 79,699 78,790
90% 90.4% 71,729 72,045
80% 79.9% 63,759 63,672
70% 69.9% 55,789 55,675
60% 59.9% 47,819 47,734
50% 50.6% 39,849 40,331
40% 40.0% 31,879 31,894
30% 29.9% 23,910 23,868
20% 19.8% 15,940 15,754
10% 10.1% 7,970 8,071
Active Idle   0 0
Graph of results
JVM 'linux-node13.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,706
Calibration 2     87,946
Calibration 3     87,711
ssj_ops@calibrated=87,828
100% 99.6% 87,828 87,450
90% 89.1% 79,046 78,283
80% 79.6% 70,263 69,937
70% 69.8% 61,480 61,339
60% 60.6% 52,697 53,246
50% 49.7% 43,914 43,654
40% 40.1% 35,131 35,259
30% 30.0% 26,349 26,381
20% 19.3% 17,566 16,991
10% 10.1% 8,783 8,837
Active Idle   0 0
Graph of results
JVM 'linux-node13.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,149
Calibration 2     78,828
Calibration 3     78,745
ssj_ops@calibrated=78,786
100% 99.6% 78,786 78,471
90% 89.2% 70,908 70,309
80% 79.6% 63,029 62,694
70% 70.4% 55,150 55,480
60% 60.0% 47,272 47,260
50% 49.9% 39,393 39,343
40% 40.4% 31,514 31,857
30% 29.8% 23,636 23,496
20% 19.8% 15,757 15,624
10% 10.1% 7,879 7,922
Active Idle   0 0
Graph of results
JVM 'linux-node13.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,891
Calibration 2     88,646
Calibration 3     88,643
ssj_ops@calibrated=88,645
100% 100.0% 88,645 88,664
90% 89.0% 79,780 78,907
80% 80.9% 70,916 71,670
70% 69.8% 62,051 61,899
60% 59.9% 53,187 53,118
50% 50.0% 44,322 44,305
40% 40.6% 35,458 35,969
30% 30.1% 26,593 26,699
20% 19.9% 17,729 17,646
10% 9.9% 8,864 8,816
Active Idle   0 0
Graph of results
JVM 'linux-node13.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,845
Calibration 2     87,760
Calibration 3     87,803
ssj_ops@calibrated=87,782
100% 100.4% 87,782 88,120
90% 89.2% 79,004 78,339
80% 79.7% 70,225 69,943
70% 70.6% 61,447 62,004
60% 59.9% 52,669 52,577
50% 50.5% 43,891 44,365
40% 40.0% 35,113 35,127
30% 30.0% 26,335 26,296
20% 19.5% 17,556 17,113
10% 10.3% 8,778 9,054
Active Idle   0 0
Graph of results
JVM 'linux-node13.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,396
Calibration 2     78,490
Calibration 3     78,184
ssj_ops@calibrated=78,337
100% 99.5% 78,337 77,929
90% 89.1% 70,503 69,804
80% 80.0% 62,670 62,637
70% 68.8% 54,836 53,912
60% 59.8% 47,002 46,820
50% 50.6% 39,169 39,644
40% 40.1% 31,335 31,409
30% 29.7% 23,501 23,304
20% 19.7% 15,667 15,394
10% 9.8% 7,834 7,642
Active Idle   0 0
Graph of results
JVM 'linux-node13.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,383
Calibration 2     87,870
Calibration 3     87,900
ssj_ops@calibrated=87,885
100% 99.7% 87,885 87,639
90% 90.5% 79,097 79,540
80% 79.4% 70,308 69,785
70% 70.0% 61,520 61,490
60% 60.1% 52,731 52,843
50% 49.7% 43,943 43,652
40% 39.3% 35,154 34,511
30% 30.1% 26,366 26,416
20% 20.0% 17,577 17,567
10% 10.2% 8,789 8,937
Active Idle   0 0
Graph of results

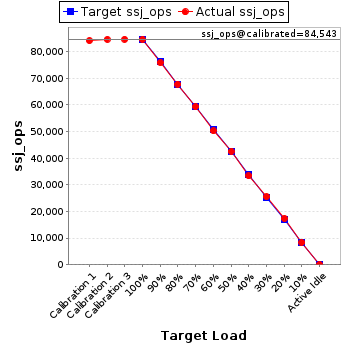

JVM 'linux-node13.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,015
Calibration 2     84,513
Calibration 3     84,574
ssj_ops@calibrated=84,543
100% 100.0% 84,543 84,529
90% 89.6% 76,089 75,750
80% 80.1% 67,635 67,699
70% 70.1% 59,180 59,257
60% 59.3% 50,726 50,169
50% 50.3% 42,272 42,489
40% 39.4% 33,817 33,300
30% 30.2% 25,363 25,494
20% 20.5% 16,909 17,360
10% 9.9% 8,454 8,366
Active Idle   0 0
Graph of results
JVM 'linux-node13.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,933
Calibration 2     79,086
Calibration 3     79,324
ssj_ops@calibrated=79,205
100% 100.3% 79,205 79,431
90% 89.3% 71,284 70,739
80% 79.7% 63,364 63,106
70% 69.6% 55,443 55,138
60% 60.5% 47,523 47,900
50% 49.7% 39,602 39,394
40% 39.3% 31,682 31,138
30% 30.5% 23,761 24,131
20% 20.1% 15,841 15,891
10% 10.1% 7,920 7,962
Active Idle   0 0
Graph of results
JVM 'linux-node13.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,518
Calibration 2     88,439
Calibration 3     88,206
ssj_ops@calibrated=88,322
100% 99.8% 88,322 88,148
90% 90.2% 79,490 79,635
80% 79.2% 70,658 69,944
70% 70.2% 61,826 62,003
60% 60.0% 52,993 52,996
50% 49.7% 44,161 43,864
40% 41.3% 35,329 36,453
30% 30.1% 26,497 26,571
20% 19.5% 17,664 17,226
10% 10.0% 8,832 8,825
Active Idle   0 0
Graph of results
JVM 'linux-node13.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,977
Calibration 2     90,351
Calibration 3     90,400
ssj_ops@calibrated=90,376
100% 99.8% 90,376 90,234
90% 89.1% 81,338 80,493
80% 79.8% 72,300 72,099
70% 69.6% 63,263 62,931
60% 59.6% 54,225 53,897
50% 49.3% 45,188 44,595
40% 40.1% 36,150 36,226
30% 29.7% 27,113 26,862
20% 19.7% 18,075 17,791
10% 10.1% 9,038 9,091
Active Idle   0 0
Graph of results
JVM 'linux-node13.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,207
Calibration 2     88,882
Calibration 3     88,617
ssj_ops@calibrated=88,750
100% 99.4% 88,750 88,238
90% 90.3% 79,875 80,163
80% 79.6% 71,000 70,659
70% 70.1% 62,125 62,171
60% 59.8% 53,250 53,039
50% 49.7% 44,375 44,068
40% 39.8% 35,500 35,356
30% 30.0% 26,625 26,583
20% 19.3% 17,750 17,138
10% 10.5% 8,875 9,329
Active Idle   0 0
Graph of results
JVM 'linux-node13.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,320
Calibration 2     87,954
Calibration 3     87,717
ssj_ops@calibrated=87,835
100% 99.2% 87,835 87,095
90% 90.4% 79,052 79,437
80% 80.2% 70,268 70,486
70% 68.9% 61,485 60,516
60% 59.6% 52,701 52,362
50% 50.0% 43,918 43,889
40% 40.7% 35,134 35,707
30% 29.9% 26,351 26,267
20% 20.0% 17,567 17,529
10% 9.7% 8,784 8,546
Active Idle   0 0
Graph of results
JVM 'linux-node13.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,543
Calibration 2     89,141
Calibration 3     89,080
ssj_ops@calibrated=89,111
100% 99.7% 89,111 88,803
90% 90.5% 80,200 80,629
80% 80.3% 71,289 71,535
70% 69.7% 62,378 62,137
60% 58.9% 53,466 52,510
50% 50.6% 44,555 45,075
40% 40.4% 35,644 36,019
30% 30.0% 26,733 26,722
20% 19.9% 17,822 17,703
10% 10.1% 8,911 8,989
Active Idle   0 0
Graph of results
JVM 'linux-node13.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,949
Calibration 2     80,080
Calibration 3     80,027
ssj_ops@calibrated=80,053
100% 99.2% 80,053 79,451
90% 90.4% 72,048 72,377
80% 80.3% 64,043 64,254
70% 71.6% 56,037 57,328
60% 59.3% 48,032 47,436
50% 49.5% 40,027 39,664
40% 40.0% 32,021 31,984
30% 29.9% 24,016 23,928
20% 20.9% 16,011 16,704
10% 10.1% 8,005 8,079
Active Idle   0 0
Graph of results

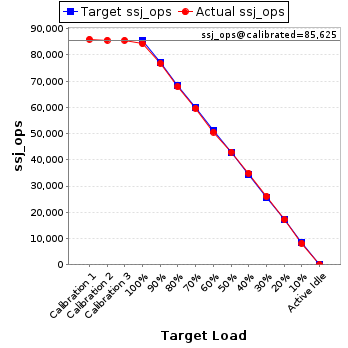

JVM 'linux-node13.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,000
Calibration 2     85,646
Calibration 3     85,604
ssj_ops@calibrated=85,625
100% 98.4% 85,625 84,272
90% 89.7% 77,062 76,775
80% 79.3% 68,500 67,906
70% 69.6% 59,937 59,637
60% 59.1% 51,375 50,595
50% 50.2% 42,812 42,952
40% 40.7% 34,250 34,860
30% 30.5% 25,687 26,084
20% 20.1% 17,125 17,183
10% 9.4% 8,562 8,084
Active Idle   0 0
Graph of results
JVM 'linux-node13.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,895
Calibration 2     81,043
Calibration 3     80,985
ssj_ops@calibrated=81,014
100% 100.5% 81,014 81,396
90% 90.8% 72,912 73,586
80% 79.8% 64,811 64,666
70% 69.7% 56,710 56,453
60% 59.3% 48,608 48,048
50% 50.6% 40,507 41,010
40% 40.4% 32,406 32,756
30% 30.5% 24,304 24,722
20% 19.9% 16,203 16,143
10% 10.0% 8,101 8,108
Active Idle   0 0
Graph of results
JVM 'linux-node13.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,587
Calibration 2     82,284
Calibration 3     82,329
ssj_ops@calibrated=82,307
100% 99.9% 82,307 82,230
90% 90.2% 74,076 74,261
80% 79.2% 65,845 65,190
70% 70.0% 57,615 57,597
60% 59.9% 49,384 49,306
50% 50.3% 41,153 41,437
40% 40.8% 32,923 33,545
30% 30.1% 24,692 24,735
20% 20.1% 16,461 16,517
10% 10.3% 8,231 8,442
Active Idle   0 0
Graph of results
JVM 'linux-node13.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,653
Calibration 2     88,835
Calibration 3     89,243
ssj_ops@calibrated=89,039
100% 100.1% 89,039 89,103
90% 89.4% 80,135 79,603
80% 80.4% 71,231 71,626
70% 70.2% 62,327 62,498
60% 60.9% 53,423 54,249
50% 50.0% 44,519 44,526
40% 39.8% 35,616 35,425
30% 30.3% 26,712 26,988
20% 20.1% 17,808 17,900
10% 9.7% 8,904 8,679
Active Idle   0 0
Graph of results
JVM 'linux-node13.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,613
Calibration 2     88,456
Calibration 3     88,712
ssj_ops@calibrated=88,584
100% 99.1% 88,584 87,806
90% 90.5% 79,726 80,179
80% 79.0% 70,867 69,970
70% 70.1% 62,009 62,094
60% 59.8% 53,150 52,953
50% 50.1% 44,292 44,412
40% 39.8% 35,434 35,274
30% 29.6% 26,575 26,254
20% 19.9% 17,717 17,595
10% 10.6% 8,858 9,358
Active Idle   0 0
Graph of results
JVM 'linux-node13.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,959
Calibration 2     89,865
Calibration 3     89,585
ssj_ops@calibrated=89,725
100% 100.3% 89,725 89,963
90% 89.9% 80,752 80,682
80% 80.2% 71,780 71,932
70% 70.7% 62,807 63,462
60% 60.2% 53,835 54,004
50% 50.0% 44,862 44,841
40% 39.9% 35,890 35,808
30% 30.5% 26,917 27,389
20% 19.8% 17,945 17,792
10% 10.2% 8,972 9,117
Active Idle   0 0
Graph of results

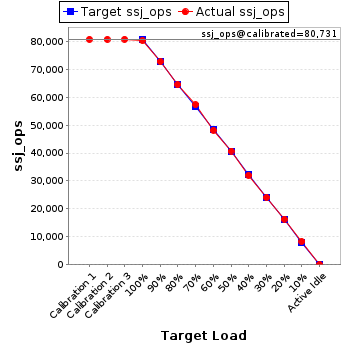

JVM 'linux-node13.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,716
Calibration 2     80,711
Calibration 3     80,750
ssj_ops@calibrated=80,731
100% 99.5% 80,731 80,291
90% 90.1% 72,658 72,738
80% 79.9% 64,585 64,473
70% 71.0% 56,511 57,303
60% 59.7% 48,438 48,181
50% 50.4% 40,365 40,710
40% 39.6% 32,292 32,004
30% 29.8% 24,219 24,033
20% 20.2% 16,146 16,328
10% 10.3% 8,073 8,300
Active Idle   0 0
Graph of results
JVM 'linux-node13.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,556
Calibration 2     90,038
Calibration 3     89,685
ssj_ops@calibrated=89,861
100% 99.9% 89,861 89,738
90% 89.8% 80,875 80,684
80% 80.2% 71,889 72,102
70% 69.8% 62,903 62,764
60% 61.1% 53,917 54,939
50% 50.3% 44,931 45,209
40% 39.9% 35,945 35,835
30% 29.5% 26,958 26,542
20% 19.7% 17,972 17,732
10% 9.8% 8,986 8,828
Active Idle   0 0
Graph of results
JVM 'linux-node13.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,637
Calibration 2     83,669
Calibration 3     83,699
ssj_ops@calibrated=83,684
100% 99.9% 83,684 83,591
90% 89.5% 75,316 74,884
80% 80.2% 66,947 67,086
70% 69.8% 58,579 58,382
60% 60.0% 50,210 50,243
50% 51.5% 41,842 43,096
40% 40.6% 33,474 33,986
30% 29.6% 25,105 24,810
20% 20.1% 16,737 16,793
10% 9.8% 8,368 8,192
Active Idle   0 0
Graph of results
JVM 'linux-node13.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,827
Calibration 2     88,337
Calibration 3     88,105
ssj_ops@calibrated=88,221
100% 99.9% 88,221 88,164
90% 90.6% 79,399 79,960
80% 79.9% 70,577 70,465
70% 69.9% 61,755 61,683
60% 60.0% 52,933 52,940
50% 49.9% 44,111 44,057
40% 41.3% 35,288 36,415
30% 30.2% 26,466 26,684
20% 20.1% 17,644 17,769
10% 10.2% 8,822 8,991
Active Idle   0 0
Graph of results
JVM 'linux-node13.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,345
Calibration 2     88,981
Calibration 3     88,849
ssj_ops@calibrated=88,915
100% 100.0% 88,915 88,871
90% 90.5% 80,024 80,491
80% 79.3% 71,132 70,469
70% 70.6% 62,241 62,770
60% 60.0% 53,349 53,346
50% 50.8% 44,458 45,209
40% 39.7% 35,566 35,321
30% 30.1% 26,675 26,792
20% 19.8% 17,783 17,634
10% 10.1% 8,892 9,000
Active Idle   0 0
Graph of results
JVM 'linux-node13.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,712
Calibration 2     86,721
Calibration 3     86,692
ssj_ops@calibrated=86,706
100% 99.9% 86,706 86,655
90% 89.7% 78,036 77,748
80% 79.9% 69,365 69,316
70% 70.8% 60,695 61,357
60% 59.9% 52,024 51,919
50% 50.5% 43,353 43,777
40% 39.8% 34,683 34,532
30% 29.7% 26,012 25,742
20% 20.6% 17,341 17,862
10% 10.2% 8,671 8,867
Active Idle   0 0
Graph of results
JVM 'linux-node13.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,329
Calibration 2     80,180
Calibration 3     80,190
ssj_ops@calibrated=80,185
100% 99.9% 80,185 80,133
90% 91.0% 72,166 72,987
80% 79.9% 64,148 64,047
70% 70.3% 56,129 56,347
60% 60.3% 48,111 48,339
50% 49.5% 40,092 39,656
40% 39.7% 32,074 31,840
30% 29.6% 24,055 23,704
20% 19.9% 16,037 15,921
10% 10.4% 8,018 8,340
Active Idle   0 0
Graph of results
JVM 'linux-node13.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,646
Calibration 2     89,406
Calibration 3     89,285
ssj_ops@calibrated=89,346
100% 98.8% 89,346 88,314
90% 89.5% 80,411 79,955
80% 80.4% 71,476 71,808
70% 70.8% 62,542 63,224
60% 60.4% 53,607 53,927
50% 49.8% 44,673 44,532
40% 40.2% 35,738 35,957
30% 30.0% 26,804 26,796
20% 20.2% 17,869 18,087
10% 9.8% 8,935 8,765
Active Idle   0 0
Graph of results
JVM 'linux-node13.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,222
Calibration 2     87,241
Calibration 3     86,886
ssj_ops@calibrated=87,064
100% 99.5% 87,064 86,637
90% 89.3% 78,357 77,774
80% 80.2% 69,651 69,848
70% 69.4% 60,945 60,410
60% 60.7% 52,238 52,823
50% 50.2% 43,532 43,731
40% 40.3% 34,825 35,117
30% 30.4% 26,119 26,487
20% 19.5% 17,413 16,953
10% 10.0% 8,706 8,742
Active Idle   0 0
Graph of results
JVM 'linux-node13.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,376
Calibration 2     86,692
Calibration 3     86,731
ssj_ops@calibrated=86,711
100% 100.3% 86,711 87,003
90% 89.6% 78,040 77,716
80% 80.0% 69,369 69,367
70% 69.9% 60,698 60,611
60% 60.7% 52,027 52,648
50% 49.9% 43,356 43,274
40% 39.4% 34,684 34,132
30% 30.3% 26,013 26,276
20% 19.9% 17,342 17,254
10% 10.1% 8,671 8,733
Active Idle   0 0
Graph of results
JVM 'linux-node13.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,143
Calibration 2     88,026
Calibration 3     88,063
ssj_ops@calibrated=88,044
100% 99.1% 88,044 87,277
90% 89.7% 79,240 78,988
80% 81.1% 70,435 71,430
70% 69.6% 61,631 61,272
60% 60.6% 52,827 53,398
50% 49.7% 44,022 43,787
40% 40.1% 35,218 35,347
30% 30.4% 26,413 26,751
20% 19.9% 17,609 17,521
10% 10.1% 8,804 8,873
Active Idle   0 0
Graph of results
JVM 'linux-node13.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,195
Calibration 2     80,581
Calibration 3     80,897
ssj_ops@calibrated=80,739
100% 99.9% 80,739 80,636
90% 90.0% 72,665 72,665
80% 79.2% 64,591 63,961
70% 70.7% 56,517 57,121
60% 60.8% 48,443 49,064
50% 50.7% 40,369 40,898
40% 40.5% 32,296 32,690
30% 29.3% 24,222 23,653
20% 19.5% 16,148 15,733
10% 9.6% 8,074 7,787
Active Idle   0 0
Graph of results
JVM 'linux-node13.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,686
Calibration 2     86,394
Calibration 3     86,456
ssj_ops@calibrated=86,425
100% 99.7% 86,425 86,142
90% 91.0% 77,782 78,658
80% 79.8% 69,140 68,940
70% 70.0% 60,497 60,531
60% 60.7% 51,855 52,481
50% 50.0% 43,212 43,250
40% 39.6% 34,570 34,224
30% 29.1% 25,927 25,191
20% 19.7% 17,285 17,013
10% 9.9% 8,642 8,575
Active Idle   0 0
Graph of results
JVM 'linux-node13.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,262
Calibration 2     89,142
Calibration 3     89,091
ssj_ops@calibrated=89,117
100% 99.6% 89,117 88,790
90% 89.5% 80,205 79,761
80% 79.5% 71,293 70,881
70% 70.6% 62,382 62,926
60% 60.5% 53,470 53,952
50% 50.1% 44,558 44,666
40% 39.9% 35,647 35,581
30% 30.1% 26,735 26,823
20% 20.2% 17,823 18,003
10% 9.9% 8,912 8,800
Active Idle   0 0
Graph of results
JVM 'linux-node13.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,108
Calibration 2     85,919
Calibration 3     85,760
ssj_ops@calibrated=85,840
100% 98.9% 85,840 84,913
90% 89.1% 77,256 76,453
80% 80.4% 68,672 69,030
70% 70.5% 60,088 60,522
60% 59.3% 51,504 50,864
50% 49.6% 42,920 42,545
40% 39.6% 34,336 34,014
30% 30.0% 25,752 25,741
20% 20.3% 17,168 17,437
10% 10.2% 8,584 8,717
Active Idle   0 0
Graph of results
JVM 'linux-node13.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,582
Calibration 2     79,361
Calibration 3     79,364
ssj_ops@calibrated=79,363
100% 100.0% 79,363 79,398
90% 90.0% 71,426 71,407
80% 79.4% 63,490 63,043
70% 69.9% 55,554 55,467
60% 59.5% 47,618 47,212
50% 50.1% 39,681 39,749
40% 40.5% 31,745 32,116
30% 29.8% 23,809 23,656
20% 20.3% 15,873 16,115
10% 9.9% 7,936 7,822
Active Idle   0 0
Graph of results
JVM 'linux-node13.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,636
Calibration 2     80,593
Calibration 3     80,445
ssj_ops@calibrated=80,519
100% 98.8% 80,519 79,584
90% 89.8% 72,467 72,312
80% 80.0% 64,415 64,408
70% 70.0% 56,363 56,346
60% 61.0% 48,312 49,099
50% 50.5% 40,260 40,660
40% 39.7% 32,208 31,988
30% 30.6% 24,156 24,677
20% 19.8% 16,104 15,953
10% 10.1% 8,052 8,137
Active Idle   0 0
Graph of results
JVM 'linux-node13.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,076
Calibration 2     88,976
Calibration 3     88,871
ssj_ops@calibrated=88,924
100% 98.4% 88,924 87,530
90% 90.2% 80,031 80,210
80% 79.2% 71,139 70,453
70% 69.7% 62,246 61,964
60% 60.4% 53,354 53,733
50% 50.8% 44,462 45,163
40% 40.6% 35,569 36,083
30% 30.4% 26,677 27,050
20% 20.3% 17,785 18,032
10% 9.9% 8,892 8,759
Active Idle   0 0
Graph of results
JVM 'linux-node13.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,661
Calibration 2     83,360
Calibration 3     83,294
ssj_ops@calibrated=83,327
100% 100.2% 83,327 83,500
90% 90.0% 74,994 74,999
80% 79.2% 66,662 65,963
70% 69.5% 58,329 57,944
60% 61.3% 49,996 51,046
50% 49.1% 41,663 40,932
40% 40.0% 33,331 33,347
30% 29.9% 24,998 24,930
20% 20.1% 16,665 16,720
10% 10.1% 8,333 8,448
Active Idle   0 0
Graph of results
JVM 'linux-node13.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,528
Calibration 2     83,604
Calibration 3     83,595
ssj_ops@calibrated=83,600
100% 99.6% 83,600 83,233
90% 89.2% 75,240 74,594
80% 80.4% 66,880 67,190
70% 69.4% 58,520 57,980
60% 59.9% 50,160 50,114
50% 49.6% 41,800 41,456
40% 40.0% 33,440 33,406
30% 30.1% 25,080 25,146
20% 19.9% 16,720 16,633
10% 10.1% 8,360 8,467
Active Idle   0 0
Graph of results
JVM 'linux-node13.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,887
Calibration 2     88,304
Calibration 3     88,818
ssj_ops@calibrated=88,561
100% 100.6% 88,561 89,101
90% 90.2% 79,705 79,883
80% 79.9% 70,849 70,738
70% 70.4% 61,992 62,335
60% 59.8% 53,136 52,952
50% 49.9% 44,280 44,181
40% 40.6% 35,424 35,995
30% 29.9% 26,568 26,496
20% 20.1% 17,712 17,764
10% 10.4% 8,856 9,208
Active Idle   0 0
Graph of results
JVM 'linux-node13.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,819
Calibration 2     88,623
Calibration 3     88,310
ssj_ops@calibrated=88,466
100% 99.6% 88,466 88,154
90% 89.7% 79,620 79,370
80% 80.3% 70,773 70,996
70% 70.4% 61,926 62,297
60% 60.4% 53,080 53,409
50% 50.3% 44,233 44,467
40% 39.4% 35,387 34,895
30% 30.1% 26,540 26,606
20% 20.3% 17,693 17,978
10% 10.1% 8,847 8,967
Active Idle   0 0
Graph of results
JVM 'linux-node13.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,234
Calibration 2     90,357
Calibration 3     90,280
ssj_ops@calibrated=90,318
100% 99.4% 90,318 89,760
90% 88.9% 81,286 80,276
80% 79.6% 72,255 71,907
70% 69.8% 63,223 63,031
60% 59.9% 54,191 54,123
50% 49.9% 45,159 45,109
40% 39.4% 36,127 35,584
30% 30.0% 27,095 27,079
20% 20.3% 18,064 18,304
10% 10.3% 9,032 9,287
Active Idle   0 0
Graph of results
JVM 'linux-node13.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,334
Calibration 2     88,039
Calibration 3     87,743
ssj_ops@calibrated=87,891
100% 99.2% 87,891 87,213
90% 90.8% 79,102 79,846
80% 79.4% 70,313 69,815
70% 70.4% 61,524 61,914
60% 59.2% 52,735 52,031
50% 50.0% 43,946 43,904
40% 40.2% 35,157 35,303
30% 30.0% 26,367 26,388
20% 19.9% 17,578 17,467
10% 9.7% 8,789 8,501
Active Idle   0 0
Graph of results
JVM 'linux-node13.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,152
Calibration 2     80,878
Calibration 3     80,826
ssj_ops@calibrated=80,852
100% 99.8% 80,852 80,665
90% 89.7% 72,767 72,499
80% 79.7% 64,681 64,416
70% 69.1% 56,596 55,873
60% 60.7% 48,511 49,091
50% 49.4% 40,426 39,936
40% 40.2% 32,341 32,473
30% 30.1% 24,256 24,370
20% 20.7% 16,170 16,739
10% 9.7% 8,085 7,804
Active Idle   0 0
Graph of results
JVM 'linux-node13.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,700
Calibration 2     87,459
Calibration 3     87,509
ssj_ops@calibrated=87,484
100% 99.5% 87,484 87,079
90% 88.6% 78,735 77,501
80% 80.6% 69,987 70,482
70% 69.2% 61,239 60,570
60% 59.5% 52,490 52,044
50% 50.2% 43,742 43,910
40% 39.9% 34,994 34,947
30% 30.2% 26,245 26,438
20% 19.7% 17,497 17,245
10% 10.3% 8,748 9,051
Active Idle   0 0
Graph of results
JVM 'linux-node13.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,115
Calibration 2     86,511
Calibration 3     86,314
ssj_ops@calibrated=86,412
100% 100.0% 86,412 86,393
90% 89.4% 77,771 77,226
80% 79.6% 69,130 68,771
70% 71.2% 60,489 61,539
60% 60.6% 51,847 52,328
50% 50.8% 43,206 43,868
40% 39.8% 34,565 34,399
30% 29.8% 25,924 25,765
20% 20.1% 17,282 17,346
10% 10.0% 8,641 8,675
Active Idle   0 0
Graph of results
JVM 'linux-node13.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,890
Calibration 2     79,048
Calibration 3     78,706
ssj_ops@calibrated=78,877
100% 99.1% 78,877 78,196
90% 88.8% 70,989 70,030
80% 79.6% 63,101 62,749
70% 69.7% 55,214 54,949
60% 59.2% 47,326 46,683
50% 50.1% 39,438 39,513
40% 39.4% 31,551 31,106
30% 29.5% 23,663 23,247
20% 20.3% 15,775 15,997
10% 10.0% 7,888 7,879
Active Idle   0 0
Graph of results
JVM 'linux-node13.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,990
Calibration 2     86,535
Calibration 3     86,613
ssj_ops@calibrated=86,574
100% 99.4% 86,574 86,072
90% 90.8% 77,917 78,595
80% 79.1% 69,260 68,450
70% 68.5% 60,602 59,334
60% 60.2% 51,945 52,153
50% 50.2% 43,287 43,480
40% 40.0% 34,630 34,652
30% 30.2% 25,972 26,112
20% 19.9% 17,315 17,207
10% 10.2% 8,657 8,804
Active Idle   0 0
Graph of results
JVM 'linux-node13.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,496
Calibration 2     88,337
Calibration 3     88,120
ssj_ops@calibrated=88,229
100% 99.9% 88,229 88,118
90% 89.8% 79,406 79,236
80% 80.6% 70,583 71,141
70% 69.7% 61,760 61,495
60% 60.5% 52,937 53,370
50% 49.9% 44,114 44,037
40% 39.2% 35,292 34,600
30% 29.9% 26,469 26,380
20% 20.2% 17,646 17,845
10% 9.7% 8,823 8,529
Active Idle   0 0
Graph of results
JVM 'linux-node13.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,214
Calibration 2     88,057
Calibration 3     87,906
ssj_ops@calibrated=87,982
100% 99.3% 87,982 87,347
90% 90.1% 79,184 79,236
80% 79.4% 70,386 69,827
70% 70.0% 61,587 61,609
60% 60.3% 52,789 53,074
50% 50.2% 43,991 44,159
40% 39.7% 35,193 34,908
30% 29.7% 26,395 26,168
20% 20.2% 17,596 17,739
10% 10.4% 8,798 9,160
Active Idle   0 0
Graph of results
JVM 'linux-node13.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,277
Calibration 2     88,757
Calibration 3     88,884
ssj_ops@calibrated=88,821
100% 100.1% 88,821 88,933
90% 89.8% 79,939 79,752
80% 79.6% 71,056 70,676
70% 70.4% 62,174 62,486
60% 60.2% 53,292 53,497
50% 49.9% 44,410 44,325
40% 39.7% 35,528 35,220
30% 29.9% 26,646 26,589
20% 19.9% 17,764 17,687
10% 10.1% 8,882 8,950
Active Idle   0 0
Graph of results
JVM 'linux-node13.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,013
Calibration 2     84,869
Calibration 3     84,926
ssj_ops@calibrated=84,897
100% 99.8% 84,897 84,719
90% 90.8% 76,408 77,072
80% 79.8% 67,918 67,771
70% 71.1% 59,428 60,349
60% 59.2% 50,938 50,229
50% 49.3% 42,449 41,839
40% 40.0% 33,959 34,001
30% 29.8% 25,469 25,331
20% 19.7% 16,979 16,719
10% 9.8% 8,490 8,346
Active Idle   0 0
Graph of results
JVM 'linux-node13.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,376
Calibration 2     90,012
Calibration 3     90,061
ssj_ops@calibrated=90,036
100% 99.3% 90,036 89,431
90% 90.5% 81,033 81,473
80% 79.2% 72,029 71,288
70% 70.5% 63,025 63,500
60% 60.6% 54,022 54,593
50% 49.9% 45,018 44,969
40% 39.8% 36,015 35,862
30% 30.4% 27,011 27,404
20% 19.7% 18,007 17,737
10% 10.0% 9,004 8,983
Active Idle   0 0
Graph of results
JVM 'linux-node13.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,704
Calibration 2     79,941
Calibration 3     80,101
ssj_ops@calibrated=80,021
100% 99.9% 80,021 79,980
90% 89.7% 72,019 71,788
80% 79.4% 64,017 63,573
70% 70.1% 56,015 56,129
60% 61.1% 48,013 48,919
50% 50.4% 40,011 40,324
40% 40.6% 32,008 32,498
30% 30.3% 24,006 24,221
20% 19.5% 16,004 15,578
10% 10.0% 8,002 7,996
Active Idle   0 0
Graph of results
JVM 'linux-node13.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,612
Calibration 2     81,674
Calibration 3     81,354
ssj_ops@calibrated=81,514
100% 99.7% 81,514 81,266
90% 89.9% 73,363 73,284
80% 79.1% 65,211 64,504
70% 70.5% 57,060 57,428
60% 59.7% 48,908 48,665
50% 50.1% 40,757 40,852
40% 40.4% 32,606 32,895
30% 30.3% 24,454 24,658
20% 19.8% 16,303 16,116
10% 9.8% 8,151 8,027
Active Idle   0 0
Graph of results
JVM 'linux-node13.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,840
Calibration 2     90,154
Calibration 3     90,005
ssj_ops@calibrated=90,079
100% 99.9% 90,079 89,984
90% 89.6% 81,072 80,681
80% 79.5% 72,064 71,636
70% 70.2% 63,056 63,277
60% 59.5% 54,048 53,553
50% 51.1% 45,040 46,013
40% 40.1% 36,032 36,137
30% 29.5% 27,024 26,596
20% 20.2% 18,016 18,190
10% 10.0% 9,008 8,996
Active Idle   0 0
Graph of results
JVM 'linux-node13.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,008
Calibration 2     89,929
Calibration 3     89,768
ssj_ops@calibrated=89,848
100% 99.2% 89,848 89,142
90% 90.0% 80,864 80,841
80% 80.2% 71,879 72,043
70% 69.2% 62,894 62,133
60% 59.3% 53,909 53,247
50% 49.5% 44,924 44,461
40% 40.0% 35,939 35,942
30% 29.8% 26,955 26,812
20% 20.1% 17,970 18,049
10% 9.9% 8,985 8,858
Active Idle   0 0
Graph of results
JVM 'linux-node13.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,925
Calibration 2     87,694
Calibration 3     87,523
ssj_ops@calibrated=87,608
100% 100.0% 87,608 87,579
90% 89.4% 78,847 78,363
80% 79.3% 70,087 69,479
70% 69.3% 61,326 60,730
60% 60.1% 52,565 52,616
50% 50.1% 43,804 43,929
40% 40.4% 35,043 35,408
30% 30.3% 26,282 26,589
20% 19.6% 17,522 17,149
10% 10.2% 8,761 8,908
Active Idle   0 0
Graph of results
JVM 'linux-node13.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,630
Calibration 2     88,277
Calibration 3     88,135
ssj_ops@calibrated=88,206
100% 98.8% 88,206 87,190
90% 89.4% 79,385 78,863
80% 79.7% 70,565 70,290
70% 70.6% 61,744 62,289
60% 59.6% 52,923 52,602
50% 50.0% 44,103 44,122
40% 40.0% 35,282 35,305
30% 29.6% 26,462 26,094
20% 19.6% 17,641 17,299
10% 9.8% 8,821 8,644
Active Idle   0 0
Graph of results
JVM 'linux-node13.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,583
Calibration 2     80,594
Calibration 3     80,454
ssj_ops@calibrated=80,524
100% 100.1% 80,524 80,615
90% 89.9% 72,472 72,428
80% 80.1% 64,419 64,483
70% 70.7% 56,367 56,923
60% 59.9% 48,314 48,226
50% 50.3% 40,262 40,467
40% 39.8% 32,210 32,058
30% 30.4% 24,157 24,482
20% 20.1% 16,105 16,149
10% 10.3% 8,052 8,260
Active Idle   0 0
Graph of results
JVM 'linux-node13.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,939
Calibration 2     87,932
Calibration 3     87,672
ssj_ops@calibrated=87,802
100% 100.3% 87,802 88,069
90% 90.0% 79,022 78,998
80% 80.0% 70,242 70,223
70% 69.5% 61,462 61,036
60% 59.5% 52,681 52,261
50% 50.2% 43,901 44,054
40% 39.3% 35,121 34,521
30% 30.1% 26,341 26,390
20% 19.6% 17,560 17,166
10% 9.7% 8,780 8,485
Active Idle   0 0
Graph of results
JVM 'linux-node13.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,711
Calibration 2     86,626
Calibration 3     86,430
ssj_ops@calibrated=86,528
100% 99.0% 86,528 85,661
90% 90.0% 77,875 77,838
80% 79.8% 69,222 69,088
70% 69.9% 60,570 60,451
60% 60.4% 51,917 52,232
50% 49.7% 43,264 43,016
40% 40.5% 34,611 35,012
30% 30.3% 25,958 26,225
20% 19.8% 17,306 17,121
10% 10.3% 8,653 8,954
Active Idle   0 0
Graph of results
