Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,432,865
ssj_ops@100% per JVM = 84,889
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,447,114
Calibration 2     5,453,916
Calibration 3     5,448,416
ssj_ops@calibrated=5,451,166
100% 99.7% 5,451,166 5,432,865
90% 89.9% 4,906,050 4,898,934
80% 79.8% 4,360,933 4,347,845
70% 70.0% 3,815,817 3,815,832
60% 60.0% 3,270,700 3,272,597
50% 50.0% 2,725,583 2,725,106
40% 40.0% 2,180,467 2,181,228
30% 30.0% 1,635,350 1,637,921
20% 20.0% 1,090,233 1,089,820
10% 10.0% 545,117 545,916
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node12.001 77,622
linux-node12.002 86,615
linux-node12.003 89,556
linux-node12.004 87,136
linux-node12.005 81,080
linux-node12.006 88,666
linux-node12.007 86,098
linux-node12.008 89,743
linux-node12.009 78,441
linux-node12.010 88,377
linux-node12.011 88,454
linux-node12.012 80,180
linux-node12.013 85,304
linux-node12.014 78,443
linux-node12.015 88,362
linux-node12.016 77,617
linux-node12.017 85,171
linux-node12.018 88,391
linux-node12.019 83,192
linux-node12.020 89,754
linux-node12.021 83,268
linux-node12.022 80,871
linux-node12.023 80,060
linux-node12.024 89,500
linux-node12.025 84,018
linux-node12.026 79,233
linux-node12.027 88,862
linux-node12.028 86,511
linux-node12.029 82,000
linux-node12.030 87,029
linux-node12.031 86,820
linux-node12.032 80,433
linux-node12.033 87,230
linux-node12.034 78,291
linux-node12.035 77,825
linux-node12.036 81,357
linux-node12.037 72,993
linux-node12.038 86,495
linux-node12.039 87,705
linux-node12.040 89,352
linux-node12.041 82,468
linux-node12.042 81,604
linux-node12.043 86,260
linux-node12.044 89,664
linux-node12.045 87,982
linux-node12.046 87,993
linux-node12.047 88,849
linux-node12.048 87,755
linux-node12.049 83,894
linux-node12.050 86,963
linux-node12.051 84,030
linux-node12.052 83,794
linux-node12.053 90,511
linux-node12.054 82,942
linux-node12.055 81,498
linux-node12.056 81,641
linux-node12.057 86,272
linux-node12.058 90,090
linux-node12.059 81,968
linux-node12.060 88,147
linux-node12.061 90,012
linux-node12.062 86,711
linux-node12.063 86,316
linux-node12.064 87,446
ssj_ops@100% 5,432,865
ssj_ops@100% per JVM 84,889

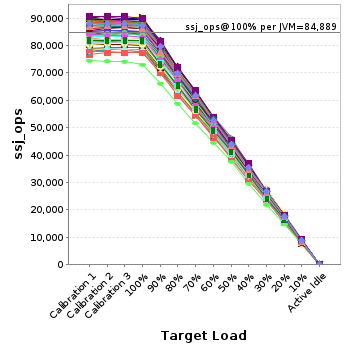

Graph of per-instance results
JVM 'linux-node12.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,699
Calibration 2     77,576
Calibration 3     77,532
ssj_ops@calibrated=77,554
100% 100.1% 77,554 77,622
90% 90.9% 69,799 70,465
80% 79.5% 62,043 61,660
70% 70.3% 54,288 54,495
60% 60.1% 46,532 46,616
50% 50.5% 38,777 39,166
40% 40.3% 31,022 31,261
30% 30.6% 23,266 23,752
20% 20.0% 15,511 15,517
10% 10.1% 7,755 7,821
Active Idle   0 0
Graph of results
JVM 'linux-node12.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,374
Calibration 2     87,689
Calibration 3     87,622
ssj_ops@calibrated=87,655
100% 98.8% 87,655 86,615
90% 89.7% 78,890 78,609
80% 79.0% 70,124 69,255
70% 71.1% 61,359 62,324
60% 60.2% 52,593 52,742
50% 49.5% 43,828 43,350
40% 40.4% 35,062 35,446
30% 30.6% 26,297 26,852
20% 20.0% 17,531 17,542
10% 9.6% 8,766 8,446
Active Idle   0 0
Graph of results
JVM 'linux-node12.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,117
Calibration 2     89,402
Calibration 3     89,082
ssj_ops@calibrated=89,242
100% 100.4% 89,242 89,556
90% 89.6% 80,318 79,944
80% 80.5% 71,394 71,799
70% 70.0% 62,469 62,444
60% 59.1% 53,545 52,773
50% 49.6% 44,621 44,235
40% 40.4% 35,697 36,091
30% 30.2% 26,773 26,976
20% 20.0% 17,848 17,873
10% 10.1% 8,924 9,045
Active Idle   0 0
Graph of results
JVM 'linux-node12.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,154
Calibration 2     86,706
Calibration 3     86,696
ssj_ops@calibrated=86,701
100% 100.5% 86,701 87,136
90% 89.8% 78,031 77,860
80% 79.7% 69,361 69,076
70% 70.6% 60,691 61,247
60% 59.8% 52,021 51,890
50% 50.0% 43,351 43,361
40% 39.9% 34,680 34,582
30% 29.7% 26,010 25,752
20% 20.0% 17,340 17,330
10% 10.2% 8,670 8,801
Active Idle   0 0
Graph of results

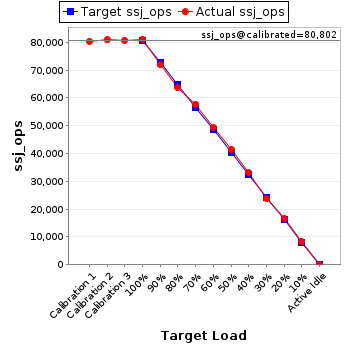

JVM 'linux-node12.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,311
Calibration 2     80,867
Calibration 3     80,737
ssj_ops@calibrated=80,802
100% 100.3% 80,802 81,080
90% 88.9% 72,721 71,852
80% 78.8% 64,641 63,668
70% 71.5% 56,561 57,750
60% 60.9% 48,481 49,221
50% 51.3% 40,401 41,463
40% 41.0% 32,321 33,159
30% 29.3% 24,240 23,680
20% 20.5% 16,160 16,541
10% 10.3% 8,080 8,283
Active Idle   0 0
Graph of results
JVM 'linux-node12.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,711
Calibration 2     88,575
Calibration 3     88,354
ssj_ops@calibrated=88,464
100% 100.2% 88,464 88,666
90% 89.8% 79,618 79,462
80% 78.0% 70,772 69,009
70% 69.3% 61,925 61,347
60% 60.0% 53,079 53,077
50% 50.2% 44,232 44,442
40% 40.2% 35,386 35,537
30% 30.3% 26,539 26,786
20% 19.8% 17,693 17,551
10% 10.2% 8,846 8,992
Active Idle   0 0
Graph of results
JVM 'linux-node12.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,304
Calibration 2     86,500
Calibration 3     86,520
ssj_ops@calibrated=86,510
100% 99.5% 86,510 86,098
90% 89.7% 77,859 77,602
80% 79.7% 69,208 68,945
70% 69.6% 60,557 60,187
60% 60.2% 51,906 52,121
50% 49.0% 43,255 42,371
40% 40.9% 34,604 35,413
30% 29.2% 25,953 25,275
20% 20.2% 17,302 17,516
10% 9.8% 8,651 8,512
Active Idle   0 0
Graph of results
JVM 'linux-node12.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,445
Calibration 2     90,448
Calibration 3     90,230
ssj_ops@calibrated=90,339
100% 99.3% 90,339 89,743
90% 88.8% 81,305 80,228
80% 79.3% 72,271 71,663
70% 69.7% 63,237 62,921
60% 59.7% 54,203 53,931
50% 51.3% 45,169 46,300
40% 40.3% 36,136 36,388
30% 30.2% 27,102 27,252
20% 19.8% 18,068 17,916
10% 9.6% 9,034 8,637
Active Idle   0 0
Graph of results
JVM 'linux-node12.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,949
Calibration 2     78,441
Calibration 3     78,485
ssj_ops@calibrated=78,463
100% 100.0% 78,463 78,441
90% 90.0% 70,616 70,644
80% 79.9% 62,770 62,685
70% 69.9% 54,924 54,829
60% 60.3% 47,078 47,311
50% 50.3% 39,231 39,457
40% 39.8% 31,385 31,214
30% 30.2% 23,539 23,662
20% 19.6% 15,693 15,399
10% 10.2% 7,846 7,973
Active Idle   0 0
Graph of results
JVM 'linux-node12.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,487
Calibration 2     88,320
Calibration 3     88,254
ssj_ops@calibrated=88,287
100% 100.1% 88,287 88,377
90% 90.8% 79,458 80,137
80% 79.3% 70,629 69,998
70% 70.4% 61,801 62,151
60% 61.0% 52,972 53,884
50% 50.1% 44,143 44,241
40% 39.7% 35,315 35,023
30% 30.0% 26,486 26,470
20% 20.4% 17,657 17,995
10% 10.2% 8,829 8,988
Active Idle   0 0
Graph of results
JVM 'linux-node12.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,134
Calibration 2     88,971
Calibration 3     88,589
ssj_ops@calibrated=88,780
100% 99.6% 88,780 88,454
90% 89.5% 79,902 79,442
80% 80.2% 71,024 71,230
70% 70.0% 62,146 62,107
60% 60.7% 53,268 53,907
50% 49.8% 44,390 44,185
40% 39.6% 35,512 35,190
30% 30.5% 26,634 27,115
20% 19.9% 17,756 17,671
10% 10.1% 8,878 8,957
Active Idle   0 0
Graph of results
JVM 'linux-node12.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,495
Calibration 2     80,938
Calibration 3     80,590
ssj_ops@calibrated=80,764
100% 99.3% 80,764 80,180
90% 89.9% 72,688 72,644
80% 79.5% 64,611 64,236
70% 70.1% 56,535 56,633
60% 59.0% 48,459 47,689
50% 50.0% 40,382 40,422
40% 39.0% 32,306 31,516
30% 30.0% 24,229 24,199
20% 19.7% 16,153 15,892
10% 10.3% 8,076 8,279
Active Idle   0 0
Graph of results
JVM 'linux-node12.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,049
Calibration 2     85,389
Calibration 3     85,226
ssj_ops@calibrated=85,307
100% 100.0% 85,307 85,304
90% 90.6% 76,776 77,281
80% 79.3% 68,246 67,671
70% 68.6% 59,715 58,514
60% 59.2% 51,184 50,477
50% 50.2% 42,654 42,808
40% 40.4% 34,123 34,489
30% 30.2% 25,592 25,801
20% 20.5% 17,061 17,461
10% 9.9% 8,531 8,475
Active Idle   0 0
Graph of results
JVM 'linux-node12.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,511
Calibration 2     78,531
Calibration 3     78,564
ssj_ops@calibrated=78,547
100% 99.9% 78,547 78,443
90% 90.7% 70,693 71,274
80% 79.4% 62,838 62,359
70% 69.9% 54,983 54,942
60% 59.5% 47,128 46,768
50% 50.5% 39,274 39,661
40% 40.0% 31,419 31,399
30% 30.3% 23,564 23,831
20% 20.0% 15,709 15,696
10% 9.8% 7,855 7,721
Active Idle   0 0
Graph of results
JVM 'linux-node12.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,121
Calibration 2     88,746
Calibration 3     88,576
ssj_ops@calibrated=88,661
100% 99.7% 88,661 88,362
90% 90.6% 79,795 80,341
80% 80.2% 70,929 71,108
70% 69.4% 62,063 61,499
60% 60.1% 53,197 53,279
50% 50.1% 44,331 44,403
40% 39.6% 35,464 35,142
30% 30.1% 26,598 26,651
20% 19.8% 17,732 17,523
10% 10.1% 8,866 8,986
Active Idle   0 0
Graph of results
JVM 'linux-node12.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,601
Calibration 2     78,765
Calibration 3     78,762
ssj_ops@calibrated=78,764
100% 98.5% 78,764 77,617
90% 88.6% 70,887 69,817
80% 80.0% 63,011 63,009
70% 69.8% 55,134 55,000
60% 59.5% 47,258 46,827
50% 50.2% 39,382 39,543
40% 40.2% 31,505 31,695
30% 29.8% 23,629 23,441
20% 19.8% 15,753 15,592
10% 9.7% 7,876 7,604
Active Idle   0 0
Graph of results
JVM 'linux-node12.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,249
Calibration 2     85,532
Calibration 3     85,559
ssj_ops@calibrated=85,545
100% 99.6% 85,545 85,171
90% 91.2% 76,991 77,978
80% 80.0% 68,436 68,445
70% 70.4% 59,882 60,182
60% 59.5% 51,327 50,930
50% 49.4% 42,773 42,297
40% 39.9% 34,218 34,167
30% 29.6% 25,664 25,344
20% 19.3% 17,109 16,533
10% 9.8% 8,555 8,348
Active Idle   0 0
Graph of results
JVM 'linux-node12.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,223
Calibration 2     88,058
Calibration 3     87,831
ssj_ops@calibrated=87,945
100% 100.5% 87,945 88,391
90% 90.3% 79,150 79,421
80% 79.9% 70,356 70,254
70% 69.0% 61,561 60,646
60% 60.1% 52,767 52,840
50% 49.9% 43,972 43,914
40% 40.1% 35,178 35,259
30% 30.3% 26,383 26,668
20% 19.8% 17,589 17,418
10% 9.8% 8,794 8,587
Active Idle   0 0
Graph of results
JVM 'linux-node12.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,452
Calibration 2     83,208
Calibration 3     83,304
ssj_ops@calibrated=83,256
100% 99.9% 83,256 83,192
90% 90.1% 74,931 75,039
80% 78.9% 66,605 65,655
70% 70.7% 58,280 58,829
60% 59.7% 49,954 49,691
50% 49.8% 41,628 41,476
40% 40.2% 33,303 33,450
30% 29.7% 24,977 24,767
20% 19.9% 16,651 16,543
10% 9.9% 8,326 8,283
Active Idle   0 0
Graph of results
JVM 'linux-node12.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,581
Calibration 2     89,609
Calibration 3     89,647
ssj_ops@calibrated=89,628
100% 100.1% 89,628 89,754
90% 89.6% 80,665 80,346
80% 79.2% 71,702 71,013
70% 69.7% 62,739 62,499
60% 58.9% 53,777 52,789
50% 50.7% 44,814 45,473
40% 39.7% 35,851 35,567
30% 29.9% 26,888 26,824
20% 20.1% 17,926 17,978
10% 9.9% 8,963 8,883
Active Idle   0 0
Graph of results
JVM 'linux-node12.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,460
Calibration 2     83,489
Calibration 3     83,374
ssj_ops@calibrated=83,431
100% 99.8% 83,431 83,268
90% 88.7% 75,088 73,977
80% 80.1% 66,745 66,824
70% 69.8% 58,402 58,213
60% 59.7% 50,059 49,807
50% 50.0% 41,716 41,729
40% 39.4% 33,373 32,850
30% 29.8% 25,029 24,844
20% 20.4% 16,686 17,043
10% 10.4% 8,343 8,713
Active Idle   0 0
Graph of results
JVM 'linux-node12.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,101
Calibration 2     81,350
Calibration 3     81,359
ssj_ops@calibrated=81,355
100% 99.4% 81,355 80,871
90% 88.3% 73,219 71,847
80% 79.9% 65,084 64,974
70% 70.4% 56,948 57,248
60% 59.7% 48,813 48,585
50% 50.1% 40,677 40,770
40% 40.1% 32,542 32,636
30% 29.6% 24,406 24,121
20% 19.8% 16,271 16,146
10% 10.0% 8,135 8,154
Active Idle   0 0
Graph of results
JVM 'linux-node12.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,552
Calibration 2     80,307
Calibration 3     80,339
ssj_ops@calibrated=80,323
100% 99.7% 80,323 80,060
90% 89.8% 72,290 72,151
80% 79.8% 64,258 64,115
70% 70.3% 56,226 56,499
60% 60.3% 48,194 48,435
50% 51.0% 40,161 40,940
40% 39.9% 32,129 32,061
30% 30.4% 24,097 24,440
20% 20.0% 16,065 16,062
10% 9.7% 8,032 7,806
Active Idle   0 0
Graph of results
JVM 'linux-node12.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,284
Calibration 2     90,150
Calibration 3     90,015
ssj_ops@calibrated=90,083
100% 99.4% 90,083 89,500
90% 88.8% 81,074 80,021
80% 80.5% 72,066 72,496
70% 70.1% 63,058 63,106
60% 59.9% 54,050 53,918
50% 50.3% 45,041 45,317
40% 40.1% 36,033 36,144
30% 30.1% 27,025 27,146
20% 19.8% 18,017 17,798
10% 9.9% 9,008 8,929
Active Idle   0 0
Graph of results

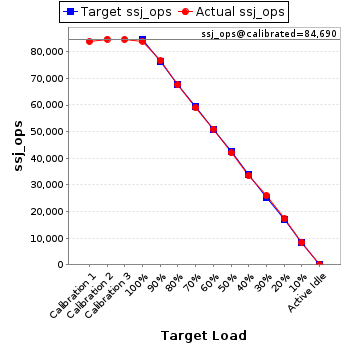

JVM 'linux-node12.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,902
Calibration 2     84,711
Calibration 3     84,668
ssj_ops@calibrated=84,690
100% 99.2% 84,690 84,018
90% 90.4% 76,221 76,565
80% 79.8% 67,752 67,575
70% 69.6% 59,283 58,951
60% 60.2% 50,814 50,957
50% 49.6% 42,345 42,000
40% 39.5% 33,876 33,476
30% 30.6% 25,407 25,898
20% 20.3% 16,938 17,178
10% 9.8% 8,469 8,337
Active Idle   0 0
Graph of results
JVM 'linux-node12.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,100
Calibration 2     79,274
Calibration 3     79,193
ssj_ops@calibrated=79,233
100% 100.0% 79,233 79,233
90% 90.1% 71,310 71,352
80% 79.5% 63,387 62,996
70% 70.4% 55,463 55,747
60% 60.1% 47,540 47,644
50% 49.9% 39,617 39,536
40% 40.0% 31,693 31,669
30% 30.4% 23,770 24,053
20% 19.4% 15,847 15,367
10% 10.0% 7,923 7,933
Active Idle   0 0
Graph of results
JVM 'linux-node12.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,363
Calibration 2     88,910
Calibration 3     88,797
ssj_ops@calibrated=88,853
100% 100.0% 88,853 88,862
90% 89.7% 79,968 79,721
80% 80.1% 71,083 71,147
70% 69.6% 62,197 61,822
60% 59.6% 53,312 52,976
50% 50.2% 44,427 44,587
40% 39.9% 35,541 35,419
30% 29.8% 26,656 26,468
20% 20.1% 17,771 17,883
10% 9.7% 8,885 8,662
Active Idle   0 0
Graph of results
JVM 'linux-node12.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,171
Calibration 2     88,062
Calibration 3     87,762
ssj_ops@calibrated=87,912
100% 98.4% 87,912 86,511
90% 90.0% 79,121 79,140
80% 80.6% 70,330 70,869
70% 70.7% 61,538 62,126
60% 59.5% 52,747 52,267
50% 50.2% 43,956 44,104
40% 39.8% 35,165 34,991
30% 30.5% 26,374 26,775
20% 19.9% 17,582 17,471
10% 10.0% 8,791 8,818
Active Idle   0 0
Graph of results
JVM 'linux-node12.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,932
Calibration 2     82,033
Calibration 3     81,862
ssj_ops@calibrated=81,947
100% 100.1% 81,947 82,000
90% 89.7% 73,753 73,516
80% 79.9% 65,558 65,441
70% 70.4% 57,363 57,696
60% 61.0% 49,168 49,960
50% 49.6% 40,974 40,650
40% 39.5% 32,779 32,339
30% 30.1% 24,584 24,648
20% 20.1% 16,389 16,509
10% 9.9% 8,195 8,121
Active Idle   0 0
Graph of results
JVM 'linux-node12.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,756
Calibration 2     87,451
Calibration 3     87,142
ssj_ops@calibrated=87,297
100% 99.7% 87,297 87,029
90% 91.3% 78,567 79,707
80% 80.4% 69,837 70,209
70% 70.1% 61,108 61,162
60% 60.8% 52,378 53,035
50% 49.8% 43,648 43,476
40% 41.1% 34,919 35,879
30% 29.7% 26,189 25,908
20% 20.0% 17,459 17,456
10% 10.3% 8,730 9,004
Active Idle   0 0
Graph of results
JVM 'linux-node12.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,684
Calibration 2     86,997
Calibration 3     87,014
ssj_ops@calibrated=87,006
100% 99.8% 87,006 86,820
90% 89.2% 78,305 77,633
80% 80.9% 69,605 70,428
70% 70.1% 60,904 60,973
60% 60.1% 52,203 52,321
50% 49.6% 43,503 43,143
40% 39.6% 34,802 34,466
30% 29.8% 26,102 25,944
20% 20.4% 17,401 17,770
10% 9.9% 8,701 8,583
Active Idle   0 0
Graph of results
JVM 'linux-node12.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,472
Calibration 2     80,810
Calibration 3     80,713
ssj_ops@calibrated=80,761
100% 99.6% 80,761 80,433
90% 89.5% 72,685 72,315
80% 79.4% 64,609 64,104
70% 69.5% 56,533 56,102
60% 60.1% 48,457 48,523
50% 50.2% 40,381 40,509
40% 39.7% 32,305 32,048
30% 30.0% 24,228 24,229
20% 19.8% 16,152 16,010
10% 9.7% 8,076 7,849
Active Idle   0 0
Graph of results
JVM 'linux-node12.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,954
Calibration 2     87,910
Calibration 3     87,823
ssj_ops@calibrated=87,866
100% 99.3% 87,866 87,230
90% 90.1% 79,080 79,145
80% 79.9% 70,293 70,200
70% 69.6% 61,507 61,176
60% 60.5% 52,720 53,185
50% 50.1% 43,933 44,005
40% 40.4% 35,147 35,481
30% 30.1% 26,360 26,418
20% 20.0% 17,573 17,548
10% 9.9% 8,787 8,704
Active Idle   0 0
Graph of results

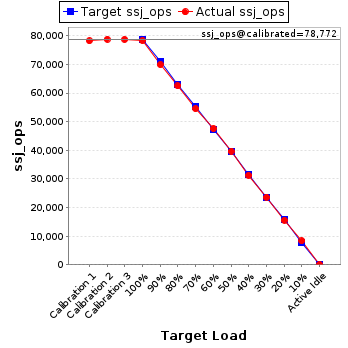

JVM 'linux-node12.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,200
Calibration 2     78,798
Calibration 3     78,747
ssj_ops@calibrated=78,772
100% 99.4% 78,772 78,291
90% 88.7% 70,895 69,877
80% 79.3% 63,018 62,493
70% 69.2% 55,141 54,484
60% 60.4% 47,263 47,566
50% 50.3% 39,386 39,636
40% 39.6% 31,509 31,225
30% 29.9% 23,632 23,591
20% 19.7% 15,754 15,550
10% 10.6% 7,877 8,335
Active Idle   0 0
Graph of results
JVM 'linux-node12.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,975
Calibration 2     77,740
Calibration 3     77,640
ssj_ops@calibrated=77,690
100% 100.2% 77,690 77,825
90% 89.7% 69,921 69,686
80% 79.9% 62,152 62,089
70% 70.0% 54,383 54,383
60% 60.9% 46,614 47,278
50% 49.3% 38,845 38,335
40% 39.7% 31,076 30,830
30% 30.3% 23,307 23,565
20% 20.0% 15,538 15,545
10% 10.0% 7,769 7,792
Active Idle   0 0
Graph of results
JVM 'linux-node12.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,642
Calibration 2     81,605
Calibration 3     81,468
ssj_ops@calibrated=81,537
100% 99.8% 81,537 81,357
90% 89.7% 73,383 73,100
80% 80.1% 65,229 65,296
70% 69.8% 57,076 56,912
60% 61.4% 48,922 50,053
50% 50.2% 40,768 40,915
40% 40.1% 32,615 32,667
30% 29.6% 24,461 24,107
20% 19.8% 16,307 16,180
10% 10.3% 8,154 8,379
Active Idle   0 0
Graph of results
JVM 'linux-node12.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,533
Calibration 2     74,288
Calibration 3     74,197
ssj_ops@calibrated=74,243
100% 98.3% 74,243 72,993
90% 89.1% 66,818 66,161
80% 79.2% 59,394 58,791
70% 69.4% 51,970 51,560
60% 59.9% 44,546 44,489
50% 50.7% 37,121 37,650
40% 39.9% 29,697 29,635
30% 29.5% 22,273 21,885
20% 19.8% 14,849 14,686
10% 10.2% 7,424 7,600
Active Idle   0 0
Graph of results
JVM 'linux-node12.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,419
Calibration 2     86,647
Calibration 3     86,565
ssj_ops@calibrated=86,606
100% 99.9% 86,606 86,495
90% 90.6% 77,945 78,468
80% 79.0% 69,285 68,456
70% 70.8% 60,624 61,282
60% 59.6% 51,964 51,588
50% 49.6% 43,303 42,920
40% 39.8% 34,642 34,427
30% 29.9% 25,982 25,915
20% 20.2% 17,321 17,495
10% 10.1% 8,661 8,729
Active Idle   0 0
Graph of results
JVM 'linux-node12.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,657
Calibration 2     88,438
Calibration 3     88,321
ssj_ops@calibrated=88,379
100% 99.2% 88,379 87,705
90% 90.6% 79,541 80,037
80% 80.3% 70,704 71,006
70% 69.7% 61,866 61,586
60% 59.3% 53,028 52,411
50% 49.3% 44,190 43,560
40% 40.0% 35,352 35,395
30% 30.4% 26,514 26,869
20% 20.4% 17,676 18,031
10% 10.1% 8,838 8,887
Active Idle   0 0
Graph of results
JVM 'linux-node12.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,707
Calibration 2     89,625
Calibration 3     89,468
ssj_ops@calibrated=89,546
100% 99.8% 89,546 89,352
90% 89.1% 80,592 79,778
80% 79.8% 71,637 71,431
70% 69.4% 62,682 62,178
60% 60.2% 53,728 53,873
50% 49.7% 44,773 44,465
40% 40.7% 35,819 36,413
30% 30.1% 26,864 26,919
20% 20.4% 17,909 18,224
10% 9.7% 8,955 8,696
Active Idle   0 0
Graph of results
JVM 'linux-node12.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,262
Calibration 2     82,129
Calibration 3     82,331
ssj_ops@calibrated=82,230
100% 100.3% 82,230 82,468
90% 90.2% 74,007 74,211
80% 79.2% 65,784 65,136
70% 69.8% 57,561 57,378
60% 60.5% 49,338 49,783
50% 50.1% 41,115 41,231
40% 40.2% 32,892 33,060
30% 29.7% 24,669 24,404
20% 20.2% 16,446 16,616
10% 10.0% 8,223 8,254
Active Idle   0 0
Graph of results
JVM 'linux-node12.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,450
Calibration 2     81,752
Calibration 3     81,804
ssj_ops@calibrated=81,778
100% 99.8% 81,778 81,604
90% 89.4% 73,600 73,145
80% 79.7% 65,422 65,210
70% 70.8% 57,245 57,872
60% 60.1% 49,067 49,149
50% 49.8% 40,889 40,727
40% 40.2% 32,711 32,856
30% 30.3% 24,533 24,787
20% 20.1% 16,356 16,464
10% 10.1% 8,178 8,278
Active Idle   0 0
Graph of results
JVM 'linux-node12.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,121
Calibration 2     86,543
Calibration 3     86,512
ssj_ops@calibrated=86,527
100% 99.7% 86,527 86,260
90% 90.0% 77,875 77,858
80% 79.1% 69,222 68,409
70% 70.8% 60,569 61,263
60% 59.3% 51,916 51,327
50% 50.3% 43,264 43,564
40% 39.4% 34,611 34,051
30% 30.0% 25,958 25,988
20% 19.7% 17,305 17,041
10% 10.3% 8,653 8,953
Active Idle   0 0
Graph of results
JVM 'linux-node12.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,449
Calibration 2     89,644
Calibration 3     89,553
ssj_ops@calibrated=89,599
100% 100.1% 89,599 89,664
90% 91.5% 80,639 82,013
80% 80.2% 71,679 71,882
70% 69.9% 62,719 62,661
60% 60.1% 53,759 53,873
50% 50.6% 44,799 45,327
40% 39.3% 35,839 35,197
30% 30.7% 26,880 27,548
20% 20.4% 17,920 18,251
10% 10.3% 8,960 9,187
Active Idle   0 0
Graph of results
JVM 'linux-node12.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,173
Calibration 2     88,634
Calibration 3     88,654
ssj_ops@calibrated=88,644
100% 99.3% 88,644 87,982
90% 89.3% 79,780 79,144
80% 79.9% 70,915 70,836
70% 69.4% 62,051 61,509
60% 60.1% 53,187 53,270
50% 49.3% 44,322 43,706
40% 40.8% 35,458 36,128
30% 30.2% 26,593 26,772
20% 19.9% 17,729 17,660
10% 10.1% 8,864 8,987
Active Idle   0 0
Graph of results
JVM 'linux-node12.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,354
Calibration 2     89,035
Calibration 3     88,897
ssj_ops@calibrated=88,966
100% 98.9% 88,966 87,993
90% 89.2% 80,070 79,348
80% 79.7% 71,173 70,909
70% 68.9% 62,276 61,302
60% 60.5% 53,380 53,854
50% 49.4% 44,483 43,974
40% 40.2% 35,586 35,726
30% 29.7% 26,690 26,386
20% 19.9% 17,793 17,743
10% 10.1% 8,897 8,983
Active Idle   0 0
Graph of results
JVM 'linux-node12.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,198
Calibration 2     89,040
Calibration 3     89,056
ssj_ops@calibrated=89,048
100% 99.8% 89,048 88,849
90% 90.0% 80,143 80,139
80% 79.3% 71,238 70,598
70% 69.2% 62,334 61,594
60% 60.9% 53,429 54,198
50% 49.3% 44,524 43,896
40% 39.3% 35,619 34,979
30% 30.0% 26,714 26,692
20% 18.8% 17,810 16,742
10% 10.3% 8,905 9,195
Active Idle   0 0
Graph of results
JVM 'linux-node12.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,947
Calibration 2     88,074
Calibration 3     88,019
ssj_ops@calibrated=88,047
100% 99.7% 88,047 87,755
90% 89.4% 79,242 78,719
80% 80.4% 70,437 70,755
70% 70.5% 61,633 62,085
60% 60.3% 52,828 53,049
50% 50.0% 44,023 43,988
40% 39.8% 35,219 35,082
30% 30.3% 26,414 26,659
20% 19.8% 17,609 17,439
10% 10.2% 8,805 8,942
Active Idle   0 0
Graph of results
JVM 'linux-node12.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,189
Calibration 2     84,051
Calibration 3     84,270
ssj_ops@calibrated=84,160
100% 99.7% 84,160 83,894
90% 89.6% 75,744 75,373
80% 80.5% 67,328 67,735
70% 70.0% 58,912 58,921
60% 60.1% 50,496 50,591
50% 49.7% 42,080 41,857
40% 40.1% 33,664 33,779
30% 29.9% 25,248 25,192
20% 20.3% 16,832 17,099
10% 10.2% 8,416 8,576
Active Idle   0 0
Graph of results
JVM 'linux-node12.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,549
Calibration 2     88,493
Calibration 3     88,120
ssj_ops@calibrated=88,306
100% 98.5% 88,306 86,963
90% 89.6% 79,476 79,107
80% 79.8% 70,645 70,511
70% 70.5% 61,814 62,278
60% 59.7% 52,984 52,734
50% 49.1% 44,153 43,400
40% 39.6% 35,323 35,000
30% 29.8% 26,492 26,311
20% 20.0% 17,661 17,679
10% 10.1% 8,831 8,879
Active Idle   0 0
Graph of results
JVM 'linux-node12.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,819
Calibration 2     84,664
Calibration 3     84,358
ssj_ops@calibrated=84,511
100% 99.4% 84,511 84,030
90% 90.5% 76,060 76,490
80% 79.9% 67,609 67,491
70% 71.1% 59,158 60,074
60% 60.6% 50,707 51,225
50% 50.2% 42,255 42,392
40% 40.3% 33,804 34,034
30% 30.0% 25,353 25,343
20% 19.5% 16,902 16,445
10% 9.9% 8,451 8,327
Active Idle   0 0

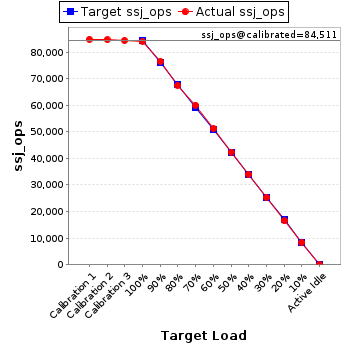

Graph of results
JVM 'linux-node12.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,594
Calibration 2     84,175
Calibration 3     84,249
ssj_ops@calibrated=84,212
100% 99.5% 84,212 83,794
90% 90.4% 75,791 76,123
80% 80.3% 67,370 67,582
70% 71.1% 58,948 59,853
60% 59.9% 50,527 50,437
50% 49.3% 42,106 41,551
40% 40.3% 33,685 33,926
30% 30.6% 25,264 25,767
20% 20.1% 16,842 16,968
10% 10.1% 8,421 8,508
Active Idle   0 0
Graph of results
JVM 'linux-node12.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,578
Calibration 2     90,572
Calibration 3     90,251
ssj_ops@calibrated=90,411
100% 100.1% 90,411 90,511
90% 89.6% 81,370 80,976
80% 78.6% 72,329 71,094
70% 70.1% 63,288 63,413
60% 59.1% 54,247 53,399
50% 50.2% 45,206 45,429
40% 40.4% 36,165 36,553
30% 30.4% 27,123 27,454
20% 20.7% 18,082 18,730
10% 9.9% 9,041 8,987
Active Idle   0 0
Graph of results
JVM 'linux-node12.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,927
Calibration 2     83,580
Calibration 3     83,520
ssj_ops@calibrated=83,550
100% 99.3% 83,550 82,942
90% 89.8% 75,195 75,067
80% 80.3% 66,840 67,095
70% 69.4% 58,485 57,966
60% 60.2% 50,130 50,263
50% 49.6% 41,775 41,468
40% 40.1% 33,420 33,463
30% 29.7% 25,065 24,810
20% 19.9% 16,710 16,592
10% 10.2% 8,355 8,486
Active Idle   0 0
Graph of results
JVM 'linux-node12.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,539
Calibration 2     81,301
Calibration 3     81,620
ssj_ops@calibrated=81,460
100% 100.0% 81,460 81,498
90% 90.7% 73,314 73,873
80% 80.2% 65,168 65,310
70% 70.1% 57,022 57,065
60% 59.6% 48,876 48,543
50% 49.6% 40,730 40,436
40% 39.9% 32,584 32,533
30% 30.1% 24,438 24,514
20% 20.4% 16,292 16,618
10% 10.2% 8,146 8,317
Active Idle   0 0
Graph of results
JVM 'linux-node12.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,795
Calibration 2     81,230
Calibration 3     81,188
ssj_ops@calibrated=81,209
100% 100.5% 81,209 81,641
90% 89.8% 73,088 72,957
80% 79.4% 64,967 64,480
70% 69.9% 56,846 56,754
60% 59.8% 48,725 48,525
50% 50.1% 40,604 40,662
40% 39.6% 32,484 32,180
30% 30.0% 24,363 24,351
20% 20.0% 16,242 16,249
10% 10.3% 8,121 8,354
Active Idle   0 0
Graph of results
JVM 'linux-node12.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,576
Calibration 2     86,400
Calibration 3     86,679
ssj_ops@calibrated=86,540
100% 99.7% 86,540 86,272
90% 91.2% 77,886 78,915
80% 80.3% 69,232 69,517
70% 69.1% 60,578 59,792
60% 60.5% 51,924 52,355
50% 49.2% 43,270 42,613
40% 39.6% 34,616 34,272
30% 30.2% 25,962 26,169
20% 20.0% 17,308 17,302
10% 10.1% 8,654 8,754
Active Idle   0 0
Graph of results
JVM 'linux-node12.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,907
Calibration 2     89,661
Calibration 3     89,570
ssj_ops@calibrated=89,615
100% 100.5% 89,615 90,090
90% 90.3% 80,654 80,885
80% 80.3% 71,692 71,917
70% 70.7% 62,731 63,333
60% 60.1% 53,769 53,900
50% 50.3% 44,808 45,073
40% 40.3% 35,846 36,095
30% 30.0% 26,885 26,846
20% 19.8% 17,923 17,776
10% 9.8% 8,962 8,767
Active Idle   0 0
Graph of results
JVM 'linux-node12.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,757
Calibration 2     81,934
Calibration 3     81,731
ssj_ops@calibrated=81,832
100% 100.2% 81,832 81,968
90% 89.4% 73,649 73,169
80% 79.9% 65,466 65,352
70% 69.2% 57,282 56,620
60% 60.0% 49,099 49,097
50% 50.5% 40,916 41,331
40% 40.2% 32,733 32,872
30% 29.4% 24,550 24,080
20% 20.1% 16,366 16,424
10% 9.7% 8,183 7,966
Active Idle   0 0
Graph of results
JVM 'linux-node12.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,127
Calibration 2     89,048
Calibration 3     88,701
ssj_ops@calibrated=88,875
100% 99.2% 88,875 88,147
90% 90.3% 79,987 80,265
80% 80.0% 71,100 71,085
70% 70.2% 62,212 62,425
60% 60.3% 53,325 53,563
50% 50.6% 44,437 44,992
40% 39.8% 35,550 35,411
30% 29.7% 26,662 26,358
20% 20.3% 17,775 18,050
10% 9.8% 8,887 8,742
Active Idle   0 0
Graph of results
JVM 'linux-node12.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,619
Calibration 2     90,664
Calibration 3     90,526
ssj_ops@calibrated=90,595
100% 99.4% 90,595 90,012
90% 89.8% 81,536 81,359
80% 79.4% 72,476 71,906
70% 70.1% 63,417 63,505
60% 59.2% 54,357 53,631
50% 50.0% 45,298 45,316
40% 40.6% 36,238 36,767
30% 29.6% 27,179 26,793
20% 19.7% 18,119 17,847
10% 10.0% 9,060 9,041
Active Idle   0 0
Graph of results
JVM 'linux-node12.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,290
Calibration 2     86,935
Calibration 3     86,961
ssj_ops@calibrated=86,948
100% 99.7% 86,948 86,711
90% 89.3% 78,253 77,679
80% 80.1% 69,558 69,604
70% 69.9% 60,863 60,816
60% 60.8% 52,169 52,866
50% 50.5% 43,474 43,883
40% 40.2% 34,779 34,995
30% 30.9% 26,084 26,861
20% 20.0% 17,390 17,424
10% 10.1% 8,695 8,767
Active Idle   0 0
Graph of results
JVM 'linux-node12.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,004
Calibration 2     87,369
Calibration 3     87,299
ssj_ops@calibrated=87,334
100% 98.8% 87,334 86,316
90% 89.3% 78,601 77,969
80% 80.1% 69,867 69,995
70% 70.8% 61,134 61,863
60% 60.3% 52,400 52,625
50% 49.9% 43,667 43,611
40% 39.7% 34,934 34,640
30% 30.1% 26,200 26,283
20% 20.2% 17,467 17,656
10% 9.5% 8,733 8,328
Active Idle   0 0
Graph of results
JVM 'linux-node12.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,061
Calibration 2     88,124
Calibration 3     87,921
ssj_ops@calibrated=88,023
100% 99.3% 88,023 87,446
90% 90.4% 79,220 79,569
80% 79.2% 70,418 69,758
70% 70.1% 61,616 61,737
60% 59.9% 52,814 52,703
50% 49.8% 44,011 43,862
40% 40.4% 35,209 35,588
30% 30.3% 26,407 26,707
20% 20.0% 17,605 17,567
10% 9.9% 8,802 8,679
Active Idle   0 0
Graph of results
