Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,423,692
ssj_ops@100% per JVM = 84,745
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,425,207
Calibration 2     5,445,936
Calibration 3     5,439,930
ssj_ops@calibrated=5,442,933
100% 99.6% 5,442,933 5,423,692
90% 90.0% 4,898,640 4,901,185
80% 79.8% 4,354,346 4,343,619
70% 69.9% 3,810,053 3,806,269
60% 60.1% 3,265,760 3,269,076
50% 50.0% 2,721,467 2,723,042
40% 40.0% 2,177,173 2,176,461
30% 30.2% 1,632,880 1,643,060
20% 20.0% 1,088,587 1,089,885
10% 10.0% 544,293 544,270
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node11.001 84,486
linux-node11.002 89,189
linux-node11.003 88,943
linux-node11.004 83,542
linux-node11.005 88,728
linux-node11.006 78,217
linux-node11.007 80,973
linux-node11.008 80,005
linux-node11.009 90,105
linux-node11.010 87,013
linux-node11.011 79,928
linux-node11.012 78,933
linux-node11.013 87,075
linux-node11.014 88,298
linux-node11.015 82,966
linux-node11.016 77,353
linux-node11.017 83,418
linux-node11.018 86,512
linux-node11.019 80,058
linux-node11.020 85,673
linux-node11.021 87,131
linux-node11.022 89,538
linux-node11.023 86,551
linux-node11.024 86,115
linux-node11.025 88,076
linux-node11.026 80,974
linux-node11.027 87,409
linux-node11.028 89,476
linux-node11.029 87,123
linux-node11.030 79,977
linux-node11.031 87,378
linux-node11.032 78,216
linux-node11.033 83,391
linux-node11.034 79,934
linux-node11.035 89,544
linux-node11.036 80,477
linux-node11.037 79,405
linux-node11.038 89,999
linux-node11.039 88,041
linux-node11.040 89,309
linux-node11.041 89,414
linux-node11.042 79,792
linux-node11.043 90,584
linux-node11.044 83,844
linux-node11.045 89,335
linux-node11.046 79,657
linux-node11.047 83,882
linux-node11.048 87,104
linux-node11.049 87,358
linux-node11.050 81,133
linux-node11.051 82,601
linux-node11.052 88,693
linux-node11.053 83,150
linux-node11.054 80,647
linux-node11.055 80,578
linux-node11.056 83,721
linux-node11.057 86,094
linux-node11.058 89,247
linux-node11.059 89,799
linux-node11.060 86,620
linux-node11.061 79,119
linux-node11.062 80,367
linux-node11.063 83,692
linux-node11.064 87,779
ssj_ops@100% 5,423,692
ssj_ops@100% per JVM 84,745
Graph of per-instance results
JVM 'linux-node11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,225
Calibration 2     84,573
Calibration 3     84,767
ssj_ops@calibrated=84,670
100% 99.8% 84,670 84,486
90% 90.8% 76,203 76,843
80% 80.3% 67,736 67,995
70% 69.6% 59,269 58,931
60% 59.7% 50,802 50,519
50% 50.8% 42,335 42,984
40% 39.7% 33,868 33,618
30% 29.9% 25,401 25,284
20% 20.1% 16,934 17,037
10% 9.7% 8,467 8,222
Active Idle   0 0
Graph of results
JVM 'linux-node11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,806
Calibration 2     89,185
Calibration 3     88,981
ssj_ops@calibrated=89,083
100% 100.1% 89,083 89,189
90% 90.3% 80,175 80,417
80% 79.9% 71,266 71,166
70% 69.3% 62,358 61,714
60% 59.5% 53,450 53,006
50% 50.9% 44,541 45,354
40% 39.8% 35,633 35,429
30% 29.8% 26,725 26,504
20% 20.3% 17,817 18,085
10% 9.7% 8,908 8,616
Active Idle   0 0
Graph of results
JVM 'linux-node11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,140
Calibration 2     88,574
Calibration 3     88,524
ssj_ops@calibrated=88,549
100% 100.4% 88,549 88,943
90% 89.6% 79,694 79,356
80% 80.2% 70,840 71,048
70% 70.9% 61,985 62,780
60% 60.2% 53,130 53,315
50% 49.5% 44,275 43,812
40% 39.9% 35,420 35,373
30% 29.9% 26,565 26,511
20% 20.3% 17,710 17,950
10% 10.0% 8,855 8,864
Active Idle   0 0
Graph of results
JVM 'linux-node11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,721
Calibration 2     83,708
Calibration 3     83,538
ssj_ops@calibrated=83,623
100% 99.9% 83,623 83,542
90% 88.8% 75,261 74,286
80% 79.3% 66,898 66,324
70% 70.0% 58,536 58,504
60% 60.0% 50,174 50,176
50% 49.5% 41,811 41,385
40% 39.7% 33,449 33,230
30% 29.9% 25,087 25,011
20% 19.7% 16,725 16,449
10% 9.8% 8,362 8,232
Active Idle   0 0
Graph of results

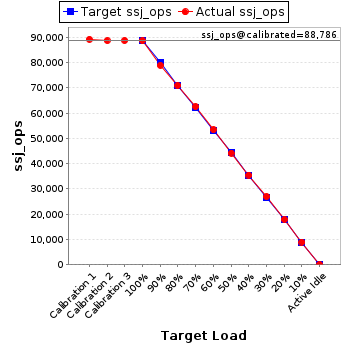

JVM 'linux-node11.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,299
Calibration 2     88,763
Calibration 3     88,809
ssj_ops@calibrated=88,786
100% 99.9% 88,786 88,728
90% 88.9% 79,907 78,970
80% 79.9% 71,029 70,968
70% 70.6% 62,150 62,653
60% 60.2% 53,271 53,460
50% 49.8% 44,393 44,197
40% 40.0% 35,514 35,512
30% 30.4% 26,636 26,993
20% 20.2% 17,757 17,903
10% 10.1% 8,879 8,967
Active Idle   0 0
Graph of results
JVM 'linux-node11.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,412
Calibration 2     78,395
Calibration 3     78,069
ssj_ops@calibrated=78,232
100% 100.0% 78,232 78,217
90% 90.2% 70,409 70,598
80% 79.5% 62,586 62,181
70% 70.1% 54,762 54,817
60% 59.0% 46,939 46,169
50% 49.7% 39,116 38,898
40% 41.0% 31,293 32,073
30% 29.4% 23,470 23,023
20% 19.6% 15,646 15,363
10% 10.3% 7,823 8,071
Active Idle   0 0
Graph of results
JVM 'linux-node11.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,009
Calibration 2     81,253
Calibration 3     81,111
ssj_ops@calibrated=81,182
100% 99.7% 81,182 80,973
90% 89.5% 73,064 72,641
80% 79.9% 64,946 64,843
70% 70.0% 56,828 56,819
60% 59.8% 48,709 48,558
50% 49.9% 40,591 40,546
40% 39.9% 32,473 32,366
30% 30.3% 24,355 24,616
20% 19.9% 16,236 16,183
10% 9.5% 8,118 7,704
Active Idle   0 0
Graph of results
JVM 'linux-node11.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,452
Calibration 2     79,969
Calibration 3     79,847
ssj_ops@calibrated=79,908
100% 100.1% 79,908 80,005
90% 89.9% 71,917 71,877
80% 78.5% 63,926 62,743
70% 69.8% 55,935 55,787
60% 60.4% 47,945 48,277
50% 50.6% 39,954 40,456
40% 39.3% 31,963 31,392
30% 29.7% 23,972 23,736
20% 20.1% 15,982 16,055
10% 10.1% 7,991 8,096
Active Idle   0 0
Graph of results
JVM 'linux-node11.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,144
Calibration 2     90,037
Calibration 3     89,983
ssj_ops@calibrated=90,010
100% 100.1% 90,010 90,105
90% 89.8% 81,009 80,839
80% 80.3% 72,008 72,312
70% 69.7% 63,007 62,777
60% 60.2% 54,006 54,176
50% 49.7% 45,005 44,709
40% 41.1% 36,004 36,989
30% 30.3% 27,003 27,258
20% 20.2% 18,002 18,141
10% 10.3% 9,001 9,263
Active Idle   0 0
Graph of results
JVM 'linux-node11.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,180
Calibration 2     88,109
Calibration 3     88,035
ssj_ops@calibrated=88,072
100% 98.8% 88,072 87,013
90% 90.0% 79,265 79,285
80% 78.1% 70,458 68,782
70% 68.9% 61,650 60,723
60% 59.4% 52,843 52,324
50% 50.8% 44,036 44,778
40% 39.4% 35,229 34,681
30% 30.4% 26,422 26,785
20% 19.7% 17,614 17,370
10% 10.0% 8,807 8,771
Active Idle   0 0
Graph of results
JVM 'linux-node11.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,400
Calibration 2     80,241
Calibration 3     80,282
ssj_ops@calibrated=80,262
100% 99.6% 80,262 79,928
90% 89.8% 72,235 72,073
80% 80.0% 64,209 64,193
70% 69.5% 56,183 55,758
60% 59.4% 48,157 47,645
50% 49.4% 40,131 39,631
40% 40.6% 32,105 32,594
30% 30.8% 24,078 24,742
20% 20.3% 16,052 16,328
10% 9.8% 8,026 7,841
Active Idle   0 0
Graph of results
JVM 'linux-node11.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,716
Calibration 2     79,092
Calibration 3     79,173
ssj_ops@calibrated=79,133
100% 99.7% 79,133 78,933
90% 89.5% 71,219 70,831
80% 79.8% 63,306 63,135
70% 70.4% 55,393 55,711
60% 59.9% 47,480 47,434
50% 49.9% 39,566 39,502
40% 39.9% 31,653 31,567
30% 30.6% 23,740 24,233
20% 19.9% 15,827 15,744
10% 10.3% 7,913 8,147
Active Idle   0 0
Graph of results
JVM 'linux-node11.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,591
Calibration 2     88,007
Calibration 3     88,299
ssj_ops@calibrated=88,153
100% 98.8% 88,153 87,075
90% 90.2% 79,338 79,517
80% 80.1% 70,522 70,640
70% 70.9% 61,707 62,461
60% 59.8% 52,892 52,674
50% 50.4% 44,076 44,389
40% 40.1% 35,261 35,359
30% 30.1% 26,446 26,537
20% 20.0% 17,631 17,610
10% 10.3% 8,815 9,112
Active Idle   0 0
Graph of results
JVM 'linux-node11.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,106
Calibration 2     88,834
Calibration 3     88,706
ssj_ops@calibrated=88,770
100% 99.5% 88,770 88,298
90% 91.0% 79,893 80,763
80% 79.9% 71,016 70,892
70% 70.4% 62,139 62,478
60% 60.5% 53,262 53,691
50% 49.9% 44,385 44,298
40% 39.3% 35,508 34,882
30% 30.2% 26,631 26,802
20% 19.9% 17,754 17,705
10% 9.7% 8,877 8,612
Active Idle   0 0
Graph of results
JVM 'linux-node11.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,657
Calibration 2     83,591
Calibration 3     83,557
ssj_ops@calibrated=83,574
100% 99.3% 83,574 82,966
90% 89.5% 75,217 74,773
80% 79.9% 66,859 66,814
70% 69.7% 58,502 58,218
60% 58.8% 50,144 49,176
50% 49.2% 41,787 41,145
40% 40.2% 33,430 33,601
30% 29.8% 25,072 24,887
20% 19.7% 16,715 16,455
10% 10.1% 8,357 8,458
Active Idle   0 0
Graph of results
JVM 'linux-node11.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,980
Calibration 2     78,019
Calibration 3     77,935
ssj_ops@calibrated=77,977
100% 99.2% 77,977 77,353
90% 90.6% 70,179 70,612
80% 80.5% 62,382 62,788
70% 71.3% 54,584 55,634
60% 59.9% 46,786 46,694
50% 49.8% 38,988 38,835
40% 40.4% 31,191 31,494
30% 30.7% 23,393 23,904
20% 20.4% 15,595 15,906
10% 10.2% 7,798 7,955
Active Idle   0 0
Graph of results
JVM 'linux-node11.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,736
Calibration 2     83,475
Calibration 3     83,619
ssj_ops@calibrated=83,547
100% 99.8% 83,547 83,418
90% 91.3% 75,192 76,316
80% 80.4% 66,838 67,210
70% 70.3% 58,483 58,754
60% 60.1% 50,128 50,237
50% 49.9% 41,774 41,688
40% 39.4% 33,419 32,944
30% 29.4% 25,064 24,551
20% 20.4% 16,709 17,078
10% 10.0% 8,355 8,355
Active Idle   0 0
Graph of results
JVM 'linux-node11.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,545
Calibration 2     87,299
Calibration 3     87,131
ssj_ops@calibrated=87,215
100% 99.2% 87,215 86,512
90% 89.8% 78,494 78,336
80% 79.9% 69,772 69,659
70% 69.4% 61,051 60,570
60% 60.7% 52,329 52,976
50% 50.0% 43,608 43,647
40% 41.0% 34,886 35,785
30% 30.6% 26,165 26,697
20% 19.9% 17,443 17,352
10% 9.9% 8,722 8,607
Active Idle   0 0
Graph of results
JVM 'linux-node11.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,817
Calibration 2     80,913
Calibration 3     80,678
ssj_ops@calibrated=80,795
100% 99.1% 80,795 80,058
90% 90.7% 72,716 73,282
80% 79.5% 64,636 64,265
70% 69.7% 56,557 56,307
60% 59.3% 48,477 47,919
50% 50.2% 40,398 40,520
40% 39.5% 32,318 31,935
30% 29.8% 24,239 24,089
20% 20.5% 16,159 16,545
10% 9.8% 8,080 7,935
Active Idle   0 0
Graph of results
JVM 'linux-node11.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,768
Calibration 2     85,754
Calibration 3     85,680
ssj_ops@calibrated=85,717
100% 99.9% 85,717 85,673
90% 90.8% 77,146 77,798
80% 80.2% 68,574 68,724
70% 70.2% 60,002 60,198
60% 59.6% 51,430 51,046
50% 50.4% 42,859 43,194
40% 40.4% 34,287 34,628
30% 30.8% 25,715 26,391
20% 20.2% 17,143 17,303
10% 9.8% 8,572 8,362
Active Idle   0 0
Graph of results
JVM 'linux-node11.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,484
Calibration 2     88,388
Calibration 3     88,007
ssj_ops@calibrated=88,198
100% 98.8% 88,198 87,131
90% 90.6% 79,378 79,887
80% 80.3% 70,558 70,860
70% 70.4% 61,739 62,112
60% 61.0% 52,919 53,781
50% 50.9% 44,099 44,875
40% 40.3% 35,279 35,506
30% 31.0% 26,459 27,361
20% 19.8% 17,640 17,499
10% 10.4% 8,820 9,147
Active Idle   0 0
Graph of results
JVM 'linux-node11.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,317
Calibration 2     90,362
Calibration 3     90,143
ssj_ops@calibrated=90,253
100% 99.2% 90,253 89,538
90% 90.0% 81,227 81,207
80% 79.1% 72,202 71,354
70% 69.8% 63,177 62,974
60% 60.8% 54,152 54,879
50% 49.9% 45,126 45,076
40% 39.9% 36,101 36,049
30% 30.1% 27,076 27,139
20% 19.9% 18,051 17,945
10% 10.2% 9,025 9,229
Active Idle   0 0
Graph of results
JVM 'linux-node11.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,870
Calibration 2     86,265
Calibration 3     86,419
ssj_ops@calibrated=86,342
100% 100.2% 86,342 86,551
90% 90.1% 77,708 77,834
80% 78.6% 69,074 67,834
70% 70.1% 60,440 60,555
60% 60.6% 51,805 52,307
50% 51.0% 43,171 44,029
40% 40.0% 34,537 34,576
30% 30.3% 25,903 26,120
20% 20.3% 17,268 17,512
10% 9.9% 8,634 8,546
Active Idle   0 0
Graph of results
JVM 'linux-node11.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,636
Calibration 2     85,664
Calibration 3     85,932
ssj_ops@calibrated=85,798
100% 100.4% 85,798 86,115
90% 90.2% 77,218 77,394
80% 78.9% 68,638 67,678
70% 70.1% 60,058 60,114
60% 59.5% 51,479 51,088
50% 49.8% 42,899 42,739
40% 40.0% 34,319 34,338
30% 30.6% 25,739 26,233
20% 19.9% 17,160 17,058
10% 10.0% 8,580 8,554
Active Idle   0 0
Graph of results
JVM 'linux-node11.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,894
Calibration 2     88,943
Calibration 3     88,684
ssj_ops@calibrated=88,814
100% 99.2% 88,814 88,076
90% 91.0% 79,932 80,787
80% 80.3% 71,051 71,301
70% 69.0% 62,170 61,287
60% 59.5% 53,288 52,865
50% 50.0% 44,407 44,369
40% 39.2% 35,525 34,846
30% 30.6% 26,644 27,146
20% 19.9% 17,763 17,678
10% 10.5% 8,881 9,291
Active Idle   0 0
Graph of results

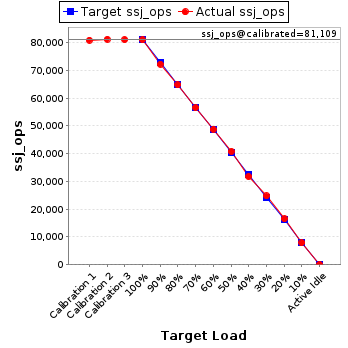

JVM 'linux-node11.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,890
Calibration 2     81,197
Calibration 3     81,021
ssj_ops@calibrated=81,109
100% 99.8% 81,109 80,974
90% 89.1% 72,998 72,231
80% 79.8% 64,887 64,744
70% 69.7% 56,776 56,494
60% 60.2% 48,665 48,789
50% 50.3% 40,554 40,772
40% 39.2% 32,444 31,758
30% 30.5% 24,333 24,737
20% 20.4% 16,222 16,507
10% 9.7% 8,111 7,894
Active Idle   0 0
Graph of results
JVM 'linux-node11.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,181
Calibration 2     88,136
Calibration 3     88,029
ssj_ops@calibrated=88,082
100% 99.2% 88,082 87,409
90% 90.5% 79,274 79,689
80% 80.4% 70,466 70,849
70% 69.6% 61,658 61,313
60% 59.6% 52,849 52,499
50% 50.4% 44,041 44,384
40% 39.3% 35,233 34,630
30% 29.6% 26,425 26,045
20% 20.2% 17,616 17,758
10% 10.0% 8,808 8,808
Active Idle   0 0
Graph of results
JVM 'linux-node11.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,502
Calibration 2     89,640
Calibration 3     89,304
ssj_ops@calibrated=89,472
100% 100.0% 89,472 89,476
90% 90.5% 80,525 80,977
80% 80.5% 71,578 72,061
70% 70.0% 62,630 62,660
60% 60.6% 53,683 54,190
50% 49.9% 44,736 44,647
40% 39.4% 35,789 35,277
30% 29.9% 26,842 26,794
20% 19.7% 17,894 17,587
10% 10.1% 8,947 9,028
Active Idle   0 0
Graph of results
JVM 'linux-node11.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,363
Calibration 2     87,234
Calibration 3     86,956
ssj_ops@calibrated=87,095
100% 100.0% 87,095 87,123
90% 90.7% 78,386 79,028
80% 79.0% 69,676 68,784
70% 71.1% 60,967 61,929
60% 61.0% 52,257 53,092
50% 49.9% 43,548 43,445
40% 40.4% 34,838 35,187
30% 30.1% 26,129 26,181
20% 19.8% 17,419 17,276
10% 10.0% 8,710 8,721
Active Idle   0 0
Graph of results
JVM 'linux-node11.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,293
Calibration 2     80,559
Calibration 3     80,481
ssj_ops@calibrated=80,520
100% 99.3% 80,520 79,977
90% 89.7% 72,468 72,220
80% 80.2% 64,416 64,570
70% 71.0% 56,364 57,154
60% 60.2% 48,312 48,438
50% 50.4% 40,260 40,576
40% 39.3% 32,208 31,653
30% 30.0% 24,156 24,172
20% 20.2% 16,104 16,234
10% 9.8% 8,052 7,905
Active Idle   0 0
Graph of results
JVM 'linux-node11.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,779
Calibration 2     87,815
Calibration 3     87,642
ssj_ops@calibrated=87,729
100% 99.6% 87,729 87,378
90% 90.3% 78,956 79,260
80% 80.8% 70,183 70,897
70% 69.4% 61,410 60,861
60% 60.0% 52,637 52,647
50% 50.7% 43,864 44,491
40% 40.8% 35,091 35,758
30% 29.6% 26,319 26,010
20% 19.8% 17,546 17,381
10% 10.2% 8,773 8,925
Active Idle   0 0
Graph of results
JVM 'linux-node11.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,460
Calibration 2     78,306
Calibration 3     78,182
ssj_ops@calibrated=78,244
100% 100.0% 78,244 78,216
90% 90.5% 70,419 70,837
80% 80.4% 62,595 62,940
70% 69.5% 54,771 54,398
60% 59.7% 46,946 46,709
50% 49.9% 39,122 39,009
40% 40.1% 31,297 31,393
30% 29.6% 23,473 23,168
20% 19.7% 15,649 15,413
10% 10.1% 7,824 7,912
Active Idle   0 0
Graph of results
JVM 'linux-node11.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,972
Calibration 2     82,994
Calibration 3     83,057
ssj_ops@calibrated=83,025
100% 100.4% 83,025 83,391
90% 89.0% 74,723 73,887
80% 80.9% 66,420 67,186
70% 69.3% 58,118 57,574
60% 59.2% 49,815 49,154
50% 49.8% 41,513 41,310
40% 39.8% 33,210 33,069
30% 30.5% 24,908 25,362
20% 19.7% 16,605 16,358
10% 10.6% 8,303 8,787
Active Idle   0 0
Graph of results
JVM 'linux-node11.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,693
Calibration 2     80,627
Calibration 3     80,366
ssj_ops@calibrated=80,496
100% 99.3% 80,496 79,934
90% 90.2% 72,447 72,633
80% 79.9% 64,397 64,303
70% 68.8% 56,347 55,373
60% 59.6% 48,298 48,012
50% 49.1% 40,248 39,494
40% 39.9% 32,199 32,112
30% 30.3% 24,149 24,401
20% 20.2% 16,099 16,286
10% 9.8% 8,050 7,862
Active Idle   0 0
Graph of results
JVM 'linux-node11.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,722
Calibration 2     89,300
Calibration 3     89,032
ssj_ops@calibrated=89,166
100% 100.4% 89,166 89,544
90% 90.8% 80,249 80,982
80% 79.4% 71,333 70,809
70% 69.9% 62,416 62,361
60% 59.5% 53,500 53,063
50% 50.5% 44,583 45,065
40% 39.7% 35,666 35,380
30% 30.6% 26,750 27,329
20% 20.0% 17,833 17,841
10% 10.2% 8,917 9,067
Active Idle   0 0
Graph of results
JVM 'linux-node11.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,852
Calibration 2     80,324
Calibration 3     80,272
ssj_ops@calibrated=80,298
100% 100.2% 80,298 80,477
90% 90.1% 72,268 72,354
80% 79.2% 64,238 63,592
70% 69.1% 56,209 55,489
60% 60.8% 48,179 48,831
50% 50.5% 40,149 40,561
40% 39.4% 32,119 31,677
30% 30.6% 24,089 24,600
20% 19.6% 16,060 15,730
10% 10.0% 8,030 8,004
Active Idle   0 0
Graph of results
JVM 'linux-node11.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,985
Calibration 2     79,600
Calibration 3     79,599
ssj_ops@calibrated=79,599
100% 99.8% 79,599 79,405
90% 90.4% 71,639 71,932
80% 79.6% 63,680 63,399
70% 70.3% 55,720 55,955
60% 60.6% 47,760 48,251
50% 50.5% 39,800 40,193
40% 39.8% 31,840 31,691
30% 30.0% 23,880 23,875
20% 19.1% 15,920 15,230
10% 10.1% 7,960 8,064
Active Idle   0 0
Graph of results
JVM 'linux-node11.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,843
Calibration 2     90,516
Calibration 3     90,301
ssj_ops@calibrated=90,409
100% 99.5% 90,409 89,999
90% 90.7% 81,368 82,045
80% 80.6% 72,327 72,887
70% 71.3% 63,286 64,432
60% 60.6% 54,245 54,816
50% 49.6% 45,204 44,808
40% 41.1% 36,164 37,139
30% 30.1% 27,123 27,181
20% 20.0% 18,082 18,045
10% 9.9% 9,041 8,955
Active Idle   0 0
Graph of results
JVM 'linux-node11.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,554
Calibration 2     88,166
Calibration 3     88,062
ssj_ops@calibrated=88,114
100% 99.9% 88,114 88,041
90% 88.7% 79,303 78,183
80% 80.0% 70,491 70,463
70% 70.4% 61,680 62,015
60% 60.4% 52,868 53,246
50% 49.8% 44,057 43,838
40% 39.8% 35,246 35,101
30% 30.4% 26,434 26,819
20% 20.1% 17,623 17,689
10% 9.9% 8,811 8,683
Active Idle   0 0
Graph of results
JVM 'linux-node11.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,796
Calibration 2     90,154
Calibration 3     90,039
ssj_ops@calibrated=90,097
100% 99.1% 90,097 89,309
90% 90.3% 81,087 81,337
80% 80.1% 72,077 72,178
70% 69.6% 63,068 62,688
60% 60.5% 54,058 54,471
50% 49.7% 45,048 44,789
40% 40.2% 36,039 36,207
30% 29.7% 27,029 26,742
20% 20.3% 18,019 18,320
10% 9.7% 9,010 8,725
Active Idle   0 0
Graph of results
JVM 'linux-node11.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,733
Calibration 2     89,622
Calibration 3     89,497
ssj_ops@calibrated=89,559
100% 99.8% 89,559 89,414
90% 90.1% 80,603 80,723
80% 80.1% 71,648 71,733
70% 69.9% 62,692 62,591
60% 59.9% 53,736 53,634
50% 49.8% 44,780 44,592
40% 40.1% 35,824 35,953
30% 30.2% 26,868 27,013
20% 20.2% 17,912 18,082
10% 9.6% 8,956 8,609
Active Idle   0 0
Graph of results
JVM 'linux-node11.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,401
Calibration 2     80,185
Calibration 3     80,137
ssj_ops@calibrated=80,161
100% 99.5% 80,161 79,792
90% 89.1% 72,145 71,455
80% 79.5% 64,129 63,733
70% 70.2% 56,113 56,234
60% 59.5% 48,096 47,704
50% 49.9% 40,080 40,015
40% 39.8% 32,064 31,924
30% 29.3% 24,048 23,501
20% 20.0% 16,032 16,062
10% 10.3% 8,016 8,218
Active Idle   0 0
Graph of results
JVM 'linux-node11.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,494
Calibration 2     90,857
Calibration 3     90,708
ssj_ops@calibrated=90,782
100% 99.8% 90,782 90,584
90% 89.5% 81,704 81,295
80% 79.4% 72,626 72,116
70% 69.2% 63,548 62,857
60% 60.4% 54,469 54,799
50% 49.7% 45,391 45,100
40% 40.1% 36,313 36,405
30% 30.4% 27,235 27,595
20% 20.2% 18,156 18,329
10% 10.1% 9,078 9,143
Active Idle   0 0
Graph of results
JVM 'linux-node11.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,122
Calibration 2     83,954
Calibration 3     83,801
ssj_ops@calibrated=83,877
100% 100.0% 83,877 83,844
90% 90.7% 75,490 76,089
80% 80.3% 67,102 67,386
70% 70.9% 58,714 59,482
60% 61.4% 50,326 51,484
50% 50.2% 41,939 42,086
40% 39.2% 33,551 32,866
30% 30.2% 25,163 25,347
20% 19.6% 16,775 16,458
10% 10.1% 8,388 8,459
Active Idle   0 0
Graph of results
JVM 'linux-node11.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,739
Calibration 2     89,474
Calibration 3     89,461
ssj_ops@calibrated=89,468
100% 99.9% 89,468 89,335
90% 90.6% 80,521 81,101
80% 80.2% 71,574 71,746
70% 69.2% 62,627 61,913
60% 60.0% 53,681 53,695
50% 50.2% 44,734 44,883
40% 39.9% 35,787 35,690
30% 30.0% 26,840 26,873
20% 19.9% 17,894 17,791
10% 10.3% 8,947 9,224
Active Idle   0 0
Graph of results
JVM 'linux-node11.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,167
Calibration 2     80,663
Calibration 3     80,602
ssj_ops@calibrated=80,632
100% 98.8% 80,632 79,657
90% 90.0% 72,569 72,531
80% 79.1% 64,506 63,766
70% 70.6% 56,443 56,898
60% 60.6% 48,379 48,857
50% 50.1% 40,316 40,392
40% 40.2% 32,253 32,435
30% 30.4% 24,190 24,516
20% 20.1% 16,126 16,175
10% 10.2% 8,063 8,188
Active Idle   0 0
Graph of results
JVM 'linux-node11.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,657
Calibration 2     84,671
Calibration 3     84,491
ssj_ops@calibrated=84,581
100% 99.2% 84,581 83,882
90% 89.6% 76,123 75,755
80% 80.3% 67,665 67,961
70% 69.1% 59,207 58,449
60% 60.2% 50,749 50,928
50% 50.4% 42,290 42,634
40% 39.8% 33,832 33,627
30% 30.5% 25,374 25,829
20% 19.9% 16,916 16,850
10% 10.0% 8,458 8,439
Active Idle   0 0
Graph of results
JVM 'linux-node11.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,356
Calibration 2     88,085
Calibration 3     88,060
ssj_ops@calibrated=88,072
100% 98.9% 88,072 87,104
90% 89.6% 79,265 78,910
80% 80.5% 70,458 70,856
70% 68.9% 61,651 60,715
60% 59.8% 52,843 52,706
50% 49.5% 44,036 43,592
40% 39.9% 35,229 35,139
30% 30.3% 26,422 26,681
20% 20.4% 17,614 17,983
10% 10.0% 8,807 8,779
Active Idle   0 0
Graph of results
JVM 'linux-node11.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,540
Calibration 2     88,586
Calibration 3     88,254
ssj_ops@calibrated=88,420
100% 98.8% 88,420 87,358
90% 90.2% 79,578 79,776
80% 80.4% 70,736 71,085
70% 70.0% 61,894 61,858
60% 59.0% 53,052 52,132
50% 50.5% 44,210 44,683
40% 40.6% 35,368 35,937
30% 30.1% 26,526 26,571
20% 19.4% 17,684 17,158
10% 9.9% 8,842 8,733
Active Idle   0 0

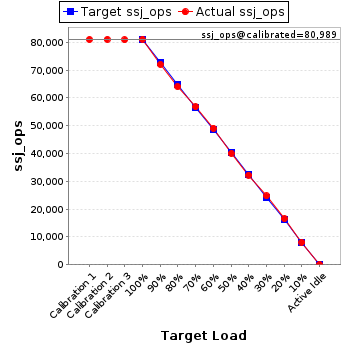

Graph of results
JVM 'linux-node11.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,003
Calibration 2     81,076
Calibration 3     80,902
ssj_ops@calibrated=80,989
100% 100.2% 80,989 81,133
90% 89.0% 72,890 72,061
80% 79.1% 64,791 64,086
70% 70.2% 56,692 56,831
60% 60.6% 48,593 49,112
50% 49.4% 40,495 40,015
40% 39.8% 32,396 32,257
30% 30.5% 24,297 24,734
20% 20.4% 16,198 16,541
10% 10.0% 8,099 8,067
Active Idle   0 0
Graph of results
JVM 'linux-node11.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,252
Calibration 2     83,296
Calibration 3     82,939
ssj_ops@calibrated=83,117
100% 99.4% 83,117 82,601
90% 89.5% 74,806 74,405
80% 80.1% 66,494 66,570
70% 69.8% 58,182 58,015
60% 59.3% 49,870 49,283
50% 49.8% 41,559 41,387
40% 40.4% 33,247 33,555
30% 30.9% 24,935 25,707
20% 20.3% 16,623 16,892
10% 10.2% 8,312 8,496
Active Idle   0 0
Graph of results
JVM 'linux-node11.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,947
Calibration 2     88,972
Calibration 3     88,705
ssj_ops@calibrated=88,839
100% 99.8% 88,839 88,693
90% 90.4% 79,955 80,269
80% 78.7% 71,071 69,958
70% 70.8% 62,187 62,871
60% 60.4% 53,303 53,620
50% 49.8% 44,419 44,243
40% 39.4% 35,535 35,009
30% 29.9% 26,652 26,563
20% 19.6% 17,768 17,446
10% 9.7% 8,884 8,629
Active Idle   0 0
Graph of results
JVM 'linux-node11.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,554
Calibration 2     83,271
Calibration 3     83,357
ssj_ops@calibrated=83,314
100% 99.8% 83,314 83,150
90% 90.4% 74,983 75,333
80% 79.9% 66,651 66,577
70% 69.4% 58,320 57,824
60% 58.9% 49,988 49,082
50% 49.3% 41,657 41,106
40% 39.7% 33,326 33,053
30% 30.6% 24,994 25,480
20% 19.8% 16,663 16,475
10% 9.6% 8,331 7,983
Active Idle   0 0
Graph of results
JVM 'linux-node11.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,951
Calibration 2     80,905
Calibration 3     80,875
ssj_ops@calibrated=80,890
100% 99.7% 80,890 80,647
90% 91.1% 72,801 73,673
80% 79.6% 64,712 64,376
70% 70.2% 56,623 56,749
60% 59.9% 48,534 48,446
50% 50.3% 40,445 40,704
40% 40.3% 32,356 32,608
30% 29.6% 24,267 23,938
20% 20.0% 16,178 16,203
10% 10.1% 8,089 8,150
Active Idle   0 0
Graph of results
JVM 'linux-node11.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,802
Calibration 2     80,623
Calibration 3     80,712
ssj_ops@calibrated=80,667
100% 99.9% 80,667 80,578
90% 90.1% 72,601 72,685
80% 79.5% 64,534 64,115
70% 70.0% 56,467 56,453
60% 60.4% 48,400 48,712
50% 50.0% 40,334 40,330
40% 40.1% 32,267 32,362
30% 29.5% 24,200 23,833
20% 20.6% 16,133 16,596
10% 10.0% 8,067 8,087
Active Idle   0 0
Graph of results
JVM 'linux-node11.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,226
Calibration 2     83,810
Calibration 3     83,587
ssj_ops@calibrated=83,698
100% 100.0% 83,698 83,721
90% 89.0% 75,328 74,517
80% 79.8% 66,959 66,824
70% 69.4% 58,589 58,062
60% 60.9% 50,219 50,979
50% 49.6% 41,849 41,527
40% 40.2% 33,479 33,650
30% 30.3% 25,109 25,321
20% 19.7% 16,740 16,496
10% 10.0% 8,370 8,362
Active Idle   0 0
Graph of results
JVM 'linux-node11.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,638
Calibration 2     86,917
Calibration 3     86,754
ssj_ops@calibrated=86,835
100% 99.1% 86,835 86,094
90% 89.3% 78,152 77,528
80% 80.4% 69,468 69,802
70% 69.6% 60,785 60,398
60% 59.8% 52,101 51,928
50% 50.7% 43,418 43,998
40% 39.9% 34,734 34,675
30% 29.6% 26,051 25,714
20% 20.6% 17,367 17,875
10% 9.7% 8,684 8,417
Active Idle   0 0
Graph of results
JVM 'linux-node11.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,234
Calibration 2     89,609
Calibration 3     89,588
ssj_ops@calibrated=89,599
100% 99.6% 89,599 89,247
90% 89.6% 80,639 80,269
80% 79.0% 71,679 70,822
70% 70.7% 62,719 63,323
60% 60.4% 53,759 54,087
50% 49.8% 44,799 44,603
40% 40.1% 35,839 35,947
30% 31.1% 26,880 27,829
20% 19.7% 17,920 17,682
10% 10.0% 8,960 8,916
Active Idle   0 0
Graph of results
JVM 'linux-node11.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,418
Calibration 2     90,418
Calibration 3     90,385
ssj_ops@calibrated=90,402
100% 99.3% 90,402 89,799
90% 89.3% 81,361 80,767
80% 79.1% 72,321 71,496
70% 69.5% 63,281 62,852
60% 59.8% 54,241 54,071
50% 49.8% 45,201 44,996
40% 40.1% 36,161 36,294
30% 30.4% 27,120 27,513
20% 20.1% 18,080 18,158
10% 9.9% 9,040 8,973
Active Idle   0 0
Graph of results
JVM 'linux-node11.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,303
Calibration 2     86,992
Calibration 3     87,045
ssj_ops@calibrated=87,018
100% 99.5% 87,018 86,620
90% 90.6% 78,316 78,821
80% 79.5% 69,615 69,163
70% 70.3% 60,913 61,179
60% 60.8% 52,211 52,949
50% 50.0% 43,509 43,472
40% 40.6% 34,807 35,308
30% 29.6% 26,105 25,777
20% 20.3% 17,404 17,633
10% 10.2% 8,702 8,912
Active Idle   0 0
Graph of results
JVM 'linux-node11.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,192
Calibration 2     79,110
Calibration 3     79,124
ssj_ops@calibrated=79,117
100% 100.0% 79,117 79,119
90% 89.6% 71,205 70,865
80% 79.4% 63,293 62,835
70% 69.4% 55,382 54,912
60% 60.8% 47,470 48,125
50% 50.4% 39,558 39,852
40% 39.8% 31,647 31,497
30% 30.2% 23,735 23,881
20% 20.1% 15,823 15,924
10% 10.0% 7,912 7,891
Active Idle   0 0
Graph of results
JVM 'linux-node11.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,467
Calibration 2     80,109
Calibration 3     80,135
ssj_ops@calibrated=80,122
100% 100.3% 80,122 80,367
90% 90.6% 72,110 72,611
80% 79.8% 64,097 63,945
70% 70.3% 56,085 56,306
60% 60.4% 48,073 48,409
50% 50.3% 40,061 40,288
40% 39.6% 32,049 31,756
30% 30.5% 24,037 24,429
20% 20.6% 16,024 16,466
10% 10.1% 8,012 8,083
Active Idle   0 0
Graph of results
JVM 'linux-node11.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,219
Calibration 2     84,455
Calibration 3     84,177
ssj_ops@calibrated=84,316
100% 99.3% 84,316 83,692
90% 89.9% 75,884 75,781
80% 79.2% 67,453 66,816
70% 69.7% 59,021 58,759
60% 60.7% 50,590 51,220
50% 49.6% 42,158 41,853
40% 40.7% 33,726 34,323
30% 30.3% 25,295 25,539
20% 20.3% 16,863 17,133
10% 9.9% 8,432 8,329
Active Idle   0 0
Graph of results
JVM 'linux-node11.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,002
Calibration 2     88,294
Calibration 3     88,385
ssj_ops@calibrated=88,339
100% 99.4% 88,339 87,779
90% 90.4% 79,505 79,850
80% 79.8% 70,672 70,481
70% 69.5% 61,838 61,405
60% 59.4% 53,004 52,513
50% 50.1% 44,170 44,250
40% 40.1% 35,336 35,392
30% 30.5% 26,502 26,906
20% 19.9% 17,668 17,568
10% 10.1% 8,834 8,883
Active Idle   0 0
Graph of results
