Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,460,250
ssj_ops@100% per JVM = 85,316
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,471,190
Calibration 2     5,484,274
Calibration 3     5,478,251
ssj_ops@calibrated=5,481,263
100% 99.6% 5,481,263 5,460,250
90% 89.9% 4,933,137 4,927,874
80% 79.8% 4,385,010 4,371,582
70% 69.9% 3,836,884 3,833,819
60% 60.0% 3,288,758 3,286,146
50% 50.0% 2,740,631 2,743,362
40% 40.0% 2,192,505 2,195,167
30% 30.0% 1,644,379 1,644,102
20% 20.0% 1,096,253 1,097,241
10% 10.0% 548,126 546,506
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node10.001 78,510
linux-node10.002 81,652
linux-node10.003 78,154
linux-node10.004 84,649
linux-node10.005 85,973
linux-node10.006 89,515
linux-node10.007 80,971
linux-node10.008 88,610
linux-node10.009 89,589
linux-node10.010 88,592
linux-node10.011 87,646
linux-node10.012 82,719
linux-node10.013 87,235
linux-node10.014 88,544
linux-node10.015 89,942
linux-node10.016 86,119
linux-node10.017 89,422
linux-node10.018 88,460
linux-node10.019 88,165
linux-node10.020 78,859
linux-node10.021 81,850
linux-node10.022 77,715
linux-node10.023 83,439
linux-node10.024 89,788
linux-node10.025 78,923
linux-node10.026 80,316
linux-node10.027 90,642
linux-node10.028 78,645
linux-node10.029 89,051
linux-node10.030 88,331
linux-node10.031 80,775
linux-node10.032 86,061
linux-node10.033 85,727
linux-node10.034 88,787
linux-node10.035 87,837
linux-node10.036 84,661
linux-node10.037 88,937
linux-node10.038 88,397
linux-node10.039 78,112
linux-node10.040 87,568
linux-node10.041 78,356
linux-node10.042 88,018
linux-node10.043 85,496
linux-node10.044 79,726
linux-node10.045 88,973
linux-node10.046 87,356
linux-node10.047 88,567
linux-node10.048 87,437
linux-node10.049 87,901
linux-node10.050 81,044
linux-node10.051 87,271
linux-node10.052 87,574
linux-node10.053 88,422
linux-node10.054 89,440
linux-node10.055 88,835
linux-node10.056 89,042
linux-node10.057 78,400
linux-node10.058 84,236
linux-node10.059 87,474
linux-node10.060 87,705
linux-node10.061 77,560
linux-node10.062 87,832
linux-node10.063 87,120
linux-node10.064 77,577
ssj_ops@100% 5,460,250
ssj_ops@100% per JVM 85,316
Graph of per-instance results
JVM 'linux-node10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,152
Calibration 2     79,412
Calibration 3     79,676
ssj_ops@calibrated=79,544
100% 98.7% 79,544 78,510
90% 90.6% 71,589 72,059
80% 80.2% 63,635 63,762
70% 70.3% 55,681 55,946
60% 59.8% 47,726 47,591
50% 49.9% 39,772 39,732
40% 40.5% 31,817 32,194
30% 30.0% 23,863 23,851
20% 20.5% 15,909 16,307
10% 10.1% 7,954 8,062
Active Idle   0 0
Graph of results
JVM 'linux-node10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,641
Calibration 2     81,493
Calibration 3     81,416
ssj_ops@calibrated=81,454
100% 100.2% 81,454 81,652
90% 90.3% 73,309 73,522
80% 79.5% 65,164 64,790
70% 70.2% 57,018 57,188
60% 60.2% 48,873 48,995
50% 48.8% 40,727 39,718
40% 40.8% 32,582 33,215
30% 30.2% 24,436 24,567
20% 20.2% 16,291 16,416
10% 9.8% 8,145 7,996
Active Idle   0 0
Graph of results
JVM 'linux-node10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,817
Calibration 2     78,731
Calibration 3     78,440
ssj_ops@calibrated=78,586
100% 99.5% 78,586 78,154
90% 89.0% 70,727 69,976
80% 80.1% 62,868 62,942
70% 69.0% 55,010 54,187
60% 59.6% 47,151 46,809
50% 49.6% 39,293 38,962
40% 40.0% 31,434 31,434
30% 30.2% 23,576 23,768
20% 20.8% 15,717 16,324
10% 10.0% 7,859 7,865
Active Idle   0 0
Graph of results

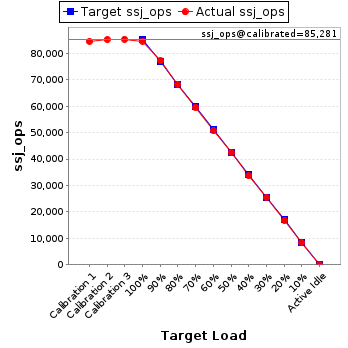

JVM 'linux-node10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,607
Calibration 2     85,218
Calibration 3     85,344
ssj_ops@calibrated=85,281
100% 99.3% 85,281 84,649
90% 90.5% 76,753 77,207
80% 80.1% 68,225 68,334
70% 69.9% 59,697 59,577
60% 59.4% 51,169 50,652
50% 49.8% 42,641 42,462
40% 39.5% 34,113 33,726
30% 30.0% 25,584 25,604
20% 19.7% 17,056 16,795
10% 9.7% 8,528 8,296
Active Idle   0 0
Graph of results
JVM 'linux-node10.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,522
Calibration 2     87,182
Calibration 3     86,908
ssj_ops@calibrated=87,045
100% 98.8% 87,045 85,973
90% 90.5% 78,341 78,805
80% 80.0% 69,636 69,600
70% 70.2% 60,932 61,107
60% 59.7% 52,227 51,948
50% 49.4% 43,523 43,043
40% 40.0% 34,818 34,845
30% 29.9% 26,114 26,040
20% 19.6% 17,409 17,058
10% 9.8% 8,705 8,542
Active Idle   0 0
Graph of results
JVM 'linux-node10.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,717
Calibration 2     89,330
Calibration 3     89,319
ssj_ops@calibrated=89,324
100% 100.2% 89,324 89,515
90% 89.8% 80,392 80,218
80% 79.9% 71,460 71,350
70% 69.6% 62,527 62,126
60% 59.9% 53,595 53,520
50% 50.5% 44,662 45,150
40% 40.7% 35,730 36,316
30% 30.5% 26,797 27,275
20% 19.9% 17,865 17,808
10% 9.9% 8,932 8,817
Active Idle   0 0
Graph of results
JVM 'linux-node10.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,145
Calibration 2     80,640
Calibration 3     80,698
ssj_ops@calibrated=80,669
100% 100.4% 80,669 80,971
90% 90.9% 72,602 73,319
80% 79.1% 64,535 63,778
70% 69.6% 56,468 56,117
60% 59.4% 48,401 47,923
50% 48.7% 40,334 39,256
40% 39.4% 32,268 31,800
30% 29.4% 24,201 23,704
20% 19.8% 16,134 16,003
10% 10.0% 8,067 8,083
Active Idle   0 0
Graph of results
JVM 'linux-node10.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,549
Calibration 2     89,418
Calibration 3     89,196
ssj_ops@calibrated=89,307
100% 99.2% 89,307 88,610
90% 89.3% 80,376 79,767
80% 79.6% 71,445 71,108
70% 69.7% 62,515 62,260
60% 60.1% 53,584 53,658
50% 50.5% 44,653 45,076
40% 40.2% 35,723 35,865
30% 30.1% 26,792 26,877
20% 20.1% 17,861 17,958
10% 10.3% 8,931 9,154
Active Idle   0 0
Graph of results
JVM 'linux-node10.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,506
Calibration 2     89,850
Calibration 3     89,912
ssj_ops@calibrated=89,881
100% 99.7% 89,881 89,589
90% 89.6% 80,893 80,547
80% 78.8% 71,905 70,849
70% 69.6% 62,917 62,541
60% 59.9% 53,929 53,857
50% 49.7% 44,941 44,642
40% 40.3% 35,952 36,232
30% 30.2% 26,964 27,180
20% 20.2% 17,976 18,179
10% 9.8% 8,988 8,775
Active Idle   0 0
Graph of results
JVM 'linux-node10.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,228
Calibration 2     88,128
Calibration 3     88,182
ssj_ops@calibrated=88,155
100% 100.5% 88,155 88,592
90% 90.5% 79,339 79,765
80% 80.1% 70,524 70,574
70% 69.7% 61,708 61,470
60% 59.5% 52,893 52,411
50% 50.3% 44,077 44,357
40% 39.8% 35,262 35,072
30% 30.5% 26,446 26,872
20% 19.9% 17,631 17,550
10% 9.8% 8,815 8,629
Active Idle   0 0
Graph of results
JVM 'linux-node10.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,982
Calibration 2     87,582
Calibration 3     87,623
ssj_ops@calibrated=87,602
100% 100.0% 87,602 87,646
90% 90.0% 78,842 78,861
80% 78.6% 70,082 68,891
70% 70.2% 61,322 61,487
60% 60.4% 52,561 52,925
50% 50.6% 43,801 44,342
40% 40.6% 35,041 35,574
30% 30.0% 26,281 26,321
20% 20.5% 17,520 17,987
10% 9.8% 8,760 8,599
Active Idle   0 0
Graph of results
JVM 'linux-node10.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,736
Calibration 2     83,116
Calibration 3     82,984
ssj_ops@calibrated=83,050
100% 99.6% 83,050 82,719
90% 90.1% 74,745 74,850
80% 79.8% 66,440 66,305
70% 69.5% 58,135 57,690
60% 60.2% 49,830 49,992
50% 49.6% 41,525 41,188
40% 40.3% 33,220 33,472
30% 29.7% 24,915 24,683
20% 20.4% 16,610 16,919
10% 9.9% 8,305 8,260
Active Idle   0 0
Graph of results
JVM 'linux-node10.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,499
Calibration 2     88,124
Calibration 3     87,863
ssj_ops@calibrated=87,994
100% 99.1% 87,994 87,235
90% 89.2% 79,194 78,533
80% 79.8% 70,395 70,246
70% 69.4% 61,595 61,103
60% 59.8% 52,796 52,600
50% 50.0% 43,997 44,028
40% 38.9% 35,197 34,235
30% 30.2% 26,398 26,575
20% 20.3% 17,599 17,826
10% 9.7% 8,799 8,554
Active Idle   0 0
Graph of results
JVM 'linux-node10.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,752
Calibration 2     88,359
Calibration 3     88,458
ssj_ops@calibrated=88,408
100% 100.2% 88,408 88,544
90% 90.0% 79,567 79,595
80% 79.5% 70,727 70,300
70% 69.7% 61,886 61,586
60% 61.4% 53,045 54,324
50% 50.7% 44,204 44,840
40% 39.8% 35,363 35,181
30% 29.9% 26,522 26,431
20% 19.7% 17,682 17,400
10% 10.4% 8,841 9,173
Active Idle   0 0
Graph of results
JVM 'linux-node10.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,208
Calibration 2     89,778
Calibration 3     89,705
ssj_ops@calibrated=89,742
100% 100.2% 89,742 89,942
90% 89.9% 80,768 80,642
80% 80.4% 71,793 72,166
70% 69.0% 62,819 61,927
60% 60.1% 53,845 53,918
50% 49.6% 44,871 44,547
40% 40.1% 35,897 35,978
30% 29.7% 26,923 26,662
20% 20.0% 17,948 17,945
10% 9.6% 8,974 8,650
Active Idle   0 0
Graph of results
JVM 'linux-node10.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,142
Calibration 2     86,254
Calibration 3     86,266
ssj_ops@calibrated=86,260
100% 99.8% 86,260 86,119
90% 89.3% 77,634 77,019
80% 80.4% 69,008 69,362
70% 70.5% 60,382 60,845
60% 59.9% 51,756 51,649
50% 50.1% 43,130 43,196
40% 40.6% 34,504 35,018
30% 29.6% 25,878 25,534
20% 19.9% 17,252 17,145
10% 9.7% 8,626 8,405
Active Idle   0 0
Graph of results
JVM 'linux-node10.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,880
Calibration 2     90,129
Calibration 3     90,231
ssj_ops@calibrated=90,180
100% 99.2% 90,180 89,422
90% 89.7% 81,162 80,877
80% 79.3% 72,144 71,545
70% 70.0% 63,126 63,092
60% 59.9% 54,108 54,046
50% 50.2% 45,090 45,228
40% 39.7% 36,072 35,824
30% 29.8% 27,054 26,900
20% 20.0% 18,036 18,078
10% 10.1% 9,018 9,092
Active Idle   0 0
Graph of results
JVM 'linux-node10.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,196
Calibration 2     89,230
Calibration 3     88,960
ssj_ops@calibrated=89,095
100% 99.3% 89,095 88,460
90% 90.5% 80,186 80,645
80% 80.4% 71,276 71,662
70% 69.3% 62,367 61,736
60% 58.8% 53,457 52,423
50% 50.1% 44,548 44,645
40% 39.9% 35,638 35,508
30% 30.2% 26,729 26,887
20% 19.6% 17,819 17,462
10% 10.2% 8,910 9,072
Active Idle   0 0
Graph of results
JVM 'linux-node10.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,897
Calibration 2     88,986
Calibration 3     88,673
ssj_ops@calibrated=88,830
100% 99.3% 88,830 88,165
90% 89.4% 79,947 79,445
80% 79.1% 71,064 70,276
70% 70.1% 62,181 62,277
60% 59.1% 53,298 52,465
50% 49.5% 44,415 43,944
40% 40.3% 35,532 35,754
30% 30.0% 26,649 26,607
20% 20.1% 17,766 17,864
10% 9.8% 8,883 8,670
Active Idle   0 0
Graph of results
JVM 'linux-node10.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,059
Calibration 2     79,185
Calibration 3     79,125
ssj_ops@calibrated=79,155
100% 99.6% 79,155 78,859
90% 90.0% 71,240 71,209
80% 79.5% 63,324 62,957
70% 69.8% 55,409 55,283
60% 60.7% 47,493 48,067
50% 50.1% 39,578 39,630
40% 40.2% 31,662 31,792
30% 30.1% 23,747 23,812
20% 20.1% 15,831 15,949
10% 10.1% 7,916 7,995
Active Idle   0 0
Graph of results
JVM 'linux-node10.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,467
Calibration 2     82,035
Calibration 3     82,293
ssj_ops@calibrated=82,164
100% 99.6% 82,164 81,850
90% 89.7% 73,948 73,671
80% 79.6% 65,731 65,382
70% 70.4% 57,515 57,827
60% 59.5% 49,298 48,859
50% 50.2% 41,082 41,223
40% 40.5% 32,866 33,305
30% 30.6% 24,649 25,113
20% 19.7% 16,433 16,183
10% 10.1% 8,216 8,312
Active Idle   0 0
Graph of results
JVM 'linux-node10.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,597
Calibration 2     78,642
Calibration 3     78,610
ssj_ops@calibrated=78,626
100% 98.8% 78,626 77,715
90% 89.6% 70,764 70,449
80% 79.5% 62,901 62,496
70% 71.0% 55,038 55,809
60% 60.3% 47,176 47,391
50% 50.5% 39,313 39,716
40% 40.1% 31,450 31,531
30% 29.9% 23,588 23,533
20% 19.6% 15,725 15,373
10% 10.1% 7,863 7,908
Active Idle   0 0
Graph of results

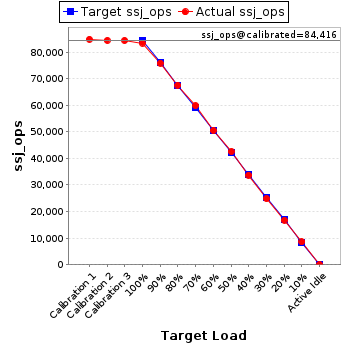

JVM 'linux-node10.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,862
Calibration 2     84,428
Calibration 3     84,404
ssj_ops@calibrated=84,416
100% 98.8% 84,416 83,439
90% 89.9% 75,974 75,877
80% 80.0% 67,533 67,559
70% 70.9% 59,091 59,843
60% 59.9% 50,650 50,575
50% 50.4% 42,208 42,577
40% 40.0% 33,766 33,732
30% 29.4% 25,325 24,844
20% 19.9% 16,883 16,762
10% 10.1% 8,442 8,554
Active Idle   0 0
Graph of results
JVM 'linux-node10.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,264
Calibration 2     90,487
Calibration 3     90,304
ssj_ops@calibrated=90,395
100% 99.3% 90,395 89,788
90% 89.1% 81,356 80,505
80% 79.4% 72,316 71,811
70% 70.0% 63,277 63,309
60% 59.4% 54,237 53,656
50% 50.2% 45,198 45,408
40% 40.3% 36,158 36,398
30% 30.1% 27,119 27,183
20% 19.6% 18,079 17,728
10% 10.0% 9,040 9,050
Active Idle   0 0
Graph of results
JVM 'linux-node10.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,252
Calibration 2     79,158
Calibration 3     79,317
ssj_ops@calibrated=79,238
100% 99.6% 79,238 78,923
90% 89.5% 71,314 70,945
80% 79.8% 63,390 63,229
70% 69.3% 55,466 54,950
60% 59.8% 47,543 47,356
50% 50.1% 39,619 39,710
40% 41.0% 31,695 32,452
30% 29.6% 23,771 23,485
20% 20.3% 15,848 16,091
10% 10.1% 7,924 8,017
Active Idle   0 0
Graph of results
JVM 'linux-node10.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,200
Calibration 2     80,790
Calibration 3     80,674
ssj_ops@calibrated=80,732
100% 99.5% 80,732 80,316
90% 90.6% 72,659 73,106
80% 79.5% 64,585 64,189
70% 69.5% 56,512 56,148
60% 60.0% 48,439 48,414
50% 50.4% 40,366 40,713
40% 39.4% 32,293 31,823
30% 30.0% 24,220 24,219
20% 20.1% 16,146 16,265
10% 10.0% 8,073 8,083
Active Idle   0 0
Graph of results
JVM 'linux-node10.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,103
Calibration 2     90,465
Calibration 3     90,370
ssj_ops@calibrated=90,417
100% 100.2% 90,417 90,642
90% 90.0% 81,375 81,362
80% 80.5% 72,334 72,753
70% 69.2% 63,292 62,606
60% 60.2% 54,250 54,417
50% 50.1% 45,209 45,269
40% 39.9% 36,167 36,093
30% 29.9% 27,125 26,994
20% 19.7% 18,083 17,812
10% 9.7% 9,042 8,765
Active Idle   0 0
Graph of results
JVM 'linux-node10.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,049
Calibration 2     78,323
Calibration 3     78,279
ssj_ops@calibrated=78,301
100% 100.4% 78,301 78,645
90% 90.5% 70,471 70,850
80% 78.7% 62,641 61,588
70% 70.4% 54,811 55,141
60% 60.3% 46,981 47,203
50% 50.8% 39,150 39,742
40% 39.6% 31,320 31,035
30% 29.7% 23,490 23,272
20% 20.3% 15,660 15,929
10% 10.0% 7,830 7,839
Active Idle   0 0
Graph of results
JVM 'linux-node10.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,390
Calibration 2     88,924
Calibration 3     88,789
ssj_ops@calibrated=88,857
100% 100.2% 88,857 89,051
90% 90.2% 79,971 80,146
80% 79.2% 71,085 70,337
70% 69.5% 62,200 61,718
60% 60.6% 53,314 53,869
50% 50.0% 44,428 44,389
40% 40.2% 35,543 35,710
30% 30.3% 26,657 26,896
20% 19.9% 17,771 17,671
10% 9.9% 8,886 8,817
Active Idle   0 0
Graph of results

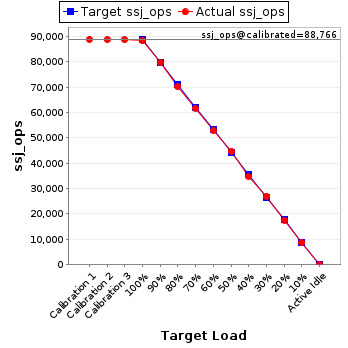

JVM 'linux-node10.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,961
Calibration 2     88,829
Calibration 3     88,703
ssj_ops@calibrated=88,766
100% 99.5% 88,766 88,331
90% 90.0% 79,890 79,878
80% 79.3% 71,013 70,360
70% 69.5% 62,136 61,721
60% 59.7% 53,260 52,952
50% 50.5% 44,383 44,788
40% 39.3% 35,507 34,841
30% 30.4% 26,630 26,993
20% 19.8% 17,753 17,613
10% 9.7% 8,877 8,644
Active Idle   0 0
Graph of results
JVM 'linux-node10.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,511
Calibration 2     80,748
Calibration 3     80,664
ssj_ops@calibrated=80,706
100% 100.1% 80,706 80,775
90% 88.6% 72,636 71,528
80% 78.2% 64,565 63,074
70% 70.0% 56,494 56,528
60% 60.5% 48,424 48,791
50% 49.6% 40,353 40,017
40% 40.2% 32,282 32,456
30% 30.3% 24,212 24,458
20% 20.4% 16,141 16,454
10% 9.9% 8,071 8,023
Active Idle   0 0
Graph of results
JVM 'linux-node10.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,502
Calibration 2     86,669
Calibration 3     86,480
ssj_ops@calibrated=86,575
100% 99.4% 86,575 86,061
90% 89.8% 77,917 77,787
80% 79.3% 69,260 68,637
70% 69.7% 60,602 60,335
60% 59.8% 51,945 51,752
50% 50.4% 43,287 43,637
40% 40.9% 34,630 35,428
30% 30.1% 25,972 26,082
20% 20.5% 17,315 17,745
10% 10.3% 8,657 8,934
Active Idle   0 0
Graph of results
JVM 'linux-node10.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,498
Calibration 2     87,194
Calibration 3     87,107
ssj_ops@calibrated=87,150
100% 98.4% 87,150 85,727
90% 90.6% 78,435 78,941
80% 80.9% 69,720 70,512
70% 70.3% 61,005 61,234
60% 58.5% 52,290 51,005
50% 50.8% 43,575 44,272
40% 39.9% 34,860 34,771
30% 29.9% 26,145 26,019
20% 20.1% 17,430 17,480
10% 9.9% 8,715 8,629
Active Idle   0 0
Graph of results
JVM 'linux-node10.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,614
Calibration 2     89,003
Calibration 3     88,682
ssj_ops@calibrated=88,842
100% 99.9% 88,842 88,787
90% 90.7% 79,958 80,576
80% 79.4% 71,074 70,555
70% 70.8% 62,189 62,867
60% 59.9% 53,305 53,209
50% 50.7% 44,421 45,060
40% 40.2% 35,537 35,715
30% 29.6% 26,653 26,263
20% 20.1% 17,768 17,848
10% 9.7% 8,884 8,654
Active Idle   0 0
Graph of results

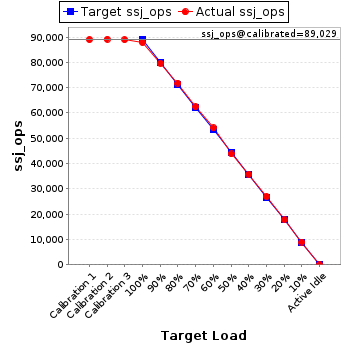

JVM 'linux-node10.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,985
Calibration 2     89,142
Calibration 3     88,916
ssj_ops@calibrated=89,029
100% 98.7% 89,029 87,837
90% 89.5% 80,126 79,691
80% 80.7% 71,223 71,833
70% 70.2% 62,320 62,476
60% 60.8% 53,417 54,097
50% 49.2% 44,515 43,779
40% 40.2% 35,612 35,830
30% 30.2% 26,709 26,901
20% 19.9% 17,806 17,695
10% 10.1% 8,903 8,961
Active Idle   0 0
Graph of results
JVM 'linux-node10.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,923
Calibration 2     85,076
Calibration 3     84,983
ssj_ops@calibrated=85,029
100% 99.6% 85,029 84,661
90% 88.7% 76,527 75,441
80% 79.4% 68,024 67,536
70% 69.6% 59,521 59,220
60% 60.0% 51,018 51,017
50% 49.8% 42,515 42,305
40% 40.6% 34,012 34,518
30% 29.7% 25,509 25,290
20% 20.5% 17,006 17,427
10% 9.8% 8,503 8,300
Active Idle   0 0
Graph of results
JVM 'linux-node10.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,434
Calibration 2     88,563
Calibration 3     89,257
ssj_ops@calibrated=88,910
100% 100.0% 88,910 88,937
90% 89.6% 80,019 79,656
80% 79.8% 71,128 70,919
70% 69.5% 62,237 61,767
60% 59.5% 53,346 52,870
50% 49.5% 44,455 44,019
40% 40.3% 35,564 35,791
30% 29.1% 26,673 25,837
20% 20.0% 17,782 17,763
10% 10.1% 8,891 8,982
Active Idle   0 0
Graph of results
JVM 'linux-node10.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,777
Calibration 2     88,501
Calibration 3     88,397
ssj_ops@calibrated=88,449
100% 99.9% 88,449 88,397
90% 89.7% 79,604 79,349
80% 80.4% 70,759 71,086
70% 70.7% 61,914 62,541
60% 60.1% 53,070 53,151
50% 50.7% 44,225 44,822
40% 39.7% 35,380 35,136
30% 29.9% 26,535 26,454
20% 19.6% 17,690 17,365
10% 10.1% 8,845 8,969
Active Idle   0 0
Graph of results
JVM 'linux-node10.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,622
Calibration 2     79,526
Calibration 3     79,324
ssj_ops@calibrated=79,425
100% 98.3% 79,425 78,112
90% 90.8% 71,483 72,122
80% 79.6% 63,540 63,185
70% 69.1% 55,598 54,845
60% 59.5% 47,655 47,260
50% 49.3% 39,713 39,179
40% 39.6% 31,770 31,489
30% 30.3% 23,828 24,095
20% 19.6% 15,885 15,537
10% 9.9% 7,943 7,882
Active Idle   0 0
Graph of results
JVM 'linux-node10.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,203
Calibration 2     88,817
Calibration 3     88,562
ssj_ops@calibrated=88,690
100% 98.7% 88,690 87,568
90% 90.7% 79,821 80,486
80% 79.8% 70,952 70,777
70% 70.1% 62,083 62,169
60% 60.2% 53,214 53,349
50% 50.4% 44,345 44,731
40% 39.6% 35,476 35,156
30% 29.9% 26,607 26,517
20% 19.7% 17,738 17,507
10% 10.1% 8,869 8,990
Active Idle   0 0
Graph of results
JVM 'linux-node10.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,950
Calibration 2     78,379
Calibration 3     78,230
ssj_ops@calibrated=78,305
100% 100.1% 78,305 78,356
90% 90.2% 70,474 70,614
80% 79.3% 62,644 62,115
70% 70.8% 54,813 55,437
60% 58.6% 46,983 45,863
50% 50.4% 39,152 39,449
40% 39.4% 31,322 30,870
30% 30.0% 23,491 23,521
20% 19.7% 15,661 15,462
10% 10.1% 7,830 7,912
Active Idle   0 0
Graph of results
JVM 'linux-node10.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,692
Calibration 2     87,638
Calibration 3     87,601
ssj_ops@calibrated=87,619
100% 100.5% 87,619 88,018
90% 88.8% 78,857 77,804
80% 79.8% 70,096 69,959
70% 69.6% 61,334 60,960
60% 59.7% 52,572 52,278
50% 50.4% 43,810 44,201
40% 40.4% 35,048 35,367
30% 30.4% 26,286 26,637
20% 19.8% 17,524 17,364
10% 10.1% 8,762 8,846
Active Idle   0 0
Graph of results
JVM 'linux-node10.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,934
Calibration 2     85,568
Calibration 3     85,527
ssj_ops@calibrated=85,547
100% 99.9% 85,547 85,496
90% 90.0% 76,992 76,986
80% 79.6% 68,438 68,122
70% 70.0% 59,883 59,885
60% 60.1% 51,328 51,403
50% 50.2% 42,774 42,941
40% 40.3% 34,219 34,481
30% 30.2% 25,664 25,812
20% 19.7% 17,109 16,840
10% 9.7% 8,555 8,300
Active Idle   0 0
Graph of results
JVM 'linux-node10.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,541
Calibration 2     79,598
Calibration 3     79,563
ssj_ops@calibrated=79,581
100% 100.2% 79,581 79,726
90% 89.8% 71,623 71,436
80% 80.0% 63,665 63,700
70% 70.9% 55,706 56,402
60% 60.0% 47,748 47,713
50% 49.8% 39,790 39,613
40% 39.8% 31,832 31,711
30% 30.0% 23,874 23,849
20% 19.9% 15,916 15,858
10% 9.8% 7,958 7,817
Active Idle   0 0
Graph of results
JVM 'linux-node10.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,002
Calibration 2     89,741
Calibration 3     89,436
ssj_ops@calibrated=89,589
100% 99.3% 89,589 88,973
90% 89.1% 80,630 79,855
80% 80.6% 71,671 72,190
70% 70.2% 62,712 62,926
60% 59.6% 53,753 53,422
50% 49.9% 44,794 44,697
40% 40.9% 35,835 36,665
30% 29.9% 26,877 26,786
20% 20.1% 17,918 18,035
10% 10.3% 8,959 9,221
Active Idle   0 0
Graph of results
JVM 'linux-node10.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,725
Calibration 2     87,561
Calibration 3     87,317
ssj_ops@calibrated=87,439
100% 99.9% 87,439 87,356
90% 89.0% 78,695 77,813
80% 80.0% 69,951 69,912
70% 70.1% 61,207 61,253
60% 60.1% 52,463 52,579
50% 50.2% 43,720 43,856
40% 40.0% 34,976 35,010
30% 29.4% 26,232 25,701
20% 20.0% 17,488 17,479
10% 10.1% 8,744 8,842
Active Idle   0 0
Graph of results
JVM 'linux-node10.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,726
Calibration 2     88,684
Calibration 3     88,418
ssj_ops@calibrated=88,551
100% 100.0% 88,551 88,567
90% 90.1% 79,696 79,784
80% 80.0% 70,841 70,829
70% 70.2% 61,986 62,204
60% 60.2% 53,130 53,326
50% 49.1% 44,275 43,473
40% 40.4% 35,420 35,774
30% 30.7% 26,565 27,208
20% 20.3% 17,710 17,945
10% 9.6% 8,855 8,487
Active Idle   0 0
Graph of results
JVM 'linux-node10.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,905
Calibration 2     87,515
Calibration 3     87,407
ssj_ops@calibrated=87,461
100% 100.0% 87,461 87,437
90% 89.9% 78,715 78,657
80% 79.8% 69,969 69,816
70% 70.0% 61,223 61,192
60% 60.6% 52,477 53,028
50% 49.3% 43,730 43,101
40% 40.3% 34,984 35,287
30% 30.0% 26,238 26,202
20% 19.8% 17,492 17,352
10% 9.9% 8,746 8,675
Active Idle   0 0
Graph of results
JVM 'linux-node10.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,925
Calibration 2     88,423
Calibration 3     88,174
ssj_ops@calibrated=88,299
100% 99.5% 88,299 87,901
90% 90.5% 79,469 79,928
80% 79.2% 70,639 69,954
70% 70.0% 61,809 61,767
60% 60.1% 52,979 53,067
50% 50.3% 44,149 44,443
40% 39.0% 35,320 34,450
30% 30.1% 26,490 26,619
20% 20.2% 17,660 17,797
10% 10.7% 8,830 9,412
Active Idle   0 0
Graph of results
JVM 'linux-node10.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,981
Calibration 2     81,145
Calibration 3     81,166
ssj_ops@calibrated=81,156
100% 99.9% 81,156 81,044
90% 89.1% 73,040 72,332
80% 80.0% 64,924 64,918
70% 71.2% 56,809 57,751
60% 60.8% 48,693 49,329
50% 50.1% 40,578 40,648
40% 40.3% 32,462 32,732
30% 29.7% 24,347 24,082
20% 20.7% 16,231 16,812
10% 10.1% 8,116 8,225
Active Idle   0 0
Graph of results
JVM 'linux-node10.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,339
Calibration 2     87,994
Calibration 3     87,850
ssj_ops@calibrated=87,922
100% 99.3% 87,922 87,271
90% 90.4% 79,130 79,465
80% 79.4% 70,337 69,769
70% 69.5% 61,545 61,081
60% 60.2% 52,753 52,899
50% 49.6% 43,961 43,628
40% 40.4% 35,169 35,493
30% 30.0% 26,377 26,367
20% 20.2% 17,584 17,792
10% 9.7% 8,792 8,525
Active Idle   0 0
Graph of results
JVM 'linux-node10.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,629
Calibration 2     87,915
Calibration 3     87,800
ssj_ops@calibrated=87,857
100% 99.7% 87,857 87,574
90% 90.2% 79,072 79,283
80% 80.4% 70,286 70,604
70% 70.4% 61,500 61,880
60% 59.3% 52,714 52,064
50% 49.6% 43,929 43,553
40% 39.8% 35,143 34,942
30% 29.6% 26,357 25,979
20% 20.0% 17,571 17,577
10% 10.1% 8,786 8,843
Active Idle   0 0
Graph of results
JVM 'linux-node10.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,672
Calibration 2     88,874
Calibration 3     88,461
ssj_ops@calibrated=88,667
100% 99.7% 88,667 88,422
90% 90.0% 79,800 79,797
80% 80.2% 70,934 71,136
70% 69.4% 62,067 61,570
60% 60.8% 53,200 53,875
50% 50.4% 44,334 44,671
40% 40.0% 35,467 35,477
30% 30.2% 26,600 26,775
20% 20.0% 17,733 17,711
10% 9.7% 8,867 8,617
Active Idle   0 0
Graph of results
JVM 'linux-node10.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,578
Calibration 2     89,743
Calibration 3     89,365
ssj_ops@calibrated=89,554
100% 99.9% 89,554 89,440
90% 89.2% 80,599 79,882
80% 79.4% 71,643 71,117
70% 69.4% 62,688 62,116
60% 60.0% 53,732 53,757
50% 50.0% 44,777 44,737
40% 40.2% 35,822 35,982
30% 30.4% 26,866 27,256
20% 19.4% 17,911 17,378
10% 10.1% 8,955 9,007
Active Idle   0 0
Graph of results
JVM 'linux-node10.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,343
Calibration 2     89,267
Calibration 3     89,097
ssj_ops@calibrated=89,182
100% 99.6% 89,182 88,835
90% 89.5% 80,264 79,840
80% 79.3% 71,346 70,739
70% 69.4% 62,427 61,878
60% 59.8% 53,509 53,324
50% 50.1% 44,591 44,681
40% 39.5% 35,673 35,187
30% 30.0% 26,755 26,715
20% 19.9% 17,836 17,761
10% 10.2% 8,918 9,054
Active Idle   0 0
Graph of results
JVM 'linux-node10.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,133
Calibration 2     89,170
Calibration 3     88,910
ssj_ops@calibrated=89,040
100% 100.0% 89,040 89,042
90% 90.0% 80,136 80,174
80% 80.5% 71,232 71,682
70% 69.8% 62,328 62,153
60% 60.6% 53,424 53,934
50% 50.7% 44,520 45,146
40% 39.7% 35,616 35,309
30% 29.6% 26,712 26,389
20% 20.2% 17,808 17,946
10% 9.9% 8,904 8,858
Active Idle   0 0
Graph of results
JVM 'linux-node10.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,943
Calibration 2     79,049
Calibration 3     79,045
ssj_ops@calibrated=79,047
100% 99.2% 79,047 78,400
90% 89.0% 71,143 70,340
80% 80.4% 63,238 63,516
70% 70.6% 55,333 55,820
60% 60.9% 47,428 48,121
50% 49.6% 39,524 39,193
40% 39.5% 31,619 31,208
30% 29.9% 23,714 23,607
20% 20.5% 15,809 16,192
10% 9.6% 7,905 7,612
Active Idle   0 0
Graph of results
JVM 'linux-node10.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,361
Calibration 2     84,228
Calibration 3     84,153
ssj_ops@calibrated=84,190
100% 100.1% 84,190 84,236
90% 90.7% 75,771 76,328
80% 78.9% 67,352 66,468
70% 70.3% 58,933 59,185
60% 59.5% 50,514 50,070
50% 50.2% 42,095 42,237
40% 40.1% 33,676 33,785
30% 30.2% 25,257 25,387
20% 19.7% 16,838 16,596
10% 10.2% 8,419 8,629
Active Idle   0 0
Graph of results
JVM 'linux-node10.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,290
Calibration 2     87,103
Calibration 3     87,290
ssj_ops@calibrated=87,197
100% 100.3% 87,197 87,474
90% 90.8% 78,477 79,157
80% 79.4% 69,757 69,257
70% 70.6% 61,038 61,550
60% 60.0% 52,318 52,355
50% 50.6% 43,598 44,083
40% 39.9% 34,879 34,802
30% 30.1% 26,159 26,256
20% 19.9% 17,439 17,339
10% 9.9% 8,720 8,622
Active Idle   0 0
Graph of results
JVM 'linux-node10.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,471
Calibration 2     88,429
Calibration 3     88,340
ssj_ops@calibrated=88,384
100% 99.2% 88,384 87,705
90% 90.7% 79,546 80,125
80% 80.0% 70,708 70,713
70% 70.5% 61,869 62,336
60% 59.7% 53,031 52,779
50% 49.6% 44,192 43,853
40% 40.0% 35,354 35,395
30% 30.0% 26,515 26,525
20% 19.6% 17,677 17,362
10% 9.6% 8,838 8,500
Active Idle   0 0
Graph of results
JVM 'linux-node10.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,606
Calibration 2     78,186
Calibration 3     78,115
ssj_ops@calibrated=78,151
100% 99.2% 78,151 77,560
90% 90.8% 70,336 70,975
80% 80.0% 62,521 62,540
70% 69.7% 54,706 54,451
60% 60.4% 46,891 47,210
50% 50.4% 39,075 39,368
40% 39.9% 31,260 31,166
30% 30.0% 23,445 23,425
20% 20.5% 15,630 15,999
10% 10.2% 7,815 7,992
Active Idle   0 0
Graph of results
JVM 'linux-node10.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,073
Calibration 2     88,928
Calibration 3     88,353
ssj_ops@calibrated=88,641
100% 99.1% 88,641 87,832
90% 89.0% 79,777 78,886
80% 80.3% 70,913 71,174
70% 69.3% 62,049 61,421
60% 60.1% 53,185 53,298
50% 50.6% 44,320 44,852
40% 40.2% 35,456 35,661
30% 30.1% 26,592 26,637
20% 20.3% 17,728 17,987
10% 10.1% 8,864 8,912
Active Idle   0 0
Graph of results
JVM 'linux-node10.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,051
Calibration 2     87,871
Calibration 3     87,693
ssj_ops@calibrated=87,782
100% 99.2% 87,782 87,120
90% 90.3% 79,004 79,277
80% 80.9% 70,226 71,043
70% 70.5% 61,448 61,901
60% 60.1% 52,669 52,772
50% 50.7% 43,891 44,536
40% 39.7% 35,113 34,892
30% 30.2% 26,335 26,510
20% 20.3% 17,556 17,786
10% 10.2% 8,778 8,929
Active Idle   0 0
Graph of results
JVM 'linux-node10.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     76,872
Calibration 2     77,799
Calibration 3     77,844
ssj_ops@calibrated=77,822
100% 99.7% 77,822 77,577
90% 89.8% 70,039 69,910
80% 79.3% 62,257 61,695
70% 69.5% 54,475 54,105
60% 60.0% 46,693 46,712
50% 50.2% 38,911 39,062
40% 40.2% 31,129 31,274
30% 29.9% 23,346 23,258
20% 20.1% 15,564 15,645
10% 9.8% 7,782 7,662
Active Idle   0 0
Graph of results
