Lenovo Global Technology ThinkSystem SN550 V2 ssj_ops@100% = 5,443,626
ssj_ops@100% per JVM = 85,057
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 20, 2022
Hardware Availability: Jul-2021 Software Availability: Dec-2019 Publication: May 24, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,447,845
Calibration 2     5,466,496
Calibration 3     5,462,707
ssj_ops@calibrated=5,464,601
100% 99.6% 5,464,601 5,443,626
90% 90.0% 4,918,141 4,916,733
80% 79.9% 4,371,681 4,364,626
70% 69.9% 3,825,221 3,819,873
60% 60.1% 3,278,761 3,286,623
50% 49.9% 2,732,301 2,724,482
40% 40.0% 2,185,841 2,185,662
30% 30.0% 1,639,380 1,638,451
20% 20.0% 1,092,920 1,095,215
10% 10.0% 546,460 547,780
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550 V2
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8352M
CPU Characteristics: 32 Core, 2.30GHz, 48MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 48 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16 GB
Memory Details: 16GB 2Rx8 PC4-3200AA-RE2-12-MH1; slots 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Flex System CN4052S 2-port 10Gb Virtual Fabric Adapter P/N:00AG540
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.5+10-LTS, mixed mode)
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 1, physicalCoreId + 64, physicalCoreId + 65 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U8E115M
Management Firmware Version: TGBT29S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-node1.001 87,616
linux-node1.002 87,564
linux-node1.003 78,531
linux-node1.004 88,798
linux-node1.005 87,696
linux-node1.006 78,437
linux-node1.007 83,663
linux-node1.008 88,287
linux-node1.009 88,317
linux-node1.010 88,057
linux-node1.011 89,956
linux-node1.012 89,057
linux-node1.013 88,651
linux-node1.014 78,505
linux-node1.015 78,016
linux-node1.016 82,616
linux-node1.017 87,349
linux-node1.018 87,859
linux-node1.019 82,930
linux-node1.020 80,247

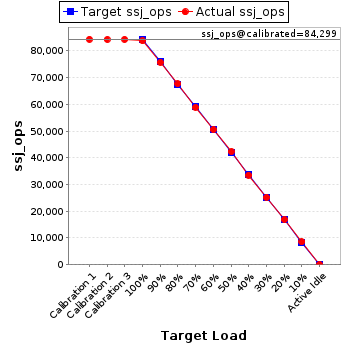

linux-node1.021 83,749
linux-node1.022 89,352
linux-node1.023 89,760
linux-node1.024 89,075
linux-node1.025 82,880
linux-node1.026 88,549
linux-node1.027 87,169
linux-node1.028 87,001
linux-node1.029 87,243
linux-node1.030 86,278
linux-node1.031 85,614
linux-node1.032 85,235
linux-node1.033 80,512
linux-node1.034 87,067
linux-node1.035 78,035
linux-node1.036 86,534
linux-node1.037 86,504
linux-node1.038 88,781
linux-node1.039 83,376
linux-node1.040 88,774
linux-node1.041 80,349
linux-node1.042 89,040
linux-node1.043 87,650
linux-node1.044 84,810
linux-node1.045 87,867
linux-node1.046 86,734
linux-node1.047 80,415
linux-node1.048 86,135
linux-node1.049 88,290
linux-node1.050 85,580
linux-node1.051 85,571
linux-node1.052 77,796
linux-node1.053 89,124
linux-node1.054 81,350

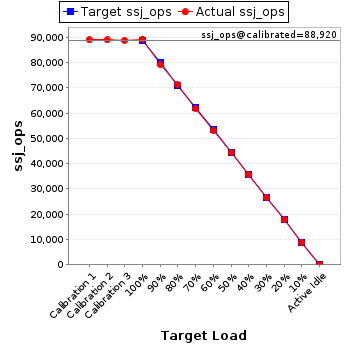

linux-node1.055 89,281

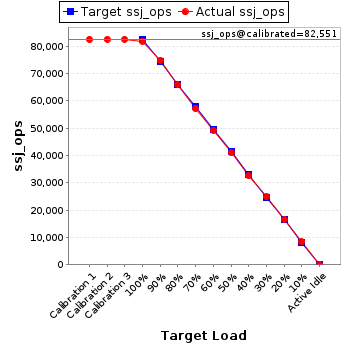

linux-node1.056 81,899
linux-node1.057 83,779
linux-node1.058 88,421
linux-node1.059 79,410
linux-node1.060 85,179
linux-node1.061 80,489

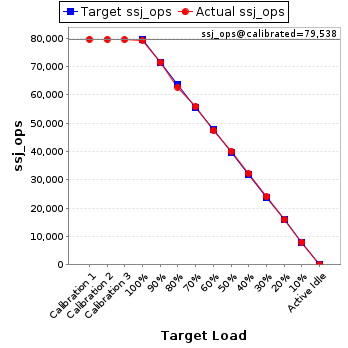

linux-node1.062 79,344
linux-node1.063 80,346
linux-node1.064 81,127
ssj_ops@100% 5,443,626
ssj_ops@100% per JVM 85,057
Graph of per-instance results
JVM 'linux-node1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,990
Calibration 2     88,172
Calibration 3     87,905
ssj_ops@calibrated=88,039
100% 99.5% 88,039 87,616
90% 90.6% 79,235 79,760
80% 80.9% 70,431 71,180
70% 70.1% 61,627 61,696
60% 60.0% 52,823 52,804
50% 49.5% 44,019 43,560
40% 40.0% 35,215 35,228
30% 29.9% 26,412 26,367
20% 20.3% 17,608 17,851
10% 10.0% 8,804 8,819
Active Idle   0 0
Graph of results
JVM 'linux-node1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,964
Calibration 2     88,189
Calibration 3     87,796
ssj_ops@calibrated=87,993
100% 99.5% 87,993 87,564
90% 90.1% 79,194 79,269
80% 80.1% 70,394 70,481
70% 70.4% 61,595 61,969
60% 60.1% 52,796 52,923
50% 50.4% 43,996 44,388
40% 39.7% 35,197 34,913
30% 30.0% 26,398 26,401
20% 20.0% 17,599 17,579
10% 10.3% 8,799 9,029
Active Idle   0 0
Graph of results
JVM 'linux-node1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,768
Calibration 2     78,603
Calibration 3     78,567
ssj_ops@calibrated=78,585
100% 99.9% 78,585 78,531
90% 90.4% 70,726 71,014
80% 80.1% 62,868 62,952
70% 70.9% 55,009 55,717
60% 60.1% 47,151 47,242
50% 49.7% 39,292 39,022
40% 40.2% 31,434 31,560
30% 30.1% 23,575 23,651
20% 19.9% 15,717 15,631
10% 9.6% 7,858 7,542
Active Idle   0 0
Graph of results
JVM 'linux-node1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,208
Calibration 2     88,955
Calibration 3     88,648
ssj_ops@calibrated=88,801
100% 100.0% 88,801 88,798
90% 90.3% 79,921 80,186
80% 79.9% 71,041 70,974
70% 70.3% 62,161 62,418
60% 60.4% 53,281 53,614
50% 49.3% 44,401 43,773
40% 40.0% 35,520 35,520
30% 30.3% 26,640 26,941
20% 19.7% 17,760 17,537
10% 9.9% 8,880 8,817
Active Idle   0 0
Graph of results
JVM 'linux-node1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,248
Calibration 2     87,760
Calibration 3     87,679
ssj_ops@calibrated=87,719
100% 100.0% 87,719 87,696
90% 90.5% 78,947 79,394
80% 79.9% 70,175 70,047
70% 69.9% 61,404 61,329
60% 60.7% 52,632 53,253
50% 49.5% 43,860 43,409
40% 38.8% 35,088 34,017
30% 29.9% 26,316 26,256
20% 20.1% 17,544 17,641
10% 10.1% 8,772 8,823
Active Idle   0 0
Graph of results
JVM 'linux-node1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,772
Calibration 2     78,539
Calibration 3     78,580
ssj_ops@calibrated=78,559
100% 99.8% 78,559 78,437
90% 89.7% 70,703 70,454
80% 79.6% 62,847 62,545
70% 69.3% 54,992 54,460
60% 60.4% 47,136 47,480
50% 49.3% 39,280 38,745
40% 40.8% 31,424 32,058
30% 30.2% 23,568 23,733
20% 19.8% 15,712 15,566
10% 10.1% 7,856 7,927
Active Idle   0 0
Graph of results
JVM 'linux-node1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,026
Calibration 2     83,888
Calibration 3     84,072
ssj_ops@calibrated=83,980
100% 99.6% 83,980 83,663
90% 89.4% 75,582 75,074
80% 80.1% 67,184 67,305
70% 69.8% 58,786 58,605
60% 59.4% 50,388 49,907
50% 49.6% 41,990 41,671
40% 40.4% 33,592 33,902
30% 30.1% 25,194 25,286
20% 20.0% 16,796 16,773
10% 10.0% 8,398 8,385
Active Idle   0 0
Graph of results
JVM 'linux-node1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,508
Calibration 2     89,660
Calibration 3     89,124
ssj_ops@calibrated=89,392
100% 98.8% 89,392 88,287
90% 89.4% 80,453 79,883
80% 79.9% 71,514 71,392
70% 69.9% 62,574 62,514
60% 60.5% 53,635 54,059
50% 50.1% 44,696 44,755
40% 40.2% 35,757 35,895
30% 29.7% 26,818 26,518
20% 19.9% 17,878 17,803
10% 9.6% 8,939 8,546
Active Idle   0 0
Graph of results
JVM 'linux-node1.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,941
Calibration 2     89,006
Calibration 3     88,793
ssj_ops@calibrated=88,900
100% 99.3% 88,900 88,317
90% 91.0% 80,010 80,888
80% 80.0% 71,120 71,150
70% 71.6% 62,230 63,613
60% 59.8% 53,340 53,141
50% 50.4% 44,450 44,796
40% 40.6% 35,560 36,120
30% 30.1% 26,670 26,767
20% 19.9% 17,780 17,694
10% 9.4% 8,890 8,344
Active Idle   0 0
Graph of results
JVM 'linux-node1.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,990
Calibration 2     88,633
Calibration 3     88,723
ssj_ops@calibrated=88,678
100% 99.3% 88,678 88,057
90% 89.5% 79,810 79,400
80% 79.4% 70,942 70,436
70% 70.1% 62,074 62,165
60% 60.2% 53,207 53,386
50% 49.2% 44,339 43,592
40% 41.2% 35,471 36,537
30% 29.9% 26,603 26,529
20% 20.0% 17,736 17,754
10% 9.7% 8,868 8,629
Active Idle   0 0
Graph of results
JVM 'linux-node1.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,637
Calibration 2     90,182
Calibration 3     90,139
ssj_ops@calibrated=90,161
100% 99.8% 90,161 89,956
90% 89.9% 81,145 81,055
80% 80.7% 72,129 72,776
70% 70.4% 63,112 63,478
60% 60.1% 54,096 54,222
50% 49.5% 45,080 44,640
40% 39.5% 36,064 35,592
30% 30.4% 27,048 27,395
20% 20.3% 18,032 18,281
10% 10.1% 9,016 9,142
Active Idle   0 0
Graph of results
JVM 'linux-node1.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,409
Calibration 2     89,336
Calibration 3     89,100
ssj_ops@calibrated=89,218
100% 99.8% 89,218 89,057
90% 89.6% 80,296 79,907
80% 78.9% 71,374 70,392
70% 70.4% 62,453 62,798
60% 59.7% 53,531 53,238
50% 49.4% 44,609 44,033
40% 40.2% 35,687 35,865
30% 29.3% 26,765 26,182
20% 20.0% 17,844 17,837
10% 9.8% 8,922 8,753
Active Idle   0 0
Graph of results
JVM 'linux-node1.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,658
Calibration 2     88,495
Calibration 3     88,535
ssj_ops@calibrated=88,515
100% 100.2% 88,515 88,651
90% 90.0% 79,663 79,640
80% 79.5% 70,812 70,376
70% 69.4% 61,960 61,453
60% 59.9% 53,109 53,022
50% 49.4% 44,257 43,735
40% 40.4% 35,406 35,724
30% 30.2% 26,554 26,721
20% 20.2% 17,703 17,846
10% 10.1% 8,851 8,910
Active Idle   0 0
Graph of results
JVM 'linux-node1.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,903
Calibration 2     78,682
Calibration 3     78,664
ssj_ops@calibrated=78,673
100% 99.8% 78,673 78,505
90% 89.3% 70,806 70,278
80% 78.9% 62,938 62,086
70% 69.4% 55,071 54,624
60% 60.8% 47,204 47,866
50% 48.9% 39,337 38,502
40% 39.6% 31,469 31,178
30% 30.6% 23,602 24,113
20% 19.7% 15,735 15,531
10% 10.1% 7,867 7,920
Active Idle   0 0
Graph of results
JVM 'linux-node1.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,362
Calibration 2     78,394
Calibration 3     78,237
ssj_ops@calibrated=78,316
100% 99.6% 78,316 78,016
90% 89.6% 70,484 70,204
80% 79.9% 62,653 62,553
70% 69.6% 54,821 54,525
60% 59.5% 46,990 46,595
50% 49.5% 39,158 38,788
40% 40.5% 31,326 31,753
30% 29.6% 23,495 23,193
20% 19.8% 15,663 15,526
10% 10.0% 7,832 7,854
Active Idle   0 0
Graph of results
JVM 'linux-node1.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,890
Calibration 2     83,004
Calibration 3     82,965
ssj_ops@calibrated=82,984
100% 99.6% 82,984 82,616
90% 90.6% 74,686 75,145
80% 79.8% 66,388 66,246
70% 69.7% 58,089 57,860
60% 60.1% 49,791 49,896
50% 50.4% 41,492 41,785
40% 39.6% 33,194 32,902
30% 30.1% 24,895 24,992
20% 19.6% 16,597 16,275
10% 10.4% 8,298 8,612
Active Idle   0 0
Graph of results
JVM 'linux-node1.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,080
Calibration 2     88,215
Calibration 3     87,871
ssj_ops@calibrated=88,043
100% 99.2% 88,043 87,349
90% 90.7% 79,239 79,858
80% 80.6% 70,435 70,947
70% 69.3% 61,630 60,985
60% 60.0% 52,826 52,855
50% 49.7% 44,022 43,724
40% 40.3% 35,217 35,486
30% 29.4% 26,413 25,904
20% 20.2% 17,609 17,827
10% 10.0% 8,804 8,812
Active Idle   0 0
Graph of results
JVM 'linux-node1.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,305
Calibration 2     89,085
Calibration 3     89,027
ssj_ops@calibrated=89,056
100% 98.7% 89,056 87,859
90% 89.3% 80,151 79,541
80% 80.7% 71,245 71,836
70% 71.0% 62,339 63,201
60% 60.4% 53,434 53,834
50% 50.2% 44,528 44,740
40% 40.0% 35,622 35,610
30% 29.6% 26,717 26,401
20% 20.2% 17,811 18,028
10% 10.0% 8,906 8,896
Active Idle   0 0
Graph of results
JVM 'linux-node1.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,424
Calibration 2     82,754
Calibration 3     82,749
ssj_ops@calibrated=82,752
100% 100.2% 82,752 82,930
90% 90.7% 74,477 75,082
80% 79.1% 66,201 65,468
70% 69.9% 57,926 57,872
60% 60.1% 49,651 49,755
50% 50.7% 41,376 41,916
40% 39.9% 33,101 33,046
30% 30.4% 24,826 25,123
20% 19.9% 16,550 16,462
10% 10.1% 8,275 8,358
Active Idle   0 0
Graph of results
JVM 'linux-node1.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,565
Calibration 2     80,488
Calibration 3     80,591
ssj_ops@calibrated=80,539
100% 99.6% 80,539 80,247
90% 90.0% 72,485 72,504
80% 79.5% 64,431 64,012
70% 69.9% 56,378 56,320
60% 60.5% 48,324 48,727
50% 50.2% 40,270 40,447
40% 40.1% 32,216 32,315
30% 30.3% 24,162 24,379
20% 19.9% 16,108 16,048
10% 9.8% 8,054 7,916
Active Idle   0 0
Graph of results
JVM 'linux-node1.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,365
Calibration 2     84,285
Calibration 3     84,313
ssj_ops@calibrated=84,299
100% 99.3% 84,299 83,749
90% 89.8% 75,869 75,703
80% 80.3% 67,439 67,687
70% 69.9% 59,009 58,896
60% 60.0% 50,579 50,566
50% 50.2% 42,149 42,306
40% 39.8% 33,720 33,528
30% 29.9% 25,290 25,184
20% 20.0% 16,860 16,870
10% 10.1% 8,430 8,521
Active Idle   0 0
Graph of results
JVM 'linux-node1.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,265
Calibration 2     89,444
Calibration 3     89,388
ssj_ops@calibrated=89,416
100% 99.9% 89,416 89,352
90% 89.8% 80,474 80,272
80% 80.7% 71,533 72,200
70% 70.9% 62,591 63,430
60% 60.8% 53,649 54,381
50% 50.3% 44,708 45,013
40% 40.7% 35,766 36,376
30% 29.9% 26,825 26,699
20% 20.1% 17,883 18,015
10% 10.3% 8,942 9,208
Active Idle   0 0
Graph of results
JVM 'linux-node1.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,330
Calibration 2     89,632
Calibration 3     89,904
ssj_ops@calibrated=89,768
100% 100.0% 89,768 89,760
90% 89.4% 80,791 80,278
80% 80.1% 71,815 71,886
70% 70.5% 62,838 63,305
60% 60.2% 53,861 54,079
50% 48.7% 44,884 43,741
40% 40.1% 35,907 36,006
30% 30.0% 26,930 26,974
20% 20.1% 17,954 18,075
10% 9.9% 8,977 8,925
Active Idle   0 0
Graph of results
JVM 'linux-node1.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,007
Calibration 2     89,665
Calibration 3     89,344
ssj_ops@calibrated=89,505
100% 99.5% 89,505 89,075
90% 89.7% 80,554 80,288
80% 79.3% 71,604 70,967
70% 69.3% 62,653 62,019
60% 60.1% 53,703 53,836
50% 49.8% 44,752 44,612
40% 39.2% 35,802 35,084
30% 29.6% 26,851 26,514
20% 19.5% 17,901 17,474
10% 9.7% 8,950 8,705
Active Idle   0 0
Graph of results
JVM 'linux-node1.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,996
Calibration 2     83,536
Calibration 3     83,487
ssj_ops@calibrated=83,511
100% 99.2% 83,511 82,880
90% 90.1% 75,160 75,216
80% 79.4% 66,809 66,320
70% 70.4% 58,458 58,830
60% 60.7% 50,107 50,729
50% 50.8% 41,756 42,448
40% 39.5% 33,404 33,001
30% 30.2% 25,053 25,205
20% 20.4% 16,702 17,041
10% 10.1% 8,351 8,429
Active Idle   0 0
Graph of results
JVM 'linux-node1.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,638
Calibration 2     89,145
Calibration 3     89,485
ssj_ops@calibrated=89,315
100% 99.1% 89,315 88,549
90% 90.2% 80,384 80,534
80% 79.8% 71,452 71,234
70% 70.0% 62,521 62,494
60% 59.4% 53,589 53,093
50% 49.2% 44,658 43,961
40% 40.2% 35,726 35,862
30% 30.0% 26,795 26,821
20% 19.6% 17,863 17,483
10% 9.9% 8,932 8,800
Active Idle   0 0
Graph of results
JVM 'linux-node1.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,832
Calibration 2     87,988
Calibration 3     88,005
ssj_ops@calibrated=87,996
100% 99.1% 87,996 87,169
90% 88.8% 79,196 78,125
80% 79.0% 70,397 69,479
70% 70.0% 61,597 61,566
60% 60.1% 52,798 52,909
50% 50.5% 43,998 44,441
40% 39.8% 35,198 35,011
30% 30.3% 26,399 26,652
20% 20.0% 17,599 17,632
10% 10.2% 8,800 8,983
Active Idle   0 0
Graph of results
JVM 'linux-node1.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,763
Calibration 2     86,785
Calibration 3     87,125
ssj_ops@calibrated=86,955
100% 100.1% 86,955 87,001
90% 90.2% 78,260 78,406
80% 80.6% 69,564 70,100
70% 70.1% 60,869 60,933
60% 59.5% 52,173 51,757
50% 49.9% 43,478 43,389
40% 40.7% 34,782 35,434
30% 30.0% 26,087 26,074
20% 20.0% 17,391 17,383
10% 10.4% 8,696 9,049
Active Idle   0 0
Graph of results
JVM 'linux-node1.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,904
Calibration 2     88,046
Calibration 3     87,803
ssj_ops@calibrated=87,925
100% 99.2% 87,925 87,243
90% 89.4% 79,132 78,563
80% 80.3% 70,340 70,641
70% 67.9% 61,547 59,718
60% 59.9% 52,755 52,667
50% 50.6% 43,962 44,468
40% 40.1% 35,170 35,275
30% 29.8% 26,377 26,233
20% 20.5% 17,585 17,982
10% 10.1% 8,792 8,900
Active Idle   0 0
Graph of results
JVM 'linux-node1.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,517
Calibration 2     86,741
Calibration 3     86,635
ssj_ops@calibrated=86,688
100% 99.5% 86,688 86,278
90% 91.2% 78,019 79,049
80% 80.3% 69,350 69,645
70% 70.0% 60,681 60,682
60% 60.4% 52,013 52,365
50% 50.1% 43,344 43,456
40% 40.1% 34,675 34,768
30% 29.1% 26,006 25,217
20% 19.7% 17,338 17,037
10% 9.3% 8,669 8,104
Active Idle   0 0
Graph of results
JVM 'linux-node1.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,138
Calibration 2     85,440
Calibration 3     85,783
ssj_ops@calibrated=85,612
100% 100.0% 85,612 85,614
90% 91.0% 77,051 77,875
80% 79.6% 68,489 68,174
70% 69.6% 59,928 59,621
60% 60.4% 51,367 51,669
50% 49.7% 42,806 42,549
40% 40.4% 34,245 34,584
30% 29.3% 25,684 25,064
20% 20.3% 17,122 17,348
10% 10.0% 8,561 8,546
Active Idle   0 0
Graph of results
JVM 'linux-node1.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,786
Calibration 2     85,453
Calibration 3     85,659
ssj_ops@calibrated=85,556
100% 99.6% 85,556 85,235
90% 90.7% 77,000 77,578
80% 80.5% 68,445 68,906
70% 69.1% 59,889 59,091
60% 59.7% 51,334 51,082
50% 49.2% 42,778 42,054
40% 40.6% 34,222 34,739
30% 30.7% 25,667 26,262
20% 20.0% 17,111 17,111
10% 10.0% 8,556 8,536
Active Idle   0 0
Graph of results
JVM 'linux-node1.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,734
Calibration 2     80,742
Calibration 3     80,519
ssj_ops@calibrated=80,631
100% 99.9% 80,631 80,512
90% 89.1% 72,567 71,827
80% 80.2% 64,504 64,696
70% 69.3% 56,441 55,839
60% 59.8% 48,378 48,208
50% 50.6% 40,315 40,781
40% 40.0% 32,252 32,224
30% 29.7% 24,189 23,921
20% 20.1% 16,126 16,198
10% 10.3% 8,063 8,279
Active Idle   0 0
Graph of results
JVM 'linux-node1.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,162
Calibration 2     87,696
Calibration 3     87,704
ssj_ops@calibrated=87,700
100% 99.3% 87,700 87,067
90% 88.7% 78,930 77,771
80% 79.1% 70,160 69,406
70% 69.4% 61,390 60,834
60% 59.9% 52,620 52,538
50% 49.8% 43,850 43,659
40% 39.5% 35,080 34,634
30% 29.5% 26,310 25,900
20% 20.4% 17,540 17,893
10% 10.3% 8,770 9,012
Active Idle   0 0
Graph of results
JVM 'linux-node1.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     77,952
Calibration 2     78,207
Calibration 3     78,455
ssj_ops@calibrated=78,331
100% 99.6% 78,331 78,035
90% 90.6% 70,498 70,958
80% 79.4% 62,665 62,204
70% 69.9% 54,832 54,754
60% 59.4% 46,999 46,567
50% 49.7% 39,166 38,919
40% 40.6% 31,332 31,816
30% 30.2% 23,499 23,671
20% 20.6% 15,666 16,107
10% 10.0% 7,833 7,871
Active Idle   0 0
Graph of results
JVM 'linux-node1.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,753
Calibration 2     87,100
Calibration 3     86,899
ssj_ops@calibrated=87,000
100% 99.5% 87,000 86,534
90% 90.2% 78,300 78,475
80% 80.9% 69,600 70,390
70% 70.9% 60,900 61,707
60% 60.5% 52,200 52,601
50% 50.0% 43,500 43,517
40% 40.8% 34,800 35,497
30% 29.5% 26,100 25,650
20% 19.8% 17,400 17,186
10% 10.5% 8,700 9,130
Active Idle   0 0
Graph of results
JVM 'linux-node1.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,109
Calibration 2     86,921
Calibration 3     86,804
ssj_ops@calibrated=86,863
100% 99.6% 86,863 86,504
90% 89.8% 78,177 78,036
80% 80.0% 69,490 69,527
70% 70.1% 60,804 60,925
60% 60.9% 52,118 52,921
50% 50.9% 43,431 44,248
40% 39.0% 34,745 33,878
30% 29.8% 26,059 25,915
20% 19.6% 17,373 17,055
10% 9.9% 8,686 8,641
Active Idle   0 0
Graph of results
JVM 'linux-node1.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,831
Calibration 2     88,625
Calibration 3     88,260
ssj_ops@calibrated=88,443
100% 100.4% 88,443 88,781
90% 89.6% 79,598 79,259
80% 79.3% 70,754 70,146
70% 69.4% 61,910 61,391
60% 60.0% 53,066 53,029
50% 50.0% 44,221 44,188
40% 39.7% 35,377 35,099
30% 30.6% 26,533 27,038
20% 20.0% 17,689 17,686
10% 10.3% 8,844 9,101
Active Idle   0 0
Graph of results
JVM 'linux-node1.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,459
Calibration 2     84,051
Calibration 3     84,310
ssj_ops@calibrated=84,180
100% 99.0% 84,180 83,376
90% 89.9% 75,762 75,669
80% 80.2% 67,344 67,534
70% 69.5% 58,926 58,503
60% 60.5% 50,508 50,954
50% 49.7% 42,090 41,813
40% 39.6% 33,672 33,356
30% 29.7% 25,254 25,010
20% 20.2% 16,836 17,020
10% 10.2% 8,418 8,575
Active Idle   0 0
Graph of results
JVM 'linux-node1.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,640
Calibration 2     88,730
Calibration 3     88,548
ssj_ops@calibrated=88,639
100% 100.2% 88,639 88,774
90% 90.6% 79,775 80,273
80% 79.9% 70,911 70,780
70% 69.5% 62,047 61,608
60% 59.8% 53,183 53,038
50% 49.5% 44,319 43,856
40% 39.4% 35,455 34,937
30% 29.9% 26,592 26,527
20% 20.2% 17,728 17,924
10% 10.2% 8,864 9,067
Active Idle   0 0
Graph of results
JVM 'linux-node1.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,794
Calibration 2     81,911
Calibration 3     81,608
ssj_ops@calibrated=81,760
100% 98.3% 81,760 80,349
90% 90.3% 73,584 73,798
80% 79.2% 65,408 64,774
70% 69.6% 57,232 56,866
60% 59.9% 49,056 48,975
50% 49.3% 40,880 40,284
40% 40.8% 32,704 33,372
30% 30.2% 24,528 24,672
20% 20.3% 16,352 16,630
10% 10.2% 8,176 8,336
Active Idle   0 0
Graph of results
JVM 'linux-node1.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,784
Calibration 2     89,644
Calibration 3     89,562
ssj_ops@calibrated=89,603
100% 99.4% 89,603 89,040
90% 89.4% 80,643 80,107
80% 79.9% 71,682 71,594
70% 70.5% 62,722 63,155
60% 59.7% 53,762 53,483
50% 50.1% 44,802 44,901
40% 39.4% 35,841 35,287
30% 30.5% 26,881 27,323
20% 20.1% 17,921 18,011
10% 10.2% 8,960 9,117
Active Idle   0 0
Graph of results
JVM 'linux-node1.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,517
Calibration 2     88,327
Calibration 3     88,415
ssj_ops@calibrated=88,371
100% 99.2% 88,371 87,650
90% 89.9% 79,534 79,424
80% 80.0% 70,697 70,679
70% 70.6% 61,860 62,354
60% 60.9% 53,022 53,824
50% 50.6% 44,185 44,717
40% 40.3% 35,348 35,572
30% 29.8% 26,511 26,366
20% 19.9% 17,674 17,595
10% 9.6% 8,837 8,474
Active Idle   0 0
Graph of results
JVM 'linux-node1.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,168
Calibration 2     85,212
Calibration 3     85,176
ssj_ops@calibrated=85,194
100% 99.5% 85,194 84,810
90% 89.4% 76,675 76,166
80% 80.3% 68,155 68,399
70% 70.2% 59,636 59,842
60% 60.8% 51,116 51,805
50% 50.0% 42,597 42,601
40% 39.4% 34,078 33,548
30% 29.9% 25,558 25,498
20% 20.2% 17,039 17,229
10% 10.0% 8,519 8,548
Active Idle   0 0
Graph of results
JVM 'linux-node1.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,272
Calibration 2     88,622
Calibration 3     88,466
ssj_ops@calibrated=88,544
100% 99.2% 88,544 87,867
90% 89.0% 79,690 78,840
80% 80.6% 70,836 71,370
70% 69.5% 61,981 61,562
60% 60.1% 53,127 53,251
50% 49.9% 44,272 44,213
40% 40.3% 35,418 35,695
30% 29.7% 26,563 26,319
20% 20.2% 17,709 17,867
10% 10.1% 8,854 8,971
Active Idle   0 0
Graph of results
JVM 'linux-node1.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,392
Calibration 2     87,108
Calibration 3     86,988
ssj_ops@calibrated=87,048
100% 99.6% 87,048 86,734
90% 90.8% 78,343 79,047
80% 79.3% 69,638 69,065
70% 69.8% 60,934 60,727
60% 60.6% 52,229 52,718
50% 48.6% 43,524 42,345
40% 39.7% 34,819 34,571
30% 29.6% 26,114 25,765
20% 20.2% 17,410 17,541
10% 10.2% 8,705 8,921
Active Idle   0 0
Graph of results
JVM 'linux-node1.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,035
Calibration 2     80,239
Calibration 3     79,890
ssj_ops@calibrated=80,065
100% 100.4% 80,065 80,415
90% 90.8% 72,058 72,674
80% 79.5% 64,052 63,687
70% 70.4% 56,045 56,325
60% 60.0% 48,039 48,026
50% 50.4% 40,032 40,346
40% 40.3% 32,026 32,260
30% 30.1% 24,019 24,136
20% 20.1% 16,013 16,054
10% 10.2% 8,006 8,192
Active Idle   0 0
Graph of results
JVM 'linux-node1.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,696
Calibration 2     86,390
Calibration 3     86,383
ssj_ops@calibrated=86,387
100% 99.7% 86,387 86,135
90% 90.7% 77,748 78,368
80% 78.8% 69,109 68,056
70% 69.7% 60,471 60,205
60% 60.5% 51,832 52,305
50% 49.3% 43,193 42,563
40% 39.1% 34,555 33,808
30% 29.9% 25,916 25,802
20% 19.7% 17,277 17,045
10% 9.6% 8,639 8,287
Active Idle   0 0
Graph of results
JVM 'linux-node1.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,400
Calibration 2     88,699
Calibration 3     88,426
ssj_ops@calibrated=88,562
100% 99.7% 88,562 88,290
90% 90.2% 79,706 79,907
80% 80.9% 70,850 71,632
70% 70.1% 61,994 62,111
60% 60.4% 53,137 53,488
50% 50.0% 44,281 44,249
40% 39.5% 35,425 34,961
30% 29.9% 26,569 26,512
20% 20.6% 17,712 18,261
10% 9.7% 8,856 8,610
Active Idle   0 0
Graph of results
JVM 'linux-node1.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,669
Calibration 2     85,545
Calibration 3     85,481
ssj_ops@calibrated=85,513
100% 100.1% 85,513 85,580
90% 90.0% 76,961 77,000
80% 80.2% 68,410 68,551
70% 69.8% 59,859 59,729
60% 60.3% 51,308 51,585
50% 50.2% 42,756 42,966
40% 40.4% 34,205 34,521
30% 30.0% 25,654 25,662
20% 20.2% 17,103 17,301
10% 10.3% 8,551 8,842
Active Idle   0 0
Graph of results
JVM 'linux-node1.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,333
Calibration 2     85,587
Calibration 3     85,806
ssj_ops@calibrated=85,696
100% 99.9% 85,696 85,571
90% 90.3% 77,127 77,408
80% 78.8% 68,557 67,555
70% 69.2% 59,987 59,264
60% 60.3% 51,418 51,689
50% 49.4% 42,848 42,304
40% 40.0% 34,279 34,269
30% 29.7% 25,709 25,480
20% 20.0% 17,139 17,099
10% 10.0% 8,570 8,571
Active Idle   0 0
Graph of results
JVM 'linux-node1.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,699
Calibration 2     78,514
Calibration 3     78,516
ssj_ops@calibrated=78,515
100% 99.1% 78,515 77,796
90% 89.8% 70,664 70,505
80% 79.9% 62,812 62,724
70% 70.0% 54,961 54,953
60% 60.9% 47,109 47,844
50% 49.9% 39,258 39,202
40% 40.0% 31,406 31,398
30% 30.2% 23,555 23,714
20% 20.0% 15,703 15,683
10% 10.1% 7,852 7,900
Active Idle   0 0
Graph of results
JVM 'linux-node1.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,231
Calibration 2     89,173
Calibration 3     89,002
ssj_ops@calibrated=89,088
100% 100.0% 89,088 89,124
90% 91.3% 80,179 81,305
80% 80.3% 71,270 71,497
70% 70.1% 62,361 62,488
60% 60.1% 53,453 53,523
50% 50.1% 44,544 44,656
40% 39.9% 35,635 35,590
30% 30.4% 26,726 27,074
20% 20.1% 17,818 17,875
10% 10.4% 8,909 9,254
Active Idle   0 0
Graph of results
JVM 'linux-node1.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,314
Calibration 2     81,893
Calibration 3     81,805
ssj_ops@calibrated=81,849
100% 99.4% 81,849 81,350
90% 90.3% 73,664 73,897
80% 79.6% 65,479 65,139
70% 69.2% 57,294 56,629
60% 60.2% 49,109 49,278
50% 50.2% 40,924 41,107
40% 39.9% 32,740 32,687
30% 30.5% 24,555 25,000
20% 20.4% 16,370 16,683
10% 10.4% 8,185 8,491
Active Idle   0 0
Graph of results
JVM 'linux-node1.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,989
Calibration 2     88,994
Calibration 3     88,847
ssj_ops@calibrated=88,920
100% 100.4% 88,920 89,281
90% 89.1% 80,028 79,189
80% 80.0% 71,136 71,166
70% 69.5% 62,244 61,786
60% 59.8% 53,352 53,146
50% 49.8% 44,460 44,292
40% 40.2% 35,568 35,784
30% 30.0% 26,676 26,632
20% 20.0% 17,784 17,746
10% 9.9% 8,892 8,787
Active Idle   0 0
Graph of results
JVM 'linux-node1.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,540
Calibration 2     82,526
Calibration 3     82,576
ssj_ops@calibrated=82,551
100% 99.2% 82,551 81,899
90% 90.7% 74,296 74,906
80% 79.9% 66,041 65,919
70% 69.2% 57,786 57,120
60% 59.7% 49,531 49,253
50% 49.6% 41,275 40,978
40% 39.5% 33,020 32,626
30% 30.1% 24,765 24,831
20% 20.0% 16,510 16,529
10% 10.1% 8,255 8,308
Active Idle   0 0
Graph of results
JVM 'linux-node1.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,729
Calibration 2     84,470
Calibration 3     84,338
ssj_ops@calibrated=84,404
100% 99.3% 84,404 83,779
90% 90.0% 75,963 75,974
80% 79.3% 67,523 66,971
70% 70.2% 59,083 59,218
60% 58.8% 50,642 49,664
50% 49.6% 42,202 41,861
40% 40.3% 33,762 34,000
30% 29.7% 25,321 25,036
20% 20.2% 16,881 17,008
10% 9.7% 8,440 8,222
Active Idle   0 0
Graph of results
JVM 'linux-node1.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,056
Calibration 2     88,945
Calibration 3     88,738
ssj_ops@calibrated=88,842
100% 99.5% 88,842 88,421
90% 88.7% 79,958 78,809
80% 80.4% 71,073 71,397
70% 69.9% 62,189 62,118
60% 60.8% 53,305 54,022
50% 50.2% 44,421 44,622
40% 40.2% 35,537 35,710
30% 30.6% 26,653 27,230
20% 19.8% 17,768 17,557
10% 9.9% 8,884 8,762
Active Idle   0 0
Graph of results
JVM 'linux-node1.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,924
Calibration 2     79,205
Calibration 3     79,455
ssj_ops@calibrated=79,330
100% 100.1% 79,330 79,410
90% 89.7% 71,397 71,169
80% 79.7% 63,464 63,194
70% 69.7% 55,531 55,313
60% 59.9% 47,598 47,551
50% 49.8% 39,665 39,540
40% 39.7% 31,732 31,463
30% 30.2% 23,799 23,946
20% 20.5% 15,866 16,253
10% 9.8% 7,933 7,808
Active Idle   0 0
Graph of results
JVM 'linux-node1.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,453
Calibration 2     86,065
Calibration 3     85,955
ssj_ops@calibrated=86,010
100% 99.0% 86,010 85,179
90% 90.1% 77,409 77,481
80% 79.2% 68,808 68,140
70% 69.9% 60,207 60,157
60% 59.3% 51,606 51,045
50% 49.5% 43,005 42,544
40% 40.2% 34,404 34,585
30% 30.2% 25,803 26,012
20% 20.2% 17,202 17,342
10% 10.0% 8,601 8,610
Active Idle   0 0
Graph of results
JVM 'linux-node1.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,882
Calibration 2     80,373
Calibration 3     80,518
ssj_ops@calibrated=80,445
100% 100.1% 80,445 80,489
90% 89.8% 72,401 72,232
80% 79.8% 64,356 64,197
70% 69.2% 56,312 55,670
60% 60.4% 48,267 48,577
50% 49.3% 40,223 39,659
40% 40.3% 32,178 32,390
30% 30.3% 24,134 24,405
20% 20.1% 16,089 16,139
10% 9.8% 8,045 7,884
Active Idle   0 0
Graph of results
JVM 'linux-node1.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,653
Calibration 2     79,569
Calibration 3     79,508
ssj_ops@calibrated=79,538
100% 99.8% 79,538 79,344
90% 90.0% 71,585 71,558
80% 78.9% 63,631 62,718
70% 70.3% 55,677 55,898
60% 59.6% 47,723 47,422
50% 50.3% 39,769 39,985
40% 40.5% 31,815 32,175
30% 30.1% 23,862 23,968
20% 19.9% 15,908 15,833
10% 10.0% 7,954 7,958
Active Idle   0 0
Graph of results
JVM 'linux-node1.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,252
Calibration 2     80,430
Calibration 3     80,198
ssj_ops@calibrated=80,314
100% 100.0% 80,314 80,346
90% 89.4% 72,282 71,827
80% 80.3% 64,251 64,462
70% 70.3% 56,220 56,457
60% 60.8% 48,188 48,822
50% 50.0% 40,157 40,118
40% 39.2% 32,125 31,518
30% 29.8% 24,094 23,914
20% 20.3% 16,063 16,267
10% 10.2% 8,031 8,173
Active Idle   0 0
Graph of results
JVM 'linux-node1.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,232
Calibration 2     80,786
Calibration 3     80,851
ssj_ops@calibrated=80,818
100% 100.4% 80,818 81,127
90% 89.6% 72,737 72,447
80% 80.0% 64,655 64,662
70% 69.5% 56,573 56,182
60% 60.0% 48,491 48,518
50% 50.7% 40,409 40,991
40% 39.0% 32,327 31,544
30% 29.4% 24,246 23,771
20% 19.4% 16,164 15,653
10% 10.3% 8,082 8,335
Active Idle   0 0
Graph of results
