Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,373,931
ssj_ops@100% per JVM = 104,674
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 20, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,743,903
Calibration 2     8,393,909
Calibration 3     8,399,553
ssj_ops@calibrated=8,396,731
100% 99.7% 8,396,731 8,373,931
90% 89.9% 7,557,058 7,545,178
80% 80.0% 6,717,385 6,714,964
70% 70.0% 5,877,712 5,873,987
60% 60.0% 5,038,039 5,035,100
50% 49.9% 4,198,366 4,192,706
40% 40.0% 3,358,692 3,354,674
30% 30.1% 2,519,019 2,524,070
20% 20.0% 1,679,346 1,682,381
10% 10.0% 839,673 837,719
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-05.001 106,343
sy480-05.002 105,307
sy480-05.003 103,287
sy480-05.004 103,982
sy480-05.005 105,699
sy480-05.006 106,464
sy480-05.007 106,710
sy480-05.008 104,935
sy480-05.009 106,226
sy480-05.010 103,486
sy480-05.011 101,274
sy480-05.012 107,930
sy480-05.013 102,277
sy480-05.014 103,258
sy480-05.015 103,709
sy480-05.016 102,031
sy480-05.017 105,360
sy480-05.018 103,622
sy480-05.019 102,412
sy480-05.020 104,075
sy480-05.021 103,490
sy480-05.022 103,255
sy480-05.023 105,273
sy480-05.024 106,647
sy480-05.025 105,954
sy480-05.026 106,516
sy480-05.027 104,905
sy480-05.028 105,809
sy480-05.029 107,257
sy480-05.030 104,529
sy480-05.031 104,676
sy480-05.032 104,940
sy480-05.033 107,166
sy480-05.034 107,131
sy480-05.035 104,993
sy480-05.036 105,102
sy480-05.037 106,123
sy480-05.038 105,165
sy480-05.039 104,652
sy480-05.040 101,993
sy480-05.041 101,754
sy480-05.042 106,502
sy480-05.043 103,917
sy480-05.044 102,421
sy480-05.045 106,433
sy480-05.046 106,463
sy480-05.047 106,971
sy480-05.048 106,287
sy480-05.049 106,521
sy480-05.050 105,479
sy480-05.051 101,951
sy480-05.052 106,175
sy480-05.053 106,012
sy480-05.054 107,240
sy480-05.055 102,623
sy480-05.056 105,757
sy480-05.057 104,441
sy480-05.058 106,430
sy480-05.059 104,415
sy480-05.060 101,700
sy480-05.061 104,143
sy480-05.062 106,078
sy480-05.063 104,990
sy480-05.064 106,583
sy480-05.065 99,242
sy480-05.066 101,436
sy480-05.067 105,965
sy480-05.068 98,255
sy480-05.069 105,725
sy480-05.070 102,533
sy480-05.071 102,519
sy480-05.072 104,759
sy480-05.073 107,403
sy480-05.074 106,755
sy480-05.075 101,615
sy480-05.076 104,185
sy480-05.077 105,464
sy480-05.078 105,134
sy480-05.079 103,510
sy480-05.080 104,179
ssj_ops@100% 8,373,931
ssj_ops@100% per JVM 104,674

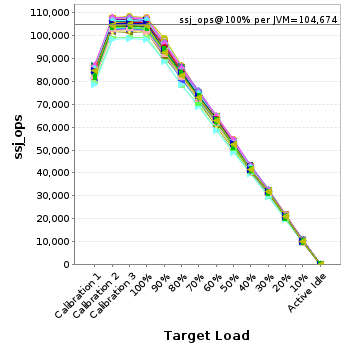

Graph of per-instance results
JVM 'sy480-05.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,366
Calibration 2     106,141
Calibration 3     106,094
ssj_ops@calibrated=106,118
100% 100.2% 106,118 106,343
90% 91.1% 95,506 96,676
80% 80.8% 84,894 85,789
70% 69.9% 74,282 74,138
60% 60.2% 63,671 63,916
50% 49.7% 53,059 52,775
40% 40.4% 42,447 42,852
30% 29.9% 31,835 31,780
20% 19.6% 21,224 20,813
10% 10.1% 10,612 10,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,388
Calibration 2     104,929
Calibration 3     105,041
ssj_ops@calibrated=104,985
100% 100.3% 104,985 105,307
90% 90.1% 94,487 94,574
80% 80.6% 83,988 84,659
70% 69.7% 73,490 73,137
60% 59.8% 62,991 62,745
50% 50.3% 52,493 52,776
40% 39.3% 41,994 41,290
30% 29.8% 31,496 31,265
20% 19.9% 20,997 20,921
10% 10.3% 10,499 10,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,285
Calibration 2     103,701
Calibration 3     103,767
ssj_ops@calibrated=103,734
100% 99.6% 103,734 103,287
90% 90.2% 93,361 93,537
80% 80.4% 82,987 83,449
70% 70.3% 72,614 72,915
60% 59.7% 62,240 61,926
50% 50.1% 51,867 52,020
40% 39.5% 41,494 40,963
30% 30.6% 31,120 31,740
20% 19.8% 20,747 20,550
10% 10.0% 10,373 10,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,324
Calibration 2     104,332
Calibration 3     104,340
ssj_ops@calibrated=104,336
100% 99.7% 104,336 103,982
90% 90.1% 93,902 93,961
80% 80.5% 83,469 84,016
70% 70.0% 73,035 73,036
60% 59.0% 62,601 61,550
50% 49.9% 52,168 52,068
40% 40.1% 41,734 41,838
30% 29.9% 31,301 31,166
20% 19.9% 20,867 20,798
10% 9.9% 10,434 10,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,885
Calibration 2     106,102
Calibration 3     106,349
ssj_ops@calibrated=106,226
100% 99.5% 106,226 105,699
90% 89.6% 95,603 95,184
80% 79.1% 84,981 84,038
70% 70.9% 74,358 75,317
60% 59.8% 63,735 63,478
50% 50.0% 53,113 53,136
40% 39.8% 42,490 42,245
30% 30.1% 31,868 31,933
20% 20.4% 21,245 21,657
10% 10.1% 10,623 10,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,095
Calibration 2     106,270
Calibration 3     106,319
ssj_ops@calibrated=106,294
100% 100.2% 106,294 106,464
90% 90.1% 95,665 95,781
80% 79.7% 85,035 84,748
70% 69.1% 74,406 73,452
60% 60.1% 63,777 63,890
50% 50.3% 53,147 53,499
40% 39.8% 42,518 42,280
30% 30.0% 31,888 31,837
20% 19.8% 21,259 21,052
10% 10.0% 10,629 10,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,510
Calibration 2     106,660
Calibration 3     106,835
ssj_ops@calibrated=106,747
100% 100.0% 106,747 106,710
90% 88.6% 96,073 94,596
80% 80.3% 85,398 85,716
70% 69.9% 74,723 74,573
60% 59.5% 64,048 63,474
50% 49.2% 53,374 52,560
40% 40.2% 42,699 42,866
30% 29.5% 32,024 31,483
20% 20.2% 21,349 21,545
10% 10.0% 10,675 10,700
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,010
Calibration 2     106,315
Calibration 3     106,353
ssj_ops@calibrated=106,334
100% 98.7% 106,334 104,935
90% 90.4% 95,701 96,141
80% 80.0% 85,068 85,105
70% 69.1% 74,434 73,482
60% 60.5% 63,801 64,307
50% 50.2% 53,167 53,422
40% 39.9% 42,534 42,391
30% 29.6% 31,900 31,506
20% 19.8% 21,267 21,050
10% 9.9% 10,633 10,539
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,351
Calibration 2     106,185
Calibration 3     106,156
ssj_ops@calibrated=106,170
100% 100.1% 106,170 106,226
90% 89.6% 95,553 95,126
80% 79.4% 84,936 84,324
70% 69.7% 74,319 74,037
60% 59.9% 63,702 63,543
50% 50.1% 53,085 53,198
40% 40.6% 42,468 43,108
30% 29.9% 31,851 31,740
20% 20.4% 21,234 21,704
10% 10.0% 10,617 10,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,701
Calibration 2     103,480
Calibration 3     103,338
ssj_ops@calibrated=103,409
100% 100.1% 103,409 103,486
90% 90.5% 93,068 93,591
80% 80.2% 82,727 82,894
70% 70.8% 72,386 73,242
60% 60.1% 62,045 62,118
50% 50.6% 51,704 52,362
40% 40.6% 41,363 41,975
30% 30.0% 31,023 30,978
20% 20.0% 20,682 20,669
10% 9.6% 10,341 9,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,539
Calibration 2     102,315
Calibration 3     102,343
ssj_ops@calibrated=102,329
100% 99.0% 102,329 101,274
90% 90.3% 92,096 92,398
80% 80.5% 81,863 82,363
70% 69.6% 71,630 71,174
60% 60.0% 61,397 61,406
50% 49.2% 51,164 50,361
40% 40.0% 40,932 40,912
30% 30.0% 30,699 30,672
20% 20.0% 20,466 20,420
10% 9.9% 10,233 10,151
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,218
Calibration 2     107,685
Calibration 3     108,303
ssj_ops@calibrated=107,994
100% 99.9% 107,994 107,930
90% 91.4% 97,194 98,708
80% 80.3% 86,395 86,719
70% 69.8% 75,596 75,389
60% 59.8% 64,796 64,599
50% 50.7% 53,997 54,760
40% 39.1% 43,198 42,270
30% 30.1% 32,398 32,548
20% 19.8% 21,599 21,416
10% 9.8% 10,799 10,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,561
Calibration 2     102,185
Calibration 3     102,101
ssj_ops@calibrated=102,143
100% 100.1% 102,143 102,277
90% 90.4% 91,929 92,342
80% 79.7% 81,714 81,456
70% 70.6% 71,500 72,076
60% 60.5% 61,286 61,808
50% 49.7% 51,072 50,724
40% 40.0% 40,857 40,881
30% 29.7% 30,643 30,320
20% 20.3% 20,429 20,729
10% 9.9% 10,214 10,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,828
Calibration 2     102,972
Calibration 3     103,061
ssj_ops@calibrated=103,017
100% 100.2% 103,017 103,258
90% 90.1% 92,715 92,855
80% 80.5% 82,413 82,960
70% 69.6% 72,112 71,685
60% 59.8% 61,810 61,652
50% 50.3% 51,508 51,780
40% 39.3% 41,207 40,517
30% 29.9% 30,905 30,809
20% 19.9% 20,603 20,511
10% 10.3% 10,302 10,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,267
Calibration 2     103,547
Calibration 3     103,616
ssj_ops@calibrated=103,581
100% 100.1% 103,581 103,709
90% 89.1% 93,223 92,336
80% 80.8% 82,865 83,741
70% 69.8% 72,507 72,274
60% 59.7% 62,149 61,788
50% 49.9% 51,791 51,731
40% 40.5% 41,433 41,949
30% 30.9% 31,074 31,997
20% 20.0% 20,716 20,692
10% 10.1% 10,358 10,442
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,118
Calibration 2     102,116
Calibration 3     102,070
ssj_ops@calibrated=102,093
100% 99.9% 102,093 102,031
90% 90.1% 91,884 91,945
80% 80.0% 81,675 81,694
70% 69.7% 71,465 71,175
60% 59.4% 61,256 60,643
50% 49.8% 51,047 50,887
40% 39.9% 40,837 40,753
30% 30.6% 30,628 31,262
20% 20.1% 20,419 20,565
10% 9.8% 10,209 10,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,622
Calibration 2     105,431
Calibration 3     105,558
ssj_ops@calibrated=105,494
100% 99.9% 105,494 105,360
90% 90.7% 94,945 95,683
80% 80.3% 84,396 84,703
70% 69.4% 73,846 73,260
60% 59.8% 63,297 63,058
50% 50.3% 52,747 53,069
40% 40.1% 42,198 42,274
30% 29.8% 31,648 31,444
20% 20.4% 21,099 21,510
10% 10.0% 10,549 10,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,972
Calibration 2     103,328
Calibration 3     103,370
ssj_ops@calibrated=103,349
100% 100.3% 103,349 103,622
90% 89.8% 93,014 92,807
80% 79.2% 82,679 81,877
70% 70.9% 72,344 73,292
60% 60.0% 62,009 62,026
50% 50.5% 51,674 52,179
40% 40.0% 41,339 41,341
30% 30.4% 31,005 31,412
20% 19.8% 20,670 20,472
10% 9.9% 10,335 10,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,321
Calibration 2     103,098
Calibration 3     103,356
ssj_ops@calibrated=103,227
100% 99.2% 103,227 102,412
90% 88.5% 92,904 91,382
80% 79.5% 82,582 82,065
70% 68.8% 72,259 70,999
60% 60.0% 61,936 61,931
50% 49.8% 51,614 51,378
40% 39.0% 41,291 40,244
30% 30.0% 30,968 30,946
20% 20.0% 20,645 20,680
10% 10.2% 10,323 10,556
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,871
Calibration 2     104,121
Calibration 3     104,176
ssj_ops@calibrated=104,149
100% 99.9% 104,149 104,075
90% 89.9% 93,734 93,666
80% 80.6% 83,319 83,920
70% 70.7% 72,904 73,663
60% 59.9% 62,489 62,370
50% 49.9% 52,074 51,950
40% 39.5% 41,660 41,143
30% 30.0% 31,245 31,280
20% 20.3% 20,830 21,158
10% 9.7% 10,415 10,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,135
Calibration 2     104,067
Calibration 3     103,977
ssj_ops@calibrated=104,022
100% 99.5% 104,022 103,490
90% 89.6% 93,620 93,234
80% 80.6% 83,218 83,829
70% 70.2% 72,815 73,024
60% 60.6% 62,413 63,050
50% 50.1% 52,011 52,111
40% 39.8% 41,609 41,381
30% 30.2% 31,207 31,365
20% 20.2% 20,804 20,983
10% 10.0% 10,402 10,431
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,861
Calibration 2     103,364
Calibration 3     103,154
ssj_ops@calibrated=103,259
100% 100.0% 103,259 103,255
90% 88.8% 92,933 91,691
80% 79.7% 82,607 82,279
70% 69.7% 72,281 71,958
60% 60.6% 61,955 62,581
50% 50.3% 51,629 51,938
40% 40.4% 41,304 41,676
30% 30.4% 30,978 31,340
20% 19.8% 20,652 20,462
10% 10.0% 10,326 10,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,590
Calibration 2     104,986
Calibration 3     105,102
ssj_ops@calibrated=105,044
100% 100.2% 105,044 105,273
90% 89.8% 94,540 94,362
80% 79.8% 84,035 83,859
70% 70.2% 73,531 73,719
60% 59.1% 63,026 62,036
50% 49.2% 52,522 51,704
40% 39.7% 42,018 41,720
30% 30.1% 31,513 31,610
20% 20.0% 21,009 21,023
10% 10.1% 10,504 10,571
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,298
Calibration 2     106,595
Calibration 3     106,640
ssj_ops@calibrated=106,617
100% 100.0% 106,617 106,647
90% 90.1% 95,956 96,014
80% 79.6% 85,294 84,907
70% 69.9% 74,632 74,486
60% 60.2% 63,970 64,150
50% 50.5% 53,309 53,830
40% 40.8% 42,647 43,461
30% 30.3% 31,985 32,293
20% 20.3% 21,323 21,652
10% 10.1% 10,662 10,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,614
Calibration 2     106,326
Calibration 3     106,558
ssj_ops@calibrated=106,442
100% 99.5% 106,442 105,954
90% 88.8% 95,798 94,493
80% 80.7% 85,153 85,860
70% 70.6% 74,509 75,152
60% 59.2% 63,865 62,975
50% 49.2% 53,221 52,368
40% 40.6% 42,577 43,190
30% 30.7% 31,933 32,679
20% 20.4% 21,288 21,696
10% 10.0% 10,644 10,638
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,242
Calibration 2     106,818
Calibration 3     106,837
ssj_ops@calibrated=106,827
100% 99.7% 106,827 106,516
90% 90.0% 96,145 96,126
80% 80.5% 85,462 86,046
70% 70.0% 74,779 74,729
60% 60.5% 64,096 64,680
50% 50.2% 53,414 53,649
40% 39.6% 42,731 42,319
30% 29.9% 32,048 31,983
20% 20.3% 21,365 21,663
10% 9.9% 10,683 10,592
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,860
Calibration 2     105,071
Calibration 3     105,158
ssj_ops@calibrated=105,114
100% 99.8% 105,114 104,905
90% 90.0% 94,603 94,616
80% 79.4% 84,091 83,462
70% 69.9% 73,580 73,473
60% 60.1% 63,069 63,180
50% 49.8% 52,557 52,383
40% 39.7% 42,046 41,742
30% 30.3% 31,534 31,862
20% 19.5% 21,023 20,525
10% 10.2% 10,511 10,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,749
Calibration 2     106,592
Calibration 3     106,514
ssj_ops@calibrated=106,553
100% 99.3% 106,553 105,809
90% 88.6% 95,898 94,384
80% 81.1% 85,242 86,433
70% 69.7% 74,587 74,219
60% 60.5% 63,932 64,415
50% 50.4% 53,276 53,691
40% 39.7% 42,621 42,278
30% 29.6% 31,966 31,548
20% 20.0% 21,311 21,330
10% 10.0% 10,655 10,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,431
Calibration 2     106,756
Calibration 3     107,130
ssj_ops@calibrated=106,943
100% 100.3% 106,943 107,257
90% 90.9% 96,248 97,242
80% 79.7% 85,554 85,223
70% 69.4% 74,860 74,200
60% 59.0% 64,166 63,121
50% 50.4% 53,471 53,922
40% 39.8% 42,777 42,568
30% 29.7% 32,083 31,798
20% 20.0% 21,389 21,388
10% 10.2% 10,694 10,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,339
Calibration 2     106,105
Calibration 3     106,020
ssj_ops@calibrated=106,063
100% 98.6% 106,063 104,529
90% 89.7% 95,457 95,148
80% 80.4% 84,850 85,265
70% 69.5% 74,244 73,729
60% 59.9% 63,638 63,509
50% 50.3% 53,031 53,372
40% 39.7% 42,425 42,129
30% 30.0% 31,819 31,793
20% 19.9% 21,213 21,134
10% 10.2% 10,606 10,772
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,400
Calibration 2     106,059
Calibration 3     105,928
ssj_ops@calibrated=105,993
100% 98.8% 105,993 104,676
90% 90.0% 95,394 95,383
80% 80.6% 84,795 85,381
70% 69.0% 74,195 73,153
60% 59.8% 63,596 63,420
50% 50.1% 52,997 53,051
40% 40.6% 42,397 43,013
30% 29.4% 31,798 31,133
20% 20.3% 21,199 21,494
10% 10.0% 10,599 10,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,314
Calibration 2     105,259
Calibration 3     105,347
ssj_ops@calibrated=105,303
100% 99.7% 105,303 104,940
90% 90.6% 94,773 95,409
80% 79.7% 84,243 83,952
70% 70.6% 73,712 74,396
60% 60.1% 63,182 63,316
50% 49.9% 52,652 52,515
40% 40.2% 42,121 42,350
30% 30.4% 31,591 31,995
20% 20.0% 21,061 21,112
10% 9.9% 10,530 10,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,235
Calibration 2     107,237
Calibration 3     107,226
ssj_ops@calibrated=107,231
100% 99.9% 107,231 107,166
90% 89.3% 96,508 95,717
80% 80.0% 85,785 85,772
70% 69.4% 75,062 74,457
60% 60.3% 64,339 64,618
50% 50.0% 53,616 53,593
40% 39.8% 42,893 42,666
30% 30.1% 32,169 32,226
20% 20.0% 21,446 21,421
10% 10.0% 10,723 10,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,463
Calibration 2     107,215
Calibration 3     107,564
ssj_ops@calibrated=107,390
100% 99.8% 107,390 107,131
90% 90.8% 96,651 97,465
80% 80.4% 85,912 86,322
70% 69.7% 75,173 74,842
60% 60.8% 64,434 65,266
50% 50.3% 53,695 54,050
40% 40.4% 42,956 43,354
30% 30.0% 32,217 32,244
20% 19.9% 21,478 21,345
10% 9.9% 10,739 10,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,723
Calibration 2     104,641
Calibration 3     104,813
ssj_ops@calibrated=104,727
100% 100.3% 104,727 104,993
90% 90.3% 94,254 94,572
80% 80.3% 83,782 84,084
70% 69.8% 73,309 73,074
60% 59.2% 62,836 62,013
50% 49.7% 52,364 52,048
40% 40.1% 41,891 41,943
30% 30.3% 31,418 31,704
20% 20.4% 20,945 21,313
10% 9.9% 10,473 10,367
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,521
Calibration 2     105,604
Calibration 3     105,672
ssj_ops@calibrated=105,638
100% 99.5% 105,638 105,102
90% 90.3% 95,074 95,405
80% 79.8% 84,510 84,320
70% 70.2% 73,947 74,134
60% 59.9% 63,383 63,285
50% 49.3% 52,819 52,097
40% 40.2% 42,255 42,492
30% 30.4% 31,691 32,067
20% 20.4% 21,128 21,547
10% 10.1% 10,564 10,619
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,145
Calibration 2     106,816
Calibration 3     106,986
ssj_ops@calibrated=106,901
100% 99.3% 106,901 106,123
90% 90.1% 96,211 96,288
80% 79.8% 85,521 85,343
70% 68.8% 74,831 73,554
60% 61.1% 64,141 65,315
50% 49.2% 53,451 52,573
40% 39.8% 42,760 42,496
30% 29.5% 32,070 31,576
20% 19.7% 21,380 21,081
10% 9.8% 10,690 10,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,323
Calibration 2     104,864
Calibration 3     105,262
ssj_ops@calibrated=105,063
100% 100.1% 105,063 105,165
90% 90.5% 94,557 95,041
80% 79.9% 84,050 83,901
70% 69.7% 73,544 73,276
60% 60.5% 63,038 63,546
50% 49.6% 52,531 52,135
40% 40.1% 42,025 42,112
30% 30.3% 31,519 31,790
20% 20.0% 21,013 21,046
10% 10.1% 10,506 10,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,660
Calibration 2     105,858
Calibration 3     105,795
ssj_ops@calibrated=105,827
100% 98.9% 105,827 104,652
90% 90.6% 95,244 95,917
80% 79.4% 84,661 84,055
70% 70.3% 74,079 74,370
60% 59.6% 63,496 63,096
50% 51.2% 52,913 54,204
40% 39.9% 42,331 42,179
30% 30.6% 31,748 32,425
20% 20.3% 21,165 21,475
10% 9.6% 10,583 10,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,602
Calibration 2     102,049
Calibration 3     102,276
ssj_ops@calibrated=102,162
100% 99.8% 102,162 101,993
90% 89.1% 91,946 91,003
80% 79.1% 81,730 80,812
70% 69.8% 71,514 71,301
60% 59.8% 61,297 61,092
50% 49.5% 51,081 50,522
40% 40.0% 40,865 40,832
30% 29.8% 30,649 30,456
20% 20.0% 20,432 20,421
10% 9.9% 10,216 10,064
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,523
Calibration 2     102,449
Calibration 3     102,300
ssj_ops@calibrated=102,375
100% 99.4% 102,375 101,754
90% 89.4% 92,137 91,561
80% 80.5% 81,900 82,425
70% 70.5% 71,662 72,153
60% 59.3% 61,425 60,732
50% 49.7% 51,187 50,895
40% 40.7% 40,950 41,701
30% 29.9% 30,712 30,616
20% 19.9% 20,475 20,373
10% 9.6% 10,237 9,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,311
Calibration 2     106,876
Calibration 3     106,644
ssj_ops@calibrated=106,760
100% 99.8% 106,760 106,502
90% 89.1% 96,084 95,175
80% 79.8% 85,408 85,200
70% 70.3% 74,732 75,021
60% 59.7% 64,056 63,753
50% 49.6% 53,380 52,988
40% 39.7% 42,704 42,401
30% 29.7% 32,028 31,691
20% 20.1% 21,352 21,512
10% 9.9% 10,676 10,522
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,845
Calibration 2     103,912
Calibration 3     103,989
ssj_ops@calibrated=103,951
100% 100.0% 103,951 103,917
90% 89.7% 93,556 93,231
80% 80.1% 83,161 83,241
70% 70.1% 72,765 72,896
60% 60.0% 62,370 62,404
50% 49.4% 51,975 51,367
40% 40.2% 41,580 41,813
30% 30.5% 31,185 31,695
20% 19.9% 20,790 20,735
10% 9.8% 10,395 10,164
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,153
Calibration 2     102,450
Calibration 3     102,579
ssj_ops@calibrated=102,514
100% 99.9% 102,514 102,421
90% 88.8% 92,263 90,982
80% 80.5% 82,011 82,550
70% 69.4% 71,760 71,123
60% 60.9% 61,509 62,426
50% 49.9% 51,257 51,157
40% 39.9% 41,006 40,949
30% 29.7% 30,754 30,421
20% 20.9% 20,503 21,435
10% 10.0% 10,251 10,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,627
Calibration 2     106,405
Calibration 3     106,404
ssj_ops@calibrated=106,405
100% 100.0% 106,405 106,433
90% 89.6% 95,764 95,368
80% 79.6% 85,124 84,718
70% 70.7% 74,483 75,230
60% 59.9% 63,843 63,701
50% 49.9% 53,202 53,112
40% 40.0% 42,562 42,594
30% 29.8% 31,921 31,698
20% 19.7% 21,281 20,911
10% 9.9% 10,640 10,517
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,994
Calibration 2     107,199
Calibration 3     106,966
ssj_ops@calibrated=107,082
100% 99.4% 107,082 106,463
90% 90.6% 96,374 96,991
80% 79.8% 85,666 85,472
70% 70.1% 74,958 75,063
60% 59.5% 64,249 63,698
50% 49.8% 53,541 53,362
40% 40.1% 42,833 42,921
30% 30.4% 32,125 32,547
20% 20.2% 21,416 21,680
10% 10.2% 10,708 10,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,545
Calibration 2     106,931
Calibration 3     107,141
ssj_ops@calibrated=107,036
100% 99.9% 107,036 106,971
90% 90.0% 96,332 96,382
80% 80.0% 85,629 85,583
70% 71.0% 74,925 75,947
60% 60.3% 64,222 64,507
50% 49.9% 53,518 53,406
40% 40.5% 42,814 43,303
30% 30.2% 32,111 32,322
20% 20.1% 21,407 21,474
10% 10.2% 10,704 10,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,182
Calibration 2     105,970
Calibration 3     105,941
ssj_ops@calibrated=105,955
100% 100.3% 105,955 106,287
90% 88.7% 95,360 93,998
80% 80.2% 84,764 84,943
70% 70.2% 74,169 74,413
60% 60.1% 63,573 63,664
50% 50.0% 52,978 53,014
40% 39.6% 42,382 41,990
30% 30.0% 31,787 31,830
20% 19.7% 21,191 20,867
10% 10.1% 10,596 10,739
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,313
Calibration 2     106,699
Calibration 3     106,947
ssj_ops@calibrated=106,823
100% 99.7% 106,823 106,521
90% 88.9% 96,141 94,934
80% 79.6% 85,458 85,073
70% 70.5% 74,776 75,326
60% 58.8% 64,094 62,828
50% 48.9% 53,412 52,212
40% 40.7% 42,729 43,476
30% 29.9% 32,047 31,979
20% 19.8% 21,365 21,152
10% 10.1% 10,682 10,762
Active Idle   0 0

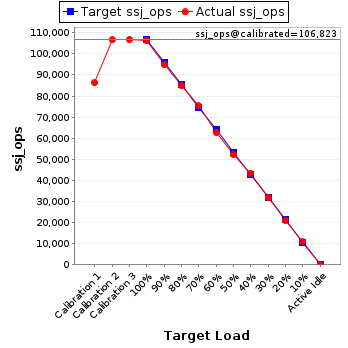

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,687
Calibration 2     106,164
Calibration 3     106,339
ssj_ops@calibrated=106,252
100% 99.3% 106,252 105,479
90% 90.8% 95,627 96,452
80% 80.1% 85,002 85,065
70% 69.9% 74,376 74,293
60% 59.5% 63,751 63,184
50% 50.1% 53,126 53,231
40% 39.4% 42,501 41,823
30% 29.7% 31,876 31,572
20% 20.7% 21,250 21,961
10% 9.6% 10,625 10,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,044
Calibration 2     102,580
Calibration 3     102,647
ssj_ops@calibrated=102,613
100% 99.4% 102,613 101,951
90% 89.7% 92,352 92,094
80% 78.6% 82,091 80,613
70% 70.8% 71,829 72,656
60% 59.7% 61,568 61,225
50% 49.1% 51,307 50,374
40% 40.5% 41,045 41,520
30% 30.5% 30,784 31,252
20% 19.9% 20,523 20,399
10% 10.1% 10,261 10,377
Active Idle   0 0

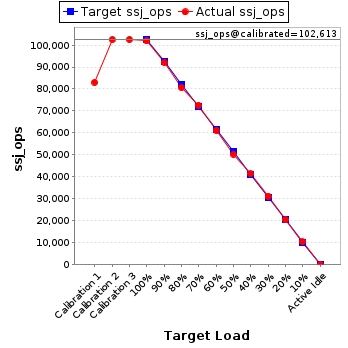

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,032
Calibration 2     106,575
Calibration 3     106,439
ssj_ops@calibrated=106,507
100% 99.7% 106,507 106,175
90% 90.0% 95,856 95,820
80% 80.3% 85,205 85,538
70% 69.9% 74,555 74,490
60% 59.5% 63,904 63,402
50% 50.3% 53,253 53,558
40% 39.7% 42,603 42,298
30% 30.3% 31,952 32,280
20% 19.6% 21,301 20,874
10% 10.4% 10,651 11,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,760
Calibration 2     105,948
Calibration 3     105,896
ssj_ops@calibrated=105,922
100% 100.1% 105,922 106,012
90% 89.9% 95,330 95,232
80% 79.7% 84,737 84,399
70% 70.1% 74,145 74,214
60% 60.7% 63,553 64,336
50% 50.0% 52,961 52,977
40% 40.6% 42,369 43,031
30% 30.2% 31,777 32,038
20% 19.9% 21,184 21,057
10% 10.1% 10,592 10,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,723
Calibration 2     107,953
Calibration 3     107,897
ssj_ops@calibrated=107,925
100% 99.4% 107,925 107,240
90% 89.4% 97,133 96,512
80% 80.3% 86,340 86,645
70% 70.1% 75,548 75,626
60% 59.6% 64,755 64,365
50% 50.5% 53,963 54,456
40% 40.1% 43,170 43,319
30% 29.9% 32,378 32,293
20% 20.1% 21,585 21,692
10% 9.9% 10,793 10,728
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,464
Calibration 2     102,907
Calibration 3     103,118
ssj_ops@calibrated=103,012
100% 99.6% 103,012 102,623
90% 90.7% 92,711 93,392
80% 79.0% 82,410 81,352
70% 69.4% 72,109 71,462
60% 60.8% 61,807 62,679
50% 50.1% 51,506 51,645
40% 39.7% 41,205 40,909
30% 29.6% 30,904 30,490
20% 19.8% 20,602 20,446
10% 10.2% 10,301 10,480
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,495
Calibration 2     105,748
Calibration 3     105,566
ssj_ops@calibrated=105,657
100% 100.1% 105,657 105,757
90% 90.3% 95,091 95,443
80% 80.2% 84,525 84,761
70% 69.2% 73,960 73,078
60% 60.7% 63,394 64,122
50% 50.3% 52,828 53,173
40% 39.6% 42,263 41,850
30% 30.0% 31,697 31,715
20% 20.4% 21,131 21,521
10% 10.2% 10,566 10,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,208
Calibration 2     105,455
Calibration 3     105,653
ssj_ops@calibrated=105,554
100% 98.9% 105,554 104,441
90% 90.1% 94,999 95,098
80% 80.4% 84,443 84,822
70% 69.9% 73,888 73,740
60% 60.3% 63,332 63,644
50% 49.5% 52,777 52,265
40% 39.9% 42,222 42,108
30% 29.7% 31,666 31,397
20% 19.9% 21,111 20,980
10% 10.0% 10,555 10,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,650
Calibration 2     106,262
Calibration 3     106,198
ssj_ops@calibrated=106,230
100% 100.2% 106,230 106,430
90% 90.1% 95,607 95,739
80% 79.5% 84,984 84,500
70% 70.7% 74,361 75,149
60% 60.3% 63,738 64,007
50% 49.4% 53,115 52,480
40% 40.3% 42,492 42,858
30% 29.9% 31,869 31,745
20% 20.0% 21,246 21,273
10% 9.9% 10,623 10,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,449
Calibration 2     104,885
Calibration 3     104,646
ssj_ops@calibrated=104,765
100% 99.7% 104,765 104,415
90% 89.2% 94,289 93,454
80% 79.6% 83,812 83,419
70% 70.1% 73,336 73,488
60% 60.1% 62,859 62,959
50% 49.3% 52,383 51,608
40% 40.0% 41,906 41,917
30% 30.0% 31,430 31,463
20% 20.1% 20,953 21,012
10% 9.7% 10,477 10,161
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,353
Calibration 2     101,611
Calibration 3     101,365
ssj_ops@calibrated=101,488
100% 100.2% 101,488 101,700
90% 89.0% 91,339 90,361
80% 81.1% 81,190 82,285
70% 70.2% 71,041 71,260
60% 59.2% 60,893 60,099
50% 49.7% 50,744 50,393
40% 39.7% 40,595 40,284
30% 30.5% 30,446 30,928
20% 20.4% 20,298 20,662
10% 9.8% 10,149 9,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,495
Calibration 2     104,474
Calibration 3     104,340
ssj_ops@calibrated=104,407
100% 99.7% 104,407 104,143
90% 90.4% 93,966 94,334
80% 79.4% 83,525 82,939
70% 70.1% 73,085 73,229
60% 59.2% 62,644 61,850
50% 49.5% 52,203 51,656
40% 39.6% 41,763 41,341
30% 29.8% 31,322 31,080
20% 20.1% 20,881 20,940
10% 9.7% 10,441 10,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,320
Calibration 2     106,212
Calibration 3     106,163
ssj_ops@calibrated=106,187
100% 99.9% 106,187 106,078
90% 90.1% 95,569 95,642
80% 80.9% 84,950 85,902
70% 70.6% 74,331 74,999
60% 59.9% 63,712 63,589
50% 49.8% 53,094 52,855
40% 39.7% 42,475 42,168
30% 29.3% 31,856 31,065
20% 20.0% 21,237 21,250
10% 10.3% 10,619 10,906
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,181
Calibration 2     105,282
Calibration 3     105,279
ssj_ops@calibrated=105,281
100% 99.7% 105,281 104,990
90% 89.2% 94,753 93,942
80% 80.0% 84,225 84,236
70% 70.0% 73,697 73,720
60% 60.4% 63,168 63,561
50% 49.2% 52,640 51,783
40% 40.0% 42,112 42,077
30% 30.4% 31,584 31,992
20% 20.4% 21,056 21,434
10% 10.1% 10,528 10,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,995
Calibration 2     107,557
Calibration 3     107,805
ssj_ops@calibrated=107,681
100% 99.0% 107,681 106,583
90% 89.8% 96,913 96,727
80% 79.6% 86,145 85,710
70% 70.8% 75,377 76,199
60% 60.2% 64,609 64,792
50% 50.3% 53,840 54,113
40% 40.1% 43,072 43,189
30% 30.5% 32,304 32,827
20% 19.4% 21,536 20,934
10% 9.9% 10,768 10,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,677
Calibration 2     99,035
Calibration 3     99,201
ssj_ops@calibrated=99,118
100% 100.1% 99,118 99,242
90% 89.7% 89,206 88,898
80% 78.8% 79,294 78,111
70% 70.5% 69,382 69,878
60% 59.2% 59,471 58,661
50% 50.1% 49,559 49,699
40% 40.3% 39,647 39,925
30% 29.8% 29,735 29,560
20% 19.8% 19,824 19,586
10% 10.0% 9,912 9,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,754
Calibration 2     101,804
Calibration 3     102,212
ssj_ops@calibrated=102,008
100% 99.4% 102,008 101,436
90% 90.8% 91,807 92,621
80% 80.0% 81,606 81,559
70% 70.6% 71,405 72,049
60% 59.5% 61,205 60,673
50% 49.7% 51,004 50,725
40% 40.0% 40,803 40,813
30% 30.3% 30,602 30,905
20% 19.7% 20,402 20,104
10% 10.0% 10,201 10,180
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,582
Calibration 2     106,474
Calibration 3     106,580
ssj_ops@calibrated=106,527
100% 99.5% 106,527 105,965
90% 90.5% 95,874 96,362
80% 80.5% 85,222 85,790
70% 68.8% 74,569 73,304
60% 59.4% 63,916 63,313
50% 50.2% 53,263 53,515
40% 40.1% 42,611 42,711
30% 29.9% 31,958 31,808
20% 20.3% 21,305 21,633
10% 10.1% 10,653 10,761
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,459
Calibration 2     98,086
Calibration 3     98,475
ssj_ops@calibrated=98,280
100% 100.0% 98,280 98,255
90% 90.2% 88,452 88,697
80% 80.1% 78,624 78,723
70% 70.3% 68,796 69,128
60% 59.7% 58,968 58,677
50% 49.8% 49,140 48,972
40% 40.5% 39,312 39,776
30% 30.2% 29,484 29,642
20% 20.2% 19,656 19,808
10% 9.9% 9,828 9,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,630
Calibration 2     105,853
Calibration 3     105,821
ssj_ops@calibrated=105,837
100% 99.9% 105,837 105,725
90% 89.9% 95,253 95,140
80% 80.3% 84,670 84,981
70% 69.2% 74,086 73,255
60% 60.6% 63,502 64,189
50% 49.4% 52,919 52,231
40% 39.7% 42,335 42,044
30% 29.9% 31,751 31,643
20% 20.2% 21,167 21,338
10% 10.0% 10,584 10,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,517
Calibration 2     102,802
Calibration 3     102,935
ssj_ops@calibrated=102,868
100% 99.7% 102,868 102,533
90% 89.6% 92,582 92,119
80% 79.1% 82,295 81,394
70% 69.5% 72,008 71,514
60% 60.2% 61,721 61,903
50% 50.6% 51,434 52,074
40% 39.9% 41,147 41,058
30% 30.8% 30,861 31,687
20% 20.4% 20,574 20,950
10% 10.0% 10,287 10,239
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,177
Calibration 2     103,384
Calibration 3     103,439
ssj_ops@calibrated=103,412
100% 99.1% 103,412 102,519
90% 90.5% 93,071 93,592
80% 79.8% 82,729 82,568
70% 68.6% 72,388 70,889
60% 59.9% 62,047 61,914
50% 49.4% 51,706 51,060
40% 39.9% 41,365 41,218
30% 30.6% 31,024 31,634
20% 20.1% 20,682 20,754
10% 10.3% 10,341 10,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,123
Calibration 2     105,437
Calibration 3     105,539
ssj_ops@calibrated=105,488
100% 99.3% 105,488 104,759
90% 89.4% 94,939 94,289
80% 79.7% 84,390 84,022
70% 69.9% 73,841 73,742
60% 60.9% 63,293 64,198
50% 50.0% 52,744 52,707
40% 39.6% 42,195 41,776
30% 29.7% 31,646 31,320
20% 19.9% 21,098 20,994
10% 10.1% 10,549 10,704
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,875
Calibration 2     107,643
Calibration 3     107,558
ssj_ops@calibrated=107,601
100% 99.8% 107,601 107,403
90% 89.6% 96,841 96,373
80% 79.8% 86,080 85,909
70% 69.9% 75,320 75,255
60% 60.7% 64,560 65,261
50% 50.3% 53,800 54,152
40% 39.9% 43,040 42,924
30% 29.9% 32,280 32,209
20% 19.4% 21,520 20,866
10% 10.1% 10,760 10,873
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,537
Calibration 2     106,351
Calibration 3     106,428
ssj_ops@calibrated=106,390
100% 100.3% 106,390 106,755
90% 89.2% 95,751 94,891
80% 79.1% 85,112 84,148
70% 70.4% 74,473 74,854
60% 59.5% 63,834 63,346
50% 49.7% 53,195 52,838
40% 40.0% 42,556 42,546
30% 29.5% 31,917 31,418
20% 20.2% 21,278 21,521
10% 9.6% 10,639 10,173
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,762
Calibration 2     102,193
Calibration 3     102,644
ssj_ops@calibrated=102,419
100% 99.2% 102,419 101,615
90% 89.3% 92,177 91,455
80% 79.7% 81,935 81,621
70% 70.3% 71,693 71,967
60% 60.2% 61,451 61,657
50% 50.5% 51,209 51,740
40% 40.2% 40,968 41,153
30% 30.2% 30,726 30,949
20% 20.2% 20,484 20,683
10% 10.0% 10,242 10,218
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,641
Calibration 2     104,082
Calibration 3     104,455
ssj_ops@calibrated=104,268
100% 99.9% 104,268 104,185
90% 90.2% 93,842 94,075
80% 80.3% 83,415 83,718
70% 69.7% 72,988 72,675
60% 59.4% 62,561 61,960
50% 50.4% 52,134 52,549
40% 39.1% 41,707 40,754
30% 30.0% 31,281 31,320
20% 20.2% 20,854 21,051
10% 10.0% 10,427 10,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,746
Calibration 2     105,392
Calibration 3     105,516
ssj_ops@calibrated=105,454
100% 100.0% 105,454 105,464
90% 90.3% 94,909 95,241
80% 79.8% 84,363 84,106
70% 69.5% 73,818 73,301
60% 60.6% 63,272 63,948
50% 50.0% 52,727 52,752
40% 39.4% 42,182 41,541
30% 30.0% 31,636 31,641
20% 19.9% 21,091 21,014
10% 9.7% 10,545 10,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,700
Calibration 2     105,123
Calibration 3     105,174
ssj_ops@calibrated=105,149
100% 100.0% 105,149 105,134
90% 88.7% 94,634 93,315
80% 79.7% 84,119 83,761
70% 70.1% 73,604 73,671
60% 60.3% 63,089 63,364
50% 50.4% 52,574 53,031
40% 39.5% 42,059 41,543
30% 30.4% 31,545 31,986
20% 19.8% 21,030 20,837
10% 9.8% 10,515 10,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,055
Calibration 2     104,099
Calibration 3     104,175
ssj_ops@calibrated=104,137
100% 99.4% 104,137 103,510
90% 90.3% 93,723 94,075
80% 79.9% 83,309 83,247
70% 70.4% 72,896 73,353
60% 60.3% 62,482 62,825
50% 49.6% 52,068 51,613
40% 39.7% 41,655 41,384
30% 30.4% 31,241 31,628
20% 19.7% 20,827 20,481
10% 9.6% 10,414 9,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-05.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,578
Calibration 2     104,452
Calibration 3     104,638
ssj_ops@calibrated=104,545
100% 99.6% 104,545 104,179
90% 88.4% 94,090 92,371
80% 79.0% 83,636 82,575
70% 69.6% 73,181 72,811
60% 60.1% 62,727 62,790
50% 50.3% 52,272 52,577
40% 39.9% 41,818 41,678
30% 30.4% 31,363 31,775
20% 20.2% 20,909 21,165
10% 9.8% 10,454 10,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
