Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module ssj_ops@100% = 8,403,995
ssj_ops@100% per JVM = 105,050
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jan 20, 2022
Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Feb 16, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,761,513
Calibration 2     8,423,072
Calibration 3     8,424,159
ssj_ops@calibrated=8,423,615
100% 99.8% 8,423,615 8,403,995
90% 90.0% 7,581,254 7,577,276
80% 80.0% 6,738,892 6,737,388
70% 70.0% 5,896,531 5,899,120
60% 60.0% 5,054,169 5,051,139
50% 50.0% 4,211,808 4,208,032
40% 39.9% 3,369,446 3,364,314
30% 30.0% 2,527,085 2,524,742
20% 20.0% 1,684,723 1,682,484
10% 10.0% 842,362 842,598
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 11
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Plus Compute Module
Form Factor: Blade
CPU Name: Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics: 40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: I44 v1.40 (03/05/2021)
Management Firmware Version: 2.40 pass 31 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
sy480-03.001 106,367
sy480-03.002 105,763
sy480-03.003 106,911
sy480-03.004 106,093
sy480-03.005 106,631
sy480-03.006 106,282
sy480-03.007 106,225
sy480-03.008 105,776
sy480-03.009 105,590
sy480-03.010 106,364
sy480-03.011 105,026
sy480-03.012 105,945
sy480-03.013 108,617
sy480-03.014 106,580
sy480-03.015 102,250
sy480-03.016 106,290
sy480-03.017 108,147
sy480-03.018 105,337
sy480-03.019 104,036
sy480-03.020 101,007
sy480-03.021 102,720
sy480-03.022 106,018
sy480-03.023 102,010
sy480-03.024 104,803
sy480-03.025 105,197
sy480-03.026 104,587
sy480-03.027 104,609
sy480-03.028 101,630
sy480-03.029 108,037
sy480-03.030 106,192
sy480-03.031 105,427
sy480-03.032 104,754
sy480-03.033 103,717
sy480-03.034 102,907
sy480-03.035 106,163
sy480-03.036 104,795
sy480-03.037 103,721
sy480-03.038 104,945
sy480-03.039 104,421
sy480-03.040 105,120
sy480-03.041 105,774
sy480-03.042 104,556
sy480-03.043 106,375
sy480-03.044 104,024
sy480-03.045 106,241
sy480-03.046 105,493
sy480-03.047 106,203
sy480-03.048 104,155
sy480-03.049 104,479
sy480-03.050 104,148
sy480-03.051 106,569
sy480-03.052 105,505
sy480-03.053 106,876
sy480-03.054 101,706
sy480-03.055 106,161
sy480-03.056 105,902
sy480-03.057 106,397
sy480-03.058 103,675
sy480-03.059 102,311
sy480-03.060 102,276
sy480-03.061 103,324
sy480-03.062 101,681
sy480-03.063 103,127
sy480-03.064 105,828
sy480-03.065 107,181
sy480-03.066 106,047
sy480-03.067 105,204
sy480-03.068 103,977
sy480-03.069 105,493
sy480-03.070 106,603
sy480-03.071 103,238
sy480-03.072 102,348
sy480-03.073 107,115
sy480-03.074 105,873
sy480-03.075 106,692
sy480-03.076 104,679
sy480-03.077 104,719
sy480-03.078 104,787
sy480-03.079 105,533
sy480-03.080 104,708
ssj_ops@100% 8,403,995
ssj_ops@100% per JVM 105,050
Graph of per-instance results
JVM 'sy480-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,970
Calibration 2     106,765
Calibration 3     106,529
ssj_ops@calibrated=106,647
100% 99.7% 106,647 106,367
90% 88.7% 95,983 94,612
80% 79.3% 85,318 84,591
70% 70.4% 74,653 75,121
60% 60.0% 63,988 64,014
50% 50.9% 53,324 54,282
40% 39.1% 42,659 41,696
30% 29.7% 31,994 31,622
20% 20.4% 21,329 21,734
10% 9.8% 10,665 10,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,423
Calibration 2     105,805
Calibration 3     105,777
ssj_ops@calibrated=105,791
100% 100.0% 105,791 105,763
90% 89.9% 95,212 95,128
80% 80.4% 84,633 85,033
70% 68.6% 74,054 72,624
60% 60.1% 63,475 63,547
50% 49.7% 52,895 52,588
40% 40.0% 42,316 42,287
30% 30.5% 31,737 32,217
20% 20.1% 21,158 21,244
10% 9.9% 10,579 10,456
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,943
Calibration 2     106,922
Calibration 3     106,916
ssj_ops@calibrated=106,919
100% 100.0% 106,919 106,911
90% 90.1% 96,227 96,285
80% 78.8% 85,535 84,256
70% 70.0% 74,843 74,819
60% 60.5% 64,151 64,729
50% 50.1% 53,460 53,596
40% 39.9% 42,768 42,621
30% 29.8% 32,076 31,885
20% 19.6% 21,384 20,962
10% 9.9% 10,692 10,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,523
Calibration 2     106,018
Calibration 3     106,075
ssj_ops@calibrated=106,047
100% 100.0% 106,047 106,093
90% 88.8% 95,442 94,151
80% 79.2% 84,837 84,015
70% 69.6% 74,233 73,789
60% 60.4% 63,628 64,044
50% 49.7% 53,023 52,724
40% 40.0% 42,419 42,446
30% 29.9% 31,814 31,695
20% 19.6% 21,209 20,796
10% 10.1% 10,605 10,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,262
Calibration 2     107,000
Calibration 3     106,621
ssj_ops@calibrated=106,810
100% 99.8% 106,810 106,631
90% 89.1% 96,129 95,149
80% 80.0% 85,448 85,425
70% 70.5% 74,767 75,341
60% 59.3% 64,086 63,361
50% 50.0% 53,405 53,424
40% 39.7% 42,724 42,382
30% 30.1% 32,043 32,164
20% 19.9% 21,362 21,271
10% 9.9% 10,681 10,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,690
Calibration 2     106,661
Calibration 3     106,507
ssj_ops@calibrated=106,584
100% 99.7% 106,584 106,282
90% 89.6% 95,926 95,471
80% 79.2% 85,267 84,383
70% 69.4% 74,609 73,960
60% 59.3% 63,950 63,186
50% 49.8% 53,292 53,119
40% 39.9% 42,634 42,477
30% 29.8% 31,975 31,775
20% 20.1% 21,317 21,401
10% 10.2% 10,658 10,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,974
Calibration 2     106,695
Calibration 3     106,627
ssj_ops@calibrated=106,661
100% 99.6% 106,661 106,225
90% 90.3% 95,995 96,288
80% 80.6% 85,329 85,990
70% 70.0% 74,663 74,661
60% 60.7% 63,997 64,692
50% 50.4% 53,331 53,731
40% 39.7% 42,664 42,352
30% 30.4% 31,998 32,468
20% 20.2% 21,332 21,507
10% 9.7% 10,666 10,296
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,469
Calibration 2     106,291
Calibration 3     106,125
ssj_ops@calibrated=106,208
100% 99.6% 106,208 105,776
90% 89.6% 95,587 95,195
80% 79.1% 84,966 84,047
70% 69.6% 74,346 73,883
60% 59.4% 63,725 63,074
50% 49.3% 53,104 52,376
40% 39.9% 42,483 42,402
30% 30.6% 31,862 32,461
20% 19.9% 21,242 21,104
10% 10.3% 10,621 10,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,505
Calibration 2     105,733
Calibration 3     105,898
ssj_ops@calibrated=105,816
100% 99.8% 105,816 105,590
90% 89.6% 95,234 94,838
80% 79.4% 84,653 84,018
70% 68.9% 74,071 72,919
60% 61.0% 63,489 64,496
50% 50.3% 52,908 53,221
40% 39.9% 42,326 42,195
30% 29.2% 31,745 30,938
20% 20.0% 21,163 21,125
10% 9.7% 10,582 10,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,546
Calibration 2     106,116
Calibration 3     106,448
ssj_ops@calibrated=106,282
100% 100.1% 106,282 106,364
90% 91.3% 95,654 97,035
80% 79.5% 85,025 84,511
70% 70.2% 74,397 74,627
60% 60.0% 63,769 63,820
50% 49.2% 53,141 52,264
40% 40.3% 42,513 42,838
30% 29.6% 31,885 31,480
20% 19.8% 21,256 21,032
10% 9.8% 10,628 10,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,281
Calibration 2     105,736
Calibration 3     105,648
ssj_ops@calibrated=105,692
100% 99.4% 105,692 105,026
90% 91.0% 95,123 96,147
80% 79.5% 84,553 84,032
70% 70.9% 73,984 74,912
60% 60.5% 63,415 63,975
50% 50.7% 52,846 53,609
40% 40.1% 42,277 42,406
30% 30.4% 31,708 32,164
20% 19.9% 21,138 21,054
10% 10.1% 10,569 10,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,582
Calibration 2     106,144
Calibration 3     106,206
ssj_ops@calibrated=106,175
100% 99.8% 106,175 105,945
90% 89.7% 95,557 95,189
80% 79.1% 84,940 83,987
70% 70.1% 74,322 74,462
60% 60.0% 63,705 63,720
50% 49.8% 53,087 52,838
40% 39.6% 42,470 42,068
30% 30.4% 31,852 32,263
20% 19.3% 21,235 20,509
10% 10.2% 10,617 10,836
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,928
Calibration 2     108,749
Calibration 3     108,867
ssj_ops@calibrated=108,808
100% 99.8% 108,808 108,617
90% 89.8% 97,927 97,679
80% 79.7% 87,046 86,738
70% 70.2% 76,166 76,379
60% 60.2% 65,285 65,505
50% 49.8% 54,404 54,190
40% 40.3% 43,523 43,892
30% 30.2% 32,642 32,821
20% 19.6% 21,762 21,361
10% 9.9% 10,881 10,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,175
Calibration 2     106,300
Calibration 3     106,337
ssj_ops@calibrated=106,318
100% 100.2% 106,318 106,580
90% 90.1% 95,687 95,821
80% 79.2% 85,055 84,172
70% 69.7% 74,423 74,126
60% 60.2% 63,791 64,008
50% 49.7% 53,159 52,859
40% 39.3% 42,527 41,787
30% 30.0% 31,896 31,913
20% 20.1% 21,264 21,387
10% 10.0% 10,632 10,605
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,898
Calibration 2     102,601
Calibration 3     102,534
ssj_ops@calibrated=102,567
100% 99.7% 102,567 102,250
90% 90.3% 92,310 92,587
80% 79.6% 82,054 81,638
70% 69.8% 71,797 71,579
60% 59.5% 61,540 61,055
50% 50.2% 51,284 51,472
40% 41.0% 41,027 42,094
30% 30.0% 30,770 30,813
20% 19.7% 20,513 20,237
10% 10.0% 10,257 10,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,455
Calibration 2     106,316
Calibration 3     106,181
ssj_ops@calibrated=106,248
100% 100.0% 106,248 106,290
90% 89.3% 95,623 94,872
80% 79.6% 84,999 84,579
70% 70.1% 74,374 74,463
60% 60.3% 63,749 64,018
50% 49.7% 53,124 52,774
40% 40.0% 42,499 42,462
30% 30.3% 31,874 32,198
20% 19.3% 21,250 20,533
10% 10.2% 10,625 10,850
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,618
Calibration 2     107,900
Calibration 3     108,062
ssj_ops@calibrated=107,981
100% 100.2% 107,981 108,147
90% 90.2% 97,183 97,347
80% 79.7% 86,385 86,029
70% 69.6% 75,587 75,140
60% 59.9% 64,789 64,690
50% 49.8% 53,990 53,741
40% 40.6% 43,192 43,860
30% 29.8% 32,394 32,178
20% 20.5% 21,596 22,100
10% 10.1% 10,798 10,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,478
Calibration 2     105,537
Calibration 3     105,255
ssj_ops@calibrated=105,396
100% 99.9% 105,396 105,337
90% 88.6% 94,856 93,421
80% 80.6% 84,317 84,898
70% 69.6% 73,777 73,396
60% 59.9% 63,237 63,092
50% 50.0% 52,698 52,691
40% 40.2% 42,158 42,324
30% 30.2% 31,619 31,832
20% 20.0% 21,079 21,033
10% 10.1% 10,540 10,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,326
Calibration 2     104,546
Calibration 3     104,437
ssj_ops@calibrated=104,492
100% 99.6% 104,492 104,036
90% 89.7% 94,042 93,697
80% 80.2% 83,593 83,770
70% 69.4% 73,144 72,527
60% 59.8% 62,695 62,504
50% 49.3% 52,246 51,539
40% 39.4% 41,797 41,179
30% 30.1% 31,347 31,466
20% 20.0% 20,898 20,890
10% 10.2% 10,449 10,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,418
Calibration 2     101,675
Calibration 3     101,592
ssj_ops@calibrated=101,633
100% 99.4% 101,633 101,007
90% 89.2% 91,470 90,636
80% 79.2% 81,307 80,491
70% 70.5% 71,143 71,695
60% 59.1% 60,980 60,086
50% 50.8% 50,817 51,582
40% 40.2% 40,653 40,828
30% 30.1% 30,490 30,641
20% 19.8% 20,327 20,080
10% 10.3% 10,163 10,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,050
Calibration 2     103,104
Calibration 3     103,013
ssj_ops@calibrated=103,059
100% 99.7% 103,059 102,720
90% 89.8% 92,753 92,594
80% 79.7% 82,447 82,167
70% 70.2% 72,141 72,357
60% 60.6% 61,835 62,497
50% 50.2% 51,529 51,780
40% 40.2% 41,224 41,414
30% 29.9% 30,918 30,775
20% 20.2% 20,612 20,813
10% 9.9% 10,306 10,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,512
Calibration 2     106,242
Calibration 3     106,279
ssj_ops@calibrated=106,260
100% 99.8% 106,260 106,018
90% 90.4% 95,634 96,084
80% 80.7% 85,008 85,719
70% 70.5% 74,382 74,889
60% 60.4% 63,756 64,161
50% 49.5% 53,130 52,617
40% 39.2% 42,504 41,623
30% 29.7% 31,878 31,556
20% 19.6% 21,252 20,861
10% 10.0% 10,626 10,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     79,976
Calibration 2     101,987
Calibration 3     101,986
ssj_ops@calibrated=101,986
100% 100.0% 101,986 102,010
90% 90.3% 91,788 92,103
80% 80.9% 81,589 82,555
70% 68.8% 71,390 70,186
60% 60.3% 61,192 61,535
50% 50.1% 50,993 51,072
40% 39.8% 40,795 40,571
30% 30.0% 30,596 30,620
20% 20.6% 20,397 20,958
10% 10.1% 10,199 10,342
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,528
Calibration 2     105,104
Calibration 3     104,818
ssj_ops@calibrated=104,961
100% 99.8% 104,961 104,803
90% 89.9% 94,465 94,337
80% 80.5% 83,969 84,513
70% 70.5% 73,473 74,045
60% 59.9% 62,977 62,872
50% 49.8% 52,481 52,221
40% 40.2% 41,985 42,238
30% 30.0% 31,488 31,515
20% 20.1% 20,992 21,146
10% 10.0% 10,496 10,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,836
Calibration 2     105,469
Calibration 3     105,295
ssj_ops@calibrated=105,382
100% 99.8% 105,382 105,197
90% 90.5% 94,844 95,384
80% 80.1% 84,306 84,451
70% 69.6% 73,768 73,300
60% 59.2% 63,229 62,381
50% 49.9% 52,691 52,560
40% 40.0% 42,153 42,107
30% 29.7% 31,615 31,326
20% 20.5% 21,076 21,588
10% 10.1% 10,538 10,672
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,447
Calibration 2     104,728
Calibration 3     104,728
ssj_ops@calibrated=104,728
100% 99.9% 104,728 104,587
90% 89.9% 94,255 94,192
80% 79.9% 83,783 83,651
70% 70.4% 73,310 73,686
60% 59.7% 62,837 62,497
50% 49.9% 52,364 52,217
40% 40.7% 41,891 42,661
30% 30.0% 31,418 31,468
20% 20.2% 20,946 21,135
10% 9.9% 10,473 10,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,508
Calibration 2     105,237
Calibration 3     105,314
ssj_ops@calibrated=105,276
100% 99.4% 105,276 104,609
90% 89.8% 94,748 94,538
80% 79.9% 84,221 84,116
70% 69.4% 73,693 73,094
60% 60.2% 63,165 63,401
50% 50.1% 52,638 52,744
40% 39.8% 42,110 41,921
30% 29.7% 31,583 31,276
20% 20.1% 21,055 21,195
10% 10.3% 10,528 10,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,282
Calibration 2     101,654
Calibration 3     101,718
ssj_ops@calibrated=101,686
100% 99.9% 101,686 101,630
90% 90.4% 91,517 91,956
80% 79.8% 81,349 81,176
70% 70.5% 71,180 71,705
60% 59.1% 61,012 60,136
50% 50.2% 50,843 51,088
40% 40.8% 40,674 41,497
30% 30.1% 30,506 30,624
20% 19.9% 20,337 20,192
10% 9.7% 10,169 9,909
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,533
Calibration 2     107,789
Calibration 3     107,737
ssj_ops@calibrated=107,763
100% 100.3% 107,763 108,037
90% 89.0% 96,987 95,915
80% 80.6% 86,211 86,871
70% 69.4% 75,434 74,742
60% 59.9% 64,658 64,592
50% 50.4% 53,882 54,282
40% 40.3% 43,105 43,407
30% 30.0% 32,329 32,279
20% 20.1% 21,553 21,647
10% 10.3% 10,776 11,140
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,825
Calibration 2     106,462
Calibration 3     106,522
ssj_ops@calibrated=106,492
100% 99.7% 106,492 106,192
90% 88.9% 95,843 94,700
80% 81.0% 85,194 86,228
70% 70.4% 74,544 74,930
60% 60.5% 63,895 64,379
50% 49.7% 53,246 52,878
40% 40.3% 42,597 42,872
30% 30.7% 31,948 32,716
20% 20.1% 21,298 21,444
10% 10.2% 10,649 10,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,489
Calibration 2     106,131
Calibration 3     106,052
ssj_ops@calibrated=106,091
100% 99.4% 106,091 105,427
90% 91.0% 95,482 96,537
80% 80.2% 84,873 85,123
70% 70.5% 74,264 74,809
60% 60.2% 63,655 63,889
50% 49.6% 53,046 52,645
40% 39.5% 42,436 41,920
30% 29.4% 31,827 31,201
20% 20.5% 21,218 21,717
10% 9.8% 10,609 10,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,326
Calibration 2     105,631
Calibration 3     105,676
ssj_ops@calibrated=105,654
100% 99.1% 105,654 104,754
90% 90.7% 95,088 95,858
80% 80.0% 84,523 84,543
70% 69.4% 73,958 73,324
60% 59.4% 63,392 62,758
50% 49.8% 52,827 52,570
40% 39.6% 42,261 41,868
30% 29.6% 31,696 31,314
20% 19.4% 21,131 20,534
10% 9.9% 10,565 10,410
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,695
Calibration 2     104,699
Calibration 3     104,589
ssj_ops@calibrated=104,644
100% 99.1% 104,644 103,717
90% 89.8% 94,179 93,960
80% 80.4% 83,715 84,105
70% 70.4% 73,251 73,641
60% 61.0% 62,786 63,856
50% 50.2% 52,322 52,536
40% 39.5% 41,857 41,337
30% 29.9% 31,393 31,289
20% 20.0% 20,929 20,973
10% 10.4% 10,464 10,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,541
Calibration 2     102,849
Calibration 3     102,982
ssj_ops@calibrated=102,915
100% 100.0% 102,915 102,907
90% 91.2% 92,624 93,856
80% 80.1% 82,332 82,456
70% 70.4% 72,041 72,496
60% 59.6% 61,749 61,312
50% 49.9% 51,458 51,368
40% 40.4% 41,166 41,551
30% 30.5% 30,875 31,432
20% 19.8% 20,583 20,348
10% 10.3% 10,292 10,556
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,820
Calibration 2     106,154
Calibration 3     106,220
ssj_ops@calibrated=106,187
100% 100.0% 106,187 106,163
90% 90.6% 95,569 96,237
80% 80.1% 84,950 85,079
70% 70.7% 74,331 75,035
60% 59.9% 63,712 63,556
50% 50.5% 53,094 53,622
40% 40.2% 42,475 42,685
30% 30.2% 31,856 32,104
20% 20.1% 21,237 21,323
10% 9.9% 10,619 10,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,134
Calibration 2     105,327
Calibration 3     105,257
ssj_ops@calibrated=105,292
100% 99.5% 105,292 104,795
90% 88.7% 94,763 93,349
80% 80.0% 84,234 84,200
70% 70.3% 73,704 73,987
60% 59.5% 63,175 62,673
50% 48.8% 52,646 51,418
40% 39.7% 42,117 41,792
30% 29.8% 31,588 31,394
20% 20.3% 21,058 21,385
10% 9.9% 10,529 10,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,716
Calibration 2     103,546
Calibration 3     103,497
ssj_ops@calibrated=103,522
100% 100.2% 103,522 103,721
90% 89.5% 93,170 92,671
80% 81.3% 82,817 84,112
70% 69.4% 72,465 71,877
60% 60.2% 62,113 62,311
50% 49.9% 51,761 51,667
40% 40.0% 41,409 41,405
30% 29.4% 31,057 30,433
20% 20.3% 20,704 21,033
10% 10.1% 10,352 10,483
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,029
Calibration 2     104,804
Calibration 3     104,727
ssj_ops@calibrated=104,765
100% 100.2% 104,765 104,945
90% 90.5% 94,289 94,777
80% 80.1% 83,812 83,944
70% 71.0% 73,336 74,371
60% 60.9% 62,859 63,770
50% 49.8% 52,383 52,209
40% 40.0% 41,906 41,947
30% 30.2% 31,430 31,628
20% 20.0% 20,953 21,000
10% 9.7% 10,477 10,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,707
Calibration 2     104,954
Calibration 3     104,887
ssj_ops@calibrated=104,921
100% 99.5% 104,921 104,421
90% 89.6% 94,429 94,028
80% 79.9% 83,937 83,861
70% 69.7% 73,445 73,177
60% 60.2% 62,952 63,140
50% 49.9% 52,460 52,365
40% 39.5% 41,968 41,479
30% 28.9% 31,476 30,352
20% 20.1% 20,984 21,112
10% 10.1% 10,492 10,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,672
Calibration 2     105,116
Calibration 3     105,366
ssj_ops@calibrated=105,241
100% 99.9% 105,241 105,120
90% 90.7% 94,717 95,456
80% 79.6% 84,193 83,762
70% 69.7% 73,669 73,339
60% 60.4% 63,145 63,519
50% 49.8% 52,621 52,373
40% 40.3% 42,096 42,400
30% 30.1% 31,572 31,673
20% 20.2% 21,048 21,215
10% 9.8% 10,524 10,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,437
Calibration 2     106,115
Calibration 3     106,315
ssj_ops@calibrated=106,215
100% 99.6% 106,215 105,774
90% 90.2% 95,593 95,838
80% 80.4% 84,972 85,415
70% 70.3% 74,350 74,685
60% 60.4% 63,729 64,109
50% 49.9% 53,107 52,975
40% 39.5% 42,486 41,987
30% 30.0% 31,864 31,840
20% 20.3% 21,243 21,600
10% 9.8% 10,621 10,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,164
Calibration 2     104,367
Calibration 3     104,378
ssj_ops@calibrated=104,373
100% 100.2% 104,373 104,556
90% 89.6% 93,935 93,562
80% 79.6% 83,498 83,100
70% 69.8% 73,061 72,832
60% 59.8% 62,624 62,386
50% 49.9% 52,186 52,032
40% 39.7% 41,749 41,421
30% 29.6% 31,312 30,919
20% 19.7% 20,875 20,609
10% 10.0% 10,437 10,461
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,736
Calibration 2     106,387
Calibration 3     106,670
ssj_ops@calibrated=106,528
100% 99.9% 106,528 106,375
90% 89.0% 95,875 94,772
80% 79.5% 85,223 84,657
70% 70.8% 74,570 75,371
60% 59.8% 63,917 63,706
50% 50.6% 53,264 53,919
40% 41.2% 42,611 43,880
30% 29.9% 31,958 31,876
20% 19.9% 21,306 21,176
10% 10.4% 10,653 11,084
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,101
Calibration 2     105,561
Calibration 3     105,438
ssj_ops@calibrated=105,500
100% 98.6% 105,500 104,024
90% 90.3% 94,950 95,267
80% 80.1% 84,400 84,543
70% 70.1% 73,850 73,989
60% 59.6% 63,300 62,893
50% 50.3% 52,750 53,046
40% 39.7% 42,200 41,885
30% 29.6% 31,650 31,276
20% 19.7% 21,100 20,784
10% 9.9% 10,550 10,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,993
Calibration 2     106,472
Calibration 3     106,441
ssj_ops@calibrated=106,457
100% 99.8% 106,457 106,241
90% 89.1% 95,811 94,872
80% 80.7% 85,166 85,945
70% 69.4% 74,520 73,881
60% 60.6% 63,874 64,479
50% 49.9% 53,228 53,127
40% 40.0% 42,583 42,559
30% 30.2% 31,937 32,160
20% 19.9% 21,291 21,170
10% 9.9% 10,646 10,548
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,450
Calibration 2     105,279
Calibration 3     105,360
ssj_ops@calibrated=105,319
100% 100.2% 105,319 105,493
90% 89.8% 94,787 94,578
80% 79.8% 84,255 84,029
70% 70.3% 73,723 73,994
60% 59.4% 63,192 62,601
50% 50.4% 52,660 53,112
40% 39.7% 42,128 41,834
30% 29.2% 31,596 30,738
20% 19.9% 21,064 21,002
10% 10.4% 10,532 10,994
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,165
Calibration 2     108,451
Calibration 3     108,468
ssj_ops@calibrated=108,460
100% 97.9% 108,460 106,203
90% 90.0% 97,614 97,653
80% 80.0% 86,768 86,779
70% 69.6% 75,922 75,528
60% 60.7% 65,076 65,863
50% 49.4% 54,230 53,539
40% 39.7% 43,384 43,050
30% 30.4% 32,538 32,918
20% 20.0% 21,692 21,641
10% 9.9% 10,846 10,688
Active Idle   0 0

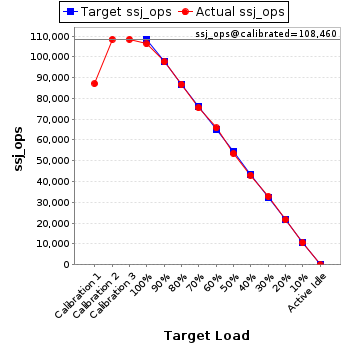

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,730
Calibration 2     104,383
Calibration 3     104,338
ssj_ops@calibrated=104,361
100% 99.8% 104,361 104,155
90% 90.2% 93,925 94,122
80% 79.9% 83,488 83,362
70% 69.5% 73,052 72,557
60% 59.8% 62,616 62,456
50% 50.3% 52,180 52,545
40% 39.9% 41,744 41,630
30% 29.8% 31,308 31,111
20% 19.6% 20,872 20,450
10% 10.2% 10,436 10,694
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,376
Calibration 2     105,125
Calibration 3     105,253
ssj_ops@calibrated=105,189
100% 99.3% 105,189 104,479
90% 91.0% 94,670 95,718
80% 80.9% 84,151 85,066
70% 69.7% 73,632 73,334
60% 59.9% 63,114 63,025
50% 50.3% 52,595 52,935
40% 40.1% 42,076 42,203
30% 30.3% 31,557 31,924
20% 19.8% 21,038 20,851
10% 10.0% 10,519 10,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,652
Calibration 2     104,895
Calibration 3     105,058
ssj_ops@calibrated=104,976
100% 99.2% 104,976 104,148
90% 90.8% 94,479 95,336
80% 80.7% 83,981 84,691
70% 70.6% 73,483 74,116
60% 59.4% 62,986 62,363
50% 50.1% 52,488 52,633
40% 39.9% 41,991 41,885
30% 29.8% 31,493 31,240
20% 19.6% 20,995 20,524
10% 9.9% 10,498 10,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,872
Calibration 2     106,816
Calibration 3     106,766
ssj_ops@calibrated=106,791
100% 99.8% 106,791 106,569
90% 90.4% 96,112 96,501
80% 79.6% 85,433 84,975
70% 70.9% 74,753 75,708
60% 60.7% 64,074 64,777
50% 50.1% 53,395 53,452
40% 39.7% 42,716 42,442
30% 29.5% 32,037 31,541
20% 19.7% 21,358 21,021
10% 10.0% 10,679 10,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,965
Calibration 2     105,742
Calibration 3     105,685
ssj_ops@calibrated=105,713
100% 99.8% 105,713 105,505
90% 90.5% 95,142 95,713
80% 79.1% 84,571 83,622
70% 70.3% 73,999 74,291
60% 58.9% 63,428 62,214
50% 50.0% 52,857 52,857
40% 39.4% 42,285 41,640
30% 30.5% 31,714 32,262
20% 19.7% 21,143 20,834
10% 9.8% 10,571 10,355
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,727
Calibration 2     106,611
Calibration 3     106,621
ssj_ops@calibrated=106,616
100% 100.2% 106,616 106,876
90% 89.9% 95,954 95,886
80% 79.3% 85,293 84,545
70% 70.5% 74,631 75,190
60% 60.1% 63,970 64,122
50% 50.1% 53,308 53,400
40% 40.0% 42,646 42,691
30% 30.0% 31,985 32,029
20% 20.4% 21,323 21,741
10% 10.1% 10,662 10,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,356
Calibration 2     101,618
Calibration 3     101,510
ssj_ops@calibrated=101,564
100% 100.1% 101,564 101,706
90% 89.0% 91,408 90,387
80% 79.6% 81,251 80,795
70% 70.1% 71,095 71,206
60% 59.9% 60,938 60,858
50% 50.3% 50,782 51,118
40% 40.5% 40,626 41,084
30% 30.5% 30,469 30,989
20% 19.7% 20,313 20,029
10% 9.8% 10,156 9,980
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,416
Calibration 2     106,404
Calibration 3     106,310
ssj_ops@calibrated=106,357
100% 99.8% 106,357 106,161
90% 89.8% 95,721 95,512
80% 79.5% 85,086 84,570
70% 70.9% 74,450 75,451
60% 60.5% 63,814 64,384
50% 49.7% 53,179 52,912
40% 40.6% 42,543 43,157
30% 29.8% 31,907 31,691
20% 20.1% 21,271 21,371
10% 10.3% 10,636 10,918
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,407
Calibration 2     106,411
Calibration 3     106,356
ssj_ops@calibrated=106,384
100% 99.5% 106,384 105,902
90% 90.3% 95,745 96,024
80% 80.7% 85,107 85,804
70% 70.4% 74,468 74,864
60% 59.9% 63,830 63,755
50% 50.4% 53,192 53,655
40% 39.6% 42,553 42,128
30% 30.2% 31,915 32,125
20% 20.2% 21,277 21,508
10% 9.7% 10,638 10,299
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,857
Calibration 2     106,510
Calibration 3     106,509
ssj_ops@calibrated=106,510
100% 99.9% 106,510 106,397
90% 90.0% 95,859 95,851
80% 80.2% 85,208 85,367
70% 70.7% 74,557 75,345
60% 59.3% 63,906 63,178
50% 50.2% 53,255 53,469
40% 40.3% 42,604 42,935
30% 29.5% 31,953 31,400
20% 19.7% 21,302 20,970
10% 10.1% 10,651 10,737
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,153
Calibration 2     103,635
Calibration 3     103,631
ssj_ops@calibrated=103,633
100% 100.0% 103,633 103,675
90% 89.6% 93,269 92,857
80% 80.7% 82,906 83,595
70% 70.3% 72,543 72,857
60% 59.7% 62,180 61,919
50% 49.6% 51,816 51,395
40% 40.0% 41,453 41,409
30% 29.9% 31,090 31,008
20% 20.3% 20,727 21,051
10% 10.2% 10,363 10,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,405
Calibration 2     102,720
Calibration 3     102,562
ssj_ops@calibrated=102,641
100% 99.7% 102,641 102,311
90% 90.2% 92,377 92,601
80% 78.8% 82,113 80,842
70% 70.4% 71,849 72,264
60% 60.8% 61,585 62,371
50% 50.5% 51,320 51,876
40% 39.4% 41,056 40,392
30% 29.6% 30,792 30,364
20% 19.8% 20,528 20,335
10% 10.2% 10,264 10,453
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,668
Calibration 2     103,084
Calibration 3     103,206
ssj_ops@calibrated=103,145
100% 99.2% 103,145 102,276
90% 90.3% 92,830 93,102
80% 80.3% 82,516 82,788
70% 69.5% 72,201 71,696
60% 60.3% 61,887 62,168
50% 50.4% 51,572 51,988
40% 39.7% 41,258 40,962
30% 30.2% 30,943 31,125
20% 19.9% 20,629 20,564
10% 9.9% 10,314 10,175
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,828
Calibration 2     103,330
Calibration 3     103,237
ssj_ops@calibrated=103,284
100% 100.0% 103,284 103,324
90% 89.2% 92,955 92,131
80% 79.9% 82,627 82,481
70% 69.2% 72,299 71,423
60% 60.5% 61,970 62,496
50% 49.1% 51,642 50,745
40% 39.6% 41,313 40,933
30% 30.8% 30,985 31,845
20% 20.3% 20,657 20,939
10% 9.9% 10,328 10,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,045
Calibration 2     102,789
Calibration 3     102,719
ssj_ops@calibrated=102,754
100% 99.0% 102,754 101,681
90% 90.1% 92,479 92,599
80% 79.4% 82,204 81,603
70% 70.4% 71,928 72,319
60% 60.8% 61,653 62,433
50% 49.6% 51,377 50,973
40% 40.1% 41,102 41,248
30% 30.5% 30,826 31,309
20% 19.5% 20,551 19,995
10% 9.9% 10,275 10,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,409
Calibration 2     102,923
Calibration 3     103,008
ssj_ops@calibrated=102,966
100% 100.2% 102,966 103,127
90% 90.7% 92,669 93,367
80% 80.9% 82,372 83,250
70% 70.5% 72,076 72,600
60% 60.4% 61,779 62,198
50% 49.3% 51,483 50,776
40% 40.3% 41,186 41,500
30% 29.9% 30,890 30,763
20% 20.0% 20,593 20,597
10% 9.6% 10,297 9,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,347
Calibration 2     105,987
Calibration 3     106,165
ssj_ops@calibrated=106,076
100% 99.8% 106,076 105,828
90% 90.6% 95,468 96,059
80% 79.4% 84,861 84,214
70% 70.8% 74,253 75,070
60% 59.5% 63,645 63,083
50% 49.6% 53,038 52,561
40% 39.7% 42,430 42,150
30% 30.3% 31,823 32,167
20% 20.1% 21,215 21,352
10% 10.1% 10,608 10,706
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,106
Calibration 2     106,762
Calibration 3     107,420
ssj_ops@calibrated=107,091
100% 100.1% 107,091 107,181
90% 90.2% 96,382 96,635
80% 80.7% 85,673 86,442
70% 68.4% 74,964 73,250
60% 59.4% 64,254 63,601
50% 50.8% 53,545 54,425
40% 39.6% 42,836 42,382
30% 30.4% 32,127 32,526
20% 20.1% 21,418 21,571
10% 10.1% 10,709 10,786
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,183
Calibration 2     105,929
Calibration 3     105,999
ssj_ops@calibrated=105,964
100% 100.1% 105,964 106,047
90% 88.9% 95,368 94,210
80% 80.0% 84,771 84,757
70% 70.1% 74,175 74,266
60% 59.5% 63,578 63,081
50% 49.8% 52,982 52,735
40% 39.7% 42,386 42,119
30% 29.6% 31,789 31,354
20% 20.3% 21,193 21,547
10% 10.2% 10,596 10,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,630
Calibration 2     105,105
Calibration 3     105,114
ssj_ops@calibrated=105,109
100% 100.1% 105,109 105,204
90% 90.3% 94,598 94,921
80% 80.1% 84,087 84,237
70% 69.3% 73,577 72,808
60% 59.5% 63,066 62,530
50% 49.9% 52,555 52,463
40% 40.5% 42,044 42,594
30% 30.3% 31,533 31,833
20% 19.5% 21,022 20,516
10% 10.1% 10,511 10,575
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,392
Calibration 2     103,354
Calibration 3     103,848
ssj_ops@calibrated=103,601
100% 100.4% 103,601 103,977
90% 89.9% 93,241 93,183
80% 80.1% 82,881 82,982
70% 71.3% 72,521 73,919
60% 59.8% 62,161 61,934
50% 49.8% 51,801 51,618
40% 39.8% 41,441 41,282
30% 30.3% 31,080 31,410
20% 19.9% 20,720 20,587
10% 10.0% 10,360 10,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,260
Calibration 2     106,324
Calibration 3     106,340
ssj_ops@calibrated=106,332
100% 99.2% 106,332 105,493
90% 90.5% 95,699 96,266
80% 79.9% 85,066 84,958
70% 70.0% 74,433 74,421
60% 59.8% 63,799 63,575
50% 49.8% 53,166 52,943
40% 40.2% 42,533 42,762
30% 29.5% 31,900 31,419
20% 19.8% 21,266 21,021
10% 10.0% 10,633 10,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,716
Calibration 2     106,379
Calibration 3     106,336
ssj_ops@calibrated=106,357
100% 100.2% 106,357 106,603
90% 90.7% 95,721 96,514
80% 80.2% 85,086 85,284
70% 70.0% 74,450 74,427
60% 59.8% 63,814 63,623
50% 49.7% 53,179 52,885
40% 40.1% 42,543 42,609
30% 30.2% 31,907 32,089
20% 19.9% 21,271 21,210
10% 9.8% 10,636 10,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,716
Calibration 2     102,887
Calibration 3     103,096
ssj_ops@calibrated=102,991
100% 100.2% 102,991 103,238
90% 90.1% 92,692 92,815
80% 80.9% 82,393 83,285
70% 71.1% 72,094 73,198
60% 60.8% 61,795 62,602
50% 49.4% 51,496 50,928
40% 39.7% 41,197 40,922
30% 29.7% 30,897 30,553
20% 20.1% 20,598 20,719
10% 10.0% 10,299 10,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,609
Calibration 2     102,527
Calibration 3     102,594
ssj_ops@calibrated=102,560
100% 99.8% 102,560 102,348
90% 89.7% 92,304 92,034
80% 80.8% 82,048 82,910
70% 69.4% 71,792 71,166
60% 59.4% 61,536 60,899
50% 50.1% 51,280 51,359
40% 39.8% 41,024 40,831
30% 29.5% 30,768 30,304
20% 20.5% 20,512 20,996
10% 9.8% 10,256 10,084
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,656
Calibration 2     106,508
Calibration 3     106,699
ssj_ops@calibrated=106,604
100% 100.5% 106,604 107,115
90% 90.1% 95,943 96,003
80% 79.6% 85,283 84,870
70% 69.4% 74,623 74,033
60% 59.6% 63,962 63,572
50% 50.2% 53,302 53,516
40% 39.2% 42,641 41,781
30% 30.0% 31,981 31,994
20% 19.9% 21,321 21,246
10% 9.7% 10,660 10,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,453
Calibration 2     106,563
Calibration 3     106,535
ssj_ops@calibrated=106,549
100% 99.4% 106,549 105,873
90% 90.0% 95,894 95,881
80% 80.2% 85,239 85,493
70% 70.5% 74,584 75,070
60% 59.5% 63,930 63,364
50% 50.5% 53,275 53,848
40% 40.0% 42,620 42,634
30% 29.8% 31,965 31,714
20% 20.0% 21,310 21,317
10% 9.8% 10,655 10,477
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,333
Calibration 2     106,756
Calibration 3     106,742
ssj_ops@calibrated=106,749
100% 99.9% 106,749 106,692
90% 89.8% 96,074 95,897
80% 79.9% 85,399 85,312
70% 71.1% 74,724 75,894
60% 60.1% 64,049 64,103
50% 49.2% 53,375 52,568
40% 39.6% 42,700 42,313
30% 29.4% 32,025 31,347
20% 20.5% 21,350 21,852
10% 9.9% 10,675 10,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,353
Calibration 2     104,879
Calibration 3     105,412
ssj_ops@calibrated=105,145
100% 99.6% 105,145 104,679
90% 89.2% 94,631 93,778
80% 80.1% 84,116 84,242
70% 69.2% 73,602 72,810
60% 60.0% 63,087 63,096
50% 50.1% 52,573 52,703
40% 40.2% 42,058 42,270
30% 29.6% 31,544 31,163
20% 19.8% 21,029 20,802
10% 10.2% 10,515 10,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,709
Calibration 2     104,937
Calibration 3     104,756
ssj_ops@calibrated=104,847
100% 99.9% 104,847 104,719
90% 90.4% 94,362 94,803
80% 79.9% 83,877 83,809
70% 69.6% 73,393 72,976
60% 59.2% 62,908 62,102
50% 49.7% 52,423 52,121
40% 39.7% 41,939 41,630
30% 30.1% 31,454 31,578
20% 19.7% 20,969 20,653
10% 10.2% 10,485 10,672
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,722
Calibration 2     104,811
Calibration 3     104,834
ssj_ops@calibrated=104,822
100% 100.0% 104,822 104,787
90% 90.0% 94,340 94,351
80% 80.1% 83,858 83,961
70% 70.5% 73,376 73,904
60% 59.8% 62,893 62,663
50% 50.0% 52,411 52,460
40% 39.8% 41,929 41,733
30% 30.1% 31,447 31,529
20% 20.0% 20,964 21,008
10% 10.0% 10,482 10,471
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,006
Calibration 2     105,222
Calibration 3     105,297
ssj_ops@calibrated=105,259
100% 100.3% 105,259 105,533
90% 88.9% 94,733 93,607
80% 80.2% 84,207 84,378
70% 69.3% 73,682 72,952
60% 60.2% 63,156 63,355
50% 49.9% 52,630 52,551
40% 39.8% 42,104 41,896
30% 29.9% 31,578 31,455
20% 19.9% 21,052 20,932
10% 10.0% 10,526 10,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'sy480-03.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,321
Calibration 2     106,021
Calibration 3     105,826
ssj_ops@calibrated=105,923
100% 98.9% 105,923 104,708
90% 90.6% 95,331 95,993
80% 80.4% 84,739 85,192
70% 69.9% 74,146 74,043
60% 58.9% 63,554 62,354
50% 50.1% 52,962 53,018
40% 39.9% 42,369 42,261
30% 30.1% 31,777 31,889
20% 20.2% 21,185 21,414
10% 9.7% 10,592 10,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
