SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX1330 M5 | SPECpower_ssj2008 = 10,767 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Dec 11, 2021 |
| Hardware Availability: | Mar-2022 | Software Availability: | Jun-2021 | Publication: | Jan 19, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

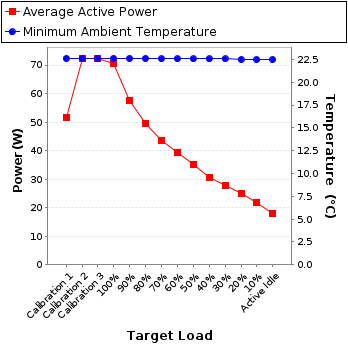

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 51.6 | 22.6 |
| Calibration 2 | 72.3 | 22.6 |
| Calibration 3 | 72.4 | 22.6 |
| 100% | 70.5 | 22.6 |
| 90% | 57.4 | 22.6 |
| 80% | 49.6 | 22.6 |
| 70% | 43.7 | 22.6 |
| 60% | 39.4 | 22.6 |
| 50% | 35.0 | 22.6 |
| 40% | 30.7 | 22.6 |
| 30% | 27.7 | 22.6 |
| 20% | 24.9 | 22.5 |
| 10% | 21.8 | 22.5 |
| Active Idle | 17.9 | 22.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400088-2106 |
| Date of Calibration: | 14-Jun-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 201 | 300.0 | 0.320 | 1.0 | 0.807 | 51.6 | 0.5% |
| Calibration 2 | 200 | 300.0 | 0.407 | 1.0 | 0.887 | 72.3 | 0.4% |
| Calibration 3 | 200 | 300.0 | 0.407 | 1.0 | 0.887 | 72.4 | 0.4% |
| 100% | 200 | 300.0 | 0.397 | 1.0 | 0.887 | 70.5 | 0.4% |
| 90% | 200 | 300.0 | 0.337 | 1.0 | 0.849 | 57.4 | 0.4% |
| 80% | 200 | 300.0 | 0.303 | 1.0 | 0.817 | 49.6 | 0.5% |
| 70% | 201 | 300.0 | 0.278 | 1.0 | 0.783 | 43.7 | 0.5% |
| 60% | 200 | 300.0 | 0.261 | 1.0 | 0.753 | 39.4 | 0.6% |
| 50% | 200 | 300.0 | 0.244 | 1.0 | 0.714 | 35.0 | 0.6% |
| 40% | 200 | 300.0 | 0.228 | 1.0 | 0.672 | 30.7 | 0.7% |
| 30% | 200 | 300.0 | 0.217 | 1.0 | 0.636 | 27.7 | 0.8% |
| 20% | 200 | 300.0 | 0.208 | 1.0 | 0.598 | 24.9 | 0.8% |
| 10% | 200 | 300.0 | 0.198 | 0.5 | 0.551 | 21.8 | 0.6% |
| Active Idle | 202 | 300.0 | 0.185 | 0.5 | 0.480 | 17.9 | 0.7% |
