Fujitsu FUJITSU Server PRIMERGY TX1330 M5 ssj_ops@100% = 825,045
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Dec 17, 2021
Hardware Availability: Mar-2022 Software Availability: Oct-2020 Publication: Jan 19, 2022
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     828,820
Calibration 2     825,269
Calibration 3     825,095
ssj_ops@calibrated=825,182
100% 100.0% 825,182 825,045
90% 90.3% 742,664 744,903
80% 79.9% 660,146 659,296
70% 69.8% 577,627 575,653
60% 59.9% 495,109 494,256
50% 50.2% 412,591 413,930
40% 39.8% 330,073 328,687
30% 29.9% 247,555 246,775
20% 20.0% 165,036 165,407
10% 10.0% 82,518 82,635
Active Idle   0 0

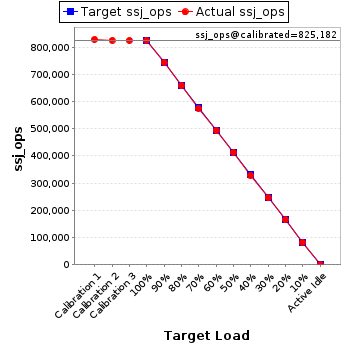

Graph of results
System Under Test
Set: 'TX1330M5'
Set Identifier: TX1330M5
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY TX1330 M5
Form Factor: Tower
CPU Name: Intel Xeon E-2388G
CPU Characteristics: 8-Core, 3.2GHz, 16MB L3 Cache
CPU Frequency (MHz): 3200
CPU(s) Enabled: 8 cores, 1 chip, 8 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 16 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8196 MB
Memory Details: 2 x 8 GB 1Rx8 PC4-3200AA-ED2-11; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: S26113-E581-V50-1
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced
Operating System (OS): Windows Server 2019 Standard
OS Version: version1809, build 17763.107
Filesystem: ntfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn11500m -Xms13000m -Xmx13000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: none
JVM Instances: 1
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: R1.30.0
Management Firmware Version: 1.01S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB4464455
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 60,322,597 9,168
Payment 60,322,571
Order Status 6,032,253
Delivery 6,032,259
Stock Level 6,032,257
Customer Report 60,322,577
Calibration 2 New Order 60,113,224 9,168
Payment 60,113,213
Order Status 6,011,325
Delivery 6,011,325
Stock Level 6,011,319
Customer Report 60,113,228
Calibration 3 New Order 60,035,809 9,168
Payment 60,035,819
Order Status 6,003,582
Delivery 6,003,583
Stock Level 6,003,579
Customer Report 60,035,815
100% 100.0% New Order 60,007,133 9,168
Payment 60,007,130
Order Status 6,000,711
Delivery 6,000,712
Stock Level 6,000,713
Customer Report 60,007,134
90% 90.3% New Order 54,180,643 9,168
Payment 54,180,634
Order Status 5,418,064
Delivery 5,418,064
Stock Level 5,418,063
Customer Report 54,180,657
80% 79.9% New Order 47,949,044 9,168
Payment 47,949,039
Order Status 4,794,909
Delivery 4,794,902
Stock Level 4,794,906
Customer Report 47,949,039
70% 69.8% New Order 41,867,782 9,168
Payment 41,867,763
Order Status 4,186,779
Delivery 4,186,777
Stock Level 4,186,777
Customer Report 41,867,782
60% 59.9% New Order 35,945,966 9,168
Payment 35,945,966
Order Status 3,594,595
Delivery 3,594,598
Stock Level 3,594,596
Customer Report 35,945,958
50% 50.2% New Order 30,105,296 9,168
Payment 30,105,299
Order Status 3,010,529
Delivery 3,010,528
Stock Level 3,010,528
Customer Report 30,105,291
40% 39.8% New Order 23,904,798 9,168
Payment 23,904,797
Order Status 2,390,481
Delivery 2,390,485
Stock Level 2,390,479
Customer Report 23,904,787
30% 29.9% New Order 17,947,870 9,168
Payment 17,947,871
Order Status 1,794,790
Delivery 1,794,785
Stock Level 1,794,786
Customer Report 17,947,865
20% 20.0% New Order 12,029,975 9,168
Payment 12,029,972
Order Status 1,202,998
Delivery 1,202,999
Stock Level 1,202,995
Customer Report 12,029,961
10% 10.0% New Order 6,009,989 9,168
Payment 6,010,003
Order Status 600,995
Delivery 601,002
Stock Level 601,002
Customer Report 6,010,010
Active Idle New Order 0 9,168
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
