XSLAB V-Raptor SQ ssj_ops@100% = 92,002
ssj_ops@100% per JVM = 23,001
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,327
Calibration 2     94,028
Calibration 3     93,992
ssj_ops@calibrated=94,010
100% 97.9% 94,010 92,002
90% 90.0% 84,609 84,600
80% 79.8% 75,208 74,995
70% 70.8% 65,807 66,519
60% 59.6% 56,406 56,005
50% 50.7% 47,005 47,692
40% 39.8% 37,604 37,404
30% 30.0% 28,203 28,184
20% 19.7% 18,802 18,550
10% 10.0% 9,401 9,397
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node28.001 22,821
node28.002 22,887
node28.003 23,325
node28.004 22,969
ssj_ops@100% 92,002
ssj_ops@100% per JVM 23,001
Graph of per-instance results

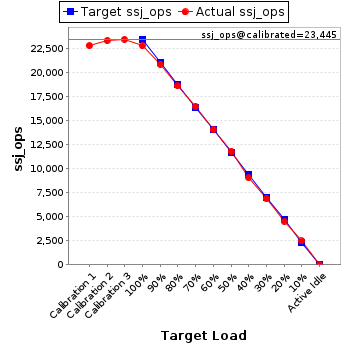

JVM 'node28.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,848
Calibration 2     23,384
Calibration 3     23,507
ssj_ops@calibrated=23,445
100% 97.3% 23,445 22,821
90% 89.1% 21,101 20,891
80% 79.5% 18,756 18,636
70% 70.5% 16,412 16,540
60% 60.1% 14,067 14,094
50% 50.5% 11,723 11,838
40% 38.8% 9,378 9,108
30% 29.4% 7,034 6,882
20% 19.4% 4,689 4,538
10% 10.6% 2,345 2,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node28.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,732
Calibration 2     23,421
Calibration 3     23,330
ssj_ops@calibrated=23,376
100% 97.9% 23,376 22,887
90% 91.9% 21,038 21,485
80% 79.6% 18,700 18,613
70% 70.9% 16,363 16,569
60% 60.4% 14,025 14,120
50% 49.7% 11,688 11,626
40% 39.6% 9,350 9,268
30% 30.4% 7,013 7,116
20% 20.7% 4,675 4,846
10% 9.2% 2,338 2,147
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

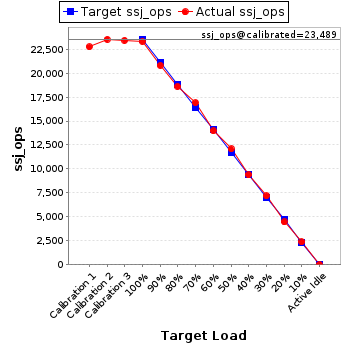

JVM 'node28.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,739
Calibration 2     23,541
Calibration 3     23,436
ssj_ops@calibrated=23,489
100% 99.3% 23,489 23,325
90% 88.6% 21,140 20,817
80% 79.3% 18,791 18,616
70% 72.0% 16,442 16,905
60% 59.5% 14,093 13,968
50% 51.5% 11,744 12,092
40% 40.0% 9,395 9,389
30% 30.6% 7,047 7,184
20% 19.0% 4,698 4,456
10% 10.1% 2,349 2,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node28.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,009
Calibration 2     23,681
Calibration 3     23,719
ssj_ops@calibrated=23,700
100% 96.9% 23,700 22,969
90% 90.3% 21,330 21,408
80% 80.7% 18,960 19,131
70% 69.6% 16,590 16,504
60% 58.3% 14,220 13,823
50% 51.2% 11,850 12,137
40% 40.7% 9,480 9,639
30% 29.5% 7,110 7,001
20% 19.9% 4,740 4,710
10% 10.1% 2,370 2,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
