SPECpower_ssj2008

Inspur Corporation Inspur NF5280M5			SPECpower_ssj2008 = 5,694 overall ssj_ops/watt
Test Sponsor:	Inspur Corporation	SPEC License #:	3358	Test Method:	Single Node
Tested By:	Inspur Corporation	Test Location:	JINAN, CHINA	Test Date:	Jul 6, 2021
Hardware Availability:	May-2021	Software Availability:	Jan-2021	Publication:	Aug 19, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Inspur Corporation
Model:	Inspur NF5280M5
Form Factor:	2U
CPU Name:	Intel Xeon Gold 6252
CPU Characteristics:	24-Core, 2.10 GHz, 35.75 MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	24 cores, 1 chip, 24 cores/chip
Hardware Threads:	48 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per chip
Tertiary Cache:	36608 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	12 x 32 GB
Memory Details:	12 x 32GB SA 2Rx4 2933ER;slots CPU0_C0D0,CPU0_C1D0, CPU0_C2D0, CPU0_C3D0, CPU0_C4D0, CPU0_C5D0, CPU1_C0D0,CPU1_C1D0, CPU1_C2D0, CPU1_C3D0, CPU1_C4D0, CPU1_C5D0 populated
Power Supply Quantity and Rating (W):	1 x 550
Power Supply Details:	Delta DPS-550AB-11 A Platinum P/N:ZMPS1000105
Disk Drive:	SSD_I_480G_SSDSC2BB480G7_S3520 * 2, PN:ZMHD1000273; Intel_SSD_S4500_1.92T_SSDSC2KB019T7 * 4, PN:ZMHD1000389
Disk Controller:	INSPUR Adaptec PM 8222-SmartHBA , PN:YZSA-01188-101
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Gigabit Ethernet controller with 2 port;
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	Yes
Other Hardware:	1 x NIC_Inspur_OCP 25G_CX4LX_25G_LC_PCI-EX8_2,PN:YZNC-00762-101; 2 x G_NIC_INSPUR_82599ES_10G_LC_PCIEX8_2_XR,PN:YZCA-00431-103; 2 x SFP_Hisense_LC_LTF8505-BC+_25G_SW_MM ,PN: V075013000000000; 4 x SFP_Hisense_LC_LTF8502-BC+_10G_SW_MM, PN: V07500P000000000

Software
Power Management:	Balanced Mode enabled in OS
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1728)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /NODE 0 /AFFINITY [3,C,C00,3000,C000,C00000,3000000,C000000,C00000000,3000000000,C000000000,30000000000];start /NODE 1 /AFFINITY [3,C,30,C00,3000,C000,C00000,3000000,C000000,C00000000,3000000000,C000000000]
JVM Instances:	24
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	4.1.19
Management Firmware Version:	4.26.9
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4598296

none

Set "Turn off hard disk after = 1 Minute" in OS.
Minimum Processor State:0%.
Maximum Processor State:100%.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
Each JVM instance was affinitized to 2 logical processors
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Software
Operating System (OS):	Windows 10
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa Meters and Instruments Corporation
Model:	WT310E
Serial Number:	C2QK23023V
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	Calibration and Testing Center of CEPREI
Calibration Label:	J202010202011G-0013
Date of Calibration:	22-Oct-2020
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU 0

Temperature Sensor temp1
Hardware Vendor:	Digi
Model:	Watchport/H
Driver Version:	5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	placed in front the main airflow inlet of the SUT less than 50mm.

SPECpower_ssj.props input.load_level.number_warehouses set to 48 due to a known inconsistency in processor reporting with this Java version

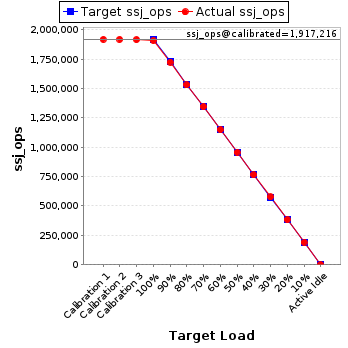

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	262	23.2
90%	233	23.2
80%	214	23.1
70%	188	23.0
60%	170	22.9
50%	159	22.8
40%	148	22.8
30%	138	22.7
20%	128	22.6
10%	118	22.6
Active Idle	93.6	22.6

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	22.6	57

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
