SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380 Gen10 Plus | SPECpower_ssj2008 = 11,735 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | May 31, 2021 |
| Hardware Availability: | May-2021 | Software Availability: | Apr-2021 | Publication: | Jun 30, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

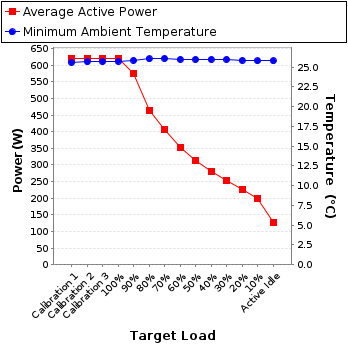

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 621 | 25.6 |
| Calibration 2 | 619 | 25.7 |
| Calibration 3 | 620 | 25.7 |
| 100% | 619 | 25.8 |
| 90% | 576 | 25.9 |
| 80% | 464 | 26.1 |
| 70% | 405 | 26.1 |
| 60% | 354 | 26.0 |
| 50% | 314 | 26.0 |
| 40% | 281 | 26.0 |
| 30% | 253 | 26.0 |
| 20% | 226 | 25.9 |
| 10% | 198 | 25.8 |
| Active Idle | 127 | 25.8 |

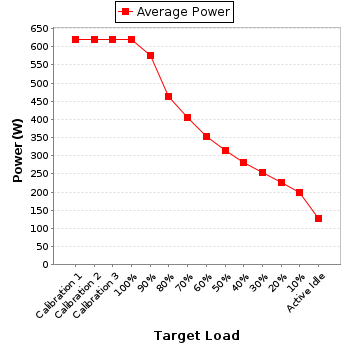

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310 |
| Serial Number: | C2QM22002V |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-FQ7PK-100-1 |
| Date of Calibration: | 16-Jun-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supplies 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 2.93 | 5.0 | 0.993 | 621 | 0.4% |
| Calibration 2 | 214 | 300.0 | 2.92 | 5.0 | 0.993 | 619 | 0.4% |
| Calibration 3 | 214 | 300.0 | 2.92 | 5.0 | 0.993 | 620 | 0.4% |
| 100% | 214 | 300.0 | 2.92 | 5.0 | 0.993 | 619 | 0.4% |
| 90% | 214 | 300.0 | 2.71 | 5.0 | 0.993 | 576 | 0.4% |
| 80% | 214 | 300.0 | 2.19 | 5.0 | 0.992 | 464 | 0.5% |
| 70% | 214 | 300.0 | 1.92 | 5.0 | 0.987 | 405 | 0.5% |
| 60% | 214 | 300.0 | 1.67 | 5.0 | 0.989 | 354 | 0.6% |
| 50% | 215 | 300.0 | 1.48 | 5.0 | 0.987 | 314 | 0.6% |
| 40% | 214 | 300.0 | 1.33 | 2.0 | 0.986 | 281 | 0.3% |
| 30% | 214 | 300.0 | 1.20 | 2.0 | 0.984 | 253 | 0.4% |
| 20% | 214 | 300.0 | 1.07 | 2.0 | 0.984 | 226 | 0.4% |
| 10% | 214 | 300.0 | 0.940 | 2.0 | 0.980 | 198 | 0.4% |
| Active Idle | 215 | 300.0 | 0.618 | 2.0 | 0.960 | 127 | 0.6% |
