Hewlett Packard Enterprise ProLiant DL360 Gen10 Plus ssj_ops@100% = 102,809
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: May 27, 2021
Hardware Availability: May-2021 Software Availability: Apr-2021 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,368
Calibration 2     103,724
Calibration 3     103,830
ssj_ops@calibrated=103,777
100% 99.1% 103,777 102,809
90% 90.3% 93,399 93,670
80% 80.7% 83,022 83,796
70% 70.7% 72,644 73,378
60% 59.2% 62,266 61,402
50% 50.0% 51,889 51,919
40% 39.7% 41,511 41,212
30% 30.0% 31,133 31,146
20% 20.3% 20,755 21,056
10% 10.1% 10,378 10,454
Active Idle   0 0

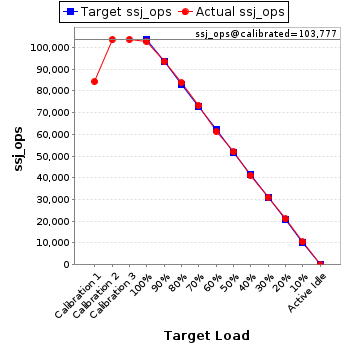

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10 Plus
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8380 2.30 GHz
CPU Characteristics: 40 core, 2.30 GHz, 60 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket (P06031-B21)
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W (96%) Flex Slot Titanium Hot Plug Power Supply Kit (865438-B21)
Disk Drive: HPE 480GB SATA 6G SSD (P40502-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Adapter I350T4 OCPv3
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.66-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U46 v1.42 (05/16/2021)
Management Firmware Version: 2.42 Apr 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,136,020 1,384
Payment 6,136,015
Order Status 613,601
Delivery 613,601
Stock Level 613,602
Customer Report 6,136,020
Calibration 2 New Order 7,543,778 1,384
Payment 7,543,781
Order Status 754,378
Delivery 754,378
Stock Level 754,377
Customer Report 7,543,776
Calibration 3 New Order 7,551,491 1,384
Payment 7,551,487
Order Status 755,149
Delivery 755,148
Stock Level 755,149
Customer Report 7,551,486
100% 99.1% New Order 7,477,207 1,384
Payment 7,477,206
Order Status 747,722
Delivery 747,720
Stock Level 747,721
Customer Report 7,477,205
90% 90.3% New Order 6,812,576 1,384
Payment 6,812,574
Order Status 681,258
Delivery 681,258
Stock Level 681,258
Customer Report 6,812,579
80% 80.7% New Order 6,094,655 1,384
Payment 6,094,648
Order Status 609,465
Delivery 609,466
Stock Level 609,466
Customer Report 6,094,655
70% 70.7% New Order 5,336,696 1,384
Payment 5,336,700
Order Status 533,670
Delivery 533,670
Stock Level 533,671
Customer Report 5,336,696
60% 59.2% New Order 4,465,650 1,384
Payment 4,465,652
Order Status 446,564
Delivery 446,566
Stock Level 446,565
Customer Report 4,465,651
50% 50.0% New Order 3,775,911 1,384
Payment 3,775,911
Order Status 377,591
Delivery 377,591
Stock Level 377,592
Customer Report 3,775,909
40% 39.7% New Order 2,997,453 1,384
Payment 2,997,448
Order Status 299,745
Delivery 299,745
Stock Level 299,746
Customer Report 2,997,455
30% 30.0% New Order 2,265,229 1,384
Payment 2,265,228
Order Status 226,524
Delivery 226,523
Stock Level 226,522
Customer Report 2,265,219
20% 20.3% New Order 1,531,329 1,384
Payment 1,531,327
Order Status 153,132
Delivery 153,131
Stock Level 153,134
Customer Report 1,531,325
10% 10.1% New Order 760,303 1,384
Payment 760,300
Order Status 76,031
Delivery 76,029
Stock Level 76,029
Customer Report 760,308
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
