Hewlett Packard Enterprise ProLiant DL360 Gen10 Plus ssj_ops@100% = 101,701
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: May 27, 2021
Hardware Availability: May-2021 Software Availability: Apr-2021 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,277
Calibration 2     101,907
Calibration 3     101,800
ssj_ops@calibrated=101,853
100% 99.9% 101,853 101,701
90% 90.7% 91,668 92,366
80% 80.8% 81,483 82,254
70% 70.2% 71,297 71,487
60% 60.8% 61,112 61,916
50% 50.1% 50,927 50,992
40% 40.2% 40,741 40,921
30% 30.8% 30,556 31,365
20% 20.0% 20,371 20,415
10% 10.0% 10,185 10,158
Active Idle   0 0

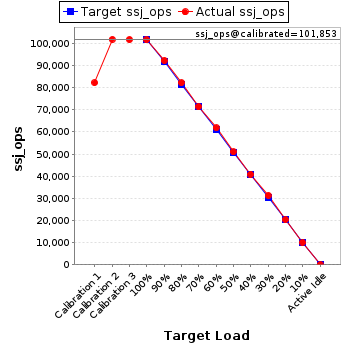

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10 Plus
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8380 2.30 GHz
CPU Characteristics: 40 core, 2.30 GHz, 60 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket (P06031-B21)
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W (96%) Flex Slot Titanium Hot Plug Power Supply Kit (865438-B21)
Disk Drive: HPE 480GB SATA 6G SSD (P40502-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Adapter I350T4 OCPv3
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.66-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U46 v1.42 (05/16/2021)
Management Firmware Version: 2.42 Apr 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,984,075 1,384
Payment 5,984,072
Order Status 598,407
Delivery 598,407
Stock Level 598,407
Customer Report 5,984,082
Calibration 2 New Order 7,411,598 1,384
Payment 7,411,599
Order Status 741,161
Delivery 741,159
Stock Level 741,161
Customer Report 7,411,597
Calibration 3 New Order 7,403,816 1,384
Payment 7,403,813
Order Status 740,381
Delivery 740,381
Stock Level 740,381
Customer Report 7,403,811
100% 99.9% New Order 7,396,794 1,384
Payment 7,396,791
Order Status 739,679
Delivery 739,678
Stock Level 739,679
Customer Report 7,396,792
90% 90.7% New Order 6,717,539 1,384
Payment 6,717,544
Order Status 671,755
Delivery 671,754
Stock Level 671,755
Customer Report 6,717,542
80% 80.8% New Order 5,982,194 1,384
Payment 5,982,196
Order Status 598,219
Delivery 598,219
Stock Level 598,219
Customer Report 5,982,197
70% 70.2% New Order 5,199,051 1,384
Payment 5,199,048
Order Status 519,905
Delivery 519,905
Stock Level 519,905
Customer Report 5,199,042
60% 60.8% New Order 4,503,031 1,384
Payment 4,503,029
Order Status 450,303
Delivery 450,303
Stock Level 450,302
Customer Report 4,503,025
50% 50.1% New Order 3,708,575 1,384
Payment 3,708,570
Order Status 370,856
Delivery 370,857
Stock Level 370,859
Customer Report 3,708,571
40% 40.2% New Order 2,976,239 1,384
Payment 2,976,241
Order Status 297,624
Delivery 297,624
Stock Level 297,623
Customer Report 2,976,241
30% 30.8% New Order 2,281,226 1,384
Payment 2,281,224
Order Status 228,124
Delivery 228,123
Stock Level 228,123
Customer Report 2,281,221
20% 20.0% New Order 1,484,826 1,384
Payment 1,484,821
Order Status 148,483
Delivery 148,482
Stock Level 148,482
Customer Report 1,484,826
10% 10.0% New Order 738,788 1,384
Payment 738,789
Order Status 73,880
Delivery 73,879
Stock Level 73,878
Customer Report 738,786
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
