Hewlett Packard Enterprise ProLiant DL360 Gen10 Plus ssj_ops@100% = 99,919
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: May 27, 2021
Hardware Availability: May-2021 Software Availability: Apr-2021 Publication: Jun 30, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,247
Calibration 2     100,405
Calibration 3     100,610
ssj_ops@calibrated=100,507
100% 99.4% 100,507 99,919
90% 89.7% 90,457 90,159
80% 79.6% 80,406 79,960
70% 69.0% 70,355 69,373
60% 59.6% 60,304 59,875
50% 49.9% 50,254 50,169
40% 39.6% 40,203 39,830
30% 30.2% 30,152 30,333
20% 20.2% 20,101 20,287
10% 10.0% 10,051 10,098
Active Idle   0 0

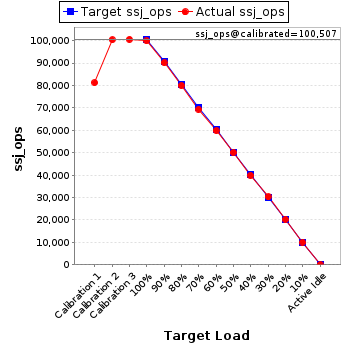

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10 Plus
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8380 2.30 GHz
CPU Characteristics: 40 core, 2.30 GHz, 60 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket (P06031-B21)
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W (96%) Flex Slot Titanium Hot Plug Power Supply Kit (865438-B21)
Disk Drive: HPE 480GB SATA 6G SSD (P40502-B21)
Disk Controller: Embedded SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Adapter I350T4 OCPv3
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.66-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances: 80
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: U46 v1.42 (05/16/2021)
Management Firmware Version: 2.42 Apr 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 5,909,077 1,384
Payment 5,909,077
Order Status 590,909
Delivery 590,910
Stock Level 590,908
Customer Report 5,909,078
Calibration 2 New Order 7,302,226 1,384
Payment 7,302,221
Order Status 730,222
Delivery 730,224
Stock Level 730,222
Customer Report 7,302,221
Calibration 3 New Order 7,317,158 1,384
Payment 7,317,160
Order Status 731,715
Delivery 731,715
Stock Level 731,716
Customer Report 7,317,153
100% 99.4% New Order 7,267,060 1,384
Payment 7,267,055
Order Status 726,704
Delivery 726,706
Stock Level 726,707
Customer Report 7,267,056
90% 89.7% New Order 6,557,117 1,384
Payment 6,557,115
Order Status 655,712
Delivery 655,713
Stock Level 655,711
Customer Report 6,557,123
80% 79.6% New Order 5,815,408 1,384
Payment 5,815,413
Order Status 581,541
Delivery 581,541
Stock Level 581,542
Customer Report 5,815,413
70% 69.0% New Order 5,045,447 1,384
Payment 5,045,448
Order Status 504,544
Delivery 504,545
Stock Level 504,545
Customer Report 5,045,454
60% 59.6% New Order 4,354,812 1,384
Payment 4,354,814
Order Status 435,481
Delivery 435,483
Stock Level 435,480
Customer Report 4,354,811
50% 49.9% New Order 3,648,655 1,384
Payment 3,648,653
Order Status 364,865
Delivery 364,865
Stock Level 364,865
Customer Report 3,648,654
40% 39.6% New Order 2,896,711 1,384
Payment 2,896,713
Order Status 289,670
Delivery 289,672
Stock Level 289,673
Customer Report 2,896,712
30% 30.2% New Order 2,206,021 1,384
Payment 2,206,014
Order Status 220,601
Delivery 220,603
Stock Level 220,601
Customer Report 2,206,016
20% 20.2% New Order 1,475,455 1,384
Payment 1,475,457
Order Status 147,546
Delivery 147,544
Stock Level 147,545
Customer Report 1,475,453
10% 10.0% New Order 734,429 1,384
Payment 734,439
Order Status 73,443
Delivery 73,445
Stock Level 73,444
Customer Report 734,432
Active Idle New Order 0 1,384
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
