Fujitsu PRIMERGY RX2530 M6 SPECpower_ssj2008 = 11,533 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 2, 2021
Hardware Availability: May-2021 Software Availability: Dec-2020 Publication: Apr 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 7,573,884 580 13,058
90% 90.0% 6,814,856 499 13,654
80% 79.8% 6,047,198 444 13,605
70% 69.9% 5,292,424 380 13,917
60% 59.9% 4,535,904 336 13,488
50% 49.9% 3,781,094 302 12,525
40% 40.0% 3,031,768 274 11,076
30% 30.1% 2,279,204 248 9,192
20% 20.0% 1,516,364 221 6,847
10% 10.0% 758,504 194 3,913
Active Idle 0 131 0
∑ssj_ops / ∑power = 11,533

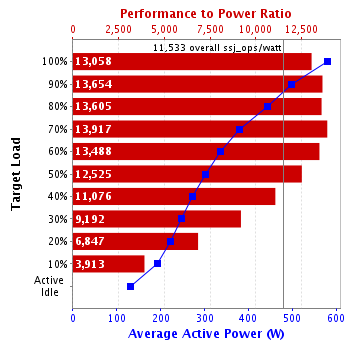

Graph of results
System Under Test
Set: 'RX2530M6'
Set Identifier: RX2530M6
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M6
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8380
CPU Characteristics: 40-Core, 2.30GHz, 60MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 80 cores, 2 chips, 40 cores/chip
Hardware Threads: 160 (2 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1280 KB I+D on chip per core
Tertiary Cache: 60 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W): 1 x 900
Power Supply Details: S26113-E629-V50-1
Disk Drive: 1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN CP I350-T4 4X 1000BASE-T OCPv3, PYBLA274U
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-24.43-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options: -server -Xmn16000m -Xms18000m -Xmx18000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking
JVM Affinity: chrt -r 1 taskset -c [(0,1,2,3,4,5,6,7,8,9,80,81,82,83,84,85,86,87,88,89),(10,11,12,13,14,15,16,17,18,19,90,91,92,93,94,95,96,97,98),(20,21,22,23,24,25,26,27,28,29,100,101,102,103,104,105,106,107,108,109),(30,31,32,33,34,35,36,37,38,39,110,111,112,113,114,115,116,117,118),(40,41,42,43,44,45,46,47,48,49,120,121,122,123,124,125,126,127,128,129),(50,51,52,53,54,55,56,57,58,59,130,131,132,133,134,135,136,137,138),(60,61,62,63,64,65,66,67,68,69,140,141,142,143,144,145,146,147,148,149),(70,71,72,73,74,75,76,77,78,79,150,151,152,153,154,155,156,157,158)] numactl --membind=[0-3]
JVM Instances: 8
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.3.0
Management Firmware Version: 3.20m
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: 2x Intel Xeon E5-2643 v4
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode), version 1.8.0_211
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170213562
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400088-2002
Date of Calibration: 25-Jun-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 580 22.2
90% 499 22.2
80% 444 22.3
70% 380 22.3
60% 336 22.1
50% 302 21.9
40% 274 21.7
30% 248 21.6
20% 221 21.6
10% 194 21.6
Active Idle 131 21.6
Line Standard Minimum Temperature (°C) Elevation (m)
200V / 50 Hz / 1 phase / 2 wires 21.6 11
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,705,593
Calibration 2     7,571,015
Calibration 3     7,577,805
ssj_ops@calibrated=7,574,410
100% 100.0% 7,574,410 7,573,884
90% 90.0% 6,816,969 6,814,856
80% 79.8% 6,059,528 6,047,198
70% 69.9% 5,302,087 5,292,424
60% 59.9% 4,544,646 4,535,904
50% 49.9% 3,787,205 3,781,094
40% 40.0% 3,029,764 3,031,768
30% 30.1% 2,272,323 2,279,204
20% 20.0% 1,514,882 1,516,364
10% 10.0% 757,441 758,504
Active Idle   0 0

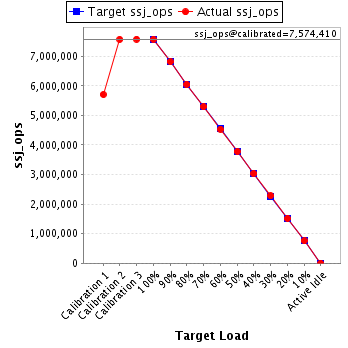

Graph of results
See the Host Performance Report for additional details.
