Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,392,465
ssj_ops@100% per JVM = 96,816
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 21, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,472,631
Calibration 2     12,465,440
Calibration 3     12,435,529
ssj_ops@calibrated=12,450,484
100% 99.5% 12,450,484 12,392,465
90% 90.0% 11,205,436 11,202,586
80% 80.0% 9,960,387 9,954,603
70% 70.0% 8,715,339 8,710,446
60% 60.0% 7,470,291 7,465,072
50% 50.0% 6,225,242 6,223,153
40% 40.0% 4,980,194 4,985,644
30% 30.0% 3,735,145 3,735,653
20% 20.0% 2,490,097 2,491,861
10% 10.0% 1,245,048 1,246,509
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node04.001 95,007
SLES12SP5-Node04.002 98,091
SLES12SP5-Node04.003 94,259
SLES12SP5-Node04.004 96,681
SLES12SP5-Node04.005 97,367
SLES12SP5-Node04.006 96,811
SLES12SP5-Node04.007 91,898
SLES12SP5-Node04.008 99,458
SLES12SP5-Node04.009 101,604
SLES12SP5-Node04.010 96,930
SLES12SP5-Node04.011 97,381
SLES12SP5-Node04.012 99,155
SLES12SP5-Node04.013 97,385
SLES12SP5-Node04.014 95,211
SLES12SP5-Node04.015 90,806
SLES12SP5-Node04.016 95,018
SLES12SP5-Node04.017 101,283
SLES12SP5-Node04.018 92,654
SLES12SP5-Node04.019 100,762
SLES12SP5-Node04.020 93,586
SLES12SP5-Node04.021 96,338
SLES12SP5-Node04.022 100,435
SLES12SP5-Node04.023 98,462
SLES12SP5-Node04.024 97,346

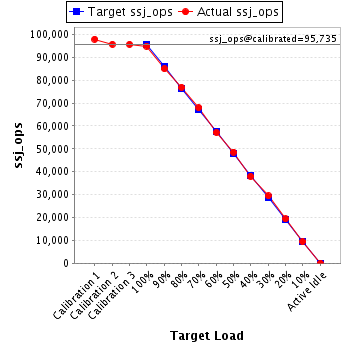

SLES12SP5-Node04.025 94,903
SLES12SP5-Node04.026 96,650
SLES12SP5-Node04.027 96,104
SLES12SP5-Node04.028 96,074
SLES12SP5-Node04.029 98,719
SLES12SP5-Node04.030 96,239

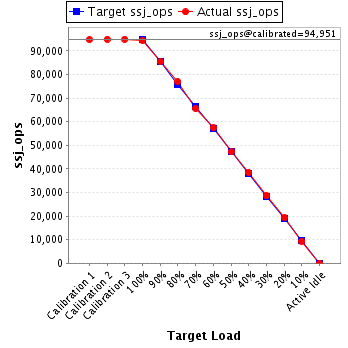

SLES12SP5-Node04.031 94,470
SLES12SP5-Node04.032 96,244
SLES12SP5-Node04.033 98,685
SLES12SP5-Node04.034 93,810
SLES12SP5-Node04.035 99,777
SLES12SP5-Node04.036 95,630
SLES12SP5-Node04.037 93,279
SLES12SP5-Node04.038 95,654
SLES12SP5-Node04.039 96,700
SLES12SP5-Node04.040 100,838
SLES12SP5-Node04.041 97,260
SLES12SP5-Node04.042 94,204
SLES12SP5-Node04.043 97,247
SLES12SP5-Node04.044 94,388
SLES12SP5-Node04.045 99,767
SLES12SP5-Node04.046 100,477
SLES12SP5-Node04.047 97,237
SLES12SP5-Node04.048 100,226
SLES12SP5-Node04.049 98,580
SLES12SP5-Node04.050 96,054
SLES12SP5-Node04.051 100,989

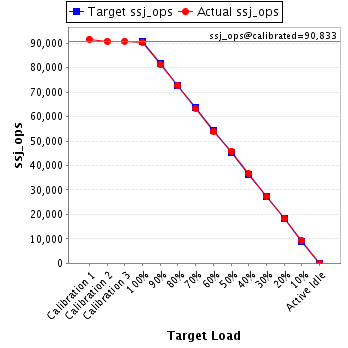

SLES12SP5-Node04.052 90,392
SLES12SP5-Node04.053 97,096
SLES12SP5-Node04.054 97,054
SLES12SP5-Node04.055 96,761
SLES12SP5-Node04.056 99,324

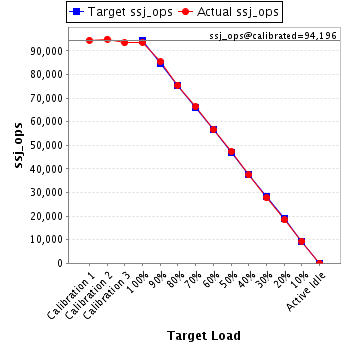

SLES12SP5-Node04.057 93,644
SLES12SP5-Node04.058 92,575
SLES12SP5-Node04.059 99,492
SLES12SP5-Node04.060 96,908
SLES12SP5-Node04.061 95,833
SLES12SP5-Node04.062 96,100
SLES12SP5-Node04.063 93,536
SLES12SP5-Node04.064 97,513
SLES12SP5-Node04.065 97,627
SLES12SP5-Node04.066 95,862
SLES12SP5-Node04.067 98,705
SLES12SP5-Node04.068 100,646
SLES12SP5-Node04.069 99,847
SLES12SP5-Node04.070 99,364
SLES12SP5-Node04.071 94,801
SLES12SP5-Node04.072 100,324
SLES12SP5-Node04.073 94,774
SLES12SP5-Node04.074 91,216
SLES12SP5-Node04.075 98,256
SLES12SP5-Node04.076 92,876
SLES12SP5-Node04.077 99,469
SLES12SP5-Node04.078 96,560
SLES12SP5-Node04.079 97,541
SLES12SP5-Node04.080 99,397
SLES12SP5-Node04.081 97,432
SLES12SP5-Node04.082 96,871
SLES12SP5-Node04.083 97,260
SLES12SP5-Node04.084 99,117
SLES12SP5-Node04.085 98,346
SLES12SP5-Node04.086 99,080
SLES12SP5-Node04.087 95,050
SLES12SP5-Node04.088 93,665
SLES12SP5-Node04.089 101,060
SLES12SP5-Node04.090 98,190

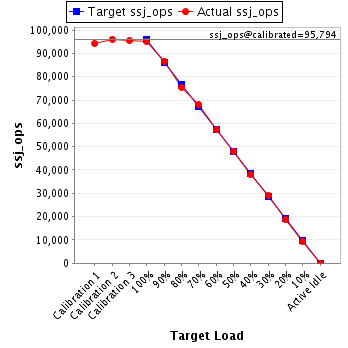

SLES12SP5-Node04.091 95,136
SLES12SP5-Node04.092 96,034
SLES12SP5-Node04.093 92,995
SLES12SP5-Node04.094 100,032
SLES12SP5-Node04.095 100,195
SLES12SP5-Node04.096 97,007
SLES12SP5-Node04.097 95,480

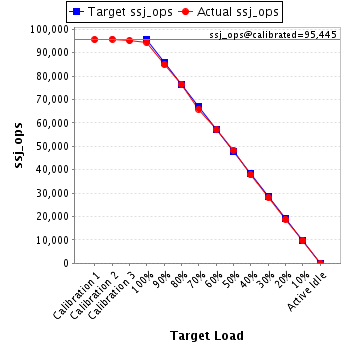

SLES12SP5-Node04.098 94,424

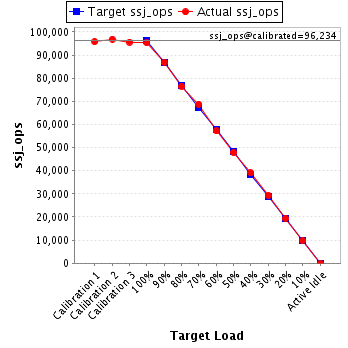

SLES12SP5-Node04.099 95,222
SLES12SP5-Node04.100 96,718
SLES12SP5-Node04.101 95,027
SLES12SP5-Node04.102 99,591
SLES12SP5-Node04.103 91,691
SLES12SP5-Node04.104 98,837
SLES12SP5-Node04.105 96,656
SLES12SP5-Node04.106 94,485
SLES12SP5-Node04.107 95,194
SLES12SP5-Node04.108 97,292
SLES12SP5-Node04.109 97,756
SLES12SP5-Node04.110 99,119
SLES12SP5-Node04.111 101,390
SLES12SP5-Node04.112 95,972
SLES12SP5-Node04.113 98,078
SLES12SP5-Node04.114 99,852
SLES12SP5-Node04.115 98,066
SLES12SP5-Node04.116 98,291
SLES12SP5-Node04.117 98,439
SLES12SP5-Node04.118 94,622
SLES12SP5-Node04.119 94,259
SLES12SP5-Node04.120 93,596
SLES12SP5-Node04.121 97,258
SLES12SP5-Node04.122 93,622
SLES12SP5-Node04.123 92,453
SLES12SP5-Node04.124 96,646
SLES12SP5-Node04.125 99,880
SLES12SP5-Node04.126 95,903
SLES12SP5-Node04.127 95,532
SLES12SP5-Node04.128 96,021
ssj_ops@100% 12,392,465
ssj_ops@100% per JVM 96,816
Graph of per-instance results

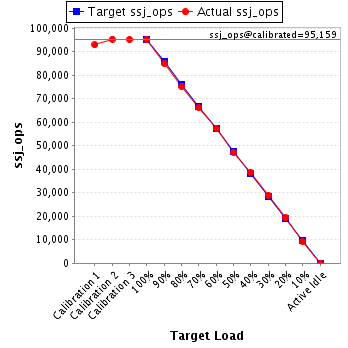

JVM 'SLES12SP5-Node04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,834
Calibration 2     95,269
Calibration 3     95,050
ssj_ops@calibrated=95,159
100% 99.8% 95,159 95,007
90% 89.3% 85,644 84,953
80% 79.1% 76,128 75,269
70% 69.6% 66,612 66,262
60% 60.2% 57,096 57,264
50% 49.7% 47,580 47,295
40% 40.6% 38,064 38,674
30% 30.3% 28,548 28,875
20% 20.3% 19,032 19,275
10% 9.8% 9,516 9,287
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,939
Calibration 2     99,990
Calibration 3     99,552
ssj_ops@calibrated=99,771
100% 98.3% 99,771 98,091
90% 89.3% 89,794 89,126
80% 79.9% 79,817 79,735
70% 70.0% 69,840 69,835
60% 59.7% 59,863 59,531
50% 50.6% 49,885 50,504
40% 39.8% 39,908 39,688
30% 29.9% 29,931 29,876
20% 20.7% 19,954 20,666
10% 10.2% 9,977 10,196
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,092
Calibration 2     94,345
Calibration 3     93,607
ssj_ops@calibrated=93,976
100% 100.3% 93,976 94,259
90% 89.3% 84,578 83,876
80% 79.8% 75,181 74,946
70% 69.5% 65,783 65,279
60% 59.8% 56,386 56,231
50% 50.0% 46,988 46,942
40% 39.4% 37,590 37,067
30% 29.8% 28,193 27,958
20% 19.3% 18,795 18,127
10% 9.8% 9,398 9,233
Active Idle   0 0
Graph of results

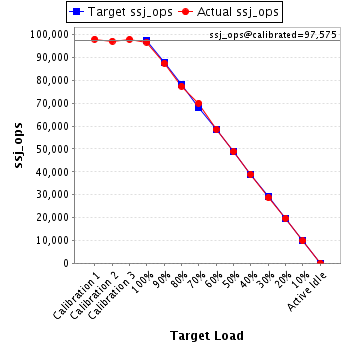

JVM 'SLES12SP5-Node04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,051
Calibration 2     97,168
Calibration 3     97,982
ssj_ops@calibrated=97,575
100% 99.1% 97,575 96,681
90% 89.6% 87,818 87,472
80% 79.4% 78,060 77,437
70% 71.7% 68,303 69,992
60% 60.1% 58,545 58,659
50% 50.1% 48,788 48,847
40% 39.8% 39,030 38,819
30% 29.4% 29,273 28,733
20% 20.2% 19,515 19,698
10% 10.1% 9,758 9,812
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,344
Calibration 2     97,906
Calibration 3     97,993
ssj_ops@calibrated=97,950
100% 99.4% 97,950 97,367
90% 89.5% 88,155 87,651
80% 80.5% 78,360 78,875
70% 69.4% 68,565 67,938
60% 59.7% 58,770 58,510
50% 49.7% 48,975 48,633
40% 40.6% 39,180 39,810
30% 29.8% 29,385 29,205
20% 20.1% 19,590 19,712
10% 10.2% 9,795 9,998
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,563
Calibration 2     97,834
Calibration 3     96,738
ssj_ops@calibrated=97,286
100% 99.5% 97,286 96,811
90% 90.6% 87,557 88,109
80% 79.9% 77,829 77,714
70% 69.5% 68,100 67,601
60% 60.1% 58,372 58,432
50% 49.8% 48,643 48,493
40% 39.8% 38,914 38,692
30% 29.4% 29,186 28,562
20% 19.8% 19,457 19,307
10% 10.1% 9,729 9,829
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,085
Calibration 2     92,201
Calibration 3     91,700
ssj_ops@calibrated=91,950
100% 99.9% 91,950 91,898
90% 90.2% 82,755 82,918
80% 80.2% 73,560 73,766
70% 70.4% 64,365 64,749
60% 59.9% 55,170 55,052
50% 50.4% 45,975 46,307
40% 39.9% 36,780 36,683
30% 29.6% 27,585 27,187
20% 19.7% 18,390 18,096
10% 9.9% 9,195 9,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,198
Calibration 2     100,581
Calibration 3     100,142
ssj_ops@calibrated=100,362
100% 99.1% 100,362 99,458
90% 89.2% 90,326 89,504
80% 80.3% 80,289 80,611
70% 70.0% 70,253 70,209
60% 60.0% 60,217 60,173
50% 50.9% 50,181 51,059
40% 40.1% 40,145 40,214
30% 30.2% 30,109 30,261
20% 19.7% 20,072 19,733
10% 10.0% 10,036 9,991
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,677
Calibration 2     101,735
Calibration 3     100,528
ssj_ops@calibrated=101,131
100% 100.5% 101,131 101,604
90% 89.5% 91,018 90,534
80% 80.1% 80,905 80,961
70% 69.4% 70,792 70,182
60% 60.5% 60,679 61,176
50% 49.7% 50,566 50,273
40% 40.3% 40,453 40,750
30% 30.1% 30,339 30,457
20% 19.9% 20,226 20,146
10% 10.0% 10,113 10,133
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,813
Calibration 2     97,354
Calibration 3     98,159
ssj_ops@calibrated=97,756
100% 99.2% 97,756 96,930
90% 90.5% 87,981 88,455
80% 80.3% 78,205 78,498
70% 70.7% 68,429 69,067
60% 60.7% 58,654 59,296
50% 49.1% 48,878 48,043
40% 41.5% 39,102 40,527
30% 30.9% 29,327 30,171
20% 20.2% 19,551 19,766
10% 9.9% 9,776 9,722
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,890
Calibration 2     98,076
Calibration 3     98,484
ssj_ops@calibrated=98,280
100% 99.1% 98,280 97,381
90% 89.9% 88,452 88,321
80% 80.0% 78,624 78,638
70% 71.0% 68,796 69,736
60% 59.8% 58,968 58,804
50% 50.0% 49,140 49,188
40% 40.0% 39,312 39,322
30% 30.2% 29,484 29,675
20% 20.5% 19,656 20,099
10% 10.1% 9,828 9,887
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,294
Calibration 2     100,015
Calibration 3     99,565
ssj_ops@calibrated=99,790
100% 99.4% 99,790 99,155
90% 90.2% 89,811 89,962
80% 79.1% 79,832 78,967
70% 69.4% 69,853 69,283
60% 60.0% 59,874 59,874
50% 50.2% 49,895 50,135
40% 39.6% 39,916 39,557
30% 30.1% 29,937 30,000
20% 19.8% 19,958 19,736
10% 10.0% 9,979 9,929
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,797
Calibration 2     97,476
Calibration 3     97,414
ssj_ops@calibrated=97,445
100% 99.9% 97,445 97,385
90% 89.6% 87,700 87,263
80% 80.2% 77,956 78,163
70% 69.6% 68,211 67,856
60% 59.4% 58,467 57,887
50% 49.8% 48,722 48,504
40% 40.3% 38,978 39,227
30% 30.1% 29,233 29,308
20% 20.1% 19,489 19,617
10% 9.9% 9,744 9,679
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,074
Calibration 2     95,069
Calibration 3     96,141
ssj_ops@calibrated=95,605
100% 99.6% 95,605 95,211
90% 90.2% 86,044 86,238
80% 80.9% 76,484 77,330
70% 69.4% 66,923 66,350
60% 60.2% 57,363 57,581
50% 49.4% 47,802 47,203
40% 40.2% 38,242 38,412
30% 30.0% 28,681 28,635
20% 20.0% 19,121 19,129
10% 10.0% 9,560 9,558
Active Idle   0 0
Graph of results

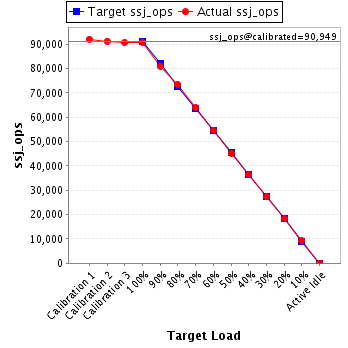

JVM 'SLES12SP5-Node04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,039
Calibration 2     91,194
Calibration 3     90,705
ssj_ops@calibrated=90,949
100% 99.8% 90,949 90,806
90% 89.1% 81,854 81,014
80% 80.7% 72,759 73,419
70% 70.3% 63,665 63,906
60% 59.8% 54,570 54,392
50% 49.7% 45,475 45,183
40% 40.2% 36,380 36,573
30% 30.1% 27,285 27,367
20% 20.1% 18,190 18,258
10% 10.2% 9,095 9,317
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,267
Calibration 2     94,772
Calibration 3     95,823
ssj_ops@calibrated=95,297
100% 99.7% 95,297 95,018
90% 89.9% 85,767 85,679
80% 79.1% 76,238 75,428
70% 69.6% 66,708 66,324
60% 59.8% 57,178 56,965
50% 50.1% 47,649 47,783
40% 39.8% 38,119 37,938
30% 30.3% 28,589 28,877
20% 19.9% 19,059 18,929
10% 10.0% 9,530 9,550
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,584
Calibration 2     102,180
Calibration 3     100,943
ssj_ops@calibrated=101,561
100% 99.7% 101,561 101,283
90% 90.3% 91,405 91,750
80% 79.6% 81,249 80,893
70% 69.7% 71,093 70,794
60% 60.2% 60,937 61,146
50% 49.7% 50,781 50,483
40% 39.7% 40,625 40,354
30% 29.7% 30,468 30,210
20% 20.3% 20,312 20,655
10% 9.7% 10,156 9,871
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,578
Calibration 2     93,289
Calibration 3     93,093
ssj_ops@calibrated=93,191
100% 99.4% 93,191 92,654
90% 89.9% 83,872 83,809
80% 81.1% 74,553 75,535
70% 69.9% 65,234 65,153
60% 60.7% 55,915 56,575
50% 50.2% 46,596 46,781
40% 40.2% 37,277 37,432
30% 29.5% 27,957 27,534
20% 20.1% 18,638 18,717
10% 9.8% 9,319 9,165
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,959
Calibration 2     101,029
Calibration 3     100,592
ssj_ops@calibrated=100,810
100% 100.0% 100,810 100,762
90% 90.2% 90,729 90,895
80% 79.6% 80,648 80,262
70% 69.3% 70,567 69,906
60% 60.5% 60,486 60,953
50% 49.8% 50,405 50,252
40% 39.7% 40,324 40,070
30% 29.7% 30,243 29,892
20% 20.2% 20,162 20,336
10% 10.1% 10,081 10,183
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,084
Calibration 2     94,126
Calibration 3     93,591
ssj_ops@calibrated=93,859
100% 99.7% 93,859 93,586
90% 89.4% 84,473 83,901
80% 80.0% 75,087 75,102
70% 69.7% 65,701 65,411
60% 59.9% 56,315 56,237
50% 49.9% 46,929 46,845
40% 40.1% 37,543 37,679
30% 30.8% 28,158 28,875
20% 20.4% 18,772 19,108
10% 10.0% 9,386 9,398
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,740
Calibration 2     97,237
Calibration 3     96,506
ssj_ops@calibrated=96,872
100% 99.4% 96,872 96,338
90% 90.2% 87,184 87,404
80% 80.8% 77,497 78,312
70% 69.1% 67,810 66,930
60% 59.8% 58,123 57,922
50% 49.4% 48,436 47,821
40% 40.5% 38,749 39,210
30% 30.3% 29,061 29,312
20% 20.3% 19,374 19,628
10% 10.3% 9,687 9,977
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,485
Calibration 2     100,836
Calibration 3     100,902
ssj_ops@calibrated=100,869
100% 99.6% 100,869 100,435
90% 90.2% 90,782 90,954
80% 81.0% 80,695 81,696
70% 70.6% 70,608 71,199
60% 59.2% 60,521 59,706
50% 50.2% 50,434 50,619
40% 39.3% 40,348 39,636
30% 29.8% 30,261 30,094
20% 20.5% 20,174 20,709
10% 10.1% 10,087 10,146
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,774
Calibration 2     99,585
Calibration 3     99,667
ssj_ops@calibrated=99,626
100% 98.8% 99,626 98,462
90% 90.3% 89,664 89,928
80% 80.3% 79,701 79,968
70% 69.2% 69,738 68,941
60% 60.4% 59,776 60,201
50% 50.3% 49,813 50,158
40% 40.0% 39,850 39,803
30% 29.9% 29,888 29,764
20% 19.5% 19,925 19,439
10% 10.1% 9,963 10,108
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,844
Calibration 2     97,399
Calibration 3     97,103
ssj_ops@calibrated=97,251
100% 100.1% 97,251 97,346
90% 90.6% 87,526 88,064
80% 80.7% 77,801 78,504
70% 69.1% 68,076 67,195
60% 60.3% 58,351 58,610
50% 50.3% 48,626 48,870
40% 40.0% 38,901 38,921
30% 29.5% 29,175 28,700
20% 20.0% 19,450 19,473
10% 10.2% 9,725 9,908
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,946
Calibration 2     95,735
Calibration 3     95,736
ssj_ops@calibrated=95,735
100% 99.1% 95,735 94,903
90% 88.8% 86,162 85,022
80% 80.4% 76,588 76,925
70% 71.0% 67,015 67,964
60% 59.7% 57,441 57,157
50% 50.8% 47,868 48,625
40% 39.7% 38,294 37,980
30% 30.8% 28,721 29,479
20% 20.2% 19,147 19,370
10% 9.9% 9,574 9,471
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,708
Calibration 2     96,205
Calibration 3     96,190
ssj_ops@calibrated=96,197
100% 100.5% 96,197 96,650
90% 90.8% 86,578 87,309
80% 80.8% 76,958 77,704
70% 70.5% 67,338 67,787
60% 60.0% 57,718 57,709
50% 49.7% 48,099 47,780
40% 39.7% 38,479 38,225
30% 29.7% 28,859 28,574
20% 20.1% 19,239 19,334
10% 10.2% 9,620 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,766
Calibration 2     95,995
Calibration 3     95,137
ssj_ops@calibrated=95,566
100% 100.6% 95,566 96,104
90% 90.4% 86,010 86,377
80% 79.9% 76,453 76,360
70% 70.0% 66,896 66,909
60% 60.0% 57,340 57,315
50% 50.5% 47,783 48,246
40% 40.1% 38,226 38,294
30% 30.2% 28,670 28,830
20% 20.0% 19,113 19,129
10% 10.4% 9,557 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,094
Calibration 2     96,982
Calibration 3     96,470
ssj_ops@calibrated=96,726
100% 99.3% 96,726 96,074
90% 90.0% 87,054 87,019
80% 80.2% 77,381 77,546
70% 70.7% 67,708 68,349
60% 59.4% 58,036 57,438
50% 50.2% 48,363 48,590
40% 39.5% 38,690 38,237
30% 30.4% 29,018 29,388
20% 19.6% 19,345 18,961
10% 10.0% 9,673 9,642
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,927
Calibration 2     99,508
Calibration 3     98,828
ssj_ops@calibrated=99,168
100% 99.5% 99,168 98,719
90% 89.5% 89,251 88,747
80% 79.8% 79,334 79,115
70% 70.8% 69,418 70,227
60% 59.9% 59,501 59,389
50% 49.6% 49,584 49,225
40% 39.8% 39,667 39,433
30% 31.0% 29,750 30,722
20% 19.8% 19,834 19,586
10% 10.0% 9,917 9,946
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,433
Calibration 2     97,069
Calibration 3     96,819
ssj_ops@calibrated=96,944
100% 99.3% 96,944 96,239
90% 89.3% 87,250 86,603
80% 80.1% 77,555 77,668
70% 69.5% 67,861 67,345
60% 59.7% 58,167 57,833
50% 49.6% 48,472 48,097
40% 39.7% 38,778 38,479
30% 29.8% 29,083 28,884
20% 20.2% 19,389 19,562
10% 10.0% 9,694 9,660
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,704
Calibration 2     94,927
Calibration 3     94,976
ssj_ops@calibrated=94,951
100% 99.5% 94,951 94,470
90% 90.2% 85,456 85,623
80% 81.1% 75,961 76,958
70% 69.1% 66,466 65,597
60% 60.4% 56,971 57,353
50% 49.7% 47,476 47,200
40% 40.5% 37,980 38,418
30% 30.1% 28,485 28,567
20% 20.3% 18,990 19,289
10% 9.8% 9,495 9,310
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,654
Calibration 2     97,268
Calibration 3     96,504
ssj_ops@calibrated=96,886
100% 99.3% 96,886 96,244
90% 89.0% 87,198 86,195
80% 80.1% 77,509 77,601
70% 69.9% 67,820 67,771
60% 59.5% 58,132 57,640
50% 50.3% 48,443 48,716
40% 40.2% 38,754 38,953
30% 29.9% 29,066 28,987
20% 20.0% 19,377 19,395
10% 10.1% 9,689 9,821
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,896
Calibration 2     99,794
Calibration 3     98,844
ssj_ops@calibrated=99,319
100% 99.4% 99,319 98,685
90% 89.3% 89,387 88,727
80% 79.6% 79,455 79,080
70% 70.3% 69,523 69,791
60% 60.2% 59,591 59,778
50% 50.3% 49,659 49,971
40% 40.4% 39,728 40,092
30% 29.6% 29,796 29,407
20% 19.9% 19,864 19,756
10% 9.6% 9,932 9,525
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,822
Calibration 2     94,349
Calibration 3     93,936
ssj_ops@calibrated=94,142
100% 99.6% 94,142 93,810
90% 90.5% 84,728 85,233
80% 80.5% 75,314 75,747
70% 69.7% 65,900 65,610
60% 60.9% 56,485 57,363
50% 49.2% 47,071 46,318
40% 39.8% 37,657 37,428
30% 29.8% 28,243 28,071
20% 20.0% 18,828 18,824
10% 10.0% 9,414 9,454
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,385
Calibration 2     100,463
Calibration 3     100,382
ssj_ops@calibrated=100,423
100% 99.4% 100,423 99,777
90% 90.3% 90,380 90,662
80% 79.8% 80,338 80,113
70% 69.3% 70,296 69,639
60% 59.7% 60,254 59,930
50% 50.0% 50,211 50,242
40% 41.1% 40,169 41,272
30% 29.8% 30,127 29,922
20% 19.7% 20,085 19,807
10% 10.0% 10,042 10,092
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,326
Calibration 2     96,274
Calibration 3     96,336
ssj_ops@calibrated=96,305
100% 99.3% 96,305 95,630
90% 90.1% 86,674 86,808
80% 79.8% 77,044 76,832
70% 69.8% 67,413 67,249
60% 60.5% 57,783 58,226
50% 50.1% 48,152 48,239
40% 39.6% 38,522 38,110
30% 29.6% 28,891 28,530
20% 20.3% 19,261 19,578
10% 10.0% 9,630 9,600
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,084
Calibration 2     93,742
Calibration 3     93,323
ssj_ops@calibrated=93,532
100% 99.7% 93,532 93,279
90% 89.4% 84,179 83,604
80% 80.0% 74,826 74,861
70% 70.4% 65,473 65,813
60% 59.5% 56,119 55,622
50% 50.0% 46,766 46,746
40% 40.7% 37,413 38,076
30% 30.1% 28,060 28,131
20% 19.7% 18,706 18,383
10% 9.9% 9,353 9,287
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,461
Calibration 2     95,245
Calibration 3     94,837
ssj_ops@calibrated=95,041
100% 100.6% 95,041 95,654
90% 90.4% 85,537 85,893
80% 78.4% 76,033 74,542
70% 68.6% 66,529 65,161
60% 60.1% 57,025 57,119
50% 50.2% 47,520 47,697
40% 40.2% 38,016 38,216
30% 29.1% 28,512 27,704
20% 20.0% 19,008 19,031
10% 10.4% 9,504 9,919
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,734
Calibration 2     97,472
Calibration 3     96,587
ssj_ops@calibrated=97,029
100% 99.7% 97,029 96,700
90% 90.7% 87,327 88,028
80% 81.0% 77,624 78,631
70% 70.4% 67,921 68,270
60% 59.3% 58,218 57,546
50% 50.3% 48,515 48,801
40% 40.1% 38,812 38,915
30% 30.6% 29,109 29,648
20% 20.1% 19,406 19,542
10% 10.0% 9,703 9,693
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,791
Calibration 2     101,202
Calibration 3     100,639
ssj_ops@calibrated=100,920
100% 99.9% 100,920 100,838
90% 90.1% 90,828 90,973
80% 79.1% 80,736 79,822
70% 70.7% 70,644 71,362
60% 59.4% 60,552 59,918
50% 50.1% 50,460 50,546
40% 40.3% 40,368 40,675
30% 29.9% 30,276 30,141
20% 19.9% 20,184 20,035
10% 10.1% 10,092 10,144
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,671
Calibration 2     98,159
Calibration 3     98,010
ssj_ops@calibrated=98,084
100% 99.2% 98,084 97,260
90% 89.9% 88,276 88,221
80% 80.0% 78,467 78,487
70% 70.6% 68,659 69,296
60% 60.2% 58,851 59,030
50% 49.2% 49,042 48,248
40% 40.0% 39,234 39,273
30% 30.8% 29,425 30,229
20% 19.6% 19,617 19,224
10% 9.8% 9,808 9,591
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,326
Calibration 2     94,989
Calibration 3     94,598
ssj_ops@calibrated=94,794
100% 99.4% 94,794 94,204
90% 89.8% 85,314 85,111
80% 79.0% 75,835 74,891
70% 69.2% 66,356 65,602
60% 59.8% 56,876 56,668
50% 49.7% 47,397 47,121
40% 39.6% 37,918 37,515
30% 29.9% 28,438 28,315
20% 19.5% 18,959 18,500
10% 9.9% 9,479 9,342
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,261
Calibration 2     98,194
Calibration 3     97,322
ssj_ops@calibrated=97,758
100% 99.5% 97,758 97,247
90% 89.8% 87,982 87,740
80% 79.3% 78,206 77,510
70% 70.3% 68,431 68,709
60% 60.3% 58,655 58,983
50% 49.7% 48,879 48,595
40% 40.7% 39,103 39,765
30% 30.2% 29,327 29,529
20% 19.4% 19,552 18,958
10% 9.9% 9,776 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,424
Calibration 2     95,506
Calibration 3     96,193
ssj_ops@calibrated=95,849
100% 98.5% 95,849 94,388
90% 90.4% 86,264 86,653
80% 80.4% 76,680 77,081
70% 69.3% 67,095 66,434
60% 59.7% 57,510 57,197
50% 49.6% 47,925 47,494
40% 39.7% 38,340 38,092
30% 29.7% 28,755 28,496
20% 20.3% 19,170 19,437
10% 10.0% 9,585 9,537
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,977
Calibration 2     100,261
Calibration 3     100,558
ssj_ops@calibrated=100,410
100% 99.4% 100,410 99,767
90% 90.6% 90,369 90,953
80% 79.7% 80,328 79,997
70% 69.9% 70,287 70,182
60% 60.9% 60,246 61,143
50% 49.6% 50,205 49,773
40% 39.6% 40,164 39,741
30% 29.9% 30,123 30,024
20% 20.1% 20,082 20,162
10% 10.0% 10,041 10,017
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,021
Calibration 2     101,190
Calibration 3     101,055
ssj_ops@calibrated=101,122
100% 99.4% 101,122 100,477
90% 89.2% 91,010 90,201
80% 79.0% 80,898 79,931
70% 70.4% 70,786 71,141
60% 59.9% 60,673 60,547
50% 49.5% 50,561 50,045
40% 40.0% 40,449 40,463
30% 30.3% 30,337 30,666
20% 19.9% 20,224 20,146
10% 9.9% 10,112 9,995
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,880
Calibration 2     97,953
Calibration 3     98,497
ssj_ops@calibrated=98,225
100% 99.0% 98,225 97,237
90% 90.0% 88,402 88,382
80% 79.9% 78,580 78,463
70% 70.4% 68,757 69,116
60% 60.0% 58,935 58,961
50% 49.7% 49,112 48,808
40% 40.3% 39,290 39,603
30% 29.7% 29,467 29,158
20% 20.0% 19,645 19,597
10% 9.7% 9,822 9,550
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,248
Calibration 2     100,722
Calibration 3     99,926
ssj_ops@calibrated=100,324
100% 99.9% 100,324 100,226
90% 89.6% 90,292 89,876
80% 80.3% 80,259 80,582
70% 69.7% 70,227 69,956
60% 60.1% 60,195 60,336
50% 49.7% 50,162 49,887
40% 39.8% 40,130 39,884
30% 30.0% 30,097 30,069
20% 19.8% 20,065 19,900
10% 10.0% 10,032 9,987
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,000
Calibration 2     100,879
Calibration 3     100,054
ssj_ops@calibrated=100,467
100% 98.1% 100,467 98,580
90% 90.1% 90,420 90,529
80% 79.5% 80,373 79,882
70% 69.3% 70,327 69,616
60% 58.9% 60,280 59,186
50% 50.5% 50,233 50,777
40% 39.3% 40,187 39,488
30% 30.8% 30,140 30,979
20% 19.6% 20,093 19,720
10% 10.1% 10,047 10,115
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,724
Calibration 2     96,214
Calibration 3     97,987
ssj_ops@calibrated=97,101
100% 98.9% 97,101 96,054
90% 89.9% 87,391 87,340
80% 80.5% 77,680 78,129
70% 69.9% 67,970 67,844
60% 60.6% 58,260 58,837
50% 49.7% 48,550 48,305
40% 40.0% 38,840 38,887
30% 29.0% 29,130 28,186
20% 20.1% 19,420 19,480
10% 10.0% 9,710 9,750
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,776
Calibration 2     102,153
Calibration 3     101,014
ssj_ops@calibrated=101,584
100% 99.4% 101,584 100,989
90% 89.6% 91,425 90,972
80% 79.4% 81,267 80,669
70% 70.8% 71,109 71,903
60% 60.3% 60,950 61,251
50% 49.9% 50,792 50,666
40% 40.6% 40,633 41,195
30% 29.9% 30,475 30,364
20% 20.9% 20,317 21,258
10% 10.2% 10,158 10,354
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,681
Calibration 2     90,775
Calibration 3     90,891
ssj_ops@calibrated=90,833
100% 99.5% 90,833 90,392
90% 89.7% 81,750 81,442
80% 80.1% 72,666 72,799
70% 69.7% 63,583 63,350
60% 59.4% 54,500 53,960
50% 50.3% 45,416 45,720
40% 40.3% 36,333 36,616
30% 30.1% 27,250 27,368
20% 20.0% 18,167 18,167
10% 10.3% 9,083 9,350
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,809
Calibration 2     97,281
Calibration 3     96,360
ssj_ops@calibrated=96,820
100% 100.3% 96,820 97,096
90% 91.1% 87,138 88,231
80% 80.2% 77,456 77,659
70% 70.0% 67,774 67,781
60% 60.0% 58,092 58,047
50% 50.5% 48,410 48,848
40% 39.4% 38,728 38,188
30% 30.2% 29,046 29,257
20% 19.9% 19,364 19,271
10% 9.8% 9,682 9,471
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,918
Calibration 2     98,485
Calibration 3     95,990
ssj_ops@calibrated=97,237
100% 99.8% 97,237 97,054
90% 90.0% 87,514 87,509
80% 79.9% 77,790 77,729
70% 70.2% 68,066 68,214
60% 59.8% 58,342 58,122
50% 50.2% 48,619 48,859
40% 39.8% 38,895 38,684
30% 30.7% 29,171 29,837
20% 20.2% 19,447 19,675
10% 9.9% 9,724 9,656
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,797
Calibration 2     97,266
Calibration 3     97,251
ssj_ops@calibrated=97,259
100% 99.5% 97,259 96,761
90% 90.2% 87,533 87,728
80% 79.5% 77,807 77,284
70% 69.8% 68,081 67,898
60% 60.4% 58,355 58,749
50% 49.9% 48,629 48,526
40% 40.5% 38,903 39,349
30% 29.9% 29,178 29,083
20% 20.3% 19,452 19,732
10% 10.0% 9,726 9,704
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,648
Calibration 2     99,505
Calibration 3     99,556
ssj_ops@calibrated=99,531
100% 99.8% 99,531 99,324
90% 89.4% 89,578 88,992
80% 79.8% 79,625 79,431
70% 70.7% 69,672 70,336
60% 58.9% 59,718 58,601
50% 50.3% 49,765 50,086
40% 39.6% 39,812 39,442
30% 29.7% 29,859 29,604
20% 19.9% 19,906 19,787
10% 10.1% 9,953 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,503
Calibration 2     94,946
Calibration 3     93,446
ssj_ops@calibrated=94,196
100% 99.4% 94,196 93,644
90% 90.6% 84,776 85,379
80% 80.1% 75,357 75,405
70% 70.4% 65,937 66,347
60% 60.1% 56,518 56,644
50% 50.2% 47,098 47,292
40% 39.7% 37,678 37,399
30% 29.4% 28,259 27,705
20% 19.5% 18,839 18,401
10% 10.0% 9,420 9,398
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,700
Calibration 2     92,767
Calibration 3     92,513
ssj_ops@calibrated=92,640
100% 99.9% 92,640 92,575
90% 91.1% 83,376 84,412
80% 80.1% 74,112 74,226
70% 69.6% 64,848 64,497
60% 59.8% 55,584 55,391
50% 50.2% 46,320 46,540
40% 39.3% 37,056 36,448
30% 29.8% 27,792 27,581
20% 19.8% 18,528 18,350
10% 10.1% 9,264 9,354
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,381
Calibration 2     99,787
Calibration 3     100,368
ssj_ops@calibrated=100,078
100% 99.4% 100,078 99,492
90% 90.3% 90,070 90,346
80% 79.6% 80,062 79,660
70% 70.9% 70,054 70,930
60% 60.0% 60,047 60,034
50% 49.7% 50,039 49,775
40% 40.6% 40,031 40,636
30% 29.7% 30,023 29,737
20% 20.0% 20,016 20,012
10% 10.1% 10,008 10,108
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,564
Calibration 2     97,189
Calibration 3     97,638
ssj_ops@calibrated=97,413
100% 99.5% 97,413 96,908
90% 89.7% 87,672 87,356
80% 79.7% 77,931 77,642
70% 70.0% 68,189 68,216
60% 60.1% 58,448 58,517
50% 49.5% 48,707 48,181
40% 39.9% 38,965 38,833
30% 29.8% 29,224 29,025
20% 20.4% 19,483 19,862
10% 10.1% 9,741 9,825
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,098
Calibration 2     96,179
Calibration 3     96,179
ssj_ops@calibrated=96,179
100% 99.6% 96,179 95,833
90% 89.8% 86,561 86,342
80% 81.3% 76,943 78,209
70% 70.5% 67,325 67,830
60% 59.3% 57,707 57,020
50% 49.8% 48,089 47,913
40% 40.2% 38,472 38,709
30% 30.7% 28,854 29,506
20% 20.0% 19,236 19,196
10% 10.0% 9,618 9,592
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,920
Calibration 2     96,802
Calibration 3     96,447
ssj_ops@calibrated=96,625
100% 99.5% 96,625 96,100
90% 90.5% 86,962 87,437
80% 79.8% 77,300 77,146
70% 70.0% 67,637 67,683
60% 60.7% 57,975 58,631
50% 50.2% 48,312 48,531
40% 40.4% 38,650 39,002
30% 30.3% 28,987 29,284
20% 20.1% 19,325 19,449
10% 9.6% 9,662 9,320
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,297
Calibration 2     94,202
Calibration 3     94,076
ssj_ops@calibrated=94,139
100% 99.4% 94,139 93,536
90% 89.2% 84,725 83,964
80% 80.3% 75,311 75,606
70% 69.3% 65,897 65,262
60% 60.2% 56,483 56,713
50% 50.3% 47,069 47,306
40% 40.3% 37,656 37,899
30% 30.0% 28,242 28,275
20% 19.9% 18,828 18,704
10% 9.9% 9,414 9,287
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,065
Calibration 2     98,361
Calibration 3     99,083
ssj_ops@calibrated=98,722
100% 98.8% 98,722 97,513
90% 89.5% 88,850 88,393
80% 79.5% 78,978 78,532
70% 70.3% 69,105 69,429
60% 59.8% 59,233 59,062
50% 49.5% 49,361 48,913
40% 40.3% 39,489 39,738
30% 30.7% 29,617 30,287
20% 19.9% 19,744 19,690
10% 9.8% 9,872 9,667
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,164
Calibration 2     97,939
Calibration 3     97,670
ssj_ops@calibrated=97,804
100% 99.8% 97,804 97,627
90% 89.8% 88,024 87,832
80% 80.6% 78,244 78,792
70% 69.4% 68,463 67,888
60% 59.3% 58,683 57,968
50% 50.1% 48,902 49,001
40% 39.7% 39,122 38,841
30% 30.2% 29,341 29,501
20% 20.2% 19,561 19,764
10% 10.4% 9,780 10,133
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,464
Calibration 2     96,155
Calibration 3     95,517
ssj_ops@calibrated=95,836
100% 100.0% 95,836 95,862
90% 89.2% 86,252 85,441
80% 79.3% 76,669 75,998
70% 70.0% 67,085 67,048
60% 60.9% 57,502 58,339
50% 49.9% 47,918 47,790
40% 39.6% 38,334 37,989
30% 30.3% 28,751 29,037
20% 19.9% 19,167 19,086
10% 9.6% 9,584 9,232
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,561
Calibration 2     99,249
Calibration 3     98,562
ssj_ops@calibrated=98,905
100% 99.8% 98,905 98,705
90% 89.7% 89,015 88,679
80% 79.2% 79,124 78,373
70% 69.4% 69,234 68,615
60% 59.4% 59,343 58,782
50% 50.3% 49,453 49,792
40% 39.6% 39,562 39,159
30% 30.2% 29,672 29,824
20% 19.9% 19,781 19,658
10% 9.9% 9,891 9,825
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,100
Calibration 2     100,067
Calibration 3     100,576
ssj_ops@calibrated=100,321
100% 100.3% 100,321 100,646
90% 90.7% 90,289 90,970
80% 80.4% 80,257 80,677
70% 69.4% 70,225 69,631
60% 59.8% 60,193 60,022
50% 49.9% 50,161 50,015
40% 40.4% 40,129 40,508
30% 30.1% 30,096 30,193
20% 20.0% 20,064 20,025
10% 10.2% 10,032 10,250
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,300
Calibration 2     100,252
Calibration 3     100,648
ssj_ops@calibrated=100,450
100% 99.4% 100,450 99,847
90% 89.6% 90,405 90,035
80% 79.4% 80,360 79,773
70% 70.7% 70,315 71,066
60% 59.6% 60,270 59,886
50% 49.7% 50,225 49,969
40% 39.5% 40,180 39,698
30% 30.9% 30,135 31,050
20% 20.6% 20,090 20,687
10% 10.1% 10,045 10,101
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,838
Calibration 2     99,695
Calibration 3     99,282
ssj_ops@calibrated=99,488
100% 99.9% 99,488 99,364
90% 90.5% 89,539 90,017
80% 79.9% 79,591 79,469
70% 69.9% 69,642 69,565
60% 59.8% 59,693 59,497
50% 50.5% 49,744 50,239
40% 40.3% 39,795 40,092
30% 30.2% 29,846 30,029
20% 20.6% 19,898 20,481
10% 10.0% 9,949 9,937
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,957
Calibration 2     94,328
Calibration 3     95,469
ssj_ops@calibrated=94,898
100% 99.9% 94,898 94,801
90% 90.5% 85,408 85,873
80% 80.6% 75,919 76,505
70% 69.8% 66,429 66,278
60% 60.2% 56,939 57,107
50% 50.2% 47,449 47,637
40% 40.0% 37,959 37,955
30% 30.4% 28,469 28,812
20% 20.3% 18,980 19,270
10% 10.0% 9,490 9,479
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,352
Calibration 2     100,501
Calibration 3     100,676
ssj_ops@calibrated=100,589
100% 99.7% 100,589 100,324
90% 90.5% 90,530 91,032
80% 80.3% 80,471 80,817
70% 69.5% 70,412 69,950
60% 59.2% 60,353 59,557
50% 50.0% 50,294 50,248
40% 40.0% 40,235 40,257
30% 30.3% 30,177 30,504
20% 20.2% 20,118 20,269
10% 9.8% 10,059 9,893
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,760
Calibration 2     95,541
Calibration 3     94,593
ssj_ops@calibrated=95,067
100% 99.7% 95,067 94,774
90% 89.5% 85,560 85,053
80% 79.8% 76,054 75,899
70% 70.3% 66,547 66,852
60% 59.5% 57,040 56,600
50% 50.1% 47,534 47,656
40% 39.6% 38,027 37,620
30% 30.1% 28,520 28,619
20% 19.9% 19,013 18,908
10% 9.9% 9,507 9,437
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,975
Calibration 2     93,337
Calibration 3     92,823
ssj_ops@calibrated=93,080
100% 98.0% 93,080 91,216
90% 90.7% 83,772 84,388
80% 79.8% 74,464 74,323
70% 70.5% 65,156 65,601
60% 59.6% 55,848 55,446
50% 50.2% 46,540 46,744
40% 39.9% 37,232 37,180
30% 29.9% 27,924 27,812
20% 19.7% 18,616 18,314
10% 10.2% 9,308 9,512
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,743
Calibration 2     99,541
Calibration 3     98,892
ssj_ops@calibrated=99,216
100% 99.0% 99,216 98,256
90% 88.8% 89,295 88,134
80% 79.3% 79,373 78,692
70% 69.8% 69,451 69,209
60% 60.3% 59,530 59,865
50% 50.4% 49,608 50,019
40% 39.9% 39,687 39,615
30% 29.9% 29,765 29,622
20% 20.1% 19,843 19,917
10% 9.5% 9,922 9,386
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,460
Calibration 2     92,880
Calibration 3     92,993
ssj_ops@calibrated=92,937
100% 99.9% 92,937 92,876
90% 90.1% 83,643 83,761
80% 79.1% 74,349 73,543
70% 69.5% 65,056 64,563
60% 60.6% 55,762 56,358
50% 50.3% 46,468 46,713
40% 40.6% 37,175 37,768
30% 30.0% 27,881 27,844
20% 19.9% 18,587 18,504
10% 9.9% 9,294 9,179
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,766
Calibration 2     100,036
Calibration 3     99,505
ssj_ops@calibrated=99,770
100% 99.7% 99,770 99,469
90% 90.2% 89,793 89,994
80% 80.4% 79,816 80,234
70% 70.6% 69,839 70,449
60% 59.4% 59,862 59,287
50% 49.7% 49,885 49,613
40% 39.8% 39,908 39,724
30% 29.8% 29,931 29,757
20% 19.9% 19,954 19,844
10% 9.8% 9,977 9,734
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,703
Calibration 2     96,871
Calibration 3     97,100
ssj_ops@calibrated=96,986
100% 99.6% 96,986 96,560
90% 89.4% 87,287 86,744
80% 80.4% 77,589 77,960
70% 68.7% 67,890 66,674
60% 60.2% 58,191 58,402
50% 50.4% 48,493 48,926
40% 39.7% 38,794 38,459
30% 29.7% 29,096 28,822
20% 19.8% 19,397 19,243
10% 10.2% 9,699 9,879
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,083
Calibration 2     98,657
Calibration 3     98,113
ssj_ops@calibrated=98,385
100% 99.1% 98,385 97,541
90% 90.3% 88,546 88,796
80% 79.5% 78,708 78,254
70% 69.8% 68,869 68,709
60% 60.7% 59,031 59,686
50% 50.3% 49,192 49,470
40% 40.5% 39,354 39,878
30% 30.0% 29,515 29,550
20% 19.7% 19,677 19,407
10% 9.9% 9,838 9,708
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,891
Calibration 2     99,380
Calibration 3     99,114
ssj_ops@calibrated=99,247
100% 100.2% 99,247 99,397
90% 90.1% 89,323 89,457
80% 79.6% 79,398 78,980
70% 70.3% 69,473 69,779
60% 60.3% 59,548 59,847
50% 50.0% 49,624 49,648
40% 39.7% 39,699 39,380
30% 29.7% 29,774 29,467
20% 19.8% 19,849 19,603
10% 10.1% 9,925 10,000
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,427
Calibration 2     98,255
Calibration 3     97,321
ssj_ops@calibrated=97,788
100% 99.6% 97,788 97,432
90% 90.4% 88,009 88,371
80% 79.8% 78,230 78,015
70% 70.3% 68,452 68,754
60% 60.5% 58,673 59,163
50% 49.7% 48,894 48,581
40% 40.4% 39,115 39,535
30% 30.8% 29,336 30,107
20% 19.9% 19,558 19,453
10% 9.9% 9,779 9,708
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,690
Calibration 2     96,510
Calibration 3     96,233
ssj_ops@calibrated=96,371
100% 100.5% 96,371 96,871
90% 89.8% 86,734 86,589
80% 80.9% 77,097 78,006
70% 69.9% 67,460 67,392
60% 59.6% 57,823 57,430
50% 50.4% 48,186 48,579
40% 40.2% 38,549 38,772
30% 30.4% 28,911 29,270
20% 20.3% 19,274 19,572
10% 9.8% 9,637 9,484
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,384
Calibration 2     97,414
Calibration 3     97,271
ssj_ops@calibrated=97,343
100% 99.9% 97,343 97,260
90% 89.6% 87,608 87,237
80% 80.0% 77,874 77,859
70% 69.6% 68,140 67,760
60% 60.0% 58,406 58,379
50% 49.6% 48,671 48,296
40% 40.1% 38,937 39,047
30% 30.2% 29,203 29,367
20% 19.9% 19,469 19,333
10% 9.9% 9,734 9,677
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,684
Calibration 2     99,917
Calibration 3     99,624
ssj_ops@calibrated=99,771
100% 99.3% 99,771 99,117
90% 89.9% 89,794 89,667
80% 80.1% 79,816 79,925
70% 69.5% 69,839 69,340
60% 60.6% 59,862 60,483
50% 50.2% 49,885 50,082
40% 40.4% 39,908 40,290
30% 29.9% 29,931 29,867
20% 20.3% 19,954 20,206
10% 10.0% 9,977 9,958
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,003
Calibration 2     99,079
Calibration 3     98,478
ssj_ops@calibrated=98,778
100% 99.6% 98,778 98,346
90% 91.2% 88,901 90,110
80% 80.2% 79,023 79,261
70% 70.1% 69,145 69,242
60% 59.7% 59,267 58,953
50% 49.9% 49,389 49,252
40% 40.6% 39,511 40,121
30% 29.8% 29,634 29,471
20% 20.4% 19,756 20,120
10% 9.9% 9,878 9,733
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,212
Calibration 2     99,386
Calibration 3     99,837
ssj_ops@calibrated=99,612
100% 99.5% 99,612 99,080
90% 90.3% 89,650 89,968
80% 80.1% 79,689 79,818
70% 70.7% 69,728 70,424
60% 59.4% 59,767 59,199
50% 49.6% 49,806 49,394
40% 39.1% 39,845 38,914
30% 29.5% 29,883 29,392
20% 20.5% 19,922 20,458
10% 10.1% 9,961 10,104
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,552
Calibration 2     95,006
Calibration 3     95,116
ssj_ops@calibrated=95,061
100% 100.0% 95,061 95,050
90% 90.5% 85,555 86,054
80% 79.9% 76,049 75,912
70% 69.4% 66,543 65,981
60% 60.0% 57,036 57,045
50% 49.0% 47,530 46,570
40% 40.2% 38,024 38,199
30% 29.2% 28,518 27,762
20% 20.5% 19,012 19,462
10% 10.0% 9,506 9,477
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,304
Calibration 2     94,637
Calibration 3     94,479
ssj_ops@calibrated=94,558
100% 99.1% 94,558 93,665
90% 89.5% 85,102 84,673
80% 79.6% 75,647 75,315
70% 70.4% 66,191 66,568
60% 58.8% 56,735 55,627
50% 49.2% 47,279 46,569
40% 39.8% 37,823 37,590
30% 29.9% 28,367 28,308
20% 19.7% 18,912 18,603
10% 10.2% 9,456 9,669
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,682
Calibration 2     101,254
Calibration 3     101,283
ssj_ops@calibrated=101,268
100% 99.8% 101,268 101,060
90% 89.6% 91,141 90,724
80% 80.4% 81,015 81,373
70% 69.1% 70,888 70,027
60% 60.4% 60,761 61,191
50% 50.4% 50,634 51,033
40% 39.8% 40,507 40,259
30% 29.9% 30,380 30,254
20% 20.0% 20,254 20,299
10% 9.7% 10,127 9,862
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,491
Calibration 2     100,016
Calibration 3     99,000
ssj_ops@calibrated=99,508
100% 98.7% 99,508 98,190
90% 90.9% 89,557 90,418
80% 79.4% 79,606 79,056
70% 70.5% 69,656 70,164
60% 60.5% 59,705 60,213
50% 49.5% 49,754 49,287
40% 39.9% 39,803 39,715
30% 30.3% 29,852 30,146
20% 19.9% 19,902 19,754
10% 10.2% 9,951 10,146
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,214
Calibration 2     96,110
Calibration 3     95,479
ssj_ops@calibrated=95,794
100% 99.3% 95,794 95,136
90% 90.3% 86,215 86,517
80% 78.8% 76,635 75,447
70% 70.9% 67,056 67,964
60% 59.8% 57,477 57,310
50% 50.0% 47,897 47,892
40% 39.7% 38,318 38,010
30% 30.3% 28,738 29,008
20% 19.6% 19,159 18,766
10% 10.0% 9,579 9,537
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,283
Calibration 2     95,054
Calibration 3     96,200
ssj_ops@calibrated=95,627
100% 100.4% 95,627 96,034
90% 90.1% 86,064 86,181
80% 81.0% 76,502 77,429
70% 69.6% 66,939 66,590
60% 59.7% 57,376 57,091
50% 51.1% 47,814 48,899
40% 40.1% 38,251 38,373
30% 29.7% 28,688 28,362
20% 20.1% 19,125 19,188
10% 10.2% 9,563 9,775
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,430
Calibration 2     93,160
Calibration 3     93,363
ssj_ops@calibrated=93,262
100% 99.7% 93,262 92,995
90% 89.7% 83,936 83,682
80% 78.4% 74,609 73,127
70% 69.9% 65,283 65,228
60% 60.2% 55,957 56,163
50% 50.2% 46,631 46,848
40% 40.3% 37,305 37,583
30% 29.9% 27,979 27,865
20% 20.4% 18,652 19,008
10% 10.3% 9,326 9,646
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,939
Calibration 2     100,539
Calibration 3     100,071
ssj_ops@calibrated=100,305
100% 99.7% 100,305 100,032
90% 89.7% 90,275 89,950
80% 79.6% 80,244 79,872
70% 70.7% 70,214 70,952
60% 60.6% 60,183 60,818
50% 49.5% 50,153 49,654
40% 40.1% 40,122 40,222
30% 29.8% 30,092 29,900
20% 20.1% 20,061 20,179
10% 9.6% 10,031 9,675
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,634
Calibration 2     100,464
Calibration 3     101,254
ssj_ops@calibrated=100,859
100% 99.3% 100,859 100,195
90% 89.8% 90,773 90,549
80% 79.8% 80,687 80,436
70% 70.9% 70,601 71,467
60% 59.4% 60,515 59,942
50% 49.7% 50,429 50,133
40% 39.7% 40,343 40,054
30% 29.9% 30,258 30,201
20% 20.4% 20,172 20,621
10% 10.0% 10,086 10,039
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,911
Calibration 2     97,728
Calibration 3     96,902
ssj_ops@calibrated=97,315
100% 99.7% 97,315 97,007
90% 91.0% 87,583 88,539
80% 80.2% 77,852 78,016
70% 69.3% 68,120 67,406
60% 60.0% 58,389 58,357
50% 50.1% 48,657 48,759
40% 40.4% 38,926 39,291
30% 29.9% 29,194 29,058
20% 20.2% 19,463 19,630
10% 9.9% 9,731 9,625
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,843
Calibration 2     96,422
Calibration 3     96,040
ssj_ops@calibrated=96,231
100% 99.2% 96,231 95,480
90% 90.1% 86,608 86,680
80% 80.1% 76,985 77,087
70% 70.0% 67,361 67,323
60% 60.0% 57,738 57,693
50% 49.8% 48,115 47,924
40% 40.7% 38,492 39,193
30% 30.0% 28,869 28,850
20% 19.9% 19,246 19,112
10% 10.2% 9,623 9,775
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,600
Calibration 2     95,775
Calibration 3     95,115
ssj_ops@calibrated=95,445
100% 98.9% 95,445 94,424
90% 89.0% 85,901 84,948
80% 80.1% 76,356 76,458
70% 69.1% 66,812 65,912
60% 59.8% 57,267 57,044
50% 50.6% 47,723 48,329
40% 39.6% 38,178 37,777
30% 29.6% 28,634 28,238
20% 19.7% 19,089 18,777
10% 10.2% 9,545 9,696
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,712
Calibration 2     96,847
Calibration 3     95,621
ssj_ops@calibrated=96,234
100% 98.9% 96,234 95,222
90% 90.3% 86,611 86,860
80% 79.5% 76,987 76,540
70% 71.5% 67,364 68,766
60% 59.4% 57,741 57,195
50% 49.8% 48,117 47,886
40% 40.6% 38,494 39,029
30% 30.3% 28,870 29,200
20% 20.1% 19,247 19,348
10% 10.1% 9,623 9,683
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,653
Calibration 2     97,107
Calibration 3     97,149
ssj_ops@calibrated=97,128
100% 99.6% 97,128 96,718
90% 90.7% 87,415 88,048
80% 79.9% 77,702 77,589
70% 70.0% 67,990 67,947
60% 60.5% 58,277 58,737
50% 50.0% 48,564 48,580
40% 40.3% 38,851 39,117
30% 30.3% 29,138 29,450
20% 20.0% 19,426 19,383
10% 10.2% 9,713 9,883
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,629
Calibration 2     95,288
Calibration 3     94,948
ssj_ops@calibrated=95,118
100% 99.9% 95,118 95,027
90% 89.8% 85,606 85,430
80% 79.8% 76,094 75,909
70% 70.0% 66,582 66,597
60% 59.9% 57,071 57,006
50% 50.3% 47,559 47,855
40% 39.5% 38,047 37,574
30% 30.3% 28,535 28,850
20% 19.6% 19,024 18,635
10% 10.0% 9,512 9,496
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,824
Calibration 2     99,542
Calibration 3     99,074
ssj_ops@calibrated=99,308
100% 100.3% 99,308 99,591
90% 89.5% 89,377 88,903
80% 80.4% 79,446 79,829
70% 70.8% 69,515 70,266
60% 59.6% 59,585 59,178
50% 50.1% 49,654 49,772
40% 40.2% 39,723 39,909
30% 29.8% 29,792 29,562
20% 20.4% 19,862 20,254
10% 10.1% 9,931 10,000
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,228
Calibration 2     91,808
Calibration 3     92,169
ssj_ops@calibrated=91,988
100% 99.7% 91,988 91,691
90% 90.7% 82,790 83,409
80% 80.7% 73,591 74,215
70% 70.1% 64,392 64,474
60% 60.2% 55,193 55,348
50% 49.9% 45,994 45,890
40% 40.9% 36,795 37,612
30% 30.1% 27,597 27,664
20% 20.6% 18,398 18,974
10% 9.8% 9,199 8,975
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,316
Calibration 2     99,367
Calibration 3     99,742
ssj_ops@calibrated=99,554
100% 99.3% 99,554 98,837
90% 90.1% 89,599 89,657
80% 79.9% 79,643 79,557
70% 70.3% 69,688 70,012
60% 59.4% 59,733 59,155
50% 50.4% 49,777 50,155
40% 40.3% 39,822 40,144
30% 29.8% 29,866 29,666
20% 20.2% 19,911 20,060
10% 9.9% 9,955 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,738
Calibration 2     96,735
Calibration 3     97,062
ssj_ops@calibrated=96,898
100% 99.7% 96,898 96,656
90% 89.4% 87,209 86,668
80% 79.7% 77,519 77,185
70% 70.0% 67,829 67,834
60% 61.0% 58,139 59,109
50% 49.9% 48,449 48,341
40% 40.4% 38,759 39,146
30% 30.5% 29,070 29,523
20% 19.7% 19,380 19,057
10% 10.1% 9,690 9,800
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,039
Calibration 2     95,547
Calibration 3     95,277
ssj_ops@calibrated=95,412
100% 99.0% 95,412 94,485
90% 90.6% 85,871 86,398
80% 79.9% 76,330 76,238
70% 69.2% 66,788 65,982
60% 60.4% 57,247 57,651
50% 50.8% 47,706 48,428
40% 39.9% 38,165 38,060
30% 29.9% 28,624 28,562
20% 20.3% 19,082 19,381
10% 10.1% 9,541 9,675
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,818
Calibration 2     96,035
Calibration 3     95,936
ssj_ops@calibrated=95,985
100% 99.2% 95,985 95,194
90% 91.0% 86,387 87,314
80% 79.3% 76,788 76,124
70% 71.1% 67,190 68,204
60% 59.7% 57,591 57,318
50% 49.5% 47,993 47,473
40% 41.3% 38,394 39,602
30% 29.5% 28,796 28,282
20% 20.2% 19,197 19,345
10% 10.0% 9,599 9,571
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,056
Calibration 2     97,997
Calibration 3     96,547
ssj_ops@calibrated=97,272
100% 100.0% 97,272 97,292
90% 89.3% 87,545 86,911
80% 79.8% 77,818 77,646
70% 69.2% 68,091 67,344
60% 60.7% 58,363 59,058
50% 50.8% 48,636 49,394
40% 39.8% 38,909 38,722
30% 30.5% 29,182 29,671
20% 19.7% 19,454 19,199
10% 10.7% 9,727 10,379
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,861
Calibration 2     98,086
Calibration 3     98,221
ssj_ops@calibrated=98,153
100% 99.6% 98,153 97,756
90% 90.7% 88,338 89,069
80% 80.7% 78,523 79,235
70% 69.0% 68,707 67,743
60% 59.6% 58,892 58,478
50% 49.8% 49,077 48,856
40% 39.3% 39,261 38,576
30% 30.3% 29,446 29,778
20% 19.8% 19,631 19,454
10% 10.0% 9,815 9,779
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,928
Calibration 2     99,530
Calibration 3     99,569
ssj_ops@calibrated=99,550
100% 99.6% 99,550 99,119
90% 90.0% 89,595 89,576
80% 80.2% 79,640 79,838
70% 70.0% 69,685 69,714
60% 60.6% 59,730 60,367
50% 50.8% 49,775 50,582
40% 39.3% 39,820 39,158
30% 30.4% 29,865 30,246
20% 19.1% 19,910 19,048
10% 9.9% 9,955 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,868
Calibration 2     102,416
Calibration 3     102,524
ssj_ops@calibrated=102,470
100% 98.9% 102,470 101,390
90% 90.1% 92,223 92,332
80% 79.9% 81,976 81,850
70% 70.3% 71,729 72,079
60% 59.0% 61,482 60,431
50% 49.5% 51,235 50,762
40% 39.8% 40,988 40,799
30% 30.0% 30,741 30,771
20% 19.9% 20,494 20,413
10% 10.4% 10,247 10,687
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,009
Calibration 2     97,079
Calibration 3     95,926
ssj_ops@calibrated=96,503
100% 99.5% 96,503 95,972
90% 90.4% 86,852 87,265
80% 79.5% 77,202 76,760
70% 69.9% 67,552 67,420
60% 60.1% 57,902 57,981
50% 49.1% 48,251 47,429
40% 40.2% 38,601 38,802
30% 29.7% 28,951 28,618
20% 19.6% 19,301 18,962
10% 9.6% 9,650 9,308
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,601
Calibration 2     99,211
Calibration 3     99,202
ssj_ops@calibrated=99,207
100% 98.9% 99,207 98,078
90% 90.3% 89,286 89,584
80% 79.1% 79,366 78,437
70% 70.2% 69,445 69,651
60% 60.1% 59,524 59,608
50% 50.0% 49,603 49,646
40% 40.5% 39,683 40,147
30% 29.8% 29,762 29,575
20% 20.2% 19,841 20,085
10% 9.9% 9,921 9,779
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,476
Calibration 2     98,980
Calibration 3     99,689
ssj_ops@calibrated=99,335
100% 100.5% 99,335 99,852
90% 89.1% 89,401 88,475
80% 80.6% 79,468 80,035
70% 70.0% 69,534 69,487
60% 59.6% 59,601 59,202
50% 50.6% 49,667 50,292
40% 40.9% 39,734 40,667
30% 29.6% 29,800 29,367
20% 19.6% 19,867 19,469
10% 10.2% 9,933 10,087
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,370
Calibration 2     98,234
Calibration 3     98,524
ssj_ops@calibrated=98,379
100% 99.7% 98,379 98,066
90% 89.6% 88,541 88,161
80% 79.6% 78,703 78,291
70% 70.1% 68,865 68,985
60% 60.4% 59,027 59,460
50% 50.0% 49,189 49,152
40% 39.8% 39,352 39,154
30% 29.3% 29,514 28,788
20% 20.2% 19,676 19,829
10% 10.0% 9,838 9,867
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,977
Calibration 2     99,291
Calibration 3     98,476
ssj_ops@calibrated=98,883
100% 99.4% 98,883 98,291
90% 89.9% 88,995 88,942
80% 80.2% 79,107 79,283
70% 70.3% 69,218 69,545
60% 60.3% 59,330 59,634
50% 50.1% 49,442 49,510
40% 39.9% 39,553 39,455
30% 30.0% 29,665 29,667
20% 19.7% 19,777 19,433
10% 9.7% 9,888 9,579
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,168
Calibration 2     99,160
Calibration 3     98,777
ssj_ops@calibrated=98,969
100% 99.5% 98,969 98,439
90% 89.4% 89,072 88,451
80% 80.3% 79,175 79,440
70% 70.1% 69,278 69,376
60% 61.0% 59,381 60,397
50% 49.8% 49,484 49,311
40% 39.6% 39,587 39,154
30% 29.5% 29,691 29,235
20% 20.4% 19,794 20,162
10% 10.2% 9,897 10,080
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,963
Calibration 2     94,947
Calibration 3     94,618
ssj_ops@calibrated=94,782
100% 99.8% 94,782 94,622
90% 89.9% 85,304 85,193
80% 79.7% 75,826 75,525
70% 70.5% 66,348 66,808
60% 59.5% 56,869 56,403
50% 49.0% 47,391 46,487
40% 39.6% 37,913 37,505
30% 29.7% 28,435 28,162
20% 20.0% 18,956 18,958
10% 10.6% 9,478 10,035
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,518
Calibration 2     95,490
Calibration 3     94,402
ssj_ops@calibrated=94,946
100% 99.3% 94,946 94,259
90% 90.8% 85,451 86,199
80% 79.8% 75,957 75,784
70% 69.7% 66,462 66,216
60% 59.8% 56,968 56,776
50% 50.1% 47,473 47,568
40% 39.9% 37,978 37,929
30% 29.9% 28,484 28,387
20% 19.5% 18,989 18,490
10% 10.0% 9,495 9,487
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,253
Calibration 2     95,297
Calibration 3     95,118
ssj_ops@calibrated=95,208
100% 98.3% 95,208 93,596
90% 90.3% 85,687 85,969
80% 79.9% 76,166 76,049
70% 69.3% 66,645 65,960
60% 59.5% 57,125 56,694
50% 50.2% 47,604 47,808
40% 40.4% 38,083 38,508
30% 30.0% 28,562 28,544
20% 20.1% 19,042 19,160
10% 10.3% 9,521 9,830
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,069
Calibration 2     97,976
Calibration 3     97,568
ssj_ops@calibrated=97,772
100% 99.5% 97,772 97,258
90% 90.2% 87,995 88,171
80% 80.1% 78,218 78,314
70% 69.4% 68,440 67,880
60% 59.0% 58,663 57,707
50% 50.2% 48,886 49,095
40% 39.6% 39,109 38,740
30% 30.0% 29,332 29,340
20% 20.2% 19,554 19,774
10% 9.9% 9,777 9,700
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,179
Calibration 2     94,111
Calibration 3     94,114
ssj_ops@calibrated=94,112
100% 99.5% 94,112 93,622
90% 91.2% 84,701 85,819
80% 79.4% 75,290 74,729
70% 68.8% 65,879 64,706
60% 60.6% 56,467 57,047
50% 49.5% 47,056 46,582
40% 40.3% 37,645 37,958
30% 29.9% 28,234 28,176
20% 20.4% 18,822 19,221
10% 10.0% 9,411 9,387
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,708
Calibration 2     93,125
Calibration 3     92,271
ssj_ops@calibrated=92,698
100% 99.7% 92,698 92,453
90% 89.7% 83,429 83,147
80% 80.7% 74,159 74,802
70% 70.2% 64,889 65,051
60% 60.1% 55,619 55,683
50% 48.8% 46,349 45,213
40% 39.7% 37,079 36,818
30% 30.4% 27,810 28,167
20% 20.0% 18,540 18,521
10% 10.2% 9,270 9,450
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,967
Calibration 2     97,638
Calibration 3     98,195
ssj_ops@calibrated=97,916
100% 98.7% 97,916 96,646
90% 90.2% 88,125 88,324
80% 79.3% 78,333 77,667
70% 70.3% 68,541 68,826
60% 59.5% 58,750 58,223
50% 49.6% 48,958 48,525
40% 39.6% 39,167 38,762
30% 30.4% 29,375 29,801
20% 19.7% 19,583 19,332
10% 10.1% 9,792 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,247
Calibration 2     99,709
Calibration 3     99,291
ssj_ops@calibrated=99,500
100% 100.4% 99,500 99,880
90% 88.3% 89,550 87,818
80% 80.0% 79,600 79,572
70% 70.3% 69,650 69,987
60% 60.4% 59,700 60,054
50% 50.7% 49,750 50,474
40% 39.9% 39,800 39,731
30% 29.3% 29,850 29,133
20% 20.4% 19,900 20,342
10% 10.4% 9,950 10,322
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,940
Calibration 2     96,335
Calibration 3     95,951
ssj_ops@calibrated=96,143
100% 99.8% 96,143 95,903
90% 89.1% 86,529 85,627
80% 81.0% 76,914 77,892
70% 70.1% 67,300 67,356
60% 59.9% 57,686 57,563
50% 50.1% 48,071 48,176
40% 40.7% 38,457 39,146
30% 29.5% 28,843 28,326
20% 19.9% 19,229 19,133
10% 10.0% 9,614 9,571
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,907
Calibration 2     96,005
Calibration 3     95,965
ssj_ops@calibrated=95,985
100% 99.5% 95,985 95,532
90% 89.5% 86,387 85,910
80% 79.3% 76,788 76,069
70% 69.2% 67,190 66,423
60% 59.2% 57,591 56,825
50% 50.2% 47,993 48,164
40% 40.2% 38,394 38,593
30% 30.4% 28,796 29,149
20% 19.5% 19,197 18,746
10% 9.8% 9,599 9,430
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node04.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,781
Calibration 2     96,734
Calibration 3     96,470
ssj_ops@calibrated=96,602
100% 99.4% 96,602 96,021
90% 90.9% 86,941 87,782
80% 79.7% 77,281 77,015
70% 69.3% 67,621 66,925
60% 59.9% 57,961 57,888
50% 50.4% 48,301 48,722
40% 40.7% 38,641 39,354
30% 30.1% 28,980 29,046
20% 20.2% 19,320 19,545
10% 10.2% 9,660 9,867
Active Idle   0 0
Graph of results
