Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 12,505,778
ssj_ops@100% per JVM = 97,701
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 21, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,574,597
Calibration 2     12,570,019
Calibration 3     12,546,111
ssj_ops@calibrated=12,558,065
100% 99.6% 12,558,065 12,505,778
90% 90.0% 11,302,258 11,299,121
80% 80.0% 10,046,452 10,049,136
70% 70.0% 8,790,645 8,786,251
60% 60.0% 7,534,839 7,533,709
50% 50.0% 6,279,032 6,273,794
40% 40.0% 5,023,226 5,029,193
30% 30.0% 3,767,419 3,770,099
20% 20.0% 2,511,613 2,515,091
10% 10.0% 1,255,806 1,259,006
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A46 v2.40 (01/21/2021)
Management Firmware Version: 2.40 Jan 05 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SLES12SP5-Node03.001 93,682
SLES12SP5-Node03.002 100,466
SLES12SP5-Node03.003 98,486
SLES12SP5-Node03.004 94,894
SLES12SP5-Node03.005 96,423
SLES12SP5-Node03.006 100,783
SLES12SP5-Node03.007 99,795
SLES12SP5-Node03.008 99,467
SLES12SP5-Node03.009 95,608
SLES12SP5-Node03.010 98,859
SLES12SP5-Node03.011 98,375
SLES12SP5-Node03.012 100,039
SLES12SP5-Node03.013 97,207
SLES12SP5-Node03.014 101,393
SLES12SP5-Node03.015 97,154
SLES12SP5-Node03.016 97,064
SLES12SP5-Node03.017 96,508
SLES12SP5-Node03.018 101,059
SLES12SP5-Node03.019 97,965
SLES12SP5-Node03.020 93,861
SLES12SP5-Node03.021 97,515
SLES12SP5-Node03.022 92,699

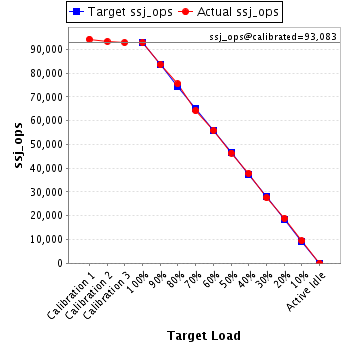

SLES12SP5-Node03.023 92,883
SLES12SP5-Node03.024 100,858
SLES12SP5-Node03.025 95,186
SLES12SP5-Node03.026 96,618
SLES12SP5-Node03.027 95,626
SLES12SP5-Node03.028 99,349
SLES12SP5-Node03.029 98,310
SLES12SP5-Node03.030 98,525
SLES12SP5-Node03.031 97,647

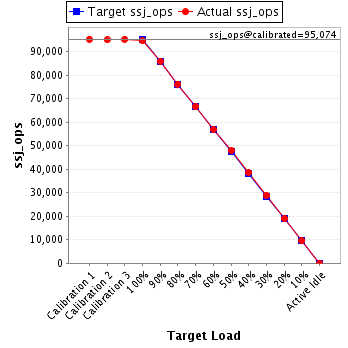

SLES12SP5-Node03.032 94,641
SLES12SP5-Node03.033 98,003
SLES12SP5-Node03.034 97,525
SLES12SP5-Node03.035 98,145
SLES12SP5-Node03.036 100,074
SLES12SP5-Node03.037 101,804
SLES12SP5-Node03.038 99,179
SLES12SP5-Node03.039 100,199
SLES12SP5-Node03.040 92,216
SLES12SP5-Node03.041 101,561
SLES12SP5-Node03.042 98,753
SLES12SP5-Node03.043 100,400
SLES12SP5-Node03.044 99,664
SLES12SP5-Node03.045 99,545
SLES12SP5-Node03.046 95,754
SLES12SP5-Node03.047 98,746
SLES12SP5-Node03.048 91,973
SLES12SP5-Node03.049 98,028
SLES12SP5-Node03.050 99,778
SLES12SP5-Node03.051 102,433
SLES12SP5-Node03.052 100,066

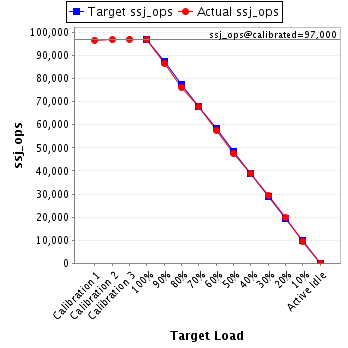

SLES12SP5-Node03.053 96,922
SLES12SP5-Node03.054 101,178
SLES12SP5-Node03.055 98,962
SLES12SP5-Node03.056 98,571
SLES12SP5-Node03.057 101,832
SLES12SP5-Node03.058 99,828
SLES12SP5-Node03.059 97,151
SLES12SP5-Node03.060 95,988

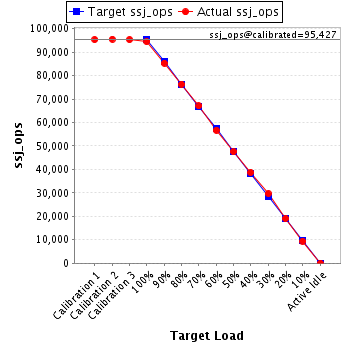

SLES12SP5-Node03.061 94,510
SLES12SP5-Node03.062 97,904
SLES12SP5-Node03.063 96,044

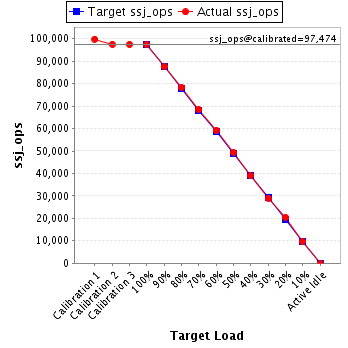

SLES12SP5-Node03.064 97,462
SLES12SP5-Node03.065 99,130

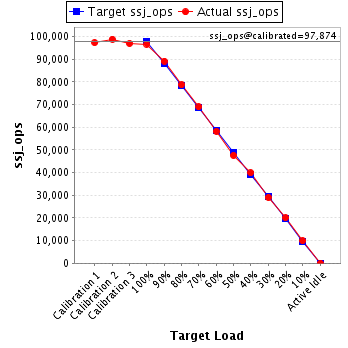

SLES12SP5-Node03.066 96,623
SLES12SP5-Node03.067 100,838
SLES12SP5-Node03.068 97,875
SLES12SP5-Node03.069 96,324

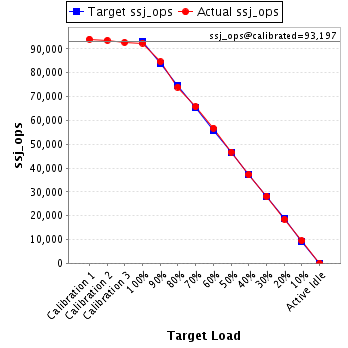

SLES12SP5-Node03.070 92,487
SLES12SP5-Node03.071 91,873
SLES12SP5-Node03.072 94,620
SLES12SP5-Node03.073 101,976
SLES12SP5-Node03.074 98,694
SLES12SP5-Node03.075 95,201
SLES12SP5-Node03.076 99,154
SLES12SP5-Node03.077 99,420
SLES12SP5-Node03.078 95,906
SLES12SP5-Node03.079 97,532
SLES12SP5-Node03.080 99,633
SLES12SP5-Node03.081 98,084
SLES12SP5-Node03.082 98,189

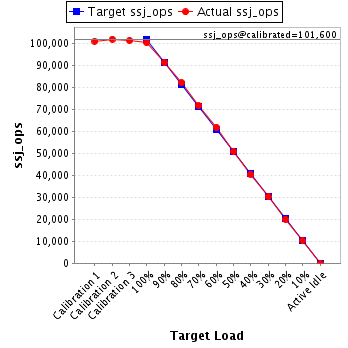

SLES12SP5-Node03.083 100,272
SLES12SP5-Node03.084 95,625

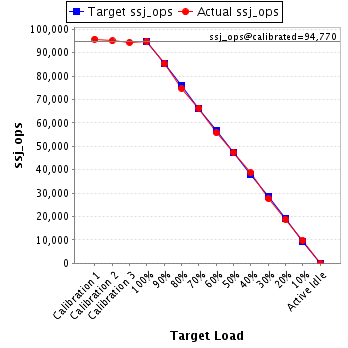

SLES12SP5-Node03.085 94,965
SLES12SP5-Node03.086 96,461
SLES12SP5-Node03.087 96,003
SLES12SP5-Node03.088 97,334
SLES12SP5-Node03.089 99,711
SLES12SP5-Node03.090 101,683
SLES12SP5-Node03.091 98,562
SLES12SP5-Node03.092 98,538

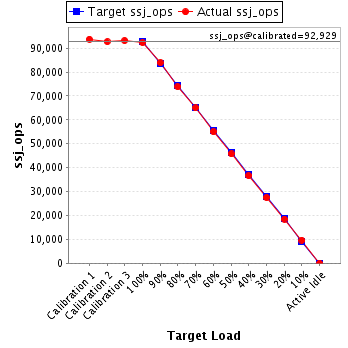

SLES12SP5-Node03.093 92,415
SLES12SP5-Node03.094 94,783
SLES12SP5-Node03.095 100,568
SLES12SP5-Node03.096 92,343
SLES12SP5-Node03.097 96,836
SLES12SP5-Node03.098 100,058
SLES12SP5-Node03.099 99,316
SLES12SP5-Node03.100 99,519

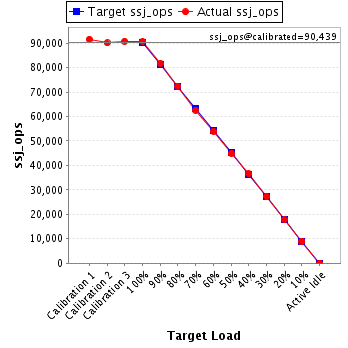

SLES12SP5-Node03.101 90,607
SLES12SP5-Node03.102 99,247
SLES12SP5-Node03.103 94,562
SLES12SP5-Node03.104 92,532
SLES12SP5-Node03.105 98,728
SLES12SP5-Node03.106 99,422
SLES12SP5-Node03.107 96,396
SLES12SP5-Node03.108 97,637
SLES12SP5-Node03.109 101,097
SLES12SP5-Node03.110 96,180
SLES12SP5-Node03.111 98,009

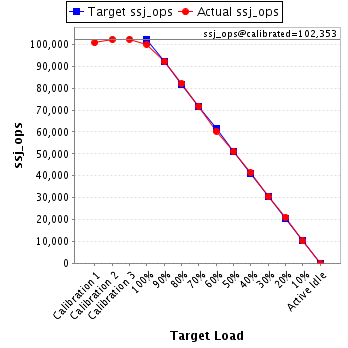

SLES12SP5-Node03.112 100,070
SLES12SP5-Node03.113 97,789
SLES12SP5-Node03.114 96,688
SLES12SP5-Node03.115 99,812
SLES12SP5-Node03.116 98,269
SLES12SP5-Node03.117 99,587
SLES12SP5-Node03.118 100,770
SLES12SP5-Node03.119 95,098
SLES12SP5-Node03.120 96,994

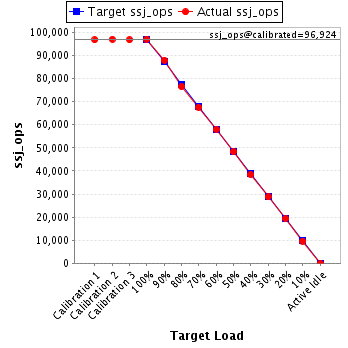

SLES12SP5-Node03.121 97,077
SLES12SP5-Node03.122 95,048
SLES12SP5-Node03.123 98,347
SLES12SP5-Node03.124 100,160
SLES12SP5-Node03.125 98,162
SLES12SP5-Node03.126 95,010
SLES12SP5-Node03.127 96,942
SLES12SP5-Node03.128 97,844
ssj_ops@100% 12,505,778
ssj_ops@100% per JVM 97,701
Graph of per-instance results
JVM 'SLES12SP5-Node03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,309
Calibration 2     94,113
Calibration 3     93,160
ssj_ops@calibrated=93,637
100% 100.0% 93,637 93,682
90% 89.4% 84,273 83,744
80% 80.4% 74,909 75,307
70% 69.5% 65,546 65,087
60% 60.3% 56,182 56,472
50% 49.4% 46,818 46,218
40% 40.2% 37,455 37,659
30% 30.1% 28,091 28,146
20% 19.6% 18,727 18,362
10% 9.7% 9,364 9,092
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,493
Calibration 2     101,366
Calibration 3     99,369
ssj_ops@calibrated=100,368
100% 100.1% 100,368 100,466
90% 90.2% 90,331 90,495
80% 80.0% 80,294 80,334
70% 69.9% 70,257 70,190
60% 59.9% 60,221 60,161
50% 49.4% 50,184 49,608
40% 39.8% 40,147 39,965
30% 30.0% 30,110 30,143
20% 19.5% 20,074 19,525
10% 10.0% 10,037 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,290
Calibration 2     100,010
Calibration 3     99,406
ssj_ops@calibrated=99,708
100% 98.8% 99,708 98,486
90% 89.8% 89,737 89,560
80% 80.0% 79,766 79,762
70% 70.6% 69,796 70,351
60% 60.1% 59,825 59,882
50% 49.7% 49,854 49,598
40% 40.7% 39,883 40,629
30% 30.1% 29,912 29,979
20% 20.1% 19,942 20,069
10% 10.2% 9,971 10,133
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,633
Calibration 2     95,354
Calibration 3     95,063
ssj_ops@calibrated=95,209
100% 99.7% 95,209 94,894
90% 90.9% 85,688 86,549
80% 79.7% 76,167 75,848
70% 69.6% 66,646 66,304
60% 60.3% 57,125 57,379
50% 50.2% 47,604 47,793
40% 40.5% 38,083 38,529
30% 30.2% 28,563 28,729
20% 20.0% 19,042 19,085
10% 9.8% 9,521 9,305
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,705
Calibration 2     97,043
Calibration 3     97,467
ssj_ops@calibrated=97,255
100% 99.1% 97,255 96,423
90% 87.9% 87,529 85,530
80% 79.6% 77,804 77,401
70% 70.9% 68,078 68,975
60% 59.9% 58,353 58,284
50% 50.8% 48,627 49,417
40% 39.8% 38,902 38,720
30% 30.0% 29,176 29,155
20% 19.4% 19,451 18,905
10% 10.2% 9,725 9,917
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,298
Calibration 2     100,815
Calibration 3     101,002
ssj_ops@calibrated=100,908
100% 99.9% 100,908 100,783
90% 89.4% 90,817 90,258
80% 80.4% 80,727 81,126
70% 69.7% 70,636 70,301
60% 59.5% 60,545 60,030
50% 50.1% 50,454 50,570
40% 40.2% 40,363 40,548
30% 29.9% 30,272 30,133
20% 20.1% 20,182 20,253
10% 10.0% 10,091 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,642
Calibration 2     99,492
Calibration 3     100,020
ssj_ops@calibrated=99,756
100% 100.0% 99,756 99,795
90% 90.4% 89,780 90,158
80% 79.6% 79,805 79,415
70% 69.4% 69,829 69,209
60% 60.7% 59,854 60,593
50% 49.9% 49,878 49,822
40% 40.6% 39,902 40,501
30% 31.1% 29,927 31,008
20% 19.9% 19,951 19,874
10% 10.2% 9,976 10,190
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,885
Calibration 2     99,929
Calibration 3     99,219
ssj_ops@calibrated=99,574
100% 99.9% 99,574 99,467
90% 90.0% 89,617 89,594
80% 80.3% 79,659 80,006
70% 68.9% 69,702 68,562
60% 59.1% 59,744 58,855
50% 49.6% 49,787 49,407
40% 40.5% 39,830 40,282
30% 29.8% 29,872 29,639
20% 20.0% 19,915 19,957
10% 10.0% 9,957 10,000
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,102
Calibration 2     95,388
Calibration 3     95,894
ssj_ops@calibrated=95,641
100% 100.0% 95,641 95,608
90% 90.7% 86,077 86,792
80% 80.7% 76,513 77,176
70% 70.1% 66,949 67,078
60% 60.0% 57,385 57,396
50% 50.2% 47,820 47,978
40% 40.0% 38,256 38,247
30% 30.5% 28,692 29,154
20% 20.1% 19,128 19,250
10% 10.3% 9,564 9,892
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,707
Calibration 2     99,804
Calibration 3     99,174
ssj_ops@calibrated=99,489
100% 99.4% 99,489 98,859
90% 89.2% 89,540 88,735
80% 80.7% 79,591 80,331
70% 69.5% 69,642 69,132
60% 59.7% 59,693 59,376
50% 49.8% 49,745 49,561
40% 39.8% 39,796 39,575
30% 30.1% 29,847 29,953
20% 20.3% 19,898 20,220
10% 10.4% 9,949 10,329
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,108
Calibration 2     98,885
Calibration 3     99,289
ssj_ops@calibrated=99,087
100% 99.3% 99,087 98,375
90% 88.7% 89,178 87,882
80% 80.3% 79,270 79,602
70% 70.3% 69,361 69,673
60% 60.3% 59,452 59,728
50% 48.9% 49,544 48,458
40% 40.3% 39,635 39,900
30% 30.1% 29,726 29,829
20% 20.5% 19,817 20,325
10% 10.0% 9,909 9,866
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,147
Calibration 2     101,336
Calibration 3     100,057
ssj_ops@calibrated=100,696
100% 99.3% 100,696 100,039
90% 90.3% 90,627 90,948
80% 79.8% 80,557 80,389
70% 69.6% 70,487 70,079
60% 60.1% 60,418 60,548
50% 49.6% 50,348 49,907
40% 39.8% 40,278 40,050
30% 29.8% 30,209 29,979
20% 19.8% 20,139 19,911
10% 10.1% 10,070 10,142
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,970
Calibration 2     97,445
Calibration 3     98,225
ssj_ops@calibrated=97,835
100% 99.4% 97,835 97,207
90% 90.3% 88,052 88,358
80% 80.5% 78,268 78,772
70% 69.6% 68,485 68,046
60% 59.6% 58,701 58,288
50% 50.3% 48,918 49,186
40% 40.3% 39,134 39,380
30% 29.7% 29,351 29,088
20% 20.0% 19,567 19,545
10% 9.8% 9,784 9,583
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,194
Calibration 2     100,483
Calibration 3     100,959
ssj_ops@calibrated=100,721
100% 100.7% 100,721 101,393
90% 89.6% 90,649 90,291
80% 80.1% 80,577 80,717
70% 70.0% 70,505 70,456
60% 60.0% 60,433 60,439
50% 49.8% 50,361 50,145
40% 40.1% 40,288 40,349
30% 29.9% 30,216 30,065
20% 20.3% 20,144 20,467
10% 10.1% 10,072 10,178
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,534
Calibration 2     96,364
Calibration 3     97,141
ssj_ops@calibrated=96,752
100% 100.4% 96,752 97,154
90% 89.6% 87,077 86,667
80% 79.5% 77,402 76,901
70% 68.8% 67,727 66,571
60% 60.1% 58,051 58,139
50% 50.3% 48,376 48,628
40% 40.0% 38,701 38,746
30% 29.8% 29,026 28,840
20% 20.0% 19,350 19,382
10% 10.4% 9,675 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,985
Calibration 2     96,354
Calibration 3     97,826
ssj_ops@calibrated=97,090
100% 100.0% 97,090 97,064
90% 90.8% 87,381 88,161
80% 79.4% 77,672 77,094
70% 70.4% 67,963 68,331
60% 60.9% 58,254 59,171
50% 49.5% 48,545 48,016
40% 40.2% 38,836 39,018
30% 30.2% 29,127 29,304
20% 19.9% 19,418 19,286
10% 10.1% 9,709 9,854
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,642
Calibration 2     97,307
Calibration 3     97,558
ssj_ops@calibrated=97,432
100% 99.1% 97,432 96,508
90% 90.3% 87,689 87,942
80% 80.1% 77,946 78,063
70% 69.7% 68,203 67,893
60% 59.2% 58,459 57,698
50% 49.8% 48,716 48,554
40% 39.7% 38,973 38,662
30% 30.0% 29,230 29,197
20% 19.7% 19,486 19,183
10% 9.8% 9,743 9,525
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,365
Calibration 2     101,291
Calibration 3     101,162
ssj_ops@calibrated=101,227
100% 99.8% 101,227 101,059
90% 91.5% 91,104 92,618
80% 80.3% 80,981 81,314
70% 70.4% 70,859 71,267
60% 59.3% 60,736 60,001
50% 50.3% 50,613 50,941
40% 40.0% 40,491 40,470
30% 30.7% 30,368 31,073
20% 19.5% 20,245 19,699
10% 10.3% 10,123 10,412
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,111
Calibration 2     98,769
Calibration 3     98,563
ssj_ops@calibrated=98,666
100% 99.3% 98,666 97,965
90% 90.3% 88,799 89,136
80% 79.4% 78,933 78,356
70% 69.7% 69,066 68,799
60% 60.3% 59,200 59,456
50% 49.6% 49,333 48,897
40% 40.2% 39,466 39,669
30% 30.4% 29,600 29,970
20% 19.6% 19,733 19,354
10% 10.0% 9,867 9,896
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,360
Calibration 2     95,342
Calibration 3     94,645
ssj_ops@calibrated=94,994
100% 98.8% 94,994 93,861
90% 89.9% 85,494 85,394
80% 79.7% 75,995 75,711
70% 69.5% 66,496 65,988
60% 60.3% 56,996 57,288
50% 49.9% 47,497 47,408
40% 39.5% 37,997 37,551
30% 30.0% 28,498 28,511
20% 19.7% 18,999 18,707
10% 10.2% 9,499 9,731
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,492
Calibration 2     97,790
Calibration 3     97,379
ssj_ops@calibrated=97,584
100% 99.9% 97,584 97,515
90% 90.5% 87,826 88,360
80% 80.4% 78,067 78,412
70% 70.4% 68,309 68,731
60% 60.0% 58,551 58,591
50% 50.4% 48,792 49,172
40% 40.6% 39,034 39,653
30% 29.6% 29,275 28,915
20% 19.7% 19,517 19,245
10% 10.4% 9,758 10,108
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,049
Calibration 2     93,314
Calibration 3     93,182
ssj_ops@calibrated=93,248
100% 99.4% 93,248 92,699
90% 89.8% 83,923 83,777
80% 80.2% 74,599 74,739
70% 69.8% 65,274 65,067
60% 60.9% 55,949 56,753
50% 49.8% 46,624 46,454
40% 40.4% 37,299 37,657
30% 30.6% 27,974 28,579
20% 20.4% 18,650 19,063
10% 9.9% 9,325 9,200
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,293
Calibration 2     93,319
Calibration 3     92,847
ssj_ops@calibrated=93,083
100% 99.8% 93,083 92,883
90% 89.7% 83,775 83,524
80% 81.1% 74,466 75,499
70% 69.0% 65,158 64,195
60% 60.1% 55,850 55,917
50% 49.8% 46,541 46,380
40% 40.6% 37,233 37,777
30% 29.6% 27,925 27,575
20% 20.3% 18,617 18,864
10% 10.2% 9,308 9,483
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,387
Calibration 2     100,904
Calibration 3     100,865
ssj_ops@calibrated=100,885
100% 100.0% 100,885 100,858
90% 90.0% 90,796 90,802
80% 80.1% 80,708 80,801
70% 69.8% 70,619 70,377
60% 60.4% 60,531 60,935
50% 50.2% 50,442 50,671
40% 40.7% 40,354 41,108
30% 29.5% 30,265 29,739
20% 20.0% 20,177 20,187
10% 10.1% 10,088 10,221
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,372
Calibration 2     94,519
Calibration 3     95,277
ssj_ops@calibrated=94,898
100% 100.3% 94,898 95,186
90% 90.1% 85,409 85,489
80% 80.4% 75,919 76,291
70% 69.9% 66,429 66,320
60% 60.0% 56,939 56,977
50% 51.5% 47,449 48,837
40% 40.2% 37,959 38,158
30% 30.4% 28,470 28,831
20% 19.9% 18,980 18,846
10% 10.3% 9,490 9,787
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,531
Calibration 2     98,088
Calibration 3     97,611
ssj_ops@calibrated=97,850
100% 98.7% 97,850 96,618
90% 91.1% 88,065 89,173
80% 79.6% 78,280 77,908
70% 70.1% 68,495 68,561
60% 60.6% 58,710 59,267
50% 50.9% 48,925 49,767
40% 40.4% 39,140 39,528
30% 29.3% 29,355 28,642
20% 20.2% 19,570 19,743
10% 10.2% 9,785 9,958
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,894
Calibration 2     96,859
Calibration 3     96,376
ssj_ops@calibrated=96,618
100% 99.0% 96,618 95,626
90% 88.7% 86,956 85,699
80% 78.9% 77,294 76,220
70% 69.9% 67,632 67,488
60% 59.9% 57,971 57,857
50% 49.5% 48,309 47,871
40% 40.0% 38,647 38,604
30% 30.2% 28,985 29,199
20% 19.5% 19,324 18,845
10% 9.8% 9,662 9,479
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,705
Calibration 2     99,612
Calibration 3     99,377
ssj_ops@calibrated=99,494
100% 99.9% 99,494 99,349
90% 88.5% 89,545 88,057
80% 79.4% 79,595 78,957
70% 69.7% 69,646 69,315
60% 60.4% 59,696 60,094
50% 50.6% 49,747 50,309
40% 39.4% 39,798 39,152
30% 29.6% 29,848 29,417
20% 20.1% 19,899 20,037
10% 9.9% 9,949 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,852
Calibration 2     98,498
Calibration 3     97,982
ssj_ops@calibrated=98,240
100% 100.1% 98,240 98,310
90% 89.6% 88,416 88,044
80% 79.5% 78,592 78,140
70% 70.2% 68,768 68,933
60% 60.0% 58,944 58,927
50% 50.1% 49,120 49,199
40% 39.5% 39,296 38,800
30% 30.1% 29,472 29,575
20% 19.9% 19,648 19,561
10% 10.0% 9,824 9,871
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,658
Calibration 2     99,408
Calibration 3     99,110
ssj_ops@calibrated=99,259
100% 99.3% 99,259 98,525
90% 89.4% 89,333 88,715
80% 80.8% 79,407 80,198
70% 69.8% 69,481 69,323
60% 60.2% 59,555 59,733
50% 50.1% 49,629 49,683
40% 40.8% 39,703 40,517
30% 30.2% 29,778 30,012
20% 20.1% 19,852 19,916
10% 10.2% 9,926 10,108
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,989
Calibration 2     99,503
Calibration 3     98,616
ssj_ops@calibrated=99,059
100% 98.6% 99,059 97,647
90% 90.1% 89,153 89,284
80% 80.0% 79,247 79,210
70% 70.2% 69,341 69,569
60% 60.3% 59,436 59,695
50% 49.8% 49,530 49,361
40% 40.4% 39,624 39,997
30% 30.0% 29,718 29,757
20% 19.5% 19,812 19,362
10% 10.3% 9,906 10,221
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,238
Calibration 2     94,915
Calibration 3     95,233
ssj_ops@calibrated=95,074
100% 99.5% 95,074 94,641
90% 90.4% 85,567 85,933
80% 80.1% 76,059 76,169
70% 69.9% 66,552 66,492
60% 59.9% 57,044 56,909
50% 50.4% 47,537 47,923
40% 40.5% 38,030 38,552
30% 30.4% 28,522 28,917
20% 20.1% 19,015 19,105
10% 10.0% 9,507 9,500
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,381
Calibration 2     99,047
Calibration 3     98,229
ssj_ops@calibrated=98,638
100% 99.4% 98,638 98,003
90% 89.7% 88,774 88,523
80% 79.7% 78,911 78,608
70% 69.9% 69,047 68,924
60% 61.0% 59,183 60,125
50% 49.5% 49,319 48,784
40% 40.2% 39,455 39,681
30% 30.4% 29,591 29,990
20% 20.0% 19,728 19,762
10% 10.2% 9,864 10,092
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,840
Calibration 2     98,005
Calibration 3     97,852
ssj_ops@calibrated=97,929
100% 99.6% 97,929 97,525
90% 90.8% 88,136 88,880
80% 81.0% 78,343 79,360
70% 70.4% 68,550 68,934
60% 59.7% 58,757 58,509
50% 50.1% 48,964 49,088
40% 40.7% 39,171 39,821
30% 30.3% 29,379 29,721
20% 19.8% 19,586 19,371
10% 9.9% 9,793 9,737
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,273
Calibration 2     98,394
Calibration 3     98,492
ssj_ops@calibrated=98,443
100% 99.7% 98,443 98,145
90% 89.4% 88,599 88,023
80% 80.5% 78,755 79,267
70% 69.8% 68,910 68,723
60% 59.9% 59,066 58,934
50% 50.4% 49,222 49,625
40% 39.7% 39,377 39,106
30% 29.7% 29,533 29,242
20% 20.2% 19,689 19,883
10% 10.1% 9,844 9,921
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,496
Calibration 2     100,496
Calibration 3     100,255
ssj_ops@calibrated=100,375
100% 99.7% 100,375 100,074
90% 90.4% 90,338 90,759
80% 80.0% 80,300 80,302
70% 70.2% 70,263 70,420
60% 59.5% 60,225 59,700
50% 50.5% 50,188 50,657
40% 40.2% 40,150 40,331
30% 30.5% 30,113 30,618
20% 20.0% 20,075 20,068
10% 9.9% 10,038 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,535
Calibration 2     102,648
Calibration 3     101,242
ssj_ops@calibrated=101,945
100% 99.9% 101,945 101,804
90% 89.7% 91,750 91,477
80% 80.2% 81,556 81,715
70% 70.5% 71,361 71,839
60% 59.5% 61,167 60,644
50% 49.4% 50,972 50,363
40% 39.9% 40,778 40,696
30% 30.2% 30,583 30,741
20% 19.7% 20,389 20,033
10% 9.9% 10,194 10,062
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,389
Calibration 2     98,941
Calibration 3     99,839
ssj_ops@calibrated=99,390
100% 99.8% 99,390 99,179
90% 91.5% 89,451 90,972
80% 79.5% 79,512 78,966
70% 70.4% 69,573 70,017
60% 59.8% 59,634 59,388
50% 50.6% 49,695 50,334
40% 40.3% 39,756 40,050
30% 29.9% 29,817 29,750
20% 20.4% 19,878 20,283
10% 10.2% 9,939 10,150
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,192
Calibration 2     100,341
Calibration 3     99,862
ssj_ops@calibrated=100,101
100% 100.1% 100,101 100,199
90% 89.8% 90,091 89,908
80% 81.1% 80,081 81,209
70% 70.4% 70,071 70,464
60% 60.4% 60,061 60,471
50% 49.8% 50,051 49,894
40% 40.0% 40,040 40,073
30% 30.1% 30,030 30,081
20% 20.1% 20,020 20,119
10% 9.7% 10,010 9,746
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,351
Calibration 2     91,661
Calibration 3     92,271
ssj_ops@calibrated=91,966
100% 100.3% 91,966 92,216
90% 90.0% 82,769 82,725
80% 80.0% 73,573 73,572
70% 70.3% 64,376 64,655
60% 60.0% 55,180 55,215
50% 50.4% 45,983 46,315
40% 40.4% 36,786 37,173
30% 30.0% 27,590 27,621
20% 20.5% 18,393 18,820
10% 10.0% 9,197 9,171
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,622
Calibration 2     101,446
Calibration 3     102,234
ssj_ops@calibrated=101,840
100% 99.7% 101,840 101,561
90% 90.3% 91,656 91,918
80% 79.1% 81,472 80,581
70% 69.2% 71,288 70,467
60% 60.2% 61,104 61,277
50% 50.0% 50,920 50,941
40% 40.4% 40,736 41,095
30% 30.3% 30,552 30,823
20% 20.0% 20,368 20,379
10% 10.0% 10,184 10,203
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,447
Calibration 2     100,409
Calibration 3     100,103
ssj_ops@calibrated=100,256
100% 98.5% 100,256 98,753
90% 89.0% 90,230 89,274
80% 80.1% 80,205 80,294
70% 70.7% 70,179 70,867
60% 60.4% 60,153 60,569
50% 50.6% 50,128 50,725
40% 40.8% 40,102 40,895
30% 30.0% 30,077 30,044
20% 20.4% 20,051 20,421
10% 10.0% 10,026 10,074
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,811
Calibration 2     101,089
Calibration 3     99,937
ssj_ops@calibrated=100,513
100% 99.9% 100,513 100,400
90% 89.8% 90,462 90,285
80% 79.8% 80,410 80,173
70% 69.7% 70,359 70,024
60% 59.9% 60,308 60,177
50% 50.1% 50,256 50,398
40% 39.5% 40,205 39,719
30% 30.2% 30,154 30,358
20% 19.8% 20,103 19,930
10% 9.9% 10,051 9,976
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,861
Calibration 2     101,251
Calibration 3     101,355
ssj_ops@calibrated=101,303
100% 98.4% 101,303 99,664
90% 90.6% 91,173 91,758
80% 79.9% 81,042 80,975
70% 69.6% 70,912 70,546
60% 60.6% 60,782 61,371
50% 50.5% 50,651 51,186
40% 40.2% 40,521 40,694
30% 30.0% 30,391 30,390
20% 19.2% 20,261 19,408
10% 10.3% 10,130 10,396
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,608
Calibration 2     100,290
Calibration 3     99,838
ssj_ops@calibrated=100,064
100% 99.5% 100,064 99,545
90% 91.0% 90,057 91,022
80% 79.9% 80,051 79,906
70% 69.6% 70,045 69,671
60% 60.3% 60,038 60,387
50% 49.7% 50,032 49,712
40% 40.1% 40,025 40,109
30% 29.6% 30,019 29,619
20% 20.1% 20,013 20,096
10% 9.9% 10,006 9,921
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,751
Calibration 2     96,890
Calibration 3     95,461
ssj_ops@calibrated=96,175
100% 99.6% 96,175 95,754
90% 89.4% 86,558 85,988
80% 79.9% 76,940 76,828
70% 70.0% 67,323 67,326
60% 60.1% 57,705 57,805
50% 50.5% 48,088 48,562
40% 40.2% 38,470 38,659
30% 29.9% 28,853 28,774
20% 20.3% 19,235 19,495
10% 10.4% 9,618 9,958
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,824
Calibration 2     98,100
Calibration 3     98,934
ssj_ops@calibrated=98,517
100% 100.2% 98,517 98,746
90% 90.2% 88,666 88,884
80% 80.6% 78,814 79,441
70% 70.5% 68,962 69,465
60% 59.5% 59,110 58,618
50% 50.3% 49,259 49,601
40% 39.8% 39,407 39,187
30% 30.4% 29,555 29,951
20% 20.0% 19,703 19,703
10% 9.9% 9,852 9,762
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,468
Calibration 2     92,245
Calibration 3     91,618
ssj_ops@calibrated=91,931
100% 100.0% 91,931 91,973
90% 90.9% 82,738 83,602
80% 79.4% 73,545 72,951
70% 69.5% 64,352 63,900
60% 59.8% 55,159 54,930
50% 50.4% 45,966 46,363
40% 39.9% 36,773 36,647
30% 29.8% 27,579 27,422
20% 20.0% 18,386 18,409
10% 9.9% 9,193 9,141
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,820
Calibration 2     97,249
Calibration 3     97,276
ssj_ops@calibrated=97,262
100% 100.8% 97,262 98,028
90% 90.4% 87,536 87,929
80% 80.2% 77,810 78,041
70% 70.1% 68,084 68,134
60% 60.0% 58,357 58,394
50% 50.1% 48,631 48,754
40% 40.0% 38,905 38,907
30% 29.5% 29,179 28,729
20% 20.5% 19,452 19,941
10% 10.0% 9,726 9,758
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,135
Calibration 2     100,451
Calibration 3     100,309
ssj_ops@calibrated=100,380
100% 99.4% 100,380 99,778
90% 90.8% 90,342 91,182
80% 79.2% 80,304 79,537
70% 69.8% 70,266 70,019
60% 59.5% 60,228 59,745
50% 50.2% 50,190 50,359
40% 39.9% 40,152 40,094
30% 29.1% 30,114 29,191
20% 20.0% 20,076 20,100
10% 9.6% 10,038 9,608
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,050
Calibration 2     102,800
Calibration 3     102,088
ssj_ops@calibrated=102,444
100% 100.0% 102,444 102,433
90% 90.6% 92,199 92,772
80% 80.0% 81,955 81,957
70% 69.4% 71,711 71,096
60% 60.5% 61,466 61,971
50% 50.2% 51,222 51,471
40% 40.0% 40,978 41,008
30% 30.0% 30,733 30,691
20% 20.0% 20,489 20,496
10% 9.8% 10,244 10,054
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,204
Calibration 2     101,085
Calibration 3     100,599
ssj_ops@calibrated=100,842
100% 99.2% 100,842 100,066
90% 90.4% 90,758 91,161
80% 80.0% 80,674 80,646
70% 69.1% 70,589 69,651
60% 60.7% 60,505 61,229
50% 49.9% 50,421 50,305
40% 40.0% 40,337 40,375
30% 29.5% 30,253 29,748
20% 20.0% 20,168 20,158
10% 9.9% 10,084 10,024
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,625
Calibration 2     96,882
Calibration 3     97,117
ssj_ops@calibrated=97,000
100% 99.9% 97,000 96,922
90% 89.2% 87,300 86,551
80% 78.6% 77,600 76,229
70% 69.9% 67,900 67,783
60% 59.4% 58,200 57,575
50% 49.0% 48,500 47,549
40% 40.1% 38,800 38,877
30% 30.1% 29,100 29,215
20% 20.3% 19,400 19,696
10% 9.8% 9,700 9,532
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,289
Calibration 2     100,605
Calibration 3     100,861
ssj_ops@calibrated=100,733
100% 100.4% 100,733 101,178
90% 90.6% 90,660 91,236
80% 79.8% 80,586 80,428
70% 70.4% 70,513 70,920
60% 59.6% 60,440 60,006
50% 50.2% 50,366 50,527
40% 39.9% 40,293 40,180
30% 30.3% 30,220 30,508
20% 20.1% 20,147 20,271
10% 9.9% 10,073 10,004
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,361
Calibration 2     98,974
Calibration 3     98,316
ssj_ops@calibrated=98,645
100% 100.3% 98,645 98,962
90% 90.1% 88,781 88,904
80% 80.4% 78,916 79,319
70% 70.6% 69,052 69,604
60% 59.9% 59,187 59,135
50% 49.6% 49,323 48,895
40% 40.6% 39,458 40,070
30% 30.3% 29,594 29,882
20% 20.0% 19,729 19,748
10% 10.4% 9,865 10,262
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,661
Calibration 2     100,172
Calibration 3     99,161
ssj_ops@calibrated=99,667
100% 98.9% 99,667 98,571
90% 90.5% 89,700 90,196
80% 80.6% 79,733 80,290
70% 69.8% 69,767 69,598
60% 59.4% 59,800 59,246
50% 50.1% 49,833 49,902
40% 39.8% 39,867 39,713
30% 30.2% 29,900 30,146
20% 20.2% 19,933 20,096
10% 10.0% 9,967 9,953
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,644
Calibration 2     100,871
Calibration 3     101,890
ssj_ops@calibrated=101,381
100% 100.4% 101,381 101,832
90% 89.4% 91,242 90,647
80% 78.5% 81,104 79,564
70% 70.3% 70,966 71,319
60% 60.5% 60,828 61,372
50% 49.9% 50,690 50,554
40% 40.2% 40,552 40,773
30% 30.3% 30,414 30,704
20% 20.2% 20,276 20,450
10% 10.2% 10,138 10,348
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,939
Calibration 2     100,836
Calibration 3     99,801
ssj_ops@calibrated=100,319
100% 99.5% 100,319 99,828
90% 89.1% 90,287 89,363
80% 80.8% 80,255 81,080
70% 70.3% 70,223 70,537
60% 60.4% 60,191 60,606
50% 50.0% 50,159 50,148
40% 40.1% 40,127 40,244
30% 29.3% 30,096 29,421
20% 19.9% 20,064 19,992
10% 9.8% 10,032 9,837
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,686
Calibration 2     99,410
Calibration 3     98,639
ssj_ops@calibrated=99,025
100% 98.1% 99,025 97,151
90% 89.3% 89,122 88,395
80% 80.4% 79,220 79,616
70% 69.8% 69,317 69,150
60% 60.5% 59,415 59,886
50% 49.7% 49,512 49,220
40% 40.5% 39,610 40,066
30% 30.2% 29,707 29,919
20% 20.3% 19,805 20,124
10% 10.2% 9,902 10,071
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,703
Calibration 2     96,717
Calibration 3     97,343
ssj_ops@calibrated=97,030
100% 98.9% 97,030 95,988
90% 90.1% 87,327 87,409
80% 81.1% 77,624 78,663
70% 70.0% 67,921 67,894
60% 59.7% 58,218 57,953
50% 50.3% 48,515 48,821
40% 39.9% 38,812 38,698
30% 30.1% 29,109 29,223
20% 19.5% 19,406 18,888
10% 9.9% 9,703 9,609
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,338
Calibration 2     95,544
Calibration 3     95,310
ssj_ops@calibrated=95,427
100% 99.0% 95,427 94,510
90% 89.4% 85,884 85,349
80% 80.0% 76,342 76,361
70% 70.3% 66,799 67,062
60% 59.4% 57,256 56,729
50% 49.8% 47,714 47,562
40% 40.6% 38,171 38,776
30% 31.1% 28,628 29,667
20% 20.0% 19,085 19,071
10% 9.9% 9,543 9,442
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,776
Calibration 2     98,954
Calibration 3     98,548
ssj_ops@calibrated=98,751
100% 99.1% 98,751 97,904
90% 90.3% 88,876 89,190
80% 79.7% 79,001 78,728
70% 69.8% 69,126 68,958
60% 60.4% 59,251 59,691
50% 50.6% 49,376 49,931
40% 40.5% 39,500 39,988
30% 29.7% 29,625 29,371
20% 20.0% 19,750 19,754
10% 9.7% 9,875 9,608
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,102
Calibration 2     96,667
Calibration 3     96,322
ssj_ops@calibrated=96,495
100% 99.5% 96,495 96,044
90% 90.1% 86,845 86,981
80% 80.1% 77,196 77,267
70% 70.6% 67,546 68,078
60% 59.2% 57,897 57,172
50% 50.5% 48,247 48,716
40% 40.5% 38,598 39,050
30% 30.2% 28,948 29,152
20% 20.1% 19,299 19,412
10% 10.0% 9,649 9,612
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,809
Calibration 2     97,486
Calibration 3     97,463
ssj_ops@calibrated=97,474
100% 100.0% 97,474 97,462
90% 89.8% 87,727 87,500
80% 80.3% 77,980 78,247
70% 70.3% 68,232 68,530
60% 60.8% 58,485 59,218
50% 50.6% 48,737 49,341
40% 39.9% 38,990 38,900
30% 29.8% 29,242 29,025
20% 21.0% 19,495 20,462
10% 9.9% 9,747 9,687
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,593
Calibration 2     99,437
Calibration 3     100,542
ssj_ops@calibrated=99,989
100% 99.1% 99,989 99,130
90% 89.3% 89,990 89,332
80% 79.8% 79,991 79,779
70% 69.8% 69,992 69,743
60% 60.8% 59,994 60,841
50% 49.9% 49,995 49,864
40% 39.4% 39,996 39,371
30% 30.2% 29,997 30,233
20% 20.1% 19,998 20,079
10% 9.9% 9,999 9,912
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,261
Calibration 2     98,814
Calibration 3     96,933
ssj_ops@calibrated=97,874
100% 98.7% 97,874 96,623
90% 91.1% 88,086 89,134
80% 80.4% 78,299 78,660
70% 70.5% 68,511 68,972
60% 59.4% 58,724 58,153
50% 48.6% 48,937 47,585
40% 40.7% 39,149 39,878
30% 29.6% 29,362 28,989
20% 20.4% 19,575 19,991
10% 10.1% 9,787 9,862
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,055
Calibration 2     100,991
Calibration 3     101,917
ssj_ops@calibrated=101,454
100% 99.4% 101,454 100,838
90% 90.0% 91,309 91,280
80% 79.9% 81,163 81,044
70% 70.4% 71,018 71,404
60% 59.3% 60,872 60,179
50% 50.4% 50,727 51,175
40% 40.0% 40,582 40,606
30% 30.4% 30,436 30,883
20% 20.0% 20,291 20,333
10% 9.9% 10,145 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,175
Calibration 2     98,093
Calibration 3     97,576
ssj_ops@calibrated=97,834
100% 100.0% 97,834 97,875
90% 90.5% 88,051 88,549
80% 80.4% 78,268 78,660
70% 70.0% 68,484 68,468
60% 60.6% 58,701 59,275
50% 50.4% 48,917 49,327
40% 40.3% 39,134 39,412
30% 30.3% 29,350 29,638
20% 19.9% 19,567 19,495
10% 10.1% 9,783 9,929
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,386
Calibration 2     96,742
Calibration 3     96,588
ssj_ops@calibrated=96,665
100% 99.6% 96,665 96,324
90% 90.3% 86,999 87,251
80% 80.0% 77,332 77,321
70% 70.4% 67,666 68,033
60% 60.1% 57,999 58,060
50% 49.5% 48,333 47,876
40% 39.6% 38,666 38,244
30% 29.9% 29,000 28,900
20% 20.3% 19,333 19,604
10% 10.3% 9,667 9,962
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,122
Calibration 2     93,624
Calibration 3     92,770
ssj_ops@calibrated=93,197
100% 99.2% 93,197 92,487
90% 90.8% 83,877 84,613
80% 79.4% 74,558 73,976
70% 70.6% 65,238 65,771
60% 60.9% 55,918 56,767
50% 50.1% 46,599 46,729
40% 39.9% 37,279 37,204
30% 30.2% 27,959 28,187
20% 19.8% 18,639 18,480
10% 10.2% 9,320 9,524
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,362
Calibration 2     92,559
Calibration 3     92,928
ssj_ops@calibrated=92,743
100% 99.1% 92,743 91,873
90% 90.0% 83,469 83,479
80% 80.8% 74,195 74,926
70% 69.8% 64,920 64,779
60% 60.7% 55,646 56,322
50% 49.9% 46,372 46,280
40% 40.3% 37,097 37,355
30% 30.1% 27,823 27,908
20% 20.4% 18,549 18,885
10% 10.1% 9,274 9,354
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,897
Calibration 2     94,636
Calibration 3     94,938
ssj_ops@calibrated=94,787
100% 99.8% 94,787 94,620
90% 90.0% 85,308 85,276
80% 80.0% 75,830 75,845
70% 69.9% 66,351 66,296
60% 59.0% 56,872 55,958
50% 50.1% 47,394 47,445
40% 39.6% 37,915 37,541
30% 30.1% 28,436 28,517
20% 19.9% 18,957 18,870
10% 9.8% 9,479 9,300
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,223
Calibration 2     100,558
Calibration 3     101,753
ssj_ops@calibrated=101,156
100% 100.8% 101,156 101,976
90% 89.6% 91,040 90,611
80% 79.5% 80,925 80,383
70% 69.7% 70,809 70,548
60% 59.9% 60,693 60,618
50% 50.7% 50,578 51,299
40% 39.8% 40,462 40,213
30% 30.0% 30,347 30,379
20% 19.9% 20,231 20,109
10% 10.0% 10,116 10,129
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,782
Calibration 2     98,324
Calibration 3     98,903
ssj_ops@calibrated=98,614
100% 100.1% 98,614 98,694
90% 90.1% 88,752 88,883
80% 79.3% 78,891 78,194
70% 70.0% 69,030 69,070
60% 60.1% 59,168 59,276
50% 49.9% 49,307 49,200
40% 39.6% 39,446 39,012
30% 29.4% 29,584 29,004
20% 20.5% 19,723 20,192
10% 10.2% 9,861 10,075
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,496
Calibration 2     95,555
Calibration 3     95,813
ssj_ops@calibrated=95,684
100% 99.5% 95,684 95,201
90% 89.4% 86,116 85,563
80% 80.2% 76,547 76,694
70% 69.1% 66,979 66,078
60% 60.8% 57,410 58,168
50% 49.7% 47,842 47,528
40% 40.5% 38,274 38,737
30% 30.4% 28,705 29,046
20% 20.9% 19,137 19,979
10% 10.1% 9,568 9,648
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,223
Calibration 2     100,219
Calibration 3     99,889
ssj_ops@calibrated=100,054
100% 99.1% 100,054 99,154
90% 89.1% 90,048 89,104
80% 80.8% 80,043 80,860
70% 69.8% 70,038 69,825
60% 58.9% 60,032 58,920
50% 50.3% 50,027 50,303
40% 40.1% 40,022 40,141
30% 30.0% 30,016 30,042
20% 20.3% 20,011 20,277
10% 10.0% 10,005 10,009
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,334
Calibration 2     101,255
Calibration 3     99,674
ssj_ops@calibrated=100,465
100% 99.0% 100,465 99,420
90% 89.1% 90,418 89,560
80% 80.9% 80,372 81,312
70% 70.1% 70,325 70,432
60% 59.8% 60,279 60,032
50% 49.7% 50,232 49,924
40% 40.2% 40,186 40,391
30% 30.0% 30,139 30,124
20% 20.7% 20,093 20,764
10% 9.8% 10,046 9,846
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,231
Calibration 2     96,132
Calibration 3     96,505
ssj_ops@calibrated=96,319
100% 99.6% 96,319 95,906
90% 88.9% 86,687 85,592
80% 79.8% 77,055 76,837
70% 70.0% 67,423 67,453
60% 59.9% 57,791 57,728
50% 49.4% 48,159 47,627
40% 39.4% 38,527 37,928
30% 29.5% 28,896 28,403
20% 19.8% 19,264 19,047
10% 9.8% 9,632 9,421
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,332
Calibration 2     98,196
Calibration 3     97,637
ssj_ops@calibrated=97,917
100% 99.6% 97,917 97,532
90% 89.2% 88,125 87,319
80% 80.3% 78,333 78,642
70% 70.3% 68,542 68,878
60% 59.4% 58,750 58,117
50% 49.6% 48,958 48,565
40% 40.6% 39,167 39,723
30% 30.5% 29,375 29,839
20% 20.4% 19,583 19,970
10% 9.9% 9,792 9,740
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,073
Calibration 2     99,958
Calibration 3     99,574
ssj_ops@calibrated=99,766
100% 99.9% 99,766 99,633
90% 89.6% 89,789 89,388
80% 79.9% 79,813 79,750
70% 70.3% 69,836 70,154
60% 59.1% 59,860 58,912
50% 50.6% 49,883 50,452
40% 40.5% 39,906 40,402
30% 29.8% 29,930 29,739
20% 19.9% 19,953 19,890
10% 9.9% 9,977 9,875
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,435
Calibration 2     99,532
Calibration 3     98,058
ssj_ops@calibrated=98,795
100% 99.3% 98,795 98,084
90% 89.5% 88,916 88,399
80% 79.4% 79,036 78,418
70% 70.4% 69,157 69,534
60% 59.2% 59,277 58,505
50% 50.1% 49,398 49,507
40% 40.3% 39,518 39,836
30% 30.0% 29,639 29,658
20% 19.9% 19,759 19,691
10% 9.6% 9,880 9,480
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,572
Calibration 2     99,075
Calibration 3     97,679
ssj_ops@calibrated=98,377
100% 99.8% 98,377 98,189
90% 89.4% 88,540 87,921
80% 79.5% 78,702 78,189
70% 69.5% 68,864 68,411
60% 60.0% 59,026 59,036
50% 49.8% 49,189 48,967
40% 40.0% 39,351 39,306
30% 30.8% 29,513 30,269
20% 19.8% 19,675 19,470
10% 10.1% 9,838 9,898
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,970
Calibration 2     101,889
Calibration 3     101,311
ssj_ops@calibrated=101,600
100% 98.7% 101,600 100,272
90% 89.8% 91,440 91,250
80% 80.8% 81,280 82,139
70% 70.5% 71,120 71,629
60% 60.8% 60,960 61,776
50% 50.0% 50,800 50,844
40% 39.8% 40,640 40,487
30% 29.7% 30,480 30,199
20% 19.7% 20,320 20,052
10% 10.1% 10,160 10,308
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,407
Calibration 2     95,645
Calibration 3     96,568
ssj_ops@calibrated=96,107
100% 99.5% 96,107 95,625
90% 90.1% 86,496 86,595
80% 79.0% 76,885 75,967
70% 70.2% 67,275 67,442
60% 60.1% 57,664 57,739
50% 49.1% 48,053 47,153
40% 40.0% 38,443 38,429
30% 30.5% 28,832 29,304
20% 20.5% 19,221 19,716
10% 9.9% 9,611 9,517
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,830
Calibration 2     95,106
Calibration 3     94,435
ssj_ops@calibrated=94,770
100% 100.2% 94,770 94,965
90% 90.0% 85,293 85,308
80% 79.0% 75,816 74,877
70% 70.0% 66,339 66,385
60% 58.9% 56,862 55,837
50% 50.1% 47,385 47,493
40% 40.8% 37,908 38,627
30% 29.3% 28,431 27,779
20% 19.7% 18,954 18,698
10% 10.2% 9,477 9,654
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,949
Calibration 2     97,337
Calibration 3     97,372
ssj_ops@calibrated=97,354
100% 99.1% 97,354 96,461
90% 89.8% 87,619 87,438
80% 79.6% 77,884 77,510
70% 70.3% 68,148 68,444
60% 59.3% 58,413 57,736
50% 50.6% 48,677 49,215
40% 39.9% 38,942 38,853
30% 30.2% 29,206 29,362
20% 19.6% 19,471 19,112
10% 10.2% 9,735 9,928
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,013
Calibration 2     95,914
Calibration 3     96,553
ssj_ops@calibrated=96,233
100% 99.8% 96,233 96,003
90% 89.8% 86,610 86,382
80% 79.6% 76,987 76,635
70% 71.0% 67,363 68,312
60% 60.1% 57,740 57,796
50% 49.7% 48,117 47,783
40% 39.2% 38,493 37,745
30% 30.4% 28,870 29,265
20% 20.0% 19,247 19,252
10% 10.0% 9,623 9,617
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,786
Calibration 2     97,498
Calibration 3     97,922
ssj_ops@calibrated=97,710
100% 99.6% 97,710 97,334
90% 89.6% 87,939 87,560
80% 81.2% 78,168 79,293
70% 69.5% 68,397 67,951
60% 59.6% 58,626 58,248
50% 50.0% 48,855 48,897
40% 39.2% 39,084 38,343
30% 30.3% 29,313 29,618
20% 20.3% 19,542 19,879
10% 9.9% 9,771 9,686
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,984
Calibration 2     100,799
Calibration 3     100,119
ssj_ops@calibrated=100,459
100% 99.3% 100,459 99,711
90% 89.5% 90,413 89,901
80% 78.7% 80,367 79,100
70% 70.8% 70,321 71,149
60% 60.0% 60,275 60,295
50% 49.0% 50,229 49,226
40% 40.4% 40,184 40,545
30% 30.0% 30,138 30,087
20% 20.3% 20,092 20,433
10% 10.2% 10,046 10,200
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,750
Calibration 2     102,043
Calibration 3     101,632
ssj_ops@calibrated=101,837
100% 99.8% 101,837 101,683
90% 90.0% 91,654 91,624
80% 79.9% 81,470 81,369
70% 69.7% 71,286 70,973
60% 59.5% 61,102 60,579
50% 49.6% 50,919 50,482
40% 40.2% 40,735 40,912
30% 29.6% 30,551 30,178
20% 20.3% 20,367 20,702
10% 10.0% 10,184 10,233
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,801
Calibration 2     98,772
Calibration 3     97,583
ssj_ops@calibrated=98,177
100% 100.4% 98,177 98,562
90% 90.8% 88,360 89,188
80% 80.7% 78,542 79,265
70% 69.5% 68,724 68,278
60% 59.3% 58,906 58,254
50% 49.7% 49,089 48,752
40% 40.6% 39,271 39,893
30% 30.2% 29,453 29,609
20% 20.3% 19,635 19,910
10% 9.9% 9,818 9,733
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,639
Calibration 2     98,754
Calibration 3     100,079
ssj_ops@calibrated=99,416
100% 99.1% 99,416 98,538
90% 89.5% 89,475 89,023
80% 79.7% 79,533 79,271
70% 70.4% 69,591 70,006
60% 60.5% 59,650 60,126
50% 49.4% 49,708 49,103
40% 39.9% 39,767 39,707
30% 30.0% 29,825 29,797
20% 19.8% 19,883 19,658
10% 9.6% 9,942 9,500
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,784
Calibration 2     92,699
Calibration 3     93,160
ssj_ops@calibrated=92,929
100% 99.4% 92,929 92,415
90% 90.3% 83,637 83,904
80% 79.5% 74,344 73,870
70% 69.9% 65,051 64,981
60% 59.2% 55,758 55,003
50% 49.3% 46,465 45,776
40% 39.4% 37,172 36,608
30% 29.5% 27,879 27,454
20% 19.9% 18,586 18,517
10% 10.4% 9,293 9,695
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,192
Calibration 2     95,267
Calibration 3     94,692
ssj_ops@calibrated=94,979
100% 99.8% 94,979 94,783
90% 89.7% 85,481 85,174
80% 80.6% 75,984 76,580
70% 69.1% 66,486 65,632
60% 59.4% 56,988 56,387
50% 49.7% 47,490 47,170
40% 39.1% 37,992 37,139
30% 30.3% 28,494 28,800
20% 20.0% 18,996 19,025
10% 10.1% 9,498 9,621
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,972
Calibration 2     100,112
Calibration 3     100,415
ssj_ops@calibrated=100,264
100% 100.3% 100,264 100,568
90% 89.4% 90,237 89,649
80% 79.8% 80,211 79,980
70% 69.8% 70,184 69,953
60% 59.9% 60,158 60,089
50% 49.7% 50,132 49,869
40% 39.5% 40,105 39,575
30% 29.9% 30,079 30,018
20% 19.7% 20,053 19,759
10% 9.8% 10,026 9,850
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,586
Calibration 2     92,475
Calibration 3     92,553
ssj_ops@calibrated=92,514
100% 99.8% 92,514 92,343
90% 89.8% 83,263 83,056
80% 79.9% 74,011 73,879
70% 70.3% 64,760 65,036
60% 60.6% 55,509 56,073
50% 50.3% 46,257 46,557
40% 39.5% 37,006 36,528
30% 30.1% 27,754 27,815
20% 20.4% 18,503 18,869
10% 10.0% 9,251 9,267
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,218
Calibration 2     97,082
Calibration 3     97,253
ssj_ops@calibrated=97,168
100% 99.7% 97,168 96,836
90% 89.9% 87,451 87,364
80% 80.2% 77,734 77,882
70% 70.0% 68,017 68,023
60% 59.9% 58,301 58,187
50% 49.4% 48,584 48,005
40% 40.4% 38,867 39,223
30% 29.9% 29,150 29,073
20% 19.8% 19,434 19,220
10% 9.7% 9,717 9,437
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,973
Calibration 2     100,655
Calibration 3     100,621
ssj_ops@calibrated=100,638
100% 99.4% 100,638 100,058
90% 89.7% 90,574 90,254
80% 81.0% 80,510 81,558
70% 69.8% 70,446 70,241
60% 60.9% 60,383 61,337
50% 49.8% 50,319 50,138
40% 40.0% 40,255 40,302
30% 29.2% 30,191 29,411
20% 20.0% 20,128 20,092
10% 10.0% 10,064 10,050
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,987
Calibration 2     99,981
Calibration 3     100,531
ssj_ops@calibrated=100,256
100% 99.1% 100,256 99,316
90% 89.1% 90,230 89,340
80% 79.7% 80,205 79,931
70% 70.4% 70,179 70,553
60% 60.4% 60,153 60,599
50% 50.3% 50,128 50,402
40% 39.4% 40,102 39,529
30% 29.9% 30,077 30,002
20% 20.0% 20,051 20,046
10% 10.1% 10,026 10,131
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,413
Calibration 2     99,523
Calibration 3     99,503
ssj_ops@calibrated=99,513
100% 100.0% 99,513 99,519
90% 89.4% 89,562 88,982
80% 80.3% 79,610 79,893
70% 70.9% 69,659 70,602
60% 60.7% 59,708 60,379
50% 50.5% 49,756 50,211
40% 39.5% 39,805 39,292
30% 29.9% 29,854 29,726
20% 20.2% 19,903 20,108
10% 10.1% 9,951 10,071
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,615
Calibration 2     90,063
Calibration 3     90,815
ssj_ops@calibrated=90,439
100% 100.2% 90,439 90,607
90% 90.3% 81,395 81,649
80% 80.1% 72,351 72,422
70% 69.2% 63,307 62,623
60% 59.7% 54,263 53,997
50% 49.6% 45,220 44,874
40% 40.4% 36,176 36,582
30% 30.3% 27,132 27,376
20% 19.6% 18,088 17,713
10% 10.0% 9,044 9,071
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,251
Calibration 2     98,773
Calibration 3     99,929
ssj_ops@calibrated=99,351
100% 99.9% 99,351 99,247
90% 89.1% 89,416 88,496
80% 80.5% 79,481 79,981
70% 69.5% 69,546 69,094
60% 59.9% 59,611 59,492
50% 50.5% 49,676 50,147
40% 39.9% 39,740 39,655
30% 29.9% 29,805 29,660
20% 20.4% 19,870 20,247
10% 9.8% 9,935 9,779
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,104
Calibration 2     96,468
Calibration 3     93,874
ssj_ops@calibrated=95,171
100% 99.4% 95,171 94,562
90% 90.7% 85,654 86,292
80% 79.4% 76,137 75,552
70% 69.9% 66,620 66,488
60% 60.1% 57,102 57,209
50% 50.1% 47,585 47,708
40% 39.7% 38,068 37,788
30% 30.6% 28,551 29,162
20% 20.0% 19,034 19,055
10% 10.2% 9,517 9,662
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,162
Calibration 2     93,064
Calibration 3     91,781
ssj_ops@calibrated=92,422
100% 100.1% 92,422 92,532
90% 90.1% 83,180 83,268
80% 80.0% 73,938 73,980
70% 70.4% 64,696 65,087
60% 60.2% 55,453 55,619
50% 50.3% 46,211 46,446
40% 39.6% 36,969 36,559
30% 29.4% 27,727 27,126
20% 20.2% 18,484 18,627
10% 10.0% 9,242 9,271
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,922
Calibration 2     98,977
Calibration 3     98,139
ssj_ops@calibrated=98,558
100% 100.2% 98,558 98,728
90% 91.2% 88,702 89,895
80% 80.1% 78,846 78,950
70% 70.3% 68,991 69,292
60% 59.2% 59,135 58,365
50% 49.6% 49,279 48,877
40% 40.3% 39,423 39,691
30% 29.3% 29,567 28,846
20% 20.1% 19,712 19,804
10% 10.0% 9,856 9,829
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,553
Calibration 2     99,386
Calibration 3     100,576
ssj_ops@calibrated=99,981
100% 99.4% 99,981 99,422
90% 90.0% 89,983 90,006
80% 80.3% 79,985 80,276
70% 70.2% 69,987 70,205
60% 59.7% 59,989 59,670
50% 49.5% 49,991 49,496
40% 40.4% 39,992 40,391
30% 29.8% 29,994 29,782
20% 20.3% 19,996 20,317
10% 10.1% 9,998 10,092
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,245
Calibration 2     95,779
Calibration 3     95,805
ssj_ops@calibrated=95,792
100% 100.6% 95,792 96,396
90% 90.7% 86,213 86,887
80% 80.0% 76,634 76,617
70% 70.4% 67,054 67,437
60% 60.3% 57,475 57,735
50% 50.1% 47,896 47,985
40% 40.0% 38,317 38,352
30% 30.0% 28,738 28,769
20% 20.0% 19,158 19,121
10% 10.2% 9,579 9,803
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,107
Calibration 2     97,347
Calibration 3     97,565
ssj_ops@calibrated=97,456
100% 100.2% 97,456 97,637
90% 90.3% 87,711 87,986
80% 80.1% 77,965 78,059
70% 69.3% 68,219 67,506
60% 60.6% 58,474 59,105
50% 50.1% 48,728 48,789
40% 39.8% 38,982 38,750
30% 30.1% 29,237 29,371
20% 19.5% 19,491 18,975
10% 9.8% 9,746 9,579
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,801
Calibration 2     101,772
Calibration 3     100,793
ssj_ops@calibrated=101,283
100% 99.8% 101,283 101,097
90% 90.9% 91,155 92,114
80% 79.3% 81,026 80,295
70% 69.4% 70,898 70,311
60% 60.0% 60,770 60,792
50% 49.4% 50,641 50,075
40% 40.0% 40,513 40,487
30% 30.8% 30,385 31,154
20% 20.4% 20,257 20,657
10% 10.3% 10,128 10,413
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,135
Calibration 2     97,387
Calibration 3     96,634
ssj_ops@calibrated=97,010
100% 99.1% 97,010 96,180
90% 90.9% 87,309 88,215
80% 80.5% 77,608 78,109
70% 69.6% 67,907 67,555
60% 60.0% 58,206 58,199
50% 49.7% 48,505 48,167
40% 39.9% 38,804 38,686
30% 30.5% 29,103 29,560
20% 19.8% 19,402 19,181
10% 10.0% 9,701 9,704
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,011
Calibration 2     99,086
Calibration 3     97,876
ssj_ops@calibrated=98,481
100% 99.5% 98,481 98,009
90% 90.0% 88,633 88,654
80% 80.8% 78,785 79,590
70% 69.5% 68,937 68,429
60% 60.2% 59,089 59,306
50% 50.1% 49,240 49,332
40% 40.6% 39,392 39,961
30% 30.1% 29,544 29,621
20% 20.0% 19,696 19,739
10% 10.2% 9,848 10,083
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,778
Calibration 2     102,282
Calibration 3     102,425
ssj_ops@calibrated=102,353
100% 97.8% 102,353 100,070
90% 90.1% 92,118 92,233
80% 80.2% 81,883 82,057
70% 70.1% 71,647 71,762
60% 59.0% 61,412 60,380
50% 50.0% 51,177 51,184
40% 40.4% 40,941 41,332
30% 29.8% 30,706 30,477
20% 20.5% 20,471 21,033
10% 10.0% 10,235 10,201
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.113' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,857
Calibration 2     97,902
Calibration 3     97,746
ssj_ops@calibrated=97,824
100% 100.0% 97,824 97,789
90% 90.7% 88,042 88,725
80% 80.2% 78,259 78,443
70% 69.0% 68,477 67,462
60% 59.7% 58,694 58,373
50% 49.8% 48,912 48,684
40% 39.9% 39,130 38,993
30% 30.2% 29,347 29,553
20% 20.0% 19,565 19,596
10% 9.9% 9,782 9,665
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.114' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,025
Calibration 2     96,681
Calibration 3     96,600
ssj_ops@calibrated=96,641
100% 100.0% 96,641 96,688
90% 90.5% 86,977 87,492
80% 80.5% 77,312 77,833
70% 70.6% 67,648 68,208
60% 60.5% 57,984 58,499
50% 50.3% 48,320 48,624
40% 40.0% 38,656 38,687
30% 30.5% 28,992 29,455
20% 19.8% 19,328 19,090
10% 10.1% 9,664 9,783
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.115' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,115
Calibration 2     100,756
Calibration 3     100,511
ssj_ops@calibrated=100,634
100% 99.2% 100,634 99,812
90% 89.5% 90,570 90,097
80% 80.7% 80,507 81,233
70% 70.7% 70,444 71,130
60% 61.2% 60,380 61,619
50% 49.6% 50,317 49,937
40% 39.6% 40,253 39,848
30% 30.2% 30,190 30,371
20% 20.1% 20,127 20,218
10% 10.2% 10,063 10,283
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.116' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,743
Calibration 2     97,738
Calibration 3     97,909
ssj_ops@calibrated=97,824
100% 100.5% 97,824 98,269
90% 90.4% 88,041 88,442
80% 79.6% 78,259 77,819
70% 69.9% 68,477 68,358
60% 59.8% 58,694 58,510
50% 50.0% 48,912 48,913
40% 40.1% 39,129 39,181
30% 29.6% 29,347 28,983
20% 20.3% 19,565 19,875
10% 9.9% 9,782 9,667
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.117' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,985
Calibration 2     100,702
Calibration 3     100,471
ssj_ops@calibrated=100,586
100% 99.0% 100,586 99,587
90% 88.9% 90,528 89,390
80% 81.3% 80,469 81,740
70% 69.8% 70,410 70,201
60% 59.7% 60,352 60,001
50% 50.4% 50,293 50,693
40% 39.9% 40,235 40,140
30% 30.1% 30,176 30,303
20% 19.8% 20,117 19,907
10% 9.7% 10,059 9,804
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.118' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,050
Calibration 2     101,130
Calibration 3     100,971
ssj_ops@calibrated=101,050
100% 99.7% 101,050 100,770
90% 90.5% 90,945 91,457
80% 79.5% 80,840 80,345
70% 70.9% 70,735 71,602
60% 60.1% 60,630 60,734
50% 49.6% 50,525 50,118
40% 40.2% 40,420 40,619
30% 29.7% 30,315 29,984
20% 19.5% 20,210 19,711
10% 10.2% 10,105 10,342
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.119' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,164
Calibration 2     97,190
Calibration 3     95,298
ssj_ops@calibrated=96,244
100% 98.8% 96,244 95,098
90% 88.8% 86,619 85,460
80% 79.8% 76,995 76,761
70% 70.2% 67,371 67,553
60% 59.2% 57,746 57,011
50% 49.6% 48,122 47,696
40% 39.8% 38,498 38,299
30% 30.1% 28,873 28,996
20% 19.8% 19,249 19,029
10% 10.0% 9,624 9,613
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.120' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,428
Calibration 2     99,181
Calibration 3     98,951
ssj_ops@calibrated=99,066
100% 97.9% 99,066 96,994
90% 89.9% 89,160 89,041
80% 80.0% 79,253 79,237
70% 69.5% 69,346 68,855
60% 60.6% 59,440 59,991
50% 49.8% 49,533 49,294
40% 39.6% 39,626 39,267
30% 29.7% 29,720 29,458
20% 20.4% 19,813 20,178
10% 9.8% 9,907 9,725
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.121' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,762
Calibration 2     97,054
Calibration 3     96,794
ssj_ops@calibrated=96,924
100% 100.2% 96,924 97,077
90% 90.7% 87,232 87,940
80% 78.9% 77,539 76,484
70% 69.8% 67,847 67,632
60% 59.9% 58,154 58,033
50% 49.9% 48,462 48,326
40% 39.7% 38,770 38,454
30% 29.6% 29,077 28,715
20% 19.9% 19,385 19,270
10% 9.9% 9,692 9,629
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.122' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,499
Calibration 2     96,010
Calibration 3     96,158
ssj_ops@calibrated=96,084
100% 98.9% 96,084 95,048
90% 91.2% 86,476 87,591
80% 80.2% 76,867 77,063
70% 70.2% 67,259 67,448
60% 59.7% 57,651 57,402
50% 49.2% 48,042 47,235
40% 40.3% 38,434 38,737
30% 29.9% 28,825 28,754
20% 20.2% 19,217 19,362
10% 10.2% 9,608 9,833
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.123' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,854
Calibration 2     98,936
Calibration 3     98,867
ssj_ops@calibrated=98,902
100% 99.4% 98,902 98,347
90% 89.9% 89,011 88,952
80% 80.5% 79,121 79,653
70% 70.3% 69,231 69,557
60% 59.9% 59,341 59,279
50% 49.8% 49,451 49,273
40% 39.3% 39,561 38,893
30% 30.4% 29,670 30,092
20% 19.7% 19,780 19,521
10% 9.7% 9,890 9,575
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.124' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,832
Calibration 2     101,260
Calibration 3     101,001
ssj_ops@calibrated=101,130
100% 99.0% 101,130 100,160
90% 88.8% 91,017 89,819
80% 80.3% 80,904 81,159
70% 69.5% 70,791 70,324
60% 59.7% 60,678 60,333
50% 50.3% 50,565 50,836
40% 40.0% 40,452 40,465
30% 29.6% 30,339 29,907
20% 19.8% 20,226 20,035
10% 9.9% 10,113 10,050
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.125' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,804
Calibration 2     99,182
Calibration 3     97,998
ssj_ops@calibrated=98,590
100% 99.6% 98,590 98,162
90% 90.4% 88,731 89,122
80% 79.3% 78,872 78,164
70% 70.8% 69,013 69,762
60% 60.3% 59,154 59,444
50% 49.6% 49,295 48,865
40% 40.5% 39,436 39,975
30% 29.3% 29,577 28,861
20% 19.7% 19,718 19,446
10% 10.2% 9,859 10,021
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.126' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,759
Calibration 2     95,174
Calibration 3     94,840
ssj_ops@calibrated=95,007
100% 100.0% 95,007 95,010
90% 89.7% 85,506 85,219
80% 78.8% 76,006 74,860
70% 69.3% 66,505 65,855
60% 60.2% 57,004 57,205
50% 50.1% 47,504 47,599
40% 39.0% 38,003 37,027
30% 29.8% 28,502 28,329
20% 20.0% 19,001 18,962
10% 10.3% 9,501 9,795
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.127' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,202
Calibration 2     97,236
Calibration 3     97,270
ssj_ops@calibrated=97,253
100% 99.7% 97,253 96,942
90% 90.6% 87,528 88,132
80% 80.9% 77,802 78,720
70% 69.7% 68,077 67,831
60% 59.8% 58,352 58,193
50% 49.5% 48,627 48,137
40% 40.2% 38,901 39,127
30% 30.5% 29,176 29,651
20% 20.1% 19,451 19,587
10% 9.8% 9,725 9,566
Active Idle   0 0
Graph of results
JVM 'SLES12SP5-Node03.128' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,095
Calibration 2     98,673
Calibration 3     98,920
ssj_ops@calibrated=98,797
100% 99.0% 98,797 97,844
90% 90.0% 88,917 88,868
80% 79.9% 79,037 78,952
70% 68.8% 69,158 68,009
60% 59.7% 59,278 59,016
50% 50.0% 49,398 49,418
40% 39.1% 39,519 38,606
30% 30.1% 29,639 29,735
20% 19.9% 19,759 19,687
10% 10.2% 9,880 10,029
Active Idle   0 0
Graph of results
