Hewlett Packard Enterprise ProLiant DL385 Gen10 Plus ssj_ops@100% = 92,375
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Feb 18, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 15, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,828
Calibration 2     92,792
Calibration 3     92,695
ssj_ops@calibrated=92,743
100% 99.6% 92,743 92,375
90% 89.2% 83,469 82,749
80% 80.3% 74,195 74,493
70% 70.1% 64,920 65,054
60% 60.3% 55,646 55,948
50% 49.0% 46,372 45,475
40% 39.6% 37,097 36,754
30% 30.0% 27,823 27,866
20% 19.7% 18,549 18,292
10% 10.1% 9,274 9,350
Active Idle   0 0

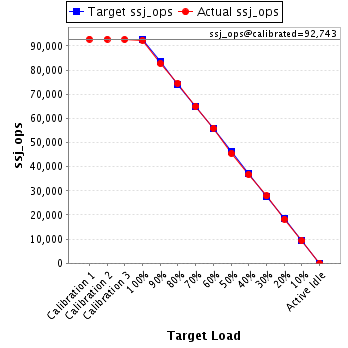

Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL385 Gen10 Plus
Form Factor: 2U
CPU Name: AMD EPYC 7763 2.45 GHz
CPU Characteristics: 64-Core, 2.45GHz 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per core
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 8GB 1Rx8 PC4-3200AA-R slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: None
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP5
OS Version: 4.12.14-122.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 128 }
JVM Instances: 128
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: A42 v2.40 (02/15/2021)
Management Firmware Version: 2.40 Feb 07 2021
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
BIOS Platform Configuration (RBSU):
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,751,239 1,694
Payment 6,751,237
Order Status 675,122
Delivery 675,123
Stock Level 675,123
Customer Report 6,751,237
Calibration 2 New Order 6,748,502 1,694
Payment 6,748,496
Order Status 674,849
Delivery 674,851
Stock Level 674,850
Customer Report 6,748,502
Calibration 3 New Order 6,741,452 1,694
Payment 6,741,453
Order Status 674,145
Delivery 674,146
Stock Level 674,146
Customer Report 6,741,456
100% 99.6% New Order 6,718,194 1,694
Payment 6,718,191
Order Status 671,819
Delivery 671,819
Stock Level 671,819
Customer Report 6,718,195
90% 89.2% New Order 6,018,099 1,694
Payment 6,018,096
Order Status 601,809
Delivery 601,809
Stock Level 601,810
Customer Report 6,018,092
80% 80.3% New Order 5,417,680 1,694
Payment 5,417,685
Order Status 541,769
Delivery 541,769
Stock Level 541,767
Customer Report 5,417,689
70% 70.1% New Order 4,731,202 1,694
Payment 4,731,196
Order Status 473,118
Delivery 473,120
Stock Level 473,120
Customer Report 4,731,198
60% 60.3% New Order 4,068,988 1,694
Payment 4,068,991
Order Status 406,899
Delivery 406,899
Stock Level 406,900
Customer Report 4,068,990
50% 49.0% New Order 3,307,282 1,694
Payment 3,307,284
Order Status 330,729
Delivery 330,728
Stock Level 330,730
Customer Report 3,307,279
40% 39.6% New Order 2,673,049 1,694
Payment 2,673,051
Order Status 267,304
Delivery 267,305
Stock Level 267,306
Customer Report 2,673,048
30% 30.0% New Order 2,026,668 1,694
Payment 2,026,666
Order Status 202,667
Delivery 202,667
Stock Level 202,666
Customer Report 2,026,666
20% 19.7% New Order 1,330,300 1,694
Payment 1,330,304
Order Status 133,031
Delivery 133,031
Stock Level 133,030
Customer Report 1,330,304
10% 10.1% New Order 680,029 1,694
Payment 680,031
Order Status 68,003
Delivery 68,003
Stock Level 68,003
Customer Report 680,031
Active Idle New Order 0 1,694
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
