Hewlett Packard Enterprise Superdome Flex 280 - 8 Socket ssj_ops@100% = 19,501,160
ssj_ops@100% per JVM = 1,218,823
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Oct 15, 2020
Hardware Availability: Dec-2020 Software Availability: Jul-2020 Publication: Nov 4, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     19,601,560
Calibration 2     19,545,507
Calibration 3     19,564,187
ssj_ops@calibrated=19,554,847
100% 99.7% 19,554,847 19,501,160
90% 90.1% 17,599,362 17,612,816
80% 80.0% 15,643,878 15,643,569
70% 70.0% 13,688,393 13,694,441
60% 60.0% 11,732,908 11,726,565
50% 50.0% 9,777,424 9,772,685
40% 40.0% 7,821,939 7,819,688
30% 30.0% 5,866,454 5,867,506
20% 20.0% 3,910,969 3,915,322
10% 10.0% 1,955,485 1,960,200
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Superdome Flex 280 - 8 Socket
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8380HL 2.90 GHz
CPU Characteristics: 28-Core, 2.90 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2900
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39242 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 1536
# and size of DIMM: 48 x 32768 MB
Memory Details: 32GB 2Rx4 PC4-3200AA-RE2; 1 DIMM per channel slots populated
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: HPE 1600W Platinum Power Supply (060-0415-002)
Disk Drive: 1 x HPE Superdome Flex 280 480GB SATA 6G Mixed Use SFF (2.5in) BC 3yr Wty Digitally Signed Firmware SSD (R6A34A)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Embedded Ethernet 1Gb 2-port adapter
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity: numactl --cpunodebind=[0-15] --localalloc
JVM Instances: 16
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 1.0.140
Management Firmware Version: 1.0.140
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Foundation Software 2 for SUSE Linux Enterprise Server Media License RTU
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SDX-8S-SLES15.001 1,223,494
SDX-8S-SLES15.002 1,232,591
SDX-8S-SLES15.003 1,224,638
SDX-8S-SLES15.004 1,183,328
SDX-8S-SLES15.005 1,233,411
SDX-8S-SLES15.006 1,218,635
SDX-8S-SLES15.007 1,225,444
SDX-8S-SLES15.008 1,232,743
SDX-8S-SLES15.009 1,232,022
SDX-8S-SLES15.010 1,153,819
SDX-8S-SLES15.011 1,229,289
SDX-8S-SLES15.012 1,192,186
SDX-8S-SLES15.013 1,217,039
SDX-8S-SLES15.014 1,232,419
SDX-8S-SLES15.015 1,233,922
SDX-8S-SLES15.016 1,236,181
ssj_ops@100% 19,501,160
ssj_ops@100% per JVM 1,218,823
Graph of per-instance results
JVM 'SDX-8S-SLES15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,229,379
Calibration 2     1,223,489
Calibration 3     1,224,786
ssj_ops@calibrated=1,224,137
100% 99.9% 1,224,137 1,223,494
90% 90.1% 1,101,724 1,102,724
80% 79.8% 979,310 976,343
70% 70.1% 856,896 857,750
60% 59.9% 734,482 733,080
50% 50.0% 612,069 611,780
40% 40.1% 489,655 490,588
30% 30.0% 367,241 367,662
20% 20.0% 244,827 245,034
10% 10.1% 122,414 123,234
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,241,661
Calibration 2     1,236,108
Calibration 3     1,237,359
ssj_ops@calibrated=1,236,733
100% 99.7% 1,236,733 1,232,591
90% 90.0% 1,113,060 1,113,380
80% 80.2% 989,387 992,360
70% 70.0% 865,713 865,235
60% 59.9% 742,040 740,943
50% 50.0% 618,367 617,995
40% 40.1% 494,693 496,264
30% 29.8% 371,020 368,744
20% 19.9% 247,347 245,978
10% 10.0% 123,673 123,853
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,232,811
Calibration 2     1,228,123
Calibration 3     1,228,334
ssj_ops@calibrated=1,228,229
100% 99.7% 1,228,229 1,224,638
90% 90.1% 1,105,406 1,106,287
80% 80.1% 982,583 983,860
70% 70.0% 859,760 860,132
60% 59.9% 736,937 735,384
50% 50.0% 614,114 613,694
40% 40.0% 491,292 491,573
30% 30.0% 368,469 368,632
20% 20.1% 245,646 247,396
10% 9.9% 122,823 121,564
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,189,814
Calibration 2     1,185,121
Calibration 3     1,186,475
ssj_ops@calibrated=1,185,798
100% 99.8% 1,185,798 1,183,328
90% 90.1% 1,067,218 1,068,585
80% 80.1% 948,638 949,467
70% 70.1% 830,059 831,120
60% 60.2% 711,479 713,664
50% 49.7% 592,899 589,390
40% 40.0% 474,319 474,417
30% 29.9% 355,739 354,590
20% 20.1% 237,160 238,507
10% 10.0% 118,580 118,808
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,237,117
Calibration 2     1,234,872
Calibration 3     1,236,646
ssj_ops@calibrated=1,235,759
100% 99.8% 1,235,759 1,233,411
90% 90.2% 1,112,183 1,114,421
80% 80.1% 988,607 989,886
70% 69.9% 865,031 864,166
60% 60.0% 741,455 741,896
50% 49.9% 617,880 616,221
40% 40.0% 494,304 494,285
30% 30.0% 370,728 371,067
20% 19.8% 247,152 245,175
10% 10.1% 123,576 124,590
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,225,921
Calibration 2     1,223,379
Calibration 3     1,225,152
ssj_ops@calibrated=1,224,266
100% 99.5% 1,224,266 1,218,635
90% 89.8% 1,101,839 1,099,885
80% 80.1% 979,412 980,703
70% 70.3% 856,986 860,298
60% 60.2% 734,559 737,600
50% 50.0% 612,133 611,933
40% 40.1% 489,706 490,624
30% 29.9% 367,280 366,133
20% 20.0% 244,853 244,760
10% 10.0% 122,427 122,256
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,231,845
Calibration 2     1,225,379
Calibration 3     1,226,832
ssj_ops@calibrated=1,226,105
100% 99.9% 1,226,105 1,225,444
90% 90.1% 1,103,495 1,104,177
80% 80.0% 980,884 980,956
70% 70.0% 858,274 858,475
60% 59.7% 735,663 732,151
50% 49.9% 613,053 612,095
40% 40.0% 490,442 490,438
30% 30.1% 367,832 368,652
20% 20.0% 245,221 244,903
10% 10.1% 122,611 124,277
Active Idle   0 0
Graph of results

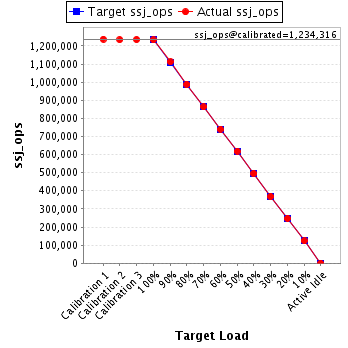

JVM 'SDX-8S-SLES15.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,237,170
Calibration 2     1,233,728
Calibration 3     1,234,904
ssj_ops@calibrated=1,234,316
100% 99.9% 1,234,316 1,232,743
90% 90.1% 1,110,884 1,111,677
80% 80.0% 987,452 987,794
70% 69.9% 864,021 862,720
60% 60.0% 740,589 741,006
50% 50.1% 617,158 618,773
40% 40.1% 493,726 494,906
30% 29.8% 370,295 367,859
20% 20.0% 246,863 247,126
10% 10.0% 123,432 123,388
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,236,443
Calibration 2     1,237,599
Calibration 3     1,237,255
ssj_ops@calibrated=1,237,427
100% 99.6% 1,237,427 1,232,022
90% 90.2% 1,113,684 1,116,509
80% 79.9% 989,941 988,733
70% 69.8% 866,199 864,093
60% 60.1% 742,456 743,224
50% 49.9% 618,713 617,550
40% 39.8% 494,971 492,906
30% 30.1% 371,228 372,564
20% 20.1% 247,485 248,654
10% 10.0% 123,743 124,138
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,158,342
Calibration 2     1,156,495
Calibration 3     1,157,912
ssj_ops@calibrated=1,157,204
100% 99.7% 1,157,204 1,153,819
90% 89.9% 1,041,483 1,040,256
80% 79.6% 925,763 920,679
70% 70.1% 810,043 811,024
60% 60.2% 694,322 696,778
50% 50.0% 578,602 578,955
40% 40.0% 462,882 463,262
30% 30.0% 347,161 347,035
20% 20.0% 231,441 231,595
10% 10.0% 115,720 115,967
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,237,732
Calibration 2     1,234,404
Calibration 3     1,234,293
ssj_ops@calibrated=1,234,349
100% 99.6% 1,234,349 1,229,289
90% 90.0% 1,110,914 1,111,370
80% 80.1% 987,479 988,361
70% 70.1% 864,044 865,630
60% 60.0% 740,609 740,165
50% 50.0% 617,174 617,002
40% 40.0% 493,739 494,004
30% 30.1% 370,305 371,791
20% 20.0% 246,870 247,369
10% 10.1% 123,435 124,325
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,198,925
Calibration 2     1,196,780
Calibration 3     1,197,991
ssj_ops@calibrated=1,197,385
100% 99.6% 1,197,385 1,192,186
90% 90.0% 1,077,647 1,077,824
80% 79.8% 957,908 955,957
70% 70.2% 838,170 840,175
60% 59.9% 718,431 716,942
50% 50.2% 598,693 601,146
40% 40.0% 478,954 478,748
30% 30.2% 359,216 361,867
20% 20.0% 239,477 238,955
10% 10.0% 119,739 119,908
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,224,327
Calibration 2     1,219,786
Calibration 3     1,220,764
ssj_ops@calibrated=1,220,275
100% 99.7% 1,220,275 1,217,039
90% 90.2% 1,098,248 1,100,672
80% 79.9% 976,220 975,001
70% 69.9% 854,193 853,094
60% 60.0% 732,165 732,669
50% 49.9% 610,138 609,262
40% 39.9% 488,110 486,937
30% 30.0% 366,083 366,077
20% 20.1% 244,055 244,838
10% 10.0% 122,028 122,523
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,238,325
Calibration 2     1,233,391
Calibration 3     1,235,794
ssj_ops@calibrated=1,234,593
100% 99.8% 1,234,593 1,232,419
90% 90.1% 1,111,133 1,112,120
80% 80.2% 987,674 989,945
70% 69.9% 864,215 862,746
60% 59.8% 740,756 738,090
50% 50.1% 617,296 618,917
40% 39.8% 493,837 490,950
30% 30.1% 370,378 371,869
20% 20.1% 246,919 247,876
10% 9.9% 123,459 122,603
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,239,030
Calibration 2     1,234,794
Calibration 3     1,236,009
ssj_ops@calibrated=1,235,402
100% 99.9% 1,235,402 1,233,922
90% 90.2% 1,111,862 1,114,180
80% 80.0% 988,321 988,110
70% 70.0% 864,781 864,414
60% 59.9% 741,241 739,466
50% 50.0% 617,701 617,867
40% 40.0% 494,161 494,053
30% 29.9% 370,621 368,961
20% 20.2% 247,080 249,070
10% 10.1% 123,540 124,304
Active Idle   0 0
Graph of results
JVM 'SDX-8S-SLES15.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,242,718
Calibration 2     1,242,060
Calibration 3     1,243,679
ssj_ops@calibrated=1,242,870
100% 99.5% 1,242,870 1,236,181
90% 90.0% 1,118,583 1,118,748
80% 80.1% 994,296 995,415
70% 70.3% 870,009 873,369
60% 59.8% 745,722 743,507
50% 49.9% 621,435 620,107
40% 39.9% 497,148 495,732
30% 30.1% 372,861 374,004
20% 20.0% 248,574 248,085
10% 10.0% 124,287 124,462
Active Idle   0 0
Graph of results
