ASUSTeK Computer Inc. RS620SA-E10-RS12 ssj_ops@100% = 6,164,499
ssj_ops@100% per JVM = 192,641
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Sep 15, 2020
Hardware Availability: Sep-2020 Software Availability: Aug-2020 Publication: Oct 7, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,175,131
Calibration 2     6,179,969
Calibration 3     6,184,230
ssj_ops@calibrated=6,182,100
100% 99.7% 6,182,100 6,164,499
90% 89.9% 5,563,890 5,559,834
80% 80.1% 4,945,680 4,951,927
70% 70.0% 4,327,470 4,328,432
60% 60.0% 3,709,260 3,708,524
50% 50.0% 3,091,050 3,091,943
40% 40.0% 2,472,840 2,472,721
30% 30.0% 1,854,630 1,851,968
20% 20.0% 1,236,420 1,235,971
10% 10.0% 618,210 619,741
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS620SA-E10-RS12'
Set Identifier: RS620SA-E10-RS12
Set Description: System Under Test
# of Identical Nodes: 6
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS620SA-E10-RS12
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller: Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled(See SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1397)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 0305
Management Firmware Version: 2.1.09
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4565349
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-MUB6950O6GU.001 187,983
WIN-MUB6950O6GU.002 190,093
WIN-MUB6950O6GU.003 192,355
WIN-MUB6950O6GU.004 191,984
WIN-MUB6950O6GU.005 193,123
WIN-MUB6950O6GU.006 190,227
WIN-MUB6950O6GU.007 194,973
WIN-MUB6950O6GU.008 193,088
WIN-MUB6950O6GU.009 194,732
WIN-MUB6950O6GU.010 192,886
WIN-MUB6950O6GU.011 193,947
WIN-MUB6950O6GU.012 193,880
WIN-MUB6950O6GU.013 187,798
WIN-MUB6950O6GU.014 189,635
WIN-MUB6950O6GU.015 192,713
WIN-MUB6950O6GU.016 193,634
WIN-MUB6950O6GU.017 192,681
WIN-MUB6950O6GU.018 193,364
WIN-MUB6950O6GU.019 197,616
WIN-MUB6950O6GU.020 187,929
WIN-MUB6950O6GU.021 193,273
WIN-MUB6950O6GU.022 193,805
WIN-MUB6950O6GU.023 195,442
WIN-MUB6950O6GU.024 193,200
WIN-MUB6950O6GU.025 190,275
WIN-MUB6950O6GU.026 197,815
WIN-MUB6950O6GU.027 195,755
WIN-MUB6950O6GU.028 194,446
WIN-MUB6950O6GU.029 192,734
WIN-MUB6950O6GU.030 192,617
WIN-MUB6950O6GU.031 190,638
WIN-MUB6950O6GU.032 189,857
ssj_ops@100% 6,164,499
ssj_ops@100% per JVM 192,641
Graph of per-instance results
JVM 'WIN-MUB6950O6GU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,343
Calibration 2     188,241
Calibration 3     188,527
ssj_ops@calibrated=188,384
100% 99.8% 188,384 187,983
90% 90.7% 169,545 170,860
80% 79.8% 150,707 150,307
70% 70.3% 131,869 132,490
60% 60.5% 113,030 113,882
50% 50.0% 94,192 94,195
40% 40.2% 75,354 75,772
30% 29.9% 56,515 56,305
20% 20.7% 37,677 38,944
10% 10.0% 18,838 18,797
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,296
Calibration 2     190,456
Calibration 3     190,580
ssj_ops@calibrated=190,518
100% 99.8% 190,518 190,093
90% 89.9% 171,466 171,229
80% 79.7% 152,414 151,865
70% 70.4% 133,363 134,100
60% 60.9% 114,311 115,956
50% 50.3% 95,259 95,907
40% 39.8% 76,207 75,865
30% 30.0% 57,155 57,222
20% 20.1% 38,104 38,223
10% 9.9% 19,052 18,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,425
Calibration 2     193,489
Calibration 3     193,875
ssj_ops@calibrated=193,682
100% 99.3% 193,682 192,355
90% 90.1% 174,314 174,581
80% 79.9% 154,945 154,841
70% 70.1% 135,577 135,704
60% 59.8% 116,209 115,869
50% 49.8% 96,841 96,480
40% 40.0% 77,473 77,543
30% 29.8% 58,105 57,807
20% 19.8% 38,736 38,297
10% 9.9% 19,368 19,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,446
Calibration 2     192,869
Calibration 3     192,660
ssj_ops@calibrated=192,765
100% 99.6% 192,765 191,984
90% 89.5% 173,488 172,449
80% 79.7% 154,212 153,652
70% 69.5% 134,935 133,884
60% 59.9% 115,659 115,414
50% 49.5% 96,382 95,434
40% 39.7% 77,106 76,577
30% 30.6% 57,829 58,915
20% 19.9% 38,553 38,369
10% 10.0% 19,276 19,282
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,128
Calibration 2     193,814
Calibration 3     194,514
ssj_ops@calibrated=194,164
100% 99.5% 194,164 193,123
90% 89.9% 174,748 174,581
80% 80.4% 155,331 156,012
70% 70.1% 135,915 136,047
60% 60.3% 116,499 117,001
50% 49.8% 97,082 96,686
40% 40.0% 77,666 77,710
30% 29.8% 58,249 57,847
20% 20.3% 38,833 39,373
10% 10.0% 19,416 19,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,195
Calibration 2     190,757
Calibration 3     191,071
ssj_ops@calibrated=190,914
100% 99.6% 190,914 190,227
90% 89.7% 171,823 171,340
80% 79.7% 152,731 152,154
70% 70.3% 133,640 134,274
60% 60.1% 114,548 114,830
50% 50.4% 95,457 96,168
40% 40.2% 76,366 76,725
30% 29.8% 57,274 56,956
20% 20.1% 38,183 38,311
10% 10.1% 19,091 19,283
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,333
Calibration 2     195,033
Calibration 3     195,399
ssj_ops@calibrated=195,216
100% 99.9% 195,216 194,973
90% 89.5% 175,694 174,752
80% 80.0% 156,173 156,249
70% 70.4% 136,651 137,413
60% 60.3% 117,130 117,630
50% 50.3% 97,608 98,149
40% 40.1% 78,086 78,257
30% 30.0% 58,565 58,491
20% 19.9% 39,043 38,847
10% 10.0% 19,522 19,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,263
Calibration 2     193,631
Calibration 3     194,127
ssj_ops@calibrated=193,879
100% 99.6% 193,879 193,088
90% 89.7% 174,491 173,944
80% 80.4% 155,103 155,789
70% 70.1% 135,715 135,940
60% 60.3% 116,327 116,864
50% 49.5% 96,939 96,016
40% 39.8% 77,552 77,255
30% 29.7% 58,164 57,646
20% 19.8% 38,776 38,385
10% 9.9% 19,388 19,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,157
Calibration 2     195,166
Calibration 3     194,732
ssj_ops@calibrated=194,949
100% 99.9% 194,949 194,732
90% 89.9% 175,454 175,191
80% 79.7% 155,959 155,367
70% 70.2% 136,464 136,945
60% 59.7% 116,969 116,439
50% 50.1% 97,474 97,719
40% 39.9% 77,979 77,776
30% 29.8% 58,485 58,147
20% 20.0% 38,990 39,064
10% 9.8% 19,495 19,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,703
Calibration 2     194,337
Calibration 3     194,704
ssj_ops@calibrated=194,521
100% 99.2% 194,521 192,886
90% 89.1% 175,068 173,308
80% 80.5% 155,616 156,529
70% 69.7% 136,164 135,584
60% 60.1% 116,712 116,930
50% 50.0% 97,260 97,209
40% 39.7% 77,808 77,171
30% 29.9% 58,356 58,200
20% 20.4% 38,904 39,697
10% 10.0% 19,452 19,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,441
Calibration 2     193,973
Calibration 3     194,115
ssj_ops@calibrated=194,044
100% 100.0% 194,044 193,947
90% 90.3% 174,640 175,138
80% 79.5% 155,235 154,295
70% 70.0% 135,831 135,896
60% 59.8% 116,426 115,995
50% 50.4% 97,022 97,784
40% 39.7% 77,618 77,058
30% 29.8% 58,213 57,893
20% 19.9% 38,809 38,667
10% 10.2% 19,404 19,710
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,838
Calibration 2     194,277
Calibration 3     194,402
ssj_ops@calibrated=194,339
100% 99.8% 194,339 193,880
90% 90.2% 174,905 175,248
80% 79.9% 155,471 155,369
70% 70.3% 136,037 136,593
60% 60.4% 116,604 117,475
50% 49.5% 97,170 96,281
40% 39.6% 77,736 77,035
30% 30.2% 58,302 58,640
20% 20.0% 38,868 38,947
10% 10.1% 19,434 19,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,686
Calibration 2     187,889
Calibration 3     187,653
ssj_ops@calibrated=187,771
100% 100.0% 187,771 187,798
90% 89.7% 168,994 168,364
80% 80.5% 150,217 151,090
70% 69.7% 131,440 130,881
60% 59.8% 112,663 112,286
50% 50.3% 93,886 94,499
40% 40.2% 75,108 75,421
30% 29.9% 56,331 56,088
20% 20.4% 37,554 38,278
10% 10.1% 18,777 18,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,683
Calibration 2     189,877
Calibration 3     188,641
ssj_ops@calibrated=189,259
100% 100.2% 189,259 189,635
90% 90.0% 170,333 170,364
80% 80.4% 151,407 152,188
70% 70.1% 132,481 132,577
60% 59.3% 113,555 112,244
50% 49.5% 94,630 93,726
40% 40.0% 75,704 75,612
30% 30.1% 56,778 56,928
20% 19.8% 37,852 37,502
10% 9.7% 18,926 18,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,268
Calibration 2     193,008
Calibration 3     193,729
ssj_ops@calibrated=193,369
100% 99.7% 193,369 192,713
90% 90.3% 174,032 174,556
80% 80.1% 154,695 154,841
70% 70.2% 135,358 135,761
60% 60.0% 116,021 116,091
50% 49.9% 96,684 96,527
40% 40.3% 77,347 77,877
30% 29.7% 58,011 57,526
20% 19.6% 38,674 37,874
10% 10.0% 19,337 19,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,429
Calibration 2     195,378
Calibration 3     195,533
ssj_ops@calibrated=195,456
100% 99.1% 195,456 193,634
90% 89.9% 175,910 175,668
80% 80.2% 156,365 156,726
70% 70.0% 136,819 136,898
60% 59.2% 117,274 115,747
50% 49.9% 97,728 97,522
40% 40.4% 78,182 78,931
30% 29.9% 58,637 58,345
20% 20.0% 39,091 39,003
10% 9.9% 19,546 19,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,580
Calibration 2     193,196
Calibration 3     193,664
ssj_ops@calibrated=193,430
100% 99.6% 193,430 192,681
90% 90.0% 174,087 174,169
80% 80.2% 154,744 155,140
70% 70.4% 135,401 136,080
60% 59.9% 116,058 115,829
50% 49.5% 96,715 95,804
40% 39.9% 77,372 77,142
30% 29.7% 58,029 57,430
20% 19.9% 38,686 38,499
10% 10.2% 19,343 19,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,002
Calibration 2     194,246
Calibration 3     194,378
ssj_ops@calibrated=194,312
100% 99.5% 194,312 193,364
90% 90.0% 174,881 174,962
80% 80.7% 155,450 156,793
70% 70.7% 136,019 137,413
60% 59.8% 116,587 116,122
50% 50.0% 97,156 97,124
40% 40.3% 77,725 78,253
30% 30.0% 58,294 58,202
20% 20.0% 38,862 38,853
10% 10.2% 19,431 19,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,126
Calibration 2     196,904
Calibration 3     196,882
ssj_ops@calibrated=196,893
100% 100.4% 196,893 197,616
90% 90.3% 177,203 177,744
80% 80.9% 157,514 159,329
70% 69.3% 137,825 136,527
60% 60.0% 118,136 118,170
50% 50.4% 98,446 99,194
40% 39.9% 78,757 78,622
30% 30.7% 59,068 60,459
20% 19.8% 39,379 38,898
10% 10.2% 19,689 20,128
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,835
Calibration 2     188,523
Calibration 3     188,470
ssj_ops@calibrated=188,497
100% 99.7% 188,497 187,929
90% 89.9% 169,647 169,457
80% 79.5% 150,797 149,850
70% 70.0% 131,948 131,871
60% 60.1% 113,098 113,369
50% 50.3% 94,248 94,722
40% 39.8% 75,399 74,968
30% 29.9% 56,549 56,311
20% 20.2% 37,699 37,994
10% 10.0% 18,850 18,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,030
Calibration 2     193,397
Calibration 3     193,068
ssj_ops@calibrated=193,232
100% 100.0% 193,232 193,273
90% 89.7% 173,909 173,353
80% 81.0% 154,586 156,527
70% 69.0% 135,263 133,373
60% 59.7% 115,939 115,431
50% 50.1% 96,616 96,727
40% 41.2% 77,293 79,554
30% 29.6% 57,970 57,255
20% 19.8% 38,646 38,164
10% 10.1% 19,323 19,491
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,920
Calibration 2     194,277
Calibration 3     193,892
ssj_ops@calibrated=194,085
100% 99.9% 194,085 193,805
90% 89.9% 174,676 174,473
80% 80.6% 155,268 156,430
70% 70.4% 135,859 136,563
60% 59.9% 116,451 116,208
50% 50.3% 97,042 97,706
40% 40.0% 77,634 77,642
30% 30.1% 58,225 58,397
20% 19.9% 38,817 38,710
10% 9.8% 19,408 18,954
Active Idle   0 0

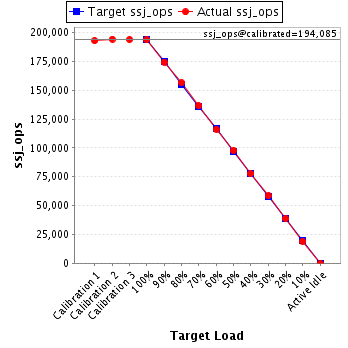

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,454
Calibration 2     195,066
Calibration 3     194,855
ssj_ops@calibrated=194,960
100% 100.2% 194,960 195,442
90% 90.5% 175,464 176,423
80% 80.0% 155,968 156,021
70% 69.9% 136,472 136,209
60% 60.2% 116,976 117,389
50% 50.3% 97,480 98,028
40% 39.9% 77,984 77,762
30% 30.1% 58,488 58,605
20% 20.2% 38,992 39,396
10% 9.9% 19,496 19,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,133
Calibration 2     194,470
Calibration 3     194,129
ssj_ops@calibrated=194,299
100% 99.4% 194,299 193,200
90% 89.3% 174,870 173,425
80% 80.0% 155,440 155,381
70% 70.2% 136,010 136,351
60% 60.4% 116,580 117,282
50% 50.3% 97,150 97,748
40% 40.4% 77,720 78,440
30% 29.8% 58,290 57,864
20% 20.0% 38,860 38,832
10% 10.2% 19,430 19,750
Active Idle   0 0

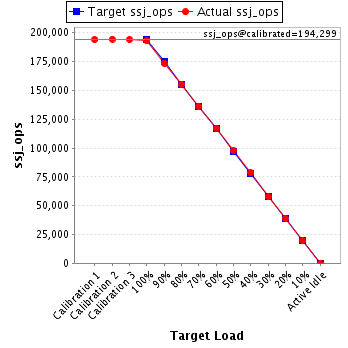

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,281
Calibration 2     191,501
Calibration 3     191,922
ssj_ops@calibrated=191,712
100% 99.3% 191,712 190,275
90% 90.3% 172,541 173,087
80% 80.8% 153,369 154,850
70% 70.1% 134,198 134,313
60% 60.1% 115,027 115,181
50% 50.3% 95,856 96,413
40% 40.0% 76,685 76,756
30% 29.7% 57,514 56,926
20% 20.0% 38,342 38,383
10% 10.2% 19,171 19,524
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,450
Calibration 2     198,400
Calibration 3     197,988
ssj_ops@calibrated=198,194
100% 99.8% 198,194 197,815
90% 89.4% 178,374 177,175
80% 79.9% 158,555 158,362
70% 69.9% 138,736 138,584
60% 59.7% 118,916 118,332
50% 49.8% 99,097 98,650
40% 40.1% 79,278 79,543
30% 30.0% 59,458 59,418
20% 20.1% 39,639 39,853
10% 10.0% 19,819 19,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,564
Calibration 2     194,786
Calibration 3     195,487
ssj_ops@calibrated=195,136
100% 100.3% 195,136 195,755
90% 89.8% 175,623 175,173
80% 79.9% 156,109 155,833
70% 70.2% 136,595 137,008
60% 60.0% 117,082 117,142
50% 50.0% 97,568 97,499
40% 40.0% 78,055 78,058
30% 30.3% 58,541 59,088
20% 20.0% 39,027 38,965
10% 10.0% 19,514 19,570
Active Idle   0 0

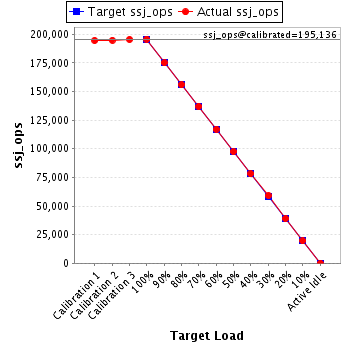

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,617
Calibration 2     195,613
Calibration 3     195,544
ssj_ops@calibrated=195,578
100% 99.4% 195,578 194,446
90% 90.2% 176,021 176,460
80% 80.1% 156,463 156,708
70% 69.7% 136,905 136,297
60% 60.1% 117,347 117,606
50% 50.1% 97,789 97,946
40% 39.9% 78,231 78,024
30% 30.4% 58,674 59,532
20% 19.7% 39,116 38,444
10% 10.2% 19,558 20,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,553
Calibration 2     192,611
Calibration 3     192,971
ssj_ops@calibrated=192,791
100% 100.0% 192,791 192,734
90% 90.0% 173,512 173,456
80% 80.0% 154,233 154,169
70% 69.7% 134,954 134,382
60% 59.3% 115,675 114,411
50% 50.1% 96,396 96,569
40% 40.1% 77,116 77,256
30% 30.0% 57,837 57,798
20% 19.6% 38,558 37,810
10% 10.1% 19,279 19,514
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,254
Calibration 2     192,269
Calibration 3     193,910
ssj_ops@calibrated=193,089
100% 99.8% 193,089 192,617
90% 89.6% 173,780 173,003
80% 80.1% 154,471 154,613
70% 69.9% 135,162 134,946
60% 60.0% 115,854 115,930
50% 49.6% 96,545 95,727
40% 39.7% 77,236 76,606
30% 29.7% 57,927 57,286
20% 20.0% 38,618 38,640
10% 10.0% 19,309 19,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,405
Calibration 2     191,097
Calibration 3     191,698
ssj_ops@calibrated=191,397
100% 99.6% 191,397 190,638
90% 90.5% 172,258 173,246
80% 79.8% 153,118 152,780
70% 70.0% 133,978 133,895
60% 60.1% 114,838 114,955
50% 50.2% 95,699 96,147
40% 39.6% 76,559 75,704
30% 30.0% 57,419 57,479
20% 20.1% 38,279 38,537
10% 10.0% 19,140 19,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-MUB6950O6GU.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,291
Calibration 2     191,420
Calibration 3     191,109
ssj_ops@calibrated=191,265
100% 99.3% 191,265 189,857
90% 90.3% 172,138 172,656
80% 79.4% 153,012 151,865
70% 69.9% 133,885 133,634
60% 59.9% 114,759 114,515
50% 50.0% 95,632 95,635
40% 39.6% 76,506 75,806
30% 29.8% 57,379 56,962
20% 20.0% 38,253 38,210
10% 10.0% 19,126 19,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
