ASUSTeK Computer Inc. RS620SA-E10-RS12 ssj_ops@100% = 6,127,784
ssj_ops@100% per JVM = 191,493
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Multi Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Sep 15, 2020
Hardware Availability: Sep-2020 Software Availability: Aug-2020 Publication: Oct 7, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,139,406
Calibration 2     6,143,659
Calibration 3     6,145,427
ssj_ops@calibrated=6,144,543
100% 99.7% 6,144,543 6,127,784
90% 89.9% 5,530,089 5,525,770
80% 80.0% 4,915,635 4,913,475
70% 70.0% 4,301,180 4,301,673
60% 60.1% 3,686,726 3,689,842
50% 50.0% 3,072,272 3,072,404
40% 39.9% 2,457,817 2,453,081
30% 30.1% 1,843,363 1,849,784
20% 20.0% 1,228,909 1,227,928
10% 10.0% 614,454 615,589
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS620SA-E10-RS12'
Set Identifier: RS620SA-E10-RS12
Set Description: System Under Test
# of Identical Nodes: 6
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS620SA-E10-RS12
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-R ECC RDIMM; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB Seagate Nytro 510DCT M.2 PCIE SSD P/N: 03B03-00130200
Disk Controller: Integrated PCIE controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I210 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled(See SUT Notes)
Operating System (OS): Microsoft Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1397)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 14.0.2+12-46, mixed mode, sharing), version 14.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelGC -XX:+UseLargePages
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15] /AFFINITY [0xF,0xF0]
JVM Instances: 32
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 0305
Management Firmware Version: 2.1.09
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4565349
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-26T217321BF.001 190,557
WIN-26T217321BF.002 192,378
WIN-26T217321BF.003 191,780
WIN-26T217321BF.004 195,088
WIN-26T217321BF.005 193,753
WIN-26T217321BF.006 194,157
WIN-26T217321BF.007 196,445
WIN-26T217321BF.008 191,596
WIN-26T217321BF.009 189,816
WIN-26T217321BF.010 188,549
WIN-26T217321BF.011 191,653
WIN-26T217321BF.012 189,581
WIN-26T217321BF.013 165,663
WIN-26T217321BF.014 167,432
WIN-26T217321BF.015 195,520
WIN-26T217321BF.016 197,766
WIN-26T217321BF.017 192,151
WIN-26T217321BF.018 191,704
WIN-26T217321BF.019 195,725
WIN-26T217321BF.020 195,237
WIN-26T217321BF.021 194,320
WIN-26T217321BF.022 193,536
WIN-26T217321BF.023 194,982
WIN-26T217321BF.024 194,787
WIN-26T217321BF.025 193,868
WIN-26T217321BF.026 189,806
WIN-26T217321BF.027 196,730
WIN-26T217321BF.028 194,346
WIN-26T217321BF.029 193,338
WIN-26T217321BF.030 191,546
WIN-26T217321BF.031 189,090
WIN-26T217321BF.032 194,886
ssj_ops@100% 6,127,784
ssj_ops@100% per JVM 191,493
Graph of per-instance results
JVM 'WIN-26T217321BF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,864
Calibration 2     190,251
Calibration 3     190,536
ssj_ops@calibrated=190,394
100% 100.1% 190,394 190,557
90% 90.2% 171,354 171,826
80% 80.4% 152,315 152,983
70% 69.4% 133,276 132,112
60% 60.5% 114,236 115,209
50% 49.6% 95,197 94,523
40% 40.1% 76,158 76,412
30% 30.0% 57,118 57,187
20% 19.9% 38,079 37,928
10% 10.0% 19,039 19,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,647
Calibration 2     192,581
Calibration 3     192,640
ssj_ops@calibrated=192,611
100% 99.9% 192,611 192,378
90% 91.0% 173,349 175,315
80% 79.7% 154,088 153,548
70% 70.4% 134,827 135,618
60% 60.0% 115,566 115,650
50% 50.5% 96,305 97,281
40% 39.3% 77,044 75,701
30% 30.0% 57,783 57,852
20% 20.1% 38,522 38,658
10% 10.1% 19,261 19,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,049
Calibration 2     191,983
Calibration 3     192,239
ssj_ops@calibrated=192,111
100% 99.8% 192,111 191,780
90% 90.2% 172,900 173,319
80% 79.8% 153,689 153,300
70% 70.5% 134,478 135,393
60% 60.1% 115,267 115,482
50% 50.3% 96,056 96,638
40% 40.0% 76,845 76,823
30% 30.1% 57,633 57,738
20% 19.7% 38,422 37,869
10% 10.1% 19,211 19,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,923
Calibration 2     195,119
Calibration 3     195,220
ssj_ops@calibrated=195,169
100% 100.0% 195,169 195,088
90% 89.3% 175,652 174,363
80% 79.9% 156,135 155,960
70% 70.6% 136,618 137,784
60% 60.0% 117,101 117,116
50% 50.5% 97,585 98,467
40% 39.8% 78,068 77,631
30% 30.2% 58,551 58,941
20% 19.9% 39,034 38,792
10% 10.2% 19,517 19,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,665
Calibration 2     193,940
Calibration 3     193,690
ssj_ops@calibrated=193,815
100% 100.0% 193,815 193,753
90% 89.7% 174,433 173,940
80% 80.0% 155,052 154,977
70% 70.3% 135,670 136,251
60% 59.9% 116,289 116,030
50% 50.3% 96,907 97,458
40% 40.4% 77,526 78,367
30% 30.5% 58,144 59,179
20% 19.7% 38,763 38,149
10% 10.1% 19,381 19,599
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,922
Calibration 2     194,282
Calibration 3     194,473
ssj_ops@calibrated=194,377
100% 99.9% 194,377 194,157
90% 89.6% 174,939 174,070
80% 79.7% 155,502 155,014
70% 69.9% 136,064 135,910
60% 59.9% 116,626 116,486
50% 49.2% 97,189 95,570
40% 39.9% 77,751 77,644
30% 30.0% 58,313 58,391
20% 20.1% 38,875 39,022
10% 10.1% 19,438 19,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,371
Calibration 2     196,537
Calibration 3     196,608
ssj_ops@calibrated=196,572
100% 99.9% 196,572 196,445
90% 89.8% 176,915 176,497
80% 80.0% 157,258 157,265
70% 70.2% 137,601 137,950
60% 60.5% 117,943 118,932
50% 49.6% 98,286 97,583
40% 39.8% 78,629 78,287
30% 30.2% 58,972 59,342
20% 19.9% 39,314 39,157
10% 9.7% 19,657 19,136
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,928
Calibration 2     192,096
Calibration 3     192,387
ssj_ops@calibrated=192,241
100% 99.7% 192,241 191,596
90% 89.7% 173,017 172,520
80% 80.0% 153,793 153,857
70% 69.7% 134,569 134,040
60% 60.8% 115,345 116,866
50% 49.9% 96,121 96,004
40% 40.1% 76,897 77,022
30% 29.8% 57,672 57,308
20% 20.4% 38,448 39,158
10% 10.1% 19,224 19,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,194
Calibration 2     190,548
Calibration 3     190,270
ssj_ops@calibrated=190,409
100% 99.7% 190,409 189,816
90% 90.0% 171,368 171,412
80% 79.8% 152,327 151,896
70% 70.3% 133,286 133,815
60% 60.5% 114,245 115,194
50% 49.8% 95,204 94,773
40% 39.3% 76,163 74,788
30% 30.2% 57,123 57,435
20% 19.7% 38,082 37,466
10% 10.1% 19,041 19,166
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,291
Calibration 2     189,487
Calibration 3     189,592
ssj_ops@calibrated=189,540
100% 99.5% 189,540 188,549
90% 89.4% 170,586 169,440
80% 79.7% 151,632 151,021
70% 69.9% 132,678 132,581
60% 59.8% 113,724 113,367
50% 50.2% 94,770 95,142
40% 39.5% 75,816 74,933
30% 30.2% 56,862 57,258
20% 20.2% 37,908 38,235
10% 10.0% 18,954 18,882
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,927
Calibration 2     192,564
Calibration 3     192,117
ssj_ops@calibrated=192,340
100% 99.6% 192,340 191,653
90% 89.7% 173,106 172,564
80% 80.1% 153,872 153,970
70% 69.9% 134,638 134,398
60% 59.9% 115,404 115,184
50% 49.8% 96,170 95,845
40% 39.7% 76,936 76,358
30% 30.2% 57,702 58,144
20% 20.0% 38,468 38,511
10% 10.0% 19,234 19,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,103
Calibration 2     190,472
Calibration 3     190,258
ssj_ops@calibrated=190,365
100% 99.6% 190,365 189,581
90% 89.6% 171,328 170,599
80% 79.9% 152,292 152,058
70% 70.6% 133,255 134,325
60% 60.0% 114,219 114,273
50% 49.6% 95,182 94,493
40% 40.1% 76,146 76,279
30% 30.0% 57,109 57,199
20% 20.2% 38,073 38,404
10% 10.0% 19,036 19,003
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,893
Calibration 2     166,925
Calibration 3     166,623
ssj_ops@calibrated=166,774
100% 99.3% 166,774 165,663
90% 90.1% 150,097 150,329
80% 80.9% 133,419 134,841
70% 69.8% 116,742 116,426
60% 59.6% 100,064 99,457
50% 49.9% 83,387 83,233
40% 39.9% 66,710 66,548
30% 30.1% 50,032 50,194
20% 19.7% 33,355 32,904
10% 10.1% 16,677 16,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

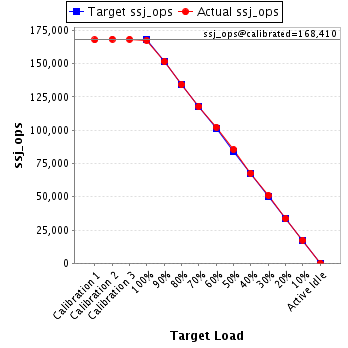

JVM 'WIN-26T217321BF.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,845
Calibration 2     168,434
Calibration 3     168,386
ssj_ops@calibrated=168,410
100% 99.4% 168,410 167,432
90% 90.1% 151,569 151,677
80% 79.7% 134,728 134,255
70% 70.0% 117,887 117,842
60% 60.8% 101,046 102,318
50% 50.8% 84,205 85,477
40% 40.2% 67,364 67,670
30% 30.3% 50,523 51,062
20% 19.9% 33,682 33,587
10% 10.3% 16,841 17,378
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,762
Calibration 2     196,233
Calibration 3     196,467
ssj_ops@calibrated=196,350
100% 99.6% 196,350 195,520
90% 89.8% 176,715 176,258
80% 80.1% 157,080 157,371
70% 70.2% 137,445 137,818
60% 60.2% 117,810 118,284
50% 50.3% 98,175 98,670
40% 40.0% 78,540 78,493
30% 30.2% 58,905 59,361
20% 19.8% 39,270 38,882
10% 9.9% 19,635 19,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,507
Calibration 2     197,878
Calibration 3     198,224
ssj_ops@calibrated=198,051
100% 99.9% 198,051 197,766
90% 89.5% 178,246 177,328
80% 79.7% 158,441 157,931
70% 69.6% 138,636 137,826
60% 59.7% 118,831 118,195
50% 49.8% 99,026 98,620
40% 39.6% 79,220 78,482
30% 30.1% 59,415 59,695
20% 20.1% 39,610 39,878
10% 10.1% 19,805 20,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,794
Calibration 2     192,465
Calibration 3     192,507
ssj_ops@calibrated=192,486
100% 99.8% 192,486 192,151
90% 90.3% 173,238 173,812
80% 79.9% 153,989 153,890
70% 69.5% 134,740 133,771
60% 59.1% 115,492 113,752
50% 49.7% 96,243 95,728
40% 40.0% 76,994 77,011
30% 30.0% 57,746 57,708
20% 20.0% 38,497 38,507
10% 10.2% 19,249 19,549
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,994
Calibration 2     193,651
Calibration 3     193,570
ssj_ops@calibrated=193,610
100% 99.0% 193,610 191,704
90% 90.3% 174,249 174,776
80% 80.1% 154,888 155,164
70% 70.1% 135,527 135,727
60% 60.6% 116,166 117,364
50% 49.7% 96,805 96,213
40% 39.8% 77,444 77,121
30% 30.0% 58,083 58,057
20% 20.0% 38,722 38,688
10% 10.0% 19,361 19,356
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,525
Calibration 2     196,042
Calibration 3     195,759
ssj_ops@calibrated=195,900
100% 99.9% 195,900 195,725
90% 89.4% 176,310 175,200
80% 79.8% 156,720 156,260
70% 69.8% 137,130 136,750
60% 59.7% 117,540 116,981
50% 50.0% 97,950 97,874
40% 40.2% 78,360 78,700
30% 29.6% 58,770 58,065
20% 20.3% 39,180 39,853
10% 10.0% 19,590 19,532
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,085
Calibration 2     195,456
Calibration 3     195,191
ssj_ops@calibrated=195,324
100% 100.0% 195,324 195,237
90% 89.4% 175,791 174,633
80% 79.7% 156,259 155,719
70% 69.8% 136,727 136,310
60% 60.4% 117,194 117,987
50% 50.0% 97,662 97,659
40% 40.4% 78,129 78,928
30% 29.8% 58,597 58,271
20% 20.0% 39,065 39,128
10% 10.0% 19,532 19,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,144
Calibration 2     194,697
Calibration 3     195,259
ssj_ops@calibrated=194,978
100% 99.7% 194,978 194,320
90% 90.2% 175,480 175,942
80% 80.0% 155,983 156,041
70% 70.4% 136,485 137,173
60% 60.0% 116,987 117,016
50% 49.8% 97,489 97,187
40% 39.3% 77,991 76,684
30% 30.3% 58,493 58,985
20% 20.1% 38,996 39,100
10% 10.2% 19,498 19,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,628
Calibration 2     193,574
Calibration 3     193,861
ssj_ops@calibrated=193,718
100% 99.9% 193,718 193,536
90% 89.8% 174,346 173,901
80% 80.0% 154,974 154,891
70% 69.7% 135,603 135,103
60% 60.1% 116,231 116,468
50% 50.3% 96,859 97,399
40% 40.0% 77,487 77,552
30% 30.2% 58,115 58,517
20% 20.2% 38,744 39,220
10% 10.0% 19,372 19,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,565
Calibration 2     194,816
Calibration 3     194,929
ssj_ops@calibrated=194,873
100% 100.1% 194,873 194,982
90% 89.7% 175,385 174,816
80% 80.2% 155,898 156,197
70% 69.3% 136,411 135,084
60% 60.1% 116,924 117,077
50% 50.5% 97,436 98,354
40% 39.9% 77,949 77,692
30% 30.4% 58,462 59,145
20% 20.0% 38,975 38,895
10% 10.0% 19,487 19,561
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

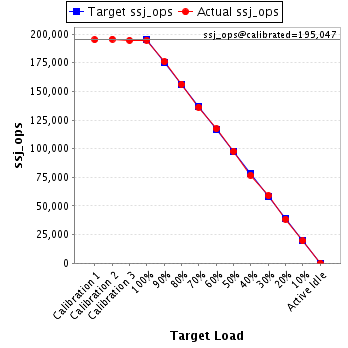

JVM 'WIN-26T217321BF.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,024
Calibration 2     195,573
Calibration 3     194,521
ssj_ops@calibrated=195,047
100% 99.9% 195,047 194,787
90% 90.2% 175,542 175,940
80% 80.1% 156,038 156,220
70% 69.9% 136,533 136,313
60% 60.2% 117,028 117,349
50% 50.1% 97,524 97,754
40% 39.4% 78,019 76,808
30% 30.2% 58,514 58,895
20% 19.8% 39,009 38,567
10% 10.0% 19,505 19,528
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,190
Calibration 2     194,179
Calibration 3     194,803
ssj_ops@calibrated=194,491
100% 99.7% 194,491 193,868
90% 89.6% 175,042 174,360
80% 80.3% 155,593 156,268
70% 70.4% 136,144 136,840
60% 60.5% 116,695 117,624
50% 50.2% 97,246 97,651
40% 40.3% 77,797 78,459
30% 30.3% 58,347 59,003
20% 20.1% 38,898 39,161
10% 9.7% 19,449 18,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,341
Calibration 2     190,411
Calibration 3     191,501
ssj_ops@calibrated=190,956
100% 99.4% 190,956 189,806
90% 90.4% 171,860 172,687
80% 79.6% 152,764 151,944
70% 70.5% 133,669 134,685
60% 59.8% 114,573 114,211
50% 50.2% 95,478 95,879
40% 40.1% 76,382 76,496
30% 30.1% 57,287 57,402
20% 20.2% 38,191 38,540
10% 10.2% 19,096 19,469
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

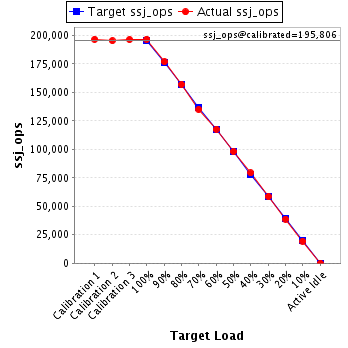

JVM 'WIN-26T217321BF.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,635
Calibration 2     195,298
Calibration 3     196,314
ssj_ops@calibrated=195,806
100% 100.5% 195,806 196,730
90% 90.3% 176,226 176,865
80% 80.1% 156,645 156,935
70% 69.0% 137,064 135,139
60% 60.1% 117,484 117,720
50% 50.2% 97,903 98,227
40% 40.5% 78,322 79,250
30% 29.9% 58,742 58,566
20% 19.8% 39,161 38,841
10% 9.9% 19,581 19,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,902
Calibration 2     195,432
Calibration 3     194,224
ssj_ops@calibrated=194,828
100% 99.8% 194,828 194,346
90% 90.3% 175,345 175,999
80% 79.6% 155,862 155,151
70% 70.7% 136,380 137,688
60% 59.5% 116,897 115,906
50% 50.3% 97,414 97,919
40% 40.0% 77,931 77,900
30% 30.0% 58,448 58,475
20% 19.8% 38,966 38,496
10% 9.8% 19,483 19,053
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,774
Calibration 2     194,149
Calibration 3     194,481
ssj_ops@calibrated=194,315
100% 99.5% 194,315 193,338
90% 90.2% 174,883 175,176
80% 80.0% 155,452 155,542
70% 70.3% 136,020 136,580
60% 59.5% 116,589 115,677
50% 49.4% 97,157 95,897
40% 39.9% 77,726 77,552
30% 30.1% 58,294 58,449
20% 20.2% 38,863 39,237
10% 10.1% 19,431 19,624
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,134
Calibration 2     191,811
Calibration 3     192,024
ssj_ops@calibrated=191,918
100% 99.8% 191,918 191,546
90% 89.9% 172,726 172,626
80% 79.6% 153,534 152,848
70% 69.8% 134,342 133,913
60% 59.6% 115,151 114,425
50% 49.8% 95,959 95,633
40% 39.6% 76,767 75,958
30% 30.0% 57,575 57,642
20% 19.9% 38,384 38,215
10% 9.7% 19,192 18,566
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,398
Calibration 2     191,221
Calibration 3     190,943
ssj_ops@calibrated=191,082
100% 99.0% 191,082 189,090
90% 89.6% 171,973 171,239
80% 80.3% 152,865 153,389
70% 70.2% 133,757 134,130
60% 59.8% 114,649 114,331
50% 49.7% 95,541 94,988
40% 40.5% 76,433 77,481
30% 30.1% 57,324 57,549
20% 19.9% 38,216 38,064
10% 10.0% 19,108 19,149
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-26T217321BF.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,381
Calibration 2     195,555
Calibration 3     195,811
ssj_ops@calibrated=195,683
100% 99.6% 195,683 194,886
90% 90.1% 176,114 176,342
80% 80.1% 156,546 156,768
70% 69.7% 136,978 136,376
60% 60.3% 117,410 117,910
50% 50.2% 97,841 98,264
40% 39.9% 78,273 78,052
30% 30.0% 58,705 58,770
20% 19.8% 39,137 38,817
10% 9.8% 19,568 19,274
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
