Lenovo Global Technology Think System SR665 SPECpower_ssj2008 = 22,903 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 12, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: Jun 10, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 389 23.2
Calibration 2 392 23.3
Calibration 3 393 23.2
100% 392 23.2
90% 350 23.2
80% 329 23.3
70% 305 23.4
60% 285 23.2
50% 265 23.1
40% 246 23.0
30% 227 23.1
20% 205 23.3
10% 180 23.3
Active Idle 93.9 23.2

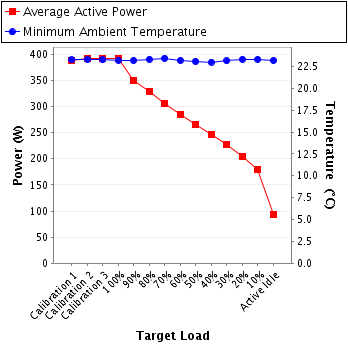

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA19013841-0007
Date of Calibration: 27-Sep-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 1.88 5.0 0.941 389 0.4%
Calibration 2 219 300.0 1.90 5.0 0.942 392 0.4%
Calibration 3 219 300.0 1.90 5.0 0.942 393 0.4%
100% 219 300.0 1.90 5.0 0.942 392 0.4%
90% 219 300.0 1.71 5.0 0.934 350 0.4%
80% 219 300.0 1.61 2.0 0.930 329 0.3%
70% 220 300.0 1.51 2.0 0.923 305 0.3%
60% 220 300.0 1.42 2.0 0.916 285 0.3%
50% 220 300.0 1.33 2.0 0.908 265 0.3%
40% 220 300.0 1.24 2.0 0.903 246 0.3%
30% 220 300.0 1.15 2.0 0.895 227 0.3%
20% 220 300.0 1.06 2.0 0.883 205 0.3%
10% 220 300.0 0.946 2.0 0.867 180 0.4%
Active Idle 220 300.0 0.588 1.0 0.730 93.9 0.4%

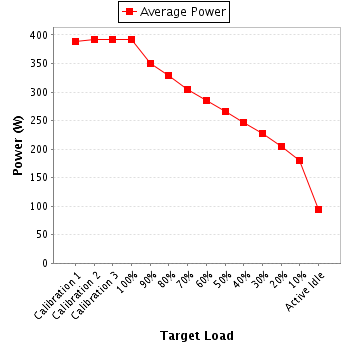

Power details for pwr1
