Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 10,907,311
ssj_ops@100% per JVM = 170,427
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 6, 2020
Hardware Availability: Jun-2020 Software Availability: Mar-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,970,444
Calibration 2     10,954,049
Calibration 3     10,953,345
ssj_ops@calibrated=10,953,697
100% 99.6% 10,953,697 10,907,311
90% 90.0% 9,858,328 9,863,238
80% 80.0% 8,762,958 8,763,119
70% 70.0% 7,667,588 7,666,312
60% 60.0% 6,572,218 6,569,192
50% 50.0% 5,476,849 5,476,475
40% 40.0% 4,381,479 4,376,507
30% 30.0% 3,286,109 3,286,539
20% 20.0% 2,190,739 2,188,441
10% 10.0% 1,095,370 1,092,275
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7742 2.25 GHz
CPU Characteristics: 64-Core, 2.25 GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2019 Datacenter
OS Version: Version 1809 (OS Build 17763.1132)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing); version 13.0.2
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseLargePages
JVM Affinity: start /NODE [0-31] /AFFINITY [0xF, 0xF0]
JVM Instances: 64
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: A46 v1.20 (02/28/2020)
Management Firmware Version: 2.14 Feb 11 2020
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: 1.KB4539571, 2.KB4554354 (patched: 24. March, 2020)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE-04.001 164,967
NODE-04.002 165,951
NODE-04.003 172,999
NODE-04.004 168,032
NODE-04.005 169,710
NODE-04.006 174,818
NODE-04.007 171,685
NODE-04.008 164,036
NODE-04.009 170,846
NODE-04.010 172,725
NODE-04.011 172,907
NODE-04.012 171,131
NODE-04.013 170,555
NODE-04.014 174,347
NODE-04.015 170,555
NODE-04.016 165,092
NODE-04.017 170,913
NODE-04.018 172,212
NODE-04.019 173,472
NODE-04.020 172,192
NODE-04.021 174,638
NODE-04.022 168,951
NODE-04.023 172,827
NODE-04.024 175,060
NODE-04.025 175,097
NODE-04.026 169,615
NODE-04.027 167,405
NODE-04.028 171,124
NODE-04.029 166,749
NODE-04.030 173,073
NODE-04.031 170,310
NODE-04.032 169,757
NODE-04.033 169,136
NODE-04.034 173,119
NODE-04.035 169,950
NODE-04.036 172,161
NODE-04.037 170,750
NODE-04.038 169,944
NODE-04.039 167,336
NODE-04.040 170,600
NODE-04.041 173,090
NODE-04.042 173,230
NODE-04.043 170,542
NODE-04.044 164,871
NODE-04.045 166,324
NODE-04.046 172,379
NODE-04.047 166,542
NODE-04.048 172,150
NODE-04.049 166,824
NODE-04.050 172,180
NODE-04.051 171,978
NODE-04.052 174,797
NODE-04.053 165,337
NODE-04.054 170,412
NODE-04.055 166,364
NODE-04.056 171,135
NODE-04.057 167,975
NODE-04.058 171,146
NODE-04.059 166,228
NODE-04.060 172,299
NODE-04.061 169,311
NODE-04.062 170,249
NODE-04.063 172,405
NODE-04.064 172,798
ssj_ops@100% 10,907,311
ssj_ops@100% per JVM 170,427

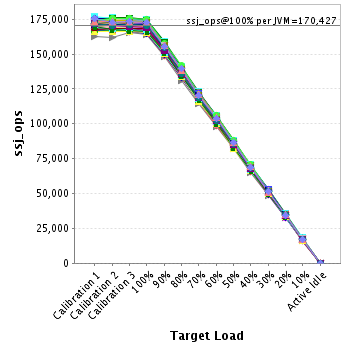

Graph of per-instance results
JVM 'NODE-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,306
Calibration 2     166,320
Calibration 3     166,731
ssj_ops@calibrated=166,525
100% 99.1% 166,525 164,967
90% 90.4% 149,873 150,479
80% 79.6% 133,220 132,631
70% 70.3% 116,568 117,070
60% 60.0% 99,915 99,974
50% 50.3% 83,263 83,779
40% 40.0% 66,610 66,533
30% 30.1% 49,958 50,168
20% 19.9% 33,305 33,165
10% 10.3% 16,653 17,133
Active Idle   0 0
Graph of results
JVM 'NODE-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,434
Calibration 2     167,331
Calibration 3     166,704
ssj_ops@calibrated=167,018
100% 99.4% 167,018 165,951
90% 90.0% 150,316 150,387
80% 79.8% 133,614 133,297
70% 69.9% 116,912 116,679
60% 60.0% 100,211 100,233
50% 49.9% 83,509 83,351
40% 40.2% 66,807 67,120
30% 29.9% 50,105 49,945
20% 20.1% 33,404 33,652
10% 9.9% 16,702 16,508
Active Idle   0 0
Graph of results
JVM 'NODE-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,991
Calibration 2     172,933
Calibration 3     173,299
ssj_ops@calibrated=173,116
100% 99.9% 173,116 172,999
90% 90.3% 155,804 156,402
80% 79.2% 138,493 137,140
70% 69.5% 121,181 120,356
60% 59.9% 103,870 103,743
50% 49.9% 86,558 86,307
40% 40.0% 69,246 69,283
30% 29.7% 51,935 51,363
20% 19.4% 34,623 33,652
10% 9.8% 17,312 16,919
Active Idle   0 0
Graph of results
JVM 'NODE-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,868
Calibration 2     168,929
Calibration 3     169,070
ssj_ops@calibrated=168,999
100% 99.4% 168,999 168,032
90% 89.5% 152,099 151,256
80% 80.6% 135,199 136,228
70% 69.7% 118,299 117,713
60% 59.6% 101,400 100,655
50% 50.1% 84,500 84,649
40% 39.6% 67,600 66,934
30% 29.7% 50,700 50,271
20% 20.1% 33,800 33,936
10% 9.9% 16,900 16,699
Active Idle   0 0
Graph of results
JVM 'NODE-04.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,447
Calibration 2     170,916
Calibration 3     170,525
ssj_ops@calibrated=170,721
100% 99.4% 170,721 169,710
90% 91.0% 153,649 155,285
80% 80.3% 136,577 137,057
70% 70.9% 119,504 121,085
60% 59.5% 102,432 101,572
50% 49.5% 85,360 84,494
40% 40.0% 68,288 68,206
30% 29.8% 51,216 50,863
20% 19.9% 34,144 33,995
10% 10.3% 17,072 17,514
Active Idle   0 0
Graph of results
JVM 'NODE-04.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,004
Calibration 2     175,207
Calibration 3     175,083
ssj_ops@calibrated=175,145
100% 99.8% 175,145 174,818
90% 90.7% 157,630 158,778
80% 79.7% 140,116 139,669
70% 70.1% 122,601 122,808
60% 60.2% 105,087 105,490
50% 50.2% 87,572 87,908
40% 40.0% 70,058 70,036
30% 30.4% 52,543 53,228
20% 19.6% 35,029 34,390
10% 10.0% 17,514 17,447
Active Idle   0 0
Graph of results
JVM 'NODE-04.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,159
Calibration 2     175,701
Calibration 3     171,961
ssj_ops@calibrated=173,831
100% 98.8% 173,831 171,685
90% 90.8% 156,448 157,860
80% 79.1% 139,065 137,511
70% 70.8% 121,682 123,063
60% 60.5% 104,299 105,106
50% 50.8% 86,916 88,257
40% 40.2% 69,533 69,825
30% 30.1% 52,149 52,240
20% 20.2% 34,766 35,085
10% 9.6% 17,383 16,749
Active Idle   0 0
Graph of results
JVM 'NODE-04.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,681
Calibration 2     161,875
Calibration 3     165,321
ssj_ops@calibrated=163,598
100% 100.3% 163,598 164,036
90% 90.7% 147,238 148,464
80% 79.9% 130,879 130,732
70% 69.9% 114,519 114,321
60% 59.9% 98,159 97,994
50% 50.2% 81,799 82,080
40% 39.8% 65,439 65,151
30% 29.9% 49,079 48,889
20% 20.0% 32,720 32,721
10% 10.1% 16,360 16,491
Active Idle   0 0
Graph of results
JVM 'NODE-04.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,846
Calibration 2     172,056
Calibration 3     171,744
ssj_ops@calibrated=171,900
100% 99.4% 171,900 170,846
90% 90.7% 154,710 155,970
80% 79.9% 137,520 137,292
70% 69.4% 120,330 119,353
60% 59.2% 103,140 101,705
50% 50.1% 85,950 86,072
40% 40.3% 68,760 69,316
30% 30.3% 51,570 52,041
20% 20.0% 34,380 34,430
10% 10.2% 17,190 17,570
Active Idle   0 0
Graph of results
JVM 'NODE-04.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,741
Calibration 2     173,243
Calibration 3     173,400
ssj_ops@calibrated=173,322
100% 99.7% 173,322 172,725
90% 90.8% 155,989 157,375
80% 80.1% 138,657 138,795
70% 69.9% 121,325 121,113
60% 60.0% 103,993 103,990
50% 49.9% 86,661 86,459
40% 40.0% 69,329 69,316
30% 29.8% 51,996 51,732
20% 20.4% 34,664 35,274
10% 10.1% 17,332 17,558
Active Idle   0 0
Graph of results
JVM 'NODE-04.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,846
Calibration 2     173,125
Calibration 3     173,010
ssj_ops@calibrated=173,068
100% 99.9% 173,068 172,907
90% 89.7% 155,761 155,230
80% 80.3% 138,454 138,927
70% 69.8% 121,147 120,736
60% 59.9% 103,841 103,727
50% 50.1% 86,534 86,675
40% 39.8% 69,227 68,909
30% 29.6% 51,920 51,266
20% 20.0% 34,614 34,673
10% 9.8% 17,307 16,970
Active Idle   0 0
Graph of results
JVM 'NODE-04.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,937
Calibration 2     171,549
Calibration 3     171,398
ssj_ops@calibrated=171,474
100% 99.8% 171,474 171,131
90% 90.4% 154,326 154,975
80% 79.7% 137,179 136,721
70% 69.3% 120,032 118,837
60% 60.4% 102,884 103,502
50% 49.8% 85,737 85,328
40% 39.9% 68,589 68,410
30% 30.4% 51,442 52,073
20% 20.0% 34,295 34,270
10% 10.3% 17,147 17,577
Active Idle   0 0
Graph of results
JVM 'NODE-04.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,509
Calibration 2     171,082
Calibration 3     170,995
ssj_ops@calibrated=171,038
100% 99.7% 171,038 170,555
90% 90.2% 153,934 154,317
80% 79.8% 136,831 136,520
70% 69.8% 119,727 119,457
60% 59.4% 102,623 101,634
50% 50.1% 85,519 85,636
40% 39.7% 68,415 67,913
30% 30.2% 51,311 51,581
20% 20.0% 34,208 34,169
10% 9.9% 17,104 17,002
Active Idle   0 0
Graph of results
JVM 'NODE-04.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,080
Calibration 2     174,662
Calibration 3     174,276
ssj_ops@calibrated=174,469
100% 99.9% 174,469 174,347
90% 89.9% 157,022 156,812
80% 80.2% 139,575 139,858
70% 70.3% 122,128 122,618
60% 60.3% 104,681 105,204
50% 50.1% 87,234 87,486
40% 39.9% 69,788 69,595
30% 30.0% 52,341 52,340
20% 19.8% 34,894 34,523
10% 10.3% 17,447 17,932
Active Idle   0 0
Graph of results
JVM 'NODE-04.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,528
Calibration 2     170,826
Calibration 3     170,676
ssj_ops@calibrated=170,751
100% 99.9% 170,751 170,555
90% 89.9% 153,676 153,473
80% 80.0% 136,601 136,670
70% 69.4% 119,526 118,439
60% 60.3% 102,451 102,908
50% 49.8% 85,376 85,118
40% 40.6% 68,300 69,388
30% 29.8% 51,225 50,951
20% 19.6% 34,150 33,544
10% 9.6% 17,075 16,387
Active Idle   0 0
Graph of results
JVM 'NODE-04.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,230
Calibration 2     165,998
Calibration 3     166,364
ssj_ops@calibrated=166,181
100% 99.3% 166,181 165,092
90% 89.4% 149,563 148,584
80% 80.2% 132,945 133,360
70% 69.8% 116,327 116,031
60% 59.6% 99,709 99,016
50% 49.9% 83,090 82,931
40% 39.7% 66,472 66,030
30% 29.8% 49,854 49,536
20% 19.9% 33,236 33,041
10% 10.0% 16,618 16,668
Active Idle   0 0
Graph of results
JVM 'NODE-04.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,265
Calibration 2     171,833
Calibration 3     171,855
ssj_ops@calibrated=171,844
100% 99.5% 171,844 170,913
90% 91.1% 154,660 156,549
80% 80.2% 137,475 137,804
70% 69.5% 120,291 119,457
60% 60.3% 103,106 103,626
50% 49.3% 85,922 84,709
40% 39.5% 68,738 67,877
30% 30.1% 51,553 51,740
20% 20.3% 34,369 34,941
10% 10.0% 17,184 17,108
Active Idle   0 0
Graph of results
JVM 'NODE-04.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,912
Calibration 2     173,053
Calibration 3     172,977
ssj_ops@calibrated=173,015
100% 99.5% 173,015 172,212
90% 89.6% 155,714 155,074
80% 79.6% 138,412 137,732
70% 69.7% 121,111 120,606
60% 60.1% 103,809 103,969
50% 49.2% 86,508 85,177
40% 39.8% 69,206 68,858
30% 29.9% 51,905 51,716
20% 19.7% 34,603 34,122
10% 10.0% 17,302 17,332
Active Idle   0 0
Graph of results
JVM 'NODE-04.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,896
Calibration 2     174,883
Calibration 3     174,514
ssj_ops@calibrated=174,698
100% 99.3% 174,698 173,472
90% 90.1% 157,229 157,371
80% 78.9% 139,759 137,905
70% 69.8% 122,289 121,877
60% 59.8% 104,819 104,504
50% 50.0% 87,349 87,381
40% 39.8% 69,879 69,486
30% 29.9% 52,410 52,212
20% 20.0% 34,940 34,914
10% 9.9% 17,470 17,379
Active Idle   0 0
Graph of results
JVM 'NODE-04.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,004
Calibration 2     172,756
Calibration 3     172,725
ssj_ops@calibrated=172,741
100% 99.7% 172,741 172,192
90% 89.4% 155,467 154,489
80% 79.7% 138,193 137,729
70% 69.8% 120,919 120,529
60% 59.8% 103,644 103,371
50% 50.1% 86,370 86,601
40% 39.8% 69,096 68,690
30% 30.0% 51,822 51,874
20% 20.0% 34,548 34,570
10% 10.1% 17,274 17,395
Active Idle   0 0
Graph of results
JVM 'NODE-04.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,444
Calibration 2     176,253
Calibration 3     175,770
ssj_ops@calibrated=176,011
100% 99.2% 176,011 174,638
90% 89.5% 158,410 157,516
80% 80.3% 140,809 141,309
70% 69.4% 123,208 122,071
60% 60.1% 105,607 105,864
50% 49.8% 88,006 87,607
40% 40.1% 70,405 70,537
30% 30.2% 52,803 53,234
20% 20.1% 35,202 35,334
10% 10.4% 17,601 18,386
Active Idle   0 0
Graph of results
JVM 'NODE-04.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,252
Calibration 2     169,457
Calibration 3     168,917
ssj_ops@calibrated=169,187
100% 99.9% 169,187 168,951
90% 89.0% 152,269 150,638
80% 80.3% 135,350 135,844
70% 69.9% 118,431 118,254
60% 60.4% 101,512 102,232
50% 50.4% 84,594 85,271
40% 39.6% 67,675 66,957
30% 29.9% 50,756 50,664
20% 20.2% 33,837 34,144
10% 9.8% 16,919 16,550
Active Idle   0 0
Graph of results
JVM 'NODE-04.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,458
Calibration 2     173,091
Calibration 3     172,931
ssj_ops@calibrated=173,011
100% 99.9% 173,011 172,827
90% 89.7% 155,710 155,135
80% 80.3% 138,409 138,979
70% 70.1% 121,108 121,309
60% 59.2% 103,807 102,341
50% 49.8% 86,505 86,239
40% 40.2% 69,204 69,633
30% 30.2% 51,903 52,302
20% 19.7% 34,602 34,105
10% 10.2% 17,301 17,628
Active Idle   0 0
Graph of results
JVM 'NODE-04.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,796
Calibration 2     175,279
Calibration 3     175,399
ssj_ops@calibrated=175,339
100% 99.8% 175,339 175,060
90% 90.3% 157,805 158,374
80% 79.9% 140,271 140,102
70% 70.0% 122,737 122,765
60% 60.3% 105,203 105,672
50% 50.3% 87,669 88,141
40% 40.0% 70,136 70,179
30% 30.0% 52,602 52,638
20% 20.1% 35,068 35,278
10% 9.6% 17,534 16,884
Active Idle   0 0
Graph of results
JVM 'NODE-04.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,321
Calibration 2     176,421
Calibration 3     176,269
ssj_ops@calibrated=176,345
100% 99.3% 176,345 175,097
90% 90.3% 158,711 159,217
80% 80.0% 141,076 141,037
70% 70.0% 123,442 123,406
60% 59.7% 105,807 105,345
50% 50.2% 88,173 88,489
40% 39.7% 70,538 69,990
30% 30.2% 52,904 53,212
20% 20.3% 35,269 35,847
10% 9.9% 17,635 17,406
Active Idle   0 0
Graph of results
JVM 'NODE-04.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,670
Calibration 2     170,531
Calibration 3     170,596
ssj_ops@calibrated=170,563
100% 99.4% 170,563 169,615
90% 89.0% 153,507 151,799
80% 80.6% 136,451 137,519
70% 70.0% 119,394 119,386
60% 60.1% 102,338 102,564
50% 49.8% 85,282 84,965
40% 40.9% 68,225 69,775
30% 29.7% 51,169 50,721
20% 19.9% 34,113 34,019
10% 10.0% 17,056 17,037
Active Idle   0 0
Graph of results
JVM 'NODE-04.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,092
Calibration 2     167,686
Calibration 3     167,796
ssj_ops@calibrated=167,741
100% 99.8% 167,741 167,405
90% 91.1% 150,967 152,874
80% 79.8% 134,193 133,837
70% 70.2% 117,419 117,747
60% 59.9% 100,644 100,502
50% 50.0% 83,870 83,927
40% 40.1% 67,096 67,279
30% 30.6% 50,322 51,268
20% 20.0% 33,548 33,539
10% 9.5% 16,774 15,946
Active Idle   0 0
Graph of results
JVM 'NODE-04.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,475
Calibration 2     171,576
Calibration 3     171,496
ssj_ops@calibrated=171,536
100% 99.8% 171,536 171,124
90% 89.9% 154,382 154,189
80% 79.6% 137,229 136,494
70% 70.5% 120,075 121,008
60% 60.0% 102,921 102,957
50% 49.3% 85,768 84,518
40% 39.5% 68,614 67,806
30% 30.2% 51,461 51,749
20% 19.9% 34,307 34,055
10% 9.9% 17,154 16,961
Active Idle   0 0
Graph of results
JVM 'NODE-04.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,341
Calibration 2     168,260
Calibration 3     167,699
ssj_ops@calibrated=167,980
100% 99.3% 167,980 166,749
90% 90.0% 151,182 151,187
80% 79.9% 134,384 134,255
70% 69.7% 117,586 117,149
60% 59.4% 100,788 99,711
50% 50.3% 83,990 84,532
40% 39.9% 67,192 66,975
30% 30.4% 50,394 51,124
20% 20.1% 33,596 33,702
10% 9.8% 16,798 16,528
Active Idle   0 0
Graph of results
JVM 'NODE-04.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,881
Calibration 2     173,925
Calibration 3     174,507
ssj_ops@calibrated=174,216
100% 99.3% 174,216 173,073
90% 89.6% 156,795 156,147
80% 80.0% 139,373 139,337
70% 69.9% 121,951 121,820
60% 59.3% 104,530 103,286
50% 50.0% 87,108 87,130
40% 39.5% 69,687 68,750
30% 30.0% 52,265 52,329
20% 19.9% 34,843 34,739
10% 10.0% 17,422 17,467
Active Idle   0 0
Graph of results
JVM 'NODE-04.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,829
Calibration 2     172,083
Calibration 3     171,964
ssj_ops@calibrated=172,024
100% 99.0% 172,024 170,310
90% 90.1% 154,821 155,034
80% 79.7% 137,619 137,116
70% 69.7% 120,417 119,831
60% 59.8% 103,214 102,875
50% 50.7% 86,012 87,210
40% 40.0% 68,809 68,766
30% 29.8% 51,607 51,185
20% 20.0% 34,405 34,468
10% 10.0% 17,202 17,231
Active Idle   0 0
Graph of results
JVM 'NODE-04.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,148
Calibration 2     169,683
Calibration 3     169,600
ssj_ops@calibrated=169,642
100% 100.1% 169,642 169,757
90% 89.0% 152,678 150,992
80% 79.5% 135,713 134,814
70% 70.4% 118,749 119,419
60% 59.7% 101,785 101,211
50% 49.6% 84,821 84,176
40% 40.1% 67,857 68,085
30% 30.0% 50,893 50,901
20% 20.1% 33,928 34,099
10% 10.0% 16,964 16,966
Active Idle   0 0
Graph of results
JVM 'NODE-04.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,513
Calibration 2     169,427
Calibration 3     169,877
ssj_ops@calibrated=169,652
100% 99.7% 169,652 169,136
90% 90.2% 152,687 153,069
80% 80.1% 135,722 135,945
70% 70.4% 118,756 119,419
60% 59.9% 101,791 101,587
50% 50.0% 84,826 84,754
40% 40.5% 67,861 68,712
30% 30.3% 50,896 51,441
20% 20.2% 33,930 34,235
10% 10.2% 16,965 17,270
Active Idle   0 0
Graph of results
JVM 'NODE-04.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,806
Calibration 2     173,903
Calibration 3     173,915
ssj_ops@calibrated=173,909
100% 99.5% 173,909 173,119
90% 89.5% 156,518 155,611
80% 80.4% 139,127 139,778
70% 70.2% 121,736 122,063
60% 59.7% 104,345 103,821
50% 50.7% 86,955 88,250
40% 39.7% 69,564 69,090
30% 30.0% 52,173 52,187
20% 19.8% 34,782 34,466
10% 10.1% 17,391 17,523
Active Idle   0 0
Graph of results
JVM 'NODE-04.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,020
Calibration 2     170,157
Calibration 3     170,115
ssj_ops@calibrated=170,136
100% 99.9% 170,136 169,950
90% 90.7% 153,122 154,292
80% 80.4% 136,109 136,856
70% 70.6% 119,095 120,039
60% 59.6% 102,081 101,320
50% 49.2% 85,068 83,638
40% 39.4% 68,054 66,985
30% 30.3% 51,041 51,523
20% 20.0% 34,027 34,012
10% 9.7% 17,014 16,587
Active Idle   0 0
Graph of results
JVM 'NODE-04.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,528
Calibration 2     172,393
Calibration 3     172,601
ssj_ops@calibrated=172,497
100% 99.8% 172,497 172,161
90% 89.1% 155,247 153,629
80% 79.9% 137,997 137,796
70% 70.5% 120,748 121,692
60% 59.2% 103,498 102,176
50% 49.8% 86,248 85,838
40% 39.9% 68,999 68,828
30% 29.9% 51,749 51,547
20% 19.5% 34,499 33,723
10% 10.1% 17,250 17,470
Active Idle   0 0
Graph of results
JVM 'NODE-04.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,793
Calibration 2     171,159
Calibration 3     171,389
ssj_ops@calibrated=171,274
100% 99.7% 171,274 170,750
90% 90.1% 154,147 154,366
80% 80.1% 137,019 137,144
70% 69.8% 119,892 119,627
60% 60.5% 102,764 103,633
50% 49.9% 85,637 85,422
40% 40.0% 68,510 68,424
30% 29.6% 51,382 50,614
20% 19.8% 34,255 33,838
10% 10.0% 17,127 17,145
Active Idle   0 0
Graph of results
JVM 'NODE-04.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,606
Calibration 2     171,275
Calibration 3     171,534
ssj_ops@calibrated=171,405
100% 99.1% 171,405 169,944
90% 90.2% 154,264 154,646
80% 80.4% 137,124 137,760
70% 70.2% 119,983 120,301
60% 60.2% 102,843 103,110
50% 49.5% 85,702 84,761
40% 39.7% 68,562 67,998
30% 29.8% 51,421 51,032
20% 19.9% 34,281 34,056
10% 10.3% 17,140 17,575
Active Idle   0 0
Graph of results
JVM 'NODE-04.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,932
Calibration 2     167,832
Calibration 3     168,148
ssj_ops@calibrated=167,990
100% 99.6% 167,990 167,336
90% 90.3% 151,191 151,722
80% 79.8% 134,392 134,050
70% 70.0% 117,593 117,612
60% 60.8% 100,794 102,184
50% 50.0% 83,995 83,996
40% 40.0% 67,196 67,126
30% 29.9% 50,397 50,155
20% 19.7% 33,598 33,043
10% 9.9% 16,799 16,628
Active Idle   0 0
Graph of results
JVM 'NODE-04.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,979
Calibration 2     172,218
Calibration 3     172,090
ssj_ops@calibrated=172,154
100% 99.1% 172,154 170,600
90% 90.4% 154,938 155,596
80% 80.6% 137,723 138,710
70% 69.6% 120,508 119,815
60% 59.9% 103,292 103,081
50% 50.7% 86,077 87,320
40% 40.3% 68,861 69,331
30% 30.3% 51,646 52,096
20% 19.9% 34,431 34,269
10% 9.9% 17,215 16,966
Active Idle   0 0
Graph of results
JVM 'NODE-04.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,311
Calibration 2     173,321
Calibration 3     173,545
ssj_ops@calibrated=173,433
100% 99.8% 173,433 173,090
90% 89.6% 156,090 155,361
80% 79.3% 138,746 137,494
70% 70.3% 121,403 121,885
60% 59.8% 104,060 103,769
50% 50.3% 86,717 87,279
40% 40.0% 69,373 69,355
30% 30.2% 52,030 52,445
20% 19.7% 34,687 34,150
10% 9.9% 17,343 17,104
Active Idle   0 0
Graph of results
JVM 'NODE-04.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,064
Calibration 2     174,133
Calibration 3     173,901
ssj_ops@calibrated=174,017
100% 99.5% 174,017 173,230
90% 89.4% 156,615 155,607
80% 80.3% 139,213 139,689
70% 70.3% 121,812 122,342
60% 60.3% 104,410 104,862
50% 50.0% 87,008 87,011
40% 40.4% 69,607 70,327
30% 29.6% 52,205 51,564
20% 19.8% 34,803 34,375
10% 9.8% 17,402 17,136
Active Idle   0 0
Graph of results
JVM 'NODE-04.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,205
Calibration 2     171,348
Calibration 3     171,714
ssj_ops@calibrated=171,531
100% 99.4% 171,531 170,542
90% 88.9% 154,378 152,510
80% 80.0% 137,225 137,172
70% 70.2% 120,072 120,383
60% 60.5% 102,919 103,813
50% 50.4% 85,766 86,528
40% 39.6% 68,612 67,993
30% 29.5% 51,459 50,614
20% 20.1% 34,306 34,547
10% 9.9% 17,153 17,035
Active Idle   0 0
Graph of results
JVM 'NODE-04.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,794
Calibration 2     166,070
Calibration 3     165,887
ssj_ops@calibrated=165,978
100% 99.3% 165,978 164,871
90% 90.2% 149,381 149,649
80% 80.1% 132,783 132,873
70% 70.0% 116,185 116,138
60% 60.2% 99,587 99,944
50% 50.2% 82,989 83,338
40% 40.2% 66,391 66,675
30% 29.9% 49,794 49,648
20% 19.8% 33,196 32,823
10% 10.0% 16,598 16,515
Active Idle   0 0
Graph of results
JVM 'NODE-04.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,453
Calibration 2     167,149
Calibration 3     167,242
ssj_ops@calibrated=167,196
100% 99.5% 167,196 166,324
90% 90.2% 150,476 150,796
80% 80.3% 133,756 134,302
70% 69.7% 117,037 116,487
60% 60.5% 100,317 101,112
50% 50.1% 83,598 83,722
40% 40.2% 66,878 67,149
30% 30.0% 50,159 50,180
20% 20.2% 33,439 33,795
10% 10.2% 16,720 17,022
Active Idle   0 0
Graph of results
JVM 'NODE-04.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,102
Calibration 2     174,034
Calibration 3     173,668
ssj_ops@calibrated=173,851
100% 99.2% 173,851 172,379
90% 90.0% 156,466 156,433
80% 79.4% 139,081 138,047
70% 69.9% 121,696 121,516
60% 60.1% 104,311 104,513
50% 49.9% 86,926 86,698
40% 40.0% 69,540 69,487
30% 30.1% 52,155 52,364
20% 19.9% 34,770 34,520
10% 10.0% 17,385 17,428
Active Idle   0 0
Graph of results
JVM 'NODE-04.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,791
Calibration 2     168,178
Calibration 3     168,404
ssj_ops@calibrated=168,291
100% 99.0% 168,291 166,542
90% 89.1% 151,462 150,014
80% 80.5% 134,633 135,494
70% 70.4% 117,804 118,410
60% 59.3% 100,975 99,802
50% 50.0% 84,146 84,217
40% 39.7% 67,316 66,870
30% 30.0% 50,487 50,408
20% 20.3% 33,658 34,143
10% 10.1% 16,829 16,953
Active Idle   0 0
Graph of results
JVM 'NODE-04.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,225
Calibration 2     172,730
Calibration 3     172,757
ssj_ops@calibrated=172,744
100% 99.7% 172,744 172,150
90% 89.2% 155,469 154,066
80% 80.1% 138,195 138,417
70% 69.6% 120,921 120,255
60% 59.6% 103,646 102,989
50% 50.3% 86,372 86,960
40% 39.8% 69,097 68,795
30% 29.8% 51,823 51,480
20% 20.3% 34,549 35,044
10% 10.1% 17,274 17,441
Active Idle   0 0
Graph of results
JVM 'NODE-04.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,381
Calibration 2     167,805
Calibration 3     167,676
ssj_ops@calibrated=167,741
100% 99.5% 167,741 166,824
90% 89.7% 150,966 150,487
80% 80.4% 134,192 134,927
70% 70.2% 117,418 117,688
60% 60.2% 100,644 101,045
50% 49.4% 83,870 82,930
40% 39.8% 67,096 66,769
30% 30.2% 50,322 50,692
20% 20.2% 33,548 33,923
10% 10.0% 16,774 16,803
Active Idle   0 0
Graph of results
JVM 'NODE-04.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,382
Calibration 2     172,642
Calibration 3     172,486
ssj_ops@calibrated=172,564
100% 99.8% 172,564 172,180
90% 90.3% 155,307 155,910
80% 80.2% 138,051 138,337
70% 70.6% 120,795 121,868
60% 60.8% 103,538 104,864
50% 49.7% 86,282 85,793
40% 40.2% 69,025 69,304
30% 30.1% 51,769 51,948
20% 20.1% 34,513 34,723
10% 9.9% 17,256 17,107
Active Idle   0 0
Graph of results
JVM 'NODE-04.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,827
Calibration 2     172,858
Calibration 3     172,690
ssj_ops@calibrated=172,774
100% 99.5% 172,774 171,978
90% 90.3% 155,497 155,962
80% 79.8% 138,219 137,848
70% 70.4% 120,942 121,690
60% 59.9% 103,665 103,490
50% 50.5% 86,387 87,173
40% 40.3% 69,110 69,619
30% 30.6% 51,832 52,814
20% 19.8% 34,555 34,218
10% 9.9% 17,277 17,186
Active Idle   0 0
Graph of results
JVM 'NODE-04.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,252
Calibration 2     175,433
Calibration 3     175,520
ssj_ops@calibrated=175,477
100% 99.6% 175,477 174,797
90% 89.6% 157,929 157,248
80% 80.7% 140,381 141,658
70% 69.1% 122,834 121,240
60% 60.5% 105,286 106,159
50% 50.0% 87,738 87,718
40% 40.3% 70,191 70,662
30% 29.8% 52,643 52,238
20% 19.9% 35,095 34,978
10% 9.7% 17,548 17,027
Active Idle   0 0
Graph of results
JVM 'NODE-04.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,045
Calibration 2     165,942
Calibration 3     166,023
ssj_ops@calibrated=165,983
100% 99.6% 165,983 165,337
90% 90.7% 149,384 150,503
80% 80.5% 132,786 133,645
70% 70.0% 116,188 116,122
60% 60.4% 99,590 100,282
50% 49.5% 82,991 82,203
40% 39.9% 66,393 66,240
30% 30.0% 49,795 49,777
20% 20.0% 33,197 33,194
10% 9.8% 16,598 16,332
Active Idle   0 0
Graph of results
JVM 'NODE-04.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,802
Calibration 2     171,400
Calibration 3     171,340
ssj_ops@calibrated=171,370
100% 99.4% 171,370 170,412
90% 90.4% 154,233 154,969
80% 79.9% 137,096 136,984
70% 70.7% 119,959 121,122
60% 59.7% 102,822 102,330
50% 50.0% 85,685 85,709
40% 40.3% 68,548 69,002
30% 30.3% 51,411 51,864
20% 20.0% 34,274 34,253
10% 9.8% 17,137 16,806
Active Idle   0 0
Graph of results
JVM 'NODE-04.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,867
Calibration 2     167,573
Calibration 3     167,608
ssj_ops@calibrated=167,590
100% 99.3% 167,590 166,364
90% 89.7% 150,831 150,295
80% 79.8% 134,072 133,689
70% 70.0% 117,313 117,381
60% 60.1% 100,554 100,784
50% 50.2% 83,795 84,119
40% 39.4% 67,036 65,970
30% 30.2% 50,277 50,654
20% 19.7% 33,518 32,948
10% 10.2% 16,759 17,124
Active Idle   0 0
Graph of results
JVM 'NODE-04.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,324
Calibration 2     170,847
Calibration 3     171,514
ssj_ops@calibrated=171,180
100% 100.0% 171,180 171,135
90% 91.2% 154,062 156,104
80% 79.4% 136,944 135,965
70% 70.0% 119,826 119,814
60% 59.8% 102,708 102,436
50% 49.5% 85,590 84,753
40% 40.1% 68,472 68,558
30% 29.9% 51,354 51,167
20% 20.0% 34,236 34,224
10% 10.4% 17,118 17,754
Active Idle   0 0
Graph of results
JVM 'NODE-04.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,689
Calibration 2     168,255
Calibration 3     168,442
ssj_ops@calibrated=168,348
100% 99.8% 168,348 167,975
90% 90.3% 151,514 152,010
80% 79.5% 134,679 133,848
70% 70.4% 117,844 118,561
60% 60.0% 101,009 101,093
50% 50.7% 84,174 85,419
40% 40.4% 67,339 68,073
30% 29.7% 50,505 49,991
20% 20.1% 33,670 33,902
10% 9.8% 16,835 16,529
Active Idle   0 0
Graph of results
JVM 'NODE-04.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,469
Calibration 2     170,806
Calibration 3     170,920
ssj_ops@calibrated=170,863
100% 100.2% 170,863 171,146
90% 89.8% 153,777 153,513
80% 80.3% 136,690 137,230
70% 70.4% 119,604 120,246
60% 59.7% 102,518 102,090
50% 50.2% 85,431 85,698
40% 39.7% 68,345 67,821
30% 30.4% 51,259 51,861
20% 20.4% 34,173 34,798
10% 9.8% 17,086 16,812
Active Idle   0 0
Graph of results
JVM 'NODE-04.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,480
Calibration 2     167,276
Calibration 3     166,935
ssj_ops@calibrated=167,105
100% 99.5% 167,105 166,228
90% 90.3% 150,395 150,968
80% 80.5% 133,684 134,505
70% 70.1% 116,974 117,167
60% 60.0% 100,263 100,345
50% 49.6% 83,553 82,903
40% 39.8% 66,842 66,462
30% 30.1% 50,132 50,229
20% 19.9% 33,421 33,291
10% 10.0% 16,711 16,712
Active Idle   0 0
Graph of results
JVM 'NODE-04.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,628
Calibration 2     172,569
Calibration 3     172,541
ssj_ops@calibrated=172,555
100% 99.9% 172,555 172,299
90% 90.7% 155,299 156,430
80% 80.5% 138,044 138,850
70% 69.7% 120,788 120,224
60% 59.7% 103,533 102,966
50% 49.5% 86,277 85,457
40% 39.7% 69,022 68,428
30% 29.8% 51,766 51,461
20% 19.9% 34,511 34,417
10% 10.1% 17,255 17,345
Active Idle   0 0
Graph of results
JVM 'NODE-04.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,985
Calibration 2     170,295
Calibration 3     169,980
ssj_ops@calibrated=170,137
100% 99.5% 170,137 169,311
90% 89.7% 153,124 152,669
80% 79.8% 136,110 135,703
70% 70.0% 119,096 119,118
60% 60.0% 102,082 102,111
50% 50.1% 85,069 85,293
40% 40.1% 68,055 68,255
30% 30.0% 51,041 51,039
20% 20.0% 34,027 34,052
10% 9.8% 17,014 16,694
Active Idle   0 0
Graph of results
JVM 'NODE-04.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,142
Calibration 2     170,316
Calibration 3     170,817
ssj_ops@calibrated=170,567
100% 99.8% 170,567 170,249
90% 90.9% 153,510 154,988
80% 79.9% 136,453 136,225
70% 69.5% 119,397 118,472
60% 60.2% 102,340 102,656
50% 50.3% 85,283 85,854
40% 40.3% 68,227 68,692
30% 30.2% 51,170 51,532
20% 20.6% 34,113 35,065
10% 10.0% 17,057 17,116
Active Idle   0 0
Graph of results
JVM 'NODE-04.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,510
Calibration 2     173,235
Calibration 3     172,946
ssj_ops@calibrated=173,091
100% 99.6% 173,091 172,405
90% 90.3% 155,782 156,346
80% 79.9% 138,473 138,339
70% 69.8% 121,164 120,760
60% 60.3% 103,854 104,363
50% 49.8% 86,545 86,243
40% 40.0% 69,236 69,293
30% 29.4% 51,927 50,916
20% 20.1% 34,618 34,830
10% 9.7% 17,309 16,802
Active Idle   0 0
Graph of results
JVM 'NODE-04.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,148
Calibration 2     172,945
Calibration 3     173,550
ssj_ops@calibrated=173,248
100% 99.7% 173,248 172,798
90% 89.6% 155,923 155,236
80% 80.6% 138,598 139,617
70% 69.6% 121,273 120,541
60% 60.0% 103,949 103,977
50% 50.1% 86,624 86,875
40% 39.6% 69,299 68,607
30% 29.8% 51,974 51,701
20% 19.7% 34,650 34,192
10% 9.8% 17,325 17,003
Active Idle   0 0
Graph of results
