Hewlett Packard Enterprise Apollo XL225n Gen10 Plus ssj_ops@100% = 10,612,934
ssj_ops@100% per JVM = 331,654
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 7, 2020
Hardware Availability: Jun-2020 Software Availability: Feb-2020 Publication: Apr 22, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,660,166
Calibration 2     10,660,398
Calibration 3     10,660,538
ssj_ops@calibrated=10,660,468
100% 99.6% 10,660,468 10,612,934
90% 90.0% 9,594,421 9,591,455
80% 79.8% 8,528,374 8,507,037
70% 70.0% 7,462,328 7,463,214
60% 60.0% 6,396,281 6,396,969
50% 50.0% 5,330,234 5,328,866
40% 40.0% 4,264,187 4,264,238
30% 30.0% 3,198,140 3,197,153
20% 20.0% 2,132,094 2,131,452
10% 10.0% 1,066,047 1,067,831
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Apollo XL225n Gen10 Plus
Form Factor: Blade
CPU Name: AMD EPYC 7702 2.0 GHz
CPU Characteristics: 64-Core, 2.0GHz, 256MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 GB 2Rx8 PC4-3200AA-R; all slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller: Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP1
OS Version: 4.12.14-195-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 13.0.1+9, mixed mode, sharing); version 13.0.1
JVM Command-line Options: -server -Xmn2400m -Xms2800m -Xmx2800m -XX:MaxTenuringThreshold=1 -XX:ParallelGCThreads=4 -XX:InlineSmallCode=4000 -XX:MaxInlineSize=300 -XX:FreqInlineSize=3000 -XX:+UseParallelOldGC -XX:+UseHugeTLBFS
JVM Affinity: numactl --cpunodebind=[0-31] --localalloc
JVM Instances: 32
JVM Initial Heap (MB): 2800
JVM Maximum Heap (MB): 2800
JVM Address Bits: 64
Boot Firmware Version: A46 v1.20 (02/28/2020)
Management Firmware Version: 2.14 Feb 11 2020
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node-02.001 331,548
node-02.002 332,613
node-02.003 321,036
node-02.004 330,470
node-02.005 329,388
node-02.006 330,569
node-02.007 332,768
node-02.008 332,228
node-02.009 332,542
node-02.010 328,309
node-02.011 329,721
node-02.012 329,849
node-02.013 329,181
node-02.014 335,760
node-02.015 325,128
node-02.016 331,012
node-02.017 334,314
node-02.018 337,292
node-02.019 330,864
node-02.020 339,536
node-02.021 331,339
node-02.022 332,432
node-02.023 333,564
node-02.024 330,668
node-02.025 326,334
node-02.026 334,301
node-02.027 336,103
node-02.028 331,832
node-02.029 332,957
node-02.030 330,202
node-02.031 332,333
node-02.032 336,743
ssj_ops@100% 10,612,934
ssj_ops@100% per JVM 331,654

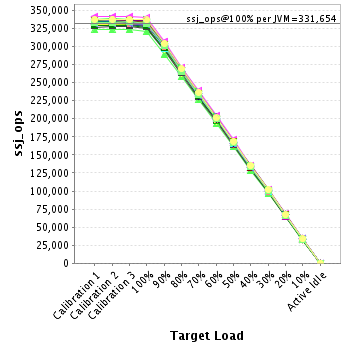

Graph of per-instance results
JVM 'node-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,919
Calibration 2     333,796
Calibration 3     332,143
ssj_ops@calibrated=332,970
100% 99.6% 332,970 331,548
90% 89.5% 299,673 298,125
80% 80.0% 266,376 266,223
70% 70.5% 233,079 234,588
60% 60.4% 199,782 201,144
50% 50.3% 166,485 167,392
40% 40.0% 133,188 133,189
30% 29.9% 99,891 99,502
20% 20.1% 66,594 66,773
10% 10.0% 33,297 33,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,704
Calibration 2     334,303
Calibration 3     334,516
ssj_ops@calibrated=334,410
100% 99.5% 334,410 332,613
90% 90.1% 300,969 301,262
80% 80.2% 267,528 268,143
70% 69.7% 234,087 232,958
60% 60.8% 200,646 203,186
50% 49.9% 167,205 166,937
40% 39.9% 133,764 133,406
30% 30.0% 100,323 100,387
20% 19.9% 66,882 66,535
10% 9.9% 33,441 33,271
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

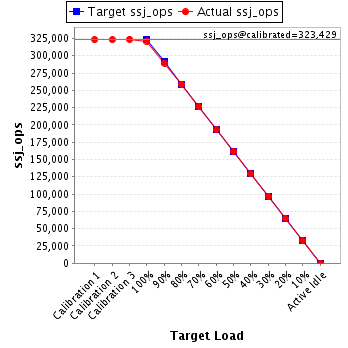

JVM 'node-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     323,073
Calibration 2     322,922
Calibration 3     323,937
ssj_ops@calibrated=323,429
100% 99.3% 323,429 321,036
90% 89.5% 291,086 289,429
80% 80.0% 258,743 258,754
70% 70.0% 226,400 226,525
60% 59.8% 194,058 193,400
50% 49.8% 161,715 161,157
40% 39.9% 129,372 129,076
30% 30.0% 97,029 97,037
20% 20.0% 64,686 64,578
10% 10.0% 32,343 32,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,981
Calibration 2     331,251
Calibration 3     332,338
ssj_ops@calibrated=331,795
100% 99.6% 331,795 330,470
90% 89.3% 298,615 296,442
80% 79.3% 265,436 263,203
70% 70.0% 232,256 232,223
60% 59.3% 199,077 196,892
50% 49.8% 165,897 165,213
40% 40.1% 132,718 132,930
30% 30.1% 99,538 99,781
20% 20.1% 66,359 66,759
10% 10.1% 33,179 33,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,412
Calibration 2     329,897
Calibration 3     329,296
ssj_ops@calibrated=329,596
100% 99.9% 329,596 329,388
90% 90.2% 296,637 297,361
80% 79.6% 263,677 262,410
70% 70.1% 230,718 231,039
60% 59.8% 197,758 197,063
50% 50.2% 164,798 165,618
40% 40.1% 131,839 132,232
30% 30.2% 98,879 99,411
20% 20.2% 65,919 66,534
10% 10.1% 32,960 33,250
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,562
Calibration 2     332,214
Calibration 3     332,375
ssj_ops@calibrated=332,295
100% 99.5% 332,295 330,569
90% 89.8% 299,065 298,452
80% 79.8% 265,836 265,163
70% 69.9% 232,606 232,263
60% 59.9% 199,377 198,912
50% 50.2% 166,147 166,761
40% 40.3% 132,918 133,880
30% 29.9% 99,688 99,438
20% 19.8% 66,459 65,873
10% 10.2% 33,229 34,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,807
Calibration 2     333,971
Calibration 3     333,692
ssj_ops@calibrated=333,832
100% 99.7% 333,832 332,768
90% 89.7% 300,449 299,543
80% 79.7% 267,065 265,932
70% 70.4% 233,682 235,037
60% 59.9% 200,299 199,884
50% 50.0% 166,916 166,825
40% 40.0% 133,533 133,581
30% 29.7% 100,150 99,223
20% 19.8% 66,766 66,158
10% 10.2% 33,383 34,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,008
Calibration 2     332,993
Calibration 3     332,519
ssj_ops@calibrated=332,756
100% 99.8% 332,756 332,228
90% 90.1% 299,480 299,876
80% 79.7% 266,205 265,212
70% 69.7% 232,929 231,984
60% 59.7% 199,653 198,580
50% 49.9% 166,378 166,048
40% 39.9% 133,102 132,929
30% 29.7% 99,827 98,881
20% 20.2% 66,551 67,053
10% 10.0% 33,276 33,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,625
Calibration 2     334,316
Calibration 3     333,551
ssj_ops@calibrated=333,933
100% 99.6% 333,933 332,542
90% 89.6% 300,540 299,344
80% 79.9% 267,147 266,857
70% 70.1% 233,753 234,249
60% 60.4% 200,360 201,781
50% 50.0% 166,967 166,883
40% 40.0% 133,573 133,496
30% 29.8% 100,180 99,354
20% 20.0% 66,787 66,688
10% 9.9% 33,393 33,117
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,516
Calibration 2     330,359
Calibration 3     330,991
ssj_ops@calibrated=330,675
100% 99.3% 330,675 328,309
90% 89.8% 297,607 297,024
80% 79.7% 264,540 263,573
70% 70.6% 231,472 233,342
60% 60.2% 198,405 199,226
50% 50.2% 165,337 166,085
40% 40.1% 132,270 132,460
30% 30.0% 99,202 99,347
20% 19.9% 66,135 65,930
10% 10.2% 33,067 33,723
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

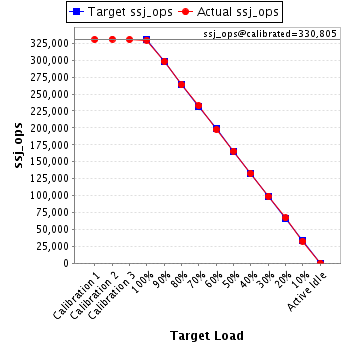

JVM 'node-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,534
Calibration 2     331,114
Calibration 3     330,496
ssj_ops@calibrated=330,805
100% 99.7% 330,805 329,721
90% 90.2% 297,724 298,298
80% 79.7% 264,644 263,644
70% 70.3% 231,563 232,655
60% 59.7% 198,483 197,631
50% 50.1% 165,402 165,817
40% 40.0% 132,322 132,389
30% 29.9% 99,241 98,944
20% 20.2% 66,161 66,922
10% 9.9% 33,080 32,738
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,924
Calibration 2     331,726
Calibration 3     330,992
ssj_ops@calibrated=331,359
100% 99.5% 331,359 329,849
90% 90.0% 298,223 298,258
80% 79.9% 265,087 264,688
70% 70.1% 231,951 232,272
60% 59.9% 198,815 198,640
50% 49.9% 165,679 165,373
40% 39.8% 132,543 131,914
30% 29.9% 99,408 99,119
20% 20.2% 66,272 66,947
10% 9.9% 33,136 32,734
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,090
Calibration 2     331,212
Calibration 3     331,298
ssj_ops@calibrated=331,255
100% 99.4% 331,255 329,181
90% 90.2% 298,129 298,930
80% 80.0% 265,004 264,911
70% 70.2% 231,878 232,637
60% 60.3% 198,753 199,772
50% 50.5% 165,627 167,286
40% 40.1% 132,502 132,870
30% 30.2% 99,376 99,878
20% 19.7% 66,251 65,348
10% 10.3% 33,125 34,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,445
Calibration 2     336,749
Calibration 3     336,948
ssj_ops@calibrated=336,848
100% 99.7% 336,848 335,760
90% 89.4% 303,164 301,193
80% 79.3% 269,479 267,186
70% 69.7% 235,794 234,799
60% 60.0% 202,109 202,019
50% 50.0% 168,424 168,362
40% 40.0% 134,739 134,661
30% 29.9% 101,055 100,731
20% 20.0% 67,370 67,416
10% 10.1% 33,685 34,126
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     326,698
Calibration 2     327,639
Calibration 3     327,505
ssj_ops@calibrated=327,572
100% 99.3% 327,572 325,128
90% 90.1% 294,815 295,127
80% 79.9% 262,058 261,632
70% 69.6% 229,300 228,074
60% 60.0% 196,543 196,686
50% 49.7% 163,786 162,681
40% 39.7% 131,029 130,021
30% 29.7% 98,272 97,276
20% 19.9% 65,514 65,040
10% 10.0% 32,757 32,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,692
Calibration 2     332,019
Calibration 3     332,821
ssj_ops@calibrated=332,420
100% 99.6% 332,420 331,012
90% 89.8% 299,178 298,551
80% 80.1% 265,936 266,285
70% 69.6% 232,694 231,447
60% 59.8% 199,452 198,781
50% 49.6% 166,210 164,940
40% 39.8% 132,968 132,331
30% 29.7% 99,726 98,772
20% 20.0% 66,484 66,377
10% 10.0% 33,242 33,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,384
Calibration 2     336,476
Calibration 3     337,744
ssj_ops@calibrated=337,110
100% 99.2% 337,110 334,314
90% 90.0% 303,399 303,424
80% 79.9% 269,688 269,452
70% 69.7% 235,977 234,852
60% 60.2% 202,266 202,825
50% 50.0% 168,555 168,535
40% 40.0% 134,844 134,727
30% 30.1% 101,133 101,364
20% 20.0% 67,422 67,436
10% 9.7% 33,711 32,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,958
Calibration 2     338,591
Calibration 3     337,946
ssj_ops@calibrated=338,268
100% 99.7% 338,268 337,292
90% 90.1% 304,441 304,809
80% 80.0% 270,615 270,520
70% 70.4% 236,788 238,271
60% 59.9% 202,961 202,477
50% 49.6% 169,134 167,649
40% 39.9% 135,307 134,821
30% 30.0% 101,480 101,547
20% 19.9% 67,654 67,269
10% 10.1% 33,827 34,267
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,149
Calibration 2     331,051
Calibration 3     331,641
ssj_ops@calibrated=331,346
100% 99.9% 331,346 330,864
90% 89.7% 298,211 297,065
80% 80.0% 265,077 265,044
70% 70.0% 231,942 232,047
60% 59.9% 198,808 198,616
50% 50.5% 165,673 167,331
40% 40.1% 132,538 132,795
30% 30.1% 99,404 99,689
20% 19.9% 66,269 66,087
10% 10.1% 33,135 33,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     341,691
Calibration 2     341,770
Calibration 3     341,623
ssj_ops@calibrated=341,696
100% 99.4% 341,696 339,536
90% 90.0% 307,526 307,600
80% 79.4% 273,357 271,410
70% 69.8% 239,187 238,650
60% 59.9% 205,018 204,749
50% 50.2% 170,848 171,557
40% 39.4% 136,678 134,792
30% 29.9% 102,509 102,032
20% 20.0% 68,339 68,396
10% 10.1% 34,170 34,631
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,153
Calibration 2     331,708
Calibration 3     332,867
ssj_ops@calibrated=332,288
100% 99.7% 332,288 331,339
90% 89.6% 299,059 297,887
80% 80.3% 265,830 266,965
70% 69.7% 232,601 231,763
60% 60.4% 199,373 200,657
50% 49.7% 166,144 165,227
40% 39.9% 132,915 132,504
30% 29.9% 99,686 99,249
20% 20.0% 66,458 66,599
10% 10.0% 33,229 33,164
Active Idle   0 0

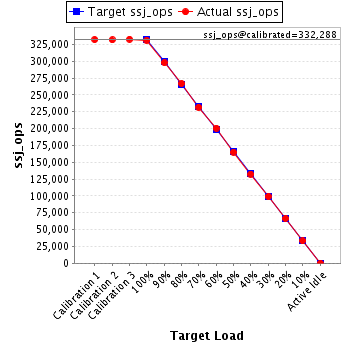

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     335,424
Calibration 2     334,815
Calibration 3     334,620
ssj_ops@calibrated=334,717
100% 99.3% 334,717 332,432
90% 89.9% 301,246 300,869
80% 79.5% 267,774 266,044
70% 70.1% 234,302 234,757
60% 60.0% 200,830 200,864
50% 49.9% 167,359 167,000
40% 39.9% 133,887 133,650
30% 30.0% 100,415 100,489
20% 20.2% 66,943 67,457
10% 9.9% 33,472 33,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,885
Calibration 2     335,305
Calibration 3     335,527
ssj_ops@calibrated=335,416
100% 99.4% 335,416 333,564
90% 89.9% 301,875 301,563
80% 79.5% 268,333 266,628
70% 70.2% 234,791 235,317
60% 60.3% 201,250 202,244
50% 49.8% 167,708 166,885
40% 39.5% 134,166 132,577
30% 30.2% 100,625 101,347
20% 20.0% 67,083 66,964
10% 10.0% 33,542 33,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     331,514
Calibration 2     331,523
Calibration 3     332,094
ssj_ops@calibrated=331,808
100% 99.7% 331,808 330,668
90% 90.3% 298,628 299,662
80% 79.9% 265,447 265,067
70% 69.8% 232,266 231,485
60% 60.1% 199,085 199,524
50% 49.9% 165,904 165,731
40% 40.4% 132,723 134,183
30% 30.2% 99,543 100,096
20% 20.2% 66,362 67,184
10% 10.0% 33,181 33,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     328,959
Calibration 2     328,869
Calibration 3     329,219
ssj_ops@calibrated=329,044
100% 99.2% 329,044 326,334
90% 90.0% 296,140 296,188
80% 80.6% 263,235 265,263
70% 69.8% 230,331 229,541
60% 60.4% 197,426 198,708
50% 50.0% 164,522 164,545
40% 40.0% 131,618 131,711
30% 30.0% 98,713 98,586
20% 19.8% 65,809 65,211
10% 9.8% 32,904 32,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     336,463
Calibration 2     335,249
Calibration 3     335,924
ssj_ops@calibrated=335,586
100% 99.6% 335,586 334,301
90% 90.4% 302,028 303,334
80% 79.4% 268,469 266,593
70% 70.1% 234,910 235,151
60% 59.8% 201,352 200,733
50% 50.1% 167,793 168,069
40% 40.0% 134,235 134,304
30% 30.0% 100,676 100,755
20% 20.1% 67,117 67,377
10% 9.9% 33,559 33,232
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,252
Calibration 2     337,600
Calibration 3     336,082
ssj_ops@calibrated=336,841
100% 99.8% 336,841 336,103
90% 90.3% 303,157 304,311
80% 79.6% 269,473 268,010
70% 69.8% 235,789 235,201
60% 59.7% 202,105 201,019
50% 49.3% 168,420 166,124
40% 40.5% 134,736 136,494
30% 30.2% 101,052 101,834
20% 20.1% 67,368 67,644
10% 10.1% 33,684 33,950
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     334,129
Calibration 2     334,122
Calibration 3     333,546
ssj_ops@calibrated=333,834
100% 99.4% 333,834 331,832
90% 90.3% 300,451 301,498
80% 79.7% 267,067 265,999
70% 70.2% 233,684 234,445
60% 60.0% 200,301 200,192
50% 50.1% 166,917 167,408
40% 40.3% 133,534 134,577
30% 30.1% 100,150 100,582
20% 20.1% 66,767 66,985
10% 9.8% 33,383 32,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     333,652
Calibration 2     333,787
Calibration 3     332,557
ssj_ops@calibrated=333,172
100% 99.9% 333,172 332,957
90% 90.1% 299,855 300,145
80% 80.0% 266,537 266,497
70% 70.3% 233,220 234,212
60% 60.1% 199,903 200,257
50% 50.1% 166,586 166,843
40% 40.1% 133,269 133,615
30% 29.8% 99,952 99,382
20% 20.0% 66,634 66,665
10% 10.1% 33,317 33,746
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,094
Calibration 2     332,325
Calibration 3     332,127
ssj_ops@calibrated=332,226
100% 99.4% 332,226 330,202
90% 90.5% 299,003 300,769
80% 79.8% 265,781 265,223
70% 69.7% 232,558 231,581
60% 60.1% 199,335 199,748
50% 50.0% 166,113 166,262
40% 39.9% 132,890 132,616
30% 30.3% 99,668 100,586
20% 19.7% 66,445 65,520
10% 10.2% 33,223 33,817
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     332,871
Calibration 2     333,003
Calibration 3     333,992
ssj_ops@calibrated=333,497
100% 99.7% 333,497 332,333
90% 90.2% 300,148 300,867
80% 79.5% 266,798 265,207
70% 69.9% 233,448 233,074
60% 59.9% 200,098 199,687
50% 50.2% 166,749 167,412
40% 40.3% 133,399 134,507
30% 30.2% 100,049 100,868
20% 19.9% 66,699 66,423
10% 10.1% 33,350 33,577
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node-02.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     337,598
Calibration 2     337,725
Calibration 3     337,613
ssj_ops@calibrated=337,669
100% 99.7% 337,669 336,743
90% 90.1% 303,902 304,251
80% 79.8% 270,135 269,299
70% 70.1% 236,368 236,776
60% 59.5% 202,601 201,073
50% 50.0% 168,834 168,907
40% 40.0% 135,067 134,998
30% 30.1% 101,301 101,666
20% 19.9% 67,534 67,307
10% 10.0% 33,767 33,601
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
