SPECpower_ssj2008

Lenovo Global Technology Think System SR645			SPECpower_ssj2008 = 22,467 overall ssj_ops/watt
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	Mar 3, 2020
Hardware Availability:	Jun-2020	Software Availability:	Dec-2019	Publication:	May 11, 2020
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	Think System SR645
Form Factor:	1U
CPU Name:	AMD EPYC 7742 2.25GHz
CPU Characteristics:	64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz):	2250
CPU(s) Enabled:	128 cores, 2 chips, 64 cores/chip
Hardware Threads:	256 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Lenovo P/N:SP57A14665
Disk Drive:	1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Suse Linux Enterprise Server 12 SP5
OS Version:	4.12.14-120-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances:	64
JVM Initial Heap (MB):	1700
JVM Maximum Heap (MB):	1700
JVM Address Bits:	64
Boot Firmware Version:	d8e105f-1.00
Management Firmware Version:	d8bt05s-2.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

none

Benchmark started via ssh
Each JVM instance was bound to 4 logical processors
cpupower frequency-set -g ondemand
kernal parameter:pcie_aspm=force pcie_aspm.policy=powersupersave
echo -n 98 > /sys/devices/system/cpu/cpufreq/ondemand/up_threshold
echo -n 1600000 > /sys/devices/system/cpu/cpufreq/ondemand/sampling_rate
<NA>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
There are two network ports under the OS,one network port is connected to the network cable,the other one is not conneted

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter - Version 6.3.9600 (Build 9600)
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	YOKOGAWA, Inc.
Model:	WT310E
Serial Number:	C3SH31009E
Connectivity:	USB
Input Connection:	Default
Metrology Institute:	China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by:	China CEPREI Laboratory
Calibration Label:	1GA19013841-0007
Date of Calibration:	27-Sep-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.1-a2d19f26-20190717
Setup Description:	Connected to PSU 1

SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version.

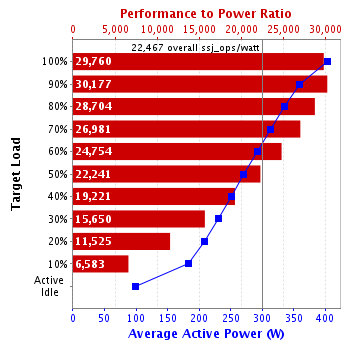

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	403	23.2
90%	360	23.2
80%	336	23.3
70%	313	23.3
60%	292	23.2
50%	271	22.5
40%	251	22.3
30%	231	23.1
20%	209	23.9
10%	183	23.2
Active Idle	99.5	23.1

Line Standard	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 2 wires	22.3	43

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
