Lenovo Global Technology Think System SR665 ssj_ops@100% = 186,258
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 29, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     182,879
Calibration 2     186,425
Calibration 3     186,859
ssj_ops@calibrated=186,642
100% 99.8% 186,642 186,258
90% 90.2% 167,978 168,326
80% 79.7% 149,314 148,752
70% 70.1% 130,650 130,925
60% 60.1% 111,985 112,188
50% 49.9% 93,321 93,063
40% 40.7% 74,657 76,041
30% 29.6% 55,993 55,313
20% 20.1% 37,328 37,593
10% 10.0% 18,664 18,675
Active Idle   0 0

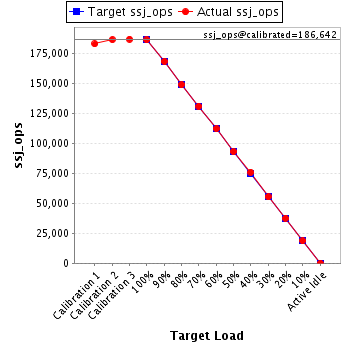

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR665
Form Factor: 2U
CPU Name: AMD EPYC 7742 2.25GHz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A14665
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port OCP Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 12 SP5
OS Version: 4.12.14-120-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: d8e105f-1.00
Management Firmware Version: d8bt05s-2.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 13,302,691 1,690
Payment 13,302,690
Order Status 1,330,268
Delivery 1,330,271
Stock Level 1,330,268
Customer Report 13,302,695
Calibration 2 New Order 13,558,240 1,690
Payment 13,558,246
Order Status 1,355,825
Delivery 1,355,824
Stock Level 1,355,826
Customer Report 13,558,246
Calibration 3 New Order 13,590,141 1,690
Payment 13,590,139
Order Status 1,359,013
Delivery 1,359,013
Stock Level 1,359,016
Customer Report 13,590,146
100% 99.8% New Order 13,546,084 1,690
Payment 13,546,088
Order Status 1,354,609
Delivery 1,354,609
Stock Level 1,354,607
Customer Report 13,546,086
90% 90.2% New Order 12,242,007 1,690
Payment 12,242,011
Order Status 1,224,200
Delivery 1,224,202
Stock Level 1,224,200
Customer Report 12,242,010
80% 79.7% New Order 10,818,323 1,690
Payment 10,818,315
Order Status 1,081,832
Delivery 1,081,833
Stock Level 1,081,830
Customer Report 10,818,312
70% 70.1% New Order 9,521,793 1,690
Payment 9,521,800
Order Status 952,177
Delivery 952,180
Stock Level 952,181
Customer Report 9,521,787
60% 60.1% New Order 8,159,170 1,690
Payment 8,159,168
Order Status 815,916
Delivery 815,915
Stock Level 815,916
Customer Report 8,159,165
50% 49.9% New Order 6,768,262 1,690
Payment 6,768,256
Order Status 676,824
Delivery 676,827
Stock Level 676,825
Customer Report 6,768,255
40% 40.7% New Order 5,530,292 1,690
Payment 5,530,291
Order Status 553,029
Delivery 553,027
Stock Level 553,029
Customer Report 5,530,287
30% 29.6% New Order 4,022,751 1,690
Payment 4,022,754
Order Status 402,274
Delivery 402,273
Stock Level 402,276
Customer Report 4,022,751
20% 20.1% New Order 2,734,070 1,690
Payment 2,734,065
Order Status 273,405
Delivery 273,406
Stock Level 273,405
Customer Report 2,734,063
10% 10.0% New Order 1,358,158 1,690
Payment 1,358,165
Order Status 135,818
Delivery 135,818
Stock Level 135,818
Customer Report 1,358,165
Active Idle New Order 0 1,690
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
