Lenovo Global Technology Think System SR665 SPECpower_ssj2008 = 22,879 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Feb 29, 2020
Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: May 11, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 388 22.8
Calibration 2 393 22.5
Calibration 3 395 22.7
100% 394 23.3
90% 353 23.8
80% 328 23.9
70% 308 23.9
60% 288 23.8
50% 268 23.8
40% 248 23.9
30% 228 24.0
20% 206 24.1
10% 181 24.1
Active Idle 92.4 23.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31009E
Connectivity: USB
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: China CEPREI Laboratory
Calibration Label: 1GA19013841-0007
Date of Calibration: 27-Sep-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 1.79 5.0 0.987 388 0.3%
Calibration 2 219 300.0 1.82 5.0 0.987 393 0.3%
Calibration 3 219 300.0 1.82 5.0 0.987 395 0.3%
100% 219 300.0 1.82 5.0 0.987 394 0.3%
90% 219 300.0 1.63 5.0 0.986 353 0.3%
80% 219 300.0 1.52 2.0 0.984 328 0.2%
70% 219 300.0 1.43 2.0 0.982 308 0.2%
60% 219 300.0 1.34 2.0 0.980 288 0.2%
50% 220 300.0 1.25 2.0 0.978 268 0.3%
40% 220 300.0 1.16 2.0 0.975 248 0.3%
30% 220 300.0 1.07 2.0 0.972 228 0.3%
20% 220 300.0 0.970 2.0 0.968 206 0.3%
10% 220 300.0 0.855 2.0 0.965 181 0.3%
Active Idle 220 300.0 0.477 1.0 0.888 92.4 0.4%

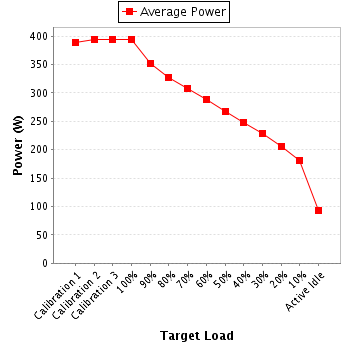

Power details for pwr1
