ASUSTeK Computer Inc. RS500A-E10-PS4 ssj_ops@100% = 5,879,510
ssj_ops@100% per JVM = 91,867
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan Test Date: Nov 22, 2019
Hardware Availability: Oct-2019 Software Availability: Dec-2018 Publication: Jan 21, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,899,742
Calibration 2     5,898,841
Calibration 3     5,898,724
ssj_ops@calibrated=5,898,783
100% 99.7% 5,898,783 5,879,510
90% 90.0% 5,308,904 5,309,379
80% 79.9% 4,719,026 4,715,657
70% 69.9% 4,129,148 4,122,763
60% 59.9% 3,539,270 3,532,717
50% 50.0% 2,949,391 2,949,715
40% 40.0% 2,359,513 2,359,616
30% 30.1% 1,769,635 1,772,866
20% 19.9% 1,179,757 1,176,264
10% 10.0% 589,878 589,426
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS500A-E10-PS4'
Set Identifier: RS500A-E10-PS4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS500A-E10-PS4
Form Factor: 1U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16 GB
Memory Details: 8 x 16GB 2Rx8 PC4-2933Y ECC RDIMM; slots DIMM_A2, DIMMM_B2, DIMMM_C2, DIMMM_D2, DIMMM_E2, DIMMM_F2, DIMMM_G2, DIMMM_H2
Power Supply Quantity and Rating (W): 1 x 650
Power Supply Details: Delta DPS-650XB E Rev.00F P/N: 0A100-00370000
Disk Drive: 1 x 960GB Intel DC S4510 SATA 2.5 SSD P/N: 03B01-00160800
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled(See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1200m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 -l}
JVM Instances: 64
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: 0302
Management Firmware Version: 1.14.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
ASUS_Performance.001 92,694
ASUS_Performance.002 90,336
ASUS_Performance.003 89,046
ASUS_Performance.004 91,198
ASUS_Performance.005 91,123
ASUS_Performance.006 91,652
ASUS_Performance.007 93,682
ASUS_Performance.008 92,536
ASUS_Performance.009 91,332
ASUS_Performance.010 93,969
ASUS_Performance.011 91,239
ASUS_Performance.012 90,565
ASUS_Performance.013 92,703
ASUS_Performance.014 89,723
ASUS_Performance.015 91,664
ASUS_Performance.016 89,949
ASUS_Performance.017 86,093
ASUS_Performance.018 92,917
ASUS_Performance.019 93,885
ASUS_Performance.020 93,746
ASUS_Performance.021 93,143
ASUS_Performance.022 89,151
ASUS_Performance.023 92,744
ASUS_Performance.024 92,497
ASUS_Performance.025 91,769
ASUS_Performance.026 90,696
ASUS_Performance.027 91,809
ASUS_Performance.028 93,378
ASUS_Performance.029 92,142
ASUS_Performance.030 92,744
ASUS_Performance.031 91,394
ASUS_Performance.032 91,646
ASUS_Performance.033 88,083
ASUS_Performance.034 93,702
ASUS_Performance.035 92,884
ASUS_Performance.036 91,482
ASUS_Performance.037 92,047
ASUS_Performance.038 93,138
ASUS_Performance.039 90,931
ASUS_Performance.040 91,769
ASUS_Performance.041 92,109
ASUS_Performance.042 94,017
ASUS_Performance.043 93,238
ASUS_Performance.044 91,676
ASUS_Performance.045 92,212
ASUS_Performance.046 92,507
ASUS_Performance.047 90,476
ASUS_Performance.048 91,804
ASUS_Performance.049 93,031
ASUS_Performance.050 92,047
ASUS_Performance.051 92,530
ASUS_Performance.052 92,738
ASUS_Performance.053 91,926
ASUS_Performance.054 93,406
ASUS_Performance.055 88,801
ASUS_Performance.056 91,192
ASUS_Performance.057 91,725
ASUS_Performance.058 91,226
ASUS_Performance.059 92,578
ASUS_Performance.060 92,837
ASUS_Performance.061 92,212
ASUS_Performance.062 92,202
ASUS_Performance.063 93,368
ASUS_Performance.064 92,451
ssj_ops@100% 5,879,510
ssj_ops@100% per JVM 91,867
Graph of per-instance results
JVM 'ASUS_Performance.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,542
Calibration 2     92,309
Calibration 3     92,068
ssj_ops@calibrated=92,189
100% 100.5% 92,189 92,694
90% 89.9% 82,970 82,896
80% 79.0% 73,751 72,839
70% 69.6% 64,532 64,178
60% 60.0% 55,313 55,325
50% 49.5% 46,094 45,650
40% 40.3% 36,875 37,195
30% 29.1% 27,657 26,808
20% 19.9% 18,438 18,362
10% 10.2% 9,219 9,408
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,370
Calibration 2     91,412
Calibration 3     91,342
ssj_ops@calibrated=91,377
100% 98.9% 91,377 90,336
90% 90.4% 82,239 82,593
80% 79.9% 73,102 72,982
70% 70.1% 63,964 64,095
60% 60.4% 54,826 55,164
50% 50.0% 45,689 45,706
40% 39.5% 36,551 36,127
30% 30.6% 27,413 27,977
20% 19.6% 18,275 17,896
10% 10.0% 9,138 9,121
Active Idle   0 0
Graph of results

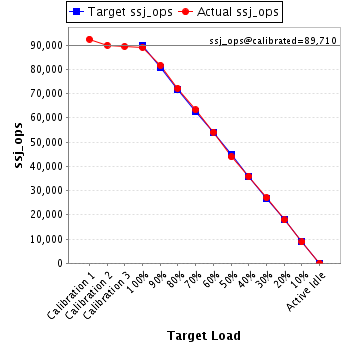

JVM 'ASUS_Performance.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,439
Calibration 2     89,935
Calibration 3     89,485
ssj_ops@calibrated=89,710
100% 99.3% 89,710 89,046
90% 91.0% 80,739 81,666
80% 80.4% 71,768 72,143
70% 70.5% 62,797 63,255
60% 60.3% 53,826 54,133
50% 48.9% 44,855 43,906
40% 40.0% 35,884 35,883
30% 30.2% 26,913 27,056
20% 19.9% 17,942 17,867
10% 9.8% 8,971 8,792
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,751
Calibration 2     91,582
Calibration 3     91,546
ssj_ops@calibrated=91,564
100% 99.6% 91,564 91,198
90% 90.8% 82,407 83,159
80% 79.6% 73,251 72,924
70% 71.1% 64,095 65,086
60% 59.0% 54,938 53,978
50% 50.0% 45,782 45,738
40% 40.5% 36,625 37,101
30% 30.0% 27,469 27,442
20% 20.1% 18,313 18,420
10% 9.6% 9,156 8,767
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,236
Calibration 2     90,034
Calibration 3     90,765
ssj_ops@calibrated=90,400
100% 100.8% 90,400 91,123
90% 89.4% 81,360 80,858
80% 79.5% 72,320 71,842
70% 69.5% 63,280 62,809
60% 59.7% 54,240 53,969
50% 50.1% 45,200 45,326
40% 40.0% 36,160 36,183
30% 30.2% 27,120 27,304
20% 19.7% 18,080 17,792
10% 9.9% 9,040 8,908
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,451
Calibration 2     91,999
Calibration 3     91,832
ssj_ops@calibrated=91,916
100% 99.7% 91,916 91,652
90% 89.2% 82,724 81,972
80% 81.2% 73,532 74,638
70% 69.9% 64,341 64,225
60% 59.9% 55,149 55,084
50% 49.8% 45,958 45,779
40% 39.9% 36,766 36,675
30% 29.9% 27,575 27,446
20% 20.1% 18,383 18,487
10% 9.7% 9,192 8,896
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,653
Calibration 2     93,486
Calibration 3     93,732
ssj_ops@calibrated=93,609
100% 100.1% 93,609 93,682
90% 90.6% 84,249 84,792
80% 79.9% 74,888 74,821
70% 68.6% 65,527 64,191
60% 59.3% 56,166 55,514
50% 50.2% 46,805 46,973
40% 39.5% 37,444 36,980
30% 30.5% 28,083 28,587
20% 20.2% 18,722 18,934
10% 10.1% 9,361 9,460
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,329
Calibration 2     92,222
Calibration 3     92,505
ssj_ops@calibrated=92,363
100% 100.2% 92,363 92,536
90% 89.7% 83,127 82,894
80% 80.1% 73,891 74,025
70% 69.9% 64,654 64,583
60% 59.3% 55,418 54,813
50% 49.4% 46,182 45,667
40% 39.8% 36,945 36,781
30% 30.3% 27,709 27,940
20% 20.1% 18,473 18,530
10% 10.1% 9,236 9,374
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,205
Calibration 2     91,625
Calibration 3     91,428
ssj_ops@calibrated=91,527
100% 99.8% 91,527 91,332
90% 90.2% 82,374 82,512
80% 80.0% 73,221 73,252
70% 70.2% 64,069 64,207
60% 60.4% 54,916 55,244
50% 49.9% 45,763 45,646
40% 39.8% 36,611 36,466
30% 29.9% 27,458 27,410
20% 20.1% 18,305 18,397
10% 10.3% 9,153 9,429
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,277
Calibration 2     94,064
Calibration 3     93,928
ssj_ops@calibrated=93,996
100% 100.0% 93,996 93,969
90% 89.2% 84,596 83,865
80% 80.0% 75,197 75,162
70% 71.2% 65,797 66,936
60% 60.0% 56,398 56,398
50% 49.9% 46,998 46,871
40% 40.1% 37,598 37,704
30% 30.2% 28,199 28,350
20% 20.0% 18,799 18,771
10% 9.6% 9,400 9,037
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,052
Calibration 2     92,075
Calibration 3     92,242
ssj_ops@calibrated=92,158
100% 99.0% 92,158 91,239
90% 90.4% 82,943 83,282
80% 80.5% 73,727 74,169
70% 70.4% 64,511 64,871
60% 59.3% 55,295 54,669
50% 50.0% 46,079 46,079
40% 39.8% 36,863 36,653
30% 30.4% 27,648 27,983
20% 19.9% 18,432 18,367
10% 10.0% 9,216 9,260
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,708
Calibration 2     91,209
Calibration 3     91,113
ssj_ops@calibrated=91,161
100% 99.3% 91,161 90,565
90% 89.8% 82,045 81,906
80% 80.1% 72,929 72,985
70% 70.4% 63,812 64,172
60% 59.9% 54,696 54,560
50% 49.9% 45,580 45,444
40% 40.0% 36,464 36,454
30% 29.4% 27,348 26,790
20% 20.3% 18,232 18,496
10% 10.1% 9,116 9,163
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,306
Calibration 2     93,507
Calibration 3     93,694
ssj_ops@calibrated=93,601
100% 99.0% 93,601 92,703
90% 90.5% 84,241 84,708
80% 79.5% 74,881 74,420
70% 71.0% 65,521 66,453
60% 60.4% 56,160 56,568
50% 50.4% 46,800 47,136
40% 40.4% 37,440 37,860
30% 30.1% 28,080 28,140
20% 19.4% 18,720 18,142
10% 9.7% 9,360 9,108
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,574
Calibration 2     90,713
Calibration 3     90,471
ssj_ops@calibrated=90,592
100% 99.0% 90,592 89,723
90% 90.2% 81,533 81,722
80% 79.4% 72,474 71,898
70% 70.4% 63,414 63,767
60% 59.7% 54,355 54,071
50% 49.7% 45,296 45,001
40% 39.9% 36,237 36,121
30% 29.6% 27,178 26,855
20% 20.5% 18,118 18,613
10% 10.0% 9,059 9,025
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,886
Calibration 2     92,910
Calibration 3     92,742
ssj_ops@calibrated=92,826
100% 98.7% 92,826 91,664
90% 89.3% 83,544 82,894
80% 79.7% 74,261 74,027
70% 69.6% 64,978 64,650
60% 60.8% 55,696 56,427
50% 51.0% 46,413 47,366
40% 40.5% 37,130 37,601
30% 30.0% 27,848 27,826
20% 20.1% 18,565 18,704
10% 9.7% 9,283 9,050
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,626
Calibration 2     90,875
Calibration 3     90,445
ssj_ops@calibrated=90,660
100% 99.2% 90,660 89,949
90% 89.7% 81,594 81,303
80% 79.7% 72,528 72,255
70% 70.5% 63,462 63,926
60% 59.6% 54,396 54,033
50% 50.1% 45,330 45,418
40% 40.1% 36,264 36,324
30% 30.2% 27,198 27,400
20% 20.5% 18,132 18,546
10% 9.9% 9,066 8,979
Active Idle   0 0
Graph of results

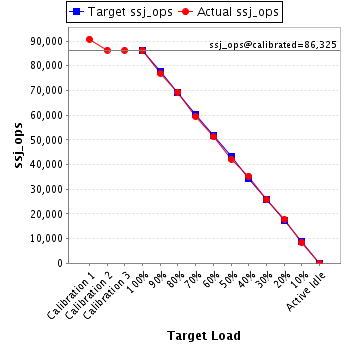

JVM 'ASUS_Performance.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,786
Calibration 2     86,352
Calibration 3     86,298
ssj_ops@calibrated=86,325
100% 99.7% 86,325 86,093
90% 89.2% 77,693 76,959
80% 80.3% 69,060 69,282
70% 68.9% 60,428 59,450
60% 59.3% 51,795 51,191
50% 48.9% 43,163 42,199
40% 40.9% 34,530 35,299
30% 30.0% 25,898 25,908
20% 20.6% 17,265 17,824
10% 9.8% 8,633 8,421
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,732
Calibration 2     92,911
Calibration 3     92,856
ssj_ops@calibrated=92,883
100% 100.0% 92,883 92,917
90% 89.6% 83,595 83,185
80% 80.0% 74,307 74,349
70% 69.3% 65,018 64,350
60% 59.8% 55,730 55,520
50% 50.0% 46,442 46,462
40% 39.5% 37,153 36,650
30% 29.7% 27,865 27,590
20% 19.9% 18,577 18,507
10% 9.9% 9,288 9,196
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,742
Calibration 2     93,522
Calibration 3     93,539
ssj_ops@calibrated=93,531
100% 100.4% 93,531 93,885
90% 89.8% 84,178 83,974
80% 79.9% 74,825 74,731
70% 69.4% 65,472 64,887
60% 60.3% 56,118 56,442
50% 50.1% 46,765 46,860
40% 40.9% 37,412 38,212
30% 30.4% 28,059 28,390
20% 19.9% 18,706 18,617
10% 10.0% 9,353 9,358
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,284
Calibration 2     94,212
Calibration 3     93,921
ssj_ops@calibrated=94,066
100% 99.7% 94,066 93,746
90% 90.1% 84,660 84,745
80% 79.2% 75,253 74,478
70% 69.4% 65,847 65,289
60% 59.9% 56,440 56,300
50% 50.7% 47,033 47,646
40% 38.8% 37,627 36,490
30% 30.4% 28,220 28,617
20% 20.1% 18,813 18,896
10% 10.2% 9,407 9,579
Active Idle   0 0
Graph of results

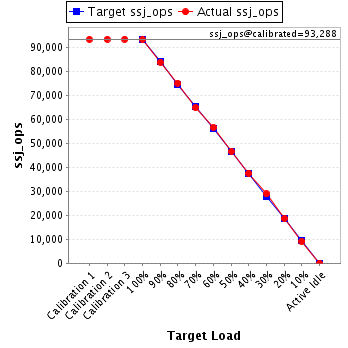

JVM 'ASUS_Performance.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,266
Calibration 2     93,266
Calibration 3     93,310
ssj_ops@calibrated=93,288
100% 99.8% 93,288 93,143
90% 89.8% 83,959 83,769
80% 80.4% 74,630 75,030
70% 69.5% 65,302 64,835
60% 60.6% 55,973 56,530
50% 49.9% 46,644 46,595
40% 40.2% 37,315 37,479
30% 30.9% 27,986 28,860
20% 20.0% 18,658 18,646
10% 9.8% 9,329 9,146
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,457
Calibration 2     88,580
Calibration 3     88,821
ssj_ops@calibrated=88,701
100% 100.5% 88,701 89,151
90% 90.7% 79,831 80,417
80% 80.8% 70,961 71,673
70% 69.5% 62,091 61,606
60% 59.6% 53,221 52,896
50% 50.5% 44,350 44,751
40% 39.5% 35,480 34,998
30% 29.6% 26,610 26,266
20% 19.5% 17,740 17,328
10% 10.0% 8,870 8,875
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,754
Calibration 2     93,057
Calibration 3     92,706
ssj_ops@calibrated=92,881
100% 99.9% 92,881 92,744
90% 89.1% 83,593 82,803
80% 80.1% 74,305 74,416
70% 69.9% 65,017 64,884
60% 60.1% 55,729 55,860
50% 49.7% 46,441 46,189
40% 40.6% 37,153 37,667
30% 30.0% 27,864 27,895
20% 20.1% 18,576 18,675
10% 10.2% 9,288 9,467
Active Idle   0 0
Graph of results

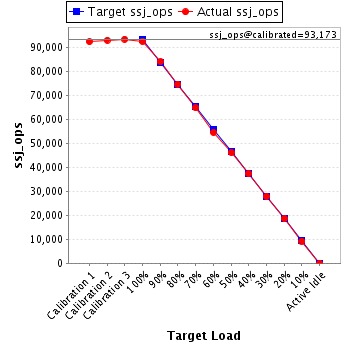

JVM 'ASUS_Performance.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,352
Calibration 2     92,958
Calibration 3     93,389
ssj_ops@calibrated=93,173
100% 99.3% 93,173 92,497
90% 90.1% 83,856 83,962
80% 80.1% 74,539 74,637
70% 69.5% 65,221 64,757
60% 58.5% 55,904 54,533
50% 49.5% 46,587 46,122
40% 40.1% 37,269 37,392
30% 30.0% 27,952 27,946
20% 20.0% 18,635 18,592
10% 9.9% 9,317 9,249
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,506
Calibration 2     92,604
Calibration 3     92,732
ssj_ops@calibrated=92,668
100% 99.0% 92,668 91,769
90% 89.9% 83,402 83,308
80% 79.8% 74,135 73,939
70% 69.3% 64,868 64,208
60% 60.6% 55,601 56,177
50% 49.6% 46,334 45,927
40% 40.8% 37,067 37,780
30% 29.7% 27,801 27,522
20% 20.0% 18,534 18,531
10% 10.1% 9,267 9,392
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,032
Calibration 2     91,301
Calibration 3     91,167
ssj_ops@calibrated=91,234
100% 99.4% 91,234 90,696
90% 89.6% 82,111 81,747
80% 79.3% 72,987 72,365
70% 70.0% 63,864 63,834
60% 59.6% 54,740 54,386
50% 49.5% 45,617 45,140
40% 40.3% 36,494 36,746
30% 29.9% 27,370 27,285
20% 20.3% 18,247 18,496
10% 10.0% 9,123 9,125
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,027
Calibration 2     92,483
Calibration 3     92,465
ssj_ops@calibrated=92,474
100% 99.3% 92,474 91,809
90% 90.7% 83,227 83,856
80% 79.6% 73,979 73,638
70% 70.1% 64,732 64,847
60% 60.4% 55,485 55,827
50% 49.7% 46,237 45,962
40% 40.0% 36,990 37,009
30% 30.4% 27,742 28,071
20% 19.6% 18,495 18,154
10% 10.1% 9,247 9,346
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,352
Calibration 2     93,387
Calibration 3     93,624
ssj_ops@calibrated=93,506
100% 99.9% 93,506 93,378
90% 91.1% 84,155 85,222
80% 80.0% 74,805 74,819
70% 70.2% 65,454 65,682
60% 60.1% 56,103 56,160
50% 49.9% 46,753 46,653
40% 39.8% 37,402 37,210
30% 29.3% 28,052 27,426
20% 19.9% 18,701 18,567
10% 9.8% 9,351 9,200
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,059
Calibration 2     92,608
Calibration 3     92,616
ssj_ops@calibrated=92,612
100% 99.5% 92,612 92,142
90% 90.7% 83,351 84,007
80% 80.5% 74,089 74,516
70% 71.3% 64,828 65,990
60% 59.7% 55,567 55,284
50% 50.2% 46,306 46,492
40% 39.8% 37,045 36,892
30% 29.9% 27,784 27,699
20% 19.7% 18,522 18,212
10% 9.7% 9,261 8,983
Active Idle   0 0
Graph of results

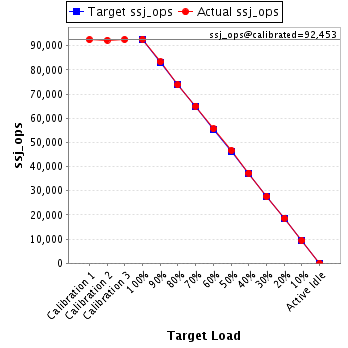

JVM 'ASUS_Performance.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,528
Calibration 2     92,320
Calibration 3     92,585
ssj_ops@calibrated=92,453
100% 100.3% 92,453 92,744
90% 90.1% 83,207 83,332
80% 79.8% 73,962 73,816
70% 70.4% 64,717 65,080
60% 60.2% 55,472 55,613
50% 50.5% 46,226 46,709
40% 40.4% 36,981 37,335
30% 30.0% 27,736 27,704
20% 20.2% 18,491 18,662
10% 10.2% 9,245 9,436
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,737
Calibration 2     92,195
Calibration 3     92,121
ssj_ops@calibrated=92,158
100% 99.2% 92,158 91,394
90% 89.5% 82,942 82,457
80% 79.2% 73,727 73,025
70% 69.5% 64,511 64,009
60% 60.7% 55,295 55,916
50% 49.9% 46,079 45,977
40% 39.7% 36,863 36,612
30% 30.8% 27,647 28,351
20% 19.6% 18,432 18,077
10% 9.9% 9,216 9,117
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,023
Calibration 2     92,750
Calibration 3     92,271
ssj_ops@calibrated=92,510
100% 99.1% 92,510 91,646
90% 89.5% 83,259 82,827
80% 80.8% 74,008 74,777
70% 69.7% 64,757 64,452
60% 60.2% 55,506 55,662
50% 49.6% 46,255 45,921
40% 39.7% 37,004 36,761
30% 30.0% 27,753 27,726
20% 19.6% 18,502 18,112
10% 10.2% 9,251 9,475
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,579
Calibration 2     88,992
Calibration 3     89,223
ssj_ops@calibrated=89,108
100% 98.8% 89,108 88,083
90% 89.7% 80,197 79,900
80% 80.4% 71,286 71,643
70% 70.4% 62,375 62,732
60% 59.7% 53,465 53,171
50% 49.1% 44,554 43,713
40% 39.3% 35,643 35,004
30% 30.0% 26,732 26,767
20% 19.8% 17,822 17,636
10% 10.3% 8,911 9,187
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,830
Calibration 2     93,291
Calibration 3     94,097
ssj_ops@calibrated=93,694
100% 100.0% 93,694 93,702
90% 91.3% 84,324 85,520
80% 79.9% 74,955 74,908
70% 70.2% 65,586 65,752
60% 59.8% 56,216 56,035
50% 50.4% 46,847 47,186
40% 40.1% 37,477 37,599
30% 30.7% 28,108 28,731
20% 20.3% 18,739 19,062
10% 10.0% 9,369 9,330
Active Idle   0 0
Graph of results

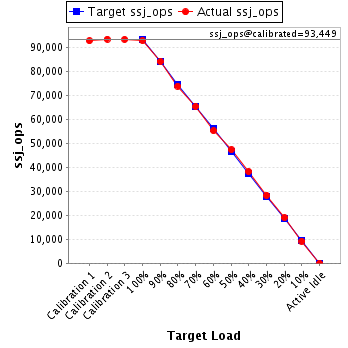

JVM 'ASUS_Performance.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,769
Calibration 2     93,497
Calibration 3     93,400
ssj_ops@calibrated=93,449
100% 99.4% 93,449 92,884
90% 90.1% 84,104 84,157
80% 79.1% 74,759 73,923
70% 70.1% 65,414 65,509
60% 59.2% 56,069 55,283
50% 50.7% 46,724 47,412
40% 40.9% 37,379 38,233
30% 30.3% 28,035 28,354
20% 20.4% 18,690 19,057
10% 9.8% 9,345 9,183
Active Idle   0 0
Graph of results

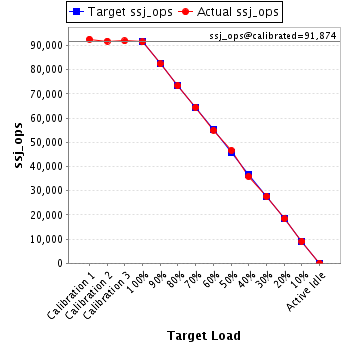

JVM 'ASUS_Performance.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,640
Calibration 2     91,857
Calibration 3     91,890
ssj_ops@calibrated=91,874
100% 99.6% 91,874 91,482
90% 89.7% 82,686 82,378
80% 79.8% 73,499 73,339
70% 70.2% 64,312 64,491
60% 59.9% 55,124 55,021
50% 50.8% 45,937 46,663
40% 39.0% 36,749 35,847
30% 30.1% 27,562 27,686
20% 20.0% 18,375 18,379
10% 9.9% 9,187 9,054
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,858
Calibration 2     91,969
Calibration 3     91,900
ssj_ops@calibrated=91,935
100% 100.1% 91,935 92,047
90% 90.8% 82,741 83,469
80% 80.1% 73,548 73,608
70% 69.3% 64,354 63,666
60% 59.6% 55,161 54,758
50% 49.6% 45,967 45,567
40% 39.8% 36,774 36,559
30% 30.1% 27,580 27,712
20% 19.8% 18,387 18,244
10% 10.2% 9,193 9,370
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,826
Calibration 2     92,863
Calibration 3     93,143
ssj_ops@calibrated=93,003
100% 100.1% 93,003 93,138
90% 90.4% 83,703 84,104
80% 79.2% 74,403 73,705
70% 69.4% 65,102 64,510
60% 60.2% 55,802 55,949
50% 50.4% 46,502 46,858
40% 40.3% 37,201 37,511
30% 29.8% 27,901 27,757
20% 20.1% 18,601 18,703
10% 10.1% 9,300 9,362
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,719
Calibration 2     91,102
Calibration 3     91,107
ssj_ops@calibrated=91,104
100% 99.8% 91,104 90,931
90% 90.1% 81,994 82,054
80% 79.7% 72,883 72,586
70% 69.2% 63,773 63,016
60% 60.2% 54,663 54,843
50% 50.2% 45,552 45,716
40% 39.1% 36,442 35,658
30% 29.9% 27,331 27,265
20% 19.7% 18,221 17,904
10% 10.0% 9,110 9,154
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,593
Calibration 2     92,559
Calibration 3     92,665
ssj_ops@calibrated=92,612
100% 99.1% 92,612 91,769
90% 89.8% 83,351 83,119
80% 79.1% 74,089 73,251
70% 69.8% 64,828 64,637
60% 59.8% 55,567 55,379
50% 50.5% 46,306 46,754
40% 39.6% 37,045 36,654
30% 30.6% 27,784 28,317
20% 20.1% 18,522 18,658
10% 10.4% 9,261 9,628
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,792
Calibration 2     92,830
Calibration 3     92,506
ssj_ops@calibrated=92,668
100% 99.4% 92,668 92,109
90% 89.4% 83,401 82,812
80% 80.5% 74,134 74,552
70% 70.1% 64,868 64,953
60% 59.8% 55,601 55,453
50% 50.8% 46,334 47,096
40% 40.2% 37,067 37,229
30% 30.2% 27,800 27,947
20% 19.5% 18,534 18,026
10% 10.3% 9,267 9,558
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,827
Calibration 2     93,869
Calibration 3     93,941
ssj_ops@calibrated=93,905
100% 100.1% 93,905 94,017
90% 90.2% 84,515 84,678
80% 79.6% 75,124 74,721
70% 69.0% 65,734 64,754
60% 59.7% 56,343 56,031
50% 50.5% 46,953 47,436
40% 40.0% 37,562 37,599
30% 29.7% 28,172 27,908
20% 19.6% 18,781 18,408
10% 9.8% 9,391 9,183
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,007
Calibration 2     93,809
Calibration 3     93,482
ssj_ops@calibrated=93,645
100% 99.6% 93,645 93,238
90% 90.1% 84,281 84,354
80% 79.4% 74,916 74,371
70% 69.3% 65,552 64,850
60% 60.5% 56,187 56,666
50% 49.7% 46,823 46,510
40% 40.2% 37,458 37,674
30% 30.4% 28,094 28,443
20% 20.2% 18,729 18,907
10% 10.0% 9,365 9,342
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,654
Calibration 2     91,977
Calibration 3     92,252
ssj_ops@calibrated=92,114
100% 99.5% 92,114 91,676
90% 90.1% 82,903 83,016
80% 80.4% 73,692 74,094
70% 69.2% 64,480 63,726
60% 59.4% 55,269 54,707
50% 50.0% 46,057 46,024
40% 39.7% 36,846 36,531
30% 29.8% 27,634 27,455
20% 20.1% 18,423 18,489
10% 9.8% 9,211 9,071
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,369
Calibration 2     92,408
Calibration 3     92,473
ssj_ops@calibrated=92,440
100% 99.8% 92,440 92,212
90% 90.2% 83,196 83,378
80% 79.9% 73,952 73,848
70% 69.5% 64,708 64,244
60% 59.9% 55,464 55,371
50% 49.5% 46,220 45,729
40% 40.5% 36,976 37,408
30% 30.1% 27,732 27,846
20% 20.5% 18,488 18,987
10% 10.0% 9,244 9,283
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,267
Calibration 2     93,185
Calibration 3     92,860
ssj_ops@calibrated=93,023
100% 99.4% 93,023 92,507
90% 90.4% 83,720 84,071
80% 79.4% 74,418 73,894
70% 69.9% 65,116 65,001
60% 59.9% 55,814 55,753
50% 50.0% 46,511 46,509
40% 40.6% 37,209 37,722
30% 29.7% 27,907 27,638
20% 19.2% 18,605 17,876
10% 10.1% 9,302 9,371
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,348
Calibration 2     90,911
Calibration 3     90,774
ssj_ops@calibrated=90,843
100% 99.6% 90,843 90,476
90% 90.5% 81,758 82,187
80% 79.9% 72,674 72,613
70% 69.9% 63,590 63,520
60% 59.8% 54,506 54,284
50% 50.6% 45,421 45,948
40% 40.0% 36,337 36,371
30% 29.7% 27,253 26,971
20% 19.9% 18,169 18,083
10% 10.1% 9,084 9,200
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,608
Calibration 2     91,448
Calibration 3     91,805
ssj_ops@calibrated=91,626
100% 100.2% 91,626 91,804
90% 89.6% 82,464 82,101
80% 80.6% 73,301 73,834
70% 70.6% 64,138 64,684
60% 58.9% 54,976 53,948
50% 50.0% 45,813 45,832
40% 39.6% 36,650 36,249
30% 30.2% 27,488 27,704
20% 20.1% 18,325 18,378
10% 10.4% 9,163 9,558
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,962
Calibration 2     92,647
Calibration 3     93,079
ssj_ops@calibrated=92,863
100% 100.2% 92,863 93,031
90% 89.1% 83,577 82,770
80% 80.9% 74,291 75,172
70% 70.3% 65,004 65,252
60% 59.7% 55,718 55,445
50% 49.8% 46,432 46,244
40% 40.0% 37,145 37,179
30% 30.0% 27,859 27,850
20% 20.1% 18,573 18,683
10% 10.2% 9,286 9,442
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,843
Calibration 2     92,572
Calibration 3     92,422
ssj_ops@calibrated=92,497
100% 99.5% 92,497 92,047
90% 89.4% 83,248 82,675
80% 80.6% 73,998 74,576
70% 69.7% 64,748 64,445
60% 59.4% 55,498 54,898
50% 50.4% 46,249 46,593
40% 39.8% 36,999 36,847
30% 30.0% 27,749 27,717
20% 19.9% 18,499 18,450
10% 9.9% 9,250 9,155
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,176
Calibration 2     92,805
Calibration 3     92,672
ssj_ops@calibrated=92,739
100% 99.8% 92,739 92,530
90% 90.0% 83,465 83,447
80% 79.0% 74,191 73,304
70% 69.4% 64,917 64,376
60% 60.4% 55,643 56,039
50% 50.1% 46,369 46,504
40% 39.4% 37,095 36,513
30% 30.1% 27,822 27,899
20% 20.4% 18,548 18,954
10% 9.7% 9,274 9,021
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,331
Calibration 2     93,126
Calibration 3     92,873
ssj_ops@calibrated=93,000
100% 99.7% 93,000 92,738
90% 89.6% 83,700 83,340
80% 81.4% 74,400 75,683
70% 70.7% 65,100 65,747
60% 60.0% 55,800 55,762
50% 49.8% 46,500 46,342
40% 40.1% 37,200 37,330
30% 30.6% 27,900 28,473
20% 19.4% 18,600 18,075
10% 10.2% 9,300 9,496
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,101
Calibration 2     91,783
Calibration 3     91,610
ssj_ops@calibrated=91,697
100% 100.2% 91,697 91,926
90% 89.6% 82,527 82,182
80% 80.1% 73,357 73,423
70% 68.4% 64,188 62,758
60% 59.4% 55,018 54,449
50% 50.0% 45,848 45,808
40% 40.8% 36,679 37,386
30% 30.0% 27,509 27,554
20% 19.9% 18,339 18,287
10% 10.2% 9,170 9,344
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,583
Calibration 2     93,698
Calibration 3     93,629
ssj_ops@calibrated=93,663
100% 99.7% 93,663 93,406
90% 89.7% 84,297 84,000
80% 80.7% 74,931 75,611
70% 69.7% 65,564 65,257
60% 60.8% 56,198 56,937
50% 49.9% 46,832 46,765
40% 40.5% 37,465 37,979
30% 30.6% 28,099 28,679
20% 20.0% 18,733 18,700
10% 10.2% 9,366 9,537
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,002
Calibration 2     88,218
Calibration 3     88,422
ssj_ops@calibrated=88,320
100% 100.5% 88,320 88,801
90% 90.8% 79,488 80,180
80% 79.5% 70,656 70,241
70% 70.3% 61,824 62,051
60% 60.4% 52,992 53,352
50% 50.8% 44,160 44,900
40% 40.4% 35,328 35,674
30% 30.1% 26,496 26,546
20% 19.4% 17,664 17,160
10% 9.8% 8,832 8,654
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,094
Calibration 2     92,488
Calibration 3     92,733
ssj_ops@calibrated=92,611
100% 98.5% 92,611 91,192
90% 89.4% 83,350 82,766
80% 80.3% 74,089 74,375
70% 69.3% 64,827 64,214
60% 59.4% 55,566 55,008
50% 49.3% 46,305 45,671
40% 39.8% 37,044 36,871
30% 29.5% 27,783 27,280
20% 19.5% 18,522 18,050
10% 9.7% 9,261 8,983
Active Idle   0 0

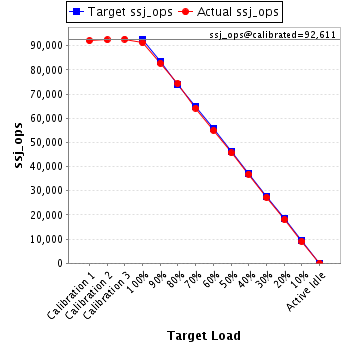

Graph of results
JVM 'ASUS_Performance.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,419
Calibration 2     92,157
Calibration 3     91,953
ssj_ops@calibrated=92,055
100% 99.6% 92,055 91,725
90% 90.1% 82,849 82,931
80% 79.8% 73,644 73,499
70% 70.2% 64,438 64,595
60% 59.6% 55,233 54,846
50% 49.7% 46,027 45,746
40% 39.7% 36,822 36,529
30% 29.5% 27,616 27,117
20% 19.7% 18,411 18,121
10% 9.9% 9,205 9,150
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,953
Calibration 2     91,677
Calibration 3     91,369
ssj_ops@calibrated=91,523
100% 99.7% 91,523 91,226
90% 90.0% 82,371 82,368
80% 80.3% 73,218 73,506
70% 70.4% 64,066 64,418
60% 59.7% 54,914 54,656
50% 49.9% 45,761 45,700
40% 40.0% 36,609 36,647
30% 30.7% 27,457 28,124
20% 20.1% 18,305 18,385
10% 10.0% 9,152 9,167
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,631
Calibration 2     92,933
Calibration 3     92,698
ssj_ops@calibrated=92,816
100% 99.7% 92,816 92,578
90% 89.6% 83,534 83,135
80% 79.7% 74,253 74,016
70% 70.5% 64,971 65,432
60% 60.3% 55,689 55,945
50% 49.6% 46,408 46,029
40% 40.2% 37,126 37,274
30% 30.0% 27,845 27,817
20% 19.9% 18,563 18,492
10% 9.9% 9,282 9,146
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,179
Calibration 2     93,162
Calibration 3     92,701
ssj_ops@calibrated=92,932
100% 99.9% 92,932 92,837
90% 90.3% 83,639 83,955
80% 79.7% 74,345 74,042
70% 69.6% 65,052 64,682
60% 59.9% 55,759 55,693
50% 49.9% 46,466 46,380
40% 40.1% 37,173 37,227
30% 30.4% 27,880 28,257
20% 19.9% 18,586 18,492
10% 10.0% 9,293 9,287
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,618
Calibration 2     92,368
Calibration 3     92,221
ssj_ops@calibrated=92,295
100% 99.9% 92,295 92,212
90% 89.3% 83,065 82,418
80% 80.0% 73,836 73,840
70% 70.4% 64,606 64,947
60% 59.8% 55,377 55,216
50% 50.5% 46,147 46,612
40% 39.7% 36,918 36,639
30% 29.7% 27,688 27,406
20% 19.8% 18,459 18,300
10% 10.0% 9,229 9,195
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,521
Calibration 2     92,295
Calibration 3     92,512
ssj_ops@calibrated=92,404
100% 99.8% 92,404 92,202
90% 91.3% 83,163 84,319
80% 79.6% 73,923 73,545
70% 69.1% 64,682 63,888
60% 60.2% 55,442 55,644
50% 50.0% 46,202 46,181
40% 39.3% 36,961 36,337
30% 29.4% 27,721 27,162
20% 19.9% 18,481 18,343
10% 10.1% 9,240 9,367
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,992
Calibration 2     93,368
Calibration 3     93,788
ssj_ops@calibrated=93,578
100% 99.8% 93,578 93,368
90% 89.7% 84,220 83,963
80% 79.1% 74,862 74,000
70% 70.7% 65,504 66,190
60% 60.1% 56,147 56,202
50% 50.2% 46,789 46,950
40% 40.2% 37,431 37,619
30% 29.5% 28,073 27,608
20% 19.9% 18,716 18,593
10% 9.9% 9,358 9,307
Active Idle   0 0
Graph of results
JVM 'ASUS_Performance.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,605
Calibration 2     92,511
Calibration 3     92,763
ssj_ops@calibrated=92,637
100% 99.8% 92,637 92,451
90% 90.7% 83,373 84,042
80% 79.9% 74,110 74,062
70% 70.1% 64,846 64,902
60% 60.2% 55,582 55,729
50% 50.8% 46,318 47,028
40% 40.0% 37,055 37,077
30% 30.6% 27,791 28,308
20% 19.6% 18,527 18,159
10% 9.9% 9,264 9,196
Active Idle   0 0
Graph of results
