ASUSTeK Computer Inc. RS500A-E10-PS4 SPECpower_ssj2008 = 21,168 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan Test Date: Nov 22, 2019
Hardware Availability: Oct-2019 Software Availability: Dec-2018 Publication: Jan 21, 2020
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 203 21.2
Calibration 2 207 21.3
Calibration 3 207 21.3
100% 206 21.3
90% 191 21.3
80% 177 21.3
70% 162 21.3
60% 149 21.3
50% 138 21.2
40% 127 21.3
30% 117 21.2
20% 107 21.2
10% 100.0 21.3
Active Idle 56.4 21.3

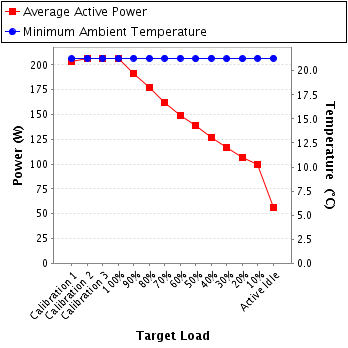

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T2907160701
Date of Calibration: 18-Jul-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.1-a2d19f26-20190717
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 0.915 2.0 0.977 203 0.5%
Calibration 2 226 300.0 0.934 2.0 0.978 207 0.5%
Calibration 3 227 300.0 0.933 2.0 0.978 207 0.5%
100% 226 300.0 0.934 2.0 0.978 206 0.5%
90% 225 300.0 0.870 1.0 0.976 191 0.4%
80% 225 300.0 0.808 1.0 0.973 177 0.4%
70% 225 300.0 0.742 1.0 0.969 162 0.4%
60% 226 300.0 0.684 1.0 0.965 149 0.4%
50% 225 300.0 0.640 1.0 0.962 138 0.4%
40% 225 300.0 0.590 1.0 0.956 127 0.4%
30% 225 300.0 0.547 1.0 0.951 117 0.5%
20% 225 300.0 0.503 1.0 0.945 107 0.5%
10% 224 300.0 0.475 1.0 0.939 100.0 0.5%
Active Idle 225 300.0 0.292 0.5 0.860 56.4 0.5%

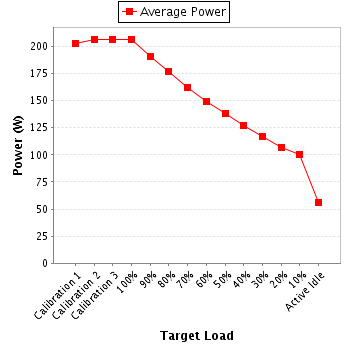

Power details for pwr1
