Lenovo Global Technology Think System SR655 SPECpower_ssj2008 = 20,176 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 11, 2019
Hardware Availability: Aug-2019 Software Availability: Dec-2018 Publication: Sep 19, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 240 21.3
Calibration 2 241 21.2
Calibration 3 240 21.5
100% 240 21.5
90% 218 21.3
80% 202 21.1
70% 189 20.9
60% 178 20.8
50% 170 21.1
40% 160 21.3
30% 151 21.2
20% 134 21.2
10% 111 21.1
Active Idle 66.1 21.1

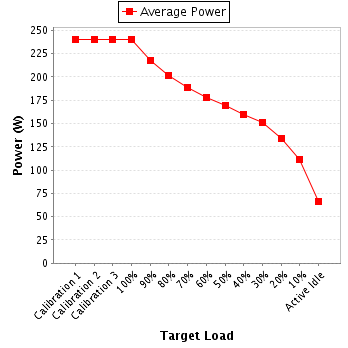

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 18BB98-C93CAA-88AB7B
Date of Calibration: 29-Oct-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 220 300.0 1.11 2.0 0.982 240 0.3%
Calibration 2 220 300.0 1.12 2.0 0.982 241 0.3%
Calibration 3 220 300.0 1.11 2.0 0.982 240 0.3%
100% 220 300.0 1.11 2.0 0.982 240 0.3%
90% 220 300.0 1.01 2.0 0.980 218 0.3%
80% 220 300.0 0.936 2.0 0.983 202 0.3%
70% 220 300.0 0.875 2.0 0.981 189 0.3%
60% 220 300.0 0.826 2.0 0.979 178 0.3%
50% 220 300.0 0.790 2.0 0.978 170 0.3%
40% 220 300.0 0.747 2.0 0.976 160 0.3%
30% 220 300.0 0.708 2.0 0.970 151 0.3%
20% 220 300.0 0.634 2.0 0.962 134 0.4%
10% 220 300.0 0.533 2.0 0.950 111 0.4%
Active Idle 220 300.0 0.346 2.0 0.870 66.1 0.6%
Power details for pwr1
