Lenovo Global Technology Think System SR655 ssj_ops@100% = 6,417,037
ssj_ops@100% per JVM = 100,266
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jul 17, 2019
Hardware Availability: Aug-2019 Software Availability: Dec-2018 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,438,642
Calibration 2     6,439,004
Calibration 3     6,446,442
ssj_ops@calibrated=6,442,723
100% 99.6% 6,442,723 6,417,037
90% 90.1% 5,798,451 5,806,156
80% 80.1% 5,154,178 5,159,720
70% 70.0% 4,509,906 4,510,373
60% 60.1% 3,865,634 3,869,843
50% 50.1% 3,221,362 3,226,934
40% 40.0% 2,577,089 2,579,611
30% 30.0% 1,932,817 1,929,973
20% 20.1% 1,288,545 1,292,157
10% 10.0% 644,272 644,115
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Think System SR655
Form Factor: 2U
CPU Name: AMD EPYC 7742 2.25Ghz
CPU Characteristics: 64-Core, 2.25GHz, 256MB L3 Cache
CPU Frequency (MHz): 2250
CPU(s) Enabled: 64 cores, 1 chip, 64 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 16 MB shared / 4 cores
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 8 x 16384 MB
Memory Details: 8 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, and 16 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:SP57A03125
Disk Drive: 1 x 128GB M.2 SSD P/N:SSS7A06667
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 4 x Broadcom 1Gb RJ45 4-port Ethernet
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.3+12-LTS, mixed mode), version 11.0.3
JVM Command-line Options: -server -Xmn900m -Xms1024m -Xmx1024m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 64 }
JVM Instances: 64
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: CFE103A
Management Firmware Version: AMBT03A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-93mw.001 102,350
linux-93mw.002 99,839
linux-93mw.003 97,479
linux-93mw.004 101,752
linux-93mw.005 97,372
linux-93mw.006 100,512
linux-93mw.007 102,546
linux-93mw.008 100,651
linux-93mw.009 98,038
linux-93mw.010 103,053
linux-93mw.011 101,526
linux-93mw.012 100,558
linux-93mw.013 102,455
linux-93mw.014 101,943
linux-93mw.015 99,145
linux-93mw.016 102,269
linux-93mw.017 101,714
linux-93mw.018 101,450
linux-93mw.019 103,664

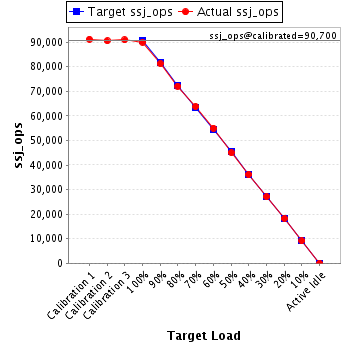

linux-93mw.020 89,995
linux-93mw.021 101,529
linux-93mw.022 101,000
linux-93mw.023 102,119
linux-93mw.024 96,065
linux-93mw.025 102,310
linux-93mw.026 101,926
linux-93mw.027 101,381
linux-93mw.028 101,577
linux-93mw.029 103,607
linux-93mw.030 102,427
linux-93mw.031 98,283
linux-93mw.032 102,857
linux-93mw.033 103,613
linux-93mw.034 99,300
linux-93mw.035 101,585
linux-93mw.036 91,166
linux-93mw.037 100,327
linux-93mw.038 99,870
linux-93mw.039 102,086
linux-93mw.040 102,076
linux-93mw.041 100,459
linux-93mw.042 101,915
linux-93mw.043 102,250
linux-93mw.044 89,532
linux-93mw.045 102,009
linux-93mw.046 103,620
linux-93mw.047 93,667

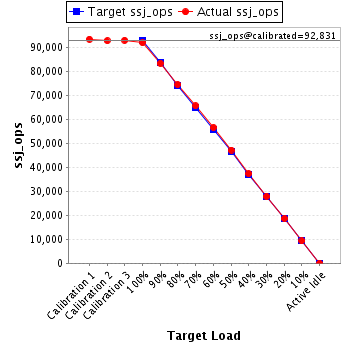

linux-93mw.048 91,910

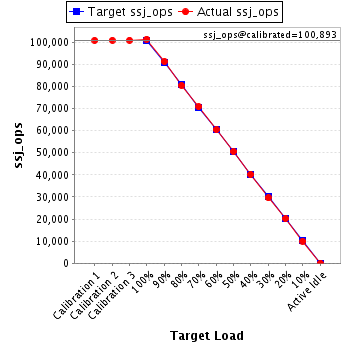

linux-93mw.049 101,362
linux-93mw.050 100,248
linux-93mw.051 101,640
linux-93mw.052 99,083
linux-93mw.053 98,613
linux-93mw.054 100,947
linux-93mw.055 101,633
linux-93mw.056 102,173
linux-93mw.057 99,231
linux-93mw.058 97,242
linux-93mw.059 101,706
linux-93mw.060 103,596
linux-93mw.061 97,446
linux-93mw.062 100,893
linux-93mw.063 102,484
linux-93mw.064 99,965
ssj_ops@100% 6,417,037
ssj_ops@100% per JVM 100,266
Graph of per-instance results
JVM 'linux-93mw.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,792
Calibration 2     102,288
Calibration 3     102,295
ssj_ops@calibrated=102,292
100% 100.1% 102,292 102,350
90% 89.9% 92,063 91,973
80% 81.3% 81,833 83,131
70% 70.0% 71,604 71,572
60% 60.4% 61,375 61,768
50% 50.2% 51,146 51,381
40% 39.5% 40,917 40,371
30% 30.4% 30,688 31,096
20% 19.6% 20,458 20,050
10% 9.8% 10,229 10,029
Active Idle   0 0
Graph of results
JVM 'linux-93mw.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,353
Calibration 2     100,180
Calibration 3     100,450
ssj_ops@calibrated=100,315
100% 99.5% 100,315 99,839
90% 89.9% 90,283 90,140
80% 80.7% 80,252 80,941
70% 70.0% 70,220 70,189
60% 59.9% 60,189 60,111
50% 49.6% 50,157 49,779
40% 40.8% 40,126 40,976
30% 30.0% 30,094 30,062
20% 20.3% 20,063 20,334
10% 10.1% 10,031 10,095
Active Idle   0 0
Graph of results
JVM 'linux-93mw.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,936
Calibration 2     98,189
Calibration 3     98,390
ssj_ops@calibrated=98,290
100% 99.2% 98,290 97,479
90% 90.8% 88,461 89,268
80% 79.1% 78,632 77,751
70% 69.9% 68,803 68,657
60% 59.9% 58,974 58,923
50% 51.0% 49,145 50,166
40% 40.4% 39,316 39,723
30% 29.7% 29,487 29,195
20% 20.1% 19,658 19,757
10% 10.2% 9,829 10,012
Active Idle   0 0
Graph of results
JVM 'linux-93mw.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,133
Calibration 2     101,914
Calibration 3     101,451
ssj_ops@calibrated=101,683
100% 100.1% 101,683 101,752
90% 90.8% 91,514 92,306
80% 80.0% 81,346 81,312
70% 69.8% 71,178 71,020
60% 59.9% 61,010 60,918
50% 51.0% 50,841 51,868
40% 39.7% 40,673 40,335
30% 29.6% 30,505 30,136
20% 20.2% 20,337 20,540
10% 9.8% 10,168 9,968
Active Idle   0 0
Graph of results
JVM 'linux-93mw.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,855
Calibration 2     97,285
Calibration 3     97,386
ssj_ops@calibrated=97,336
100% 100.0% 97,336 97,372
90% 90.2% 87,602 87,803
80% 80.2% 77,868 78,100
70% 69.7% 68,135 67,839
60% 60.5% 58,401 58,849
50% 50.0% 48,668 48,631
40% 40.0% 38,934 38,907
30% 30.1% 29,201 29,346
20% 20.3% 19,467 19,804
10% 9.7% 9,734 9,416
Active Idle   0 0
Graph of results
JVM 'linux-93mw.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,768
Calibration 2     100,498
Calibration 3     100,755
ssj_ops@calibrated=100,627
100% 99.9% 100,627 100,512
90% 90.9% 90,564 91,457
80% 80.6% 80,501 81,098
70% 70.5% 70,439 70,928
60% 61.2% 60,376 61,580
50% 49.4% 50,313 49,728
40% 40.7% 40,251 40,955
30% 29.4% 30,188 29,592
20% 19.9% 20,125 20,054
10% 9.9% 10,063 9,929
Active Idle   0 0
Graph of results
JVM 'linux-93mw.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,603
Calibration 2     103,569
Calibration 3     103,528
ssj_ops@calibrated=103,548
100% 99.0% 103,548 102,546
90% 90.5% 93,194 93,748
80% 80.1% 82,839 82,912
70% 70.3% 72,484 72,793
60% 59.9% 62,129 62,036
50% 49.9% 51,774 51,688
40% 40.1% 41,419 41,549
30% 30.0% 31,065 31,042
20% 20.4% 20,710 21,154
10% 10.1% 10,355 10,468
Active Idle   0 0
Graph of results
JVM 'linux-93mw.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,672
Calibration 2     101,567
Calibration 3     101,633
ssj_ops@calibrated=101,600
100% 99.1% 101,600 100,651
90% 89.2% 91,440 90,585
80% 80.2% 81,280 81,482
70% 70.2% 71,120 71,303
60% 59.5% 60,960 60,474
50% 50.4% 50,800 51,232
40% 40.3% 40,640 40,954
30% 29.7% 30,480 30,142
20% 19.7% 20,320 20,044
10% 10.1% 10,160 10,300
Active Idle   0 0
Graph of results
JVM 'linux-93mw.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,666
Calibration 2     98,374
Calibration 3     98,686
ssj_ops@calibrated=98,530
100% 99.5% 98,530 98,038
90% 89.8% 88,677 88,506
80% 79.5% 78,824 78,329
70% 70.4% 68,971 69,378
60% 60.1% 59,118 59,262
50% 49.9% 49,265 49,160
40% 39.4% 39,412 38,774
30% 29.9% 29,559 29,463
20% 20.1% 19,706 19,828
10% 10.0% 9,853 9,810
Active Idle   0 0
Graph of results
JVM 'linux-93mw.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,639
Calibration 2     103,063
Calibration 3     103,247
ssj_ops@calibrated=103,155
100% 99.9% 103,155 103,053
90% 89.8% 92,840 92,634
80% 79.5% 82,524 82,052
70% 71.1% 72,209 73,376
60% 60.1% 61,893 61,952
50% 50.2% 51,578 51,797
40% 40.3% 41,262 41,522
30% 30.1% 30,947 31,084
20% 20.4% 20,631 21,041
10% 10.0% 10,316 10,283
Active Idle   0 0
Graph of results
JVM 'linux-93mw.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,968
Calibration 2     101,392
Calibration 3     101,599
ssj_ops@calibrated=101,496
100% 100.0% 101,496 101,526
90% 89.6% 91,346 90,949
80% 79.7% 81,197 80,892
70% 69.7% 71,047 70,713
60% 60.3% 60,897 61,152
50% 50.2% 50,748 50,950
40% 40.5% 40,598 41,096
30% 30.1% 30,449 30,562
20% 20.1% 20,299 20,365
10% 10.0% 10,150 10,175
Active Idle   0 0
Graph of results
JVM 'linux-93mw.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,106
Calibration 2     101,119
Calibration 3     101,177
ssj_ops@calibrated=101,148
100% 99.4% 101,148 100,558
90% 89.5% 91,033 90,516
80% 79.9% 80,919 80,781
70% 69.2% 70,804 69,960
60% 58.7% 60,689 59,368
50% 49.4% 50,574 49,963
40% 39.9% 40,459 40,314
30% 29.5% 30,344 29,860
20% 20.2% 20,230 20,441
10% 10.1% 10,115 10,183
Active Idle   0 0
Graph of results
JVM 'linux-93mw.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,990
Calibration 2     102,552
Calibration 3     102,887
ssj_ops@calibrated=102,720
100% 99.7% 102,720 102,455
90% 89.9% 92,448 92,305
80% 80.0% 82,176 82,202
70% 70.0% 71,904 71,906
60% 60.7% 61,632 62,307
50% 50.5% 51,360 51,869
40% 40.0% 41,088 41,066
30% 29.9% 30,816 30,724
20% 20.0% 20,544 20,500
10% 10.2% 10,272 10,471
Active Idle   0 0
Graph of results
JVM 'linux-93mw.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,630
Calibration 2     101,629
Calibration 3     101,938
ssj_ops@calibrated=101,783
100% 100.2% 101,783 101,943
90% 90.5% 91,605 92,109
80% 79.3% 81,427 80,707
70% 70.0% 71,248 71,232
60% 60.3% 61,070 61,414
50% 51.1% 50,892 51,960
40% 40.2% 40,713 40,962
30% 29.7% 30,535 30,208
20% 20.3% 20,357 20,635
10% 10.1% 10,178 10,279
Active Idle   0 0
Graph of results
JVM 'linux-93mw.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,868
Calibration 2     99,228
Calibration 3     99,740
ssj_ops@calibrated=99,484
100% 99.7% 99,484 99,145
90% 90.3% 89,536 89,820
80% 79.7% 79,587 79,295
70% 69.2% 69,639 68,866
60% 60.9% 59,690 60,560
50% 49.9% 49,742 49,597
40% 40.1% 39,794 39,897
30% 30.6% 29,845 30,471
20% 19.7% 19,897 19,600
10% 10.0% 9,948 9,924
Active Idle   0 0
Graph of results
JVM 'linux-93mw.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,957
Calibration 2     103,200
Calibration 3     103,539
ssj_ops@calibrated=103,370
100% 98.9% 103,370 102,269
90% 89.7% 93,033 92,699
80% 79.8% 82,696 82,484
70% 69.9% 72,359 72,291
60% 60.7% 62,022 62,785
50% 50.2% 51,685 51,887
40% 39.6% 41,348 40,901
30% 30.5% 31,011 31,489
20% 19.9% 20,674 20,605
10% 9.5% 10,337 9,862
Active Idle   0 0
Graph of results
JVM 'linux-93mw.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,074
Calibration 2     101,490
Calibration 3     101,653
ssj_ops@calibrated=101,571
100% 100.1% 101,571 101,714
90% 89.7% 91,414 91,137
80% 80.5% 81,257 81,725
70% 69.7% 71,100 70,758
60% 60.5% 60,943 61,483
50% 49.7% 50,786 50,465
40% 40.0% 40,629 40,664
30% 30.6% 30,471 31,099
20% 20.1% 20,314 20,450
10% 9.7% 10,157 9,824
Active Idle   0 0
Graph of results
JVM 'linux-93mw.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,386
Calibration 2     102,203
Calibration 3     102,126
ssj_ops@calibrated=102,164
100% 99.3% 102,164 101,450
90% 90.6% 91,948 92,596
80% 80.8% 81,731 82,511
70% 69.8% 71,515 71,319
60% 59.8% 61,299 61,082
50% 50.1% 51,082 51,165
40% 40.0% 40,866 40,819
30% 29.4% 30,649 30,046
20% 20.1% 20,433 20,578
10% 10.2% 10,216 10,429
Active Idle   0 0
Graph of results
JVM 'linux-93mw.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,691
Calibration 2     103,143
Calibration 3     103,229
ssj_ops@calibrated=103,186
100% 100.5% 103,186 103,664
90% 90.1% 92,867 92,922
80% 81.2% 82,549 83,814
70% 69.7% 72,230 71,947
60% 59.6% 61,912 61,464
50% 50.8% 51,593 52,470
40% 40.1% 41,274 41,398
30% 29.8% 30,956 30,783
20% 20.0% 20,637 20,662
10% 10.0% 10,319 10,295
Active Idle   0 0
Graph of results
JVM 'linux-93mw.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,223
Calibration 2     90,511
Calibration 3     90,890
ssj_ops@calibrated=90,700
100% 99.2% 90,700 89,995
90% 89.6% 81,630 81,241
80% 79.5% 72,560 72,112
70% 70.4% 63,490 63,809
60% 60.7% 54,420 55,025
50% 49.6% 45,350 45,009
40% 39.8% 36,280 36,118
30% 29.8% 27,210 27,050
20% 20.2% 18,140 18,292
10% 10.1% 9,070 9,129
Active Idle   0 0
Graph of results
JVM 'linux-93mw.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,469
Calibration 2     101,158
Calibration 3     101,771
ssj_ops@calibrated=101,464
100% 100.1% 101,464 101,529
90% 91.0% 91,318 92,282
80% 79.5% 81,171 80,661
70% 71.0% 71,025 72,012
60% 59.7% 60,879 60,551
50% 50.0% 50,732 50,748
40% 40.5% 40,586 41,075
30% 30.3% 30,439 30,775
20% 20.0% 20,293 20,328
10% 9.7% 10,146 9,846
Active Idle   0 0
Graph of results
JVM 'linux-93mw.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,496
Calibration 2     101,430
Calibration 3     101,780
ssj_ops@calibrated=101,605
100% 99.4% 101,605 101,000
90% 88.6% 91,445 90,040
80% 80.4% 81,284 81,688
70% 69.9% 71,124 70,983
60% 59.1% 60,963 60,080
50% 50.3% 50,803 51,072
40% 40.7% 40,642 41,392
30% 29.8% 30,482 30,253
20% 19.5% 20,321 19,851
10% 9.9% 10,161 10,087
Active Idle   0 0
Graph of results
JVM 'linux-93mw.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,683
Calibration 2     102,324
Calibration 3     102,318
ssj_ops@calibrated=102,321
100% 99.8% 102,321 102,119
90% 89.9% 92,089 91,952
80% 79.6% 81,857 81,481
70% 70.9% 71,625 72,514
60% 60.4% 61,393 61,788
50% 49.9% 51,161 51,077
40% 40.3% 40,929 41,212
30% 30.6% 30,696 31,329
20% 19.9% 20,464 20,399
10% 10.0% 10,232 10,253
Active Idle   0 0
Graph of results
JVM 'linux-93mw.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,135
Calibration 2     96,185
Calibration 3     96,369
ssj_ops@calibrated=96,277
100% 99.8% 96,277 96,065
90% 90.9% 86,649 87,476
80% 81.1% 77,022 78,059
70% 70.8% 67,394 68,121
60% 60.4% 57,766 58,175
50% 50.6% 48,139 48,687
40% 39.8% 38,511 38,336
30% 29.7% 28,883 28,579
20% 19.8% 19,255 19,100
10% 10.3% 9,628 9,903
Active Idle   0 0
Graph of results
JVM 'linux-93mw.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,216
Calibration 2     102,969
Calibration 3     102,971
ssj_ops@calibrated=102,970
100% 99.4% 102,970 102,310
90% 90.0% 92,673 92,694
80% 80.0% 82,376 82,350
70% 70.4% 72,079 72,504
60% 59.8% 61,782 61,528
50% 49.9% 51,485 51,426
40% 39.8% 41,188 40,942
30% 29.5% 30,891 30,360
20% 20.3% 20,594 20,873
10% 10.2% 10,297 10,525
Active Idle   0 0
Graph of results
JVM 'linux-93mw.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,753
Calibration 2     102,409
Calibration 3     102,382
ssj_ops@calibrated=102,395
100% 99.5% 102,395 101,926
90% 90.3% 92,156 92,448
80% 80.0% 81,916 81,890
70% 70.2% 71,677 71,888
60% 59.6% 61,437 61,020
50% 49.8% 51,198 50,981
40% 40.3% 40,958 41,220
30% 30.4% 30,719 31,100
20% 20.2% 20,479 20,732
10% 9.6% 10,240 9,821
Active Idle   0 0
Graph of results
JVM 'linux-93mw.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,174
Calibration 2     103,346
Calibration 3     103,637
ssj_ops@calibrated=103,492
100% 98.0% 103,492 101,381
90% 90.0% 93,142 93,095
80% 80.2% 82,793 83,037
70% 70.3% 72,444 72,726
60% 60.0% 62,095 62,055
50% 49.7% 51,746 51,441
40% 40.5% 41,397 41,938
30% 29.7% 31,047 30,762
20% 19.7% 20,698 20,396
10% 10.2% 10,349 10,554
Active Idle   0 0
Graph of results
JVM 'linux-93mw.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,312
Calibration 2     102,082
Calibration 3     101,670
ssj_ops@calibrated=101,876
100% 99.7% 101,876 101,577
90% 91.2% 91,688 92,864
80% 79.4% 81,501 80,870
70% 69.7% 71,313 71,053
60% 59.7% 61,126 60,860
50% 50.2% 50,938 51,117
40% 39.8% 40,750 40,596
30% 30.2% 30,563 30,748
20% 20.3% 20,375 20,692
10% 9.9% 10,188 10,100
Active Idle   0 0
Graph of results
JVM 'linux-93mw.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,404
Calibration 2     103,221
Calibration 3     103,602
ssj_ops@calibrated=103,411
100% 100.2% 103,411 103,607
90% 91.1% 93,070 94,245
80% 80.5% 82,729 83,207
70% 70.1% 72,388 72,505
60% 60.5% 62,047 62,568
50% 49.8% 51,706 51,550
40% 40.5% 41,364 41,912
30% 29.6% 31,023 30,591
20% 19.9% 20,682 20,621
10% 9.6% 10,341 9,929
Active Idle   0 0
Graph of results
JVM 'linux-93mw.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,751
Calibration 2     102,087
Calibration 3     102,624
ssj_ops@calibrated=102,355
100% 100.1% 102,355 102,427
90% 91.1% 92,120 93,263
80% 80.2% 81,884 82,097
70% 69.3% 71,649 70,922
60% 59.6% 61,413 61,024
50% 49.6% 51,178 50,737
40% 40.2% 40,942 41,107
30% 30.6% 30,707 31,369
20% 20.3% 20,471 20,771
10% 10.4% 10,236 10,595
Active Idle   0 0
Graph of results
JVM 'linux-93mw.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,089
Calibration 2     98,933
Calibration 3     98,876
ssj_ops@calibrated=98,904
100% 99.4% 98,904 98,283
90% 89.3% 89,014 88,352
80% 79.7% 79,123 78,844
70% 69.3% 69,233 68,584
60% 60.5% 59,343 59,804
50% 49.4% 49,452 48,830
40% 40.2% 39,562 39,723
30% 29.8% 29,671 29,446
20% 19.8% 19,781 19,571
10% 10.0% 9,890 9,921
Active Idle   0 0
Graph of results
JVM 'linux-93mw.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,492
Calibration 2     102,732
Calibration 3     102,956
ssj_ops@calibrated=102,844
100% 100.0% 102,844 102,857
90% 90.9% 92,559 93,524
80% 79.6% 82,275 81,843
70% 70.3% 71,991 72,337
60% 60.2% 61,706 61,929
50% 50.1% 51,422 51,536
40% 40.1% 41,137 41,201
30% 29.7% 30,853 30,592
20% 20.4% 20,569 20,929
10% 9.9% 10,284 10,183
Active Idle   0 0
Graph of results
JVM 'linux-93mw.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,589
Calibration 2     103,852
Calibration 3     103,800
ssj_ops@calibrated=103,826
100% 99.8% 103,826 103,613
90% 91.5% 93,443 94,949
80% 80.9% 83,061 84,042
70% 70.3% 72,678 73,039
60% 59.8% 62,296 62,054
50% 50.1% 51,913 51,972
40% 40.3% 41,530 41,808
30% 30.0% 31,148 31,124
20% 19.8% 20,765 20,545
10% 10.2% 10,383 10,589
Active Idle   0 0
Graph of results
JVM 'linux-93mw.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,947
Calibration 2     99,675
Calibration 3     100,067
ssj_ops@calibrated=99,871
100% 99.4% 99,871 99,300
90% 89.6% 89,884 89,509
80% 80.1% 79,897 79,991
70% 70.6% 69,910 70,485
60% 60.8% 59,923 60,734
50% 49.9% 49,936 49,803
40% 40.6% 39,948 40,569
30% 30.0% 29,961 29,983
20% 20.5% 19,974 20,499
10% 10.0% 9,987 10,021
Active Idle   0 0
Graph of results
JVM 'linux-93mw.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,962
Calibration 2     102,434
Calibration 3     101,871
ssj_ops@calibrated=102,153
100% 99.4% 102,153 101,585
90% 89.4% 91,937 91,319
80% 80.1% 81,722 81,844
70% 69.5% 71,507 71,034
60% 60.2% 61,292 61,519
50% 49.4% 51,076 50,441
40% 39.5% 40,861 40,388
30% 29.5% 30,646 30,139
20% 19.3% 20,431 19,742
10% 9.7% 10,215 9,912
Active Idle   0 0
Graph of results
JVM 'linux-93mw.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,619
Calibration 2     91,516
Calibration 3     91,289
ssj_ops@calibrated=91,402
100% 99.7% 91,402 91,166
90% 90.3% 82,262 82,495
80% 80.1% 73,122 73,254
70% 69.2% 63,982 63,232
60% 60.4% 54,841 55,198
50% 50.3% 45,701 46,010
40% 39.3% 36,561 35,894
30% 30.0% 27,421 27,381
20% 20.1% 18,280 18,359
10% 10.3% 9,140 9,412
Active Idle   0 0
Graph of results
JVM 'linux-93mw.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,322
Calibration 2     100,900
Calibration 3     100,864
ssj_ops@calibrated=100,882
100% 99.5% 100,882 100,327
90% 90.0% 90,793 90,832
80% 81.3% 80,705 82,006
70% 70.3% 70,617 70,961
60% 60.2% 60,529 60,742
50% 49.5% 50,441 49,982
40% 39.7% 40,353 40,094
30% 29.9% 30,264 30,129
20% 19.8% 20,176 20,012
10% 10.1% 10,088 10,237
Active Idle   0 0
Graph of results
JVM 'linux-93mw.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,658
Calibration 2     99,816
Calibration 3     100,176
ssj_ops@calibrated=99,996
100% 99.9% 99,996 99,870
90% 89.5% 89,996 89,543
80% 80.4% 79,997 80,417
70% 69.9% 69,997 69,939
60% 60.0% 59,998 60,029
50% 50.8% 49,998 50,769
40% 40.3% 39,998 40,253
30% 29.9% 29,999 29,876
20% 20.5% 19,999 20,508
10% 9.9% 10,000 9,947
Active Idle   0 0
Graph of results
JVM 'linux-93mw.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,890
Calibration 2     101,888
Calibration 3     102,162
ssj_ops@calibrated=102,025
100% 100.1% 102,025 102,086
90% 89.5% 91,822 91,263
80% 79.7% 81,620 81,341
70% 70.2% 71,417 71,653
60% 60.0% 61,215 61,248
50% 50.5% 51,012 51,534
40% 40.4% 40,810 41,250
30% 30.4% 30,607 30,972
20% 20.4% 20,405 20,781
10% 10.2% 10,202 10,425
Active Idle   0 0
Graph of results
JVM 'linux-93mw.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,152
Calibration 2     102,317
Calibration 3     102,636
ssj_ops@calibrated=102,476
100% 99.6% 102,476 102,076
90% 90.0% 92,229 92,248
80% 81.4% 81,981 83,393
70% 69.7% 71,733 71,437
60% 60.1% 61,486 61,577
50% 49.8% 51,238 51,067
40% 40.2% 40,991 41,145
30% 29.9% 30,743 30,600
20% 20.2% 20,495 20,739
10% 9.7% 10,248 9,983
Active Idle   0 0
Graph of results
JVM 'linux-93mw.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,276
Calibration 2     101,493
Calibration 3     101,540
ssj_ops@calibrated=101,516
100% 99.0% 101,516 100,459
90% 89.6% 91,365 90,956
80% 79.9% 81,213 81,140
70% 69.8% 71,061 70,860
60% 59.9% 60,910 60,813
50% 50.9% 50,758 51,689
40% 39.9% 40,606 40,487
30% 30.1% 30,455 30,603
20% 20.4% 20,303 20,695
10% 10.1% 10,152 10,204
Active Idle   0 0
Graph of results
JVM 'linux-93mw.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,433
Calibration 2     101,981
Calibration 3     101,995
ssj_ops@calibrated=101,988
100% 99.9% 101,988 101,915
90% 90.5% 91,789 92,347
80% 78.7% 81,590 80,263
70% 69.6% 71,391 70,985
60% 59.6% 61,193 60,765
50% 50.2% 50,994 51,238
40% 39.4% 40,795 40,142
30% 29.6% 30,596 30,229
20% 19.9% 20,398 20,287
10% 10.1% 10,199 10,341
Active Idle   0 0
Graph of results
JVM 'linux-93mw.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,886
Calibration 2     102,017
Calibration 3     102,318
ssj_ops@calibrated=102,167
100% 100.1% 102,167 102,250
90% 90.8% 91,951 92,816
80% 79.5% 81,734 81,235
70% 69.8% 71,517 71,334
60% 60.6% 61,300 61,903
50% 50.5% 51,084 51,610
40% 39.8% 40,867 40,636
30% 30.0% 30,650 30,627
20% 20.3% 20,433 20,760
10% 9.9% 10,217 10,115
Active Idle   0 0
Graph of results
JVM 'linux-93mw.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,629
Calibration 2     90,170
Calibration 3     90,442
ssj_ops@calibrated=90,306
100% 99.1% 90,306 89,532
90% 90.6% 81,275 81,775
80% 81.2% 72,245 73,326
70% 69.7% 63,214 62,916
60% 60.3% 54,183 54,412
50% 50.3% 45,153 45,429
40% 40.5% 36,122 36,605
30% 29.5% 27,092 26,645
20% 20.7% 18,061 18,653
10% 10.0% 9,031 9,033
Active Idle   0 0
Graph of results
JVM 'linux-93mw.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,023
Calibration 2     101,816
Calibration 3     101,822
ssj_ops@calibrated=101,819
100% 100.2% 101,819 102,009
90% 90.3% 91,637 91,962
80% 80.6% 81,455 82,051
70% 70.9% 71,273 72,198
60% 60.4% 61,091 61,535
50% 49.2% 50,909 50,125
40% 40.1% 40,728 40,824
30% 30.5% 30,546 31,054
20% 20.5% 20,364 20,829
10% 10.5% 10,182 10,709
Active Idle   0 0
Graph of results
JVM 'linux-93mw.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,514
Calibration 2     103,641
Calibration 3     103,837
ssj_ops@calibrated=103,739
100% 99.9% 103,739 103,620
90% 90.1% 93,365 93,506
80% 79.9% 82,991 82,844
70% 69.7% 72,618 72,346
60% 59.8% 62,244 62,085
50% 50.5% 51,870 52,339
40% 39.8% 41,496 41,300
30% 29.7% 31,122 30,787
20% 20.0% 20,748 20,787
10% 10.1% 10,374 10,446
Active Idle   0 0
Graph of results
JVM 'linux-93mw.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,931
Calibration 2     94,809
Calibration 3     94,011
ssj_ops@calibrated=94,410
100% 99.2% 94,410 93,667
90% 89.9% 84,969 84,871
80% 80.3% 75,528 75,848
70% 68.8% 66,087 64,953
60% 59.7% 56,646 56,371
50% 49.8% 47,205 46,980
40% 39.5% 37,764 37,249
30% 30.4% 28,323 28,738
20% 20.3% 18,882 19,197
10% 9.7% 9,441 9,163
Active Idle   0 0
Graph of results
JVM 'linux-93mw.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,389
Calibration 2     92,709
Calibration 3     92,953
ssj_ops@calibrated=92,831
100% 99.0% 92,831 91,910
90% 89.7% 83,548 83,281
80% 80.2% 74,265 74,489
70% 70.6% 64,982 65,571
60% 60.9% 55,699 56,516
50% 50.8% 46,415 47,175
40% 40.2% 37,132 37,312
30% 30.1% 27,849 27,915
20% 20.1% 18,566 18,636
10% 10.1% 9,283 9,337
Active Idle   0 0
Graph of results
JVM 'linux-93mw.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,798
Calibration 2     100,882
Calibration 3     100,904
ssj_ops@calibrated=100,893
100% 100.5% 100,893 101,362
90% 90.4% 90,804 91,255
80% 79.7% 80,714 80,394
70% 70.2% 70,625 70,827
60% 59.9% 60,536 60,466
50% 50.2% 50,446 50,609
40% 39.8% 40,357 40,122
30% 29.3% 30,268 29,579
20% 20.0% 20,179 20,164
10% 9.9% 10,089 10,029
Active Idle   0 0
Graph of results
JVM 'linux-93mw.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,381
Calibration 2     101,187
Calibration 3     101,307
ssj_ops@calibrated=101,247
100% 99.0% 101,247 100,248
90% 89.2% 91,122 90,344
80% 79.9% 80,998 80,897
70% 70.0% 70,873 70,828
60% 59.8% 60,748 60,574
50% 50.0% 50,624 50,649
40% 40.2% 40,499 40,749
30% 29.5% 30,374 29,898
20% 20.0% 20,249 20,279
10% 9.7% 10,125 9,806
Active Idle   0 0
Graph of results
JVM 'linux-93mw.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,229
Calibration 2     102,324
Calibration 3     102,484
ssj_ops@calibrated=102,404
100% 99.3% 102,404 101,640
90% 90.2% 92,164 92,351
80% 79.0% 81,923 80,923
70% 69.5% 71,683 71,165
60% 59.7% 61,442 61,181
50% 49.8% 51,202 50,999
40% 40.3% 40,962 41,230
30% 29.5% 30,721 30,240
20% 20.4% 20,481 20,841
10% 9.8% 10,240 10,000
Active Idle   0 0
Graph of results
JVM 'linux-93mw.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,010
Calibration 2     100,008
Calibration 3     99,634
ssj_ops@calibrated=99,821
100% 99.3% 99,821 99,083
90% 90.3% 89,839 90,090
80% 79.4% 79,857 79,219
70% 69.5% 69,875 69,417
60% 59.6% 59,893 59,487
50% 50.3% 49,910 50,206
40% 39.7% 39,928 39,611
30% 29.8% 29,946 29,729
20% 19.9% 19,964 19,885
10% 9.8% 9,982 9,771
Active Idle   0 0
Graph of results
JVM 'linux-93mw.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,129
Calibration 2     99,047
Calibration 3     99,276
ssj_ops@calibrated=99,162
100% 99.4% 99,162 98,613
90% 90.6% 89,245 89,811
80% 79.7% 79,329 79,079
70% 69.0% 69,413 68,386
60% 60.2% 59,497 59,654
50% 50.6% 49,581 50,153
40% 40.0% 39,665 39,650
30% 30.5% 29,748 30,218
20% 20.1% 19,832 19,901
10% 10.1% 9,916 10,036
Active Idle   0 0
Graph of results
JVM 'linux-93mw.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,198
Calibration 2     101,065
Calibration 3     101,380
ssj_ops@calibrated=101,222
100% 99.7% 101,222 100,947
90% 91.1% 91,100 92,214
80% 79.6% 80,978 80,577
70% 69.9% 70,856 70,797
60% 59.8% 60,733 60,494
50% 49.6% 50,611 50,157
40% 39.4% 40,489 39,911
30% 30.1% 30,367 30,480
20% 20.0% 20,244 20,200
10% 10.1% 10,122 10,187
Active Idle   0 0
Graph of results
JVM 'linux-93mw.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,806
Calibration 2     101,789
Calibration 3     102,041
ssj_ops@calibrated=101,915
100% 99.7% 101,915 101,633
90% 90.9% 91,724 92,668
80% 79.8% 81,532 81,284
70% 70.8% 71,341 72,188
60% 59.4% 61,149 60,573
50% 50.1% 50,958 51,064
40% 39.4% 40,766 40,126
30% 30.4% 30,575 30,986
20% 19.4% 20,383 19,803
10% 10.0% 10,192 10,187
Active Idle   0 0
Graph of results
JVM 'linux-93mw.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,703
Calibration 2     103,039
Calibration 3     103,053
ssj_ops@calibrated=103,046
100% 99.2% 103,046 102,173
90% 90.2% 92,742 92,951
80% 80.1% 82,437 82,560
70% 70.9% 72,132 73,028
60% 60.2% 61,828 62,045
50% 49.7% 51,523 51,251
40% 39.8% 41,219 41,057
30% 29.6% 30,914 30,545
20% 19.7% 20,609 20,307
10% 9.8% 10,305 10,113
Active Idle   0 0
Graph of results
JVM 'linux-93mw.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,723
Calibration 2     99,204
Calibration 3     99,475
ssj_ops@calibrated=99,340
100% 99.9% 99,340 99,231
90% 89.1% 89,406 88,488
80% 80.2% 79,472 79,673
70% 69.2% 69,538 68,784
60% 59.8% 59,604 59,393
50% 49.8% 49,670 49,494
40% 39.9% 39,736 39,651
30% 30.1% 29,802 29,872
20% 20.4% 19,868 20,217
10% 10.0% 9,934 9,970
Active Idle   0 0
Graph of results
JVM 'linux-93mw.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,030
Calibration 2     97,873
Calibration 3     97,447
ssj_ops@calibrated=97,660
100% 99.6% 97,660 97,242
90% 90.0% 87,894 87,938
80% 80.7% 78,128 78,854
70% 69.9% 68,362 68,309
60% 60.5% 58,596 59,042
50% 50.7% 48,830 49,561
40% 40.7% 39,064 39,701
30% 30.0% 29,298 29,312
20% 19.8% 19,532 19,292
10% 10.0% 9,766 9,750
Active Idle   0 0
Graph of results
JVM 'linux-93mw.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,233
Calibration 2     102,360
Calibration 3     102,340
ssj_ops@calibrated=102,350
100% 99.4% 102,350 101,706
90% 89.2% 92,115 91,326
80% 81.1% 81,880 82,981
70% 69.6% 71,645 71,266
60% 60.4% 61,410 61,858
50% 50.8% 51,175 51,971
40% 39.9% 40,940 40,789
30% 30.2% 30,705 30,861
20% 19.9% 20,470 20,365
10% 10.0% 10,235 10,233
Active Idle   0 0
Graph of results
JVM 'linux-93mw.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,989
Calibration 2     103,715
Calibration 3     103,733
ssj_ops@calibrated=103,724
100% 99.9% 103,724 103,596
90% 89.4% 93,352 92,687
80% 80.2% 82,979 83,161
70% 70.2% 72,607 72,779
60% 59.5% 62,234 61,732
50% 49.9% 51,862 51,778
40% 40.1% 41,490 41,610
30% 29.8% 31,117 30,950
20% 19.8% 20,745 20,531
10% 10.0% 10,372 10,357
Active Idle   0 0
Graph of results
JVM 'linux-93mw.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,947
Calibration 2     97,893
Calibration 3     98,231
ssj_ops@calibrated=98,062
100% 99.4% 98,062 97,446
90% 89.4% 88,256 87,698
80% 79.6% 78,449 78,054
70% 70.2% 68,643 68,819
60% 59.3% 58,837 58,175
50% 49.9% 49,031 48,887
40% 40.4% 39,225 39,617
30% 30.1% 29,419 29,533
20% 19.8% 19,612 19,433
10% 10.4% 9,806 10,185
Active Idle   0 0
Graph of results
JVM 'linux-93mw.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,738
Calibration 2     101,407
Calibration 3     101,559
ssj_ops@calibrated=101,483
100% 99.4% 101,483 100,893
90% 90.2% 91,335 91,552
80% 80.5% 81,186 81,648
70% 70.4% 71,038 71,451
60% 60.1% 60,890 61,037
50% 49.8% 50,741 50,589
40% 39.4% 40,593 40,005
30% 29.7% 30,445 30,103
20% 19.8% 20,297 20,137
10% 10.3% 10,148 10,495
Active Idle   0 0
Graph of results
JVM 'linux-93mw.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,655
Calibration 2     103,044
Calibration 3     103,143
ssj_ops@calibrated=103,094
100% 99.4% 103,094 102,484
90% 90.2% 92,784 92,947
80% 80.3% 82,475 82,800
70% 69.7% 72,165 71,897
60% 60.1% 61,856 61,971
50% 49.4% 51,547 50,975
40% 40.3% 41,237 41,577
30% 30.2% 30,928 31,150
20% 20.0% 20,619 20,571
10% 10.4% 10,309 10,750
Active Idle   0 0
Graph of results
JVM 'linux-93mw.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,569
Calibration 2     100,864
Calibration 3     101,098
ssj_ops@calibrated=100,981
100% 99.0% 100,981 99,965
90% 90.3% 90,883 91,214
80% 79.7% 80,785 80,471
70% 70.8% 70,687 71,485
60% 60.2% 60,589 60,767
50% 50.0% 50,491 50,460
40% 39.9% 40,393 40,292
30% 30.1% 30,294 30,358
20% 20.0% 20,196 20,204
10% 9.7% 10,098 9,770
Active Idle   0 0
Graph of results
