Hewlett Packard Enterprise ProLiant DL385 Gen10 SPECpower_ssj2008 = 18,294 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Jul 15, 2019
Hardware Availability: Aug-2019 Software Availability: Jun-2019 Publication: Aug 7, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 415 22.4
Calibration 2 422 22.4
Calibration 3 423 22.3
100% 423 22.4
90% 401 22.4
80% 378 22.4
70% 355 22.5
60% 333 22.5
50% 314 22.6
40% 292 22.6
30% 261 22.5
20% 228 22.5
10% 199 22.6
Active Idle 163 22.7

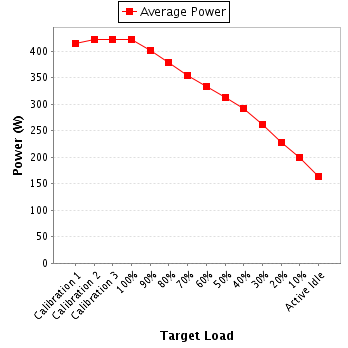

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-E62NT-80-1
Date of Calibration: 11-Jun-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 2.13 5.0 0.912 415 0.6%
Calibration 2 214 300.0 2.15 5.0 0.914 422 0.6%
Calibration 3 214 300.0 2.16 5.0 0.915 423 0.6%
100% 214 300.0 2.16 5.0 0.915 423 0.6%
90% 214 300.0 2.06 5.0 0.907 401 0.6%
80% 217 300.0 1.94 5.0 0.899 378 0.6%
70% 216 300.0 1.85 2.0 0.888 355 0.4%
60% 216 300.0 1.76 2.0 0.875 333 0.4%
50% 216 300.0 1.68 2.0 0.862 314 0.5%
40% 216 300.0 1.60 2.0 0.845 292 0.5%
30% 216 300.0 1.48 2.0 0.818 261 0.5%
20% 217 300.0 1.35 2.0 0.782 228 0.6%
10% 218 300.0 1.23 2.0 0.741 199 0.6%
Active Idle 218 300.0 1.12 1.0 0.671 163 0.6%
Power details for pwr1
