Lenovo Global Technology ThinkSystem SR850 SPECpower_ssj2008 = 13,357 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: May 29, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Jul 17, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 10,221,111 672 15,218
90% 88.8% 9,074,968 584 15,532
80% 79.8% 8,160,011 521 15,655
70% 70.0% 7,157,877 463 15,460
60% 59.9% 6,121,647 409 14,954
50% 50.0% 5,108,304 361 14,162
40% 40.0% 4,090,044 320 12,784
30% 30.0% 3,067,833 283 10,843
20% 20.0% 2,046,991 246 8,326
10% 10.0% 1,021,615 218 4,695
Active Idle 0 121 0
∑ssj_ops / ∑power = 13,357

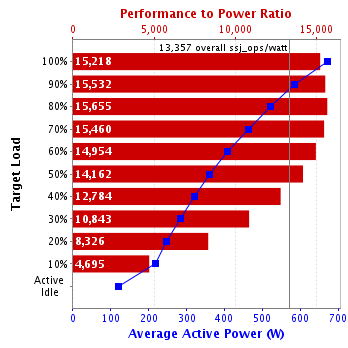

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR850
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-RE2-12-MH1; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00883
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1700m -Xms1950m -Xms1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 }
JVM Instances: 112
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: TEE136S
Management Firmware Version: TEI342S
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Lenovo Global Technology
Model: Lenovo System x3650 M5
CPU Description: 2 x Intel Xeon CPU E5-2699A V4
Memory amount (GB): 384
Software
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter - Version 6.3.9600 (Build 9600)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C3SH31010E
Connectivity: USB
Input Connection: Default
Metrology Institute: Yokogawa Test & Measurement Corporation
Accredited by: Yokogawa Test & Measurement Corporation
Calibration Label: 18BB98-C93CAA-88AB7B
Date of Calibration: 29-Oct-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1,PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi Intermational, Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 672 28.8
90% 584 29.0
80% 521 28.5
70% 463 22.4
60% 409 22.6
50% 361 25.9
40% 320 28.5
30% 283 30.0
20% 246 30.6
10% 218 30.7
Active Idle 121 30.9
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 22.4 43
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,250,932
Calibration 2     10,215,224
Calibration 3     10,228,689
ssj_ops@calibrated=10,221,956
100% 100.0% 10,221,956 10,221,111
90% 88.8% 9,199,761 9,074,968
80% 79.8% 8,177,565 8,160,011
70% 70.0% 7,155,370 7,157,877
60% 59.9% 6,133,174 6,121,647
50% 50.0% 5,110,978 5,108,304
40% 40.0% 4,088,783 4,090,044
30% 30.0% 3,066,587 3,067,833
20% 20.0% 2,044,391 2,046,991
10% 10.0% 1,022,196 1,021,615
Active Idle   0 0

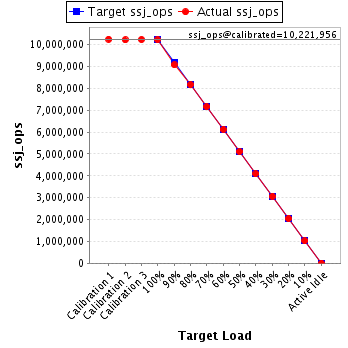

Graph of results
