New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 SPECpower_ssj2008 = 11,066 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 24, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 26, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 7,889 24.4
Calibration 2 7,966 27.8
Calibration 3 7,971 28.3
100% 7,967 28.9
90% 6,979 28.9
80% 5,791 28.6
70% 4,933 27.8
60% 4,232 27.7
50% 3,681 28.4
40% 3,263 28.6
30% 2,888 29.6
20% 2,501 30.9
10% 2,089 30.4
Active Idle 959 28.3

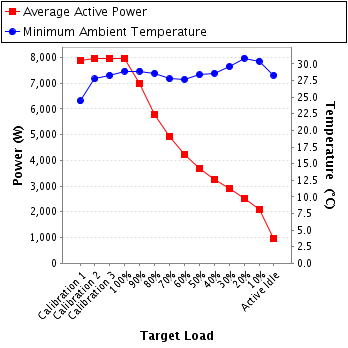

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: Yokogawa WT1800E
Serial Number: C3VA04022E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by: Calibration and Testing Center of CEPEI
Calibration Label: 1GA19J01715-0012
Date of Calibration: 4-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 1 and 2
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: Yokogawa WT1800E
Serial Number: C3VA04023E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by: Calibration and Testing Center of CEPEI
Calibration Label: 1GA19J01715-0013
Date of Calibration: 4-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 3 and 4
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: 2.12.28.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 236 300.0 16.6 20.0 0.999 3,924 0.2%
Calibration 2 236 300.0 16.8 20.0 0.999 3,962 0.2%
Calibration 3 236 300.0 16.8 20.0 0.999 3,964 0.2%
100% 236 300.0 16.8 20.0 0.999 3,961 0.2%
90% 238 300.0 14.6 20.0 0.999 3,461 0.2%
80% 238 300.0 12.1 20.0 0.999 2,864 0.2%
70% 238 300.0 10.2 20.0 0.997 2,435 0.2%
60% 239 300.0 8.75 10.0 0.997 2,084 0.2%
50% 239 300.0 7.59 10.0 0.996 1,808 0.2%
40% 240 300.0 6.70 10.0 0.995 1,599 0.2%
30% 240 300.0 5.92 10.0 0.993 1,411 0.2%
20% 239 300.0 5.14 10.0 0.992 1,221 0.2%
10% 240 300.0 4.30 5.0 0.988 1,018 0.2%
Active Idle 240 300.0 1.97 2.0 0.961 454 0.2%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 236 300.0 16.8 20.0 0.999 3,965 0.2%
Calibration 2 236 300.0 17.0 20.0 0.999 4,004 0.2%
Calibration 3 237 300.0 16.9 20.0 0.999 4,007 0.2%
100% 237 300.0 16.9 20.0 0.999 4,006 0.2%
90% 238 300.0 14.8 20.0 0.999 3,518 0.2%
80% 239 300.0 12.3 20.0 0.999 2,927 0.2%
70% 239 300.0 10.5 20.0 0.998 2,498 0.2%
60% 239 300.0 9.00 10.0 0.997 2,148 0.2%
50% 240 300.0 7.84 10.0 0.996 1,873 0.2%
40% 240 300.0 6.96 10.0 0.995 1,664 0.2%
30% 240 300.0 6.18 10.0 0.994 1,477 0.2%
20% 240 300.0 5.38 10.0 0.992 1,280 0.2%
10% 240 300.0 4.51 5.0 0.988 1,071 0.2%
Active Idle 241 300.0 2.17 5.0 0.967 505 0.2%

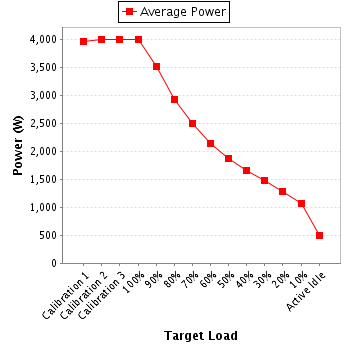

Power details for pwr2
