New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,702,943
ssj_ops@100% per JVM = 1,425,736
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 23, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 26, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,439
Calibration 2     5,703,579
Calibration 3     5,715,792
ssj_ops@calibrated=5,709,686
100% 99.9% 5,709,686 5,702,943
90% 90.2% 5,138,717 5,148,067
80% 81.0% 4,567,748 4,626,382
70% 70.0% 3,996,780 3,994,064
60% 60.0% 3,425,811 3,423,393
50% 50.0% 2,854,843 2,857,674
40% 40.0% 2,283,874 2,284,722
30% 29.9% 1,712,906 1,709,290
20% 20.0% 1,141,937 1,144,146
10% 10.0% 570,969 571,848
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 15
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 16, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT106.001 1,422,514
WIN-SUT106.002 1,431,344
WIN-SUT106.003 1,420,001
WIN-SUT106.004 1,429,084
ssj_ops@100% 5,702,943
ssj_ops@100% per JVM 1,425,736
Graph of per-instance results
JVM 'WIN-SUT106.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,607
Calibration 2     1,421,387
Calibration 3     1,422,504
ssj_ops@calibrated=1,421,945
100% 100.0% 1,421,945 1,422,514
90% 90.1% 1,279,751 1,281,472
80% 79.9% 1,137,556 1,136,242
70% 69.8% 995,362 992,165
60% 60.0% 853,167 853,720
50% 49.9% 710,973 709,146
40% 40.1% 568,778 569,506
30% 30.1% 426,584 428,022
20% 20.1% 284,389 285,832
10% 10.0% 142,195 142,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,198
Calibration 2     1,430,338
Calibration 3     1,435,733
ssj_ops@calibrated=1,433,036
100% 99.9% 1,433,036 1,431,344
90% 90.1% 1,289,732 1,291,006
80% 79.9% 1,146,429 1,144,371
70% 69.9% 1,003,125 1,001,170
60% 60.0% 859,821 860,134
50% 50.1% 716,518 717,397
40% 39.9% 573,214 572,242
30% 29.9% 429,911 427,980
20% 20.0% 286,607 286,168
10% 10.0% 143,304 143,555
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,420,120
Calibration 2     1,421,340
Calibration 3     1,424,107
ssj_ops@calibrated=1,422,723
100% 99.8% 1,422,723 1,420,001
90% 90.2% 1,280,451 1,282,840
80% 84.4% 1,138,179 1,201,377
70% 70.0% 995,906 995,867
60% 59.8% 853,634 850,971
50% 50.0% 711,362 711,325
40% 39.9% 569,089 567,836
30% 29.9% 426,817 425,068
20% 19.9% 284,545 283,444
10% 10.0% 142,272 141,826
Active Idle   0 0

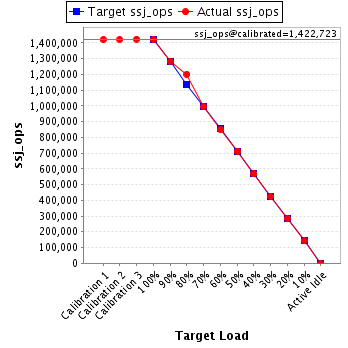

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,513
Calibration 2     1,430,513
Calibration 3     1,433,449
ssj_ops@calibrated=1,431,981
100% 99.8% 1,431,981 1,429,084
90% 90.3% 1,288,783 1,292,750
80% 79.9% 1,145,585 1,144,392
70% 70.2% 1,002,387 1,004,861
60% 60.0% 859,189 858,569
50% 50.3% 715,991 719,806
40% 40.2% 572,792 575,138
30% 29.9% 429,594 428,220
20% 20.2% 286,396 288,702
10% 10.0% 143,198 143,793
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
