New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,693,212
ssj_ops@100% per JVM = 1,423,303
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,700,670
Calibration 2     5,698,390
Calibration 3     5,704,582
ssj_ops@calibrated=5,701,486
100% 99.9% 5,701,486 5,693,212
90% 89.9% 5,131,338 5,125,181
80% 80.0% 4,561,189 4,559,169
70% 70.1% 3,991,040 3,994,280
60% 60.0% 3,420,892 3,421,221
50% 49.9% 2,850,743 2,844,417
40% 40.0% 2,280,594 2,283,104
30% 30.0% 1,710,446 1,708,890
20% 19.9% 1,140,297 1,136,509
10% 10.0% 570,149 571,593
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 13
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT101.001 1,433,094
WIN-SUT101.002 1,422,594
WIN-SUT101.003 1,415,203
WIN-SUT101.004 1,422,321
ssj_ops@100% 5,693,212
ssj_ops@100% per JVM 1,423,303

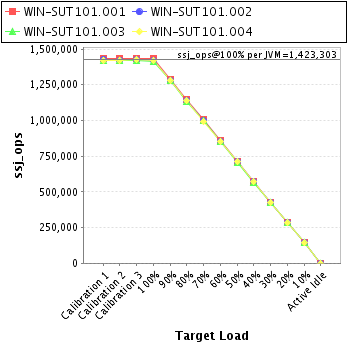

Graph of per-instance results
JVM 'WIN-SUT101.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,879
Calibration 2     1,432,694
Calibration 3     1,434,189
ssj_ops@calibrated=1,433,442
100% 100.0% 1,433,442 1,433,094
90% 89.6% 1,290,098 1,284,982
80% 79.9% 1,146,753 1,144,801
70% 70.0% 1,003,409 1,003,995
60% 60.0% 860,065 859,835
50% 49.9% 716,721 715,551
40% 40.1% 573,377 575,321
30% 29.9% 430,033 428,350
20% 20.0% 286,688 286,121
10% 10.0% 143,344 143,583
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT101.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,425,983
Calibration 2     1,422,754
Calibration 3     1,423,753
ssj_ops@calibrated=1,423,254
100% 100.0% 1,423,254 1,422,594
90% 89.7% 1,280,928 1,277,318
80% 80.1% 1,138,603 1,140,566
70% 70.1% 996,278 998,020
60% 60.0% 853,952 853,945
50% 49.9% 711,627 710,658
40% 40.0% 569,301 569,511
30% 30.0% 426,976 426,709
20% 19.9% 284,651 283,674
10% 10.0% 142,325 142,632
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT101.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,417,668
Calibration 2     1,419,833
Calibration 3     1,419,324
ssj_ops@calibrated=1,419,579
100% 99.7% 1,419,579 1,415,203
90% 90.2% 1,277,621 1,279,790
80% 80.0% 1,135,663 1,135,776
70% 70.4% 993,705 999,041
60% 60.0% 851,747 852,308
50% 49.8% 709,789 706,665
40% 40.0% 567,832 567,754
30% 30.0% 425,874 425,857
20% 20.0% 283,916 284,534
10% 10.0% 141,958 142,455
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT101.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,141
Calibration 2     1,423,108
Calibration 3     1,427,316
ssj_ops@calibrated=1,425,212
100% 99.8% 1,425,212 1,422,321
90% 90.0% 1,282,691 1,283,090
80% 79.8% 1,140,170 1,138,026
70% 69.7% 997,649 993,224
60% 60.0% 855,127 855,133
50% 49.9% 712,606 711,544
40% 40.0% 570,085 570,519
30% 30.0% 427,564 427,974
20% 19.8% 285,042 282,180
10% 10.0% 142,521 142,923
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
