New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | ssj_ops@100% = 5,684,016 ssj_ops@100% per JVM = 1,421,004 |
||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 14, 2019 |
Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 5,691,120 | ||
Calibration 2 | 5,688,633 | ||
Calibration 3 | 5,700,523 | ||
ssj_ops@calibrated=5,694,578 | |||
100% | 99.8% | 5,694,578 | 5,684,016 |
90% | 89.9% | 5,125,120 | 5,122,272 |
80% | 79.9% | 4,555,662 | 4,547,930 |
70% | 69.9% | 3,986,205 | 3,983,177 |
60% | 60.0% | 3,416,747 | 3,419,180 |
50% | 50.1% | 2,847,289 | 2,850,831 |
40% | 40.1% | 2,277,831 | 2,282,818 |
30% | 30.0% | 1,708,373 | 1,709,828 |
20% | 20.0% | 1,138,916 | 1,137,782 |
10% | 10.0% | 569,458 | 571,897 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 11 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer B5700 G3 |
Form Factor: | Other |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5 MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192.0 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | SATA DOM 128GB P/N DESSH-A28D09BCADCA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Mode enabled in OS (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts |
JVM Affinity: | start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.25 |
Management Firmware Version: | UIS-OM 1.00.10 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 7,2019 |

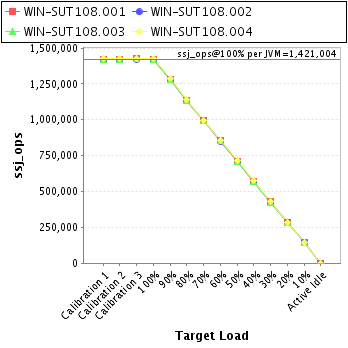

JVM Instance | ssj_ops@100% |
---|---|
WIN-SUT108.001 | 1,419,794 |
WIN-SUT108.002 | 1,419,024 |
WIN-SUT108.003 | 1,419,881 |
WIN-SUT108.004 | 1,425,317 |
ssj_ops@100% | 5,684,016 |
ssj_ops@100% per JVM | 1,421,004 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,419,058 | ||
Calibration 2 | 1,418,397 | ||
Calibration 3 | 1,425,642 | ||
ssj_ops@calibrated=1,422,020 | |||
100% | 99.8% | 1,422,020 | 1,419,794 |
90% | 90.0% | 1,279,818 | 1,279,217 |
80% | 79.9% | 1,137,616 | 1,136,573 |
70% | 70.0% | 995,414 | 995,672 |
60% | 60.0% | 853,212 | 853,543 |
50% | 50.1% | 711,010 | 712,023 |
40% | 40.0% | 568,808 | 568,808 |
30% | 30.1% | 426,606 | 428,152 |
20% | 20.0% | 284,404 | 284,594 |
10% | 10.0% | 142,202 | 142,804 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,420,725 | ||
Calibration 2 | 1,420,675 | ||
Calibration 3 | 1,422,474 | ||
ssj_ops@calibrated=1,421,574 | |||
100% | 99.8% | 1,421,574 | 1,419,024 |
90% | 89.9% | 1,279,417 | 1,278,233 |
80% | 79.9% | 1,137,259 | 1,135,882 |
70% | 70.0% | 995,102 | 995,094 |
60% | 59.9% | 852,945 | 851,460 |
50% | 50.1% | 710,787 | 712,086 |
40% | 39.9% | 568,630 | 567,858 |
30% | 30.0% | 426,472 | 426,840 |
20% | 19.9% | 284,315 | 282,854 |
10% | 10.1% | 142,157 | 143,781 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,421,816 | ||
Calibration 2 | 1,421,420 | ||
Calibration 3 | 1,424,686 | ||
ssj_ops@calibrated=1,423,053 | |||
100% | 99.8% | 1,423,053 | 1,419,881 |
90% | 89.9% | 1,280,747 | 1,280,030 |
80% | 79.9% | 1,138,442 | 1,136,878 |
70% | 69.9% | 996,137 | 994,333 |
60% | 60.2% | 853,832 | 856,495 |
50% | 50.0% | 711,526 | 712,141 |
40% | 40.1% | 569,221 | 571,115 |
30% | 30.0% | 426,916 | 426,658 |
20% | 20.0% | 284,611 | 284,277 |
10% | 10.0% | 142,305 | 142,422 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,429,521 | ||
Calibration 2 | 1,428,142 | ||
Calibration 3 | 1,427,721 | ||
ssj_ops@calibrated=1,427,931 | |||
100% | 99.8% | 1,427,931 | 1,425,317 |
90% | 90.0% | 1,285,138 | 1,284,792 |
80% | 79.7% | 1,142,345 | 1,138,597 |
70% | 69.9% | 999,552 | 998,078 |
60% | 60.1% | 856,759 | 857,682 |
50% | 50.0% | 713,966 | 714,580 |
40% | 40.3% | 571,173 | 575,037 |
30% | 30.0% | 428,379 | 428,177 |
20% | 20.0% | 285,586 | 286,057 |
10% | 10.0% | 142,793 | 142,890 |
Active Idle | 0 | 0 |
