Lenovo Global Technology ThinkSystem SR850 SPECpower_ssj2008 = 13,154 overall ssj_ops/watt
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Taipei, Taiwan Test Date: May 7, 2019
Hardware Availability: Apr-2019 Software Availability: Jun-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 678 23.0
Calibration 2 751 24.8
Calibration 3 715 26.1
100% 711 26.6
90% 625 26.8
80% 547 27.0
70% 477 27.2
60% 418 27.1
50% 370 26.7
40% 331 26.1
30% 294 25.4
20% 256 24.9
10% 217 24.3
Active Idle 119 23.6

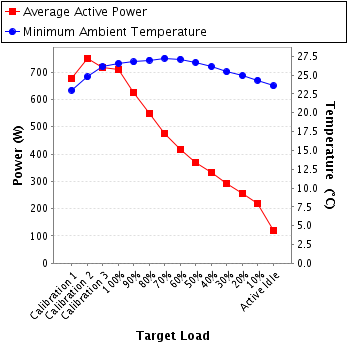

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91H245649
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 18-07-BAC-578-02
Date of Calibration: 30-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 3.25 5.0 0.997 678 0.4%
Calibration 2 210 300.0 3.58 5.0 0.997 751 0.4%
Calibration 3 210 300.0 3.41 5.0 0.997 715 0.4%
100% 210 300.0 3.39 5.0 0.997 711 0.4%
90% 210 300.0 2.98 5.0 0.997 625 0.4%
80% 211 300.0 2.61 5.0 0.996 547 0.4%
70% 211 300.0 2.28 5.0 0.994 477 0.5%
60% 211 300.0 1.99 2.0 0.994 418 0.3%
50% 211 300.0 1.77 2.0 0.992 370 0.3%
40% 211 300.0 1.58 2.0 0.991 331 0.4%
30% 211 300.0 1.41 2.0 0.988 294 0.4%
20% 211 300.0 1.23 2.0 0.983 256 0.4%
10% 211 300.0 1.05 1.0 0.977 217 0.3%
Active Idle 212 300.0 0.619 1.0 0.917 119 0.5%

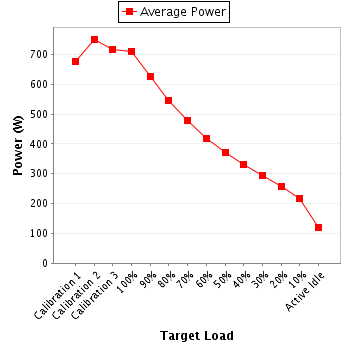

Power details for pwr1
