Fujitsu FUJITSU Server PRIMERGY CX2560 M5 ssj_ops@100% = 4,403,871
ssj_ops@100% per JVM = 91,747
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Apr 6, 2019
Hardware Availability: Jun-2019 Software Availability: Dec-2018 Publication: May 22, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,372,345
Calibration 2     4,410,441
Calibration 3     4,403,684
ssj_ops@calibrated=4,407,063
100% 99.9% 4,407,063 4,403,871
90% 90.1% 3,966,356 3,969,922
80% 80.1% 3,525,650 3,529,585
70% 70.9% 3,084,944 3,125,899
60% 60.0% 2,644,238 2,645,348
50% 49.9% 2,203,531 2,197,933
40% 40.0% 1,762,825 1,763,441
30% 30.0% 1,322,119 1,322,808
20% 20.0% 881,413 881,510
10% 10.0% 440,706 440,708
Active Idle   0 0
Graph of results
System Under Test
Set: 'CX2560M5'
Set Identifier: CX2560M5
Set Description: System Under Test
# of Identical Nodes: 4
Comment: Multi Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY CX2560 M5
Form Factor: Blade
CPU Name: Intel Xeon Platinum 6252
CPU Characteristics: 24-Core, 2.10GHz, 35.75MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 48 cores, 2 chips, 24 cores/chip
Hardware Threads: 96 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 36608 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x SSD M.2 SATA 6Gbps 128GB N H-P, S26361-F5658-L128
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: chrt -r 1 taskset -c [(0,48),(1,49),(2,50),(3,51),(7,55),(8,56),(9,57),(13,61),(14,62),(15,63),(19,67),(20,68),(4,52),(5,53),(6,54),(10,58),(11,59),(12,60),(16,64),(17,65),(18,66),(21,69),(22,70),(23,71),(24,72),(25,73),(26,74),(27,75),(31,79),(32,80),(33,81),(37,85),(38,86),(39,87),(43,91),(44,92),(28,76),(29,77),(30,78),(34,82),(35,83),(36,84),(40,88),(41,89),(42,90),(45,93),(46,94),(47,95)] numactl --membind=[0-3]
JVM Instances: 48
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: R1.6.0
Management Firmware Version: 2.41P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-hlvu.001 71,800
linux-hlvu.002 92,579
linux-hlvu.003 92,074
linux-hlvu.004 92,656
linux-hlvu.005 92,800
linux-hlvu.006 93,976
linux-hlvu.007 93,269
linux-hlvu.008 94,587
linux-hlvu.009 94,737
linux-hlvu.010 94,132
linux-hlvu.011 93,540
linux-hlvu.012 92,285
linux-hlvu.013 93,105
linux-hlvu.014 92,573
linux-hlvu.015 92,427
linux-hlvu.016 91,881
linux-hlvu.017 91,149
linux-hlvu.018 89,046
linux-hlvu.019 90,357
linux-hlvu.020 92,793
linux-hlvu.021 92,200
linux-hlvu.022 87,111
linux-hlvu.023 91,959
linux-hlvu.024 91,732
linux-hlvu.025 91,969
linux-hlvu.026 92,904
linux-hlvu.027 89,986
linux-hlvu.028 89,638
linux-hlvu.029 93,632
linux-hlvu.030 92,371
linux-hlvu.031 91,677
linux-hlvu.032 92,004
linux-hlvu.033 93,644
linux-hlvu.034 92,078
linux-hlvu.035 91,116
linux-hlvu.036 92,494
linux-hlvu.037 90,559
linux-hlvu.038 90,311
linux-hlvu.039 92,273
linux-hlvu.040 93,690
linux-hlvu.041 95,329
linux-hlvu.042 93,215
linux-hlvu.043 93,016
linux-hlvu.044 89,723
linux-hlvu.045 92,047
linux-hlvu.046 90,260
linux-hlvu.047 92,206
linux-hlvu.048 92,958
ssj_ops@100% 4,403,871
ssj_ops@100% per JVM 91,747

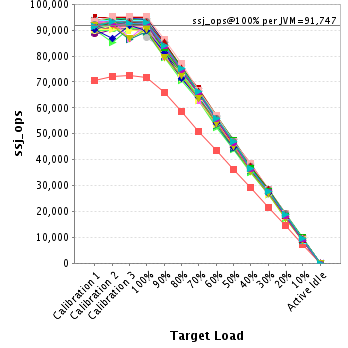

Graph of per-instance results
JVM 'linux-hlvu.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     70,434
Calibration 2     72,198
Calibration 3     72,488
ssj_ops@calibrated=72,343
100% 99.2% 72,343 71,800
90% 91.4% 65,109 66,101
80% 81.1% 57,874 58,665
70% 70.4% 50,640 50,962
60% 60.2% 43,406 43,569
50% 50.2% 36,172 36,304
40% 40.4% 28,937 29,204
30% 29.5% 21,703 21,362
20% 20.1% 14,469 14,575
10% 10.2% 7,234 7,345
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,916
Calibration 2     92,544
Calibration 3     92,488
ssj_ops@calibrated=92,516
100% 100.1% 92,516 92,579
90% 88.8% 83,264 82,144
80% 80.6% 74,013 74,532
70% 71.8% 64,761 66,454
60% 59.7% 55,510 55,262
50% 49.7% 46,258 46,017
40% 40.4% 37,006 37,419
30% 30.6% 27,755 28,318
20% 19.8% 18,503 18,308
10% 9.8% 9,252 9,112
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,824
Calibration 2     91,946
Calibration 3     92,282
ssj_ops@calibrated=92,114
100% 100.0% 92,114 92,074
90% 90.7% 82,903 83,517
80% 80.0% 73,691 73,722
70% 71.0% 64,480 65,357
60% 60.1% 55,268 55,359
50% 50.4% 46,057 46,386
40% 40.3% 36,846 37,155
30% 30.5% 27,634 28,067
20% 20.0% 18,423 18,455
10% 10.0% 9,211 9,221
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,671
Calibration 2     92,892
Calibration 3     92,754
ssj_ops@calibrated=92,823
100% 99.8% 92,823 92,656
90% 90.3% 83,541 83,854
80% 80.1% 74,258 74,309
70% 71.3% 64,976 66,150
60% 60.6% 55,694 56,271
50% 49.3% 46,412 45,788
40% 40.4% 37,129 37,523
30% 30.1% 27,847 27,907
20% 20.3% 18,565 18,807
10% 10.2% 9,282 9,497
Active Idle   0 0
Graph of results

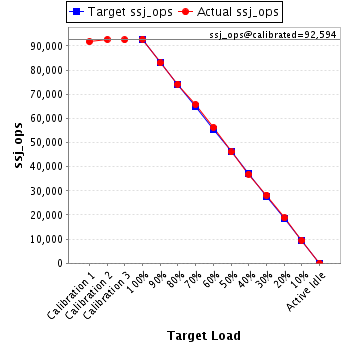

JVM 'linux-hlvu.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,733
Calibration 2     92,666
Calibration 3     92,522
ssj_ops@calibrated=92,594
100% 100.2% 92,594 92,800
90% 89.6% 83,335 82,966
80% 80.1% 74,075 74,161
70% 71.0% 64,816 65,739
60% 60.7% 55,557 56,209
50% 49.8% 46,297 46,077
40% 39.9% 37,038 36,906
30% 30.5% 27,778 28,243
20% 20.3% 18,519 18,779
10% 10.2% 9,259 9,446
Active Idle   0 0
Graph of results

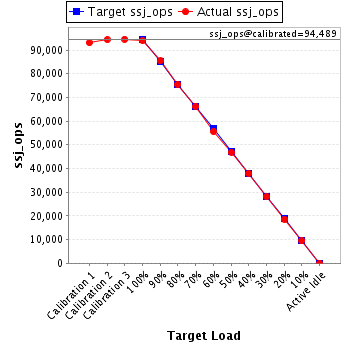

JVM 'linux-hlvu.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,017
Calibration 2     94,388
Calibration 3     94,590
ssj_ops@calibrated=94,489
100% 99.5% 94,489 93,976
90% 90.4% 85,040 85,390
80% 79.9% 75,591 75,452
70% 70.1% 66,142 66,234
60% 58.9% 56,693 55,613
50% 49.6% 47,244 46,855
40% 40.1% 37,796 37,927
30% 29.7% 28,347 28,021
20% 19.7% 18,898 18,617
10% 10.0% 9,449 9,451
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,427
Calibration 2     93,986
Calibration 3     93,770
ssj_ops@calibrated=93,878
100% 99.4% 93,878 93,269
90% 91.3% 84,490 85,726
80% 80.3% 75,102 75,367
70% 71.1% 65,715 66,778
60% 59.4% 56,327 55,768
50% 50.1% 46,939 47,052
40% 40.1% 37,551 37,605
30% 29.9% 28,163 28,060
20% 19.8% 18,776 18,569
10% 10.1% 9,388 9,446
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,585
Calibration 2     94,736
Calibration 3     94,908
ssj_ops@calibrated=94,822
100% 99.8% 94,822 94,587
90% 89.8% 85,340 85,184
80% 79.5% 75,858 75,370
70% 70.4% 66,375 66,708
60% 59.7% 56,893 56,628
50% 50.4% 47,411 47,780
40% 39.8% 37,929 37,726
30% 29.3% 28,447 27,770
20% 19.9% 18,964 18,834
10% 10.0% 9,482 9,492
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,828
Calibration 2     95,002
Calibration 3     94,782
ssj_ops@calibrated=94,892
100% 99.8% 94,892 94,737
90% 89.3% 85,403 84,711
80% 79.7% 75,914 75,663
70% 70.9% 66,424 67,305
60% 60.2% 56,935 57,143
50% 49.5% 47,446 46,942
40% 40.5% 37,957 38,419
30% 30.2% 28,468 28,657
20% 20.0% 18,978 19,018
10% 10.0% 9,489 9,454
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,864
Calibration 2     93,787
Calibration 3     94,391
ssj_ops@calibrated=94,089
100% 100.0% 94,089 94,132
90% 90.6% 84,680 85,291
80% 79.4% 75,271 74,727
70% 71.0% 65,862 66,786
60% 59.1% 56,453 55,587
50% 50.1% 47,045 47,158
40% 39.9% 37,636 37,512
30% 30.3% 28,227 28,554
20% 19.8% 18,818 18,615
10% 10.0% 9,409 9,371
Active Idle   0 0
Graph of results

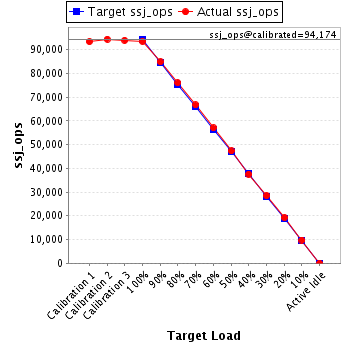

JVM 'linux-hlvu.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,365
Calibration 2     94,392
Calibration 3     93,956
ssj_ops@calibrated=94,174
100% 99.3% 94,174 93,540
90% 90.1% 84,757 84,826
80% 80.7% 75,339 75,965
70% 70.8% 65,922 66,676
60% 60.5% 56,504 56,979
50% 50.2% 47,087 47,287
40% 39.9% 37,670 37,586
30% 30.2% 28,252 28,433
20% 20.4% 18,835 19,197
10% 10.4% 9,417 9,782
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,476
Calibration 2     92,607
Calibration 3     92,431
ssj_ops@calibrated=92,519
100% 99.7% 92,519 92,285
90% 89.1% 83,267 82,449
80% 80.3% 74,015 74,292
70% 71.4% 64,763 66,063
60% 60.7% 55,511 56,204
50% 50.5% 46,259 46,754
40% 40.1% 37,008 37,102
30% 30.0% 27,756 27,713
20% 19.5% 18,504 18,087
10% 10.2% 9,252 9,415
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,374
Calibration 2     92,854
Calibration 3     92,744
ssj_ops@calibrated=92,799
100% 100.3% 92,799 93,105
90% 90.9% 83,519 84,379
80% 78.7% 74,239 73,073
70% 70.4% 64,959 65,298
60% 59.8% 55,679 55,499
50% 49.6% 46,399 46,072
40% 40.8% 37,120 37,817
30% 30.1% 27,840 27,971
20% 19.8% 18,560 18,404
10% 10.0% 9,280 9,304
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,115
Calibration 2     92,562
Calibration 3     91,751
ssj_ops@calibrated=92,156
100% 100.5% 92,156 92,573
90% 88.7% 82,941 81,697
80% 80.0% 73,725 73,751
70% 70.8% 64,509 65,245
60% 60.6% 55,294 55,871
50% 49.9% 46,078 46,027
40% 39.6% 36,862 36,493
30% 29.6% 27,647 27,246
20% 20.1% 18,431 18,504
10% 9.7% 9,216 8,932
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,009
Calibration 2     92,412
Calibration 3     92,375
ssj_ops@calibrated=92,393
100% 100.0% 92,393 92,427
90% 90.2% 83,154 83,354
80% 79.1% 73,915 73,073
70% 71.3% 64,675 65,878
60% 59.5% 55,436 54,936
50% 49.5% 46,197 45,723
40% 40.6% 36,957 37,537
30% 30.0% 27,718 27,733
20% 20.0% 18,479 18,493
10% 10.2% 9,239 9,444
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,202
Calibration 2     92,035
Calibration 3     91,649
ssj_ops@calibrated=91,842
100% 100.0% 91,842 91,881
90% 89.9% 82,658 82,592
80% 79.4% 73,474 72,946
70% 71.0% 64,289 65,168
60% 59.9% 55,105 55,009
50% 49.4% 45,921 45,380
40% 39.1% 36,737 35,925
30% 29.3% 27,553 26,913
20% 20.1% 18,368 18,468
10% 10.1% 9,184 9,254
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,569
Calibration 2     90,759
Calibration 3     90,416
ssj_ops@calibrated=90,587
100% 100.6% 90,587 91,149
90% 91.3% 81,528 82,700
80% 79.6% 72,470 72,096
70% 71.0% 63,411 64,340
60% 59.6% 54,352 53,979
50% 49.5% 45,294 44,796
40% 40.0% 36,235 36,229
30% 30.6% 27,176 27,692
20% 20.3% 18,117 18,389
10% 9.9% 9,059 8,992
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,252
Calibration 2     85,304
Calibration 3     90,611
ssj_ops@calibrated=87,958
100% 101.2% 87,958 89,046
90% 90.2% 79,162 79,296
80% 80.3% 70,366 70,628
70% 71.2% 61,570 62,663
60% 59.7% 52,775 52,489
50% 49.9% 43,979 43,872
40% 39.7% 35,183 34,940
30% 30.4% 26,387 26,713
20% 19.9% 17,592 17,469
10% 10.2% 8,796 8,937
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,788
Calibration 2     90,846
Calibration 3     89,993
ssj_ops@calibrated=90,420
100% 99.9% 90,420 90,357
90% 88.1% 81,378 79,639
80% 78.7% 72,336 71,181
70% 71.7% 63,294 64,871
60% 60.2% 54,252 54,468
50% 49.9% 45,210 45,116
40% 40.0% 36,168 36,174
30% 29.6% 27,126 26,778
20% 20.2% 18,084 18,238
10% 10.1% 9,042 9,133
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,683
Calibration 2     92,684
Calibration 3     92,448
ssj_ops@calibrated=92,566
100% 100.2% 92,566 92,793
90% 90.2% 83,309 83,512
80% 79.6% 74,053 73,644
70% 70.5% 64,796 65,272
60% 60.4% 55,540 55,902
50% 49.0% 46,283 45,345
40% 39.9% 37,026 36,912
30% 30.4% 27,770 28,103
20% 20.1% 18,513 18,642
10% 9.5% 9,257 8,771
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,867
Calibration 2     92,145
Calibration 3     91,822
ssj_ops@calibrated=91,983
100% 100.2% 91,983 92,200
90% 90.9% 82,785 83,592
80% 80.7% 73,587 74,276
70% 71.5% 64,388 65,748
60% 59.5% 55,190 54,754
50% 49.7% 45,992 45,678
40% 40.5% 36,793 37,215
30% 29.5% 27,595 27,179
20% 19.7% 18,397 18,121
10% 9.5% 9,198 8,778
Active Idle   0 0
Graph of results

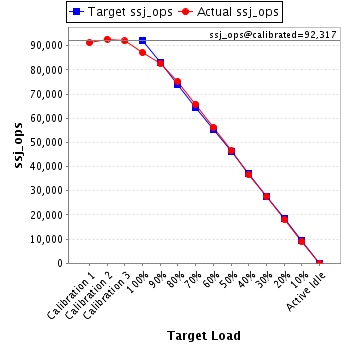

JVM 'linux-hlvu.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,226
Calibration 2     92,683
Calibration 3     91,951
ssj_ops@calibrated=92,317
100% 94.4% 92,317 87,111
90% 89.6% 83,085 82,683
80% 81.4% 73,854 75,137
70% 71.3% 64,622 65,855
60% 60.8% 55,390 56,124
50% 50.3% 46,159 46,443
40% 39.7% 36,927 36,630
30% 30.0% 27,695 27,700
20% 19.6% 18,463 18,117
10% 9.8% 9,232 9,042
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,201
Calibration 2     92,267
Calibration 3     91,811
ssj_ops@calibrated=92,039
100% 99.9% 92,039 91,959
90% 89.4% 82,835 82,255
80% 79.6% 73,631 73,260
70% 71.6% 64,427 65,871
60% 59.6% 55,223 54,866
50% 49.9% 46,020 45,945
40% 39.7% 36,816 36,517
30% 30.6% 27,612 28,210
20% 20.3% 18,408 18,677
10% 10.5% 9,204 9,675
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,691
Calibration 2     91,440
Calibration 3     91,681
ssj_ops@calibrated=91,561
100% 100.2% 91,561 91,732
90% 88.8% 82,405 81,268
80% 79.6% 73,249 72,883
70% 70.4% 64,092 64,430
60% 59.5% 54,936 54,448
50% 49.7% 45,780 45,536
40% 39.9% 36,624 36,488
30% 30.1% 27,468 27,565
20% 20.4% 18,312 18,675
10% 10.0% 9,156 9,197
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,595
Calibration 2     92,319
Calibration 3     92,491
ssj_ops@calibrated=92,405
100% 99.5% 92,405 91,969
90% 90.9% 83,165 83,994
80% 80.2% 73,924 74,150
70% 70.2% 64,684 64,856
60% 59.6% 55,443 55,056
50% 49.9% 46,203 46,109
40% 39.7% 36,962 36,712
30% 29.4% 27,722 27,167
20% 20.0% 18,481 18,471
10% 9.5% 9,241 8,787
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,202
Calibration 2     93,035
Calibration 3     93,361
ssj_ops@calibrated=93,198
100% 99.7% 93,198 92,904
90% 90.5% 83,878 84,352
80% 78.8% 74,559 73,420
70% 71.0% 65,239 66,217
60% 60.1% 55,919 55,977
50% 49.9% 46,599 46,520
40% 39.7% 37,279 36,991
30% 29.1% 27,959 27,141
20% 20.0% 18,640 18,672
10% 10.3% 9,320 9,563
Active Idle   0 0
Graph of results

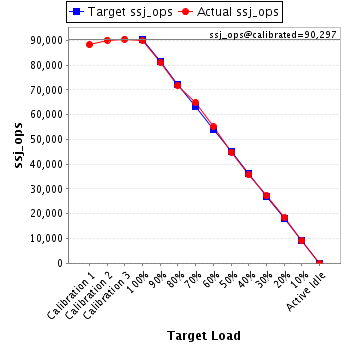

JVM 'linux-hlvu.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,241
Calibration 2     90,109
Calibration 3     90,485
ssj_ops@calibrated=90,297
100% 99.7% 90,297 89,986
90% 89.9% 81,267 81,174
80% 79.5% 72,238 71,759
70% 71.8% 63,208 64,790
60% 61.0% 54,178 55,068
50% 49.7% 45,148 44,889
40% 39.6% 36,119 35,713
30% 30.1% 27,089 27,166
20% 20.3% 18,059 18,329
10% 10.0% 9,030 9,071
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,301
Calibration 2     91,430
Calibration 3     86,424
ssj_ops@calibrated=88,927
100% 100.8% 88,927 89,638
90% 89.8% 80,034 79,822
80% 80.7% 71,142 71,727
70% 71.2% 62,249 63,338
60% 59.9% 53,356 53,238
50% 49.8% 44,463 44,282
40% 40.1% 35,571 35,704
30% 29.9% 26,678 26,567
20% 20.1% 17,785 17,883
10% 10.0% 8,893 8,904
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,184
Calibration 2     93,469
Calibration 3     93,745
ssj_ops@calibrated=93,607
100% 100.0% 93,607 93,632
90% 89.3% 84,246 83,636
80% 79.7% 74,886 74,618
70% 70.4% 65,525 65,867
60% 59.7% 56,164 55,851
50% 49.9% 46,803 46,702
40% 40.4% 37,443 37,817
30% 30.1% 28,082 28,217
20% 20.0% 18,721 18,704
10% 10.0% 9,361 9,337
Active Idle   0 0
Graph of results

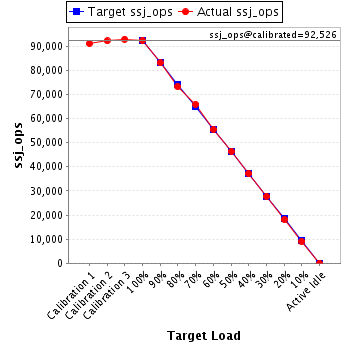

JVM 'linux-hlvu.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,062
Calibration 2     92,172
Calibration 3     92,880
ssj_ops@calibrated=92,526
100% 99.8% 92,526 92,371
90% 89.7% 83,273 83,035
80% 79.1% 74,021 73,216
70% 71.2% 64,768 65,884
60% 60.0% 55,515 55,497
50% 50.1% 46,263 46,361
40% 40.1% 37,010 37,142
30% 30.1% 27,758 27,827
20% 19.5% 18,505 18,065
10% 9.8% 9,253 9,092
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,937
Calibration 2     91,770
Calibration 3     91,974
ssj_ops@calibrated=91,872
100% 99.8% 91,872 91,677
90% 90.2% 82,685 82,873
80% 80.8% 73,498 74,234
70% 71.4% 64,311 65,576
60% 60.6% 55,123 55,680
50% 49.3% 45,936 45,323
40% 40.2% 36,749 36,924
30% 29.6% 27,562 27,208
20% 19.9% 18,374 18,313
10% 10.0% 9,187 9,179
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,885
Calibration 2     91,651
Calibration 3     92,367
ssj_ops@calibrated=92,009
100% 100.0% 92,009 92,004
90% 90.4% 82,808 83,211
80% 79.6% 73,607 73,244
70% 70.8% 64,406 65,171
60% 59.8% 55,206 54,991
50% 49.6% 46,005 45,630
40% 39.7% 36,804 36,518
30% 29.5% 27,603 27,144
20% 20.0% 18,402 18,356
10% 10.1% 9,201 9,254
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,415
Calibration 2     93,592
Calibration 3     93,636
ssj_ops@calibrated=93,614
100% 100.0% 93,614 93,644
90% 90.1% 84,253 84,322
80% 79.3% 74,891 74,269
70% 70.5% 65,530 66,017
60% 59.9% 56,168 56,103
50% 49.7% 46,807 46,558
40% 40.1% 37,446 37,561
30% 29.9% 28,084 28,005
20% 20.0% 18,723 18,695
10% 10.2% 9,361 9,560
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,495
Calibration 2     92,134
Calibration 3     92,484
ssj_ops@calibrated=92,309
100% 99.7% 92,309 92,078
90% 90.3% 83,078 83,393
80% 79.8% 73,847 73,681
70% 69.9% 64,616 64,501
60% 60.3% 55,385 55,620
50% 49.6% 46,154 45,785
40% 40.1% 36,924 37,044
30% 29.8% 27,693 27,535
20% 20.2% 18,462 18,655
10% 10.0% 9,231 9,229
Active Idle   0 0
Graph of results

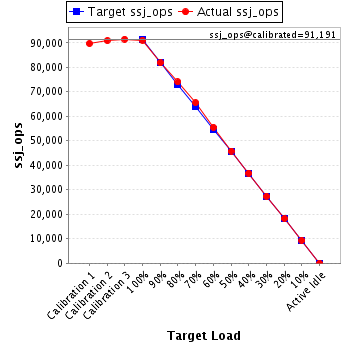

JVM 'linux-hlvu.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,726
Calibration 2     90,890
Calibration 3     91,492
ssj_ops@calibrated=91,191
100% 99.9% 91,191 91,116
90% 89.8% 82,072 81,850
80% 81.2% 72,953 74,013
70% 71.8% 63,834 65,518
60% 60.8% 54,715 55,464
50% 50.2% 45,595 45,817
40% 40.4% 36,476 36,824
30% 30.1% 27,357 27,427
20% 20.0% 18,238 18,283
10% 10.3% 9,119 9,358
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,850
Calibration 2     92,976
Calibration 3     93,238
ssj_ops@calibrated=93,107
100% 99.3% 93,107 92,494
90% 90.2% 83,797 83,958
80% 80.8% 74,486 75,276
70% 71.4% 65,175 66,434
60% 60.1% 55,864 55,919
50% 50.3% 46,554 46,840
40% 40.0% 37,243 37,226
30% 29.7% 27,932 27,696
20% 19.6% 18,621 18,232
10% 9.9% 9,311 9,229
Active Idle   0 0
Graph of results

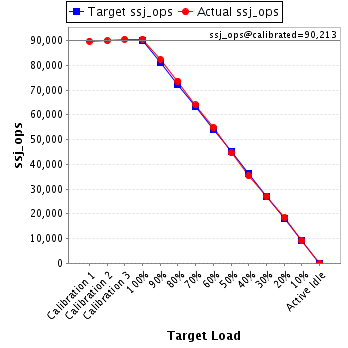

JVM 'linux-hlvu.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,766
Calibration 2     89,898
Calibration 3     90,528
ssj_ops@calibrated=90,213
100% 100.4% 90,213 90,559
90% 91.3% 81,192 82,325
80% 81.6% 72,170 73,641
70% 70.9% 63,149 63,956
60% 60.8% 54,128 54,866
50% 49.5% 45,107 44,630
40% 39.1% 36,085 35,301
30% 30.1% 27,064 27,175
20% 20.3% 18,043 18,349
10% 10.2% 9,021 9,195
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,313
Calibration 2     90,230
Calibration 3     90,022
ssj_ops@calibrated=90,126
100% 100.2% 90,126 90,311
90% 89.6% 81,113 80,747
80% 81.0% 72,101 73,042
70% 69.9% 63,088 62,959
60% 59.5% 54,076 53,646
50% 50.7% 45,063 45,687
40% 40.1% 36,050 36,160
30% 29.5% 27,038 26,594
20% 20.0% 18,025 18,008
10% 10.3% 9,013 9,255
Active Idle   0 0
Graph of results

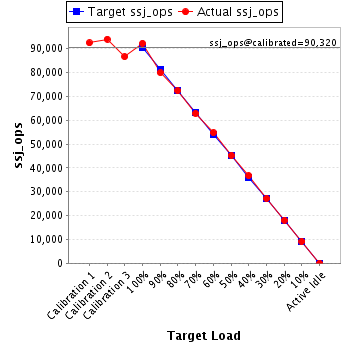

JVM 'linux-hlvu.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,396
Calibration 2     93,995
Calibration 3     86,645
ssj_ops@calibrated=90,320
100% 102.2% 90,320 92,273
90% 88.5% 81,288 79,925
80% 80.1% 72,256 72,378
70% 69.6% 63,224 62,844
60% 60.6% 54,192 54,730
50% 50.1% 45,160 45,226
40% 40.7% 36,128 36,717
30% 30.1% 27,096 27,215
20% 20.1% 18,064 18,117
10% 10.1% 9,032 9,145
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,830
Calibration 2     93,539
Calibration 3     93,611
ssj_ops@calibrated=93,575
100% 100.1% 93,575 93,690
90% 90.6% 84,217 84,773
80% 79.8% 74,860 74,717
70% 70.7% 65,502 66,127
60% 59.7% 56,145 55,835
50% 49.5% 46,787 46,320
40% 40.0% 37,430 37,413
30% 30.5% 28,072 28,580
20% 20.2% 18,715 18,942
10% 9.8% 9,357 9,193
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,424
Calibration 2     95,240
Calibration 3     95,285
ssj_ops@calibrated=95,262
100% 100.1% 95,262 95,329
90% 90.7% 85,736 86,383
80% 80.8% 76,210 76,957
70% 69.9% 66,684 66,561
60% 59.9% 57,157 57,035
50% 49.2% 47,631 46,857
40% 40.5% 38,105 38,561
30% 30.0% 28,579 28,589
20% 20.2% 19,052 19,213
10% 9.8% 9,526 9,289
Active Idle   0 0
Graph of results

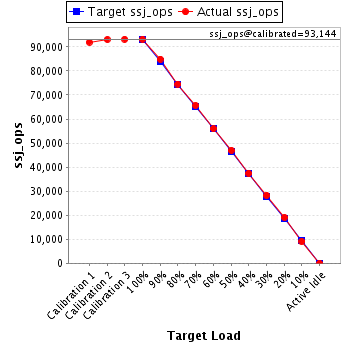

JVM 'linux-hlvu.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,030
Calibration 2     93,080
Calibration 3     93,207
ssj_ops@calibrated=93,144
100% 100.1% 93,144 93,215
90% 91.2% 83,829 84,960
80% 80.0% 74,515 74,555
70% 70.5% 65,201 65,665
60% 60.1% 55,886 55,977
50% 50.4% 46,572 46,989
40% 40.2% 37,258 37,433
30% 30.4% 27,943 28,288
20% 20.5% 18,629 19,107
10% 9.8% 9,314 9,129
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,064
Calibration 2     93,146
Calibration 3     93,027
ssj_ops@calibrated=93,086
100% 99.9% 93,086 93,016
90% 91.8% 83,778 85,412
80% 80.6% 74,469 75,038
70% 71.4% 65,160 66,419
60% 59.6% 55,852 55,436
50% 49.4% 46,543 46,027
40% 40.2% 37,235 37,455
30% 30.7% 27,926 28,553
20% 19.8% 18,617 18,417
10% 9.8% 9,309 9,102
Active Idle   0 0
Graph of results

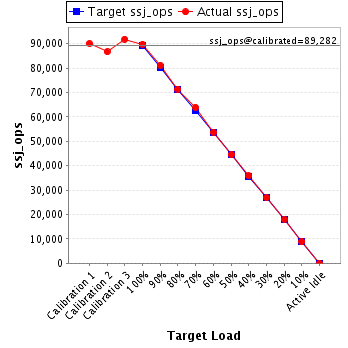

JVM 'linux-hlvu.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,064
Calibration 2     86,696
Calibration 3     91,868
ssj_ops@calibrated=89,282
100% 100.5% 89,282 89,723
90% 90.9% 80,354 81,194
80% 79.9% 71,426 71,372
70% 71.6% 62,498 63,913
60% 60.2% 53,569 53,776
50% 49.9% 44,641 44,557
40% 40.1% 35,713 35,817
30% 30.1% 26,785 26,850
20% 20.2% 17,856 18,071
10% 9.9% 8,928 8,842
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,543
Calibration 2     92,858
Calibration 3     92,353
ssj_ops@calibrated=92,606
100% 99.4% 92,606 92,047
90% 89.3% 83,345 82,686
80% 79.8% 74,084 73,938
70% 71.1% 64,824 65,864
60% 59.9% 55,563 55,483
50% 50.3% 46,303 46,547
40% 40.1% 37,042 37,154
30% 30.6% 27,782 28,319
20% 20.0% 18,521 18,542
10% 10.0% 9,261 9,287
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,945
Calibration 2     91,801
Calibration 3     86,918
ssj_ops@calibrated=89,360
100% 101.0% 89,360 90,260
90% 88.8% 80,424 79,380
80% 81.2% 71,488 72,605
70% 71.2% 62,552 63,601
60% 60.4% 53,616 53,936
50% 50.4% 44,680 45,034
40% 39.7% 35,744 35,517
30% 30.2% 26,808 27,025
20% 19.4% 17,872 17,304
10% 9.9% 8,936 8,846
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,463
Calibration 2     92,102
Calibration 3     92,395
ssj_ops@calibrated=92,248
100% 100.0% 92,248 92,206
90% 90.5% 83,024 83,492
80% 80.6% 73,799 74,357
70% 71.2% 64,574 65,658
60% 60.0% 55,349 55,361
50% 50.0% 46,124 46,081
40% 39.2% 36,899 36,168
30% 30.4% 27,675 28,016
20% 19.6% 18,450 18,047
10% 9.6% 9,225 8,826
Active Idle   0 0
Graph of results
JVM 'linux-hlvu.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,497
Calibration 2     93,172
Calibration 3     92,636
ssj_ops@calibrated=92,904
100% 100.1% 92,904 92,958
90% 90.3% 83,613 83,898
80% 80.9% 74,323 75,201
70% 71.4% 65,033 66,312
60% 60.1% 55,742 55,866
50% 50.4% 46,452 46,827
40% 39.4% 37,161 36,604
30% 29.7% 27,871 27,600
20% 20.1% 18,581 18,676
10% 10.3% 9,290 9,542
Active Idle   0 0
Graph of results
