Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,975 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 27, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,878 22.0
Calibration 2 1,860 22.1
Calibration 3 1,862 22.1
100% 1,860 22.2
90% 1,647 22.2
80% 1,413 22.1
70% 1,245 22.1
60% 1,095 22.0
50% 967 22.0
40% 871 21.9
30% 788 21.8
20% 707 21.8
10% 620 21.8
Active Idle 398 22.0

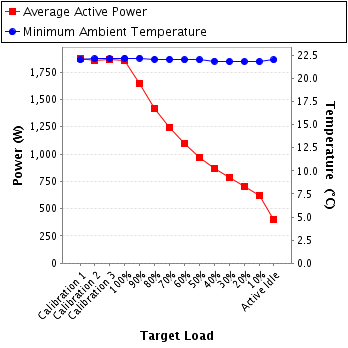

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 2.25 5.0 0.967 462 0.5%
Calibration 2 212 300.0 2.23 5.0 0.967 458 0.5%
Calibration 3 212 300.0 2.24 5.0 0.967 459 0.5%
100% 212 300.0 2.24 5.0 0.967 458 0.5%
90% 212 300.0 2.01 5.0 0.959 409 0.6%
80% 212 300.0 1.76 5.0 0.947 353 0.6%
70% 212 300.0 1.58 2.0 0.934 313 0.4%
60% 213 300.0 1.43 2.0 0.920 280 0.4%
50% 213 300.0 1.30 2.0 0.905 250 0.5%
40% 213 300.0 1.19 2.0 0.885 225 0.5%
30% 213 300.0 1.09 2.0 0.842 194 0.6%
20% 213 300.0 0.984 2.0 0.836 175 0.6%
10% 213 300.0 0.892 2.0 0.800 152 0.7%
Active Idle 213 300.0 0.690 1.0 0.668 98.0 0.7%

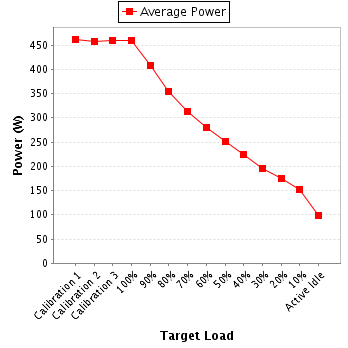

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 2.13 5.0 0.978 447 0.5%
Calibration 2 215 300.0 2.10 5.0 0.977 442 0.5%
Calibration 3 215 300.0 2.11 5.0 0.978 443 0.5%
100% 215 300.0 2.10 5.0 0.978 442 0.5%
90% 215 300.0 1.82 5.0 0.970 381 0.6%
80% 215 300.0 1.55 5.0 0.959 319 0.7%
70% 215 300.0 1.36 2.0 0.946 277 0.4%
60% 216 300.0 1.14 2.0 0.899 222 0.5%
50% 216 300.0 0.959 2.0 0.877 181 0.6%
40% 216 300.0 0.935 2.0 0.864 174 0.6%
30% 216 300.0 0.920 2.0 0.856 170 0.6%
20% 216 300.0 0.766 2.0 0.825 136 0.7%
10% 216 300.0 0.695 1.0 0.790 118 0.6%
Active Idle 216 300.0 0.520 1.0 0.558 62.7 0.9%

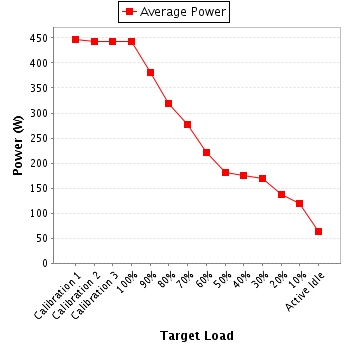

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 4.66 10.0 0.983 968 0.5%
Calibration 2 212 300.0 4.62 10.0 0.982 960 0.5%
Calibration 3 212 300.0 4.62 10.0 0.982 960 0.5%
100% 212 300.0 4.61 10.0 0.982 959 0.5%
90% 212 300.0 4.15 10.0 0.978 858 0.5%
80% 212 300.0 3.60 10.0 0.971 740 0.6%
70% 212 300.0 3.21 5.0 0.963 655 0.4%
60% 212 300.0 2.93 5.0 0.954 593 0.5%
50% 212 300.0 2.66 5.0 0.946 535 0.5%
40% 213 300.0 2.38 5.0 0.931 472 0.5%
30% 213 300.0 2.18 5.0 0.914 423 0.6%
20% 213 300.0 2.05 5.0 0.909 396 0.6%
10% 213 300.0 1.86 5.0 0.888 350 0.7%
Active Idle 213 300.0 1.39 2.0 0.801 237 0.6%

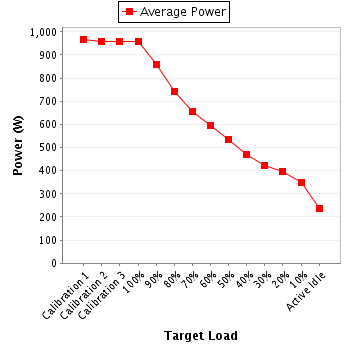

Power details for pwr3
