Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,215 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 27, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 2,289 22.3
Calibration 2 2,297 22.4
Calibration 3 2,300 22.4
100% 2,295 22.4
90% 2,030 22.5
80% 1,737 22.5
70% 1,522 22.5
60% 1,336 22.5
50% 1,177 22.4
40% 1,055 22.4
30% 951 22.4
20% 848 22.4
10% 740 22.4
Active Idle 459 22.4
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 2.71 5.0 0.977 563 0.5%
Calibration 2 212 300.0 2.72 5.0 0.978 565 0.5%
Calibration 3 212 300.0 2.73 5.0 0.978 566 0.5%
100% 212 300.0 2.73 5.0 0.978 565 0.5%
90% 212 300.0 2.42 5.0 0.971 500 0.5%
80% 212 300.0 2.10 5.0 0.962 430 0.6%
70% 212 300.0 1.87 2.0 0.952 378 0.4%
60% 212 300.0 1.67 2.0 0.941 333 0.4%
50% 212 300.0 1.48 2.0 0.926 290 0.4%
40% 212 300.0 1.39 2.0 0.915 269 0.5%
30% 212 300.0 1.28 2.0 0.901 244 0.5%
20% 212 300.0 1.17 2.0 0.878 219 0.5%
10% 212 300.0 1.02 2.0 0.847 183 0.6%
Active Idle 212 300.0 0.746 1.0 0.720 114 0.6%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 2.61 5.0 0.985 553 0.5%
Calibration 2 215 300.0 2.62 5.0 0.986 555 0.5%
Calibration 3 215 300.0 2.62 5.0 0.986 556 0.5%
100% 215 300.0 2.62 5.0 0.986 555 0.5%
90% 215 300.0 2.31 5.0 0.982 489 0.5%
80% 215 300.0 1.94 5.0 0.973 406 0.6%
70% 215 300.0 1.67 2.0 0.965 348 0.4%
60% 215 300.0 1.45 2.0 0.954 298 0.4%
50% 215 300.0 1.27 2.0 0.939 257 0.5%
40% 215 300.0 1.06 2.0 0.881 202 0.6%
30% 215 300.0 0.959 2.0 0.874 180 0.6%
20% 215 300.0 0.931 2.0 0.865 173 0.6%
10% 215 300.0 0.809 1.0 0.846 147 0.5%
Active Idle 215 300.0 0.548 1.0 0.642 75.7 0.8%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 5.61 10.0 0.988 1,173 0.4%
Calibration 2 212 300.0 5.63 10.0 0.988 1,177 0.4%
Calibration 3 212 300.0 5.64 10.0 0.988 1,178 0.4%
100% 212 300.0 5.62 10.0 0.988 1,175 0.4%
90% 212 300.0 5.00 10.0 0.985 1,042 0.5%
80% 212 300.0 4.34 10.0 0.980 901 0.5%
70% 212 300.0 3.86 5.0 0.974 796 0.4%
60% 212 300.0 3.44 5.0 0.968 705 0.4%
50% 212 300.0 3.09 5.0 0.961 629 0.4%
40% 212 300.0 2.89 5.0 0.953 584 0.5%
30% 212 300.0 2.63 5.0 0.944 526 0.5%
20% 212 300.0 2.32 5.0 0.927 456 0.6%
10% 212 300.0 2.11 5.0 0.915 410 0.6%
Active Idle 212 300.0 1.52 2.0 0.832 269 0.5%

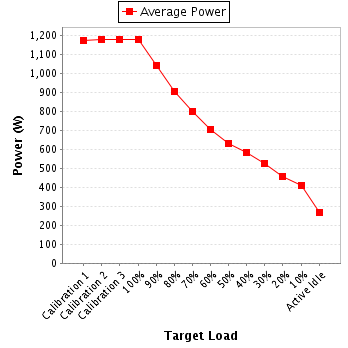

Power details for pwr3
