Fujitsu FUJITSU Server PRIMERGY RX2540 M5 SPECpower_ssj2008 = 11,991 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Mar 13, 2019
Hardware Availability: Jun-2019 Software Availability: Oct-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 333 21.2
Calibration 2 333 21.2
Calibration 3 333 21.2
100% 332 21.2
90% 303 21.2
80% 269 21.2
70% 235 21.2
60% 208 21.1
50% 183 20.8
40% 163 20.7
30% 146 20.8
20% 129 21.0
10% 112 21.1
Active Idle 58.2 21.2

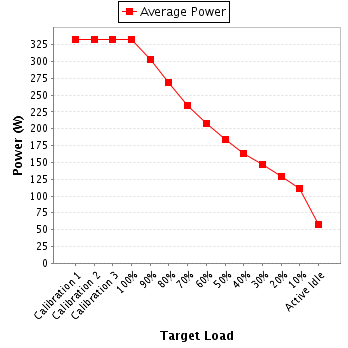

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400087-1901
Date of Calibration: 30-Jan-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 1.65 5.0 0.983 333 0.3%
Calibration 2 206 300.0 1.65 5.0 0.983 333 0.3%
Calibration 3 205 300.0 1.65 5.0 0.983 333 0.3%
100% 206 300.0 1.64 5.0 0.983 332 0.3%
90% 206 300.0 1.50 2.0 0.980 303 0.2%
80% 205 300.0 1.34 2.0 0.976 269 0.2%
70% 205 300.0 1.18 2.0 0.970 235 0.3%
60% 205 300.0 1.05 2.0 0.965 208 0.3%
50% 205 300.0 0.930 2.0 0.962 183 0.3%
40% 205 300.0 0.834 2.0 0.956 163 0.3%
30% 205 300.0 0.752 2.0 0.949 146 0.3%
20% 205 300.0 0.672 1.0 0.940 129 0.3%
10% 205 300.0 0.587 1.0 0.930 112 0.3%
Active Idle 205 300.0 0.334 1.0 0.852 58.2 0.4%
Power details for pwr1
