Huawei Technologies Co., Ltd Fusion Server 2288H V5 ssj_ops@100% = 6,119,759
ssj_ops@100% per JVM = 109,281
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,167,552
Calibration 2     6,096,085
Calibration 3     6,104,193
ssj_ops@calibrated=6,100,139
100% 100.3% 6,100,139 6,119,759
90% 90.8% 5,490,125 5,541,360
80% 80.0% 4,880,111 4,883,013
70% 70.0% 4,270,097 4,271,400
60% 60.0% 3,660,084 3,658,183
50% 50.0% 3,050,070 3,051,977
40% 40.0% 2,440,056 2,440,254
30% 30.0% 1,830,042 1,832,392
20% 20.0% 1,220,028 1,218,081
10% 10.0% 610,014 611,346
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server 2288H V5
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280
CPU Characteristics: 28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM040, DIMM050, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W): 1 x 550
Power Supply Details: Huawei P/N 02312DEP
Disk Drive: 1 x 480GB SSD 2.5" SATA Huawei P/N 02312DXS
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced (recommended) Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.18969
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000];
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3.63
Management Firmware Version: 3.29
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4056898,KB4338824
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A4QMRIMUI80.001 108,179
WIN-A4QMRIMUI80.002 110,540
WIN-A4QMRIMUI80.003 111,132
WIN-A4QMRIMUI80.004 109,590
WIN-A4QMRIMUI80.005 109,601
WIN-A4QMRIMUI80.006 109,956
WIN-A4QMRIMUI80.007 109,690
WIN-A4QMRIMUI80.008 110,214
WIN-A4QMRIMUI80.009 111,595
WIN-A4QMRIMUI80.010 108,692
WIN-A4QMRIMUI80.011 109,384
WIN-A4QMRIMUI80.012 109,230
WIN-A4QMRIMUI80.013 111,710
WIN-A4QMRIMUI80.014 109,730
WIN-A4QMRIMUI80.015 108,788
WIN-A4QMRIMUI80.016 109,648
WIN-A4QMRIMUI80.017 108,815
WIN-A4QMRIMUI80.018 108,456
WIN-A4QMRIMUI80.019 107,560
WIN-A4QMRIMUI80.020 110,693
WIN-A4QMRIMUI80.021 107,969
WIN-A4QMRIMUI80.022 109,027
WIN-A4QMRIMUI80.023 109,000
WIN-A4QMRIMUI80.024 111,907
WIN-A4QMRIMUI80.025 110,295
WIN-A4QMRIMUI80.026 109,519
WIN-A4QMRIMUI80.027 106,524
WIN-A4QMRIMUI80.028 109,324
WIN-A4QMRIMUI80.029 109,481
WIN-A4QMRIMUI80.030 108,575
WIN-A4QMRIMUI80.031 107,703
WIN-A4QMRIMUI80.032 107,266
WIN-A4QMRIMUI80.033 109,367
WIN-A4QMRIMUI80.034 112,206
WIN-A4QMRIMUI80.035 109,106
WIN-A4QMRIMUI80.036 109,404
WIN-A4QMRIMUI80.037 109,529
WIN-A4QMRIMUI80.038 109,521
WIN-A4QMRIMUI80.039 108,003
WIN-A4QMRIMUI80.040 107,643
WIN-A4QMRIMUI80.041 107,877
WIN-A4QMRIMUI80.042 109,615
WIN-A4QMRIMUI80.043 109,738
WIN-A4QMRIMUI80.044 108,218
WIN-A4QMRIMUI80.045 111,561
WIN-A4QMRIMUI80.046 109,445
WIN-A4QMRIMUI80.047 108,276
WIN-A4QMRIMUI80.048 108,732
WIN-A4QMRIMUI80.049 109,161
WIN-A4QMRIMUI80.050 107,934
WIN-A4QMRIMUI80.051 107,700
WIN-A4QMRIMUI80.052 109,759
WIN-A4QMRIMUI80.053 108,250
WIN-A4QMRIMUI80.054 110,261
WIN-A4QMRIMUI80.055 109,704
WIN-A4QMRIMUI80.056 108,958
ssj_ops@100% 6,119,759
ssj_ops@100% per JVM 109,281

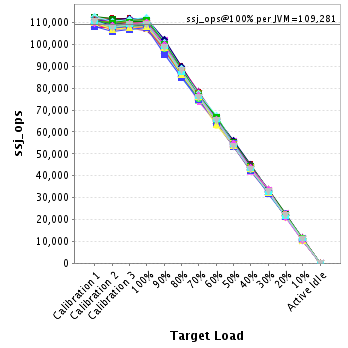

Graph of per-instance results
JVM 'WIN-A4QMRIMUI80.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,065
Calibration 2     108,787
Calibration 3     108,161
ssj_ops@calibrated=108,474
100% 99.7% 108,474 108,179
90% 91.0% 97,627 98,724
80% 79.4% 86,779 86,090
70% 69.8% 75,932 75,714
60% 59.5% 65,084 64,570
50% 50.1% 54,237 54,383
40% 40.3% 43,390 43,696
30% 30.3% 32,542 32,875
20% 19.6% 21,695 21,282
10% 9.9% 10,847 10,759
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,398
Calibration 2     110,175
Calibration 3     109,929
ssj_ops@calibrated=110,052
100% 100.4% 110,052 110,540
90% 91.4% 99,047 100,603
80% 79.8% 88,042 87,848
70% 69.6% 77,036 76,591
60% 60.2% 66,031 66,225
50% 49.6% 55,026 54,640
40% 40.6% 44,021 44,674
30% 29.9% 33,016 32,909
20% 20.5% 22,010 22,582
10% 10.2% 11,005 11,275
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,297
Calibration 2     110,788
Calibration 3     111,124
ssj_ops@calibrated=110,956
100% 100.2% 110,956 111,132
90% 89.9% 99,860 99,709
80% 80.1% 88,765 88,923
70% 71.0% 77,669 78,731
60% 59.8% 66,573 66,318
50% 50.0% 55,478 55,491
40% 39.7% 44,382 44,038
30% 30.4% 33,287 33,692
20% 19.6% 22,191 21,751
10% 10.0% 11,096 11,108
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,850
Calibration 2     109,784
Calibration 3     109,375
ssj_ops@calibrated=109,580
100% 100.0% 109,580 109,590
90% 91.2% 98,622 99,972
80% 80.0% 87,664 87,650
70% 70.2% 76,706 76,975
60% 59.7% 65,748 65,399
50% 50.1% 54,790 54,918
40% 40.0% 43,832 43,785
30% 30.6% 32,874 33,544
20% 19.6% 21,916 21,524
10% 10.4% 10,958 11,383
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,162
Calibration 2     109,357
Calibration 3     109,365
ssj_ops@calibrated=109,361
100% 100.2% 109,361 109,601
90% 90.5% 98,425 99,017
80% 80.3% 87,489 87,832
70% 70.3% 76,553 76,847
60% 60.5% 65,617 66,111
50% 50.3% 54,681 55,051
40% 40.4% 43,744 44,215
30% 29.4% 32,808 32,184
20% 20.4% 21,872 22,271
10% 10.0% 10,936 10,900
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,021
Calibration 2     109,900
Calibration 3     109,757
ssj_ops@calibrated=109,828
100% 100.1% 109,828 109,956
90% 90.7% 98,846 99,585
80% 80.6% 87,863 88,553
70% 70.6% 76,880 77,563
60% 59.7% 65,897 65,563
50% 49.5% 54,914 54,366
40% 39.5% 43,931 43,412
30% 29.6% 32,949 32,519
20% 20.0% 21,966 21,965
10% 9.7% 10,983 10,625
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,664
Calibration 2     109,072
Calibration 3     109,422
ssj_ops@calibrated=109,247
100% 100.4% 109,247 109,690
90% 90.6% 98,322 98,923
80% 80.7% 87,397 88,190
70% 70.3% 76,473 76,802
60% 59.9% 65,548 65,401
50% 50.3% 54,623 54,980
40% 40.4% 43,699 44,093
30% 30.1% 32,774 32,919
20% 19.6% 21,849 21,397
10% 10.1% 10,925 11,042
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,995
Calibration 2     110,320
Calibration 3     110,102
ssj_ops@calibrated=110,211
100% 100.0% 110,211 110,214
90% 90.5% 99,190 99,729
80% 80.6% 88,169 88,859
70% 69.0% 77,148 76,001
60% 59.9% 66,127 65,963
50% 50.4% 55,106 55,601
40% 40.3% 44,084 44,419
30% 29.8% 33,063 32,829
20% 20.1% 22,042 22,124
10% 10.3% 11,021 11,312
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,382
Calibration 2     111,703
Calibration 3     111,819
ssj_ops@calibrated=111,761
100% 99.9% 111,761 111,595
90% 90.6% 100,585 101,310
80% 80.7% 89,409 90,166
70% 69.8% 78,233 77,961
60% 58.5% 67,057 65,363
50% 49.8% 55,880 55,602
40% 40.3% 44,704 45,062
30% 29.6% 33,528 33,108
20% 20.0% 22,352 22,345
10% 10.0% 11,176 11,129
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,719
Calibration 2     109,411
Calibration 3     109,050
ssj_ops@calibrated=109,230
100% 99.5% 109,230 108,692
90% 92.1% 98,307 100,610
80% 79.6% 87,384 86,935
70% 70.7% 76,461 77,256
60% 61.2% 65,538 66,828
50% 50.3% 54,615 54,904
40% 39.9% 43,692 43,594
30% 29.9% 32,769 32,665
20% 19.9% 21,846 21,709
10% 9.6% 10,923 10,454
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,757
Calibration 2     109,280
Calibration 3     109,215
ssj_ops@calibrated=109,248
100% 100.1% 109,248 109,384
90% 90.8% 98,323 99,143
80% 79.6% 87,398 86,944
70% 69.9% 76,473 76,395
60% 60.4% 65,549 65,975
50% 49.3% 54,624 53,831
40% 40.5% 43,699 44,215
30% 29.7% 32,774 32,414
20% 19.7% 21,850 21,568
10% 10.2% 10,925 11,112
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,766
Calibration 2     110,181
Calibration 3     109,271
ssj_ops@calibrated=109,726
100% 99.5% 109,726 109,230
90% 91.3% 98,753 100,188
80% 81.1% 87,781 88,991
70% 70.8% 76,808 77,684
60% 60.7% 65,836 66,567
50% 50.3% 54,863 55,166
40% 39.4% 43,890 43,269
30% 30.1% 32,918 32,978
20% 20.0% 21,945 21,978
10% 9.9% 10,973 10,855
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,561
Calibration 2     111,534
Calibration 3     111,254
ssj_ops@calibrated=111,394
100% 100.3% 111,394 111,710
90% 91.4% 100,254 101,772
80% 80.3% 89,115 89,436
70% 70.4% 77,976 78,404
60% 59.8% 66,836 66,631
50% 50.1% 55,697 55,843
40% 39.7% 44,557 44,261
30% 30.2% 33,418 33,675
20% 19.8% 22,279 22,039
10% 10.4% 11,139 11,554
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,784
Calibration 2     109,083
Calibration 3     109,809
ssj_ops@calibrated=109,446
100% 100.3% 109,446 109,730
90% 90.7% 98,502 99,237
80% 80.0% 87,557 87,553
70% 71.1% 76,612 77,763
60% 60.2% 65,668 65,842
50% 50.4% 54,723 55,191
40% 39.9% 43,779 43,629
30% 30.0% 32,834 32,873
20% 20.2% 21,889 22,095
10% 10.2% 10,945 11,148
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,387
Calibration 2     109,532
Calibration 3     109,079
ssj_ops@calibrated=109,305
100% 99.5% 109,305 108,788
90% 91.4% 98,375 99,929
80% 80.4% 87,444 87,893
70% 69.6% 76,514 76,052
60% 59.8% 65,583 65,367
50% 50.1% 54,653 54,732
40% 40.1% 43,722 43,824
30% 29.8% 32,792 32,575
20% 20.1% 21,861 21,975
10% 9.8% 10,931 10,761
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,346
Calibration 2     110,407
Calibration 3     109,887
ssj_ops@calibrated=110,147
100% 99.5% 110,147 109,648
90% 90.7% 99,133 99,943
80% 80.0% 88,118 88,169
70% 70.4% 77,103 77,596
60% 60.2% 66,088 66,295
50% 50.0% 55,074 55,047
40% 39.5% 44,059 43,489
30% 30.3% 33,044 33,387
20% 19.7% 22,029 21,681
10% 9.7% 11,015 10,717
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,605
Calibration 2     108,558
Calibration 3     108,591
ssj_ops@calibrated=108,574
100% 100.2% 108,574 108,815
90% 90.6% 97,717 98,345
80% 80.0% 86,860 86,839
70% 70.3% 76,002 76,319
60% 61.3% 65,145 66,516
50% 50.3% 54,287 54,635
40% 39.9% 43,430 43,345
30% 29.3% 32,572 31,803
20% 20.3% 21,715 22,035
10% 10.1% 10,857 10,987
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,825
Calibration 2     108,533
Calibration 3     108,041
ssj_ops@calibrated=108,287
100% 100.2% 108,287 108,456
90% 90.9% 97,458 98,396
80% 79.7% 86,630 86,358
70% 69.3% 75,801 75,096
60% 59.8% 64,972 64,730
50% 50.3% 54,143 54,448
40% 39.6% 43,315 42,923
30% 30.2% 32,486 32,709
20% 20.2% 21,657 21,927
10% 10.5% 10,829 11,324
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,766
Calibration 2     107,626
Calibration 3     107,750
ssj_ops@calibrated=107,688
100% 99.9% 107,688 107,560
90% 91.1% 96,920 98,083
80% 79.1% 86,151 85,218
70% 70.4% 75,382 75,781
60% 59.8% 64,613 64,424
50% 49.8% 53,844 53,596
40% 39.8% 43,075 42,906
30% 30.1% 32,307 32,462
20% 19.9% 21,538 21,401
10% 9.8% 10,769 10,515
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,135
Calibration 2     110,895
Calibration 3     111,094
ssj_ops@calibrated=110,994
100% 99.7% 110,994 110,693
90% 91.7% 99,895 101,729
80% 79.2% 88,796 87,912
70% 70.0% 77,696 77,658
60% 60.1% 66,597 66,662
50% 50.2% 55,497 55,673
40% 40.0% 44,398 44,368
30% 30.0% 33,298 33,244
20% 20.6% 22,199 22,913
10% 9.7% 11,099 10,817
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,134
Calibration 2     108,214
Calibration 3     108,729
ssj_ops@calibrated=108,471
100% 99.5% 108,471 107,969
90% 91.0% 97,624 98,729
80% 79.7% 86,777 86,409
70% 70.1% 75,930 76,048
60% 59.4% 65,083 64,389
50% 49.7% 54,236 53,964
40% 40.3% 43,389 43,751
30% 30.3% 32,541 32,883
20% 20.1% 21,694 21,769
10% 10.1% 10,847 10,912
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,040
Calibration 2     109,258
Calibration 3     109,191
ssj_ops@calibrated=109,225
100% 99.8% 109,225 109,027
90% 91.5% 98,302 99,950
80% 80.5% 87,380 87,917
70% 70.2% 76,457 76,704
60% 60.9% 65,535 66,563
50% 50.6% 54,612 55,275
40% 39.8% 43,690 43,454
30% 30.4% 32,767 33,224
20% 19.8% 21,845 21,592
10% 10.0% 10,922 10,907
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,136
Calibration 2     109,402
Calibration 3     109,789
ssj_ops@calibrated=109,595
100% 99.5% 109,595 109,000
90% 90.3% 98,636 98,921
80% 80.3% 87,676 87,962
70% 69.1% 76,717 75,764
60% 59.6% 65,757 65,303
50% 50.8% 54,798 55,628
40% 40.3% 43,838 44,132
30% 29.8% 32,879 32,646
20% 19.6% 21,919 21,479
10% 10.1% 10,960 11,087
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,941
Calibration 2     111,441
Calibration 3     111,819
ssj_ops@calibrated=111,630
100% 100.2% 111,630 111,907
90% 91.7% 100,467 102,321
80% 80.7% 89,304 90,045
70% 69.2% 78,141 77,196
60% 59.4% 66,978 66,274
50% 50.3% 55,815 56,114
40% 40.4% 44,652 45,075
30% 30.0% 33,489 33,443
20% 19.9% 22,326 22,162
10% 10.0% 11,163 11,208
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,864
Calibration 2     112,007
Calibration 3     110,702
ssj_ops@calibrated=111,355
100% 99.0% 111,355 110,295
90% 89.8% 100,219 99,998
80% 79.5% 89,084 88,562
70% 69.9% 77,948 77,886
60% 59.2% 66,813 65,934
50% 50.1% 55,677 55,739
40% 40.1% 44,542 44,603
30% 30.2% 33,406 33,618
20% 20.6% 22,271 22,893
10% 9.7% 11,135 10,837
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,007
Calibration 2     109,564
Calibration 3     109,835
ssj_ops@calibrated=109,699
100% 99.8% 109,699 109,519
90% 89.7% 98,730 98,435
80% 79.7% 87,760 87,387
70% 70.8% 76,790 77,700
60% 59.5% 65,820 65,231
50% 49.7% 54,850 54,541
40% 39.8% 43,880 43,613
30% 30.1% 32,910 32,968
20% 20.1% 21,940 22,042
10% 10.2% 10,970 11,146
Active Idle   0 0

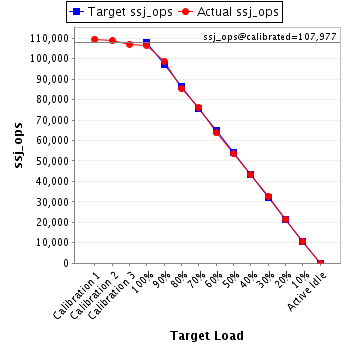

Graph of results
JVM 'WIN-A4QMRIMUI80.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,559
Calibration 2     108,768
Calibration 3     107,186
ssj_ops@calibrated=107,977
100% 98.7% 107,977 106,524
90% 91.5% 97,179 98,785
80% 79.1% 86,381 85,433
70% 70.4% 75,584 76,020
60% 59.0% 64,786 63,694
50% 49.6% 53,988 53,538
40% 40.0% 43,191 43,172
30% 30.4% 32,393 32,798
20% 20.0% 21,595 21,552
10% 9.9% 10,798 10,679
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,177
Calibration 2     109,674
Calibration 3     109,173
ssj_ops@calibrated=109,423
100% 99.9% 109,423 109,324
90% 91.3% 98,481 99,911
80% 80.2% 87,539 87,789
70% 69.8% 76,596 76,422
60% 59.9% 65,654 65,584
50% 50.2% 54,712 54,899
40% 40.3% 43,769 44,104
30% 30.4% 32,827 33,260
20% 19.9% 21,885 21,722
10% 9.6% 10,942 10,529
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,014
Calibration 2     108,216
Calibration 3     108,645
ssj_ops@calibrated=108,431
100% 101.0% 108,431 109,481
90% 90.0% 97,588 97,591
80% 80.6% 86,745 87,365
70% 69.6% 75,902 75,431
60% 59.2% 65,059 64,202
50% 49.7% 54,215 53,917
40% 39.9% 43,372 43,222
30% 29.7% 32,529 32,230
20% 20.5% 21,686 22,208
10% 9.9% 10,843 10,775
Active Idle   0 0

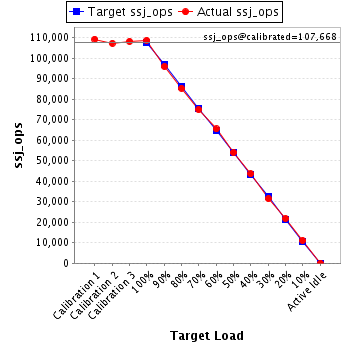

Graph of results
JVM 'WIN-A4QMRIMUI80.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,193
Calibration 2     107,223
Calibration 3     108,113
ssj_ops@calibrated=107,668
100% 100.8% 107,668 108,575
90% 89.1% 96,902 95,898
80% 79.2% 86,135 85,252
70% 69.5% 75,368 74,876
60% 60.8% 64,601 65,423
50% 50.2% 53,834 54,056
40% 40.5% 43,067 43,582
30% 29.3% 32,301 31,502
20% 20.3% 21,534 21,818
10% 10.3% 10,767 11,116
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,590
Calibration 2     107,067
Calibration 3     106,948
ssj_ops@calibrated=107,007
100% 100.7% 107,007 107,703
90% 90.2% 96,306 96,564
80% 79.8% 85,606 85,375
70% 69.7% 74,905 74,571
60% 59.5% 64,204 63,714
50% 50.1% 53,504 53,577
40% 40.1% 42,803 42,863
30% 30.3% 32,102 32,426
20% 19.9% 21,401 21,341
10% 10.2% 10,701 10,942
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,437
Calibration 2     106,429
Calibration 3     106,938
ssj_ops@calibrated=106,683
100% 100.5% 106,683 107,266
90% 90.9% 96,015 97,016
80% 79.7% 85,347 85,035
70% 70.2% 74,678 74,847
60% 59.0% 64,010 62,897
50% 50.6% 53,342 53,970
40% 39.4% 42,673 42,045
30% 30.2% 32,005 32,228
20% 19.8% 21,337 21,108
10% 10.1% 10,668 10,825
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,548
Calibration 2     108,187
Calibration 3     108,690
ssj_ops@calibrated=108,438
100% 100.9% 108,438 109,367
90% 91.2% 97,595 98,871
80% 79.9% 86,751 86,625
70% 70.1% 75,907 75,963
60% 60.1% 65,063 65,144
50% 50.1% 54,219 54,356
40% 38.8% 43,375 42,035
30% 29.9% 32,532 32,416
20% 20.1% 21,688 21,752
10% 10.3% 10,844 11,137
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,757
Calibration 2     110,346
Calibration 3     111,625
ssj_ops@calibrated=110,986
100% 101.1% 110,986 112,206
90% 90.9% 99,887 100,928
80% 80.4% 88,789 89,184
70% 69.9% 77,690 77,617
60% 60.7% 66,591 67,332
50% 49.2% 55,493 54,597
40% 40.3% 44,394 44,696
30% 30.1% 33,296 33,447
20% 19.3% 22,197 21,447
10% 10.0% 11,099 11,087
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,339
Calibration 2     107,378
Calibration 3     108,183
ssj_ops@calibrated=107,780
100% 101.2% 107,780 109,106
90% 91.1% 97,002 98,174
80% 80.0% 86,224 86,200
70% 70.1% 75,446 75,606
60% 59.6% 64,668 64,203
50% 50.4% 53,890 54,368
40% 39.9% 43,112 43,032
30% 29.9% 32,334 32,271
20% 19.9% 21,556 21,412
10% 9.8% 10,778 10,579
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,882
Calibration 2     108,705
Calibration 3     108,613
ssj_ops@calibrated=108,659
100% 100.7% 108,659 109,404
90% 90.8% 97,793 98,694
80% 79.2% 86,927 86,074
70% 69.2% 76,061 75,146
60% 59.9% 65,195 65,067
50% 50.4% 54,329 54,794
40% 39.8% 43,463 43,219
30% 29.7% 32,598 32,224
20% 20.0% 21,732 21,703
10% 9.9% 10,866 10,712
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,084
Calibration 2     108,751
Calibration 3     108,350
ssj_ops@calibrated=108,550
100% 100.9% 108,550 109,529
90% 90.6% 97,695 98,326
80% 80.8% 86,840 87,677
70% 70.3% 75,985 76,306
60% 59.1% 65,130 64,124
50% 50.1% 54,275 54,332
40% 40.4% 43,420 43,824
30% 30.0% 32,565 32,593
20% 19.8% 21,710 21,521
10% 10.0% 10,855 10,884
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,925
Calibration 2     107,864
Calibration 3     108,780
ssj_ops@calibrated=108,322
100% 101.1% 108,322 109,521
90% 91.4% 97,490 98,997
80% 79.7% 86,658 86,289
70% 70.0% 75,826 75,821
60% 59.6% 64,993 64,514
50% 50.5% 54,161 54,755
40% 39.6% 43,329 42,881
30% 29.9% 32,497 32,414
20% 19.9% 21,664 21,584
10% 9.9% 10,832 10,770
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,451
Calibration 2     106,792
Calibration 3     107,216
ssj_ops@calibrated=107,004
100% 100.9% 107,004 108,003
90% 91.2% 96,303 97,552
80% 80.4% 85,603 85,980
70% 69.2% 74,903 74,075
60% 60.3% 64,202 64,515
50% 49.9% 53,502 53,342
40% 40.4% 42,802 43,195
30% 30.2% 32,101 32,271
20% 19.8% 21,401 21,193
10% 9.8% 10,700 10,446
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,540
Calibration 2     107,543
Calibration 3     106,712
ssj_ops@calibrated=107,127
100% 100.5% 107,127 107,643
90% 90.4% 96,415 96,881
80% 79.3% 85,702 84,953
70% 70.1% 74,989 75,057
60% 60.9% 64,276 65,272
50% 50.0% 53,564 53,547
40% 39.7% 42,851 42,489
30% 30.6% 32,138 32,790
20% 20.4% 21,425 21,874
10% 10.0% 10,713 10,716
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,022
Calibration 2     108,088
Calibration 3     107,292
ssj_ops@calibrated=107,690
100% 100.2% 107,690 107,877
90% 91.7% 96,921 98,790
80% 80.5% 86,152 86,710
70% 70.0% 75,383 75,367
60% 60.6% 64,614 65,270
50% 49.9% 53,845 53,776
40% 40.0% 43,076 43,114
30% 30.3% 32,307 32,679
20% 20.1% 21,538 21,606
10% 9.9% 10,769 10,642
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,195
Calibration 2     108,645
Calibration 3     109,404
ssj_ops@calibrated=109,025
100% 100.5% 109,025 109,615
90% 90.0% 98,122 98,117
80% 80.1% 87,220 87,306
70% 69.7% 76,317 75,975
60% 60.0% 65,415 65,384
50% 50.0% 54,512 54,497
40% 39.9% 43,610 43,518
30% 30.3% 32,707 33,020
20% 19.8% 21,805 21,584
10% 10.2% 10,902 11,163
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,128
Calibration 2     108,408
Calibration 3     109,222
ssj_ops@calibrated=108,815
100% 100.8% 108,815 109,738
90% 91.2% 97,934 99,209
80% 79.8% 87,052 86,862
70% 70.5% 76,171 76,733
60% 59.9% 65,289 65,198
50% 49.7% 54,408 54,090
40% 40.6% 43,526 44,168
30% 30.0% 32,645 32,592
20% 19.6% 21,763 21,382
10% 10.3% 10,882 11,154
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,694
Calibration 2     108,609
Calibration 3     107,600
ssj_ops@calibrated=108,104
100% 100.1% 108,104 108,218
90% 91.1% 97,294 98,498
80% 79.3% 86,484 85,681
70% 70.6% 75,673 76,282
60% 60.6% 64,863 65,486
50% 50.3% 54,052 54,375
40% 39.9% 43,242 43,182
30% 30.2% 32,431 32,681
20% 20.2% 21,621 21,793
10% 10.1% 10,810 10,961
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,659
Calibration 2     110,223
Calibration 3     110,903
ssj_ops@calibrated=110,563
100% 100.9% 110,563 111,561
90% 91.1% 99,506 100,740
80% 80.5% 88,450 88,948
70% 69.4% 77,394 76,700
60% 60.8% 66,338 67,213
50% 49.4% 55,281 54,617
40% 40.4% 44,225 44,718
30% 29.6% 33,169 32,724
20% 20.1% 22,113 22,233
10% 10.2% 11,056 11,241
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,222
Calibration 2     107,737
Calibration 3     108,744
ssj_ops@calibrated=108,241
100% 101.1% 108,241 109,445
90% 90.3% 97,416 97,754
80% 80.5% 86,592 87,152
70% 69.2% 75,768 74,911
60% 59.9% 64,944 64,856
50% 50.3% 54,120 54,398
40% 40.3% 43,296 43,625
30% 30.2% 32,472 32,736
20% 19.8% 21,648 21,420
10% 10.0% 10,824 10,817
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,710
Calibration 2     107,541
Calibration 3     107,941
ssj_ops@calibrated=107,741
100% 100.5% 107,741 108,276
90% 90.4% 96,967 97,415
80% 80.2% 86,193 86,414
70% 70.6% 75,419 76,057
60% 60.3% 64,645 64,954
50% 49.7% 53,871 53,512
40% 39.7% 43,096 42,827
30% 30.1% 32,322 32,442
20% 20.0% 21,548 21,558
10% 10.0% 10,774 10,812
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,954
Calibration 2     107,699
Calibration 3     108,200
ssj_ops@calibrated=107,949
100% 100.7% 107,949 108,732
90% 90.8% 97,154 98,016
80% 79.5% 86,359 85,858
70% 69.7% 75,565 75,213
60% 60.1% 64,770 64,896
50% 50.1% 53,975 54,031
40% 39.8% 43,180 42,935
30% 30.1% 32,385 32,468
20% 20.1% 21,590 21,721
10% 10.2% 10,795 10,962
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,245
Calibration 2     108,452
Calibration 3     108,598
ssj_ops@calibrated=108,525
100% 100.6% 108,525 109,161
90% 90.9% 97,673 98,666
80% 80.1% 86,820 86,929
70% 69.6% 75,968 75,522
60% 59.9% 65,115 64,958
50% 49.9% 54,263 54,129
40% 41.4% 43,410 44,902
30% 30.2% 32,558 32,756
20% 19.8% 21,705 21,453
10% 10.0% 10,853 10,862
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,940
Calibration 2     107,027
Calibration 3     107,703
ssj_ops@calibrated=107,365
100% 100.5% 107,365 107,934
90% 90.8% 96,628 97,435
80% 80.2% 85,892 86,114
70% 70.6% 75,155 75,794
60% 60.3% 64,419 64,754
50% 49.6% 53,682 53,267
40% 39.5% 42,946 42,380
30% 30.0% 32,209 32,156
20% 20.0% 21,473 21,491
10% 10.3% 10,736 11,037
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,341
Calibration 2     105,957
Calibration 3     107,020
ssj_ops@calibrated=106,488
100% 101.1% 106,488 107,700
90% 89.5% 95,840 95,305
80% 79.9% 85,191 85,110
70% 70.1% 74,542 74,634
60% 60.0% 63,893 63,914
50% 49.9% 53,244 53,181
40% 39.9% 42,595 42,445
30% 30.0% 31,947 31,934
20% 20.0% 21,298 21,303
10% 10.0% 10,649 10,608
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,976
Calibration 2     108,445
Calibration 3     109,343
ssj_ops@calibrated=108,894
100% 100.8% 108,894 109,759
90% 90.1% 98,004 98,158
80% 80.2% 87,115 87,309
70% 69.1% 76,226 75,205
60% 59.9% 65,336 65,246
50% 50.0% 54,447 54,467
40% 39.5% 43,558 42,981
30% 29.7% 32,668 32,388
20% 20.2% 21,779 22,003
10% 10.5% 10,889 11,380
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,830
Calibration 2     106,964
Calibration 3     107,850
ssj_ops@calibrated=107,407
100% 100.8% 107,407 108,250
90% 91.9% 96,666 98,687
80% 80.2% 85,925 86,118
70% 71.0% 75,185 76,307
60% 59.2% 64,444 63,547
50% 50.1% 53,703 53,769
40% 40.3% 42,963 43,278
30% 30.0% 32,222 32,257
20% 20.2% 21,481 21,695
10% 9.8% 10,741 10,520
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,648
Calibration 2     108,603
Calibration 3     109,394
ssj_ops@calibrated=108,998
100% 101.2% 108,998 110,261
90% 91.6% 98,098 99,790
80% 80.3% 87,199 87,580
70% 70.2% 76,299 76,529
60% 60.4% 65,399 65,789
50% 50.4% 54,499 54,893
40% 40.3% 43,599 43,888
30% 31.0% 32,699 33,738
20% 19.3% 21,800 21,077
10% 9.5% 10,900 10,391
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,401
Calibration 2     108,086
Calibration 3     108,716
ssj_ops@calibrated=108,401
100% 101.2% 108,401 109,704
90% 91.0% 97,561 98,656
80% 80.3% 86,721 87,056
70% 70.3% 75,881 76,188
60% 60.4% 65,041 65,430
50% 49.9% 54,201 54,099
40% 39.7% 43,360 43,056
30% 29.7% 32,520 32,216
20% 19.7% 21,680 21,340
10% 10.0% 10,840 10,866
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,482
Calibration 2     107,848
Calibration 3     108,932
ssj_ops@calibrated=108,390
100% 100.5% 108,390 108,958
90% 91.0% 97,551 98,636
80% 81.2% 86,712 87,993
70% 69.9% 75,873 75,739
60% 60.1% 65,034 65,158
50% 49.3% 54,195 53,466
40% 39.7% 43,356 43,032
30% 30.1% 32,517 32,588
20% 20.0% 21,678 21,686
10% 10.0% 10,839 10,858
Active Idle   0 0
Graph of results
