Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module | SPECpower_ssj2008 = 10,762 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 12, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 3,466 | 22.9 |
Calibration 2 | 3,475 | 23.2 |
Calibration 3 | 3,483 | 23.2 |
100% | 3,472 | 23.2 |
90% | 3,145 | 23.1 |
80% | 2,751 | 23.0 |
70% | 2,341 | 22.9 |
60% | 2,058 | 22.9 |
50% | 1,808 | 22.9 |
40% | 1,579 | 22.8 |
30% | 1,364 | 22.8 |
20% | 1,167 | 22.8 |
10% | 990 | 22.9 |
Active Idle | 535 | 22.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 3 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1 and 2 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

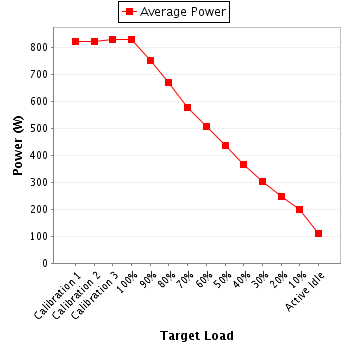

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 214 | 300.0 | 3.88 | 5.0 | 0.992 | 823 | 0.4% |
Calibration 2 | 214 | 300.0 | 3.87 | 5.0 | 0.992 | 823 | 0.4% |
Calibration 3 | 214 | 300.0 | 3.90 | 5.0 | 0.992 | 829 | 0.4% |
100% | 214 | 300.0 | 3.91 | 5.0 | 0.992 | 831 | 0.4% |
90% | 214 | 300.0 | 3.55 | 5.0 | 0.990 | 754 | 0.4% |
80% | 214 | 300.0 | 3.15 | 5.0 | 0.988 | 669 | 0.4% |
70% | 215 | 300.0 | 2.73 | 5.0 | 0.984 | 576 | 0.4% |
60% | 215 | 300.0 | 2.41 | 5.0 | 0.980 | 507 | 0.5% |
50% | 215 | 300.0 | 2.09 | 5.0 | 0.973 | 437 | 0.5% |
40% | 215 | 300.0 | 1.78 | 5.0 | 0.963 | 368 | 0.6% |
30% | 215 | 300.0 | 1.49 | 2.0 | 0.948 | 304 | 0.4% |
20% | 215 | 300.0 | 1.24 | 2.0 | 0.922 | 246 | 0.5% |
10% | 216 | 300.0 | 1.05 | 2.0 | 0.876 | 198 | 0.6% |
Active Idle | 216 | 300.0 | 0.689 | 1.0 | 0.750 | 111 | 0.6% |

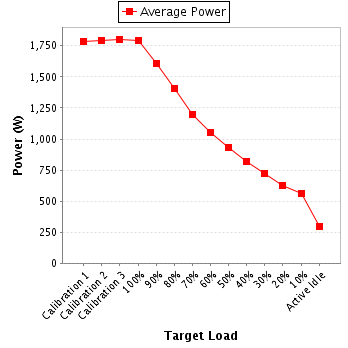

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 213 | 300.0 | 8.43 | 10.0 | 0.995 | 1,788 | 0.3% |
Calibration 2 | 213 | 300.0 | 8.46 | 10.0 | 0.995 | 1,797 | 0.3% |
Calibration 3 | 214 | 300.0 | 8.49 | 10.0 | 0.995 | 1,803 | 0.3% |
100% | 213 | 300.0 | 8.45 | 10.0 | 0.995 | 1,795 | 0.3% |
90% | 214 | 300.0 | 7.58 | 10.0 | 0.993 | 1,609 | 0.4% |
80% | 214 | 300.0 | 6.64 | 10.0 | 0.992 | 1,407 | 0.4% |
70% | 214 | 300.0 | 5.67 | 10.0 | 0.989 | 1,199 | 0.4% |
60% | 214 | 300.0 | 5.00 | 10.0 | 0.985 | 1,055 | 0.5% |
50% | 214 | 300.0 | 4.43 | 5.0 | 0.981 | 932 | 0.4% |
40% | 215 | 300.0 | 3.93 | 5.0 | 0.975 | 823 | 0.4% |
30% | 215 | 300.0 | 3.46 | 5.0 | 0.968 | 718 | 0.4% |
20% | 215 | 300.0 | 3.04 | 5.0 | 0.959 | 626 | 0.4% |
10% | 215 | 300.0 | 2.76 | 5.0 | 0.949 | 563 | 0.5% |
Active Idle | 216 | 300.0 | 1.62 | 2.0 | 0.840 | 293 | 0.5% |

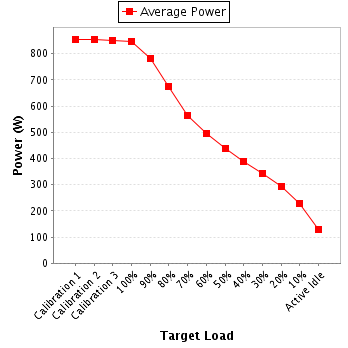

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 211 | 300.0 | 4.08 | 5.0 | 0.992 | 855 | 0.4% |
Calibration 2 | 212 | 300.0 | 4.07 | 5.0 | 0.992 | 856 | 0.4% |
Calibration 3 | 212 | 300.0 | 4.05 | 5.0 | 0.992 | 850 | 0.4% |
100% | 212 | 300.0 | 4.03 | 5.0 | 0.992 | 847 | 0.4% |
90% | 212 | 300.0 | 3.73 | 5.0 | 0.990 | 782 | 0.4% |
80% | 212 | 300.0 | 3.23 | 5.0 | 0.987 | 675 | 0.4% |
70% | 212 | 300.0 | 2.72 | 5.0 | 0.982 | 566 | 0.5% |
60% | 212 | 300.0 | 2.40 | 5.0 | 0.977 | 497 | 0.5% |
50% | 212 | 300.0 | 2.13 | 5.0 | 0.970 | 438 | 0.5% |
40% | 212 | 300.0 | 1.90 | 5.0 | 0.963 | 388 | 0.6% |
30% | 212 | 300.0 | 1.69 | 2.0 | 0.954 | 342 | 0.4% |
20% | 213 | 300.0 | 1.48 | 2.0 | 0.940 | 295 | 0.4% |
10% | 213 | 300.0 | 1.19 | 2.0 | 0.902 | 229 | 0.5% |
Active Idle | 213 | 300.0 | 0.780 | 1.0 | 0.785 | 130 | 0.5% |
