Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,876,420
ssj_ops@100% per JVM = 1,469,105
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,907,517
Calibration 2     5,900,009
Calibration 3     5,898,637
ssj_ops@calibrated=5,899,323
100% 99.6% 5,899,323 5,876,420
90% 89.9% 5,309,391 5,305,126
80% 80.1% 4,719,458 4,727,538
70% 70.0% 4,129,526 4,132,170
60% 60.1% 3,539,594 3,546,113
50% 50.1% 2,949,662 2,954,104
40% 40.0% 2,359,729 2,359,904
30% 30.0% 1,769,797 1,767,713
20% 20.0% 1,179,865 1,177,504
10% 10.0% 589,932 590,047
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: 4.12.14-94.41-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
SY480-10.001 1,475,888
SY480-10.002 1,473,678
SY480-10.003 1,466,020
SY480-10.004 1,460,834
ssj_ops@100% 5,876,420
ssj_ops@100% per JVM 1,469,105

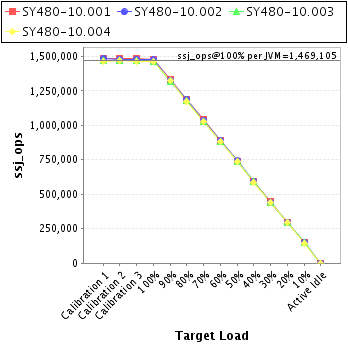

Graph of per-instance results
JVM 'SY480-10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,486,867
Calibration 2     1,481,096
Calibration 3     1,483,969
ssj_ops@calibrated=1,482,533
100% 99.6% 1,482,533 1,475,888
90% 90.0% 1,334,279 1,334,086
80% 80.1% 1,186,026 1,188,037
70% 70.1% 1,037,773 1,039,397
60% 60.1% 889,520 891,547
50% 50.0% 741,266 741,118
40% 39.9% 593,013 591,817
30% 30.0% 444,760 444,559
20% 20.1% 296,507 297,803
10% 10.0% 148,253 148,260
Active Idle   0 0
Graph of results
JVM 'SY480-10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,483,211
Calibration 2     1,479,195
Calibration 3     1,479,616
ssj_ops@calibrated=1,479,406
100% 99.6% 1,479,406 1,473,678
90% 89.8% 1,331,465 1,328,258
80% 80.3% 1,183,525 1,187,260
70% 70.2% 1,035,584 1,038,058
60% 60.1% 887,643 889,246
50% 50.2% 739,703 742,544
40% 40.0% 591,762 591,144
30% 29.9% 443,822 442,086
20% 19.9% 295,881 294,568
10% 10.0% 147,941 148,573
Active Idle   0 0
Graph of results
JVM 'SY480-10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,471,584
Calibration 2     1,470,699
Calibration 3     1,470,025
ssj_ops@calibrated=1,470,362
100% 99.7% 1,470,362 1,466,020
90% 89.8% 1,323,326 1,319,999
80% 80.2% 1,176,290 1,178,772
70% 70.0% 1,029,254 1,029,483
60% 60.0% 882,217 882,338
50% 50.0% 735,181 735,743
40% 40.1% 588,145 589,867
30% 30.0% 441,109 440,793
20% 19.9% 294,072 292,396
10% 10.1% 147,036 147,970
Active Idle   0 0
Graph of results
JVM 'SY480-10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,465,856
Calibration 2     1,469,019
Calibration 3     1,465,026
ssj_ops@calibrated=1,467,022
100% 99.6% 1,467,022 1,460,834
90% 90.2% 1,320,320 1,322,782
80% 80.0% 1,173,618 1,173,469
70% 69.9% 1,026,916 1,025,232
60% 60.2% 880,213 882,981
50% 50.1% 733,511 734,698
40% 40.0% 586,809 587,077
30% 30.0% 440,107 440,275
20% 20.0% 293,404 292,738
10% 9.9% 146,702 145,244
Active Idle   0 0
Graph of results
