SPECpower_ssj2008 Host 'SY480-09' Performance Report

SPECpower_ssj2008

Host 'SY480-09' Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			ssj_ops@100% = 5,908,915 ssj_ops@100% per JVM = 1,477,229
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 12, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=37 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	numactl --cpunodebind=[0-3] --localalloc
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I42 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

See SUT Notes

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

None

JVM 'SY480-09.001' Scores:

See the JVM Instance Performance Report for additional details.

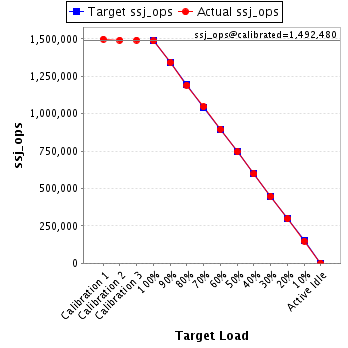

JVM 'SY480-09.002' Scores:

See the JVM Instance Performance Report for additional details.

JVM 'SY480-09.003' Scores:

See the JVM Instance Performance Report for additional details.

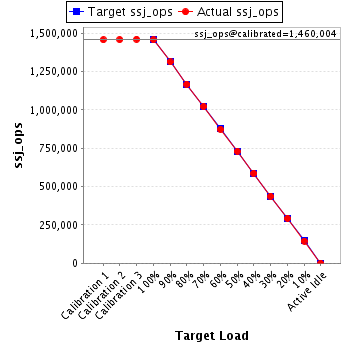

JVM 'SY480-09.004' Scores:

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
